Sector 2 • Card 07 125 PTS
Modular Math Pod
A modular classroom has a volume of \(150\text{ ft}^3\) and a ceiling height of \(10\text{ ft}\).
Architect Mission: Calculate base area \(B\). If the floor width is \(3\text{ ft}\), determine the length.
Check: \(l \times 3 \times 10 = 150\) Applied Dimension
Sector 2 • Card 08 150 PTS
Bank Vault Chamber
A steel safe holds a volume of \(216\text{ in}^3\) with an interior height of \(9\text{ in}\).
Architect Mission: Calculate Base Area \(B\). List ALL whole-number pairs of length & width that form this floor.
Find: 4 factor pairs Factor Analysis

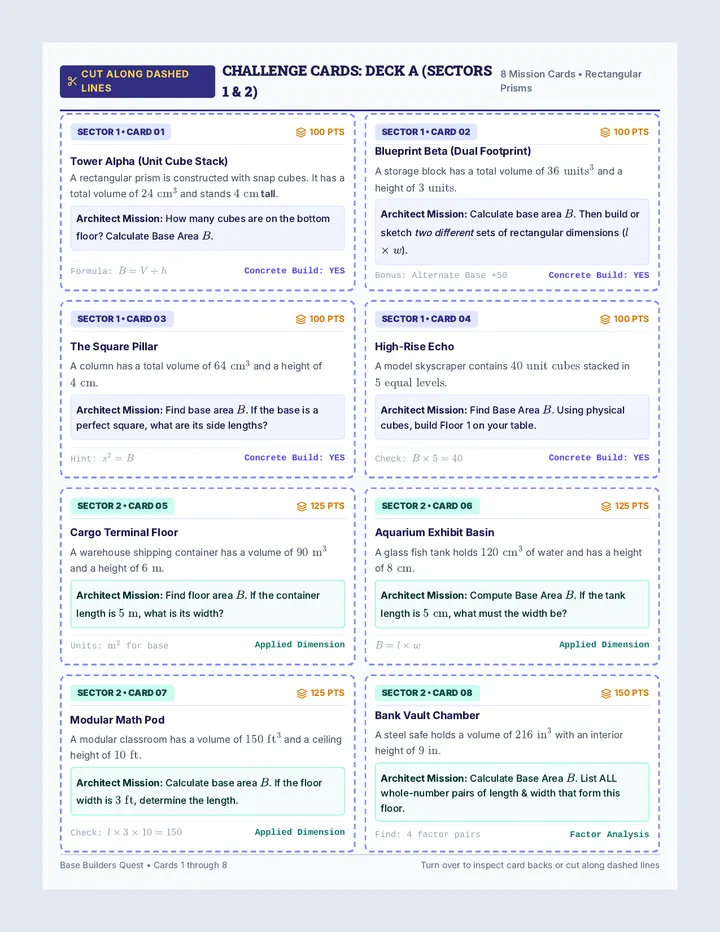

Base Builders Quest • Cards 1 through 8 Turn over to inspect card backs or cut along dashed lines
Cut Along Dashed Lines
8 Mission Cards • Triangular & Mystery
Sector 3 • Card 09 150 PTS
Ramp Pavilion (Triangular Prism)
A triangular ramp has a total volume of \(48\text{ cm}^3\) and prism height/depth of \(6\text{ cm}\).
Architect Mission: Find the triangular Base Area \(B\). Explain why \(V = B \times h\) still works even though the base is triangular.
\(B = \frac{1}{2} b h_{base}\) Triangular Base
Sector 3 • Card 10 150 PTS
Roof Truss Hallway
An attic triangular prism has volume \(70\text{ m}^3\) and prism length \(7\text{ m}\).
Architect Mission: Find Base Area \(B\). If the triangle's base is \(5\text{ m}\), find the triangle's height (\(h_{base}\)).
\(10 = \frac{1}{2}(5)(h_{base})\) Triangular Base
Sector 3 • Card 11 150 PTS
Prism Wedge Skylight
A glass triangular wedge has volume \(96\text{ in}^3\) and prism height \(8\text{ in}\).
Architect Mission: Calculate triangular Base Area \(B\). Name one pair of triangle base and height that multiplies to give this area.
\(B = 12 \implies b \cdot h_b = 24\) Triangular Base
Sector 3 • Card 12 150 PTS
A-Frame Mountain Lodge
A triangular cabin has a total interior space of \(180\text{ ft}^3\) and length of \(12\text{ ft}\).
Architect Mission: Find triangular Base Area \(B\). If the base width is \(6\text{ ft}\), what is the peak roof height?
Check: \(\frac{1}{2}(6)(5) \times 12 = 180\) Triangular Base
Sector 4 • Card 13 175 PTS
The L-Shaped Tower (Composite)
An architectural tower has volume \(84\text{ cm}^3\) and height \(7\text{ cm}\).
Architect Mission: Find Base Area \(B\). Then decompose the base into two non-overlapping rectangles (e.g. \(2\times4\) and \(2\times2\)).
\(B = 12\text{ cm}^2\) Composite Shape
Sector 4 • Card 14 175 PTS
The Height-Doubler Paradox
Prism X has volume \(72\text{ cm}^3\) and height \(6\text{ cm}\). Prism Y has the same volume but height \(12\text{ cm}\).
Architect Mission: Find base area for both. What mathematical rule explains what happens to base area when height is doubled?
Inverse Relationship Deep Thinking
Sector 4 • Card 15 175 PTS
The Decimal Dimension Test
A display case has volume \(108\text{ cm}^3\) and height \(9\text{ cm}\).
Architect Mission: Find Base Area \(B\). Could the base be a rectangle measuring \(2.5\text{ cm} \times 4.8\text{ cm}\)? Prove why or why not.
Test: \(2.5 \times 4.8 = ?\) Decimal Proof
Sector 4 • Card 16 200 PTS
Mega Skyscraper Boss Card
A metropolis civic center has a total volume of \(240\text{ cm}^3\) and stands \(8\text{ cm}\) tall.
Architect Mission: Find Base Area \(B\). Then find THREE completely different rectangular base pairs \((l, w)\) that equal \(B\).
\(B = 30\text{ cm}^2\) Mastery Challenge
Base Builders Quest • Cards 9 through 16 Cut along outer dashed lines • Laminate for repeated classroom play

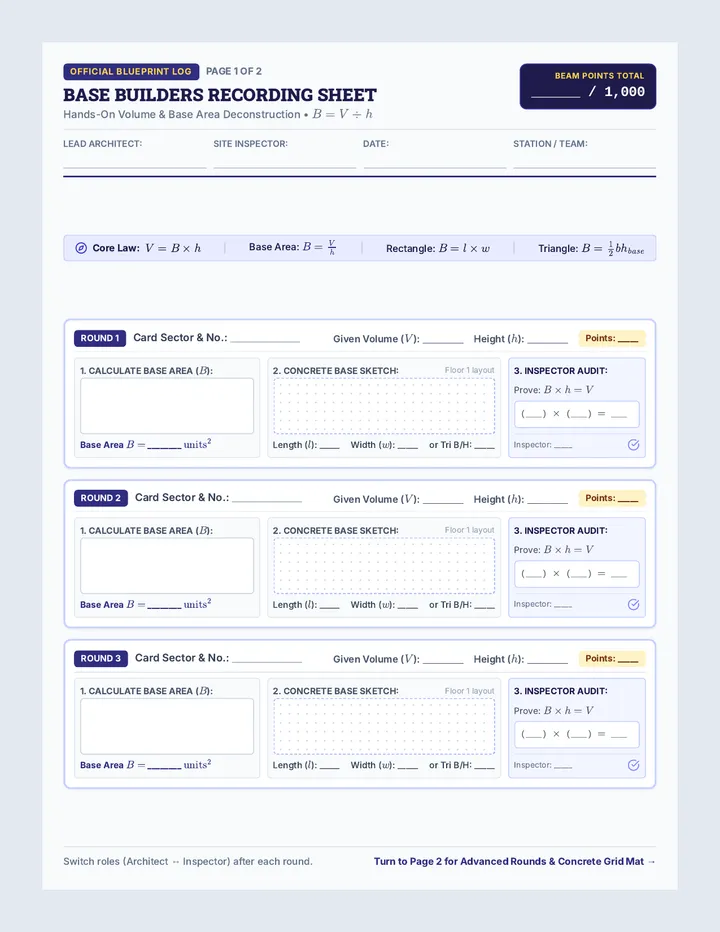

3. Inspector Audit:
Prove: \(B \times h = V\)
(___) \(\times\) (___) \(=\) ___
Inspector: _____
ROUND 5 (FINAL BOSS) Card Sector & No.: ___________
Volume (\(V\)): _______ Height (\(h\)): _______ Points: _____
1. Calculate Base (\(B\)):
Base Area \(B =\) ________ \(\text{units}^2\)
2. Base Breakdown: Dimensions or slices
Dim 1: _____ Dim 2: _____ Alt Base: _____
3. Inspector Audit:
Prove: \(B \times h = V\)
(___) \(\times\) (___) \(=\) ___
Inspector: _____
Manipulative Testing Mat (Place Physical Centimeter Cubes Here)
1 grid square = 1 cm² unit base tile
Use this grid to physically snap cubes together to confirm your base footprint before writing.
Architect Reflection & Conceptual Debrief
Explain how dividing volume by prism height reveals the base area:
“When I divide Volume by Height (\(B = V \div h\)), I am finding _________________________________________ because the height represents ________________________________________________________________________.”

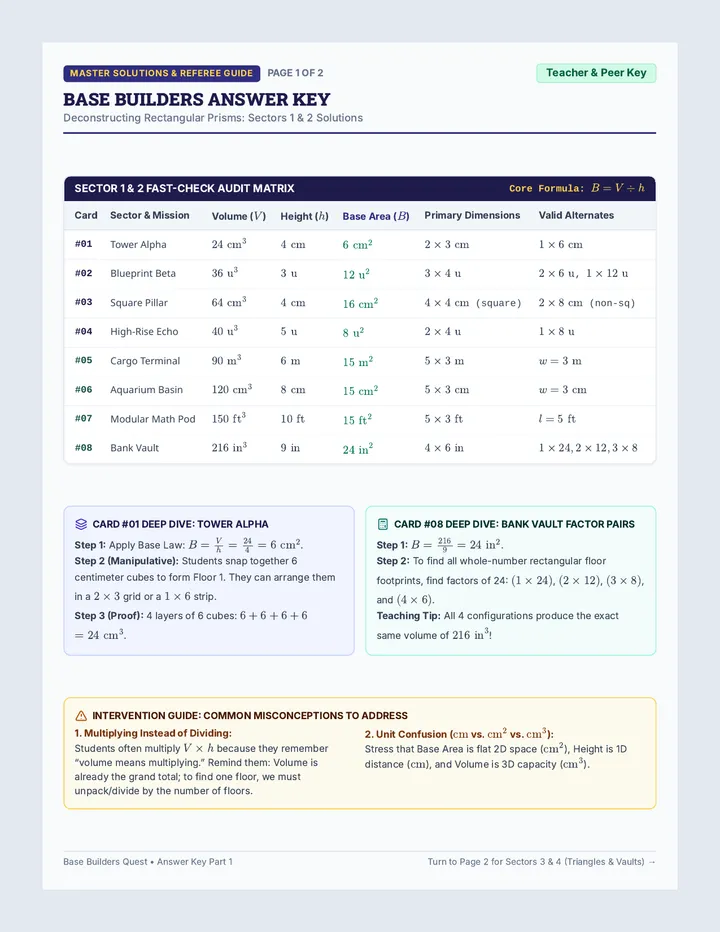

Step 1: \(B = \frac{216}{9} = 24\text{ in}^2\).
Step 2: To find all whole-number rectangular floor footprints, find factors of 24: \((1 \times 24)\), \((2 \times 12)\), \((3 \times 8)\), and \((4 \times 6)\).
Teaching Tip: All 4 configurations produce the exact same volume of \(216\text{ in}^3\)!
1. Multiplying Instead of Dividing: Students often multiply \(V \times h\) because they remember “volume means multiplying.” Remind them: Volume is already the grand total; to find one floor, we must unpack/divide by the number of floors.
2. Unit Confusion (\(\text{cm}\) vs. \(\text{cm}^2\) vs. \(\text{cm}^3\)): Stress that Base Area is flat 2D space (\(\text{cm}^2\)), Height is 1D distance (\(\text{cm}\)), and Volume is 3D capacity (\(\text{cm}^3\)).
Base Builders Quest • Answer Key Part 1 Turn to Page 2 for Sectors 3 & 4 (Triangles & Vaults) →
Master Solutions & Referee Guide PAGE 2 OF 2
Advanced Solutions
Deconstructing Triangular Prisms (\(B = \frac{1}{2}bh\)) and Master Challenges
SECTOR 3 & 4 FAST-CHECK AUDIT MATRIX Triangular: \(B = \frac{1}{2} b h_{base}\)
| Card | Sector & Mission | Volume (\(V\)) | Height (\(h\)) | Base Area (\(B\)) | Base Dimensions | Solution Proof |
|---|---|---|---|---|---|---|
| #09 | Ramp Pavilion | \(48\text{ cm}^3\) | \(6\text{ cm}\) | \(8\text{ cm}^2\) | \(b=4, h_b=4\) (or \(2\times8\)) | \(\frac{1}{2}(4)(4) = 8\) |
| #10 | Roof Truss Hall | \(70\text{ m}^3\) | \(7\text{ m}\) | \(10\text{ m}^2\) | \(b=5\text{ m}, h_b=4\text{ m}\) | \(\frac{1}{2}(5)(4) = 10\) |
| #11 | Wedge Skylight | \(96\text{ in}^3\) | \(8\text{ in}\) | \(12\text{ in}^2\) | \(b=6\text{ in}, h_b=4\text{ in}\) | \(\frac{1}{2}(6)(4) = 12\) |
| #12 | A-Frame Lodge | \(180\text{ ft}^3\) | \(12\text{ ft}\) | \(15\text{ ft}^2\) | \(b=6\text{ ft}, h_b=5\text{ ft}\) | \(\frac{1}{2}(6)(5) = 15\) |
| #13 | L-Shaped Tower | \(84\text{ cm}^3\) | \(7\text{ cm}\) | \(12\text{ cm}^2\) | Composite footprint | e.g., \((2\times4) + (2\times2) = 12\) |
| #14 | Height Paradox | \(72\text{ cm}^3\) | \(6\) & \(12\text{ cm}\) | \(12\) & \(6\text{ cm}^2\) | Inverse relationship | Doubling \(h\) cuts \(B\) in half! |
| #15 | Decimal Proof | \(108\text{ cm}^3\) | \(9\text{ cm}\) | \(12\text{ cm}^2\) | \(2.5 \times 4.8 = 12.0\) | YES! Dimensions are valid. |
| #16 | Mega Boss Card | \(240\text{ cm}^3\) | \(8\text{ cm}\) | \(30\text{ cm}^2\) | 3 distinct pairs | \((3\times10), (5\times6), (2\times15)\) |
Students often struggle with triangular prisms because they see two different "heights."
• Prism Height (\(h\)): The distance between the two triangular bases.
• Triangle Height (\(h_{base}\)): The perpendicular height of the triangle itself.
Once \(B = V \div h\) is found, the triangle's area must satisfy \(\frac{1}{2} \times b \times h_{base} = B\).
For constant volume \(V\), Base Area \(B\) and Height \(h\) have an inverse relationship.
If a building is twice as tall (\(6 \to 12\)), it needs only half the footprint (\(12 \to 6\)) to contain the exact same total space. This is a foundational bridge to 8th-grade inverse functions!
“When I divide Volume by Height (\(B = V \div h\)), I am finding how many unit cubes make up one single flat base layer because the height represents how many identical layers are stacked on top of each other to create the full 3D prism.”
Base Builders Quest • Master Answer Key Complete Use for student self-checks, station audits, or teacher grading
