Angle Sparks Slides
Angle Sparks
Building the Foundation
The Anatomy
The Vertex
The corner point where two lines meet. It's the "hinge."
The Rays
The two straight arms that spread apart from the vertex.
Vertex
Ray
Ray
The 360 Rule
Every angle is just a slice of a full circle.
- A full turn is 360 degrees.
- A tiny "sliver" is 1 degree.
- Think of it like 360 tiny pizza slices!
360° Total
The Landmarks
Right Turn
90° 1/4 Circle
Straight Turn
180° 1/2 Circle
Full Turn
360° Full Circle
The Clock Secret
A clock is just a circle with built-in measurements!
Math Fact:
360° ÷ 12 hours =
30°
Every "hour jump" is 30 degrees.
12 3 6 9
90°

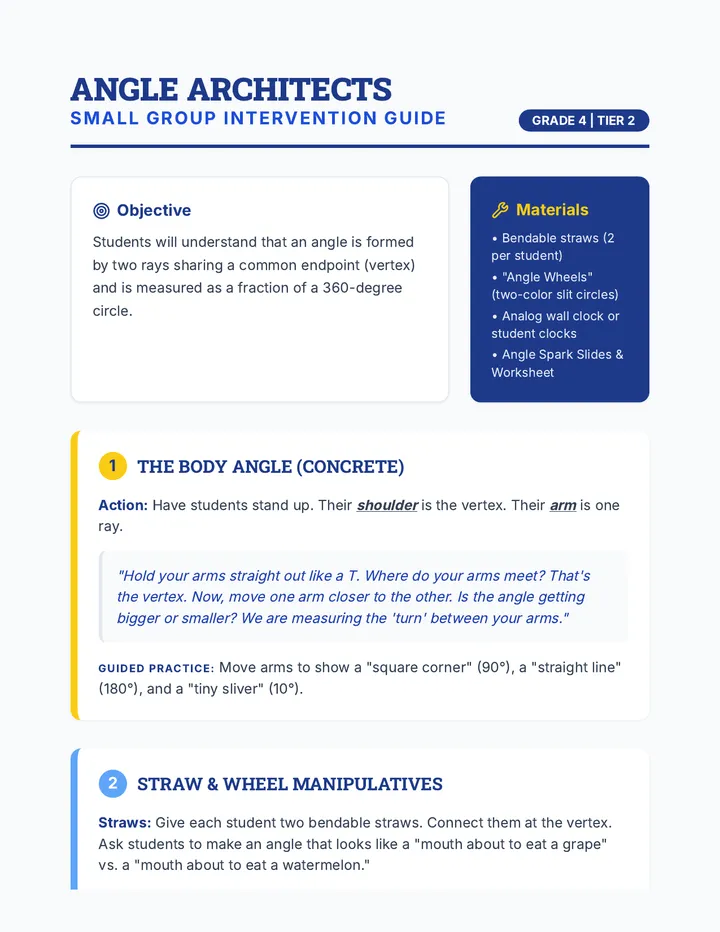

Angle Architects Teacher Guide
Angle Architects
Small Group Intervention Guide
GRADE 4 | TIER 2
Objective
Students will understand that an angle is formed by two rays sharing a common endpoint (vertex) and is measured as a fraction of a 360-degree circle.
Materials
- • Bendable straws (2 per student)
- • "Angle Wheels" (two-color slit circles)
- • Analog wall clock or student clocks
- • Angle Spark Slides & Worksheet
1
The Body Angle (Concrete)
Action: Have students stand up. Their shoulder is the vertex. Their arm is one ray.
"Hold your arms straight out like a T. Where do your arms meet? That's the vertex. Now, move one arm closer to the other. Is the angle getting bigger or smaller? We are measuring the 'turn' between your arms."
Guided Practice: Move arms to show a "square corner" (90°), a "straight line" (180°), and a "tiny sliver" (10°).
2
Straw & Wheel Manipulatives
Straws: Give each student two bendable straws. Connect them at the vertex. Ask students to make an angle that looks like a "mouth about to eat a grape" vs. a "mouth about to eat a watermelon."
Angle Wheels: Using two different colored circles with a single radius slit, slide them together. Rotate to show the 360-degree "slice."
Key Question:
"If I turn the wheel all the way around, how many degrees did I travel? (360). What if I only turn it halfway? (180)."
3
The Clock Connection
Explain that a clock face is a perfect 360° circle divided into 12 sections.
The 30° Rule: \(360 \div 12 = 30\). Every hour represents a 30° turn.
| Time | Fraction of Circle | Degrees |
|---|
| 3:00 | 1/4 of a circle | 90° |
| 6:00 | 1/2 of a circle | 180° |
| 1:00 | 1/12 of a circle | 30° |
Misconception Alert
Students often think longer rays mean a larger angle. Use the straws to show that the length of the straw doesn't change the size of the "turn" (the opening).

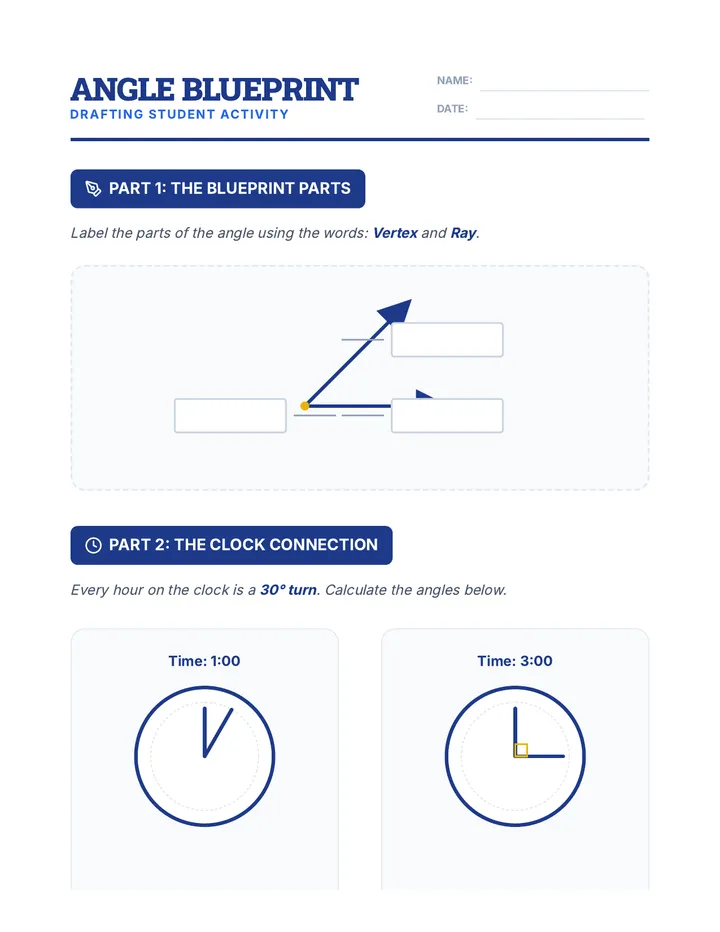

Angle Blueprint Activity
Angle Blueprint
Drafting Student Activity
Name:
Date:
Part 1: The Blueprint Parts
Label the parts of the angle using the words: Vertex and Ray.
Part 2: The Clock Connection
Every hour on the clock is a 30° turn. Calculate the angles below.
Time: 1:00
Degrees:
°
Time: 3:00
Degrees:
°
Time: 4:00
Degrees:
°
Challenge: 6:00
(Straight Angle)
Degrees:
°
The Architect's Thought
If an architect draws a full circle on a blueprint, how many degrees has the pencil rotated from start to finish?
