A coherent spatial measurement sequence bridging two-dimensional surface coverage to three-dimensional volume measurement. Students transition from tiling flat regions with unit squares to packing solid rectangular prisms with unit cubes, connecting spatial arrays to multiplicative formulas.
Ready for independent practice! Grab your worksheets! Slide 5 of 5
Number of horizontal rows: _____
Number of columns per row: _____
Multiplication Sentence:
_____ × _____ = _____ sq units
8. Designer Challenge: On the grid below, draw and shade a rectangle that has an area of exactly \(18\text{ square units}\).
My rectangle has:
Rows: _____ Columns: _____
Multiplication equation:
_____ × _____ = 18 sq units
4
Part 4: Real-World Blueprint & Math Reasoning
9. Blueprint Problem: Architect Maya is designing a rectangular garden bed. The garden has 4 rows of soil. Each row can hold 7 square meters of plants. What is the total area of Maya's garden?
Show your work (draw a model or write equations):
Total Garden Area: __________________________________
10. Explain Your Thinking: Why does multiplying the number of rows by the number of columns give the exact same answer as counting every single square one by one?
GRID MASTERS • PRACTICE WORKSHEET PAGE 2 OF 2

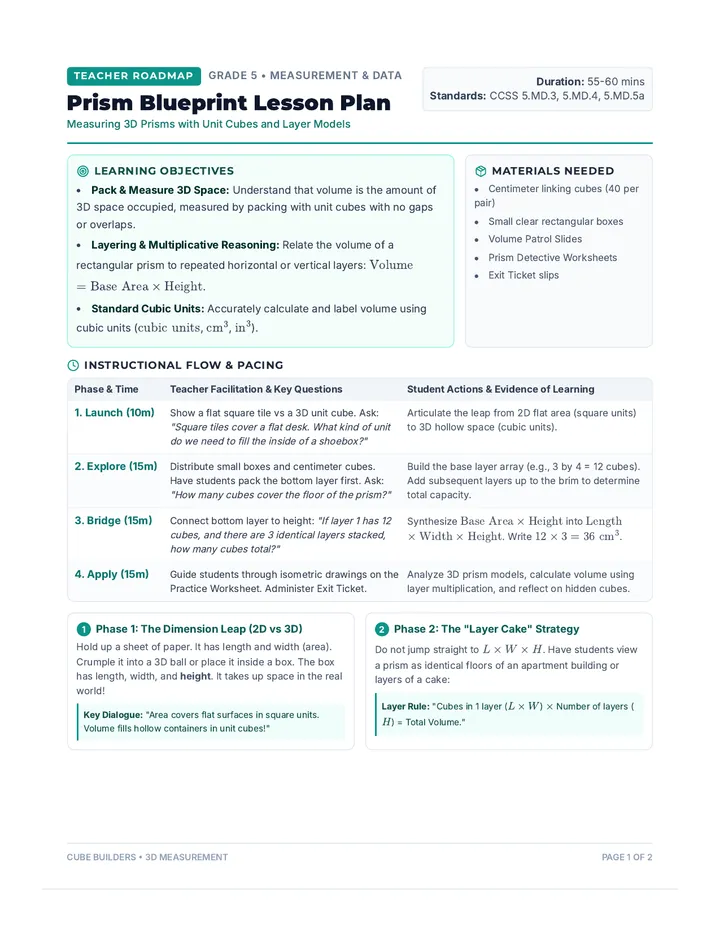

Key Dialogue: "Area covers flat surfaces in square units. Volume fills hollow containers in unit cubes!"
2 Phase 2: The "Layer Cake" Strategy
Do not jump straight to \(L \times W \times H\). Have students view a prism as identical floors of an apartment building or layers of a cake:
Layer Rule: "Cubes in 1 layer (\(L \times W\)) \(\times\) Number of layers (\(H\)) = Total Volume."
CUBE BUILDERS • 3D MEASUREMENT PAGE 1 OF 2
Part II • Instructional Strategies
Standard Cubic Units & Spatial Reasoning
Prisms & Polyhedra
Defining a Unit Cube
A unit cube has sides of length 1, width 1, and height 1. It is the international benchmark for measuring 3D volume:
Cubic Centimeter (\(\text{cm}^3\)): A cube with dimensions \(1\text{ cm} \times 1\text{ cm} \times 1\text{ cm}\). Equal to exactly 1 milliliter (mL) of liquid.
Cubic Inch (\(\text{in}^3\)): A cube with dimensions \(1\text{ in} \times 1\text{ in} \times 1\text{ in}\).
The Two Formulas for Prisms
Help students see that both standard prism volume formulas represent the exact same concept:
Formula 1 (The Layer Model): \(V = B \times h\) where \(B\) is the area of the base (\(L \times W\)) and \(h\) is height.
Formula 2 (The 3 Dimensions): \(V = l \times w \times h\) multiplying length, width, and height in any order (associative property).
Common Misconceptions in 3D Unit Measurement
Student Misconception
Why It Happens
Targeted Teacher Response
Counting Only Visible Faces
Students look at an isometric drawing and count the exposed square faces (surface area), not whole cubes.
Have students build the actual solid prism with cubes first, then take it apart layer-by-layer.
Ignoring Hidden Internal Cubes
Cubes in the center or back of a 3D block are not visible on a flat page, so students skip them.
Reinforce the Layer Rule: "Every row must be filled under the top cubes—cubes cannot float in mid-air!"
Confusing Units (\(\text{cm}\), \(\text{cm}^2\), \(\text{cm}^3\))
Writing square centimeters (\(\text{cm}^2\)) for 3D volume instead of cubic centimeters (\(\text{cm}^3\)).
Anchor with exponents: 1D = cm (line), 2D = \(\text{cm}^2\) (flat), 3D = \(\text{cm}^3\) (cube).
Support / Intervention
Provide snap cubes in 3 different colors. Assign each color to a horizontal layer so students can physically see that 3 layers of 8 make 24 cubes.
On-Target Practice
Given partially packed prism outlines (e.g. bottom layer packed and height shown), calculate how many additional unit cubes are required to completely fill the prism.
Extension / Composite 3D
Calculate the volume of composite 3D figures (stepped prisms or L-shaped 3D solids) by decomposing into two non-overlapping rectangular prisms.
CUBE BUILDERS • 3D MEASUREMENT PAGE 2 OF 2
Classroom Challenge
Prism Calculation Showdown!
Prism Dimensions:
• Length: 5 centimeters
• Width: 2 centimeters
• Height: 4 centimeters
How many \(1\text{ cm}^3\) unit cubes fit inside?
Step 1: Find the Base Layer Area
\(5 \times 2 = 10\text{ cm}^2\)
Step 2: Multiply by Height (4 layers)
\(10 \times 4 = 40\)
Step 3: State Total with 3D Cubic Units
\(40\text{ cubic centimeters}\) (\(\text{cm}^3\))

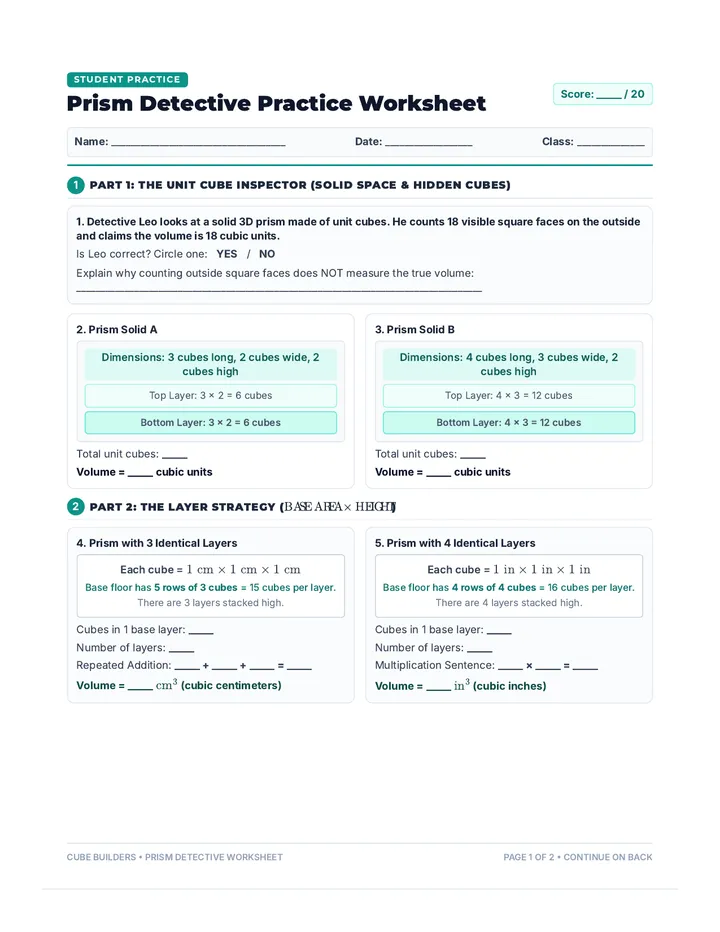

Ready to build! Open your Prism Detective Worksheets! Slide 5 of 5
Name: _______________________________
3
Part 3: Volume Formula Mastery (\(V = l \times w \times h\) or \(V = B \times h\))
6. Rectangular Gift Box
Length (\(l\)) = 8 cm
Width (\(w\)) = 5 cm
Height (\(h\)) = 3 cm
Base Area (\(B = l \times w\)): _____ \(\text{cm}^2\)
8. Reverse Detective: A rectangular prism has a known Volume of \(48\text{ cubic inches}\). Its base area is \(12\text{ square inches}\).
How many layers high is the prism?
Equation: \(12 \times \text{Height} = 48\)
Height = _____ inches
4
Part 4: Packaging Engineer Challenge & Math Reasoning
9. Shipping Container Challenge: Engineer Clara needs to pack exactly 24 unit cube boxes into a master shipping carton shaped like a rectangular prism. List TWO different sets of dimensions (\(l, w, h\)) Clara could design:
Carton Design 1:
Length = _____ Width = _____ Height = _____
Check: ___ × ___ × ___ = 24
Carton Design 2:
Length = _____ Width = _____ Height = _____
Check: ___ × ___ × ___ = 24
10. Synthesize Your Learning: What is the difference between measuring a flat shape in square centimeters (\(\text{cm}^2\)) and measuring a 3D prism in cubic centimeters (\(\text{cm}^3\))?
CUBE BUILDERS • PRISM DETECTIVE WORKSHEET PAGE 2 OF 2
