Aligning Foundations Slides Day 1: Adding Decimals
Aligning the Foundations
Learn how to line up your decimals and add numbers like a professional master builder!
Decimal Architects • Lesson 1
Slide 1 of 6
The Golden Rule: Line Them Up!
RULE #1
Just like support columns in a building, math columns must stand directly on top of each other.
If your decimal points do not line up perfectly, your columns will collapse!
Always line up by the decimal point , not by the last number. This keeps Tens, Ones, Tenths, and Hundredths together!
Wrong Line-up (Unsafe!) 12.4 + 3.85 = 5.09 ?
Correct Line-up (Safe!) 12.4.0 + 3.85 = 16.25
Aligning the Foundations • Grade 5–6 Math
Slide 2 of 6
Our Helper: The Placeholder Zero
HELPER ZERO
Builders use temporary wooden frames to hold parts of a building in place while they work.
In decimals, we use Helper Zeros to hold empty places for us!
Adding a zero to the very end of a decimal does NOT change how much it is worth, but it makes adding much easier!
8.4 = 8.40 = 8.400
Lining Up the Columns
Problem: 14.3 + 2.16
Helper Zero Added
14.30
+ 2.16
16.46
Aligning the Foundations • Grade 5–6 Math
Slide 3 of 6
Four Steps to Adding Decimals
STEPS
1
Write down the first number with its decimal point clearly visible.
2
Line up the second number directly underneath decimal-to-decimal.
3
Put helper zeros in any empty boxes at the end of the numbers.
4
Add normally from right to left, then drop the decimal point straight down.
On-Site Example
27.5 + 4.83
Line Up & Add Zero:
27.50
+4.83
Add & Drop Point:
32.33
Aligning the Foundations • Grade 5–6 Math
Slide 4 of 6
Let's Practice Together!
TRY IT
Practice #1
Whole Number + Decimal
42 + 8.65
Where is the decimal point in 42? Remember, every whole number has an invisible decimal point at the very end!
Setup: 42.00 + 8.65 Answer: 50.65
Practice #2
Different Number of Places
15.7 + 3.125
How many placeholders do you need to add to 15.7 to match three decimal places?
Setup: 15.700 + 3.125 Answer: 18.825
Aligning the Foundations • Grade 5–6 Math
Slide 5 of 6
Master Builder Checklist
SUMMARY
Quick Checklist for Success:
Decimal points must be aligned straight up and down.
Fill in any empty holes with helper zeros.
Drop the decimal point straight down into the final answer.
Drafting Task
Exit Ticket
On your scratch paper, calculate the sum of 48.2 + 6.953 . Make sure your decimal columns line up perfectly!
Turn in to Teacher
Aligning the Foundations • Grade 5–6 Math
Slide 6 of 6
Addition Blueprints Worksheet Decimal Architects series
Addition Blueprints Worksheet
Project Name: Building with Decimals • Grade 5 Math
Architect:
Date:
Drafting Guide: The Golden Rule
Just like steel columns, numbers must align! Always line up your numbers by the decimal point before you begin adding. Put a placeholder 0 in any empty spots to keep your structure safe and stable.
1 Drafting Scaffold Columns (Add Placeholders)
Rewrite each number to have the target decimal places. The first one is modeled for you!
A. Target: Hundredths
8.4 8.40
B. Target: Thousandths
12.57 ____________
C. Target: Hundredths
35 ____________
2 Grid-Guided Foundations
Solve the addition problems using the grid guides. We have lined up the decimal points for you! Write one digit per box.
Problem 1: 14.35 + 6.2
1
4
.
3
5
6
.
2
0
.
Problem 2: 28.6 + 5.92
2
8
.
6
0
5
.
9
2
.
Unit 1: Decimals • Session 1: Addition Page 1 of 2
Decimal Architects series
Addition Blueprints Worksheet
Part II: Independent Construction & On-Site Problem Solving
Architect:
3 Independent Blueprint Construction
Rewrite the problems in column form inside the grids. Line up the decimal point, add placeholders as needed, and solve.
Problem 3: 45.8 + 9.17
.
.
.
Problem 4: 124.5 + 3.86
.
.
.
4 Architect's Site Calculations
Task 1: An architectural team is measuring the heights of two support beams. Beam A is 14.65 meters tall. Beam B is 9.8 meters tall. If they stack Beam B on top of Beam A, what is the combined height?
Show Your Work (Align Columns):
Final Combined Height:

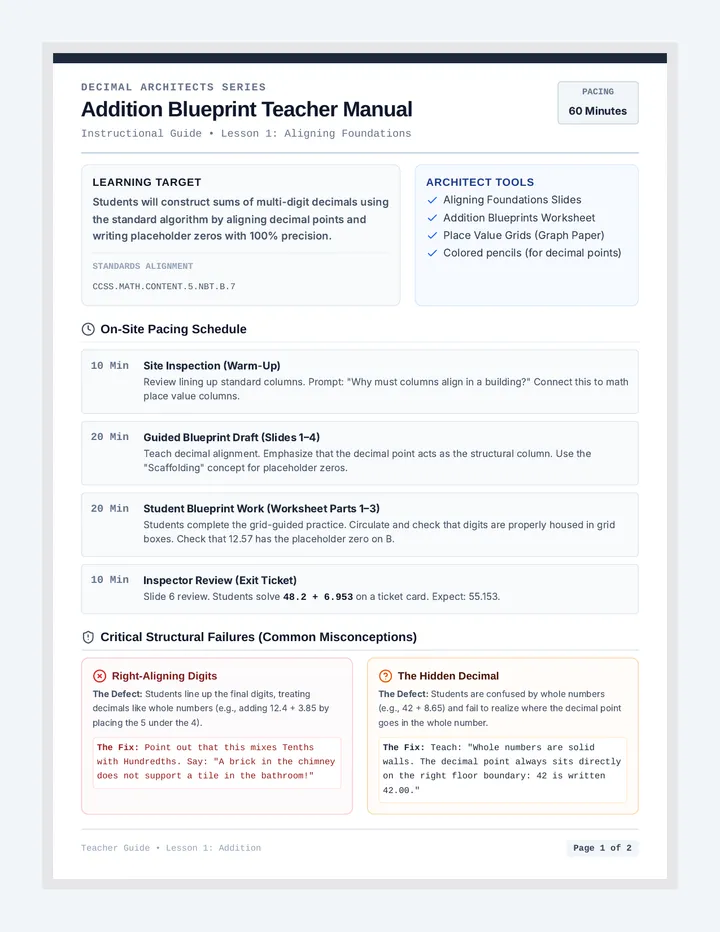

Addition Architect Teacher Guide Decimal Architects series
Addition Blueprint Teacher Manual
Instructional Guide • Lesson 1: Aligning Foundations
Pacing 60 Minutes
Learning Target
Students will construct sums of multi-digit decimals using the standard algorithm by aligning decimal points and writing placeholder zeros with 100% precision.
Standards Alignment CCSS.MATH.CONTENT.5.NBT.B.7
Architect Tools
Aligning Foundations Slides
Addition Blueprints Worksheet
Place Value Grids (Graph Paper)
Colored pencils (for decimal points)
On-Site Pacing Schedule
10 Min
Site Inspection (Warm-Up)
Review lining up standard columns. Prompt: "Why must columns align in a building?" Connect this to math place value columns.
20 Min
Guided Blueprint Draft (Slides 1–4)
Teach decimal alignment. Emphasize that the decimal point acts as the structural column. Use the "Scaffolding" concept for placeholder zeros.
20 Min
Student Blueprint Work (Worksheet Parts 1–3)
Students complete the grid-guided practice. Circulate and check that digits are properly housed in grid boxes. Check that 12.57 has the placeholder zero on B.
10 Min
Inspector Review (Exit Ticket)
Slide 6 review. Students solve 48.2 + 6.953 on a ticket card. Expect: 55.153.
Critical Structural Failures (Common Misconceptions)
Right-Aligning Digits
The Defect: Students line up the final digits, treating decimals like whole numbers (e.g., adding 12.4 + 3.85 by placing the 5 under the 4).
The Fix: Point out that this mixes Tenths with Hundredths. Say: "A brick in the chimney does not support a tile in the bathroom!"
The Hidden Decimal
The Defect: Students are confused by whole numbers (e.g., 42 + 8.65) and fail to realize where the decimal point goes in the whole number.
The Fix: Teach: "Whole numbers are solid walls. The decimal point always sits directly on the right floor boundary: 42 is written 42.00."
Teacher Guide • Lesson 1: Addition Page 1 of 2
Decimal Architects series
Addition Blueprint Teacher Manual
Answer Keys & Scripted Teaching Guides
Worksheet Key & Correct Blueprints
Part 1 Solutions

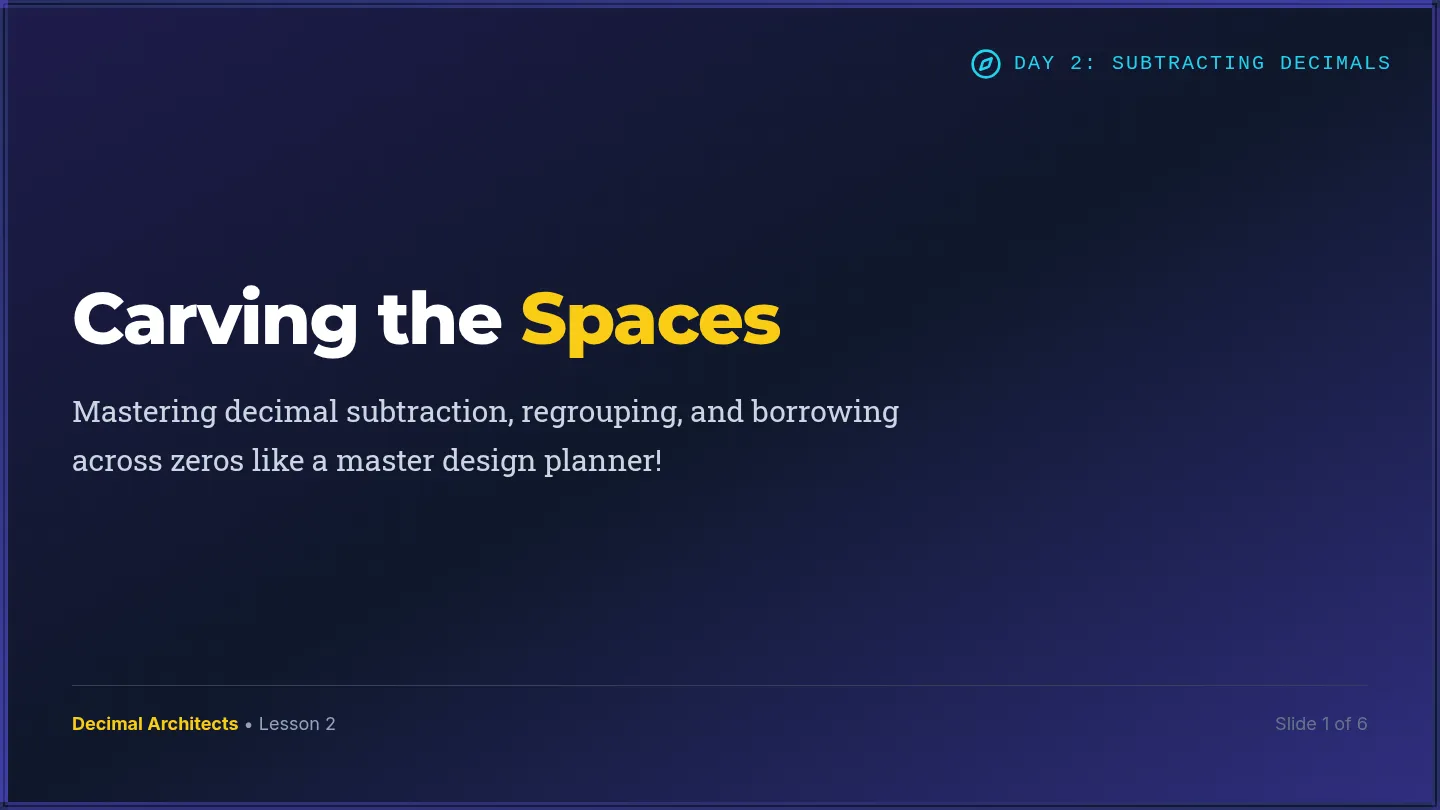

Carving Spaces Slides Day 2: Subtracting Decimals
Carving the Spaces
Mastering decimal subtraction, regrouping, and borrowing across zeros like a master design planner!
Decimal Architects • Lesson 2
Slide 1 of 6
Watch Out: The Danger Zone!
COMMON ERROR
In design, you can't build rooms if you don't know the exact dimensions of your space.
In math, trying to subtract a digit from a blank space is a major construction error!
If there is nothing in a column, you cannot just drag the bottom number down. You must write a helper 0 and borrow from the left!
Unsafe Blueprint: 14.5 - 2.38
14.5blank
- 2.38
Common wrong answer: 12.28
Do not think blank - 8 = 8. Blank means 0, and 0 - 8 requires borrowing!
Carving the Spaces • Grade 5–6 Math
Slide 2 of 6
Making Subtraction Safe
THE SAFE METHOD
How to Safely Subtract
Write a helper zero so your columns are even. Now you have a number on top to borrow into!
1. Line Up: Put 14.5 and 2.38 on top of each other.
Perfect Subtraction Layout
4 10
14.50
-2.38
12.12
Carving the Spaces • Grade 5–6 Math
Slide 3 of 6
Borrowing Across Zeros
CHAIN BORROWING
What if you are subtracting from a whole number of zeros, like 10.0 - 4.25?
You must trigger a chain reaction of borrowing from the first real number on the left.
Each column borrows from its neighbor to the left, changing middle zeros into 9s along the way, until the final column becomes a 10.
Chain Borrowing Steps
0 9 9 10
10.00
-4.25
5.75
Carving the Spaces • Grade 5–6 Math
Slide 4 of 6
Let's Practice Together!
TRY IT
Practice #1
Subtracting Tenths
25.3 - 4.18
Add a helper zero to make it 25.30. Borrow from the tenths place to make 10 hundredths!
Setup: 25.30 - 4.18 Answer: 21.12
Practice #2
Subtracting from a Whole
8 - 2.45
Subtraction Blueprints Worksheet Decimal Architects series
Subtraction Blueprints Worksheet
Project Name: Carving the Spaces • Grade 5–6 Math
Architect:
Date:
Demolition Standard: Watch the Empty Columns!
Never subtract from a blank space! If a column on top has no digit, you must construct a placeholder zero . Otherwise, your calculation will collapse. Once you place the zero, regroup (borrow) from the left column if needed.
1 Drafting Helper Zeros (Required Prep)
Rewrite each subtraction expression so both numbers have the same number of decimal places. Place a zero in the blank spots.
A. Initial: 14.8 - 6.25
14.8 14.80
B. Initial: 8.3 - 2.194
8.3 ____________
C. Initial: 12 - 4.75
12 ____________
2 Carving the Spaces (Regrouping Grids)
Solve each subtraction using the grids. We have prepared the helper zeros and top boxes for your regrouped numbers!
Problem 1: 15.40 - 3.82
10
1
5
.
4
0
-
3
.
8
2
.
Problem 2: 20.00 - 6.45 (Chain Borrow)
1
9
9
10
2
0
.
0
0
-
6
.
4
5
.
Unit 1: Decimals • Session 2: Subtraction Page 1 of 2
Decimal Architects series
Subtraction Blueprints Worksheet
Part II: Independent Demolition & On-Site Problem Solving
Architect:
3 Independent Subtraction Drafting
Write the numbers in column form inside the grids. Remember to construct your own placeholder zeros and show borrowing.
Problem 3: 16.3 - 4.28
.
-
.
.
Problem 4: 15 - 8.36
.
-
.
.
4 Architect's Site Demolitions
Task 1: An architectural blueprint plans for a hallway with a target length of 24.5 meters . After carving out the lobby, they have completed 18.75 meters of the hallway. How many meters of the hallway are left to construct?

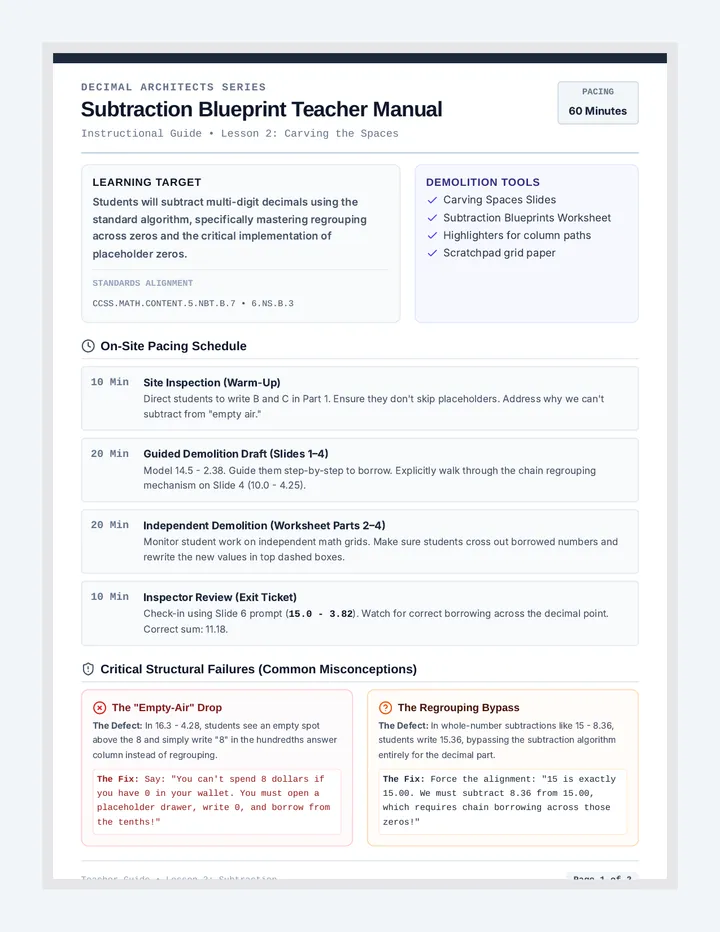

Subtraction Architect Teacher Guide Decimal Architects series
Subtraction Blueprint Teacher Manual
Instructional Guide • Lesson 2: Carving the Spaces
Pacing 60 Minutes
Learning Target
Students will subtract multi-digit decimals using the standard algorithm, specifically mastering regrouping across zeros and the critical implementation of placeholder zeros.
Standards Alignment CCSS.MATH.CONTENT.5.NBT.B.7 • 6.NS.B.3
Demolition Tools
Carving Spaces Slides
Subtraction Blueprints Worksheet
Highlighters for column paths
Scratchpad grid paper
On-Site Pacing Schedule
10 Min
Site Inspection (Warm-Up)
Direct students to write B and C in Part 1. Ensure they don't skip placeholders. Address why we can't subtract from "empty air."
20 Min
Guided Demolition Draft (Slides 1–4)
Model 14.5 - 2.38. Guide them step-by-step to borrow. Explicitly walk through the chain regrouping mechanism on Slide 4 (10.0 - 4.25).
20 Min
Independent Demolition (Worksheet Parts 2–4)
Monitor student work on independent math grids. Make sure students cross out borrowed numbers and rewrite the new values in top dashed boxes.
10 Min
Inspector Review (Exit Ticket)
Check-in using Slide 6 prompt (15.0 - 3.82 ). Watch for correct borrowing across the decimal point. Correct sum: 11.18.
Critical Structural Failures (Common Misconceptions)
The "Empty-Air" Drop
The Defect: In 16.3 - 4.28, students see an empty spot above the 8 and simply write "8" in the hundredths answer column instead of regrouping.
The Fix: Say: "You can't spend 8 dollars if you have 0 in your wallet. You must open a placeholder drawer, write 0, and borrow from the tenths!"
The Regrouping Bypass
The Defect: In whole-number subtractions like 15 - 8.36, students write 15.36, bypassing the subtraction algorithm entirely for the decimal part.
The Fix: Force the alignment: "15 is exactly 15.00. We must subtract 8.36 from 15.00, which requires chain borrowing across those zeros!"
Teacher Guide • Lesson 2: Subtraction Page 1 of 2
Decimal Architects series
Subtraction Blueprint Teacher Manual
Answer Keys & Scripted Teaching Guides
Worksheet Key & Correct Demolitions
Blueprint Budget Challenge Decimal Architects series
Blueprint Budget & Dimension Challenge
Performance Task • Stage 1: Site Dimensioning • Grade 5–6
Lead Architect:
Project Code:
Lead Architect Briefing
Welcome to the site, Lead Architect! Your team is designing the new Precision Plaza . Your blueprints have missing boundary lengths and material expense totals. You must use your decimal alignment, placeholder, and standard algorithm skills to calculate the exact dimensions and sign off on the design.
A Calculating the Boundary Footprint
Read the site notes and calculate the missing perimeter values. Draw columns to show your standard algorithm work!
Footprint Task 1: The north fence is 45.62 meters long. The south fence is exactly 8.4 meters longer than the north fence. What is the length of the south fence?
Standard Algorithm Setup:
South Fence Length:
meters
Footprint Task 2: The east boundary has a total width of 112.35 meters . If they divide it into a concrete driveway of 38.452 meters and a lawn, what is the width of the remaining grass lawn?
Standard Algorithm Setup:
Grass Lawn Width:
meters
Decimal Architects Unit • Final Blueprints Challenge Page 1 of 2
Decimal Architects series
Blueprint Budget & Dimension Challenge
Stage 2: Materials Expense & Budget Audit • Grade 5–6
B Material Expense Audit
You have been given a $500.00 project development grant. Add up your material costs below, then calculate your remaining budget.
Material Component Details / Dimension Cost (Thousandths / Hundredths) 1. Industrial Foundation Rebar Steel supports $124.50 2. Reinforced Concrete Slabs Path pavement $235.85 3. Copper Wiring & Grounding Electrical grid $48.375 4. Fiber-Optic Line Conduit Network framing $9.60
1. Total Material Costs
Use the space below to line up all four decimal costs from the ledger and find the sum.
Total Spent:
$
2. Remaining Fund Audit
Decimal Mastery Assessment Decimal Architects series
Decimal Mastery Unit Assessment
Standard Algorithm Mastery • Grade 5–6 Math
Student:
Date:
Assessment Instructions
Complete all sections carefully. Ensure that you align your decimal points vertically , write all necessary placeholder zeros , and clearly show any regrouping (borrowing/carrying) in the designated spaces above the digits.
1 Algorithmic Addition Precision
Rewrite each addition expression inside the grids and solve. Show all regrouping numbers!
Problem 1: 48.65 + 7.9
.
.
.
Problem 2: 125 + 34.62
.
.
.
2 Algorithmic Subtraction Precision
Rewrite each subtraction expression inside the grids and solve. Be sure to show regrouping and borrowing across zeros!
Problem 3: 24.3 - 5.82
.
-
.
.
Problem 4: 40 - 16.75
.
-
.
.
Decimal Architects Unit • Summative Assessment Page 1 of 2
Decimal Architects series
Decimal Mastery Unit Assessment
Section II: Complex On-Site Word Problems • Grade 5–6 Math
3 Real-World Construction Word Problems
Show all your standard algorithm work inside the workspace boxes. Label your final answer with units.
Problem 5 (Multi-Step): An engineering crew is pouring foundations. Truck A carries 145.8 tons of wet cement. Truck B carries 12.45 tons more than Truck A. What is the total weight of wet cement carried by both trucks?
Standard Algorithm Workspace:
Total Cement Weight:
tons
Problem 6 (Subtraction Regrouping Across Zeros): The main office water tank holds exactly 250 liters . During a morning construction shift, workers drain 84.375 liters . Exactly how many liters of water are remaining in the tank?
Standard Algorithm Workspace:
Water Remaining:
liters
Site Inspector Rubric
Problems 1–4: 15 points each Problems 5–6: 20 points each
Blueprint Mastery Answer Key Decimal Architects series

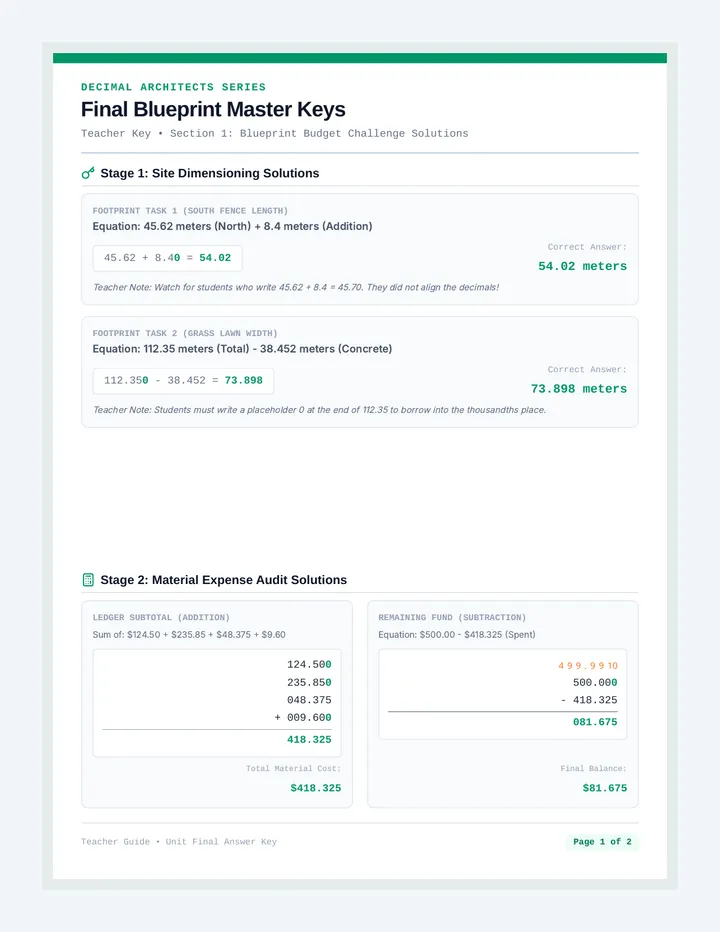

Final Blueprint Master Keys
Teacher Key • Section 1: Blueprint Budget Challenge Solutions
Stage 1: Site Dimensioning Solutions
Footprint Task 1 (South Fence Length)
Equation: 45.62 meters (North) + 8.4 meters (Addition)
45.62 + 8.40 = 54.02
Correct Answer: 54.02 meters
Teacher Note: Watch for students who write 45.62 + 8.4 = 45.70. They did not align the decimals!
Footprint Task 2 (Grass Lawn Width)
Equation: 112.35 meters (Total) - 38.452 meters (Concrete)
112.350 - 38.452 = 73.898
Correct Answer: 73.898 meters
Teacher Note: Students must write a placeholder 0 at the end of 112.35 to borrow into the thousandths place.
Stage 2: Material Expense Audit Solutions
Ledger Subtotal (Addition)
Sum of: $124.50 + $235.85 + $48.375 + $9.60
124.500
235.850
048.375
+ 009.600
418.325
Total Material Cost: $418.325
Remaining Fund (Subtraction)
Equation: $500.00 - $418.325 (Spent)
499.9910
500.000
- 418.325
081.675
Final Balance: $81.675
Teacher Guide • Unit Final Answer Key Page 1 of 2
Decimal Architects series
Final Blueprint Master Keys
Teacher Key • Section 2: Unit Assessment Solutions & Rubric
Assessment Problems 1–4 Solutions (15 Pts Each)
Algorithmic Addition Answers
Problem 1: 48.65 + 7.9 48.65 + 7.90 = 56.55
Problem 2: 125 + 34.62 125.00 + 34.62 = 159.62
Algorithmic Subtraction Answers
Problem 3: 24.3 - 5.82 24.30 - 5.82 = 18.48
Problem 4: 40 - 16.75 40.00 - 16.75 = 23.25
Assessment Word Problems 5–6 Solutions (20 Pts Each)
Problem 5 (Wet Cement Trucks)
Step 1: Calculate Truck B weight.158.25 tons 304.05 tons
Final Answer: 304.05 tons
Problem 6 (Water Tank Drain)
Equation: 250.000 liters - 84.375 liters
Final Answer: 165.625 liters
On-Site Grading Criteria (Rubric Breakdown)
