Blueprint Teacher Guide Instructional Blueprint
HUMAN RATIO BLUEPRINT
Grade 6 • Ratio & Proportional Reasoning (6.RP.A.1)
TEACHER GUIDE
DURATION 60 Minutes
FORMAT Active Inquiry
PREPARATION Low (Print Sheets)
MATH FOCUS Ratios, Fractions
LESSON CONCEPT & COHESION
Ratios are often introduced abstractly as numerical comparisons (e.g., \(a:b\)). This lesson grounds ratio concepts in the classroom community itself. By collecting physical data about their peers (e.g., shoe types, handedness, eye colors), students discover that ratios describe real relationships. They will build a community-driven "classroom ratio profile" that bridges part-to-part ratios, part-to-whole ratios, and equivalent fractions.
Learning Objectives
• Write ratios in three forms (\(a:b\), \(a\) to \(b\), \(\frac{a}{b}\)) to represent classroom attributes.
• Distinguish clearly between part-to-part and part-to-whole relationships.
• Simplify ratios and convert part-to-whole ratios to equivalent fractions and percentages.
Materials & Setup
• Worksheet: "Human Ratio Blueprint Activity"
• Slide Deck: "Ratio Blueprint Slides"
• Open area for standing/grouping by category
LESSON TIMELINE & PACING
10 MIN
Introduction & Concept Blueprint
Introduce ratio notation (\(a:b\), \(a\) to \(b\), \(\frac{a}{b}\)) using simple, immediate comparisons in the classroom.
15 MIN
Guided Exploration: "Classroom Human Graphs"
Physically group students by criteria (e.g., shoe laces vs. slip-ons). Model representing these groups as ratios on the whiteboard.
20 MIN
Independent Activity: "Human Ratio Blueprint"
Students circulate to collect classroom data, completing Page 1 of their worksheets and drafting their Community Ratio Profiles.
15 MIN
Synthesis: Group Reflection & Exit Ticket
Facilitate structured discussion comparing class ratios. Distribute and collect the Exit Ticket to evaluate student mastery.
THE HUMAN RATIO BLUEPRINT • GRADE 6 MATH PAGE 1 OF 2
Instructional Support
PEDAGOGICAL STRATEGIES
Scaffolding, Questioning Frameworks & Assessment Keys
Common Misconceptions
Confusing Part-to-Part & Part-to-Whole: Students may write a part-to-whole fraction when a part-to-part ratio is asked. Example: For 5 right-handed and 2 left-handed, writing \(\frac{2}{5}\) instead of \(\frac{2}{7}\) for the left-handed fraction. Order of Terms: Students fail to match the sequence of numbers to the sequence of words. Example: The ratio of dogs to cats written as \(5:2\) when there are actually 2 dogs and 5 cats.
Questioning Prompts
Formative Check: "If the ratio of boys to girls in our group is \(3:4\), how many parts do we have in total? What fraction of our group are girls?"Extending thinking: "If a different sixth-grade class of 30 students has the exact same ratio of velcro shoes to laces as our class, how could we calculate their exact student counts?"
Differentiation Pathways
Support
Limit data collection categories to dual choices. Use physical circles on the floor to separate categories visually.
On-Level
Perform standard activities: gather 5 categories, simplify ratios, identify part-to-part & part-to-whole relationships.
Extend
Prompt students to compare multi-attribute ratios or perform large scale-ups (e.g., to the school population of 600).
Grading & Master Criteria
Criteria Advanced (4) Proficient (3) Developing (1-2) Ratio Representation Accurately writes all ratios in all 3 formats without error. Distinctly separates variables. Accurately writes ratios in all 3 formats with occasional minor typos. Struggles with notation formats or swaps terms incorrectly. Part vs. Whole Distinction Fractions are correctly derived from parts to represent true wholes. Explicitly articulates total sample size. Mainly derives correct part-to-whole fractions, occasionally using part values as denominator. Frequently confuses part-to-part and part-to-whole relationships. Scaling & Proportionality Scales ratios to hypothetical cohorts correctly with thorough mathematical reasoning. Scales ratios correctly, though mathematical proof is basic or simple. Unable to calculate equivalent proportions or scale up data points.
THE HUMAN RATIO BLUEPRINT • GRADE 6 MATH PAGE 2 OF 2
Ratio Blueprint Slides DWG NO. 6-RP-01
Mathematical Drafting
THE HUMAN RATIO
BLUEPRINT
Let's construct our classroom's numerical profile by comparing real peer attributes.
LOCATION: Grade 6 Mathematics Studio
SHEET NO: 01 OF 06
SEC: CONCEPT
What is a Ratio?
A ratio is a comparison of two quantities. It shows us how much of one thing we have compared to another.
Part-to-Part Ratios
Comparing one group directly to another group.
e.g., Cats : Dogs
Part-to-Whole Ratios
Comparing one specific group to the entire collective.
e.g., Cats : Total Pets
OBJECTIVE: Define relationships between groups
SHEET NO: 02 OF 06
SEC: NOTATION
The Blueprint Notation
Just like architects, mathematicians write specifications in precise ways. We can write ratios in three standard formats :
COLON FORMAT
A : B
"3 : 4"
WORD FORMAT
A to B
"3 to 4"
FRACTION FORMAT
A B
"3 / 4"
KEY POINT: Ratios in fraction format are not always fractions of a whole!
SHEET NO: 03 OF 06
SEC: DATA GATHERING
Constructing the Blueprint
We are about to gather our blueprint data. Follow these simple steps carefully:
1
Group Up: Stand in your designated category locations (e.g., shoe style, birthday group).
2
Count & Record: Count the active participants in each category and record the values on Page 1.
3
Compute: Transform those counts into simplified ratios (Part-to-Part) and fractions (Part-to-Whole).
ACTION: Prepare your blueprint worksheet
SHEET NO: 04 OF 06
SEC: SPECIFICATIONS
Example: The Blueprint Spec
In an art studio, there are 8 Blue Brushes and 12 Yellow Brushes .
Ratio of Blue to Yellow
8 : 12
Simplified: 2 : 3
Fraction of Blue Brushes
8 / 20
Simplified: 2 / 5 (or 40%)
CRITICAL CHECK: Total items = 8 + 12 = 20 (This is your whole denominator)

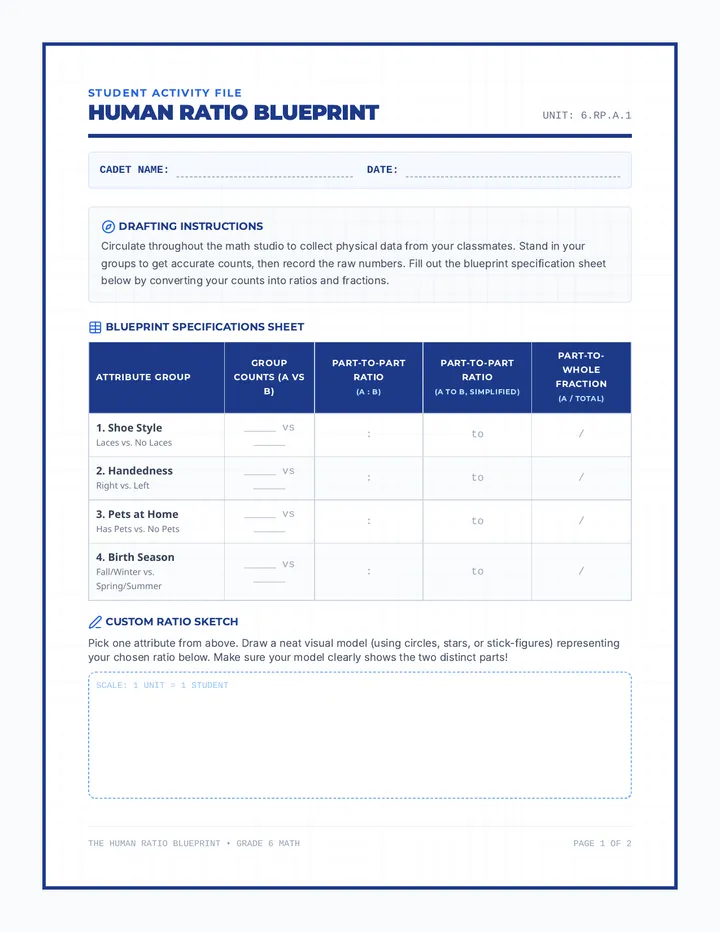

Human Ratio Blueprint Activity Student Activity File
HUMAN RATIO BLUEPRINT
UNIT: 6.RP.A.1
CADET NAME:
DATE:
Drafting Instructions
Circulate throughout the math studio to collect physical data from your classmates. Stand in your groups to get accurate counts, then record the raw numbers. Fill out the blueprint specification sheet below by converting your counts into ratios and fractions.
Blueprint Specifications Sheet
| Attribute Group | Group Counts (A vs B) | Part-to-Part Ratio
Custom Ratio Sketch
Pick one attribute from above. Draw a neat visual model (using circles, stars, or stick-figures) representing your chosen ratio below. Make sure your model clearly shows the two distinct parts!
SCALE: 1 UNIT = 1 STUDENT
THE HUMAN RATIO BLUEPRINT • GRADE 6 MATH PAGE 1 OF 2
Mathematical Analysis
PROPORTIONAL SCALING
1
Scaling up Pet Ownership
Look at your classmate data for Group 3 (Pets at Home) . If a neighboring sixth-grade class of 100 students has the exact same ratio of pet-owners to non-pet owners as our class, how many students in that class would own pets?
SHOW YOUR WORKINGS BELOW:
2
Explaining the Math Model
An architect asserts that the ratio of right-handed to left-handed students in your class is the same as the ratio of right-handed to total students. Is this assertion mathematically correct? Explain the difference using your own class data numbers.
WRITE YOUR ARCHITECTURAL DISCOVERY:
3
Scale to School Level
The school principal wants to print a school-wide brochure. If our school has 400 students , use your Handedness ratio to estimate the number of left-handed students in the entire school.
SHOW YOUR CALCULATIONS:
Blueprint Audit Check
Before submitting your blueprint file to the Master Architect (your teacher), ensure you have: (1) double-checked your counts, (2) simplified all ratios to lowest terms, and (3) written out legible explanations.

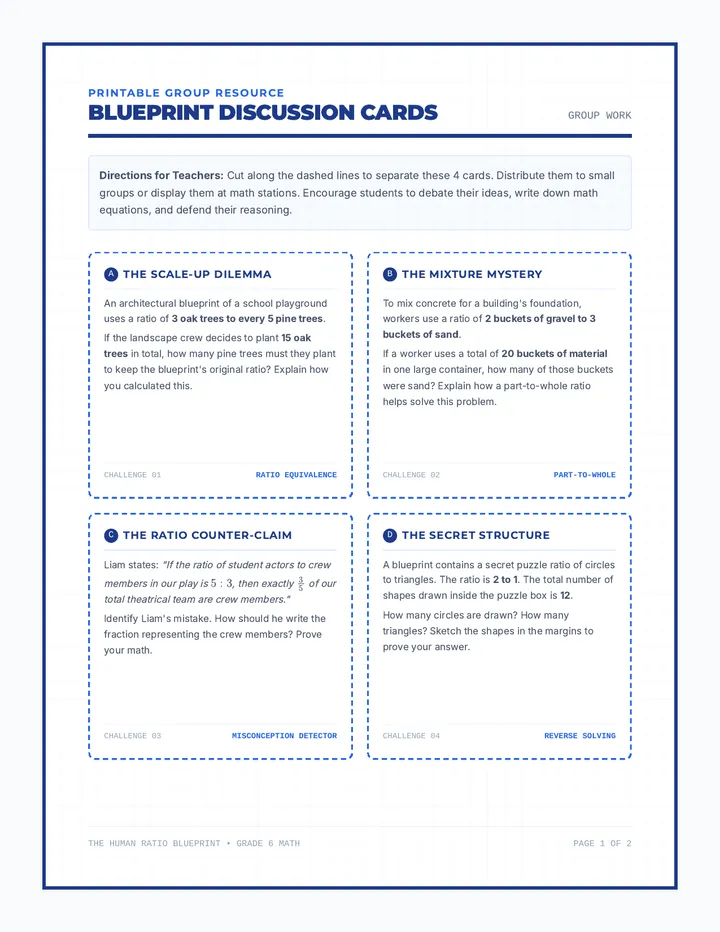

Ratio Blueprint Discussion Cards Printable Group Resource
BLUEPRINT DISCUSSION CARDS
GROUP WORK
Directions for Teachers: Cut along the dashed lines to separate these 4 cards. Distribute them to small groups or display them at math stations. Encourage students to debate their ideas, write down math equations, and defend their reasoning.
A
The Scale-Up Dilemma
An architectural blueprint of a school playground uses a ratio of 3 oak trees to every 5 pine trees .
If the landscape crew decides to plant 15 oak trees in total, how many pine trees must they plant to keep the blueprint's original ratio? Explain how you calculated this.
CHALLENGE 01 RATIO EQUIVALENCE
B
The Mixture Mystery
To mix concrete for a building's foundation, workers use a ratio of 2 buckets of gravel to 3 buckets of sand .
If a worker uses a total of 20 buckets of material in one large container, how many of those buckets were sand? Explain how a part-to-whole ratio helps solve this problem.
CHALLENGE 02 PART-TO-WHOLE
C
The Ratio Counter-Claim
Liam states: "If the ratio of student actors to crew members in our play is \(5:3\), then exactly \(\frac{3}{5}\) of our total theatrical team are crew members."
Identify Liam's mistake. How should he write the fraction representing the crew members? Prove your math.
CHALLENGE 03 MISCONCEPTION DETECTOR
D
The Secret Structure
A blueprint contains a secret puzzle ratio of circles to triangles. The ratio is 2 to 1 . The total number of shapes drawn inside the puzzle box is 12 .
How many circles are drawn? How many triangles? Sketch the shapes in the margins to prove your answer.
CHALLENGE 04 REVERSE SOLVING
THE HUMAN RATIO BLUEPRINT • GRADE 6 MATH PAGE 1 OF 2
CUT HERE FOR CLASSROOM DUAL PRINTING
Formative Assessment
RATIO BLUEPRINT EXIT TICKET
COPY A
NAME:
DATE:
Problem: In a collection of architectural blueprints, there are 6 blueprints of libraries and 10 blueprints of houses .
a) Write the ratio of library blueprints to house blueprints in three distinct ways:
Colon: ______________ Words: ______________ Fraction: ______________
