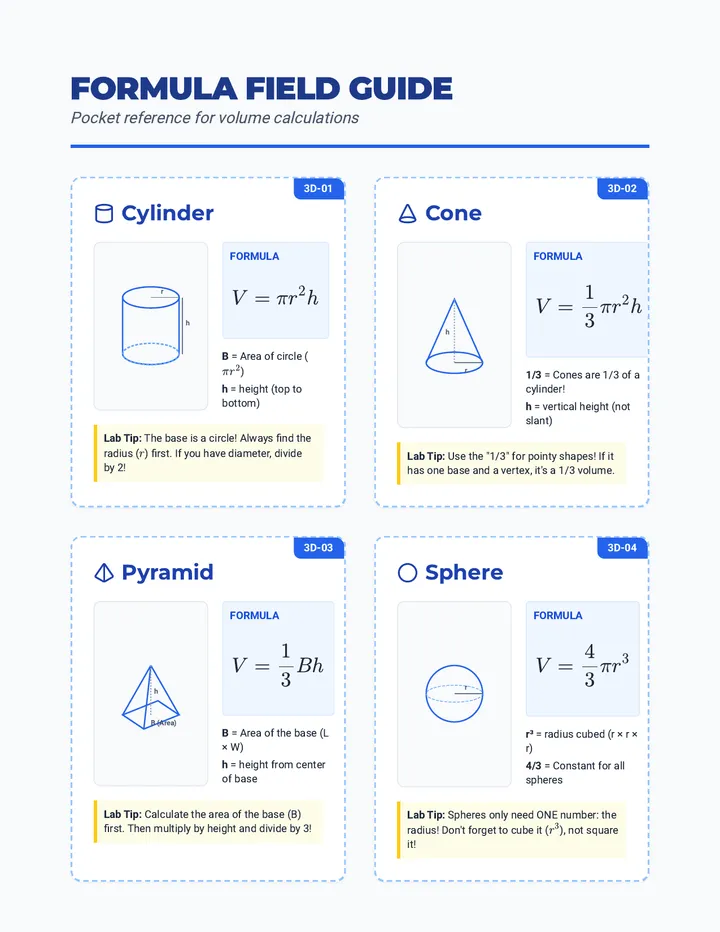

Formula Field Guide Cards Formula Field Guide
Pocket reference for volume calculations
3D-01
Cylinder
r h
Formula
\[V = \pi r^2 h\]
B = Area of circle (\(\pi r^2\))
h = height (top to bottom)
Lab Tip: The base is a circle! Always find the radius (\(r\)) first. If you have diameter, divide by 2!
3D-02
Cone
r h
Formula
\[V = \frac{1}{3} \pi r^2 h\]
1/3 = Cones are 1/3 of a cylinder!
h = vertical height (not slant)
Lab Tip: Use the "1/3" for pointy shapes! If it has one base and a vertex, it's a 1/3 volume.
3D-03
Pyramid
h B (Area)
Formula
\[V = \frac{1}{3} Bh\]
B = Area of the base (L × W)
h = height from center of base
Lab Tip: Calculate the area of the base (B) first. Then multiply by height and divide by 3!
3D-04
Sphere
r
Formula
\[V = \frac{4}{3} \pi r^3\]
r³ = radius cubed (r × r × r)
4/3 = Constant for all spheres
Lab Tip: Spheres only need ONE number: the radius! Don't forget to cube it (\(r^3\)), not square it!
Cut along dashed lines for individual reference cards. Keep in your "Structure Solve" binder.
Volume Lab Slides Geometry Intervention Lab
Volume Lab
Mastering 3D space with the Blueprint Method
Cylinder
Cone
Pyramid
Sphere
What is Volume?
The amount of 3D space inside an object.
The "Filling" Method
Think of volume as how many 1×1×1 cubes fit inside a shape.
Key Vocabulary
Radius (r): Center to edge.
Diameter (d): Edge to edge (\(2r\)).
Height (h): Top to bottom.
Cubic Units
\(u^3\)
The Pointy Rule
Flat Top
Cylinders & Prisms
\[V = Bh\]
CRITICAL CONCEPT
Pointy Top
Cones & Pyramids
\[V = \frac{1}{3} Bh\]
Everything is divided by 3!
Case Study 01
The Soda Can
A standard soda can has a radius of 3 cm and a height of 12 cm . How much soda does it hold?
1
Base Area (\(B\)) = \(\pi \cdot 3^2 = 9\pi\)
2
Volume = \(B \cdot h = 9\pi \cdot 12\)
3
Volume = \(108\pi \approx 339.3 \text{ cm}^3\)
12 cm
height
3 cm
radius
The Sphere Blueprint
Mathematical Formula
\[V = \frac{4}{3} \pi r^3\]
Common Trap!
Many students use squared (\(r^2\)) instead of cubed (\(r^3\)). Remember: Volume is 3-dimensional, so the radius is multiplied 3 times!
Example: Basketball
A basketball has a radius of 4.75 inches .
V = (4/3) π (4.75)³
V = (4/3) π (107.17)
V ≈ 448.9 in³
Your Lab Protocol
1
Identify
Circle the shape. Is it flat or pointy? What variables do you have?
2
Formula
Write down the formula from your reference card immediately.
3
Substitute
Replace letters with numbers. Keep \(\pi\) until the end.
4
Calculate
Use your calculator. Round to the nearest tenth if asked.

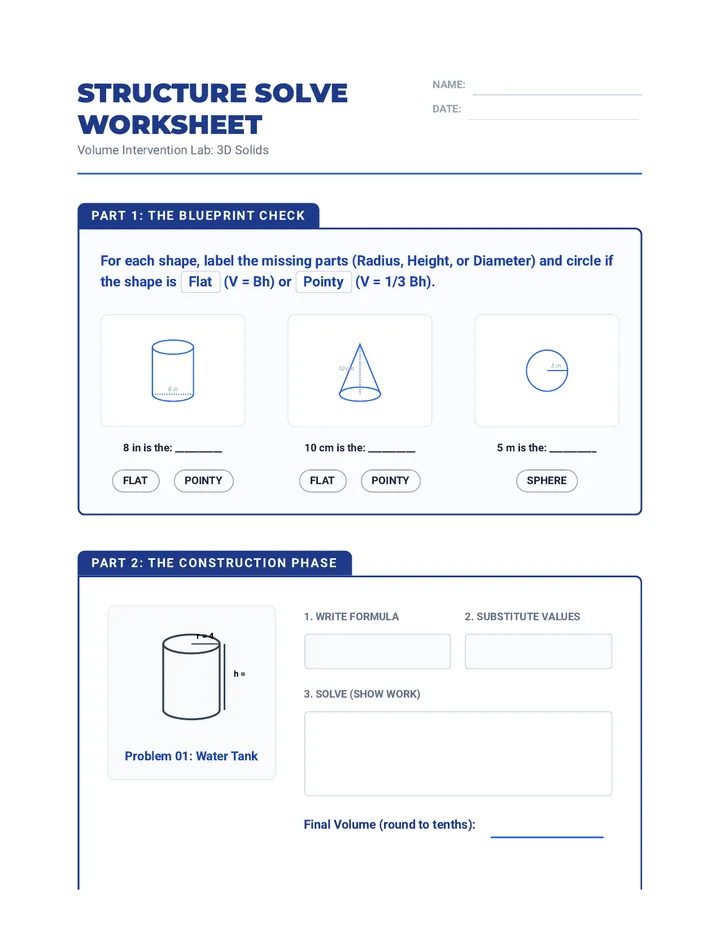

Structure Solve Worksheet Structure Solve Worksheet
Volume Intervention Lab: 3D Solids
Name:
Date:
Part 1: The Blueprint Check
For each shape, label the missing parts (Radius, Height, or Diameter) and circle if the shape is Flat (V = Bh) or Pointy (V = 1/3 Bh).
8 in
8 in is the: __________
FLAT POINTY
10 cm
10 cm is the: __________
FLAT POINTY
5 m
5 m is the: __________
SPHERE
Part 2: The Construction Phase
r = 4 h = 10
Problem 01: Water Tank
1. Write Formula
2. Substitute Values
3. Solve (Show Work)
Final Volume (round to tenths):
Base Area (B) = 40 ft² h = 9 ft
Problem 02: Sand Pyramid
1. Write Formula
2. Substitute Values
3. Solve (Show Work)
Final Volume:
Part 3: Field Operations
Scenario: The Snow Cone
A snow cone holder is in the shape of a cone with a diameter of 6 cm and a height of 10 cm . How many cubic centimeters of shaved ice can it hold? (Use 3.14 for \(\pi\)).
Step 1: Radius
r = _____
Step 2: Base Area
B = _____
Step 3: 1/3 Volume
V = _____
Calculation Area...

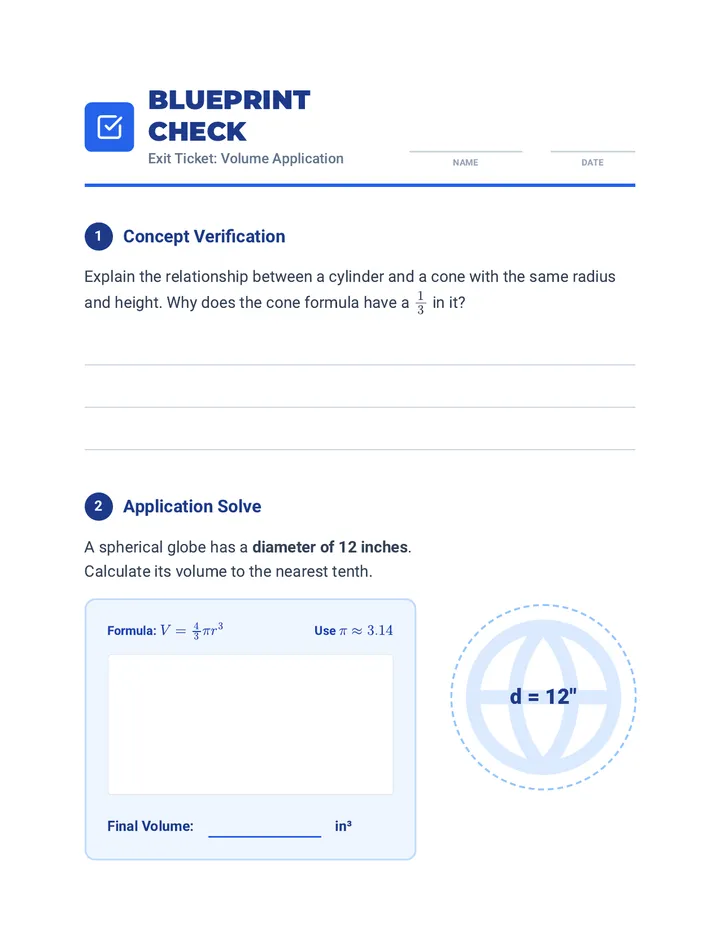

Blueprint Check Exit Ticket Blueprint Check
Exit Ticket: Volume Application
Name
Date
1
Concept Verification
Explain the relationship between a cylinder and a cone with the same radius and height. Why does the cone formula have a \(\frac{1}{3}\) in it?
2
Application Solve
A spherical globe has a diameter of 12 inches . Calculate its volume to the nearest tenth.
Formula: \(V = \frac{4}{3} \pi r^3\) Use \(\pi \approx 3.14\)
Final Volume:
in³
d = 12"
Confidence Level
I need help
Almost there
I've got this

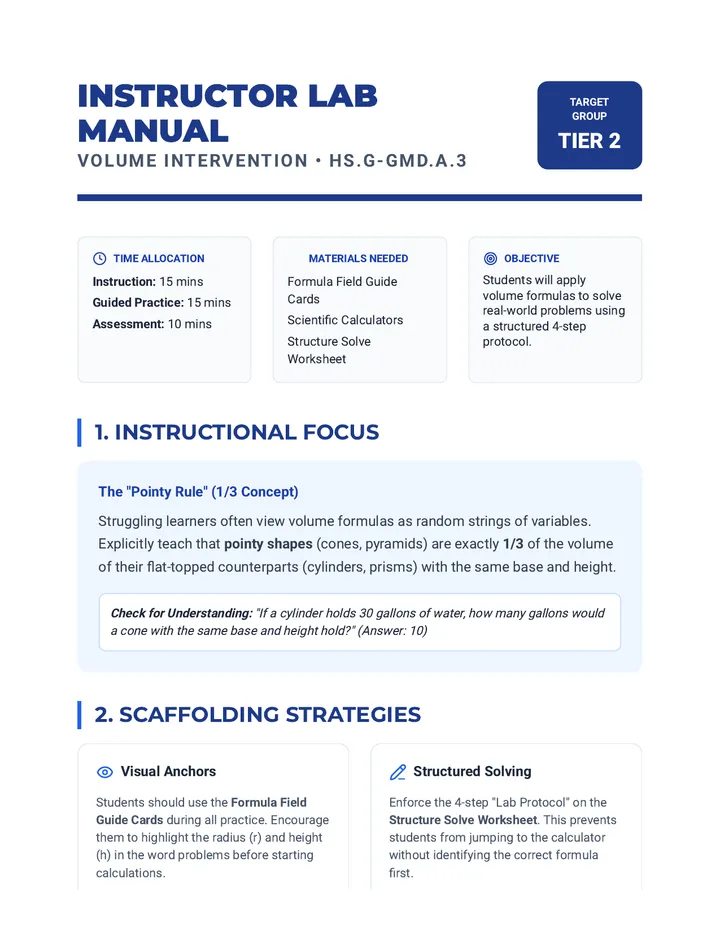

Instructor Lab Manual Teacher Guide Instructor Lab Manual
Volume Intervention • HS.G-GMD.A.3
Target Group
TIER 2
Time Allocation
Instruction: 15 minsGuided Practice: 15 minsAssessment: 10 mins
Materials Needed
Formula Field Guide Cards
Scientific Calculators
Structure Solve Worksheet
Objective
Students will apply volume formulas to solve real-world problems using a structured 4-step protocol.
1. Instructional Focus
The "Pointy Rule" (1/3 Concept)
Struggling learners often view volume formulas as random strings of variables. Explicitly teach that pointy shapes (cones, pyramids) are exactly 1/3 of the volume of their flat-topped counterparts (cylinders, prisms) with the same base and height.
Check for Understanding: "If a cylinder holds 30 gallons of water, how many gallons would a cone with the same base and height hold?" (Answer: 10)
2. Scaffolding Strategies
Visual Anchors
Students should use the Formula Field Guide Cards during all practice. Encourage them to highlight the radius (r) and height (h) in the word problems before starting calculations.
Structured Solving
Enforce the 4-step "Lab Protocol" on the Structure Solve Worksheet . This prevents students from jumping to the calculator without identifying the correct formula first.
3. Common Misconceptions
The Error The Fix Using Diameter instead of Radius Teach students to "scan for the center." If a line goes across the whole circle, divide by 2 immediately. Slant Height vs. Vertical Height In cones/pyramids, emphasize the height must go from the "peak to the floor" at 90 degrees. Cubing vs. Squaring (Sphere) Link 3D = 3 units = Cube. \(r^3\) means \(r \times r \times r\).
4. Assessment & Monitoring
Observational Check: While students solve Problem 1 on the worksheet, look to see if they correctly squared the radius before multiplying by pi.Exit Ticket: Question 1 on the Blueprint Check evaluates conceptual understanding, while Question 2 checks for procedural accuracy with a diameter distractor.
