Supplementary Relationship
A. Write & solve the equation for \(x\):
B. Calculate both angle measures:
First Angle Measure: _____________
Second Angle Measure: ____________
Check Sum: _____________________
12. Multi-Step Challenge: Two parallel lines are intersected by transversal \(k\). \(\angle 1\) and \(\angle 8\) are alternate exterior angles: \(m\angle 1 = (11x - 32)^\circ\), \(m\angle 8 = (8x + 13)^\circ\). Also, \(\angle 7\) is consecutive exterior to \(\angle 1\).
A. Solve for \(x\):
B. Measure of \(\angle 1\) and \(\angle 8\):
C. Measure of \(\angle 7\) with reason:
\(m\angle 7 =\) __________________
Reason: ____________________
Complete the reasoning chain to prepare for formal two-column proofs in Lesson 2:
Claim: "If \(\angle 1 \cong \angle 5\) by Corr. \(\angle\)s Post., and \(\angle 5 \cong \angle 8\) by Vert. \(\angle\)s Thm., then \(\angle 1 \cong \angle 8\)."
Question 13: What geometric property allows us to link these two equations into the conclusion \(\angle 1 \cong \angle 8\)?
Page 2 of 2 • Parallel Lines & Transversals Worksheet

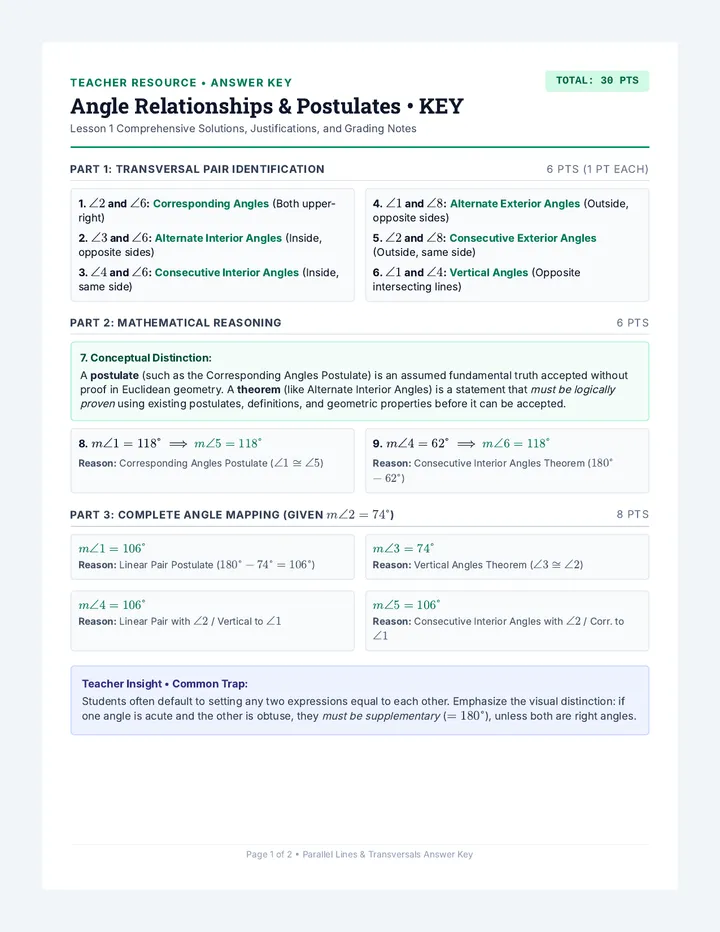

Page 1 of 2 • Parallel Lines & Transversals Answer Key
10 PTS TOTAL
Problem 10 Solution (Alternate Interior Angles) 3 pts
1. Theorem indicates angles are congruent: \(7x - 14 = 4x + 19\)
2. Subtract \(4x\): \(3x - 14 = 19\)
3. Add 14: \(3x = 33 \implies\) \(x = 11\)
4. Measure calculation: \(7(11) - 14 = 77 - 14 = \mathbf{63^\circ}\) (Check: \(4(11) + 19 = 63^\circ\))
Justification: Alternate Interior Angles Theorem.
Problem 11 Solution (Consecutive Interior Angles) 3 pts
1. Theorem indicates angles are supplementary: \((3x + 25) + (5x - 5) = 180\)
2. Combine like terms: \(8x + 20 = 180\)
3. Subtract 20: \(8x = 160 \implies\) \(x = 20\)
4. First angle: \(3(20) + 25 = \mathbf{85^\circ}\) • Second angle: \(5(20) - 5 = \mathbf{95^\circ}\)
Check Sum: \(85^\circ + 95^\circ = 180^\circ\) • Justification: Consecutive Interior Angles Theorem.
Problem 12 Solution (Multi-Step Challenge) 3 pts
A. Alt. Exterior are congruent: \(11x - 32 = 8x + 13 \implies 3x = 45 \implies\) \(x = 15\)
B. Angle measure: \(11(15) - 32 = 165 - 32 = \mathbf{133^\circ}\) (Both \(\angle 1\) and \(\angle 8\) measure \(133^\circ\))
C. Measure of \(\angle 7\): Consecutive exterior angles are supplementary:
\(m\angle 7 = 180^\circ - 133^\circ = \mathbf{47^\circ}\) (Consecutive Exterior Angles Theorem / Linear Pair)
Part 5: Pre-Proof Deductive Bridge (Problem 13) 1 pt
Acceptable Answers: Transitive Property of Congruence (or Substitution Property of Equality).
Teaching Note: Highlight to students that the Transitive Property (\(A \cong B\) and \(B \cong C \implies A \cong C\)) is the fundamental engine used in Lesson 2 to prove Alternate Interior and Alternate Exterior Theorems!
Scoring Rubric Breakdown:
Exemplary (27-30): Accurate classification, precise algebra, fully stated theorems with geometric notation.
Proficient (22-26): Correct equations, minor arithmetic slips, correctly identifies congruent vs supplementary.
Developing (<22): Confuses congruent and supplementary pairs, equates supplementary angles without adding to 180.
Page 2 of 2 • Parallel Lines & Transversals Answer Key
\(\angle 1 \cong \angle 5\)
\(m\angle 1 = m\angle 5\)
Corr. \(\angle\)s Postulate
↓ ↓ (Substitution) ↓ ↓
\(m\angle 5 + m\angle 3 = 180^\circ\)
Consecutive Interior Angles are Supplementary (Substitution Property)
In a flowchart, every box displays the statement with the reason directly below it.
Section 04 • Written Narrative
Paragraph Format
A paragraph proof is not a random paragraph. It is a formal deductive argument written in complete sentences using logical transitions:
It is given that... By definition of... Since... it follows that... Therefore...
Gold Standard: Every single geometric claim must be followed by its legal reason inside the sentence.
Model Paragraph Proof:
"It is given that line \(l\) is parallel to line \(m\). By the Corresponding Angles Postulate, \(\angle 1 \cong \angle 5\). Furthermore, \(\angle 1 \cong \angle 4\) by the Vertical Angles Theorem.
Since \(\angle 4 \cong \angle 1\) and \(\angle 1 \cong \angle 5\), by the Transitive Property of Congruence, it follows that \(\angle 4 \cong \angle 5\). Therefore, alternate interior angles are congruent."
Writing tip: If you can write a two-column proof, you can write a paragraph proof simply by adding connective sentences!
Section 05 • The Reverse Direction
Theorem vs. Converse
Forward Direction
\(l \parallel m \implies \angle 1 \cong \angle 5\)
Given: Lines are parallel.
Prove: Angles are congruent or supplementary.
Reverse Direction
\(\angle 1 \cong \angle 5 \implies l \parallel m\)
Given: Angles are congruent or supplementary.
Prove: Lines are parallel!
Crucial Distinction: If your proof ENDS with \(l \parallel m\), your reason MUST be a Converse!
Section 06 • Toolkit
Permitted Reasons
Ready to prove: Take out the Mastering Line Proofs Worksheet!
Statement: \(l \parallel n\)
Reason:
Part 4: Write a Formal Paragraph Proof
Prompt: Given that \(j \parallel k\) and transversal \(w\) forms consecutive interior angles \(\angle 4\) and \(\angle 6\), write a paragraph proof demonstrating that \(m\angle 4 + m\angle 6 = 180^\circ\). Use full sentences and clear mathematical transition phrases.
Part 5: Mathematical Proof Critique • Spot the Fallacy
A classmate claims: "In line 4 of my proof, I proved that lines \(r\) and \(s\) are parallel by writing: Statement: \(r \parallel s\); Reason: Alternate Interior Angles Theorem."
Identify the error and explain the correction:

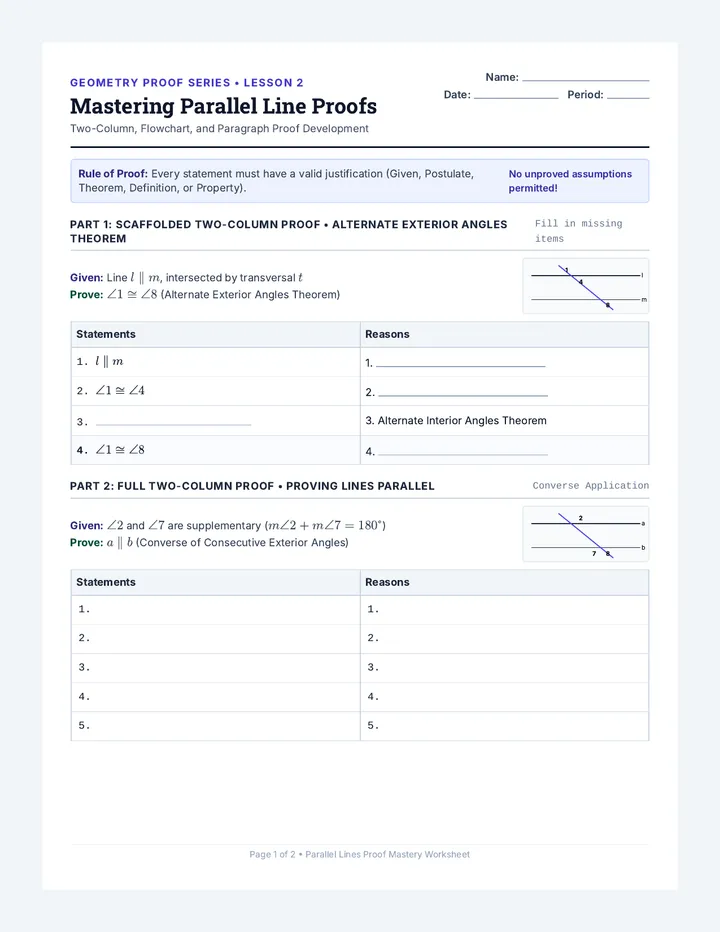

Page 2 of 2 • Parallel Lines Proof Mastery Worksheet
• Intermediate Statement: \(\angle 1 \cong \angle 3\)
• Final Reason for \(l \parallel n\): Converse of Corresponding Angles Postulate
Part 4: Exemplary Model Paragraph Proof 8 pts
"It is given that line \(j\) is parallel to line \(k\), intersected by transversal \(w\). By the Linear Pair Postulate, \(\angle 4\) and \(\angle 2\) form a linear pair, which means that \(m\angle 4 + m\angle 2 = 180^\circ\). Because lines \(j\) and \(k\) are parallel, \(\angle 2\) and \(\angle 6\) are corresponding angles, and by the Corresponding Angles Postulate, \(\angle 2 \cong \angle 6\), which gives \(m\angle 2 = m\angle 6\). Substituting \(m\angle 6\) for \(m\angle 2\) into the linear pair equation yields \(m\angle 4 + m\angle 6 = 180^\circ\) by the Substitution Property of Equality. Therefore, consecutive interior angles are supplementary."
Linear Pair (2 pts): Identified & set to \(180^\circ\).
Corr. Angles (2 pts): \(\angle 2 \cong \angle 6\) stated with postulate.
Substitution (4 pts): Substitution & concluding sentence.
Part 5: Error Analysis & Proof Critique Solution 3 pts
The Fallacy: The student cited the Alternate Interior Angles Theorem instead of the Converse of the Alternate Interior Angles Theorem.
Detailed Explanation: The Alternate Interior Angles Theorem starts with parallel lines as the hypothesis and concludes that angles are congruent. Here, the student is trying to prove that the lines are parallel starting from congruent angles. Therefore, the logical direction is reversed, requiring the Converse theorem.
Proof Assessment Mastery Checklist:
• Clearly distinguishes given premises from derived claims.
• Correctly pairs equality (\(=\)) with measures and congruence (\(\cong\)) with figures.
• Uses converses exclusively when concluding lines are parallel.
• Organizes multi-step deductions into coherent flowchart branches.
Page 2 of 2 • Parallel Lines Proof Key
Bridges, crane booms, and roof rafters use horizontal parallel chords connected by diagonal transversals.
If the chords are parallel, alternate interior angles equalize the shear stress across the steel beams, preventing structural collapse!
\(\theta\) \(\theta\) \(\theta\) \(\theta\) Warren Truss: Identical alternate interior angles preserve equilibrium
You are not just learning math; you are learning how our physical world is built and engineered!
Section 05 • Synthesis
The Complete Toolkit
Identified the 5 angle pairs. Corresponding Angles is the bedrock Postulate; all others are Theorems.
Constructed two-column, flowchart, and paragraph proofs. Used converse theorems to prove lines parallel.
Constructed auxiliary lines, solved zigzag angles, and applied proofs to structural engineering trusses.
Now tackle the Transversal Tactics Activity to demonstrate complete mastery!
| Statements | Reasons |
|---|---|
| 1. \(\overline{AB} \parallel \overline{CD}\) | 1. Given (Engineered specification) |
| 2. \(\angle DAB \cong \angle ADC\) | 2. |
| 3. \(\angle CBA \cong \angle BCD\) | 3. |
| 4. \(\angle AXB \cong \angle DXC\) | 4. |
A B C D X
Part 4: Optical Physics Proof • Parallel Mirrors
Two flat mirrors \(M_1\) and \(M_2\) are parallel to each other (\(M_1 \parallel M_2\)). A light beam strikes mirror \(M_1\) at point \(P\) and reflects onto mirror \(M_2\) at point \(Q\), then reflects away. By the Law of Reflection, the angle of incidence equals the angle of reflection (\(\angle 1 \cong \angle 2\) and \(\angle 3 \cong \angle 4\)).
Write a 3-4 sentence paragraph proof showing that the incoming light ray is parallel to the outgoing light ray:
Mirror 1 Mirror 2 P Q
Final Reflection:
How did constructing an auxiliary line in Part 1 transform an unsolvable one-transversal problem into two manageable standard parallel-line relationships?

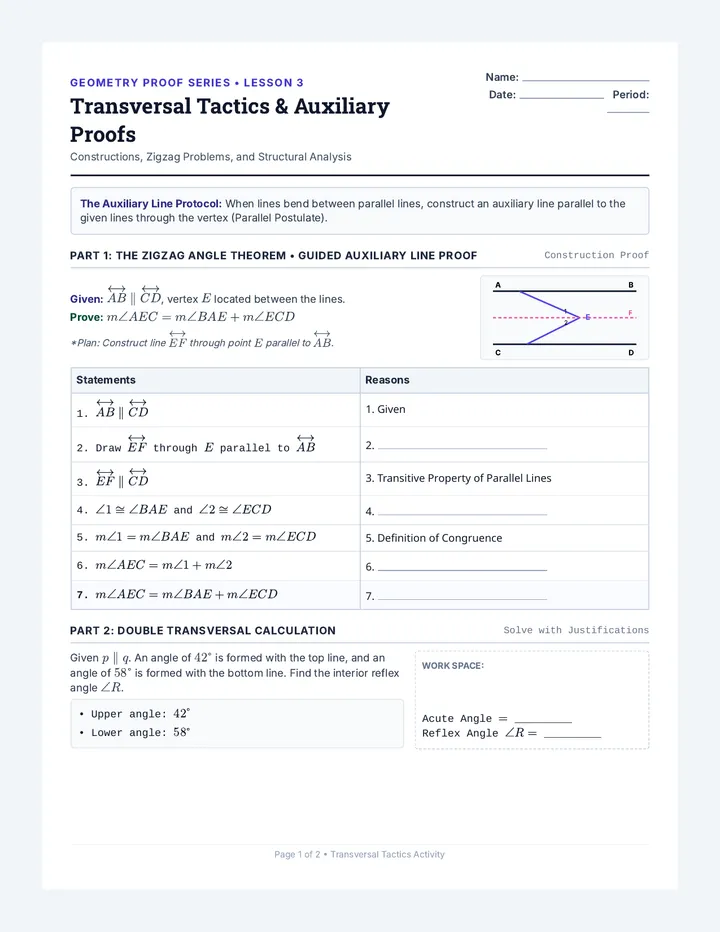

Page 2 of 2 • Transversal Tactics Activity
• Reason 4: Vertical Angles Theorem
*Engineering Conclusion: \(\triangle AXB \sim \triangle DXC\) by AA Similarity, ensuring uniform stress transfer across diagonal web struts.
Part 4: Optical Physics Parallel Mirrors Proof 6 pts
"Since mirror \(M_1\) is parallel to mirror \(M_2\), the light ray segment \(\overline{PQ}\) acts as a transversal cutting between them. By the Alternate Interior Angles Theorem, the angle of the ray with mirror 1 equals the angle with mirror 2, meaning \(\angle 2 \cong \angle 3\). By the Law of Reflection, \(\angle 1 \cong \angle 2\) and \(\angle 3 \cong \angle 4\). Through the Transitive Property of Congruence, all four acute angles are equal (\(\angle 1 \cong \angle 2 \cong \angle 3 \cong \angle 4\)). The total deflection angle at \(P\) is \(180^\circ - 2(m\angle 2)\) and the total deflection at \(Q\) is \(180^\circ - 2(m\angle 3)\). Because these consecutive interior angles between the incoming and outgoing rays are equal and supplementary with adjacent normals, by the Converse of the Alternate Interior Angles Theorem, the incoming light ray is strictly parallel to the outgoing ray."
Final Reflection Model Response 3 pts
The auxiliary line acts as a geometric bridge: it splits the single crooked angle into two smaller, separate angles. Each half of the split angle forms a pair of alternate interior angles with one of the original parallel lines. By applying the Alternate Interior Angles Theorem to both halves independently and then recombining them with the Angle Addition Postulate, a complex problem is transformed into two elementary parallel-line theorems.
Sequence Mastery Rubric Summary:
Lesson 1: Mastery of 5 angle pairs and distinguishing postulates vs theorems.
Lesson 2: Fluency across Two-Column, Flowchart, and Paragraph proofs, and Converses.
Lesson 3: Application of Euclid's Parallel Postulate, auxiliary lines, and engineering structures.

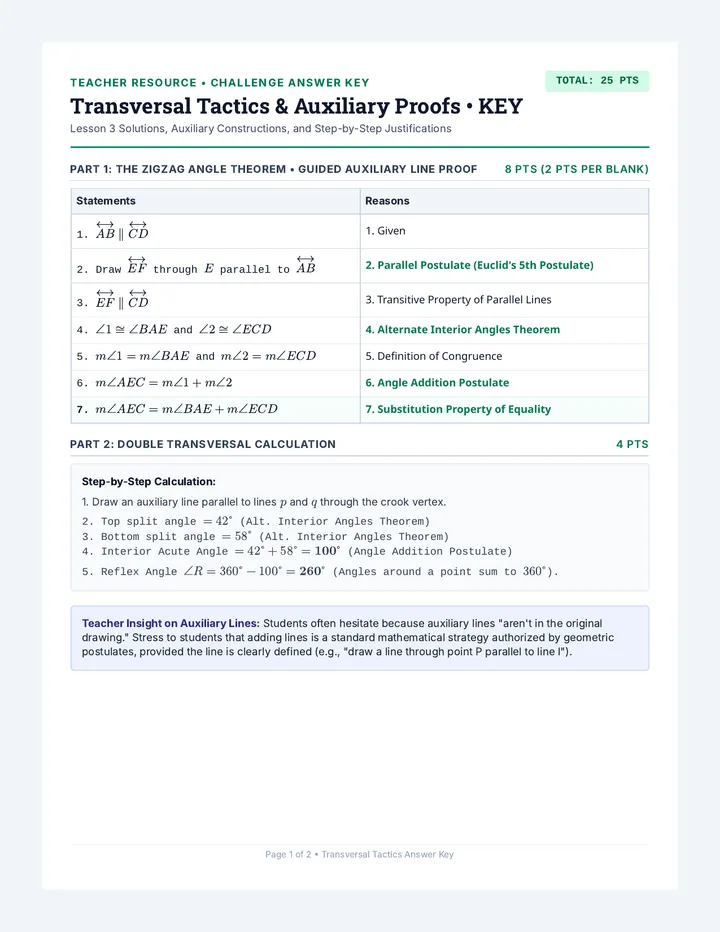

Page 2 of 2 • Transversal Tactics Answer Key
