Shape Detectives

A fast-paced, high-engagement 40-minute review covering definitions, angle properties, perimeter/area/circumference formulas, and real-world applications for squares, rectangles, triangles, parallelograms, rhombuses, trapezoids, circles, and general quadrilaterals.

Angle Investigators

A dynamic 40-minute geometry lesson exploring angle classifications, measuring techniques, complementary and supplementary relationships, vertical angles, and real-world angle deductions.

Geometry Detectives

A comprehensive two-part visual geometry unit exploring 2D shapes, angle relationships, geometric classifications, and real-world mathematical problem-solving.

AAalicia accapezzato

Shape Detectives Slides

Visual Geometry Masterclass

8 Key Shapes • Diagrams • Real Objects

Case File: Geometry in Action

SHAPE DETECTIVES REVIEW

Master 2D shape properties, angle sums, formulas, and identify them in everyday architecture and objects.

Circle Square Triangle Trapezoid

📐

Angle Sums

180° • 360°

📏

Perimeter / Circumference

Boundary length

⬛

Area Calculations

Surface space

🔍

Real-World Objects

Spotting clues

01

Quadrilateral Family & Angles

4 Interior Angles = 360°

Quadrilateral 4-Gon

\(\sum = 360^\circ\)

Any 4 straight sides. Angles always total \(360^\circ\).

🛡️

Real Object:

Irregular Paver Stone / Kite Shield

Parallelogram \(\parallel\) Pairs

\(h\) \(b\)

Opposite sides \(\parallel\) & equal. \(A = b \times h\).

📐

Real Object:

Slanted Crosswalk Stripes / Eraser

Trapezoid 1 \(\parallel\) Pair

\(b_1\) \(b_2\) \(h\)

1 pair of parallel bases. \(A = \frac{b_1+b_2}{2}h\).

🍿

Real Object:

Movie Popcorn Bucket Silhouette

Family Fact: Squares, Rectangles, & Rhombuses are all Parallelograms! Sum = 360°

02

Square & Rectangle

4 Right Angles (90°) Each

Square

4 Equal Sides

\(s\)

Perimeter: \(4s\)

Area: \(s^2\)

🏁

Real-World Objects:

Chessboard squares, floor ceramic tiles, square sticky notes.

Rectangle

Opp. Sides Equal

Length (\(l\)) \(w\)

Perimeter: \(2l + 2w\)

Area: \(l \times w\)

📱

Real-World Objects:

Smartphone screen, classroom door, US one-dollar bill.

Calculation Example: A \(7\text{m} \times 4\text{m}\) room has \(P = 2(7)+2(4) = 22\text{m}\) and \(A = 28\text{m}^2\).

03

Triangle Masterclass

3 Interior Angles = 180°

Triangle Formulas

Area = \(\frac{1}{2}bh\)

\(h\) (height) \(b\) (base) side \(a\) side \(c\)

Perimeter: \(a+b+c\)

Area: \(\frac{1}{2}bh\)

⚠️

Real-World Objects:

Yield road traffic sign, pizza slice, bridge roof truss.

Triangle Types

📐

Equilateral

3 equal sides • all angles = \(60^\circ\)

🔺

Isosceles

2 equal sides • 2 equal base angles

🍕

Scalene • Right

Scalene: all sides differ • Right: has \(90^\circ\)

Rule: \(h\) must be perpendicular (\(90^\circ\)) to base \(b\)!

Quick Check: Base = \(10\text{ cm}\), Height = \(8\text{ cm}\) \(\rightarrow \text{Area} = \frac{1}{2}(10)(8) = 40\text{ cm}^2\).

04

Parallelogram & Rhombus

Opposite Sides \(\parallel\)

Parallelogram

\(A = b \times h\)

\(h\) Base (\(b\)) side \(a\)

Perimeter: \(2a+2b\)

Area: \(b \times h\)

🦓

Real-World Objects:

Angled crosswalk zebra stripes, angled eraser face.

Rhombus

4 Equal Sides

\(d_1\) \(d_2\)

Perimeter: \(4s\)

Area: \(\frac{d_1 d_2}{2}\)

🪁

Real-World Objects:

Diamond kite, baseball infield diamond, argyle pattern.

Key Feature: A rhombus has 4 congruent sides and perpendicular diagonals that bisect each other at 90°!

05

Trapezoid Deconstructed

One Pair of Parallel Bases

Trapezoid Breakdown

\(A = \frac{b_1+b_2}{2}h\)

Base 1 (\(b_1\)) Base 2 (\(b_2\)) \(h\) leg

\[A = \frac{(b_1 + b_2)}{2} \times h\]

🍿

Real-World Objects:

Popcorn container, bridge truss girder, designer handbag silhouette.

Worked Calculation

Base 1 (\(b_1\)): 10 cm

Base 2 (\(b_2\)): 6 cm

Height (\(h\)): 4 cm

1. Add bases: \(10 + 6 = 16\)

2. Halve sum: \(16 \div 2 = 8\)

3. Multiply height: \(8 \times 4 = 32\)

Area = \(32\text{ cm}^2\)

Always use the vertical height \(h\), not the slant legs!

Pro Tip: The average of the two bases gives the midline width of the trapezoid!

06

Circle Mastery

\(\pi \approx 3.14\) • Total Angle = 360°

Radius & Diameter

\(d = 2r\)

\(r\) \(r\) \(C = 2\pi r\)

Circumference: \(2\pi r\) or \(\pi d\)

Area: \(\pi r^2\)

⏰

Real-World Objects:

Wall clock, bicycle wheel rim, circular pizza, manhole cover.

Step-by-Step Check

If Radius \(r = 5\text{ cm}\):

Diameter \(d = 2(5) = 10\text{ cm}\)

\(C = 2 \times 3.14 \times 5 = 31.4\text{ cm}\)

\(A = 3.14 \times 5^2 = 3.14 \times 25 = 78.5\text{ cm}^2\)

Reminder: Circumference is distance (\(\text{cm}\)), Area is space (\(\text{cm}^2\))!

Caution: Never square the diameter! Always halve the diameter to get radius \(r\) before computing area.

07

Real-World Mystery Cases

Classroom Challenge

Case A • Pizza 🍕

\(d = 16\text{ in}\)

Crust Perimeter

Diameter is \(16\text{ in}\). Find circumference \(C\).

\(C = \pi d \approx 50.24\text{ in}\)

Case B • Ramp 🛹

\(b = 8\text{ ft}\) \(h = 6\text{ ft}\)

Ramp Plywood Area

Base is \(8\text{ ft}\), height is \(6\text{ ft}\). Find side area.

\(A = \frac{1}{2}(8)(6) = 24\text{ ft}^2\)

Case C • Box 🍿

\(b_1 = 8\) \(b_2 = 4\)

Popcorn Container

Bases \(8\text{ in}\) & \(4\text{ in}\), height \(10\text{ in}\).

\(A = \frac{8+4}{2} \times 10 = 60\text{ in}^2\)

Ready for the Field Guide? Turn to your student worksheets! Independent & Partner Practice

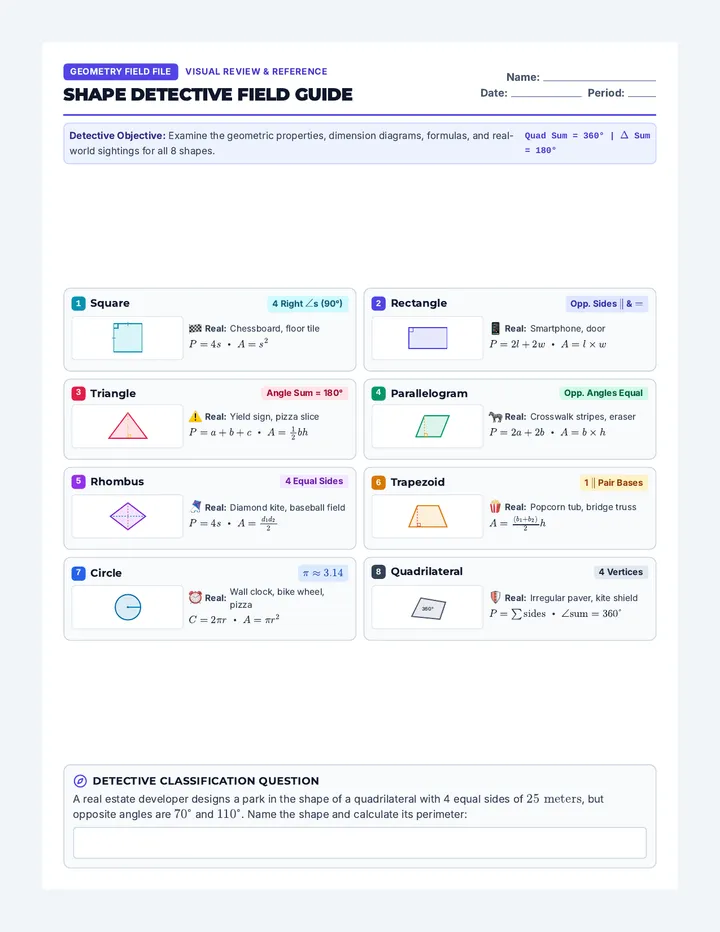

Shape Masters Field Guide

Geometry Field File Visual Review & Reference

SHAPE DETECTIVE FIELD GUIDE

Name:

Date: Period:

Detective Objective: Examine the geometric properties, dimension diagrams, formulas, and real-world sightings for all 8 shapes. Quad Sum = 360° | \(\Delta\) Sum = 180°

1

Square

4 Right \(\angle\)s (90°)

\(s\)

🏁 Real: Chessboard, floor tile

\(P = 4s\) • \(A = s^2\)

2

Rectangle

Opp. Sides \(\parallel\) & \(=\)

\(l\) \(w\)

📱 Real: Smartphone, door

\(P = 2l+2w\) • \(A = l \times w\)

3

Triangle

Angle Sum = 180°

\(b\) \(h\)

⚠️ Real: Yield sign, pizza slice

\(P = a+b+c\) • \(A = \frac{1}{2}bh\)

4

Parallelogram

Opp. Angles Equal

\(b\) \(h\)

🦓 Real: Crosswalk stripes, eraser

\(P = 2a+2b\) • \(A = b \times h\)

5

Rhombus

4 Equal Sides

\(d_1\) \(d_2\)

🪁 Real: Diamond kite, baseball field

\(P = 4s\) • \(A = \frac{d_1 d_2}{2}\)

6

Trapezoid

1 \(\parallel\) Pair Bases

\(b_1\) \(b_2\) \(h\)

🍿 Real: Popcorn tub, bridge truss

\(A = \frac{(b_1+b_2)}{2}h\)

7

Circle

\(\pi \approx 3.14\)

\(r\)

⏰ Real: Wall clock, bike wheel, pizza

\(C = 2\pi r\) • \(A = \pi r^2\)

8

Quadrilateral

4 Vertices

360°

🛡️ Real: Irregular paver, kite shield

\(P = \sum\text{sides}\) • \(\angle\text{sum} = 360^\circ\)

Detective Classification Question

A real estate developer designs a park in the shape of a quadrilateral with 4 equal sides of \(25\text{ meters}\), but opposite angles are \(70^\circ\) and \(110^\circ\). Name the shape and calculate its perimeter:

Part II • Practical Calculations

REAL-WORLD SHAPE CASE INVESTIGATIONS

Use \(\pi \approx 3.14\)

Solve each case file. Refer to the visual diagram, state the formula, show all calculation steps, and include appropriate units.

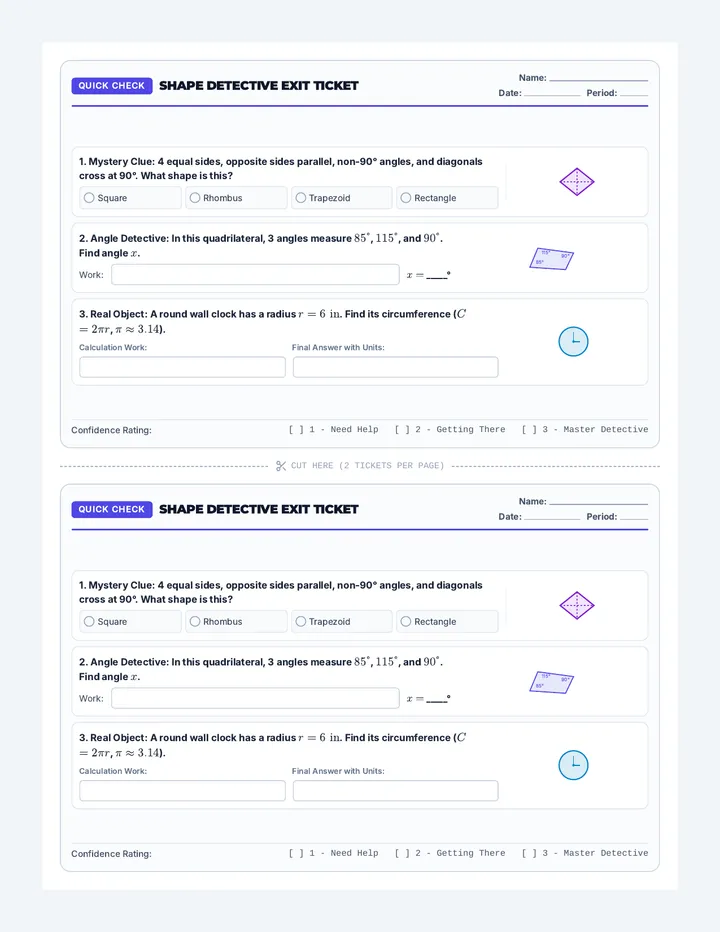

Shape Detective Exit Ticket

Quick Check

SHAPE DETECTIVE EXIT TICKET

Name:

Date: Period:

1. Mystery Clue: 4 equal sides, opposite sides parallel, non-90° angles, and diagonals cross at 90°. What shape is this?

Square Rhombus Trapezoid Rectangle

2. Angle Detective: In this quadrilateral, 3 angles measure \(85^\circ\), \(115^\circ\), and \(90^\circ\). Find angle \(x\).

Work:

\(x = \) _____°

85° 115° 90° \(x\)

3. Real Object: A round wall clock has a radius \(r = 6\text{ in}\). Find its circumference (\(C = 2\pi r\), \(\pi \approx 3.14\)).

Calculation Work:

Final Answer with Units:

Confidence Rating: [ ] 1 - Need Help [ ] 2 - Getting There [ ] 3 - Master Detective

CUT HERE (2 TICKETS PER PAGE)

Quick Check

SHAPE DETECTIVE EXIT TICKET

Name:

Date: Period:

1. Mystery Clue: 4 equal sides, opposite sides parallel, non-90° angles, and diagonals cross at 90°. What shape is this?

Square Rhombus Trapezoid Rectangle

2. Angle Detective: In this quadrilateral, 3 angles measure \(85^\circ\), \(115^\circ\), and \(90^\circ\). Find angle \(x\).

Work:

\(x = \) _____°

85° 115° 90° \(x\)

3. Real Object: A round wall clock has a radius \(r = 6\text{ in}\). Find its circumference (\(C = 2\pi r\), \(\pi \approx 3.14\)).

Calculation Work:

Final Answer with Units:

Confidence Rating: [ ] 1 - Need Help [ ] 2 - Getting There [ ] 3 - Master Detective

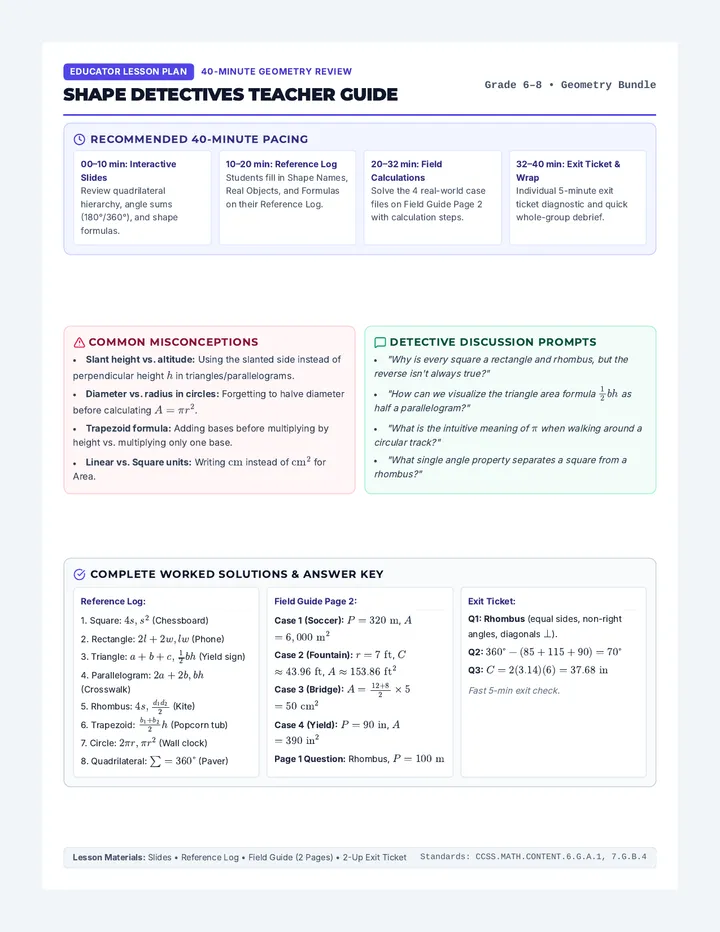

Shape Detectives Teacher Guide

Educator Lesson Plan 40-Minute Geometry Review

SHAPE DETECTIVES TEACHER GUIDE

Grade 6–8 • Geometry Bundle

Recommended 40-Minute Pacing

00–10 min: Interactive Slides

Review quadrilateral hierarchy, angle sums (180°/360°), and shape formulas.

10–20 min: Reference Log

Students fill in Shape Names, Real Objects, and Formulas on their Reference Log.

20–32 min: Field Calculations

Solve the 4 real-world case files on Field Guide Page 2 with calculation steps.

32–40 min: Exit Ticket & Wrap

Individual 5-minute exit ticket diagnostic and quick whole-group debrief.

Common Misconceptions

Slant height vs. altitude: Using the slanted side instead of perpendicular height \(h\) in triangles/parallelograms.
Diameter vs. radius in circles: Forgetting to halve diameter before calculating \(A = \pi r^2\).
Trapezoid formula: Adding bases before multiplying by height vs. multiplying only one base.
Linear vs. Square units: Writing \(\text{cm}\) instead of \(\text{cm}^2\) for Area.

Detective Discussion Prompts

"Why is every square a rectangle and rhombus, but the reverse isn't always true?"
"How can we visualize the triangle area formula \(\frac{1}{2}bh\) as half a parallelogram?"
"What is the intuitive meaning of \(\pi\) when walking around a circular track?"
"What single angle property separates a square from a rhombus?"

Complete Worked Solutions & Answer Key

Reference Log:

1. Square: \(4s, s^2\) (Chessboard)

2. Rectangle: \(2l+2w, lw\) (Phone)

3. Triangle: \(a+b+c, \frac{1}{2}bh\) (Yield sign)

4. Parallelogram: \(2a+2b, bh\) (Crosswalk)

5. Rhombus: \(4s, \frac{d_1 d_2}{2}\) (Kite)

6. Trapezoid: \(\frac{b_1+b_2}{2}h\) (Popcorn tub)

7. Circle: \(2\pi r, \pi r^2\) (Wall clock)

8. Quadrilateral: \(\sum = 360^\circ\) (Paver)

Field Guide Page 2:

Case 1 (Soccer): \(P = 320\text{ m}\), \(A = 6,000\text{ m}^2\)

Case 2 (Fountain): \(r = 7\text{ ft}\), \(C \approx 43.96\text{ ft}\), \(A \approx 153.86\text{ ft}^2\)

Case 3 (Bridge): \(A = \frac{12+8}{2} \times 5 = 50\text{ cm}^2\)

Case 4 (Yield): \(P = 90\text{ in}\), \(A = 390\text{ in}^2\)

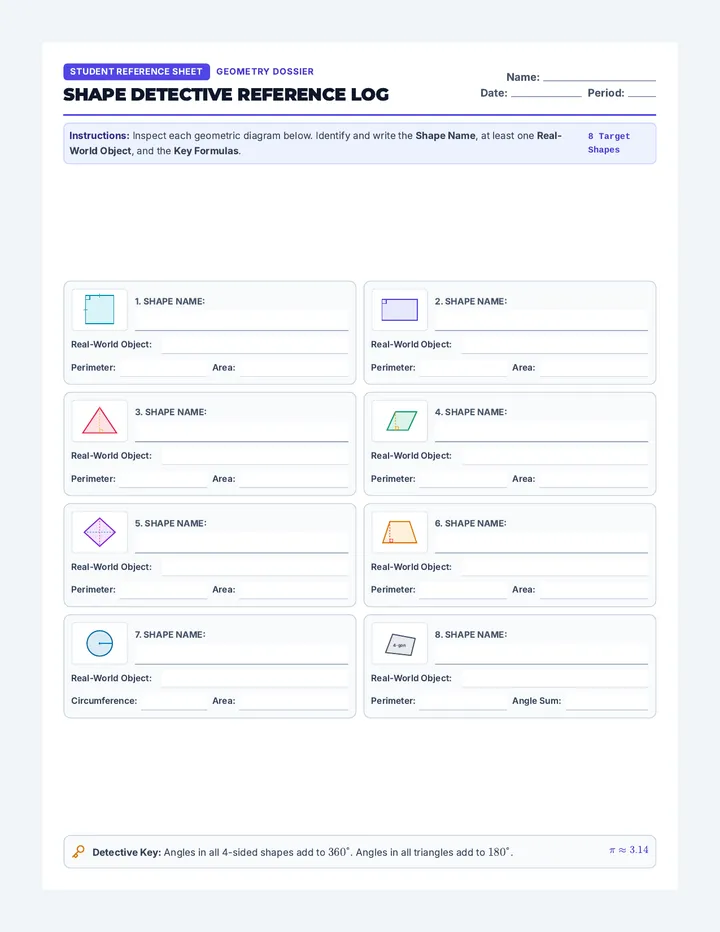

Shape Reference Log Worksheet

Student Reference Sheet Geometry Dossier

SHAPE DETECTIVE REFERENCE LOG

Name:

Date: Period:

Instructions: Inspect each geometric diagram below. Identify and write the Shape Name, at least one Real-World Object, and the Key Formulas. 8 Target Shapes

\(s\)

1. Shape Name:

Real-World Object:

Perimeter:

Area:

\(l\) \(w\)

2. Shape Name:

Real-World Object:

Perimeter:

Area:

\(b\) \(h\)

3. Shape Name:

Real-World Object:

Perimeter:

Area:

\(b\) \(h\)

4. Shape Name:

Real-World Object:

Perimeter:

Area:

\(d_1\) \(d_2\)

5. Shape Name:

Real-World Object:

Perimeter:

Area:

\(b_1\) \(b_2\) \(h\)

6. Shape Name:

Real-World Object:

Perimeter:

Area:

\(r\)

7. Shape Name:

Real-World Object:

Circumference:

Area:

4-gon

8. Shape Name:

Real-World Object:

Perimeter:

Angle Sum:

Detective Key: Angles in all 4-sided shapes add to \(360^\circ\). Angles in all triangles add to \(180^\circ\).

\(\pi \approx 3.14\)

Angle Investigators Slides

Visual Geometry Masterclass

Angle Rules • Unknowns • Real Sightings

Case File: Angle Sleuths

ANGLE INVESTIGATORS MISSION

Master angle types, discover complementary & supplementary relationships, unlock vertical angle secrets, and solve real-world mysteries.

Acute (<90°) Right (90°) Vertical Angles Linear Pair (180°)

📐

4 Main Types

Acute, Right, Obtuse, Straight

🧩

Complementary

Sum = 90° Corner

📏

Supplementary

Sum = 180° Line

✂️

Vertical Angles

Opposites are Equal

01

Angle Anatomy & Classification

Turn Measured in Degrees (°)

Acute < 90°

45°

Sharp opening between \(0^\circ\) and \(90^\circ\).

Real Sightings:

Slice of pizza, partially open laptop.

Right = 90°

90°

Square corner. Marked with a box symbol.

Real Sightings:

Book corner, door frame, window pane.

Obtuse > 90°

130°

Wide opening between \(90^\circ\) and \(180^\circ\).

Real Sightings:

Reclining chair, open hand fan, roof truss.

Straight = 180°

180°

Forms a flat continuous straight line.

Real Sightings:

Clock hands at 6:00, flat table edge.

Common Detective Trap: Ray length does NOT change angle measure! Only the rotation counts. 1 Full Turn = 360°

02

Complementary Angles: Corner Clues

Sum = 90°

Two Angles That Add to 90°

\(\angle A + \angle B = 90^\circ\)

\(32^\circ\) \(x\)

When two angles join to create a perfect right angle (\(90^\circ\)), they are called complementary.

💡

Memory Hack:

C stands for Corner (\(90^\circ\)) • Complementary!

Case Solving Steps

1. Write Formula:

\(\angle A + \angle B = 90^\circ\)

2. Substitute Values:

\(x + 32^\circ = 90^\circ\)

3. Solve for Unknown:

\(x = 90^\circ - 32^\circ = 58^\circ\)

📐

Real Sighting: Corner Brace

Diagonal reinforcement bracket on shelves.

Angle Sleuths Field Guide

Geometry Field File Angle Relationships & Theorems

ANGLE INVESTIGATOR FIELD GUIDE

Name:

Date: Period:

Detective Objective: Examine angle types, relationship theorems, and deductive reasoning rules to solve missing angle cases. Comp = 90° • Supp = 180° • Point = 360°

Part 1: Angle Classification Matrix

1. Acute Angle

< 90°

42°

Range: Between \(0^\circ\) and \(90^\circ\)
Real: Slice of pizza, scissors tip

2. Right Angle

= 90°

90°

Measure: Exactly \(90^\circ\)
Real: Book corner, picture frame

3. Obtuse Angle

> 90° & < 180°

135°

Range: Between \(90^\circ\) and \(180^\circ\)
Real: Reclining lounge chair, fan

4. Straight Angle

= 180°

180°

Measure: Exactly \(180^\circ\)
Real: Clock at 6:00, flat table edge

5. Reflex Angle

> 180°

300°

Range: Between \(180^\circ\) and \(360^\circ\)
Real: Outside curve of circular turn

6. Full Rotation

= 360°

360°

Measure: Complete \(360^\circ\) cycle
Real: Full hand spin, bicycle wheel turn

Part 2: Angle Theorems & Geometric Laws

Complementary Sum = 90°

\(a\) \(b\)

\(a + b = 90^\circ\)

Mnemonic: Corner = 90° • Complementary

Supplementary Sum = 180°

\(x\) \(y\)

\(x + y = 180^\circ\)

Mnemonic: Straight line = 180° • Supplementary

Vertical Angles Equal / Congruent

\(\angle 1\) \(\angle 3\) \(\angle 4\) \(\angle 2\)

\(\angle 1 = \angle 3\) • \(\angle 2 = \angle 4\)

Secret: Non-adjacent opposite angles across an intersection.

Detective Warm-Up: Fast Angle Deduction

1. Complement of \(38^\circ\):

Show \(90^\circ - 38^\circ\):

2. Supplement of \(124^\circ\):

Show \(180^\circ - 124^\circ\):

Angle Detective Exit Ticket

Quick Check

ANGLE DETECTIVE EXIT TICKET

Name:

Date: Period:

1. Angle Classification: An angle measures \(134^\circ\). How is this angle classified?

Acute Right Obtuse Straight

134°

2. Linear Pair: Angles \(a\) and \(52^\circ\) lie on a straight line. Find angle \(a\).

Work:

\(a = \) _____°

\(a\) 52°

3. Intersecting Lines: Two lines cross. Angle 1 measures \(74^\circ\). Find \(\angle 2\) and \(\angle 3\).

\(\angle 3\) (Vertical):

\(\angle 2\) (Adjacent Linear):

74° \(\angle 3\) \(\angle 2\)

Confidence Rating: [ ] 1 - Need Help [ ] 2 - Getting There [ ] 3 - Master Investigator

CUT HERE (2 TICKETS PER PAGE)

Quick Check

ANGLE DETECTIVE EXIT TICKET

Name:

Date: Period:

1. Angle Classification: An angle measures \(134^\circ\). How is this angle classified?

Acute Right Obtuse Straight

134°

2. Linear Pair: Angles \(a\) and \(52^\circ\) lie on a straight line. Find angle \(a\).

Work:

\(a = \) _____°

\(a\) 52°

3. Intersecting Lines: Two lines cross. Angle 1 measures \(74^\circ\). Find \(\angle 2\) and \(\angle 3\).

\(\angle 3\) (Vertical):

\(\angle 2\) (Adjacent Linear):

74° \(\angle 3\) \(\angle 2\)

Confidence Rating: [ ] 1 - Need Help [ ] 2 - Getting There [ ] 3 - Master Investigator

Angle Investigators Teacher Guide

Educator Lesson Plan 40-Minute Angle Investigation

ANGLE INVESTIGATORS TEACHER GUIDE

Grade 6–8 • Geometry Unit

Recommended 40-Minute Instructional Pacing

00–10 min: Interactive Slides

Teach classifications, complementary (90°), supplementary (180°), and vertical theorems.

10–20 min: Reference Log

Students record angle names, real-world objects, and core equation rules in their log.

20–32 min: Real-World Cases

Solve 4 case investigations on Field Guide Page 2 (roof truss, crossroads, frame, clock).

32–40 min: Exit Ticket & Wrap

Administer 5-minute diagnostic half-page ticket; collect and conduct rapid class debrief.

Common Misconceptions

Ray length fallacy: Students believe longer ray arms create a larger angle measure. Emphasize rotation only.
Complementary vs. Supplementary: Mixing up 90° vs 180°. Use alphabetical mnemonic: C (90°) comes before S (180°).
Adjacent vs. Vertical: Confusing adjacent linear angles (sum to 180°) with opposite vertical angles (equal).
Obtuse sums: Students occasionally try to find the supplement of an obtuse angle by subtracting from 90°.

Detective Questioning Prompts

"If two lines cross and you measure just ONE angle as 70°, how do you instantly know the other three?"
"Can two acute angles ever be supplementary? Why or why not?" (Max sum is < 180°).
"Why do the 12 hour numbers on a clock face each represent exactly 30°?" (\(360^\circ \div 12 = 30^\circ\)).
"What is the mathematical difference between perpendicular lines and intersecting lines?"

Complete Worked Solutions & Answer Key

Reference Log:

1. Acute: \(0^\circ \text{ to } 90^\circ\) (Pizza slice)

2. Right: Exactly \(90^\circ\) (Book corner)

3. Obtuse: \(90^\circ \text{ to } 180^\circ\) (Recliner)

4. Straight: Exactly \(180^\circ\) (Clock at 6:00)

5. Reflex: \(180^\circ \text{ to } 360^\circ\) (Outer turn)

6. Complementary: Sum = \(90^\circ\) (\(a+b=90^\circ\))

7. Supplementary: Sum = \(180^\circ\) (\(x+y=180^\circ\))

8. Vertical: Opposite equal (\(\angle 1 = \angle 3\))

Field Guide Page 2:

Case 1 (Truss): (a) Linear pair / Supp. (b) \(a = 180^\circ - 142^\circ = 38^\circ\).

Angle Reference Log Worksheet

Student Reference Sheet Angle Dossier

ANGLE DETECTIVE REFERENCE LOG

Name:

Date: Period:

Instructions: Inspect each geometric diagram below. Identify and write the Angle / Relationship Name, at least one Real-World Object, and the Key Measures / Formulas. 8 Target Angles

\(40^\circ\)

1. Angle Type:

Real-World Object:

Measure Range:

Key Trait:

\(90^\circ\)

2. Angle Type:

Real-World Object:

Exact Measure:

Square Symbol:

\(135^\circ\)

3. Angle Type:

Real-World Object:

Measure Range:

Key Trait:

\(180^\circ\)

4. Angle Type:

Real-World Object:

Exact Measure:

Line Appearance:

\(280^\circ\)

5. Angle Type:

Real-World Object:

Measure Range:

Outer Rotation:

\(a\) \(b\)

6. Relationship:

Real-World Object:

Sum Total:

Equation Rule:

\(x\) \(y\)

7. Relationship:

Real-World Object:

Sum Total:

Equation Rule:

\(\angle 1\) \(\angle 3\) \(\angle 4\) \(\angle 2\)

8. Relationship:

Real-World Object:

Opposite Pairs:

Equality Rule:

Detective Key: Complementary = Corner (90°); Supplementary = Straight line (180°); Vertical = Equal across X.

\(\sum_{\text{point}} = 360^\circ\)

Case 1: Community Soccer Pitch Rectangle

A regulation soccer field measures \(100\text{ m}\) in length and \(60\text{ m}\) in width.
(a) Find the total perimeter running line.
(b) Calculate the total turf grass area.

100 m 60m

Perimeter Work Area:

Area Work Area:

Case 2: Circular Town Plaza Fountain Circle

A circular stone fountain has a diameter of \(14\text{ ft}\).
(a) State the radius (\(r\)).
(b) Find the circumference of the outer stone ledge.
(c) Find the surface area of the water pool.

\(d = 14\text{ ft}\)

Radius (\(r\)):

Circumference (\(C\)):

Area (\(A\)):

Case 3: Bridge Truss Support Plate Trapezoid

A steel support gusset has parallel bases of \(12\text{ cm}\) and \(8\text{ cm}\), with a perpendicular height of \(5\text{ cm}\).
Calculate the exact surface area of the steel plate in \(\text{cm}^2\).

\(b_1 = 8\text{ cm}\) \(b_2 = 12\text{ cm}\) \(5\text{ cm}\)

Work Area — Formula & Calculation:

Case 4: Reflective Road Yield Sign Triangle

An equilateral yield sign has 3 equal sides of \(30\text{ in}\) each and a vertical height of \(26\text{ in}\).
(a) Find the perimeter border tape length.
(b) Find the total reflective sheet area.

YIELD 30 in

Perimeter Work Area:

Area Work Area:

Detective Final Verification: Ensure linear units (\(\text{m}, \text{ft}, \text{in}, \text{cm}\)) for Perimeter/Circumference & square units (\(\text{m}^2, \text{ft}^2, \text{in}^2, \text{cm}^2\)) for Area!

Page 1 Question: Rhombus, \(P = 100\text{ m}\)

Exit Ticket:

Q1: Rhombus (equal sides, non-right angles, diagonals \(\perp\)).

Q2: \(360^\circ - (85+115+90) = 70^\circ\)

Q3: \(C = 2(3.14)(6) = 37.68\text{ in}\)

Fast 5-min exit check.

Lesson Materials: Slides • Reference Log • Field Guide (2 Pages) • 2-Up Exit Ticket Standards: CCSS.MATH.CONTENT.6.G.A.1, 7.G.B.4

Quick Test: What is the complement of \(65^\circ\)? → \(90^\circ - 65^\circ = 25^\circ\)!

03

Supplementary Angles: Straight Line Secrets

Sum = 180°

Linear Pair on a Line

\(\angle 1 + \angle 2 = 180^\circ\)

\(55^\circ\) \(y\)

Two adjacent angles that lie on a straight line form a linear pair and are always supplementary (\(180^\circ\)).

💡

Memory Hack:

S stands for Straight Line (\(180^\circ\)) • Supplementary!

Case Solving Steps

1. Linear Pair Property:

\(55^\circ + y = 180^\circ\)

2. Isolate \(y\):

\(y = 180^\circ - 55^\circ\)

3. Calculated Solution:

\(y = 125^\circ\)

🛹

Real Sighting: Skate Ramp

Ramp surface incline angle on the ground.

Comparison Rule: Alphabet rule: C (90°) comes before S (180°)!

04

Vertical Angles: Criss-Cross Clues

Opposite Angles are Equal

Intersecting Lines

\(\angle 1 = \angle 3\) & \(\angle 2 = \angle 4\)

\(120^\circ\) \(b = 120^\circ\) \(a = 60^\circ\) \(c = 60^\circ\)

When two straight lines cross, opposite angles share a vertex and are strictly congruent (equal).

✂️

Real Sightings:

Open scissors blades, railroad crossing X sign.

The 4-in-1 Secret

Know ONE angle, deduce all four:

• Opposite: \(b = 120^\circ\)

• Adjacent: \(180^\circ - 120^\circ = 60^\circ\)

• Opposite: \(c = 60^\circ\)

√ Sum: \(360^\circ\)

🚦

Crossroads

Street intersections follow vertical laws.

Detective Law: Vertical angles NEVER share a side ray—only the central vertex!

05

Angles at a Point: 360° Full Rotation

All Angles Around a Point = 360°

Angles at a Point

\(\sum = 360^\circ\)

\(135^\circ\) \(105^\circ\) \(z\)

\(135^\circ + 105^\circ + z = 360^\circ\)

\(z = 360^\circ - 240^\circ = 120^\circ\)

⏰

Real Sighting: Clock Face

12 hour marks split \(360^\circ\) into \(30^\circ\) wedges!

Perpendicular Lines (\(\perp\))

4 \(\times\) 90° = 360°

90°

Lines intersect at exactly right angles:

Line \(A \perp\) Line \(B \implies \text{all 4 angles} = 90^\circ\)

🧭

Real Sighting: Compass Rose

North, South, East, West axes meet at \(90^\circ\).

Key Fact: A full rotation around any vertex always equals \(360^\circ\), no matter how many rays split it!

06

Solving Algebraic Angle Mysteries

Setup • Solve • Verify

Puzzle A • Corner 📐

\(2x\) \(30^\circ\)

Find Value of \(x\)

Angles form a \(90^\circ\) corner.

\(2x + 30^\circ = 90^\circ\)

\(2x = 60^\circ\)

\(x = 30^\circ\)

Puzzle B • Line 📏

\(3x\) \(60^\circ\)

Find Value of \(x\)

Angles form a linear pair.

\(3x + 60^\circ = 180^\circ\)

\(3x = 120^\circ\)

\(x = 40^\circ\)

Puzzle C • X-Ray ✂️

\(5x + 5^\circ\) \(65^\circ\)

Find Value of \(x\)

Vertical opposite angles are equal.

\(5x + 5^\circ = 65^\circ\)

\(5x = 60^\circ\)

\(x = 12^\circ\)

Detective Strategy: Always identify whether the relationship sums to \(90^\circ\), sums to \(180^\circ\), or is equal!

07

Real-World Speed Round Mystery Cases

Classroom Challenge

Case A • Clocks ⏰

Time = 3:00

Clock Hands Angle

What angle is formed at exactly 3:00?

\(90^\circ\) Right Angle!

Case B • Roof 🏠

\(35^\circ\) \(110^\circ\)

Rooftop Rafters

Classify the apex angle (\(110^\circ\)).

Obtuse Angle (>90°)

Case C • Scissors ✂️

\(40^\circ\) \(w\)

Scissors Pivot

Blades open to \(40^\circ\). Find handle angle \(w\).

\(w = 40^\circ\) (Vertical Angles!)

Ready for field investigation? Open your Angle Sleuths Field Guide! Student Investigation Practice

3. Vertical to \(73^\circ\):

State opposite angle measure:

Part II • Practical Calculations & Unknowns

REAL-WORLD ANGLE MYSTERY INVESTIGATIONS

Solve for missing angles & \(x\)

Apply angle relationship laws to crack each real-world case file. Show all equation setups and clearly write your final numerical answers.

Case 1: Structural Timber Roof Truss Linear Pair • 180°

A support rafter meets the flat horizontal ceiling beam. The exterior roof slope angle measures \(142^\circ\).
(a) State the geometric relationship between the exterior slope and interior angle \(a\).
(b) Calculate the measure of interior angle \(a\).

142° \(a\)

Relationship Name:

Calculation Work & Solution (\(\angle a\)):

Case 2: Crossroads Avenue Traffic Intersection Vertical & Linear Pairs

Two straight avenues cross at a downtown junction. Traffic sensor Angle 1 measures \(65^\circ\).
Find the measures of the remaining three angles:
• Vertical opposite angle: \(\angle 3\) • Adjacent linear angles: \(\angle 2\) and \(\angle 4\).

\(\angle 1 = 65^\circ\) \(\angle 3\) \(\angle 4\) \(\angle 2\)

\(\angle 3\) (Vertical to \(\angle 1\)):

\(\angle 2\) (Linear to \(\angle 1\)):

\(\angle 4\) (Linear to \(\angle 1\)):

Case 3: Custom Mitre Corner Frame Algebraic Complementary

A carpenter cuts a \(90^\circ\) square corner into two complementary pieces. One piece measures \(36^\circ\) and the other piece is represented by \((3x + 6)^\circ\).
Set up an equation, solve for \(x\), and verify the angle measure.

36° \(3x + 6^\circ\)

Equation Setup & Solve for \(x\):

Verification & Angle Value:

Case 4: Clock Tower Face Geometry Angles at a Point • 360°

A circular clock face is divided into 12 equal hour sectors totaling \(360^\circ\).
(a) How many degrees are between each consecutive hour mark (12 to 1)?
(b) Calculate the interior angle between hands at 4:00.

12 4

(a) Degrees per 1 Hour Mark:

(b) Angle at 4:00 Work & Solution:

Detective Final Rule: Double check your angle types! Acute (<90°), Right (90°), Obtuse (>90°), Straight (180°).

Case 2 (Traffic): \(\angle 3 = 65^\circ\) (vertical); \(\angle 2 = \angle 4 = 115^\circ\).

Case 3 (Mitre): \(3x+6+36=90 \implies x=16^\circ\); Angle \(= 54^\circ\).

Case 4 (Clock): (a) \(30^\circ\)/hr. (b) \(4 \times 30^\circ = 120^\circ\).

Page 1 Drills: 1) \(52^\circ\), 2) \(56^\circ\), 3) \(73^\circ\).

Exit Ticket Diagnostic:

Q1: Obtuse (\(134^\circ\) between \(90^\circ\) & \(180^\circ\)).

Q2: \(a = 180^\circ - 52^\circ = 128^\circ\).

Q3: \(\angle 3 = 74^\circ\) (vertical); \(\angle 2 = 180^\circ - 74^\circ = 106^\circ\) (linear pair).

2-Up format simplifies printing & grading.

Lesson Materials: Slides • Reference Log • Field Guide (2-Page) • Exit Ticket • Teacher Guide Standards: CCSS.MATH.CONTENT.7.G.B.5, 8.G.A.5

You might also like

Calculation Quest

A multi-tiered math intervention and progress monitoring sequence for multi-digit arithmetic. Designed for 5th and 6th grade hybrid resource replacement classes supporting students with ADHD, Autism, SLD, and Cognitive Impairment.

CA

Carlos Arenas

6

Paws And Pounds

An engaging, rainbow-themed 3rd/4th grade math activity exploring multiplicative comparison word problems with cute animals. Students solve 10 interactive Scoot task cards comparing animal weights, record their choices, and check their understanding.

DG

Danielle Garland

3

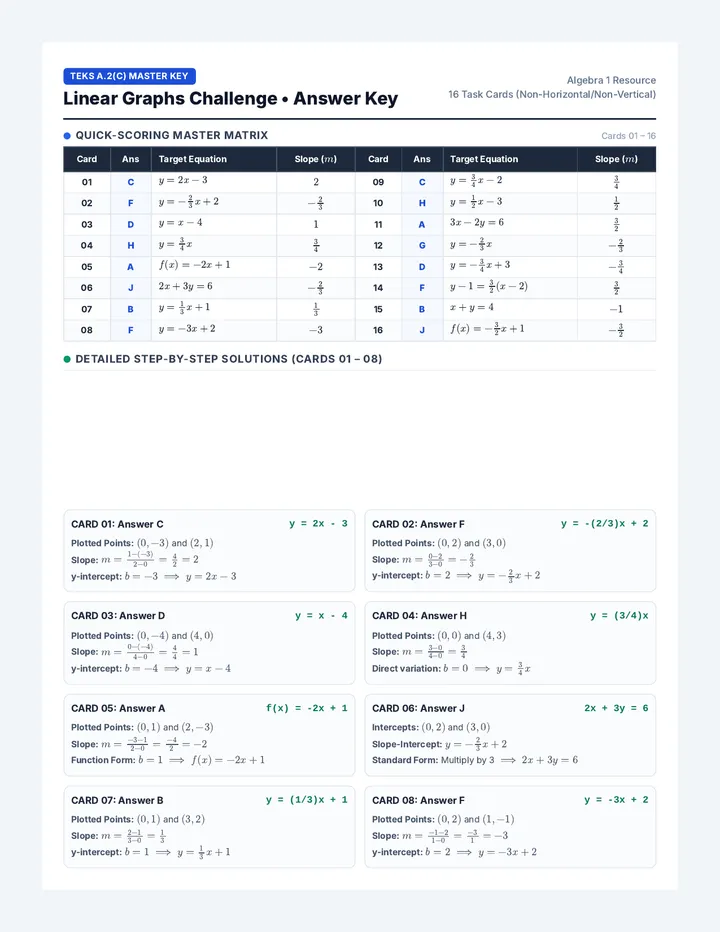

Linear Graphs Answer Key

A comprehensive 2-page teacher answer key for the 16-card linear graphs task activity (TEKS A.2C). Features a quick-scoring reference table, step-by-step coordinate derivations for every card, and STAAR error analysis notes.

KC

Krystal Comeaux

Visual Math Bridges

A comprehensive visual reference toolkit providing tiered mathematical supports for Grade 5 division situations and Grade 6 ratio concepts, crafted with specialized instructional scaffolds for diverse learners.

DB

Danny Brooks

6

Linear Graphs Challenge

A print-ready, STAAR-aligned 16-card task activity for TEKS A.2(C) focusing on writing linear equations from non-vertical, non-horizontal graphs. Features precision-aligned coordinate grids with exact lattice points across slope-intercept, standard, and point-slope forms.

KC

Krystal Comeaux

2

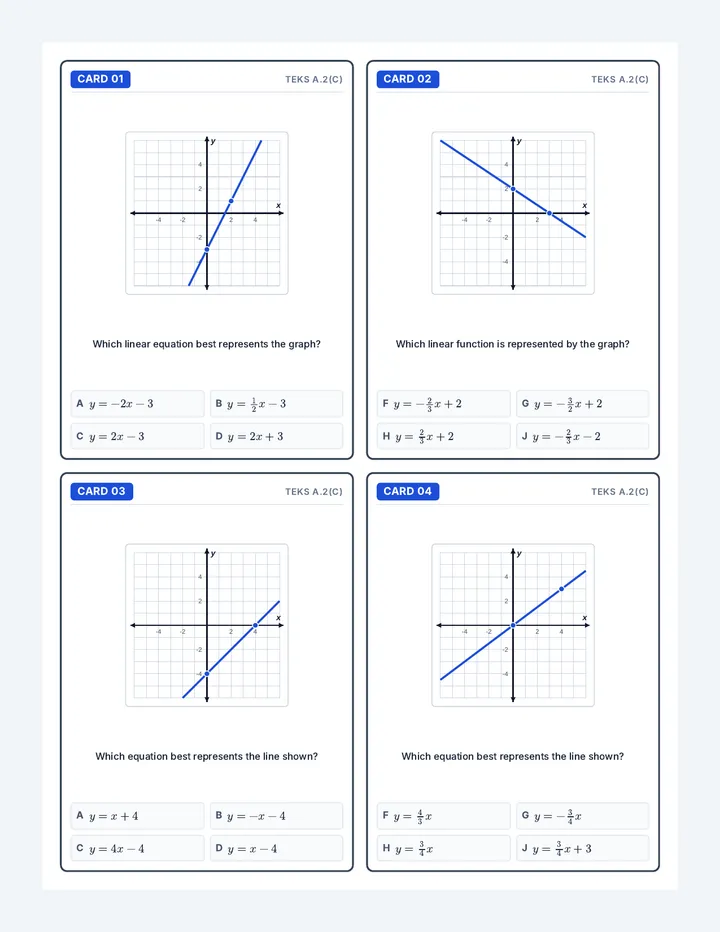

Linear Graph Task Cards

A print-ready set of 16 STAAR-aligned task cards for TEKS A.2(C) featuring non-vertical, non-horizontal linear graphs. Each card includes a precision-aligned coordinate plane with mathematically verified points, distinct slope-intercept, standard, and point-slope equations, and uniform answer choices.

KC

Krystal Comeaux

Kindergarten Foundations

A foundational kindergarten sequence bridging early literacy and numeracy, featuring active phonemic awareness hunts and hands-on conservation of number explorations.

NS

Neelab Sayah

8

Shape Castle Architects

A hands-on early geometry lesson where young learners identify 2D shapes and translate visual blueprints into block castle structures. Students explore balance, foundational shape properties, and cooperative spatial problem-solving.

PZ

Paula Zagarella

4

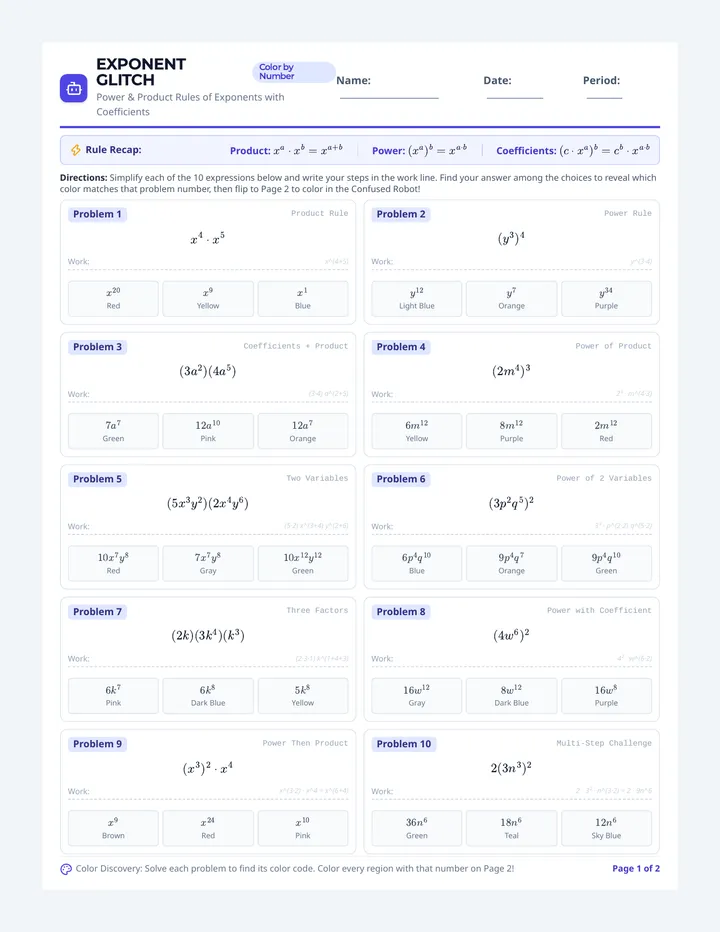

Exponent Glitch Coloring Worksheet

A two-page color-by-number homework worksheet where students solve 10 exponent problems on Page 1 to determine the color code for each number, and Page 2 is a pure coloring illustration of a confused robot with only numbered regions and no text or writing.

CD

Craig Davis

Divide and Conquer

A multi-phase diagnostic, progress monitoring, and mastery assessment sequence for fraction division. Targets conceptual visual models, procedural inversion strategies, and mixed number operations.

N

ntobin

6

Bakery Arrays

A comprehensive 3rd-grade mathematics lesson plan where students master multiplication concepts through bakery-themed arrays, connecting rows and columns of cupcakes to repeated addition and multiplication equations.

K

kcastelblanco

3

Animal Scoot Teacher Key

A comprehensive teacher guide and answer key for the Paws & Pounds multiplication Scoot activity. Features quick classroom setup tips, pacing rules, a detailed 10-card answer key with equations, and key misconceptions to address during debrief.

DG
