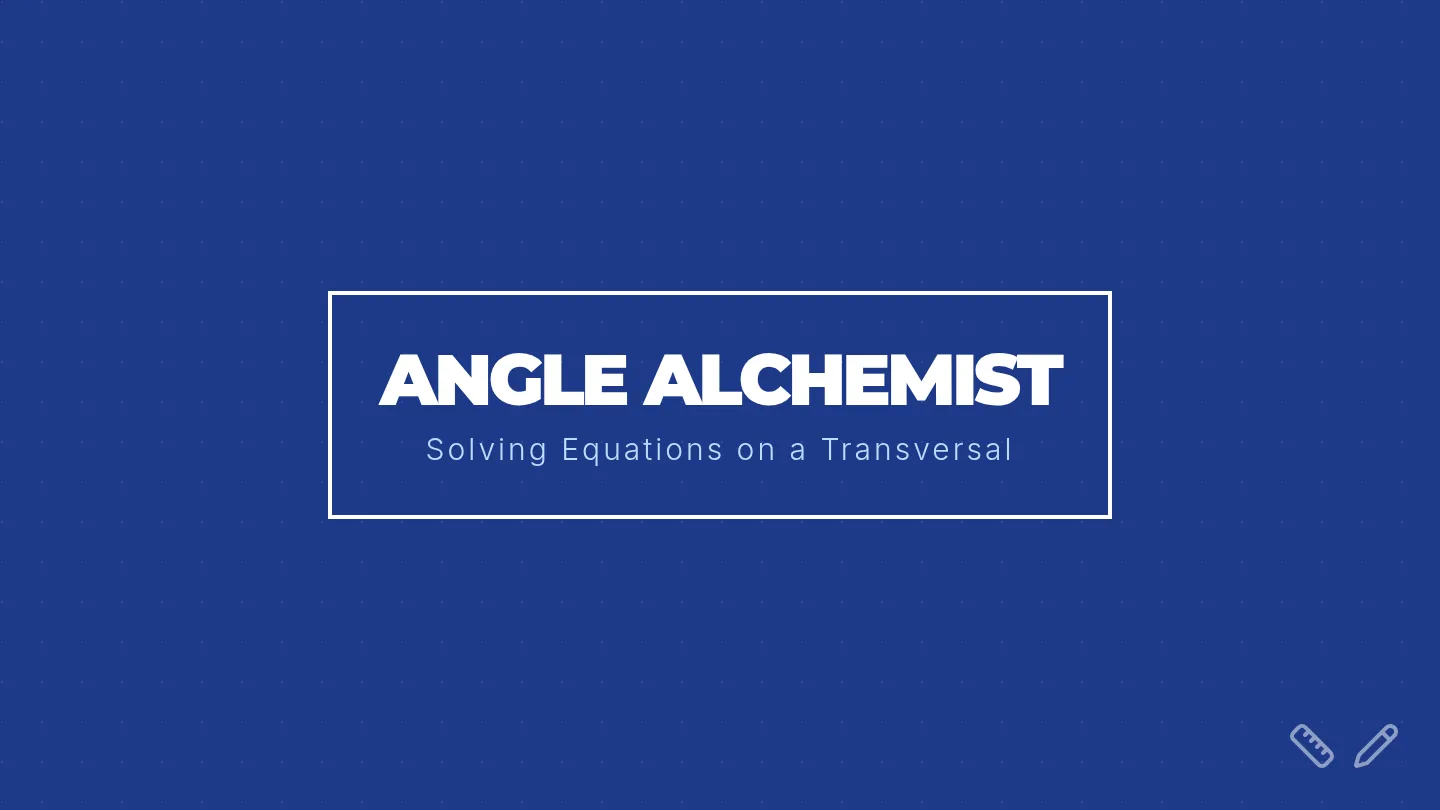

Angle Alchemist Slides
Angle Alchemist
Solving Equations on a Transversal
The Relationship Rule
CONGRUENT (Equal)
When angles are in the same relative position.
- Corresponding
- Alternate Interior
- Alternate Exterior
SUPPLEMENTARY (180°)
When angles are on the same side and inside.
- Consecutive (Same-Side) Interior
- Linear Pairs
1 2 3 4 5 6 7 8
The Takedown Strategy
01
IDENTIFY
Name the angle relationship. Are they equal or do they add to 180?
02
EQUATE
Write your equation.
A = B or
A + B = 180
03
CALCULATE
Solve for \(x\). If needed, plug \(x\) back in to find the angle measure.
Case #1: Equal Match
Solving Alternate Interior Angles
Example
4x + 10 6x - 20
Equation Setup:
\[4x + 10 = 6x - 20\]
1
Subtract \(4x\): \(10 = 2x - 20\)
2
Add \(20\): \(30 = 2x\)
3
Divide by \(2\): \(x = 15\)
Case #2: The Total 180
Solving Same-Side Interior Angles
Example
12x 6x
Equation Setup:
\[12x + 6x = 180\]
1
Combine: \(18x = 180\)
2
Divide: \(x = 10\)
Check
\(12(10) + 6(10) = 120 + 60 = 180\)

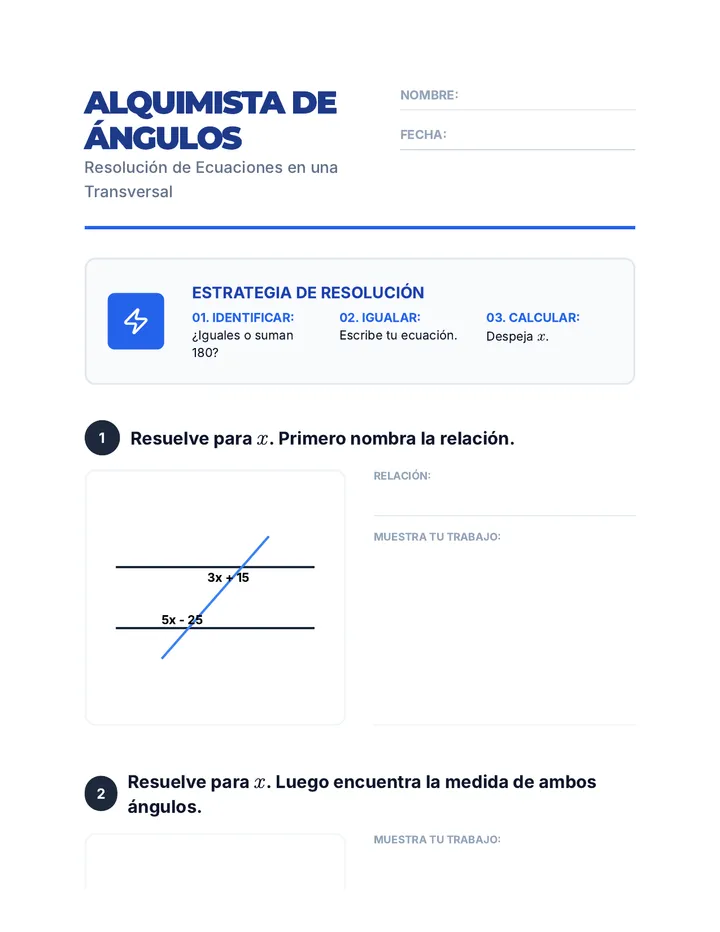

Angle Alchemist Worksheet
Alquimista de Ángulos
Resolución de Ecuaciones en una Transversal
Nombre:
Fecha:
Estrategia de Resolución
01. IDENTIFICAR: ¿Iguales o suman 180?
02. IGUALAR: Escribe tu ecuación.
03. CALCULAR: Despeja \(x\).
1
Resuelve para \(x\). Primero nombra la relación.
3x + 15 5x - 25
Relación:
Muestra tu trabajo:
2
Resuelve para \(x\). Luego encuentra la medida de ambos ángulos.
8x + 20 2x
Muestra tu trabajo:
\(x\) =
Medida de ángulos:
3
Resuelve para \(x\). ¿Son estos ángulos congruentes? Explica por qué.
10x - 40 6x + 20
Muestra tu trabajo:
Explica (¿Congruentes? ¿Relación?):
"El secreto del Alquimista es saber cuándo igualar y cuándo sumar."

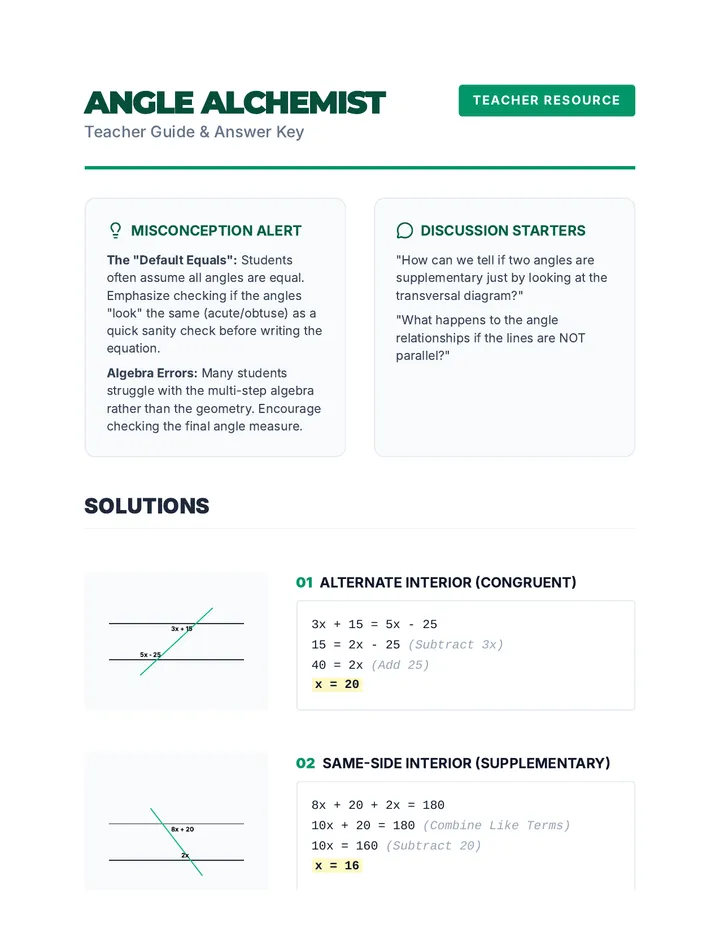

Angle Alchemist Key Guide
Angle Alchemist
Teacher Guide & Answer Key
Teacher Resource
Misconception Alert
- The "Default Equals": Students often assume all angles are equal. Emphasize checking if the angles "look" the same (acute/obtuse) as a quick sanity check before writing the equation.
- Algebra Errors: Many students struggle with the multi-step algebra rather than the geometry. Encourage checking the final angle measure.
Discussion Starters
- "How can we tell if two angles are supplementary just by looking at the transversal diagram?"
- "What happens to the angle relationships if the lines are NOT parallel?"
Solutions
3x + 15 5x - 25
01
Alternate Interior (Congruent)
3x + 15 = 5x - 25
15 = 2x - 25 (Subtract 3x)
40 = 2x (Add 25)
x = 20
8x + 20 2x
02
Same-Side Interior (Supplementary)
8x + 20 + 2x = 180
10x + 20 = 180 (Combine Like Terms)
10x = 160 (Subtract 20)
x = 16
Angle 1: 8(16) + 20 = 148°
Angle 2: 2(16) = 32°
10x - 40 6x + 20
03
Corresponding (Congruent)
10x - 40 = 6x + 20
4x - 40 = 20 (Subtract 6x)
4x = 60 (Add 40)
x = 15
Explanation: They are congruent because they are in the same relative position at each intersection.
