Strip Studio Lesson Plan Instructional & Clinical Guide Grades 5-6 • 60 Mins
Strip Model Studio Lesson Plan
Pedagogical Focus Quotative Division & CRA Scaffolding
Target Standards CCSS.MATH 5.NF.B.7, 6.NS.A.1
Core Construct Quotative / Measurement Division
Target Language Dividend, Divisor, Partition, Tape Strip
Clinical Observer Focus Enactive-to-Iconic Scaffolding
The Pedagogical Shift: Quotative (Measurement) vs. Partitive (Sharing)
Most elementary students only know division as sharing equally into groups (partitive: \(12 \div 3 = \) "12 cookies shared among 3 people"). Partitive logic fails student intuition when dividing by a fraction (e.g., \(3 \div \frac{3}{4}\) cannot mean "3 items shared across \(\frac{3}{4}\) of a person"). This lesson shifts students to quotative (measurement) division : "How many groups of size \(\frac{3}{4}\) can be measured out from 3 wholes?" .
Student Learning Targets
• Interpret \(a \div \frac{b}{c}\) as "How many \(\frac{b}{c}\)-sized units fit into length \(a\)?"
• Construct proportional tape diagrams to physically group and count fractional lengths.
• Explain fractional quotients with remainders conceptually prior to standard algorithm execution.
Preservice Teacher Observation Targets
• Analyze how teacher talk scaffolds the transition from physical paper folding to drawn diagrams.
• Record student verbalizations when encountering remaining fractional pieces (partial groups).
• Evaluate when and why visual models maintain lower cognitive load than early symbol pushing.
Studio Supplies: 12" pre-cut paper register strips (or cardstock), highlighters (2 colors), straightedges, activity sheet, slide projector.
1 Phase 1: The Studio Launch — The Ribbon Workshop (12 Mins)
Whole Class Discourse
Anchor Scenario: "A maker in our studio has 3 meters of canvas strapping. Each messenger bag shoulder strap requires exactly \(\frac{3}{4}\) of a meter. How many complete shoulder straps can the maker craft?"
Teacher Questioning Arc:
"Are we sharing 3 meters among people, or measuring off strips of length \(\frac{3}{4}\)?"
"Before calculating: will the answer be greater than or less than 3? Why?"
Undergraduate Observer Notice:
Observe how the teacher redirects students away from "just invert and multiply" toward drawing continuous bar wholes partitioned into fourths.
The Strip Model Studio • Page 1 of 2 Instructional Architecture & Diagnostic Launch
Instructional Architecture
Exploration, Synthesis & Clinical Observation Matrix
Phase 2 • Phase 3 • Clinical Debrief
2 Phase 2: Guided Studio Build & Partner Investigation (25 Mins)
Pairs / Concrete Manipulative Work
Pairs receive pre-cut 12-inch paper strips. Students establish a 1-strip = 1-unit baseline, then solve three sequenced architectural challenges on their Activity Sheet:
Challenge 1: Whole \(\div\) Unit
\(3 \div \frac{1}{3}\)
Build 3 wholes. Partition each into thirds. Count total pieces (9). Establish foundation that dividing by fractions yields larger values.
Challenge 2: Whole \(\div\) Non-Unit
\(3 \div \frac{3}{4}\)
Build 3 wholes. Subdivide into fourths (12 fourths). Bundle into packages of 3 fourths. Discover 4 whole groups cleanly formed.
Challenge 3: Remainder Dilemma
\(2 \div \frac{3}{4}\)
Subdivide 2 into fourths (8 fourths). Group two \(\frac{3}{4}\) packages. 2 fourths remain. Realize remainder is \(\frac{2}{3}\) of a group, yielding \(2\frac{2}{3}\).
3 Phase 3: Studio Synthesis & Representational Anchoring (13 Mins)
Whole Class Math Talk
Key Synthesis Questions to Anchor the Representation:
"Why did we have to partition every whole into fourths before we could measure groups of \(\frac{3}{4}\)?" (Need a common subdivision unit to count)."In \(2 \div \frac{3}{4}\), why is the remainder written as \(\frac{2}{3}\) and not \(\frac{2}{4}\)?" (The measurement unit is a group of size \(\frac{3}{4}\); two pieces represent 2 out of the 3 needed for a full group)."Notice how \(3 \div \frac{3}{4} = (3 \times 4) \div 3 = 12 \div 3 = 4\). How do our strip cuts mirror these two steps?" (First we multiply to find total sub-units, then divide by group size).
Preservice Candidate Clinical Observation Matrix
Focus 1: Bruner's CRA Continuity
Did the student hold the physical folded strip while drawing their 2D diagram? At what moment did they stop needing the physical paper and rely solely on the sketch?
Focus 2: Linguistic Scaffolding
Listen for the shift from "divide 3 by \(\frac{3}{4}\)" to "how many \(\frac{3}{4}\) sticks can I cut?". Did the measurement metaphor prevent the "fractions always make numbers smaller" misconception?
Focus 3: The Remainder Unit Trap
Track students working on Challenge 3. How many immediately wrote "\(2 \text{ r } 2\)" or "\(2\frac{2}{4}\)"? How did the teacher use the tape diagram to reveal that the remaining 2 pieces are \(\frac{2}{3}\) of a group?
Focus 4: Procedural Emergence
When the teacher asked students to look at total pieces before grouping, did candidates see students inventing \((A \times C) \div B\) naturally without the rote "keep-change-flip" rule?
The Strip Model Studio • Page 2 of 2 Formative Check: Model & Evaluate \(2 \div \frac{2}{5}\) on exit ticket

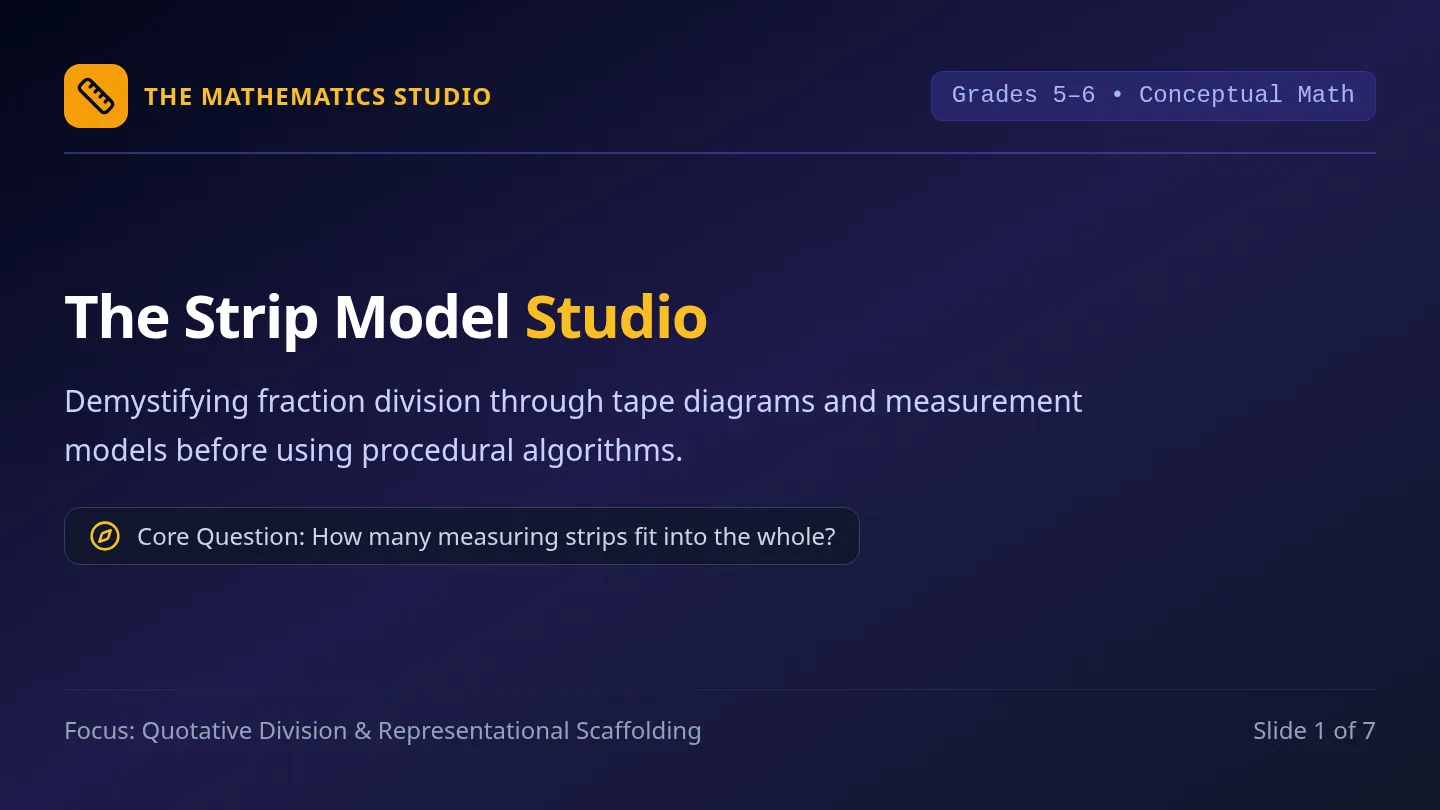

Strip Studio Slide Deck The Mathematics Studio
Grades 5–6 • Conceptual Math
The Strip Model Studio
Demystifying fraction division through tape diagrams and measurement models before using procedural algorithms.
Core Question: How many measuring strips fit into the whole?
Focus: Quotative Division & Representational Scaffolding Slide 1 of 7
What Does Division Actually Ask?
Concept Shift
Sharing (Partitive)
\(12 \div 3 = 4\)
"12 cookies shared equally among 3 children."
⚠️ Breaks down with fractions: What does "12 cookies shared among \(\frac{3}{4}\) of a child" mean?
Measuring (Quotative)
\(12 \div 3 = 4\)
"How many 3-foot boards can we cut from 12 feet of wood?"
✨ Works perfectly with fractions: "How many \(\frac{3}{4}\)-meter straps fit into 12 meters?"
The Big Idea: In fraction division, division means measuring , not sharing! Slide 2 of 7
The Maker Studio Challenge
Anchor Problem
A maker has 3 meters of continuous canvas webbing.\(\frac{3}{4}\) of a meter .
How many full bag straps can the maker craft?
Mathematical Translation: \(3 \div \frac{3}{4} = ?\)
The Measurement Question: "How many \(\frac{3}{4}\) chunks fit into 3 whole meters?"
Turn & Talk: Before drafting, will the answer be greater than 3 or less than 3? Slide 3 of 7
Drafting the Solution: Partition & Bundle
\(3 \div \frac{3}{4} = 4\)
Meter 1 Meter 2 Meter 3
¼
¼
¼
¼
¼
¼
¼
¼
¼
¼
¼
¼
Strap #1 (\(\frac{3}{4}\))
Strap #2 (\(\frac{3}{4}\))
Strap #3 (\(\frac{3}{4}\))
Strap #4 (\(\frac{3}{4}\))
Step 1: Subdivide 3 wholes \(\times\) 4 pieces = 12 fourths in total.
Step 2: Bundle 12 fourths \(\div\) 3 fourths per strap = 4 complete straps .
Look closely: Notice why we multiply by the denominator (4) then divide by the numerator (3)! Slide 4 of 7
The Remainder Trap: What Do We Have Left?

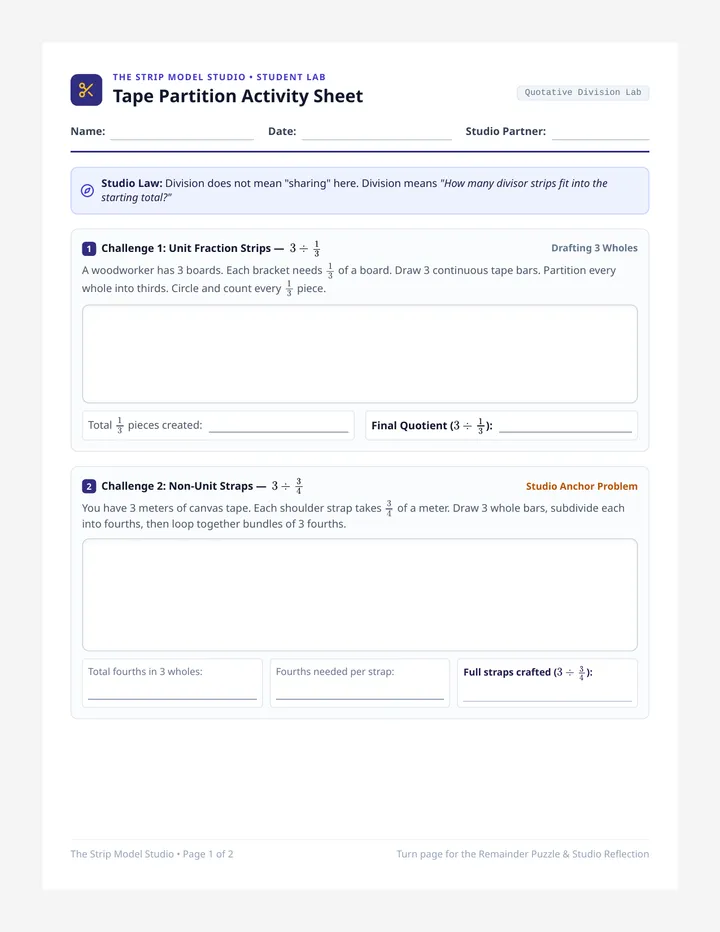

Tape Partition Activity Sheet The Strip Model Studio • Student Lab
Tape Partition Activity Sheet
Quotative Division Lab
Name:
Date:
Studio Partner:
Studio Law: Division does not mean "sharing" here. Division means "How many divisor strips fit into the starting total?"
1 Challenge 1: Unit Fraction Strips — \(3 \div \frac{1}{3}\) Drafting 3 Wholes
A woodworker has 3 boards. Each bracket needs \(\frac{1}{3}\) of a board. Draw 3 continuous tape bars. Partition every whole into thirds. Circle and count every \(\frac{1}{3}\) piece.
Total \(\frac{1}{3}\) pieces created:
Final Quotient (\(3 \div \frac{1}{3}\)):
2 Challenge 2: Non-Unit Straps — \(3 \div \frac{3}{4}\) Studio Anchor Problem
You have 3 meters of canvas tape. Each shoulder strap takes \(\frac{3}{4}\) of a meter. Draw 3 whole bars, subdivide each into fourths, then loop together bundles of 3 fourths.
Total fourths in 3 wholes:
Fourths needed per strap:
Full straps crafted (\(3 \div \frac{3}{4}\)):
The Strip Model Studio • Page 1 of 2 Turn page for the Remainder Puzzle & Studio Reflection
Studio Investigation Part II Handling Remainders & Fractional Dividends
3 Challenge 3: The Remainder Puzzle — \(2 \div \frac{3}{4}\) Careful Unit Analysis!
Draw 2 wholes partitioned into fourths. Circle bundles of \(\frac{3}{4}\). Notice how many full groups you create, and examine the leftover fourths.
How many complete \(\frac{3}{4}\) groups?
How many fourths are leftover?
Critical Studio Question: Why is the quotient written as \(2\frac{2}{3}\) instead of \(2\frac{2}{4}\)? (Think about the size of a full group!)
4 Challenge 4: Fraction \(\div\) Fraction — \(\frac{3}{2} \div \frac{1}{4}\) Improper Tape Length
Draw a tape representing \(1\frac{1}{2}\) meters (\(\frac{3}{2}\)). Subdivide the tape into fourths. How many \(\frac{1}{4}\)-meter sections can you cut?
\(\frac{3}{2}\) is equivalent to:
fourths
Quotient (\(\frac{3}{2} \div \frac{1}{4}\)):
Studio Designer Debrief: Explaining the Quotative Model
A classmate says: "Division always makes numbers smaller, so \(3 \div \frac{3}{4}\) can't be 4." Using your strip drawings and the idea of "measuring," explain why they are mistaken:
The Strip Model Studio • Page 2 of 2 Studio Assessment • Visual Quotative Progression
Scaffold Studio Observer Guide Teacher Education Clinical Practicum
Scaffold Studio Observer Guide
CRA Protocol
Candidate:
Observation Date:
Mentor Teacher:
Theoretical Lens: Bruner’s CRA Progression & Lesh Translation Model
As an observer, your goal is not merely to verify whether 5th/6th graders find correct answers, but to trace how representational artifacts (paper strips, drawn tape diagrams, verbal metaphors) scaffold cognitive access to quotative division before symbolic rules appear.
A Domain 1: The Enactive-to-Iconic Bridge (Physical to Drawn)
Bruner Enactive $\rightarrow$ Iconic
Notice how students transition from folding 12" paper strips to drawing continuous 2D tape diagrams.
Focal Look-Fors:
Do students keep equal partitions in their sketches?
Does the student physicalize the boundary of each whole?
Scaffolding Move to Track:
How does the teacher guide a student who draws uneven pieces without erasing their conceptual thinking?
Field Observation Evidence & Student Quotes:
B Domain 2: Discourse & Quotative Re-voicing
Measurement Framing
Observe how the instructor and students negotiate the language of division. Track student shifts from sharing language to measurement language.
Sharing Talk (Partitive Trap): "Share 3 among fourths..." (Confusing)
Measurement Talk (Quotative Scaffold): "How many \(\frac{3}{4}\) sticks can we cut from 3?"
Verbatim Student Talk When First Interpreting \(3 \div \frac{3}{4}\):
Scaffold Studio Observer Guide • Page 1 of 2 Turn page for Remainder Analysis & Candidate Seminar Questions
Clinical Fieldwork Investigation Part II Cognitive Conflict & Seminar Debrief
C Domain 3: Resolving Cognitive Disequilibrium (The Remainder)
Cognitive Demand Zone
During Challenge 3 (\(2 \div \frac{3}{4}\)), students have 2 fourths remaining. Document how the tape diagram serves as an anchor when students debate whether the remainder is \(\frac{2}{4}\) or \(\frac{2}{3}\).
The Unit Confusion:
The 2 leftover pieces are \(\frac{2}{4}\) of one whole meter , but \(\frac{2}{3}\) of one shoulder strap group .
Candidate Clinical Prompt:
Did the teacher tell them the answer, or did they prompt the student to point to a "full group"?
Student Dialogue / Teacher Scaffolding Interventions Observed:
D Domain 4: Organic Emergence of the Inversion Algorithm
Meaningful Mechanics
