Cargo Crafters Lesson Plan Grade 5 STEM Logistics Unit
Cargo Crafters: Volume & Spatial Logistics
Standards: CCSS.MATH.CONTENT.5.MD.C.3 • 5.MD.C.4 • 5.MD.C.5.A/B/C | Duration: 60 Minutes
Lesson Model Concrete → Abstract
Big Idea
Volume as stacked identical layers
Formulas
\(V = l \times w \times h\) & \(V = B \times h\)
Materials
Snap cubes (30/pair), ruler, cards
Target Key
Cubic units (\(\text{cm}^3\), \(\text{in}^3\))
Essential Question
How does the two-dimensional area of a crate's base relate to the three-dimensional volume of packed freight?
Learning Goals
Build prisms using unit cubes and record layers.
Apply \(V = l \times w \times h\) and \(V = B \times h\) accurately.
Decompose composite freight prisms to find total cargo volume.
Lesson Phases: Launch & Conceptual Build
1
Phase 1: The Logistics Mission Launch
10 Mins
Hook: Display Slide 2 with the Apollo Freight Cargo hold. Present the scenario: cargo transport charges per cubic meter, and empty airspace costs thousands of dollars.Prompt: "If we have a crate base that fits 12 unit containers, how many containers fit if we stack 4 identical layers high?" Have students model quickly with partners using 4 cubes to symbolize layers.
2
Phase 2: Layer Modeling & Formula Derivation
15 Mins
Hands-on Demonstration: Guide pairs to construct a single base layer of \(3 \text{ units} \times 4 \text{ units}\) (Area = 12 square units). Emphasize that the base \(B = 12\). Add a second layer, then a third layer.Mathematical Bridge: Connect repeated addition of layers (\(12 + 12 + 12\)) to multiplication (\(12 \times 3 = 36\)). Contrast \(V = l \times w \times h\) with \(V = B \times h\). Emphasize unit cubic designation (\(\text{cm}^3\) vs \(\text{cm}^2\)).
Cargo Crafters • Logistics & Rectangular Prism Volume Page 1 of 2
Phase Progression & Instructional Support
Cargo Crafters Lesson Plan
3
Phase 3: Modular Freight Lab (Activity)
20 Mins
Students work in partner engineering pairs with the Modular Freight Activity sheet and physical unit cubes. They pack three specific freight orders, recording base dimensions, layer counts, and calculating standard volumes. They then solve an advanced L-shaped composite crate by slicing the container horizontally or vertically into two non-overlapping prisms.
4
Phase 4: Synthesis
10 Mins
Conduct a quick mathematical congress: compare students who split the composite crate vertically vs. horizontally. Do both strategies yield the exact same total volume? Why does grouping matter?
5
Phase 5: Cool-Down
5 Mins
Administer individual Cargo Departure Exit Ticket . Students independently calculate crate capacity and diagnose a packing error to prove mastery of volume algorithms.
Targeted Mathematical Discourse
Concept: Base vs. Volume
"How does finding the area of the floor tell us about packing the whole cargo container?"
Concept: Additive Property
"When packing an L-shaped crate, why must we ensure our sub-prisms do not overlap or leave gaps?"
Common Misconceptions
Counting Outer Faces: Students count visible square faces on isometric drawings instead of solid internal unit cubes. → Intervention: Have them physically disassemble their snap-cube model.Unit Confusion: Writing \(\text{cm}^2\) instead of \(\text{cm}^3\). → Intervention: Emphasize 3 dimensions = exponent 3.
Targeted Differentiation
Support: Provide pre-layered color-coded cubes so each vertical layer is a single color, making \(B \times h\) concrete.On-Target: Transition from physical cubes to isometric blueprint sketches with given numerical dimensions.Extension: "Given a crate of \(120 \text{ m}^3\), how many distinct integer dimensions \((l, w, h)\) can hold this volume?"
Cargo Crafters • Logistics & Rectangular Prism Volume Page 2 of 2
Cargo Crafters Slide Deck Logistics Engineering Division
Grade 5 Mathematics
CARGO CRAFTERS
Modeling & Calculating Rectangular Prism Volume
Mission: Pack Freight Efficiently Standard: 5.MD.C.3 • 5.MD.C.5
MISSION BRIEFING: THE CARGO DILEMMA
Logistics Problem
Cargo container ships cross oceans daily carrying vital supplies. Empty airspace inside crates costs companies millions in wasted fuel!
The Logistics Goal
Find the exact 3-dimensional space (Volume) inside each crate to pack every shipment with zero wasted space.
How do we measure 3D space?
We fill it with identical unit cubes that leave no gaps and no overlaps.
Key Term: Volume = Amount of space a 3D solid occupies Mission Protocol 01
THE LAYER STRATEGY: BASE × HEIGHT
V = B × h
1
Step 1: The Floor Layer
Calculate the area of the crate floor (Base Area, B ).
Length × Width 4 × 3 = 12 cubes
2
Step 2: Stack the Layers
Multiply the base layer by the Height (h) in layers.
Base × Height 12 × 3 = 36 unit cubes
Standard Formula V = length × width × height
Layer Formula V = Base Area × height
RAPID CARGO CHECK
Try It Now
Cargo Manifest #A-108
Length (\(l\)): 8 meters
Width (\(w\)): 3 meters
Height (\(h\)): 5 meters
Step A: Calculate Base Area
\(B = 8 \times 3 = 24\text{ m}^2\)
Step B: Multiply by Height
\(V = 24 \times 5 = 120\text{ m}^3\)
Always write the correct unit exponent: cubic meters (\(\text{m}^3\)) !
Notice: \(8 \times (3 \times 5) = (8 \times 3) \times 5 = 120\) Associative Property in Volume
COMPOSITE FREIGHT: SLICE & SUM
V_total = V_1 + V_2
1
Slice
Decompose the irregular crate into two separate, non-overlapping prisms.
2
Calculate
Find the volume of each prism using \(l \times w \times h\).
3
Combine
Add both volumes together to get the total freight capacity.
Whether you slice vertically or horizontally, the total volume remains identical!
Additive Property
Zero gaps • Zero overlapping cubes Engineering Protocol 02

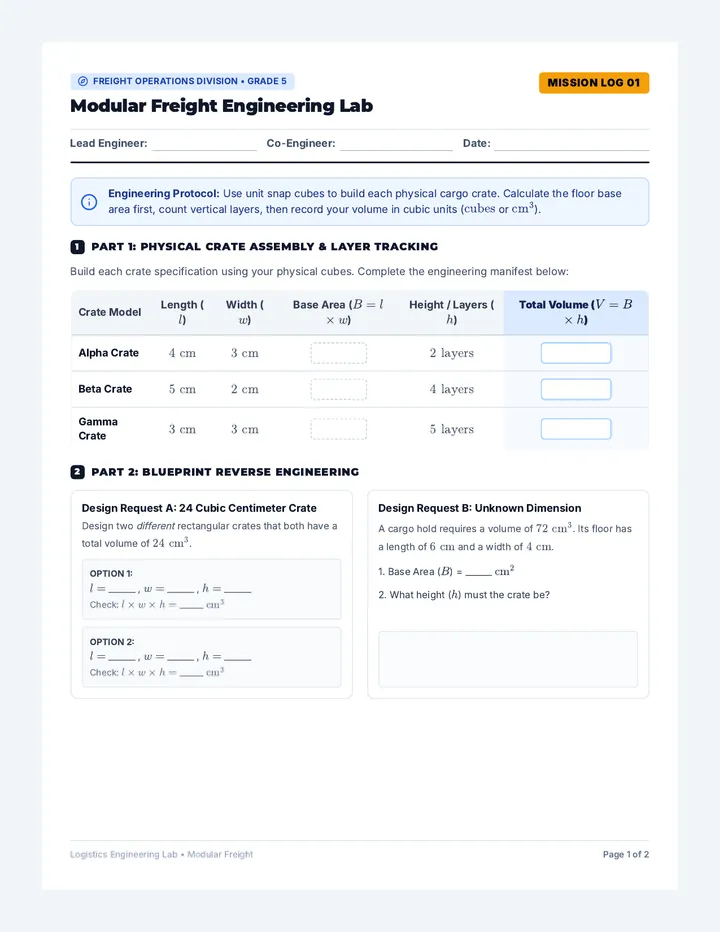

Modular Freight Activity Freight Operations Division • Grade 5
Modular Freight Engineering Lab
Mission Log 01
Lead Engineer:
Co-Engineer:
Date:
Engineering Protocol: Use unit snap cubes to build each physical cargo crate. Calculate the floor base area first, count vertical layers, then record your volume in cubic units (\(\text{cubes}\) or \(\text{cm}^3\)).
1 Part 1: Physical Crate Assembly & Layer Tracking
Build each crate specification using your physical cubes. Complete the engineering manifest below:
Crate Model Length (\(l\)) Width (\(w\)) Base Area (\(B = l \times w\)) Height / Layers (\(h\)) Total Volume (\(V = B \times h\)) Alpha Crate \(4\text{ cm}\) \(3\text{ cm}\) \(2\text{ layers}\)
|
| Beta Crate | \(5\text{ cm}\) | \(2\text{ cm}\) |
| \(4\text{ layers}\) |
|
| Gamma Crate | \(3\text{ cm}\) | \(3\text{ cm}\) |
| \(5\text{ layers}\) |
|
2 Part 2: Blueprint Reverse Engineering
Design Request A: 24 Cubic Centimeter Crate
Design two different rectangular crates that both have a total volume of \(24\text{ cm}^3\).
Option 1: \(l =\) ______ , \(w =\) ______ , \(h =\) ______ Check: \(l \times w \times h =\) ______ \(\text{cm}^3\)
Option 2: \(l =\) ______ , \(w =\) ______ , \(h =\) ______ Check: \(l \times w \times h =\) ______ \(\text{cm}^3\)
Design Request B: Unknown Dimension
A cargo hold requires a volume of \(72\text{ cm}^3\). Its floor has a length of \(6\text{ cm}\) and a width of \(4\text{ cm}\).
1. Base Area (\(B\)) = ______ \(\text{cm}^2\)
2. What height (\(h\)) must the crate be?
Logistics Engineering Lab • Modular Freight Page 1 of 2
Advanced Freight Challenge: Composite Cargo
Mission Log 01 • Page 2
3
Mission Challenge: The L-Shaped Cargo Pod
Additive Volume
An irregular shipping crate has been delivered to your loading bay. To find its capacity, decompose the solid into two non-overlapping rectangular prisms.
w = 4 cm l = 3 cm h = 6 cm h = 2 cm depth = 2 cm
Container Dimensions:
• Prism A (Tall Section): \(4\text{ cm}\) long, \(2\text{ cm}\) wide, \(6\text{ cm}\) high

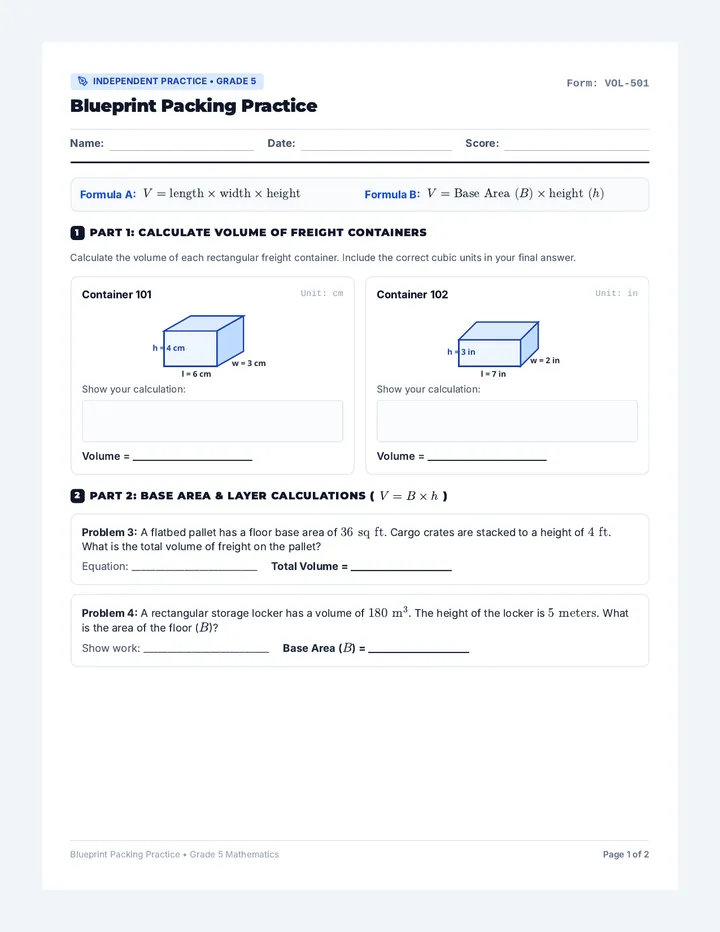

Blueprint Packing Worksheet Independent Practice • Grade 5
Blueprint Packing Practice
Form: VOL-501
Name:
Date:
Score:
Formula A: \(V = \text{length} \times \text{width} \times \text{height}\)
Formula B: \(V = \text{Base Area } (B) \times \text{height } (h)\)
1 Part 1: Calculate Volume of Freight Containers
Calculate the volume of each rectangular freight container. Include the correct cubic units in your final answer.
Container 101 Unit: cm
l = 6 cm w = 3 cm h = 4 cm
Show your calculation:
Volume = ________________________
Container 102 Unit: in
l = 7 in w = 2 in h = 3 in
Show your calculation:
Volume = ________________________
2 Part 2: Base Area & Layer Calculations (\(V = B \times h\))
Problem 3: A flatbed pallet has a floor base area of \(36\text{ sq ft}\). Cargo crates are stacked to a height of \(4\text{ ft}\). What is the total volume of freight on the pallet?
Equation: __________________________ Total Volume = ____________________
Problem 4: A rectangular storage locker has a volume of \(180\text{ m}^3\). The height of the locker is \(5\text{ meters}\). What is the area of the floor (\(B\))?
Show work: __________________________ Base Area (\(B\)) = ____________________
Blueprint Packing Practice • Grade 5 Mathematics Page 1 of 2
Part 3: Missing Dimensions & Composite Blueprints
Form: VOL-501 • Page 2
3 Solve for the Missing Dimension
Use the volume formula \(V = l \times w \times h\) to determine the unknown measurement for each crate:
Crate ID Length (\(l\)) Width (\(w\)) Height (\(h\)) Total Volume (\(V\)) Unknown Value Crate A \(8\text{ cm}\) \(5\text{ cm}\) ? \(160\text{ cm}^3\) Crate B ? \(4\text{ m}\) \(3\text{ m}\) \(84\text{ m}^3\)
|
| Crate C | \(10\text{ in}\) | ? | \(6\text{ in}\) | \(300\text{ in}^3\) |
|
4 Decomposing Composite Cargo Prism
2-Part Solid
The cargo pod below is composed of two joined rectangular prisms. Decompose the shape into two prisms, calculate the volume of each, and sum them.
Cargo Departure Exit Ticket Daily Cool-Down Assessment
Cargo Departure Exit Ticket
Standard: 5.MD.C.5
Student Name:
Date:
Score:
1 Question 1: Layer-by-Layer Capacity
Conceptual
A shipping crate is being packed with \(1\text{-cm}\) unit cubes. The floor layer is shown below. If the crate is packed with \(4\) identical layers, answer the following:
Length = 5 cm Width = 3 cm
A. Area of the bottom layer (\(B\)): _______ \(\text{cm}^2\)
B. Total height in layers (\(h\)): _______ \(\text{cm}\)
C. Total Volume (\(V = B \times h\)): _______ \(\text{cm}^3\)
2 Question 2: Cargo Bay Capacity
Procedural
An air freight crate has a length of \(9\text{ meters}\), a width of \(4\text{ meters}\), and a height of \(3\text{ meters}\). Write the multiplication equation and calculate the total volume.
Multiplication Equation: ______ × ______ × ______
Final Volume (with units): ________________________
3 Question 3: Logistics Error Analysis
Critical Reasoning
Engineer Leo was asked to find the volume of a crate that measures \(6\text{ ft}\) long, \(3\text{ ft}\) wide, and \(2\text{ ft}\) high. Leo wrote: 6 + 3 + 2 = 11 cubic feet.
What error did Engineer Leo make?
What is the correct volume of the crate? ________________________
Engineer Confidence Rating: How confident are you calculating volume using layers and formulas?
1 - Need Help 2 - Getting There 3 - Confident 4 - Expert
Cargo Departure Exit Ticket • Formative Assessment Grade 5 • 5.MD.C.5
