Overlap Visuals Slides Probability Blueprint
Mastering the Addition Rule
Module: Overlapping Events
The Mission
Learn to calculate the probability that Event A OR Event B happens.
Identify overlapping events
Avoid the "Double Count" mistake
Explain the answer in real words
A
B
The Danger Zone
If events overlap, and we just add \(P(A) + P(B)\)...
WE COUNT THE MIDDLE TWICE!
Event A
Event B
X 2
The Blueprint
General Addition Rule
\[P(A \text{ or } B) = P(A) + P(B) - P(A \text{ and } B)\]
Step 1
Count everything in A
Step 2
Count everything in B
Step 3
Subtract the overlap!
Interpret the Model
Context: The School Survey
In a group of 100 students:
Q
What is the probability a student plays sports OR is in music?
A
0.40 + 0.30 - 0.10 = 0.60
Interpretation:
"There is a 60% chance that a randomly selected student participates in at least one of these two activities."

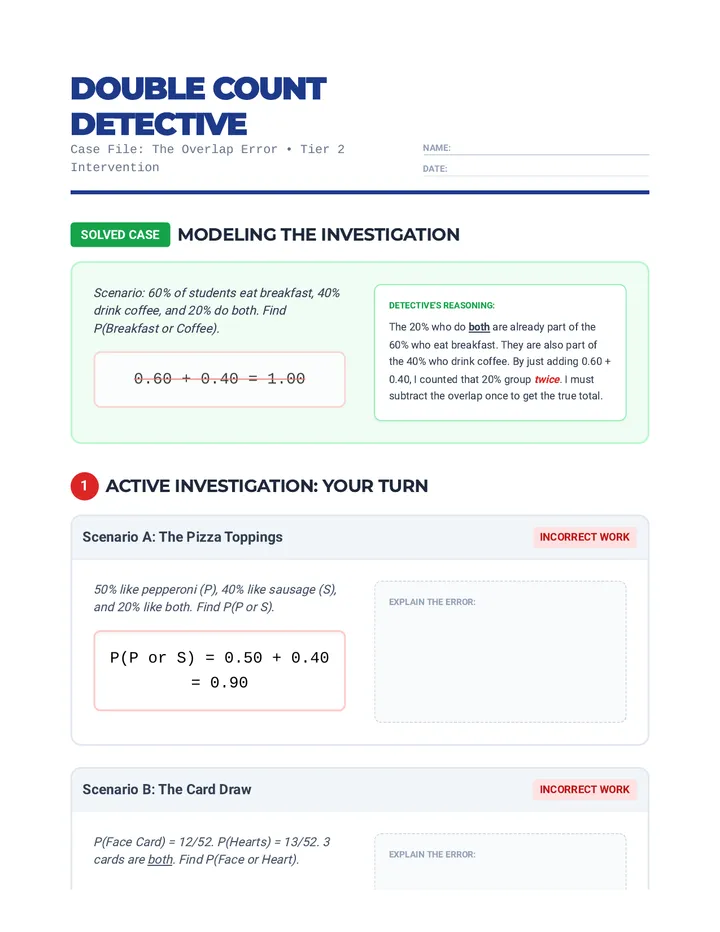

Double Count Worksheet Double Count Detective
Case File: The Overlap Error • Tier 2 Intervention
Name:
Date:
Solved Case
Modeling the Investigation
Scenario: 60% of students eat breakfast, 40% drink coffee, and 20% do both. Find P(Breakfast or Coffee).
0.60 + 0.40 = 1.00
Detective's Reasoning:
The 20% who do both are already part of the 60% who eat breakfast. They are also part of the 40% who drink coffee. By just adding 0.60 + 0.40, I counted that 20% group twice. I must subtract the overlap once to get the true total.
1
Active Investigation: Your Turn
Scenario A: The Pizza Toppings INCORRECT WORK
50% like pepperoni (P), 40% like sausage (S), and 20% like both. Find P(P or S).
P(P or S) = 0.50 + 0.40 = 0.90
Explain the Error:
Scenario B: The Card Draw INCORRECT WORK
P(Face Card) = 12/52. P(Hearts) = 13/52. 3 cards are both. Find P(Face or Heart).
\( \frac{12}{52} + \frac{13}{52} = \frac{25}{52} \)
Explain the Error:
2
The Correction Protocol
Apply the rule to fix the mistakes above: \( P(A \text{ or } B) = P(A) + P(B) - P(A \text{ and } B) \)
Scenario Step-by-Step Calculation Final Answer A: Pizza B: Cards
Final Report: Context & Interpretation
Probability of owning a laptop = 0.75. Tablet = 0.40. Both = 0.30.
1. Calculate P(Laptop OR Tablet):
2. Interpret (Full Sentence):

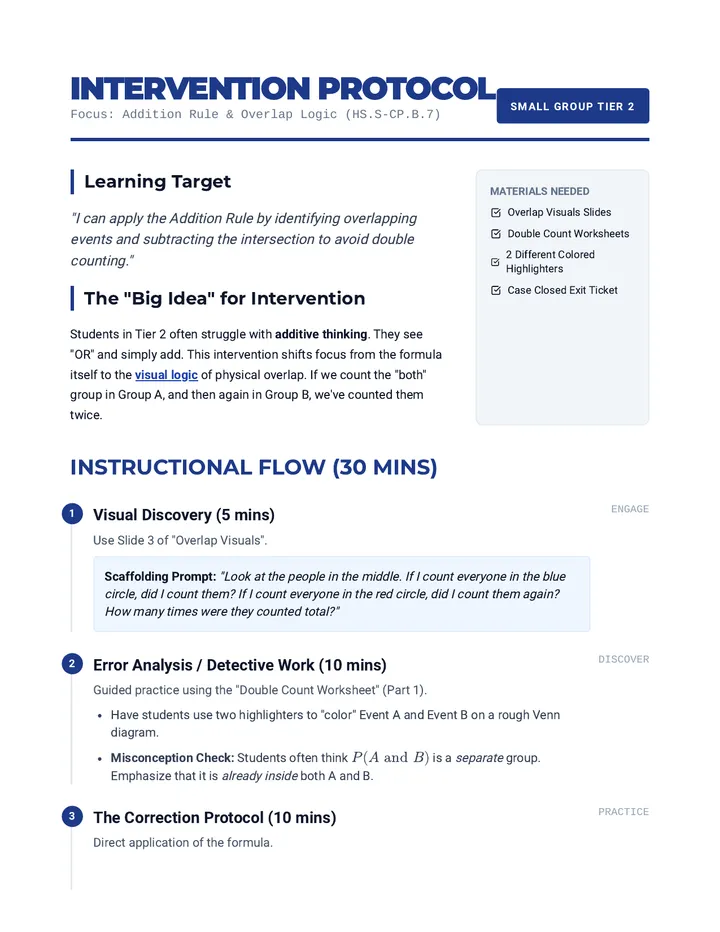

Intervention Facilitation Guide Intervention Protocol
Focus: Addition Rule & Overlap Logic (HS.S-CP.B.7)
Small Group Tier 2
Learning Target
"I can apply the Addition Rule by identifying overlapping events and subtracting the intersection to avoid double counting."
The "Big Idea" for Intervention
Students in Tier 2 often struggle with additive thinking. They see "OR" and simply add. This intervention shifts focus from the formula itself to the visual logic of physical overlap. If we count the "both" group in Group A, and then again in Group B, we've counted them twice.
Materials Needed
Overlap Visuals Slides
Double Count Worksheets
2 Different Colored Highlighters
Case Closed Exit Ticket
Instructional Flow (30 mins)
1
Visual Discovery (5 mins)
Use Slide 3 of "Overlap Visuals".
Scaffolding Prompt: "Look at the people in the middle. If I count everyone in the blue circle, did I count them? If I count everyone in the red circle, did I count them again? How many times were they counted total?"
ENGAGE
2
Error Analysis / Detective Work (10 mins)
Guided practice using the "Double Count Worksheet" (Part 1).
Have students use two highlighters to "color" Event A and Event B on a rough Venn diagram.
Misconception Check: Students often think \(P(A \text{ and } B)\) is a separate group. Emphasize that it is already inside both A and B.
DISCOVER
3
The Correction Protocol (10 mins)
Direct application of the formula.
RULE: P(A or B) = P(A) + P(B) - P(Overlap)
Encourage students to verbalize why they are subtracting: "We subtract the 20% because we already counted them in the 50%."
PRACTICE
4
Check for Mastery (5 mins)
Administer "Case Closed Exit Ticket".
Score Interpretation Next Step 2/2 Ready for Mutually Exclusive vs. Overlapping comparison. Exit Intervention. 1/2 Can calculate but can't interpret (or vice versa). Targeted Feedback.
MONITOR
COMMON STUMBLING BLOCKS
The "Subtraction Confusion":
Students may subtract the intersection twice or think they are removing those people entirely.

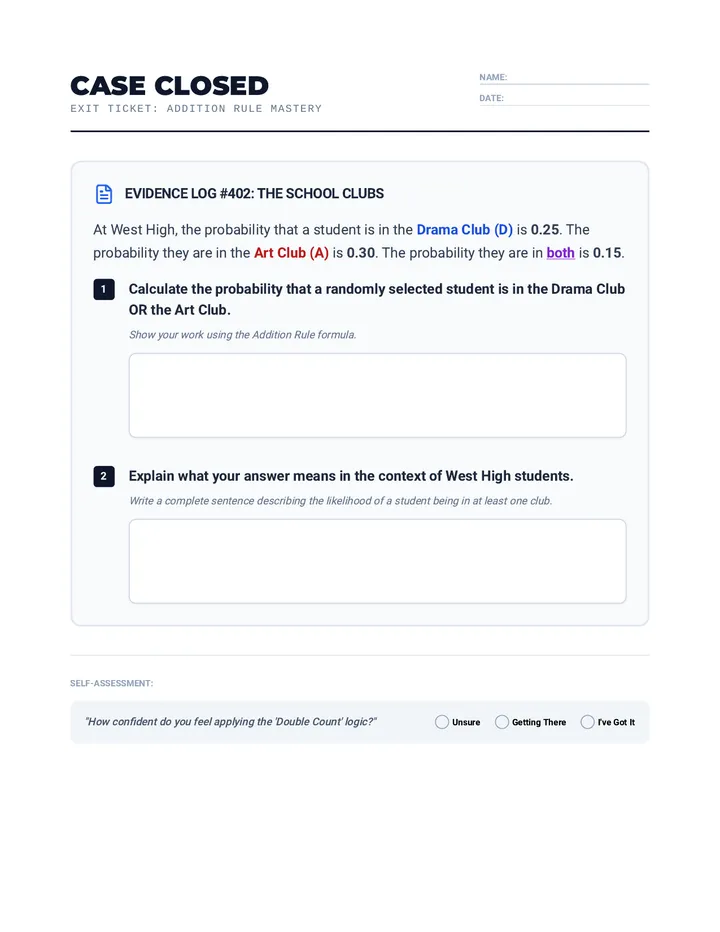

Case Closed Exit Ticket Case Closed
Exit Ticket: Addition Rule Mastery
NAME:
DATE:
Evidence Log #402: The School Clubs
At West High, the probability that a student is in the Drama Club (D) is 0.25. The probability they are in the Art Club (A) is 0.30. The probability they are in both is 0.15.
1
Calculate the probability that a randomly selected student is in the Drama Club OR the Art Club.
Show your work using the Addition Rule formula.
2
Explain what your answer means in the context of West High students.
Write a complete sentence describing the likelihood of a student being in at least one club.
Self-Assessment:
"How confident do you feel applying the 'Double Count' logic?"
Unsure
Getting There
I've Got It
