Parallel Precision Lesson Plan Geometry • Grade 10 • 2-Day Unit
Parallel Precision Lesson Plan
Parallel Lines, Transversals, and Angle-Algebra Relationships
Duration: 2 × 50 min
Standard: CCSS.MATH.HSG.CO.C.9
Author: High School Math Dept
Essential Question
How do parallel lines cut by a transversal allow us to model and solve spatial and algebraic relationships?
Core Objectives
Identify 5 angle pairs; prove equality vs. supplementary relationships; set up and solve multi-step linear equations.
Materials Needed
Slide Deck, Guided Notes Handout, Practice Worksheet, Exit Ticket, Highlighters, Scientific Calculators.
DAY 1
Concept Discovery & Angle Pair Theorems (50 Minutes)
00 – 10 min
Bellringer & Hook: The Railway Blueprint Mystery
Project slide 2 showing railway track cross-ties. Ask: “If track rails never meet and a maintenance crossbeam slices across both at 68°, how many distinct angle measurements exist?” Have students vote (options: 1, 2, 4, 8). Guide them to discover that only two distinct angle measures exist when lines are parallel!
10 – 25 min
Direct Instruction: The Transversal Anatomy & The Big Four
Distribute Guided Notes. Walk through definitions and color-coding on Slides 4-7:
Corresponding Angles: Same relative quadrant → Congruent (\(\angle 1 \cong \angle 5\))Alternate Interior Angles: Opposite sides, inside rails → Congruent (\(\angle 3 \cong \angle 6\))Alternate Exterior Angles: Opposite sides, outside rails → Congruent (\(\angle 1 \cong \angle 8\))Consecutive (Same-Side) Interior: Inside rails, same side → Supplementary (\(m\angle 3 + m\angle 5 = 180^\circ\))
25 – 40 min
Guided & Partner Practice: "Spot the Angle Pair"
Students pair up to complete Part 1 of Guided Notes. Teacher circulates with stamp/pen for formative checks. Address the common trap: confusing alternate interior with consecutive interior.
40 – 50 min
Formative Check & Day 1 Closure
Students complete Part A of the Exit Ticket (Identification & Direct Numeric Reasoning). Collect for diagnostic grouping heading into Day 2.
Unit: Geometric Foundations • Parallel Lines Page 1 of 2
DAY 2
Algebraic Application & Multi-Step Synthesis (50 Minutes)
Equating vs. Supplementing
00 – 08 min
Warm-Up & Diagnostic Debrief
Review Day 1 Exit Ticket trends. Project two diagrams: one setting \((3x + 10)^\circ = (5x - 20)^\circ\) (congruent pair) and one setting \((4x + 15)^\circ + (2x + 45)^\circ = 180^\circ\) (supplementary pair). Emphasize the core decision rule: “Are they equal, or do they add to 180°?”
08 – 22 min
Modeling: 3-Step Algebraic Protocol
Guide students through Guided Notes Page 2 protocol:
Identify the pair relationship: Name the geometric theorem (e.g., Alternate Interior).Establish the algebraic relationship: Set expressions equal (\(A = B\)) OR sum to \(180^\circ\) (\(A + B = 180^\circ\)).Solve for variable AND calculate target angle: Remind students to substitute back if the question asks for the angle measure!
22 – 42 min
Tiered Practice: Practice Worksheet & Blueprint Challenge
Students complete the Practice Worksheet. Teacher conducts small-group intervention at the back table for students needing scaffolded equation support.
42 – 50 min
Day 2 Exit Ticket & Synthesis Reflection
Students complete Part B of the Exit Ticket requiring an algebraic solution and measure verification.
Common Misconceptions & Preventive Fixes
Student Misconception Instructional Remedy
Setting ALL angle expressions equal to each other regardless of type. The "Acute/Obtuse Visual Test": Parallel line angles are either acute or obtuse. If both are acute, they are equal. If one is acute and one is obtuse, they must sum to 180°.
Stopping after finding \(x\) when asked for the angle measure. Teach students to highlight the final question demand. Require writing \(m\angle = \_\_\_\) in a boxed final answer line.
Confusing consecutive interior with alternate interior. Use the letter mnemonic: C onsecutive = C o-interior = C uddle on same side = 180°. Z -shape = Alternate Interior = Equal.
Differentiation Framework
Support / Scaffolding
Provide color-coded highlighters (blue for acute, yellow for obtuse). Use step-by-step equation templates with blank boxes for coefficients.
On-Level Mastery
Complete two-step equations involving distributive property and multi-variable angle pairs; justify theorem names in writing.
Extension / Enrichment
Auxiliary line problems (Crook problems / zig-zag transversals) where students must draw a third parallel line to solve complex composite angles.
Unit: Geometric Foundations • Parallel Lines Page 2 of 2
Parallel Precision Slides High School Geometry • 2-Day Investigation
Unit 3: Foundations
Parallel Lines & Transversals
Mastering angle relationships, congruence theorems, and algebraic equation modeling.
Angle Pair Theorems Congruent vs. Supplementary Solving for Variables
Day 1 & Day 2
Discovery Hook
The Railway Track Mystery
When two parallel rails are intersected by a steel cross-tie, how many unique angle measures are created?
1 2 3 4 5 6 7 8 Lines m ∥ n cut by Transversal t
Surprising Fact:
Out of all 8 angles formed, there are only TWO unique angle measures!
Group A (Acute)
∠1 = ∠4 = ∠5 = ∠8
Group B (Obtuse)
∠2 = ∠3 = ∠6 = ∠7
Any angle from Group A + any angle from Group B = 180° Slide 2
Vocabulary
Anatomy of the Transversal
Understanding regions and positions relative to the lines and transversal.
Interior Region
The region trapped between the two parallel lines.
∠3, ∠4, ∠5, ∠6
Exterior Region
The regions outside the top and bottom parallel lines.
∠1, ∠2, ∠7, ∠8
Alternate vs Same-Side
Alternate: Opposite sides of transversal.Same-Side: Same side of transversal.
Relative Positions
Key Term: Transversal = A line that intersects two or more coplanar lines at distinct points. Slide 3
The Big Four
Parallel Line Angle Theorems
When lines are parallel (\(m \parallel n\)), these exact rules govern angle pairs:
Corresponding Angles
CONGRUENT (\(\cong\))
Same quadrant/position at each intersection.
\(\angle 1 \cong \angle 5,\quad \angle 2 \cong \angle 6,\quad \angle 3 \cong \angle 7\)
Alternate Interior Angles
CONGRUENT (\(\cong\))
Between the lines, opposite sides ("Z-shape").
\(\angle 3 \cong \angle 6,\quad \angle 4 \cong \angle 5\)
Alternate Exterior Angles
CONGRUENT (\(\cong\))
Outside the lines, opposite sides.
\(\angle 1 \cong \angle 8,\quad \angle 2 \cong \angle 7\)
Consecutive Interior Angles
SUPPLEMENTARY (\(180^\circ\))
Between the lines, same side of transversal.
\(m\angle 3 + m\angle 5 = 180^\circ,\quad m\angle 4 + m\angle 6 = 180^\circ\)

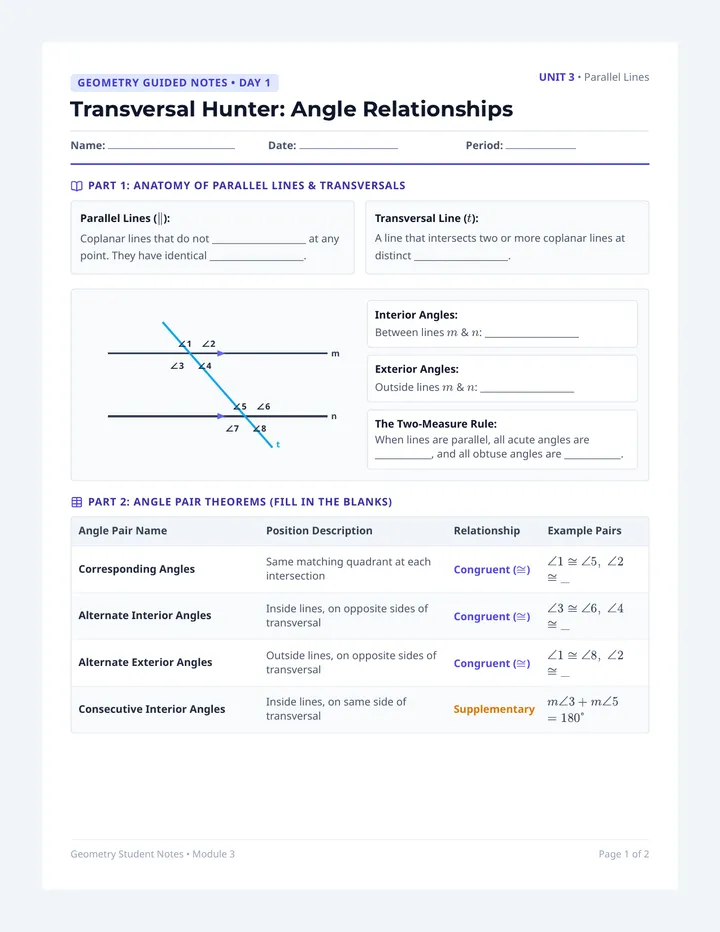

Transversal Hunter Guided Notes Geometry Guided Notes • Day 1
Transversal Hunter: Angle Relationships
UNIT 3 • Parallel Lines
Name:
Date:
Period:
Part 1: Anatomy of Parallel Lines & Transversals
Parallel Lines (\(\parallel\)):
Coplanar lines that do not ____________________ at any point. They have identical ____________________.
Transversal Line (\(t\)):
A line that intersects two or more coplanar lines at distinct ____________________.
m n t ∠1 ∠2 ∠3 ∠4 ∠5 ∠6 ∠7 ∠8
Interior Angles:
Between lines \(m\) & \(n\): ____________________
Exterior Angles:
Outside lines \(m\) & \(n\): ____________________
The Two-Measure Rule:
When lines are parallel, all acute angles are ____________, and all obtuse angles are ____________.
Part 2: Angle Pair Theorems (Fill in the Blanks)
Angle Pair Name Position Description Relationship Example Pairs
Corresponding Angles Same matching quadrant at each intersection Congruent (\(\cong\)) \(\angle 1 \cong \angle 5,\ \angle 2 \cong \_\_\)
Alternate Interior Angles Inside lines, on opposite sides of transversal Congruent (\(\cong\)) \(\angle 3 \cong \angle 6,\ \angle 4 \cong \_\_\)
Alternate Exterior Angles Outside lines, on opposite sides of transversal Congruent (\(\cong\)) \(\angle 1 \cong \angle 8,\ \angle 2 \cong \_\_\)
Consecutive Interior Angles Inside lines, on same side of transversal Supplementary \(m\angle 3 + m\angle 5 = 180^\circ\)
Geometry Student Notes • Module 3 Page 1 of 2
Geometry Guided Notes • Day 2
Solving Angles with Algebraic Equations
Equate vs. Sum to 180°
The Equation Decision Rule
Before writing an algebraic equation, examine both angle positions:
Option 1: SET EQUAL (\(A = B\))
Use when both angles are Acute or both are Obtuse (Corr, Alt. Int, Alt. Ext, Vertical).
Option 2: SUM TO 180° (\(A + B = 180^\circ\))
Use when one angle is Acute and one is Obtuse (Consecutive Int, Linear Pair).
Guided Example 1: Alternate Exterior Angles Congruence Case
Given \(p \parallel q\), \(\angle 1\) and \(\angle 8\) are alternate exterior angles. If \(m\angle 1 = (7x - 8)^\circ\) and \(m\angle 8 = (5x + 16)^\circ\), find \(x\) and \(m\angle 1\).
Step 1: Set Up Equation
7x - 8 = 5x + 16
Step 2: Solve for x

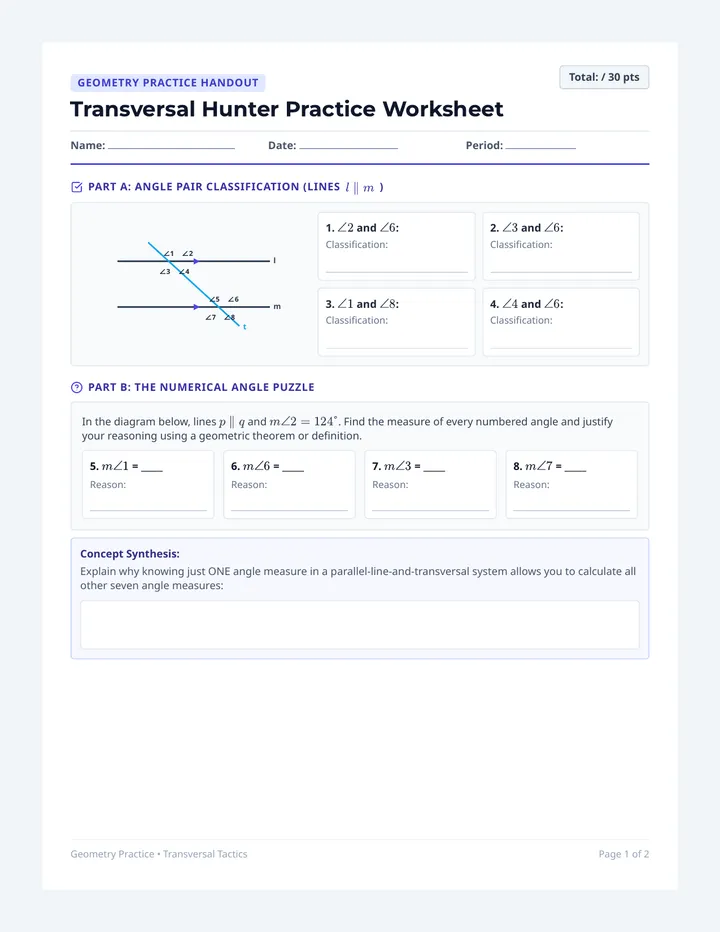

Transversal Hunter Practice Worksheet Geometry Practice Handout
Transversal Hunter Practice Worksheet
Total: / 30 pts
Name:
Date:
Period:
Part A: Angle Pair Classification (Lines \(l \parallel m\))
l m t ∠1 ∠2 ∠3 ∠4 ∠5 ∠6 ∠7 ∠8
1. \(\angle 2\) and \(\angle 6\):
Classification:
2. \(\angle 3\) and \(\angle 6\):
Classification:
3. \(\angle 1\) and \(\angle 8\):
Classification:
4. \(\angle 4\) and \(\angle 6\):
Classification:
Part B: The Numerical Angle Puzzle
In the diagram below, lines \(p \parallel q\) and \(m\angle 2 = 124^\circ\). Find the measure of every numbered angle and justify your reasoning using a geometric theorem or definition.
5. \(m\angle 1\) = _____
Reason:
6. \(m\angle 6\) = _____
Reason:
7. \(m\angle 3\) = _____
Reason:
8. \(m\angle 7\) = _____
Reason:
Concept Synthesis:
Explain why knowing just ONE angle measure in a parallel-line-and-transversal system allows you to calculate all other seven angle measures:
Geometry Practice • Transversal Tactics Page 1 of 2
Algebraic Application
Part C: Solving Algebraic Angle Equations
Show all algebraic steps
9. Alternate Interior Angles 3 pts
Lines are parallel. \(\angle A = (6x - 14)^\circ\) and \(\angle B = (4x + 18)^\circ\). Find \(x\) and \(m\angle A\).
x = _______ m∠A = _______°
10. Consecutive Interior Angles 3 pts
Lines are parallel. \(\angle C = (5x + 12)^\circ\) and \(\angle D = (2x + 28)^\circ\). Find \(x\) and \(m\angle C\).
x = _______ m∠C = _______°
11. Corresponding Angles 3 pts
Lines are parallel. \(\angle E = (7x - 22)^\circ\) and \(\angle F = (3x + 34)^\circ\). Find \(x\) and \(m\angle F\).
x = _______ m∠F = _______°
12. Alternate Exterior Angles 3 pts
Lines are parallel. \(\angle G = 2(3x + 10)^\circ\) and \(\angle H = (8x - 4)^\circ\). Find \(x\) and \(m\angle G\).
x = _______ m∠G = _______°
Part D: Error Analysis & Blueprint Engineering
13. Critical Error Analysis
Marcus was given two alternate interior angles : \((5x - 10)^\circ\) and \((3x + 40)^\circ\). He solved by writing:
(5x - 10) + (3x + 40) = 180
Identify Marcus's geometric error and state the correct setup:

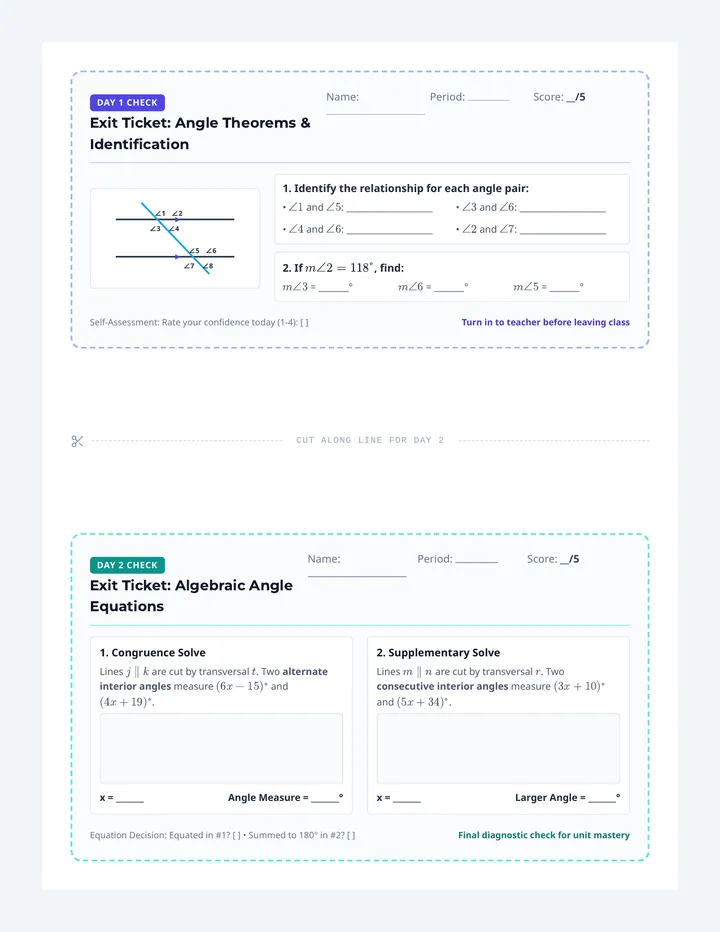

Parallel Precision Exit Ticket DAY 1 CHECK
Exit Ticket: Angle Theorems & Identification
Name:
Period:
Score: __/5
∠1 ∠2 ∠3 ∠4 ∠5 ∠6 ∠7 ∠8
1. Identify the relationship for each angle pair:
• \(\angle 1\) and \(\angle 5\): ____________________
• \(\angle 3\) and \(\angle 6\): ____________________
• \(\angle 4\) and \(\angle 6\): ____________________
• \(\angle 2\) and \(\angle 7\): ____________________
2. If \(m\angle 2 = 118^\circ\), find:
\(m\angle 3\) = _______° \(m\angle 6\) = _______° \(m\angle 5\) = _______°
Self-Assessment: Rate your confidence today (1-4): [ ] Turn in to teacher before leaving class
Cut along line for Day 2
DAY 2 CHECK
Exit Ticket: Algebraic Angle Equations
Name:
Period:
Score: __/5
1. Congruence Solve
Lines \(j \parallel k\) are cut by transversal \(t\). Two alternate interior angles measure \((6x - 15)^\circ\) and \((4x + 19)^\circ\).
x = _______ Angle Measure = _______°
2. Supplementary Solve
Lines \(m \parallel n\) are cut by transversal \(r\). Two consecutive interior angles measure \((3x + 10)^\circ\) and \((5x + 34)^\circ\).
x = _______ Larger Angle = _______°
Equation Decision: Equated in #1? [ ] • Summed to 180° in #2? [ ] Final diagnostic check for unit mastery

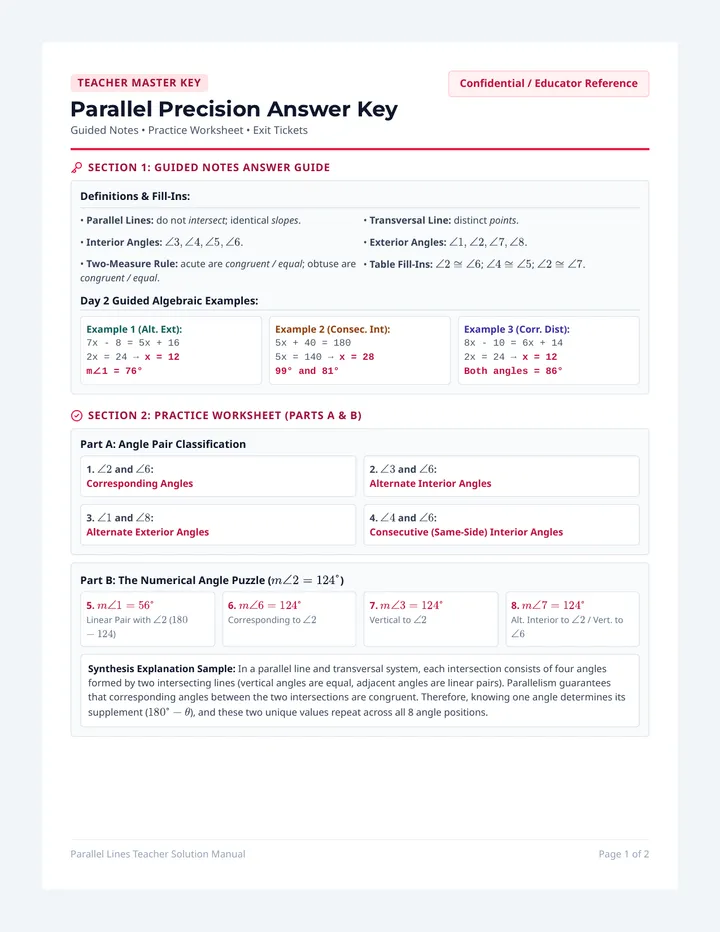

Parallel Precision Answer Key Teacher Master Key
Parallel Precision Answer Key
Guided Notes • Practice Worksheet • Exit Tickets
Confidential / Educator Reference
Section 1: Guided Notes Answer Guide
Definitions & Fill-Ins:
• Parallel Lines: do not intersect ; identical slopes .
• Transversal Line: distinct points .
• Interior Angles: \(\angle 3, \angle 4, \angle 5, \angle 6\).
• Exterior Angles: \(\angle 1, \angle 2, \angle 7, \angle 8\).
• Two-Measure Rule: acute are congruent / equal ; obtuse are congruent / equal .
• Table Fill-Ins: \(\angle 2 \cong \angle 6\); \(\angle 4 \cong \angle 5\); \(\angle 2 \cong \angle 7\).
Day 2 Guided Algebraic Examples:
Example 1 (Alt. Ext):
7x - 8 = 5x + 16
2x = 24 → x = 12
m∠1 = 76°
Example 2 (Consec. Int):
5x + 40 = 180
5x = 140 → x = 28
99° and 81°
Example 3 (Corr. Dist):
8x - 10 = 6x + 14
2x = 24 → x = 12
Both angles = 86°
Section 2: Practice Worksheet (Parts A & B)
Part A: Angle Pair Classification
1. \(\angle 2\) and \(\angle 6\): Corresponding Angles
2. \(\angle 3\) and \(\angle 6\): Alternate Interior Angles
3. \(\angle 1\) and \(\angle 8\): Alternate Exterior Angles
4. \(\angle 4\) and \(\angle 6\): Consecutive (Same-Side) Interior Angles
Part B: The Numerical Angle Puzzle (\(m\angle 2 = 124^\circ\))
5. \(m\angle 1 = 56^\circ\)
Linear Pair with \(\angle 2\) (\(180 - 124\))
6. \(m\angle 6 = 124^\circ\)
Corresponding to \(\angle 2\)
7. \(m\angle 3 = 124^\circ\)
Vertical to \(\angle 2\)
8. \(m\angle 7 = 124^\circ\)
Alt. Interior to \(\angle 2\) / Vert. to \(\angle 6\)
Synthesis Explanation Sample: In a parallel line and transversal system, each intersection consists of four angles formed by two intersecting lines (vertical angles are equal, adjacent angles are linear pairs). Parallelism guarantees that corresponding angles between the two intersections are congruent. Therefore, knowing one angle determines its supplement (\(180^\circ - \theta\)), and these two unique values repeat across all 8 angle positions.
