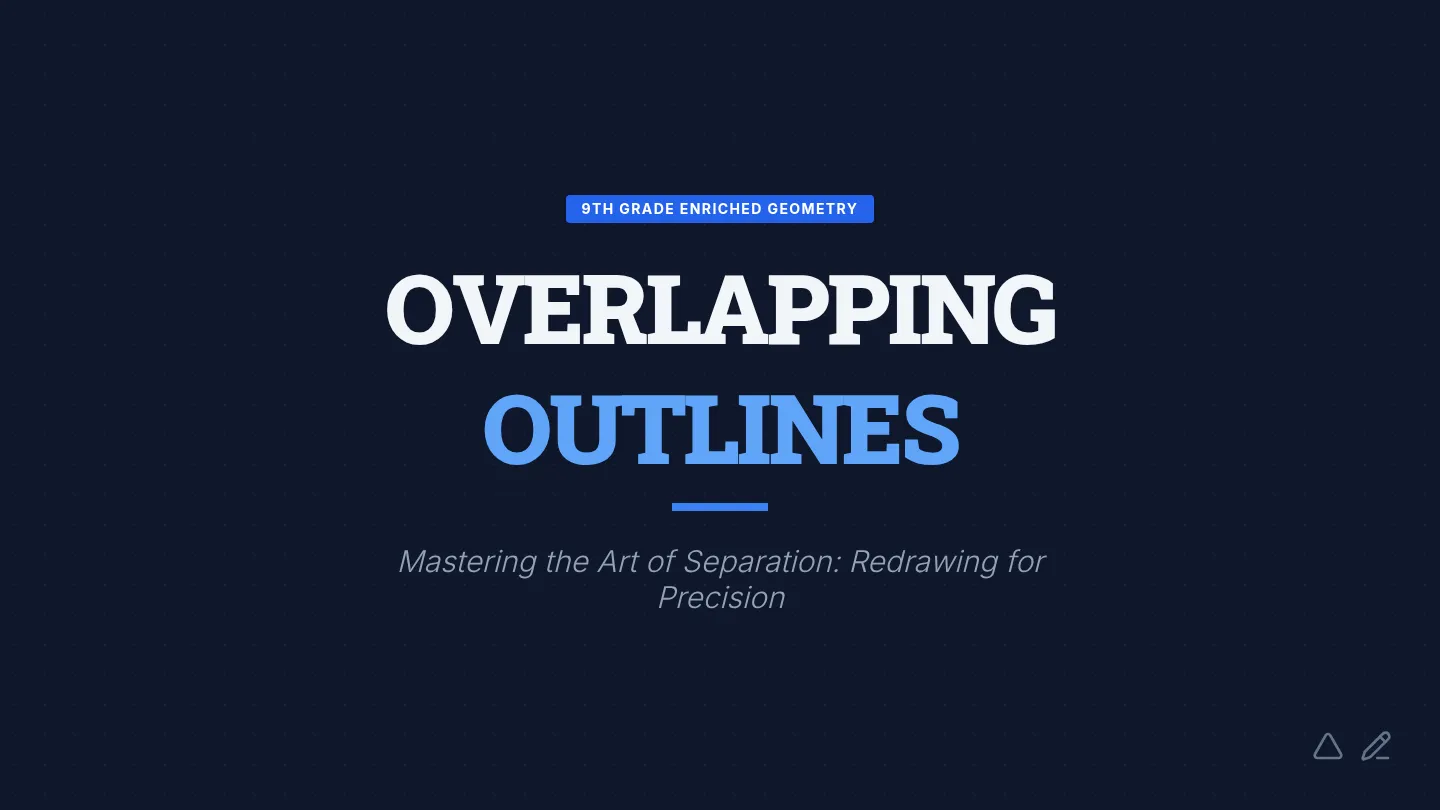

Drafting Overlaps Slides 9th Grade Enriched Geometry
OVERLAPPING
OUTLINES
Mastering the Art of Separation: Redrawing for Precision
Perspective Shift
Which horizontal yellow line is longer?
"In geometry, our eyes can be deceived by context. To see clearly, we must isolate the components."
The Separation Method
Watch Example 2 (6:31 - 9:00)
Embedded media
Observe Carefully
How are side lengths determined when they overlap?
Which angle do both triangles share?
What postulate is used to prove similarity?
The "Redraw & Label" Strategy
1
Isolate
Mentally identify the smaller triangle nested inside the larger one.
2
Separation
Draw two distinct triangles side-by-side on your workspace.
3
The Sum Rule
Label the larger side as the sum of its parts (e.g., \(14 + 7\)).
\(Side_{AB} = AD + DB\)
Ready your
Drafting Kit
Before we solve, we draft. You will need your colored pencils to track matching sides.
Color 1: Small Inner Triangle
Color 2: Large Outer Triangle
Pro-Tip
"Always identify the **shared angle** first. It's the anchor that keeps your triangles oriented when you separate them."
Debrief
"What is the most common mistake students make when calculating the side length of the **larger** triangle in an overlap?"

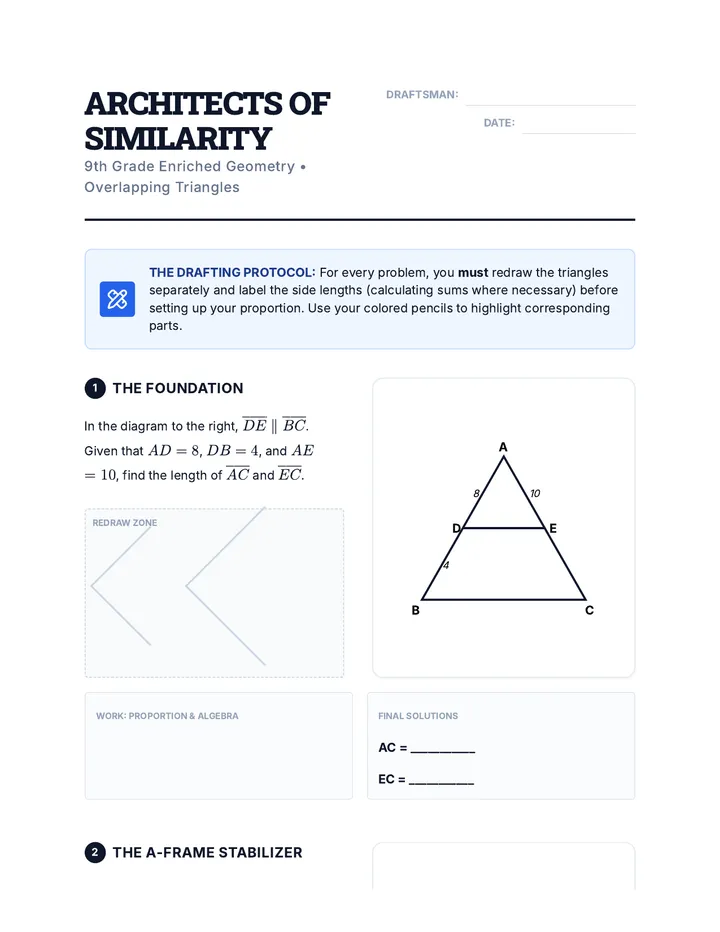

Architects of Similarity Worksheet Architects of Similarity
9th Grade Enriched Geometry • Overlapping Triangles
Draftsman:
Date:
The Drafting Protocol: For every problem, you must redraw the triangles separately and label the side lengths (calculating sums where necessary) before setting up your proportion. Use your colored pencils to highlight corresponding parts.
1
The Foundation
In the diagram to the right, \( \overline{DE} \parallel \overline{BC} \). Given that \( AD = 8 \), \( DB = 4 \), and \( AE = 10 \), find the length of \( \overline{AC} \) and \( \overline{EC} \).
Redraw Zone
A B C D E 8 4 10
Work: Proportion & Algebra
Final Solutions
AC = ___________
EC = ___________
2
The A-Frame Stabilizer
A custom 12-foot ladder forms an isosceles triangle when opened. A horizontal safety brace is placed 4 feet from the top of the ladder (measured along the rail). If the base of the ladder is 6 feet wide, how long is the safety brace?
Redraw Zone
6 ft 12 ft (total rail) 4 ft
Work Area
Result
Brace Length = ___________
3
The River Crossing
A surveyor needs to find the distance \( w \) across a river. She marks points such that \( \overline{AB} \parallel \overline{CD} \). If \( AC = 30 \) m, \( CE = 20 \) m, and \( CD = 25 \) m, determine the width of the river (\( AB \)).
Redraw Zone
E A B C D 30m 20m 25m
Work Area
Result
River Width (AB) = ___________

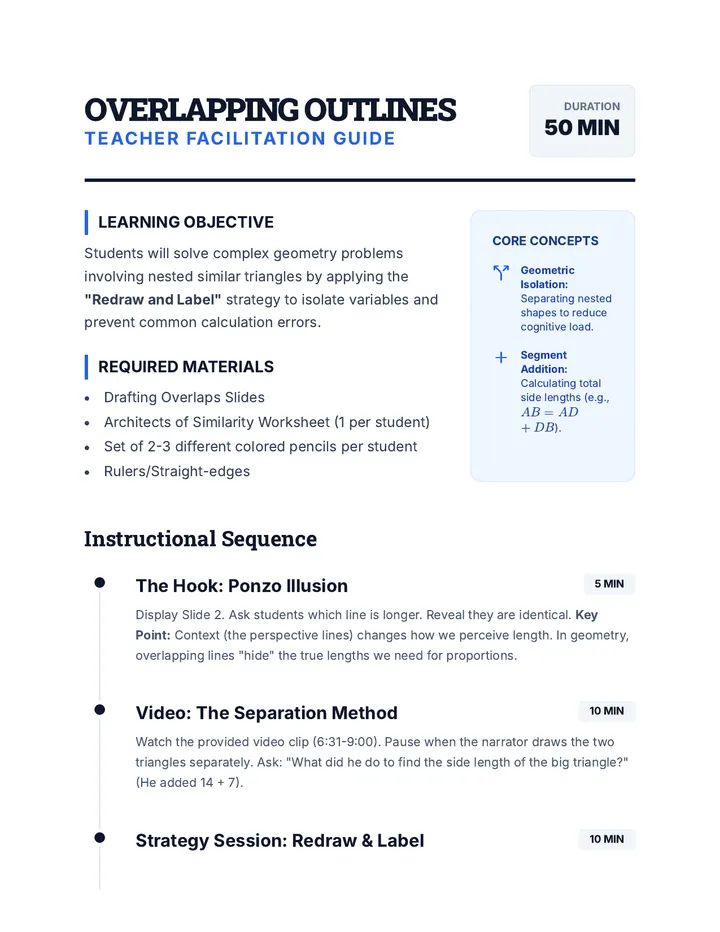

Overlapping Outlines Teacher Guide Overlapping Outlines
Teacher Facilitation Guide
Duration
50 MIN
Learning Objective
Students will solve complex geometry problems involving nested similar triangles by applying the "Redraw and Label" strategy to isolate variables and prevent common calculation errors.
Required Materials
Drafting Overlaps Slides
Architects of Similarity Worksheet (1 per student)
Set of 2-3 different colored pencils per student
Rulers/Straight-edges
Core Concepts
Geometric Isolation: Separating nested shapes to reduce cognitive load.
Segment Addition: Calculating total side lengths (e.g., \(AB = AD + DB\)).
Instructional Sequence
The Hook: Ponzo Illusion
5 min
Display Slide 2. Ask students which line is longer. Reveal they are identical. Key Point: Context (the perspective lines) changes how we perceive length. In geometry, overlapping lines "hide" the true lengths we need for proportions.
Video: The Separation Method
10 min
Watch the provided video clip (6:31-9:00). Pause when the narrator draws the two triangles separately. Ask: "What did he do to find the side length of the big triangle?" (He added 14 + 7).
Strategy Session: Redraw & Label
10 min
Walk through the three steps on Slide 4. Emphasize using colored pencils to trace the small triangle in one color and the larger one in another.
"The most common mistake is using the small segment (the 'cutoff' piece) as the side of the large triangle instead of adding the segments together."
Drafting Lab: Problem Set
20 min
Students work on the Architects of Similarity worksheet. Circulate and check the "Redraw Zone" before they begin algebra. Ensure they aren't skipping the drafting step.
Common Misconceptions
Segment vs. Side: Students using the bottom segment of a ladder/triangle (the trapezoid part) as a triangle side.Orientation: Rotating the redrawn triangles incorrectly. Encourage them to find the shared vertex (Angle A or E) first.
Enrichment / Extension
Challenge fast finishers to create their own "Overlapping Outline" word problem using a shadow-casting scenario (a person standing next to a taller tree).

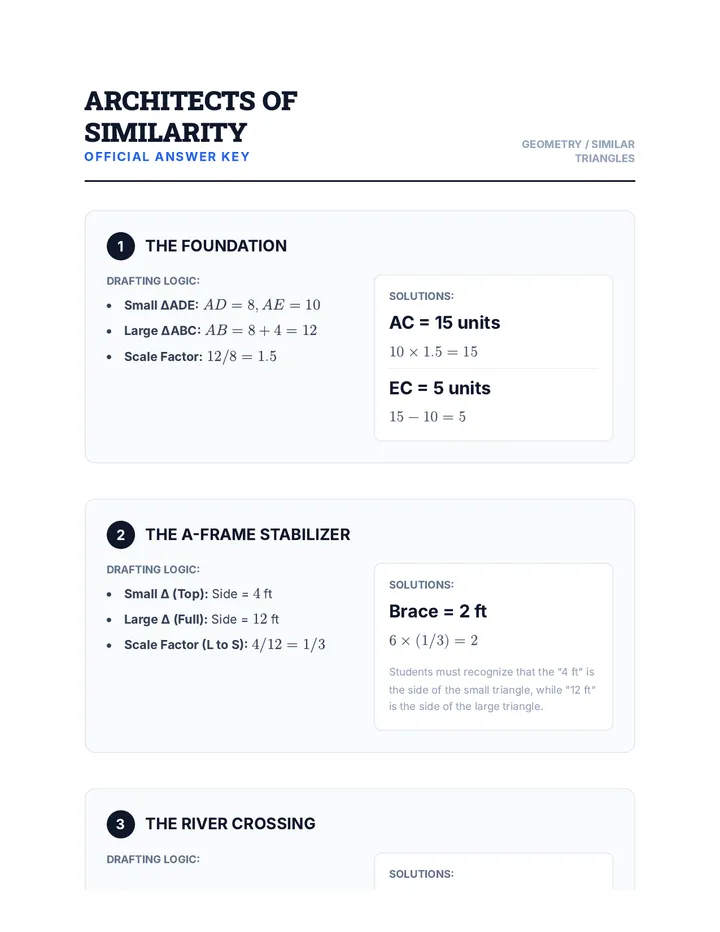

Architects of Similarity Answer Key Architects of Similarity
Official Answer Key
Geometry / Similar Triangles
1
The Foundation
Drafting Logic:
Small ΔADE: \(AD = 8, AE = 10\)Large ΔABC: \(AB = 8 + 4 = 12\)Scale Factor: \(12 / 8 = 1.5\)
Solutions:
AC = 15 units
\(10 \times 1.5 = 15\)
EC = 5 units
\(15 - 10 = 5\)
2
The A-Frame Stabilizer
Drafting Logic:
Small Δ (Top): Side = \(4\) ftLarge Δ (Full): Side = \(12\) ftScale Factor (L to S): \(4 / 12 = 1/3\)
Solutions:
Brace = 2 ft
\(6 \times (1/3) = 2\)
Students must recognize that the "4 ft" is the side of the small triangle, while "12 ft" is the side of the large triangle.
3
The River Crossing
Drafting Logic:
Small ΔCDE: \(CE = 20, CD = 25\)Large ΔABE: \(AE = 30 + 20 = 50\)Scale Factor: \(50 / 20 = 2.5\)
Solutions:
AB = 62.5 m
\(25 \times 2.5 = 62.5\)
Common error check: Ensure students did not use \(30/20\) as the ratio. The large triangle's side is the total distance \(AE\).
