Decimal Decoder Slides MATH DETECTIVE LAB 8.NS.A.1 Visual Intervention
MISSION #083
The Case of the Repeating Tail
How do we turn \(0.08\bar{3}\) into a clean, exact fraction without guessing?
Step 1: Inspect
Find the repeating pattern
Step 2: Shift
Trap the tail with powers of 10
Step 3: Cancel
Subtract to reveal the fraction
Phase 1 • Anatomy of the Decimal Slide 2 of 6
What does \(0.08\bar{3}\) really mean?
Ones
0
Tenths
0
Hundredths
8
Thousandths
3
Ten-Thousandths+
3 3 3 ...
❌ The Common Trap
Writing \(\frac{83}{100}\) or \(\frac{83}{1000}\) fails because the digit 3 repeats forever!
🎯 The Decoder Goal
Shift the decimal using multiplication by 10, 100, or 1000 until the repeating parts align perfectly!
Key clue: Only the 3 repeats! The "08" is the non-repeating front guard.
Phase 2 • The Power Shifts Slide 3 of 6
Let \(x = 0.08\bar{3}\)
We need two equations with the exact same repeating tail right after the decimal point:
Shift 1: Jump past the non-repeating digits (2 places)
Multiply by 100 to push "08" to the whole number side:
\(100x = 8.3333...\)
Shift 2: Jump past one repeating 3 (3 places)
Multiply by 1000 to push one repeating 3 across:
\(1000x = 83.3333...\)
👀 Notice: Both right sides have identical infinite tails: .3333...
When two decimals have identical endless tails, subtraction vaporizes them!
Phase 3 • The Vanishing Act Slide 4 of 6
Stack and Subtract to Cancel the Tail
1000x = 83.3333...
- 100x = - 8.3333...
900x = 75.0000...
Tail Destroyed!
\(0.333... - 0.333... = 0\)
Isolate \(x\):
\(x = \frac{75}{900}\)
We converted an infinite repeating decimal into an exact ratio of two whole numbers: \(\frac{75}{900}\)!
Next: Let's simplify this fraction to simplest form!
Phase 4 • Simplify & Model Slide 5 of 6
Simplifying \(\frac{75}{900}\)
Original Fraction
\(\frac{75}{900}\)
Both end in 0 or 5: \(\div 25\)
Divide by 25
\(\frac{3}{36}\)
Both divisible by 3: \(\div 3\)
Simplest Form
\(\frac{1}{12}\)
FINAL ANSWER!
Visual Verification: 1 Whole Cut into 12 Equal Slices 1 out of 12 = \(8.33\%\) = \(0.08\bar{3}\)
1
Check with a calculator: \(1 \div 12 = 0.0833333333...\) Exactly matches!
Decoder Challenge • Try It Together Slide 6 of 6
Your Turn: Decode \(0.1\bar{6}\)
1. Set Up Shifts
Let \(x = 0.1666...\)
\(100x = 16.666...\)
\(10x = 1.666...\)
2. Subtract
Endless tails cancel!
\(90x = 15\)
\(x = \frac{15}{90}\)
3. Simplify
Divide both by 15:
\(x = \frac{1}{6}\)
Grab your Decimal Decoder Worksheet!
Follow the color-coded guide frames step-by-step.
READY!
Remember: Two equations with matching tails are the master key.

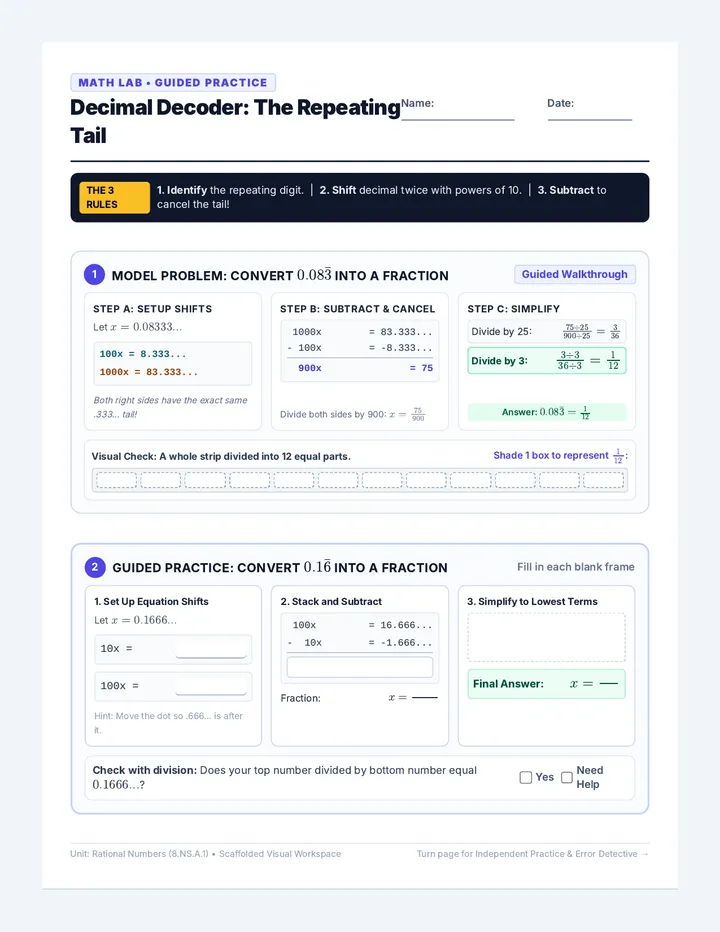

Decimal Decoder Worksheet Math Lab • Guided Practice
Decimal Decoder: The Repeating Tail
Name:
Date:
THE 3 RULES 1. Identify the repeating digit. | 2. Shift decimal twice with powers of 10. | 3. Subtract to cancel the tail!
1
Model Problem: Convert \(0.08\bar{3}\) into a Fraction
Guided Walkthrough
Step A: Setup Shifts
Let \(x = 0.08333...\)
100x = 8.333...
1000x = 83.333...
Both right sides have the exact same .333... tail!
Step B: Subtract & Cancel
1000x= 83.333...
- 100x= -8.333...
900x= 75
Divide both sides by 900: \(x = \frac{75}{900}\)
Step C: Simplify
Divide by 25: \(\frac{75 \div 25}{900 \div 25} = \frac{3}{36}\)
Divide by 3: \(\frac{3 \div 3}{36 \div 3} = \frac{1}{12}\)
Answer: \(0.08\bar{3} = \frac{1}{12}\)
Visual Check: A whole strip divided into 12 equal parts. Shade 1 box to represent \(\frac{1}{12}\):
2
Guided Practice: Convert \(0.1\bar{6}\) into a Fraction
Fill in each blank frame
1. Set Up Equation Shifts
Let \(x = 0.1666...\)
10x =
100x =
Hint: Move the dot so .666... is after it.
2. Stack and Subtract
100x= 16.666...
- 10x= -1.666...
Fraction: \(x = \frac{\quad\quad}{\quad\quad}\)
3. Simplify to Lowest Terms
Final Answer: \(x = \frac{\quad}{\quad}\)
Check with division: Does your top number divided by bottom number equal \(0.1666...\)?
Yes Need Help
Unit: Rational Numbers (8.NS.A.1) • Scaffolded Visual Workspace Turn page for Independent Practice & Error Detective →
Page 2
Independent Practice & Error Detective
Mission #083 Follow-Through
3
Decode on Your Own: Convert \(0.41\bar{6}\) into a Fraction
Show All 3 Steps
Step 1: Set Shifts
Let \(x = 0.41666...\)
Write \(100x\) and \(1000x\)
Step 2: Stack & Subtract
Cancel the .666... tails
Isolate \(x\) as a fraction
Step 3: Simplify Completely
Divide by common factors
Answer: \(x = \frac{\quad}{\quad}\)
4
Error Detective: Spot the Blunder!

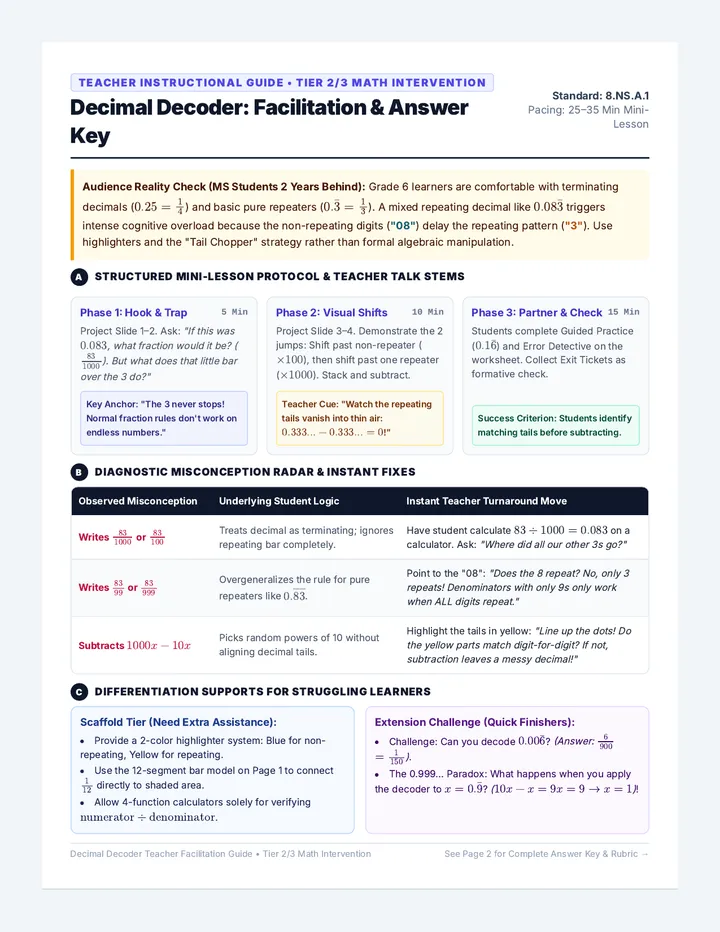

Decimal Decoder Teacher Guide Teacher Instructional Guide • Tier 2/3 Math Intervention
Decimal Decoder: Facilitation & Answer Key
Standard: 8.NS.A.1
Pacing: 25–35 Min Mini-Lesson
Audience Reality Check (MS Students 2 Years Behind): Grade 6 learners are comfortable with terminating decimals (\(0.25 = \frac{1}{4}\)) and basic pure repeaters (\(0.\bar{3} = \frac{1}{3}\)). A mixed repeating decimal like \(0.08\bar{3}\) triggers intense cognitive overload because the non-repeating digits ("08") delay the repeating pattern ("3"). Use highlighters and the "Tail Chopper" strategy rather than formal algebraic manipulation.
A Structured Mini-Lesson Protocol & Teacher Talk Stems
Phase 1: Hook & Trap 5 Min
Project Slide 1–2. Ask: "If this was \(0.083\), what fraction would it be? (\(\frac{83}{1000}\)). But what does that little bar over the 3 do?"
Key Anchor: "The 3 never stops! Normal fraction rules don't work on endless numbers."
Phase 2: Visual Shifts 10 Min
Project Slide 3–4. Demonstrate the 2 jumps: Shift past non-repeater (\(\times 100\)), then shift past one repeater (\(\times 1000\)). Stack and subtract.
Teacher Cue: "Watch the repeating tails vanish into thin air: \(0.333... - 0.333... = 0\)!"
Phase 3: Partner & Check 15 Min
Students complete Guided Practice (\(0.1\bar{6}\)) and Error Detective on the worksheet. Collect Exit Tickets as formative check.
Success Criterion: Students identify matching tails before subtracting.
B Diagnostic Misconception Radar & Instant Fixes
Observed Misconception
Underlying Student Logic
Instant Teacher Turnaround Move
Writes \(\frac{83}{1000}\) or \(\frac{83}{100}\)
Treats decimal as terminating; ignores repeating bar completely.
Have student calculate \(83 \div 1000 = 0.083\) on a calculator. Ask: "Where did all our other 3s go?"
Writes \(\frac{83}{99}\) or \(\frac{83}{999}\)
Overgeneralizes the rule for pure repeaters like \(0.\overline{83}\).
Point to the "08": "Does the 8 repeat? No, only 3 repeats! Denominators with only 9s only work when ALL digits repeat."
Subtracts \(1000x - 10x\)
Picks random powers of 10 without aligning decimal tails.
Highlight the tails in yellow: "Line up the dots! Do the yellow parts match digit-for-digit? If not, subtraction leaves a messy decimal!"
C Differentiation Supports for Struggling Learners
Scaffold Tier (Need Extra Assistance):
Provide a 2-color highlighter system: Blue for non-repeating, Yellow for repeating.
