Vocab Sketching Slides Geometric Blueprint
Decoding Vocabulary for Sketching
Lesson 01
The Visualization Bridge
Geometry is 50% Reading and 50% Drawing.
"If you can't draw the problem, you can't solve the problem."
Today's goal: Mastering the words that build the picture.
Math Pictionary: The Rules
1
The Architect
Reads a description using only math vocabulary. No hand gestures!
2
The Drafters
Sketch exactly what they hear on their grid paper. No peeking!
3
The Reveal
Compare sketches to the original blueprint. Is it a match?
Blueprint Term #1
Perpendicular Bisector
A line that cuts another segment in half at exactly 90 degrees.
Look for the "T" and the tick marks!
|
|
Blueprint Term #2
Tangent Line
A line that touches a circle at exactly one point.
The "Kiss" Point
Sketching Checklist
Circle the verbs (Bisect, Intersect, Rotate)
Identify the nouns (Tangent, Segment, Vertex)
Place marks for constraints (Right angles, Equal lengths)
Vocab Sketching Guide Vocab Sketching Guide
Lesson 1: Decoding Vocabulary for Sketching
Teacher Resource
Lesson Overview
This lesson bridges the gap between reading comprehension and spatial modeling. For students with academic support needs, geometry often feels like a foreign language. This workshop turns vocabulary into a visual tool through a high-engagement "Math Pictionary" game.
Pictionary Challenge Cards
Level: Foundational #001
Description A: The Crossroads
"Draw a horizontal line segment AB. Construct a line CD that is the perpendicular bisector of segment AB. Mark the intersection point as M."
Visual Key Check:
Line CD passes through the exact midpoint of AB.
A right angle symbol (square) is at point M.
Congruency marks (ticks) are on segments AM and MB.
Level: Intermediate #002
Description B: The Orbit
"Draw circle O. Draw a line tangent to the circle at point P. From point P, draw a radius to the center of the circle."
Visual Key Check:
The line touches the circle at exactly one point (P).
The radius OP is perpendicular to the tangent line at P.
Point O is correctly labeled as the center.
Level: Advanced #003
Description C: The Wedge
"Draw an acute angle XYZ. Construct a ray YW that bisects angle XYZ. Label points A and B on rays YX and YZ such that YA is congruent to YB."
Visual Key Check:
Angle XYZ is less than 90 degrees.
Ray YW splits the angle into two equal parts (use arc marks).
Distance from vertex Y to A is the same as Y to B.
Support Strategies (SDI)
Pre-teaching:
Ensure "congruent," "bisect," and "vertex" are mastered using the provided slides before starting the game.
Visual Anchors:
Keep the strategy checklist (Nouns/Verbs/Marks) visible throughout the activity.
Vocab Sketching Worksheet Drafting Pad
Project: Vocabulary Deciphering
NAME: __________________________
DATE: ___________________________
Lesson 01 Activity
Sketching Strategy:
Circle the Verbs . Underline the Nouns . Label with Marks .
Grid Locked
Round 01: The Architect's Description
Round 02: The Architect's Description
Self-Correction Checklist
Did I include all labels (Points A, B, etc.) from the description?
Did I mark right angles or congruent segments with the correct symbols?
Does my diagram clearly show the geometric relationship (Tangent, Bisector, etc.)?
Could someone else recreate the same drawing using only my labels?
Real World Diagram Slides Stripping the Noise
From Messy Text to Clean Blueprints
GEOMETRIC BLUEPRINTS
PROJECT 02 // REAL-WORLD
What is "Noise"?
The Story (Noise)
"Farmer Joe loves his green fields. He decided to buy 50 meters of fancy wood fencing from the local store on a sunny Tuesday to wrap around his pet goat's favorite rectangular grazing spot..."
The Math (Data)
Shape: Rectangle
Perimeter: 50m
The Blueprint Filter
1
Identify the
2
Extract the
3
Label the
Case Study: Garden Layout
Text Prompt
"A gardener wants to create a circular path that perfectly surrounds a square flower bed. The diagonal of the flower bed is 10 feet. How much mulch is needed for the circular path?"
DRAFTING IN PROGRESS...
10 ft
Avoid the Noise Trap
Irrelevant Data
Colors, names, emotions, and specific times/dates are almost NEVER part of the math diagram.
Hidden Clues
Words like "Diagonal," "Depth," "Diameter," or "Surrounds" tell you exactly how to draw the relationship.

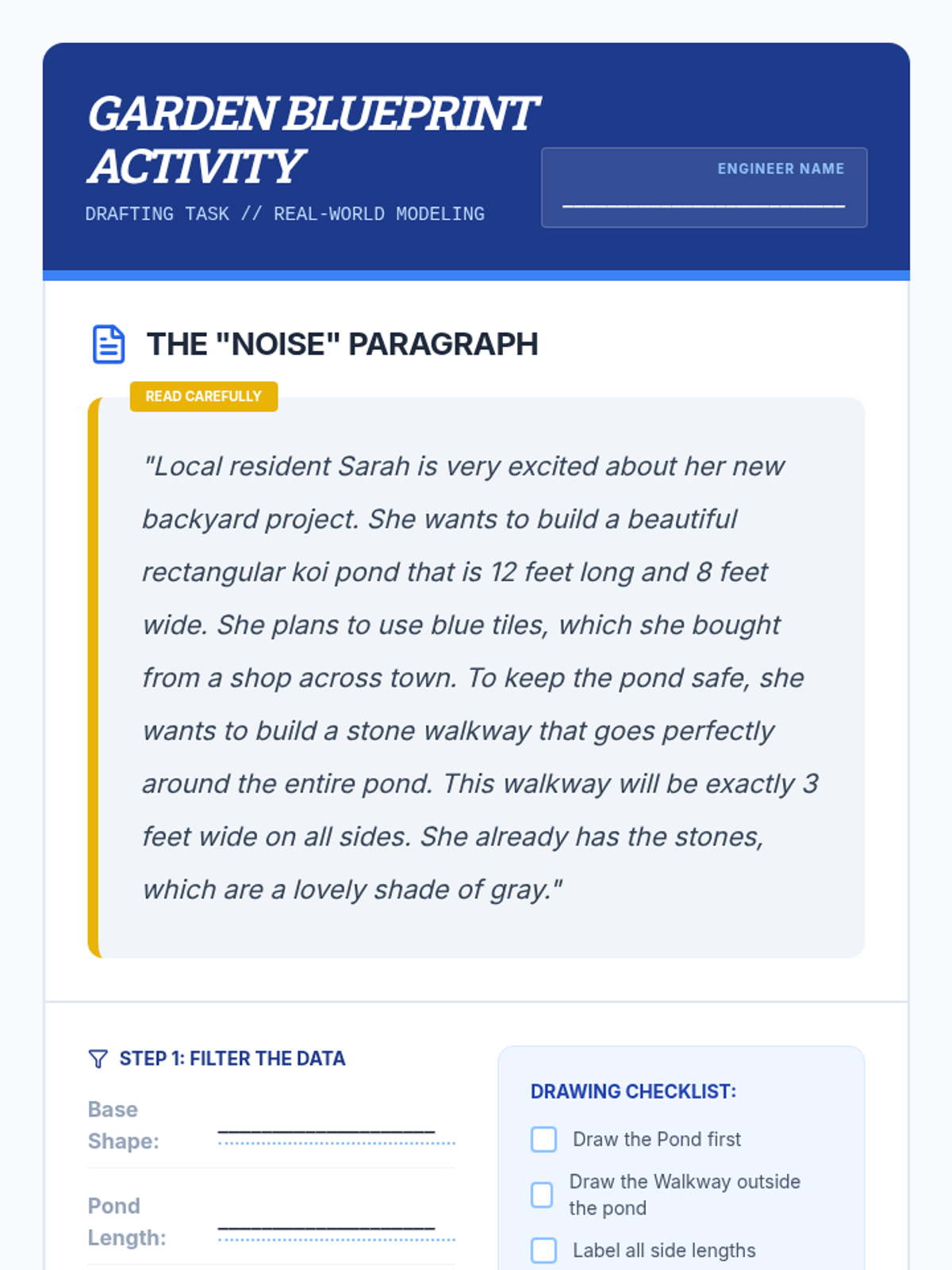

Garden Blueprint Activity Garden Blueprint Activity
DRAFTING TASK // REAL-WORLD MODELING
Engineer Name
__________________________
The "Noise" Paragraph
Read Carefully
"Local resident Sarah is very excited about her new backyard project. She wants to build a beautiful rectangular koi pond that is 12 feet long and 8 feet wide. She plans to use blue tiles, which she bought from a shop across town. To keep the pond safe, she wants to build a stone walkway that goes perfectly around the entire pond. This walkway will be exactly 3 feet wide on all sides. She already has the stones, which are a lovely shade of gray."
Step 1: Filter the Data
Base Shape: ____________________
Pond Length: ____________________
Pond Width: ____________________
Path Width: ____________________
Drawing Checklist:
Draw the Pond first
Draw the Walkway outside the pond
Label all side lengths
Calculate the TOTAL outer dimensions
Step 2: Official Schematic SCALE: 1 GRID = 1 FOOT
Total Outer Length
Total Outer Width Spatial Viz Slides 3D Net Ninja
Unfolding the 3rd Dimension
// DEPTH // VOLUME // SURFACE AREA
What is a "Net"?
A Net is a 2D pattern that can be folded to make a 3D solid.
Think of it like the "skin" of a shape laid out flat on a table.
The "Slice" Method
Visualizing Cross-Sections
Imagine slicing a 3D shape with a giant, flat laser. The shape you see on the cut side is the Cross-Section .
Prediction Challenge:
If you slice a Cylinder horizontally, what shape do you see?
Spatial Visualization Strategy
1
Faces
Count the number of flat surfaces. Are they squares? Triangles?
2
Hinges
Find the "spine" or where the faces connect. This is where it folds.
3
Wrap
Mentally fold the edges. Do any faces overlap? Is it a complete solid?

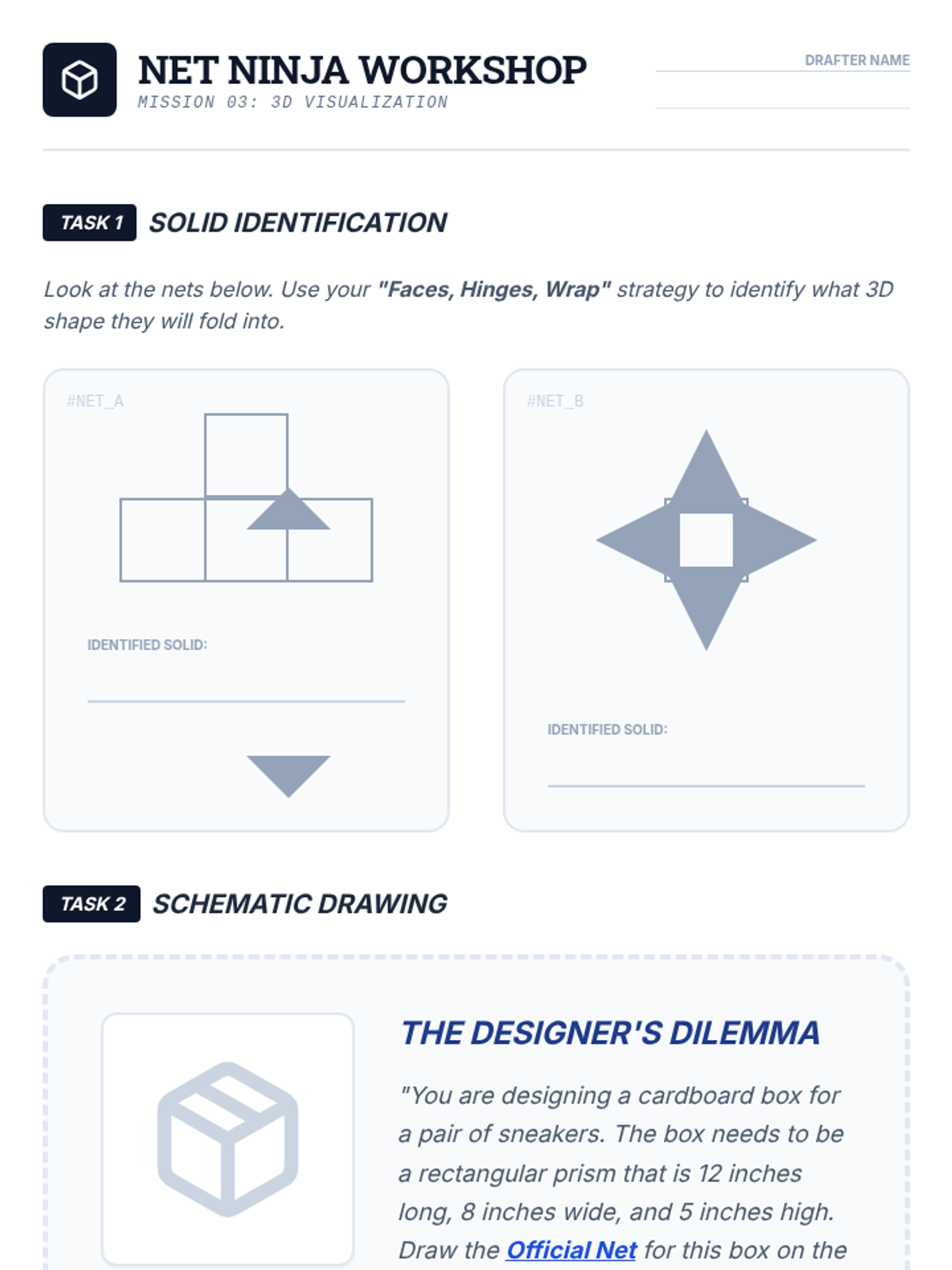

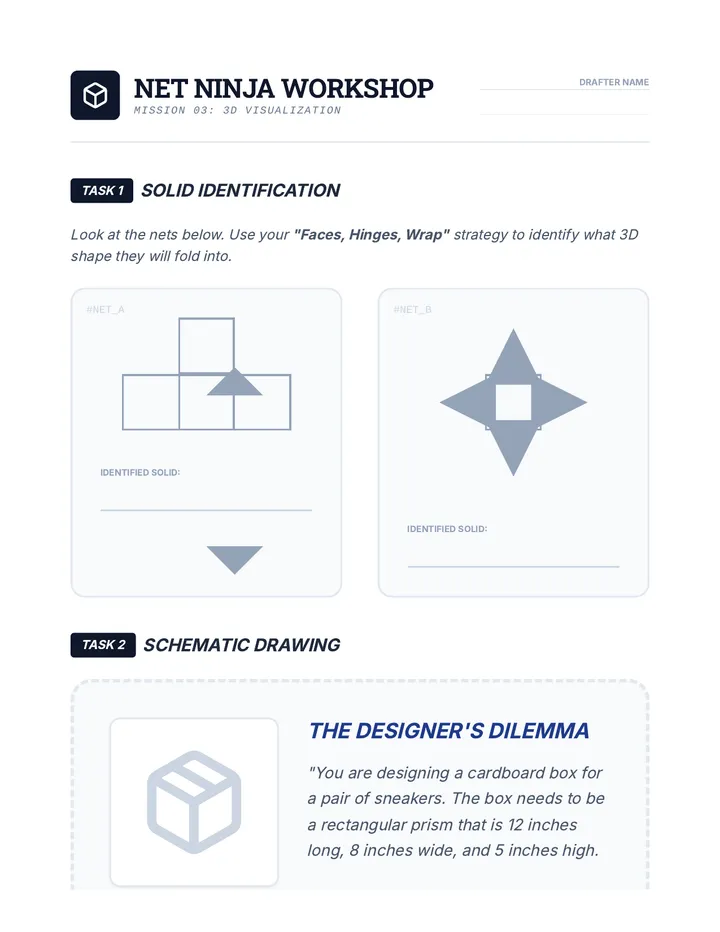

Net Ninja Worksheet Net Ninja Workshop
Mission 03: 3D Visualization
Drafter Name
Task 1
Solid Identification
Look at the nets below. Use your "Faces, Hinges, Wrap" strategy to identify what 3D shape they will fold into.
#NET_A
Identified Solid:
#NET_B
Identified Solid:
Task 2
Schematic Drawing
The Designer's Dilemma
"You are designing a cardboard box for a pair of sneakers. The box needs to be a rectangular prism that is 12 inches long, 8 inches wide, and 5 inches high. Draw the Official Net for this box on the grid below."
Faces needed 6
Scale 1 Grid = 1 Inch
Official Drafting Area
Similarity Proportions Slides Shadow Geometry
Similarity & Proportions
Similar Shapes
Proportions
Ratios
The Similarity Test
What makes them Similar?
Same Shape
Different Size
Equal Angles
Ratio of sides is constant
The Overlap Trap
Strategy: Separate to Solve!
When triangles overlap, the brain gets confused. Don't look at them together.
Ninja Move:
Draw them SEPARATELY and side-by-side.
CUT THEM APART!
Modeling with Shadows
The Problem:
A flagpole casts a 20ft shadow. At the same time, a 6ft tall student casts a 4ft shadow.
Set up the ratio:
\( \frac{Height}{Shadow} = \frac{Height}{Shadow} \)
20 ft
4 ft
Mirror Math Lab Mirror Math Lab
Indirect Measurement Challenge
Similarity modeling
The Mission
"Use a mirror and the properties of similar triangles to calculate the exact height of the classroom ceiling without using a ladder."
How it works: When you look at the top of the ceiling reflected in a mirror on the floor, the path of the light forms two Similar Right Triangles.
Required Gear:
Small Mirror
Tape Measure
Painter's Tape
Schematic Drafting Diagram your setup below
You
Mirror
Wall/Ceiling
Draw your model here
Include: The 2 triangles, labels for known distances, and an 'X' for the ceiling height.
Measurement Log:
Variable Description Actual Measurement h1 Your eye height from floor d1 Your distance from center of mirror d2 Mirror distance from base of wall
The Calculation
Set up your proportion using your table data:
h1
d1
=
X
d2
Final Ceiling Height (X)
_______ ft
Mastery Schematics Slides The Contractor's Dilemma
Visual Mastery Synthesis
PROJECT CAPSTONE // FINAL MISSION
The Mission Brief
The Scenario:
"A client wants a custom pool house. The floor must be a Square. Inside the floor, they want a Circular Pond that is tangent to all four walls. The client wants to know how much floor space is left over for furniture."
The Catch:
No numbers are provided. You must derive the formula using only your visual schematic.
The Weapon:
Your drafting skills. A perfect diagram reveals the relationship between the Square side and the Circle radius.
Full Strategy Arsenal
Strip Noise
Ignore Sarah, Joe, and the blue tiles. Find the SHAPE.
Decode Vocab
"Tangent" means touch once. "Bisect" means half.
Separate
If it overlaps, draw them apart. Find corresponding sides.
Label Knowns
Give everything a name (Side S, Radius R) or a value.
Precision Matters
"In the final project, 50% of your grade is the Schematic. If your drawing is accurate, the math will follow."
Start Sketching
Contractor Challenge Packet Contractor's Challenge
Final Synthesis Project // Visual Mastery
Head Engineer
__________________________
The Problem Brief
"You are designing a custom logo for a high-tech company. The logo consists of a Right Triangle. Inside this triangle, there is a Square. Two sides of the square lie on the legs of the triangle, and one vertex of the square touches the hypotenuse. The legs of the triangle are 6 inches and 8 inches. Your goal is to find the Side Length of the Square."
Step 01: Decode
Geometric Nouns (Shapes/Lines)
Geometric Verbs (Actions/Constraints)
Variables to Solve For
Drawing Strategy Tip:
"Look for the Similar Triangles created when the square cuts through the larger right triangle. Separate them to solve!"
Official Schematic Area
Step 02: Proportional Reasoning
Separate the two similar triangles you found in your diagram. Sketch them smaller below and label their sides using the square's side length (x).
Equation setup:
=
Final Answer (Square side x):
_______ inches
Mastery Rubric Visual Mastery Rubric
Project Assessment // Geometric Blueprints
Final Scoring
Criteria Exceeding (4) Meeting (3) Beginning (2-1) Decoding & Filtering Extracted all relevant data and correctly identified all "noise" in the text. Identified major shapes and dimensions with minor narrative fluff included. Missed key shapes or included significant irrelevant information. Schematic Accuracy Diagram is perfectly proportional. Includes all geometric constraints (tangent, right angles). Diagram represents the basic setup correctly but lacks one or more constraints. Diagram does not represent the relationships described in the text. Strategic Labeling Used consistent variable names and labeled all knowns/unknowns clearly. Labeled the diagram with most key variables, though some may be missing. Labels are missing, incorrect, or inconsistent with the text. Modeling for Solution Successfully "separated" complex figures to set up an accurate proportion/equation. Set up an equation that mirrors the diagram, even if calculation had minor errors. Equation does not match the visual representation or strategy.
Strategic Feedback
Strength:
Growth Area:
Total Project Mastery
____ / 16
