Machine Mechanics Slides Module 1 • Learning Center Math 11th Grade Algebra Support
Machine Mechanics
Cracking the code of function notation: understanding inputs, outputs, and the substitution frame.
Rule Machines
Input to Output
No Multiplication Trap
Crucial Alert
Trap vs. Reality
COMMON TRAP
\( f(x) = f \times x \)
Parentheses in \( f(x) \) do NOT mean multiplication here! There is no secret operation between \( f \) and \( x \).
\( f \) is NOT a number. You cannot multiply by it!
MATHEMATICAL TRUTH
\( f(x) = \text{Output} \)
Read it aloud as: "\( f \) of \( x \)". It names the machine (\( f \)) and announces the input slot (\( x \)).
The whole symbol \( f(x) \) is just another name for \( y \).
Golden Rule: Whenever you see \( f(3) \), it means: "Feed 3 into machine \( f \)."
Conceptual Model The Function Machine
1. Input
\( x = 4 \)
The raw material placed into the slot
MACHINE RULE
\( 3x + 5 \)
Replace \( x \) with parentheses and calculate
2. Output
\( 17 \)
The final result: \( f(4) = 17 \)
Key Insight: If the input changes to \( 10 \), the rule stays identical: \( 3(10) + 5 = 35 \).
Model & Demonstration Three-Step Protocol
Given the function: \( f(x) = 4x - 9 \). Evaluate \( f(5) \).
STEP 1: BUILD FRAME
Erase every \( x \) and replace it with open parentheses.
\( f(\ ) = 4(\ ) - 9 \)
STEP 2: DROP INPUT
Insert the number \( 5 \) into every parenthesis frame.
\( f(5) = 4(5) - 9 \)
STEP 3: COMPUTE
Multiply first, then subtract (standard order of operations).
\( 20 - 9 = 11 \)
Final Complete Statement: \( f(5) = 11 \) (Input is 5, Output is 11)
Guided Practice Try With A Partner
Let \( g(x) = 6x + 2 \) and \( h(x) = 10 - 2x \).
Challenge A:
Find \( g(3) \)
• Frame: \( 6(\ ) + 2 \)
• Drop input: \( 6(3) + 2 \)
• Result: 18 + 2 = 20
Challenge B:
Find \( h(4) \)
• Frame: \( 10 - 2(\ ) \)
• Drop input: \( 10 - 2(4) \)
• Result: 10 - 8 = 2
Notice: The function's letter name (\( g \) or \( h \)) tells you which machine to use!
Lesson 1 Takeaways Function Decoders
01
It's a Label
\( f(x) \) tells you the machine's name and its input variable. It never means multiply.
02
Use the Frame
Always replace the variable with empty parentheses first: \( f(\ ) \). It stops sign errors.
03
Match the Name
If you have \( f(x) \), \( g(x) \), and \( h(x) \), check the front letter to pick the correct machine.
Ready for the Guided Worksheet! Next up: Lesson 2 Sign Traps & Negatives

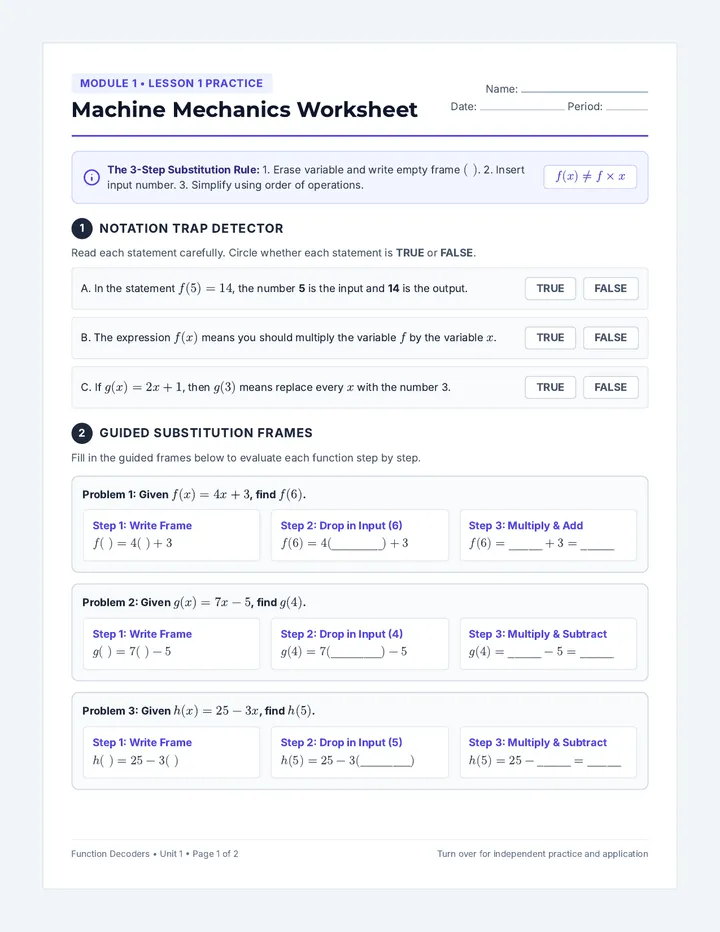

Machine Mechanics Worksheet Module 1 • Lesson 1 Practice
Machine Mechanics Worksheet
Name:
Date: Period:
The 3-Step Substitution Rule: 1. Erase variable and write empty frame \( (\ ) \). 2. Insert input number. 3. Simplify using order of operations.
\( f(x) \neq f \times x \)
1
Notation Trap Detector
Read each statement carefully. Circle whether each statement is TRUE or FALSE.
A. In the statement \( f(5) = 14 \), the number 5 is the input and 14 is the output.
TRUE FALSE
B. The expression \( f(x) \) means you should multiply the variable \( f \) by the variable \( x \).
TRUE FALSE
C. If \( g(x) = 2x + 1 \), then \( g(3) \) means replace every \( x \) with the number 3.
TRUE FALSE
2
Guided Substitution Frames
Fill in the guided frames below to evaluate each function step by step.
Problem 1: Given \( f(x) = 4x + 3 \), find \( f(6) \).
Step 1: Write Frame
\( f(\ ) = 4(\ ) + 3 \)
Step 2: Drop in Input (6)
\( f(6) = 4(\underline{\hspace{1.5cm}}) + 3 \)
Step 3: Multiply & Add
\( f(6) = \underline{\hspace{1cm}} + 3 = \underline{\hspace{1cm}} \)
Problem 2: Given \( g(x) = 7x - 5 \), find \( g(4) \).
Step 1: Write Frame
\( g(\ ) = 7(\ ) - 5 \)
Step 2: Drop in Input (4)
\( g(4) = 7(\underline{\hspace{1.5cm}}) - 5 \)
Step 3: Multiply & Subtract
\( g(4) = \underline{\hspace{1cm}} - 5 = \underline{\hspace{1cm}} \)
Problem 3: Given \( h(x) = 25 - 3x \), find \( h(5) \).
Step 1: Write Frame
\( h(\ ) = 25 - 3(\ ) \)
Step 2: Drop in Input (5)
\( h(5) = 25 - 3(\underline{\hspace{1.5cm}}) \)
Step 3: Multiply & Subtract
\( h(5) = 25 - \underline{\hspace{1cm}} = \underline{\hspace{1cm}} \)
Function Decoders • Unit 1 • Page 1 of 2 Turn over for independent practice and application
Module 1 • Lesson 1
Independent Application & Decoding
Student Name:
Master Machine Bank
Machine F \( f(x) = 5x - 4 \)
Machine G \( g(x) = 2x + 9 \)
Machine H \( h(x) = 30 - 4x \)
3
Select the Correct Machine & Evaluate
Look at the front letter to pick the right rule. Show your substitution frame and final answer.
Problem 4: Evaluate \( f(3) \) Machine F

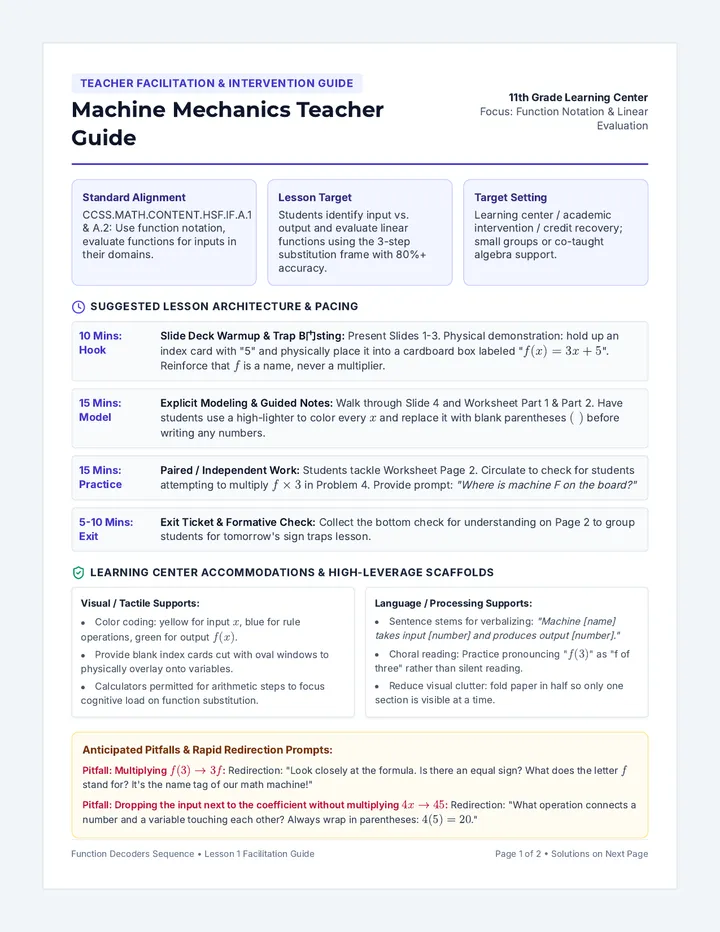

Machine Mechanics Teacher Guide Teacher Facilitation & Intervention Guide
Machine Mechanics Teacher Guide
11th Grade Learning Center
Focus: Function Notation & Linear Evaluation
Standard Alignment
CCSS.MATH.CONTENT.HSF.IF.A.1 & A.2: Use function notation, evaluate functions for inputs in their domains.
Lesson Target
Students identify input vs. output and evaluate linear functions using the 3-step substitution frame with 80%+ accuracy.
Target Setting
Learning center / academic intervention / credit recovery; small groups or co-taught algebra support.
Suggested Lesson Architecture & Pacing
10 Mins: Hook
Slide Deck Warmup & Trap B门sting: Present Slides 1-3. Physical demonstration: hold up an index card with "5" and physically place it into a cardboard box labeled "\( f(x) = 3x + 5 \)". Reinforce that \( f \) is a name, never a multiplier.
15 Mins: Model
Explicit Modeling & Guided Notes: Walk through Slide 4 and Worksheet Part 1 & Part 2. Have students use a high-lighter to color every \( x \) and replace it with blank parentheses \( (\ ) \) before writing any numbers.
15 Mins: Practice
Paired / Independent Work: Students tackle Worksheet Page 2. Circulate to check for students attempting to multiply \( f \times 3 \) in Problem 4. Provide prompt: "Where is machine F on the board?"
5-10 Mins: Exit
Exit Ticket & Formative Check: Collect the bottom check for understanding on Page 2 to group students for tomorrow's sign traps lesson.
Learning Center Accommodations & High-Leverage Scaffolds
Visual / Tactile Supports:
Color coding: yellow for input \( x \), blue for rule operations, green for output \( f(x) \).
Provide blank index cards cut with oval windows to physically overlay onto variables.
Calculators permitted for arithmetic steps to focus cognitive load on function substitution.
Language / Processing Supports:
Sentence stems for verbalizing: "Machine [name] takes input [number] and produces output [number]."
Choral reading: Practice pronouncing "\( f(3) \)" as "f of three" rather than silent reading.
Reduce visual clutter: fold paper in half so only one section is visible at a time.
Anticipated Pitfalls & Rapid Redirection Prompts:
Pitfall: Multiplying \( f(3) \rightarrow 3f \): Redirection: "Look closely at the formula. Is there an equal sign? What does the letter \( f \) stand for? It's the name tag of our math machine!"
Pitfall: Dropping the input next to the coefficient without multiplying \( 4x \rightarrow 45 \): Redirection: "What operation connects a number and a variable touching each other? Always wrap in parentheses: \( 4(5) = 20 \)."
Sign Trap Slides Module 1 • Lesson 2 Learning Center Math 11
Sign Traps
Defeating negative inputs, double-negative collisions, and the dreaded exponent trap using parenthesis armor.
Negative Substitutions
Double Negatives
Parenthesis Armor
Trap #1: The Exponent Trap Why Parentheses Save Your Grade
WITHOUT ARMOR (WRONG)
\( -4^2 = -16 \)
Without parentheses, calculators and algebra rules square the 4 first, then attach the negative sign.
Result is negative 16 (often an unintended trap!)
WITH PARENTHESIS ARMOR
\( (-4)^2 = +16 \)
When input \( x = -4 \), the entire number is squared:
A negative multiplied by a negative is always POSITIVE!
Rule of Thumb: Whenever you plug in a negative number, wrap it in parentheses immediately!
Trap #2: Double Negative Collision Subtractions with Negatives
Let \( f(x) = 8 - x \). Evaluate \( f(-5) \).
Step 1: The Armor
Place empty parentheses for \( x \):
\( 8 - (\ ) \)
Step 2: Drop In Negative
Notice two negative signs touch:
\( 8 - (-5) \)
Step 3: Combine Signs
Minus a negative turns into plus:
\( 8 + 5 = 13 \)
Common Mistake to Avoid: Writing \( 8 - 5 = 3 \) because the minus sign was already there. Don't lose the input's sign!
Full Walkthrough Quadratic with Negative Input
Evaluate \( g(-3) \) when \( g(x) = x^2 - 4x + 6 \)
1. Armor \( g(-3) = (\mathbf{-3})^2 - 4(\mathbf{-3}) + 6 \)
2. Exponent \( (-3)^2 = \mathbf{+9} \) (squared negative is positive)
3. Multiply \( -4(-3) = \mathbf{+12} \) (negative times negative is positive)
4. Add Up \( 9 + 12 + 6 = \mathbf{27} \)
Final Statement: \( g(-3) = 27 \)
Check For Understanding Decode Together
Question 1: Linear
\( f(x) = -5x - 8 \)
Find \( f(-2) \):
\( f(-2) = -5(-2) - 8 \)
\( = 10 - 8 \)
\( = 2 \)
Question 2: Quadratic
\( h(x) = 2x^2 + 1 \)
Find \( h(-4) \):
\( h(-4) = 2(-4)^2 + 1 \)
\( = 2(16) + 1 = 32 + 1 \)
\( = 33 \)
Did you square before multiplying by 2? Yes! Exponents always come first in PEMDAS.
Sign Trap Protocol Cheat Sheet

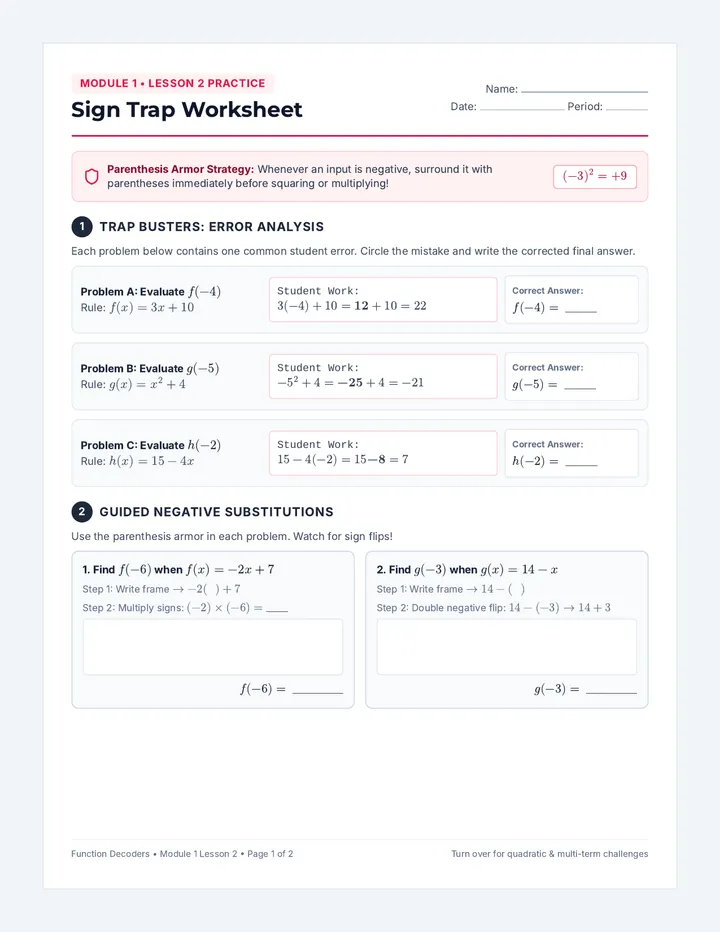

Sign Trap Worksheet Module 1 • Lesson 2 Practice
Sign Trap Worksheet
Name:
Date: Period:
Parenthesis Armor Strategy: Whenever an input is negative, surround it with parentheses immediately before squaring or multiplying!
\( (-3)^2 = +9 \)
1
Trap Busters: Error Analysis
Each problem below contains one common student error. Circle the mistake and write the corrected final answer.
Problem A: Evaluate \( f(-4) \) Rule: \( f(x) = 3x + 10 \)
Student Work:
Correct Answer:
\( f(-4) = \) _____
Problem B: Evaluate \( g(-5) \) Rule: \( g(x) = x^2 + 4 \)
Student Work:
Correct Answer:
\( g(-5) = \) _____
Problem C: Evaluate \( h(-2) \) Rule: \( h(x) = 15 - 4x \)
Student Work:
Correct Answer:
\( h(-2) = \) _____
2
Guided Negative Substitutions
Use the parenthesis armor in each problem. Watch for sign flips!
1. Find \( f(-6) \) when \( f(x) = -2x + 7 \)
Step 1: Write frame \( \rightarrow -2(\ \ ) + 7 \)
Step 2: Multiply signs: \( (-2) \times (-6) = \) _____
\( f(-6) = \) ________
2. Find \( g(-3) \) when \( g(x) = 14 - x \)
Step 1: Write frame \( \rightarrow 14 - (\ \ ) \)
Step 2: Double negative flip: \( 14 - (-3) \rightarrow 14 + 3 \)
\( g(-3) = \) ________
Function Decoders • Module 1 Lesson 2 • Page 1 of 2 Turn over for quadratic & multi-term challenges
Module 1 • Lesson 2
Exponent Armor & Multi-Term Evaluation
Student Name:
PEMDAS Checklist: 1. Parentheses input → 2. Exponents (Square the negative) → 3. Multiply/Divide → 4. Add/Subtract
\( (-x)^2 = + \)
3
Quadratic & Multi-Term Evaluations
Show all substitution steps in the blank workspaces provided.
3. Evaluate \( f(-2) \) Given: \( f(x) = x^2 - 3x + 5 \)
\( f(-2) = \) ________
4. Evaluate \( g(-4) \) Given: \( g(x) = 2x^2 + 3x \)
\( g(-4) = \) ________
5. Evaluate \( h(-1) \) Given: \( h(x) = -x^2 + 8 \)
\( h(-1) = \) ________
6. Evaluate \( k(-5) \) Given: \( k(x) = 12 - 2x^2 \)
\( k(-5) = \) ________
Real-World Scenario: Freezer Chamber Calibration

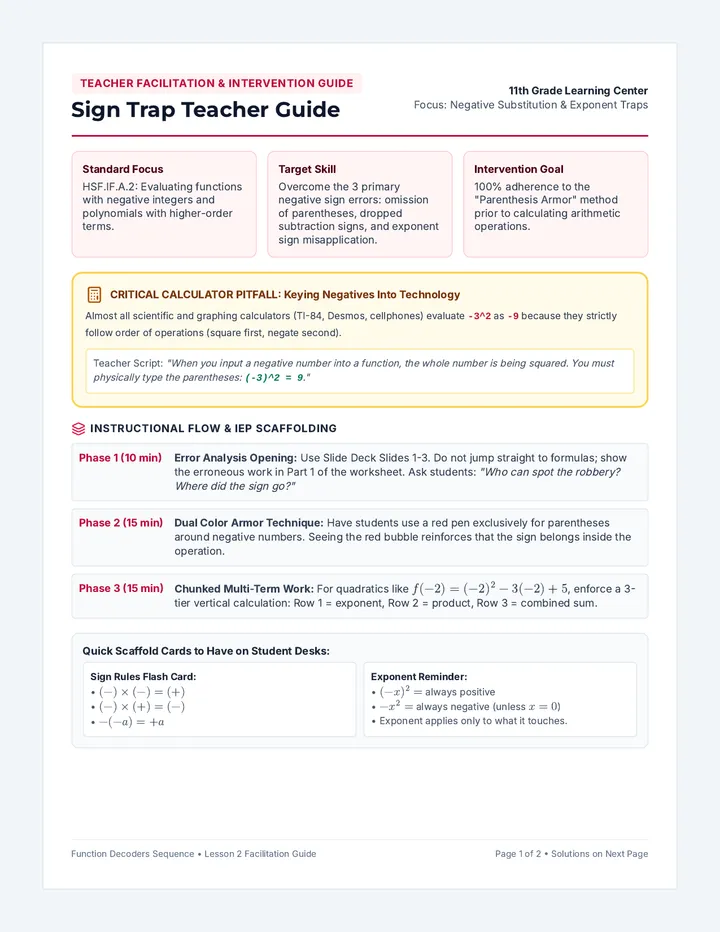

Sign Trap Teacher Guide Teacher Facilitation & Intervention Guide
Sign Trap Teacher Guide
11th Grade Learning Center
Focus: Negative Substitution & Exponent Traps
Standard Focus
HSF.IF.A.2: Evaluating functions with negative integers and polynomials with higher-order terms.
Target Skill
Overcome the 3 primary negative sign errors: omission of parentheses, dropped subtraction signs, and exponent sign misapplication.
Intervention Goal
100% adherence to the "Parenthesis Armor" method prior to calculating arithmetic operations.
CRITICAL CALCULATOR PITFALL: Keying Negatives Into Technology
Almost all scientific and graphing calculators (TI-84, Desmos, cellphones) evaluate -3^2 as -9 because they strictly follow order of operations (square first, negate second).
Teacher Script: "When you input a negative number into a function, the whole number is being squared. You must physically type the parentheses: (-3)^2 = 9 ."
Instructional Flow & IEP Scaffolding
Phase 1 (10 min)
Error Analysis Opening: Use Slide Deck Slides 1-3. Do not jump straight to formulas; show the erroneous work in Part 1 of the worksheet. Ask students: "Who can spot the robbery? Where did the sign go?"
Phase 2 (15 min)
Dual Color Armor Technique: Have students use a red pen exclusively for parentheses around negative numbers. Seeing the red bubble reinforces that the sign belongs inside the operation.
Phase 3 (15 min)
Chunked Multi-Term Work: For quadratics like \( f(-2) = (-2)^2 - 3(-2) + 5 \), enforce a 3-tier vertical calculation: Row 1 = exponent, Row 2 = product, Row 3 = combined sum.
Quick Scaffold Cards to Have on Student Desks:
Sign Rules Flash Card:
Exponent Reminder:
Function Decoders Sequence • Lesson 2 Facilitation Guide Page 1 of 2 • Solutions on Next Page
Master Answer Key
Sign Trap Solutions & Rubric
For Teacher Reference Only
Part 1: Trap Busters (Error Analysis)
Problem A: \( f(-4) \) for \( f(x) = 3x + 10 \)
• Identified Error: The student multiplied \( 3 \times (-4) \) as positive 12 instead of \(-12\).
Graph Decoder Slides Module 1 • Lesson 3 Learning Center Math 11
Graph Decoders
Connecting evaluations to tables, reading values directly from coordinate graphs, and solving forward vs. reverse lookups.
Input-Output Tables
Graph Reading Forward
Reverse Lookups \( f(x) = k \)
The Secret Identity Algebra Meets Coordinate Plane
The function output \( f(x) \) is simply another name for \( y \)!
Algebraic Statement
\( f(\mathbf{2}) = \mathbf{7} \)
Machine \( f \) takes input 2 and produces output 7.
Coordinate Point on Graph
\( (\mathbf{2},\ \mathbf{7}) \)
Plot the coordinate \( x = 2 \) and \( y = 7 \) directly on the graph grid!
Every single evaluated function generates an ordered pair: \( (x,\ f(x)) \).
Protocol 1: Reading Forward Input Given → Find Output
x = 3 y = 4 Tracing \( f(3) \) on graph \( f \)
Find \( f(3) \) using the graph:
1
Start at x = 3 on the horizontal x-axis.
2
Move straight up until you touch the line.
3
Look horizontally left to read the value on the y-axis .
\( f(3) = 4 \)
Remember: The number inside the parentheses is ALWAYS your starting point on the x-axis!
Protocol 2: The Reverse Lookup Output Given → Find Input \( x \)
Challenge Question: "Find \( x \) when \( f(x) = -1 \)"
DO NOT CONFUSE:
This does NOT mean \( f(-1) \). They didn't give you the input! They gave you the OUTPUT .
\( f(x) = -1 \) means \( y = -1 \)
THE REVERSE STRATEGY:
Find -1 on the vertical y-axis .
Travel horizontally across to touch the curve.
Drop straight to the x-axis to find \( x \).
If the graph touches at \( (-2, -1) \), what is your answer? \( x = -2 \)
Bridging Representations Complete Input-Output Table
Generate the coordinates for: \( f(x) = 2x - 1 \)
Input \( x \)
Substitution Frame
Output \( f(x) \)
Ordered Pair \( (x, y) \)
-1
\( 2(-1) - 1 \)
-3
(-1, -3)
0
\( 2(0) - 1 \)
-1

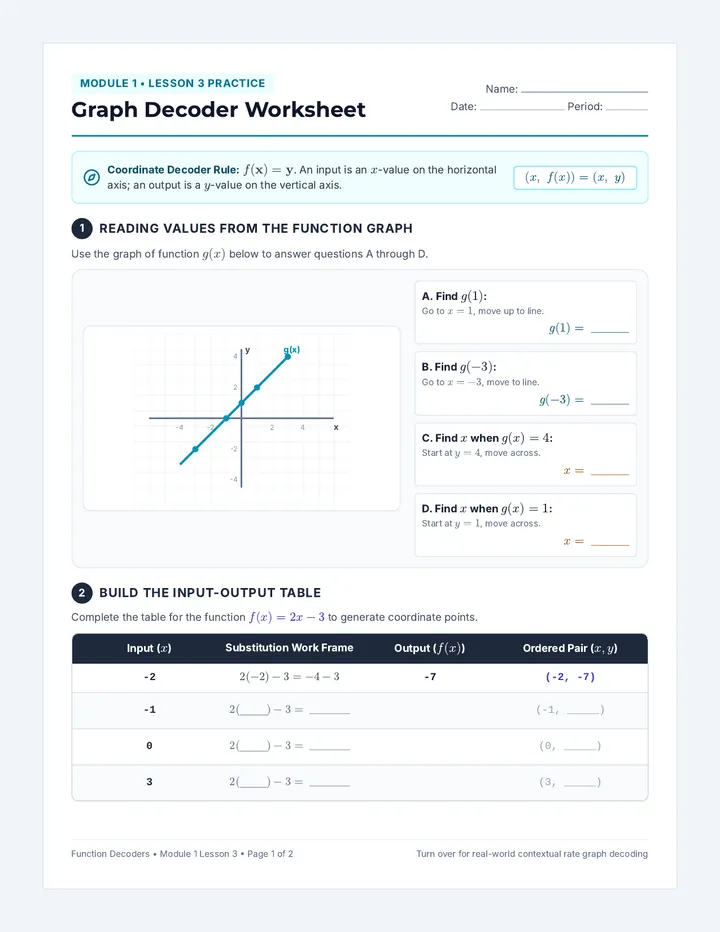

Graph Decoder Worksheet Module 1 • Lesson 3 Practice
Graph Decoder Worksheet
Name:
Date: Period:
Coordinate Decoder Rule: \( f(\mathbf{x}) = \mathbf{y} \). An input is an \( x \)-value on the horizontal axis; an output is a \( y \)-value on the vertical axis.
\( (x,\ f(x)) = (x,\ y) \)
1
Reading Values From the Function Graph
Use the graph of function \( g(x) \) below to answer questions A through D.
x y -2 -4 2 4 2 4 -2 -4 g(x)
A. Find \( g(1) \): Go to \( x=1 \), move up to line.
\( g(1) = \) ______
B. Find \( g(-3) \): Go to \( x=-3 \), move to line.
\( g(-3) = \) ______
C. Find \( x \) when \( g(x) = 4 \): Start at \( y=4 \), move across.
\( x = \) ______
D. Find \( x \) when \( g(x) = 1 \): Start at \( y=1 \), move across.
\( x = \) ______
2
Build the Input-Output Table
Complete the table for the function \( f(x) = 2x - 3 \) to generate coordinate points.
Input (\( x \))
Substitution Work Frame
Output (\( f(x) \))
Ordered Pair (\( x, y \))
-2
\( 2(-2) - 3 = -4 - 3 \)
-7
(-2, -7)
-1
\( 2(\underline{\hspace{0.8cm}}) - 3 = \) _______
(-1, _____)
0
\( 2(\underline{\hspace{0.8cm}}) - 3 = \) _______
(0, _____)
3
\( 2(\underline{\hspace{0.8cm}}) - 3 = \) _______
(3, _____)
Function Decoders • Module 1 Lesson 3 • Page 1 of 2 Turn over for real-world contextual rate graph decoding
Module 1 • Lesson 3
Real-World Graphs & Reverse Synthesis
Student Name:
Smartphone Battery Drainage Model
A high school student's smartphone battery percentage is modeled by the function:
1. Forward Evaluation: Find \( B(4) \)
Calculate the battery level after 4 hours of streaming.
\( B(4) = \) ________ %
2. Reverse Lookup: Solve \( B(t) = 25 \)
Find how many hours of streaming leave 25% battery.
\( t = \) ________ hours
3
Multi-Function Graph Analysis
Suppose company A and company B offer cell plans: \( A(x) = 20x + 10 \) and \( B(x) = 15x + 30 \), where \( x \) is gigabytes of data.

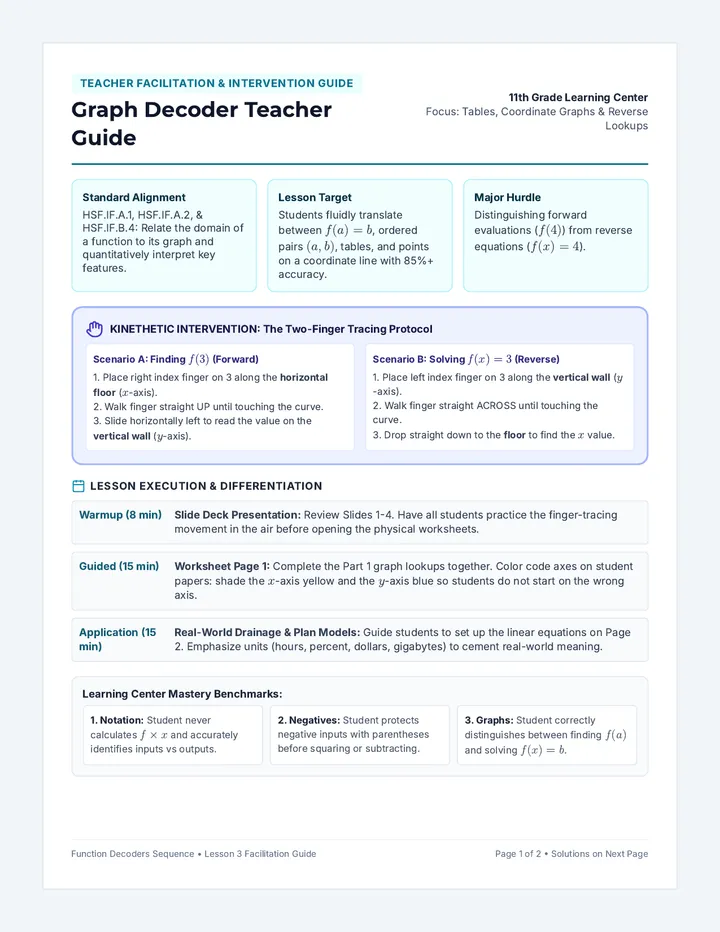

Graph Decoder Teacher Guide Teacher Facilitation & Intervention Guide
Graph Decoder Teacher Guide
11th Grade Learning Center
Focus: Tables, Coordinate Graphs & Reverse Lookups
Standard Alignment
HSF.IF.A.1, HSF.IF.A.2, & HSF.IF.B.4: Relate the domain of a function to its graph and quantitatively interpret key features.
Lesson Target
Students fluidly translate between \( f(a)=b \), ordered pairs \( (a, b) \), tables, and points on a coordinate line with 85%+ accuracy.
Major Hurdle
Distinguishing forward evaluations (\( f(4) \)) from reverse equations (\( f(x) = 4 \)).
KINETHETIC INTERVENTION: The Two-Finger Tracing Protocol
Scenario A: Finding \( f(3) \) (Forward) 1. Place right index finger on 3 along the horizontal floor (\( x \)-axis).vertical wall (\( y \)-axis).
Scenario B: Solving \( f(x) = 3 \) (Reverse) 1. Place left index finger on 3 along the vertical wall (\( y \)-axis).floor to find the \( x \) value.
Lesson Execution & Differentiation
Warmup (8 min)
Slide Deck Presentation: Review Slides 1-4. Have all students practice the finger-tracing movement in the air before opening the physical worksheets.
Guided (15 min)
Worksheet Page 1: Complete the Part 1 graph lookups together. Color code axes on student papers: shade the \( x \)-axis yellow and the \( y \)-axis blue so students do not start on the wrong axis.
Application (15 min)
Real-World Drainage & Plan Models: Guide students to set up the linear equations on Page 2. Emphasize units (hours, percent, dollars, gigabytes) to cement real-world meaning.
Learning Center Mastery Benchmarks:
1. Notation: Student never calculates \( f \times x \) and accurately identifies inputs vs outputs.
2. Negatives: Student protects negative inputs with parentheses before squaring or subtracting.
3. Graphs: Student correctly distinguishes between finding \( f(a) \) and solving \( f(x) = b \).
Function Decoders Sequence • Lesson 3 Facilitation Guide Page 1 of 2 • Solutions on Next Page
Master Answer Key
Graph Decoder Solutions & Rubric
