CRA Foundations Slides The Dyscalculic Brain
Diagnostic Foundations of the CRA Framework
Advanced Math Intervention Series • Lesson 01
The "Alien" Arithmetic Simulation
Solve the following using the Base-5 "Alpha" System:
∆ = 1
ø = 2
∑ = 3
Ω = 4
★ = 5 (New Place Value)
ø∑ + ΩΩ = ?
Cognitive Reflection
Where did you feel the most "friction"?
How did your working memory respond to unfamiliar symbols?
This is the cognitive load of a student with a learning disability.
Why CRA? The Neurological Argument
Intraparietal Sulcus (IPS)
The hub for numerical magnitude and "number sense." Students with dyscalculia often show reduced activation here.
Working Memory Load
Abstract symbols (\(+, -, \times, \div\)) demand high executive function. Concrete tools offload this cognitive burden.
Visual-Spatial Sketchpad
The Representational phase (drawing) bridges the gap between the physical hand and the abstract mind.
Diagnostic Dissonance
Procedural Deficit
Fails to remember steps of an algorithm (e.g., long division).
Misplaces digits in columns.
Forgets "the rules" (e.g., "borrowing").
Intervention: Checklists & Memory Aids
Conceptual Deficit
Cannot explain *why* borrowing happens.
Cannot estimate if an answer is "reasonable."
Sees numbers as symbols, not quantities.
Intervention: Concrete-Representational-Abstract
The Diagnostic Loop
1
Observe Error
2
Clinical Interview (Ask "Why?")
3
Differentiate P vs. C
4
Pinpoint CRA Entry
"We do not treat the error; we treat the cognitive breakdown."
Error Analysis Lab Worksheet Diagnostic Analysis Lab
CRA Framework • Graduate Practitioner Series
Practitioner:
Date:
Clinical Laboratory Directions
Analyze the three clinical work samples provided below. For each sample, identify the primary error type (Procedural vs. Conceptual), hypothesize the underlying cognitive breakdown , and justify your entry point on the Concrete-Representational-Abstract continuum.
SAMPLE 01
Multi-Digit Subtraction
4 2 3
- 1 5 7
3 3 4
Student Comment: "I can't take 7 from 3, so I just did 7 minus 3 is 4. Same for the middle column."
Diagnostic Hypothesis
CRA Entry Point & Tool Selection
SAMPLE 02
Fraction Equivalence
"Which is larger: \( \frac{1}{4} \) or \( \frac{1}{2} \)?"
Student Answer: \( \frac{1}{4} \)
Student Comment: "Because 4 is bigger than 2, so the whole number is bigger."
Diagnostic Hypothesis
CRA Entry Point & Tool Selection
SAMPLE 03
Multiplication Algorithm
2 5
x 1 3
7 5
2 5
1 0 0
Student Comment: "I multiplied 3x5 and 3x2, then I multiplied 1x5 and 1x2. Then I added them together."
Diagnostic Hypothesis
CRA Entry Point & Tool Selection
Final Clinical Synthesis
How does the "Think Aloud" method differ from standard testing when identifying conceptual vs. procedural gaps?
Diagnostic Framework Guide Diagnostic Framework Guide
A practitioner's reference for differentiating mathematical deficits and mapping CRA interventions.
Part 1: The Deficit Differentiator
Procedural Deficit
Focuses on the How . Breakdowns occur in the sequence, memory, or execution of rules.
Key Indicator Cognitive Root Skipped steps in algorithm Working Memory Capacity Misalignment of digits Visual-Spatial Processing Slow retrieval of facts Long-term Memory Retrieval
Conceptual Deficit
Focuses on the Why . Breakdowns occur in the understanding of number relationships and magnitude.
Key Indicator Cognitive Root Unable to estimate "sensible" answer Number Sense (Approximate Number System) Applies rule incorrectly across domains Relational Thinking Gaps "Whole-number bias" in fractions Schema Misalignment
Part 2: CRA Entry Point Logic
C
Concrete Entry Point
Use when: Student cannot explain the physical meaning of the operation or has no mental model of the quantities involved.
Example: Student thinks \( 42 - 17 = 35 \) because they simply subtract the smaller digit from the larger in each column.
R
Representational Entry Point
Use when: Student understands the physical concept but "gets lost" in the transition to symbols or has difficulty with the cognitive load of abstract manipulation.
Example: Student can use Base-10 blocks to show regrouping but cannot bridge that to a written algorithm yet.
A
Abstract Fluency Focus
Use when: Student has conceptual mastery and representational fluency but lacks speed, accuracy, or consistent retrieval of symbols.
Example: Student understands multiplication perfectly but hasn't memorized facts to a level of automaticity.
Practitioner Discussion Prompts
"How do we avoid the 'Concrete Trap' where a student becomes dependent on the tool without internalizing the concept?"
"What clinical questions can you ask a student to reveal a 'whole number bias' when working with decimals?"
Manipulative Mastery Slides Concrete Clarity
Evaluating and Modeling Physical Tools
Advanced Math Intervention Series • Lesson 02
The "Muddled Modeling" Trap
Consider this demonstration for Multiplication:
"Okay, class. Watch me. I'm taking these little cubes and putting them into these bigger groups. See? Now there's three here and three there. We just combine them like this, and if you count them all up, you get six. It's just like when we did addition but faster. Any questions?"
What went wrong?
• Vague language ("little cubes," "combine them")
• No explicit link to mathematical vocabulary.
• Missed the concept of equal groups.
• Manipulatives became toys, not tools.
Critiquing the Tool
Perceptual Salience
Does the tool distract from the math? (e.g., highly colored/textured blocks vs. neutral ones). For students with ADHD, "pretty" tools can be cognitive clutter.
Structural Alignment
Does the physical structure of the tool mirror the math? (e.g., Cuisenaire rods showing relative magnitude vs. counters showing discrete counts ).
Versatility
Can the tool grow with the student? Base-10 blocks work for addition through decimals. Bears only work for early counting.
Tactile Feedback
Does it offer feedback? (e.g., Numicon shapes fit together in only one way to show odd/even properties).
The "Think-Aloud" Blueprint
Action
Move 10 ones into the 'tens' cup.
Line up the fraction tiles side-by-side.
Break the rod into individual units.
Explicit Language
"I am regrouping these ten ones into one ten."
"I see that two-fourths is equivalent to one-half."
"I am decomposing the seven into five and two."
Manipulative Audit
You will now rotate through three "Manipulative Stations." Your task is to critique each tool using the Advanced Selection Rubric and draft a 60-second "Master Modeling Script."
Base-10 Blocks Cuisenaire Rods Numicon

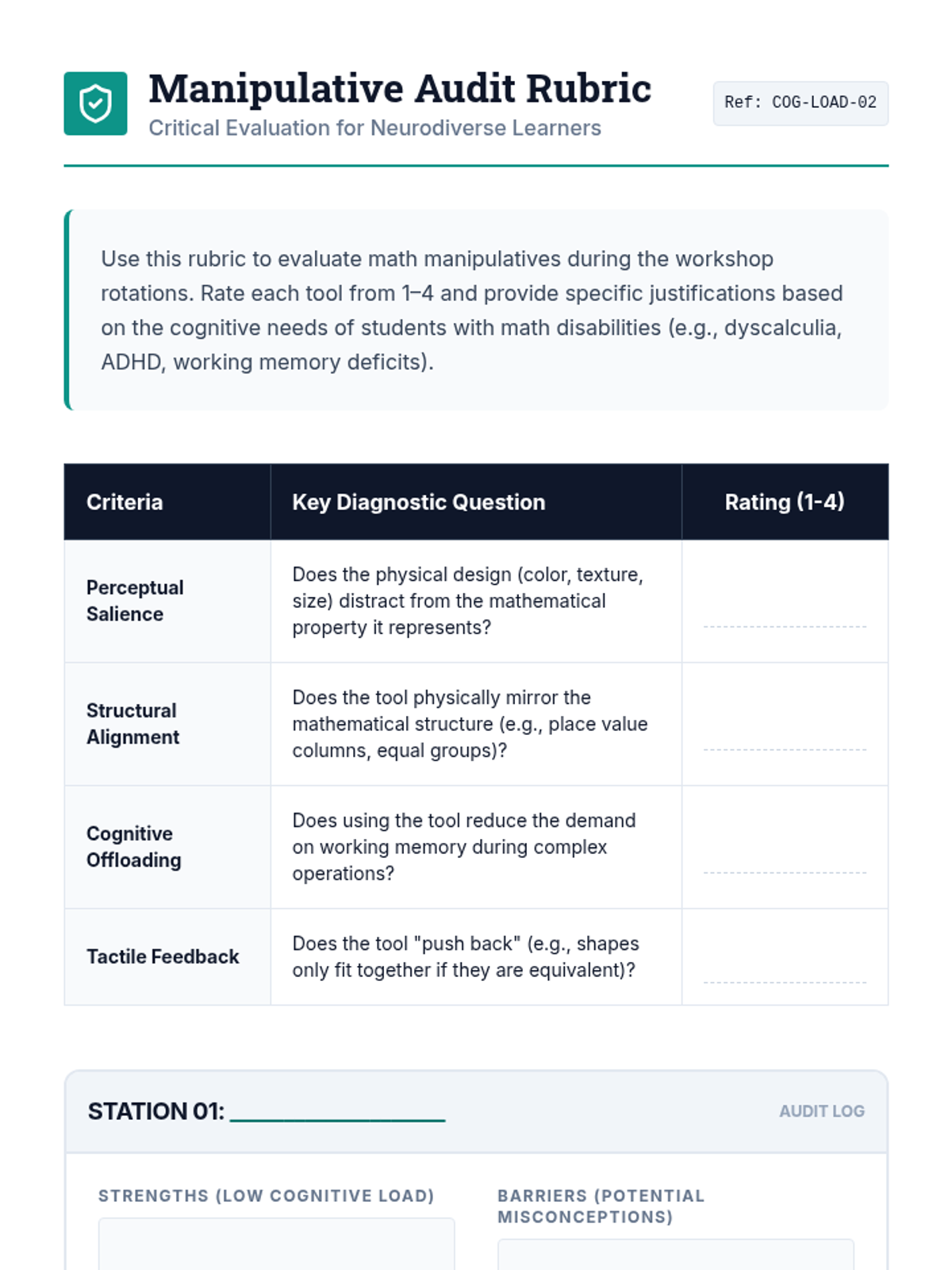

Manipulative Audit Rubric Manipulative Audit Rubric
Critical Evaluation for Neurodiverse Learners
Ref: COG-LOAD-02
Use this rubric to evaluate math manipulatives during the workshop rotations. Rate each tool from 1–4 and provide specific justifications based on the cognitive needs of students with math disabilities (e.g., dyscalculia, ADHD, working memory deficits).
Criteria Key Diagnostic Question Rating (1-4) Perceptual Salience Does the physical design (color, texture, size) distract from the mathematical property it represents? Structural Alignment Does the tool physically mirror the mathematical structure (e.g., place value columns, equal groups)?
|
| Cognitive Offloading | Does using the tool reduce the demand on working memory during complex operations? |
|
| Tactile Feedback | Does the tool "push back" (e.g., shapes only fit together if they are equivalent)? |
|
Station 01: ____________________
AUDIT LOG
Strengths (Low Cognitive Load)
Barriers (Potential Misconceptions)
Station 02: ____________________
AUDIT LOG
Strengths (Low Cognitive Load)
Barriers (Potential Misconceptions)
Final Verdict
Which of these tools provides the highest "Conceptual ROI" (Return on Instruction)? Justify your answer.
Think-Aloud Script Planner Think-Aloud Script Planner
Precision Language for Explicit Modeling
Master Modeling
Mathematical Concept
Target Manipulative
Vocabulary to Anchor
Physical Action Explicit Scripting (The "Think-Aloud") STEP 1: INITIAL SETUP How do you lay out the tools to show the starting quantity?
Sketch or describe action...
|
Focus on precise naming of symbols and quantities.
"Today, I am using these blocks to represent..."
|
| STEP 2: THE TRANSFORMATION
What is the central movement (e.g., regrouping, dividing)?
Sketch or describe action...
|
Narrate your inner thought process and why you are moving the tools.
"I notice that I don't have enough ones, so I must..."
|
| STEP 3: THE RESOLUTION
How do you show the final result physically?
Sketch or describe action...
|
Connect the physical result back to the abstract symbols.
"This physical group now represents our answer of..."
|
Modeling Fidelity Checklist
Did I use consistent math vocabulary throughout?
Did my movements synchronize with my words?
Did I explicitly name the "invisible" concepts (e.g., zero property)?
Is the manipulative clearly visible to the "student"?
Bridging the Gap Slides The Fragile Bridge
Mastering the Representational Transition
Advanced Math Intervention Series • Lesson 03
The High-Stakes Leap
Why do students fail at the Representational (R) phase?
Symbolic Overload: Pictorials are still symbols, just less abstract ones.
Loss of Permanence: Unlike blocks, a drawing can't be "undone" or physically felt.
The Fading Gap: We remove the blocks too fast before the mental model is set.
Concrete (Blocks)
Representational (Drawing)
Abstract (Numbers)
The Intervention Sweet Spot
Schematic Diagrams vs. Illustrative Drawings
Illustrative (Low Impact)
Drawing 5 apples, 3 cats, and 2 trees. Focuses on the surface features of the story.
🍎 🍎 🍎 🍎 🍎 + 🐈 🐈 🐈
Risk: High cognitive load, distracting details.
Schematic (High Impact)
Using strip diagrams, number lines, or grids. Focuses on the mathematical relationship .
Total (?)
Part A
Part B
Benefit: Reduces load, highlights the schema.
The Art of Fading Scaffolds
Stage 1
Concrete + Verbal Scripting
Blocks in hand, saying the steps.
Stage 2
Concrete + Schematic Sketch
Build it, then immediately draw it.
Stage 3
Schematic Sketch Only
Blocks on the side, but available for check.
Stage 4
Sketch + Abstract Symbols
Mapping the sketch to numbers.
The Textbook Barrier
"Analyze the provided textbook page. Identify three specific barriers for a student with processing deficits who is asked to jump from the photo of oranges to the long division algorithm."
Perceptual Jump
Missing Scaffold

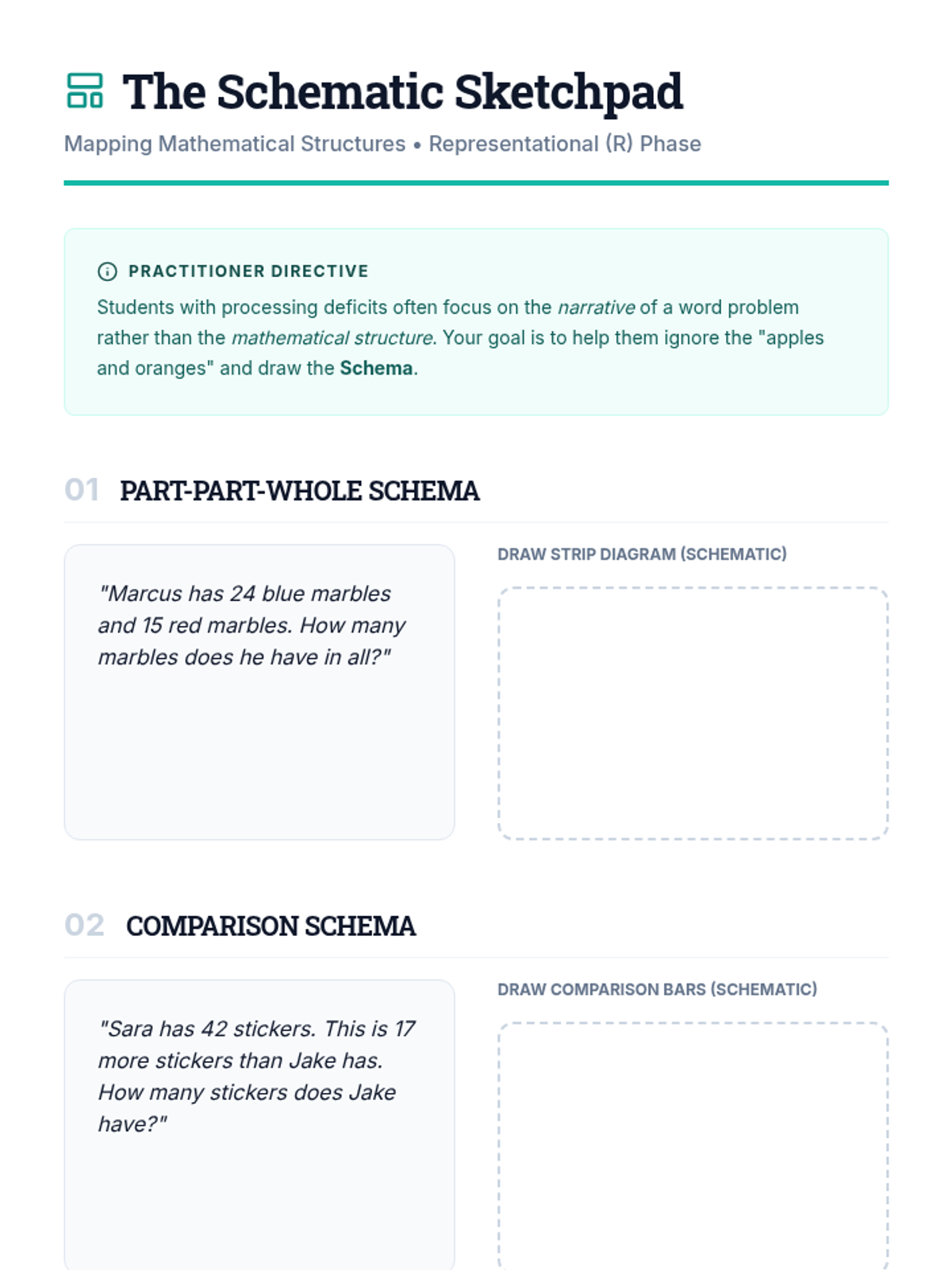

Schema Gaps Schematic Sketchpad Worksheet The Schematic Sketchpad
Mapping Mathematical Structures • Representational (R) Phase
Practitioner Directive
Students with processing deficits often focus on the narrative of a word problem rather than the mathematical structure . Your goal is to help them ignore the "apples and oranges" and draw the Schema .
01
Part-Part-Whole Schema
"Marcus has 24 blue marbles and 15 red marbles. How many marbles does he have in all?"
Draw Strip Diagram (Schematic)
02
Comparison Schema
"Sara has 42 stickers. This is 17 more stickers than Jake has. How many stickers does Jake have?"
Draw Comparison Bars (Schematic)
03
Equal Groups Schema
"A school is buying new tables. Each table costs $85. How much will 6 tables cost?"
Draw Area Model or Array (Schematic)
Diagnostic Reflection
Why is a Strip Diagram (schematic) more effective for a student with dyscalculia than a Detailed Drawing (illustrative)?
Fading Strategy Guide The Fading Strategy Guide
Systematic Support Withdrawal in CRA
Part 1: Readiness Indicators
When to FADE
Student correctly models the operation 3x in a row without prompts.
Student's "Think-Aloud" uses precise math vocabulary independently.
Student can anticipate the result before physically moving the tools.
When to HOLD
Student moves tools randomly without narrating the "why."
Student becomes anxious or "shut down" when tools are moved away.
High error rate when a new tool variation is introduced.
Part 2: The 4-Stage Fading Model
S1
Full Concrete Support
Instructional modeling with physical tools. Student mirrors actions and scripts. Support is 100%.
S2
Simultaneous Bridge
Student builds with tools, then immediately draws a schematic diagram of the build. "Build-Draw-Say."
S3
Representational Lead
Student works with the drawing first. Tools are present but kept at the top of the desk for "Verification Only."
S4
Abstract Integration
Student maps the schematic drawing to the abstract algorithm. Drawing becomes the "Scaffold of Last Resort."
Practitioner Self-Audit
Avoid the Cliff
Did I jump straight from Stage 1 to Stage 4? This is the most common point of intervention failure.
Scripting Continuity
Is the language I used with the blocks the same language I am using with the drawing?
Error Correction
If the student makes an error at the R phase, do I let them fix it with the C tools?
Digital Dimensions Slides Digital Dimensions
Virtual Manipulatives & Cognitive Design
Advanced Math Intervention Series • Lesson 04
Where does Digital Fit?
Virtual Manipulatives are rarely truly "Concrete."
They occupy a hybrid space between Concrete (C) and Representational (R). We call this the "V-CRA" continuum.
Key Question:
Does the student need to feel the weight and mass (Physical) or do they benefit from the infinite supply and immediate feedback (Virtual)?
The Sensory Trade-off
Loss of haptic/proprioceptive feedback.
Precise, consistent constraints (impossible to "lose" a piece).
Dynamic linking (dragging a block updates a number).
Learning vs. "Gaming the System"
Decorative Gamification
• Rewards unrelated to the math.
• Flashing lights/sounds that distract ADHD learners.
• High perceptual salience (pretty over functional).
Cognitive Load: OVERLOADED
Cognitive Tools
• Feedback highlights mathematical errors.
• Clean, minimalist UI to focus on structure.
• User-controlled variables (Inquiry-based).
Cognitive Load: OPTIMIZED
Essential Accessibility Features
Multimodal Feedback
The tool should use sound, color change, and text to signal equivalence or error.
Alternative Input
Can it be used with a keyboard only? Does it support switch-access for students with motor needs?
Visual Support
High-contrast modes, scalable icons, and screen-reader compatibility (Alt-text for blocks).
Virtual vs. Physical Showdown
"You have a student with a severe fine-motor deficit and working memory issues learning Equivalent Fractions. Compare the physical fraction tiles to the virtual tiles. Which is the more 'accessible' scaffold?"
Debate Station 01
Debate Station 02

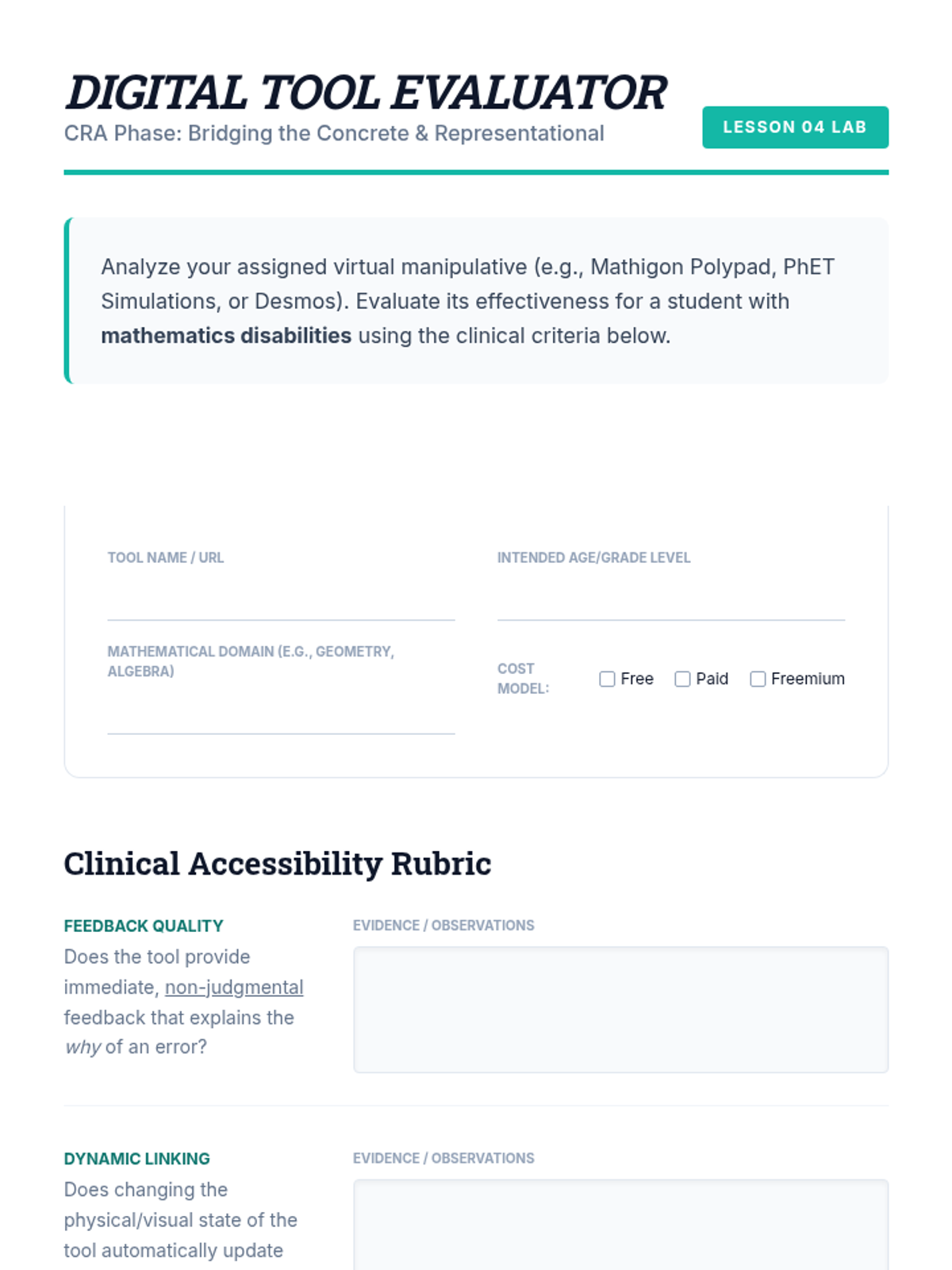

Virtual Tool Evaluator Worksheet Digital Tool Evaluator
CRA Phase: Bridging the Concrete & Representational
Lesson 04 Lab
Analyze your assigned virtual manipulative (e.g., Mathigon Polypad, PhET Simulations, or Desmos). Evaluate its effectiveness for a student with mathematics disabilities using the clinical criteria below.
Tool Information
Tool Name / URL
Mathematical Domain (e.g., Geometry, Algebra)
Intended Age/Grade Level
Cost Model:
Free
Paid
Freemium
Clinical Accessibility Rubric
Feedback Quality
Does the tool provide immediate, non-judgmental feedback that explains the why of an error?
Evidence / Observations
Dynamic Linking
Does changing the physical/visual state of the tool automatically update the abstract symbol/number?
Evidence / Observations
UI Minimalisim
Is the interface free of distracting "gamified" elements that might cause cognitive overload for ADHD learners?
Evidence / Observations
Intervention Suitability
In your professional opinion, for which student profile is this tool best suited ? (e.g., "Student with severe dyscalculia who needs high haptic feedback" or "Student with fine motor delays who needs infinite precision").
Tech Integration Checklist Guide The Accessibility Vetting Checklist
Standardizing the selection of virtual tools for mathematics intervention.
01. Visual & Cognitive Design
Minimalist Interface
Free of banner ads, distracting animations, or non-mathematical rewards.
High Contrast Icons
Tools and objects are easily distinguishable from the background workspace.
Consistent Coloring
Matches standard physical tool colors (e.g., green for hundreds, blue for thousands).
Scaleable UI
User can zoom in/out without losing clarity of the manipulative objects.
02. Functional Feedback
Immediate Result Tracking
Numerical values update in real-time as pieces are added or removed.
Error Pinpointing
Shows *where* the breakdown occurred rather than a generic "Try Again."
Undo/Redo Stability
Allows for low-stakes experimentation without resetting the whole problem.
Constraint-Based Interaction
Pieces "snap" or lock into place only when mathematically appropriate.
03. Motor & Sensory Access
Keyboard Navigation
Full functionality available via Tab and Enter keys for motor limitations.
Auditory Narratives
Text-to-speech for instructions and object descriptions.
Large Hit Areas
Target zones for clicking/tapping are oversized for shaky motor control.
Multiple Input Options
Supports mouse, touch, and stylus input equally well.
The 80/20 Rule of V-CRA
Ensure the tool is 80% functional with zero teacher prompting. If it requires 20% or more focus on how to use the tech , it is likely adding too much extraneous load.
Final Intervention Slides Intervention by Design
Synthesizing the CRA Framework
Advanced Math Intervention Series • Capstone Session
The "Administrator Pitch"
You have 2 minutes in the elevator with your principal.
"Why should I spend $4,000 on manipulative kits when we already have a digital math software license?"
Your Evidence-Based Case:
Neurological necessity of IPS activation.
Reduction of cognitive load.
Long-term transfer vs. short-term "gaming."
Capstone: The Comprehensive CRA Plan
Part A: The Profile
Diagnostic error analysis of a specific learner. Identification of the C-R-A entry point.
Part B: The Scaffolds
Justified selection of physical tools, schematic diagrams, and virtual bridges.
Part C: The Fading
A 4-week timeline for systematic withdrawal of support and mastery checks.
Assessing Mastery Independent of Fluency
"A student can be concepts-mastery READY even if they are facts-fluency LAGGING."
Formative Evidence to Track:
• Consistency of "Think-Aloud" reasoning.
• Ability to "Represent" a problem in 2+ ways.
• Flexibility in choosing the right tool.
Mastery =
Critical Friend Protocol
"Your goal is not to be nice; it is to be rigorous. Does this plan provide enough scaffolding for the student to succeed, but enough challenge for them to transfer?"
Round 1: The Feasibility Check
Could a teacher reasonably implement this in a real-world classroom?
CRA Intervention Planner Document CRA Intervention Blueprint
Comprehensive Instructional Design for Learners with Mathematics Disabilities
Document ID
BP-77-SYNTHESIS
Part 1: Diagnostic Profile
Targeted Conceptual Gap
Specific Error Pattern (Observed)
Neuro-Cognitive Considerations (e.g., WM, Processing Speed, Motor)
Part 2: Scaffolding Rationale
Concrete (C) Tool
Rationale:
Representational (R) Bridge
Rationale:
Virtual / AT Bridge
Rationale:
Part 3: 4-Week Fading Schedule
Phase Instructional Delivery & Modeling Evidence of Readiness to Fade Week 1: Concrete Focus Week 2: C to R Transition Week 3: Representational Week 4: R to Abstract
Assessment Plan
How will you verify conceptual mastery during the R-phase transition, independent of computational speed?
Peer Critique Protocol Sheet Clinical Peer Critique
Advanced CRA Intervention Peer Review
The "Critical Friend" Mandate
In graduate-level clinical practice, feedback must move beyond "I like this." Your goal is to identify structural vulnerabilities in your peer's intervention plan and suggest evidence-based refinements.
ROUND 01
Structural Feasibility
Does the proposed timeline (fading schedule) allow for sufficient mastery cycles before increasing abstraction?
I Observe...
"The plan moves from C to R in 2 days..."
I Challenge...
"This may be a 'scaffold cliff' for the student..."
ROUND 02
Cognitive Load Optimization
Critique the Representational (R) choices. Are the diagrams purely illustrative or truly schematic?
I Wonder...
"If the use of oranges instead of bars might..."
Alternative Suggestion...
"Perhaps a strip diagram would better highlight..."
The Clinician's Endorsement
"Based on our review, what is the single most rigorous element of this plan that will ensure conceptual transfer for the learner?"
