Velocity Vector Slides Physics & Mathematics: Unit 01
Velocity Vector
Linear vs. Angular Kinematics
The Hook
Two horses on a carousel are spinning. Horse A is 2 meters from the center. Horse B is 5 meters from the center.
Do they share the same speed?
Think about "speed" in two ways: rotational versus directional.
A
B
The Language of Circles
Arc Length (\(s\))
The physical distance traveled along the curvature.
\[s = r\theta\]
* \(\theta\) must be in radians!
Angular Velocity (\(\omega\))
Rate of change of the central angle over time.
\[\omega = \frac{\Delta \theta}{\Delta t}\]
Units: rad/s, RPM, degrees/s
Linear Velocity (\(v\))
The "tangential" speed of a point.
\[v = \frac{\Delta s}{\Delta t}\]
Units: m/s, mph, km/h
Bridging the Gap
\(v = \frac{\Delta s}{\Delta t}\)
Substitute \(s = r\theta\)
\[v = \frac{\Delta (r\theta)}{\Delta t}\]
If radius \(r\) is constant...
\[v = r \cdot \omega\]
The "Blade" Effect
In a rigid rotating body, \(\omega\) is constant for every point.
Therefore, linear velocity \(v\) is directly proportional to the distance from the center.
Wind turbine tips travel near speed of sound.
Record player edges move faster than the label.
Interactive Prompt
"If we double the radius of a spinning disc while keeping its RPM the same, what happens to the speed of a point on the rim?"
Discuss with a partner.
Carousel Kinematics Worksheet Carousel Kinematics
Linear vs. Angular Velocity Analysis
Student Name
Date
Arc Length
\[s = r\theta\]
Angular Velocity
\[\omega = \frac{\Delta \theta}{\Delta t}\]
Linear Velocity
\[v = r\omega\]
1 The Dual-Horse Carousel
A carousel at a local fairground rotates at a constant rate of 4 revolutions per minute (RPM). Horse A is positioned 2.5 meters from the center, while Horse B is 6.0 meters from the center.
a) Convert the carousel's rotational speed from RPM to radians per second (\(rad/s\)). Show your unit analysis.
b) Calculate the linear velocity of Horse A in \(m/s\).
c) Calculate the linear velocity of Horse B in \(m/s\).
2 The High-Speed Turbine
A wind turbine has blades that are 45 meters long. In a steady wind, the turbine completes 15 full rotations every minute.
a) Determine the distance (arc length) traveled by the tip of a blade in exactly 10 seconds.
b) The speed of sound is approximately \(343 \, m/s\). At what rotational speed (in RPM) would the tips of these blades break the sound barrier?
3 Theoretical Synthesis
"Two particles are moving on concentric circular paths. Particle 1 is on a path with radius \(R\) and Particle 2 is on a path with radius \(3R\)."
If both particles have the same linear velocity \(v\), what is the ratio of their angular velocities \(\omega_1 / \omega_2\)? Justify your answer using the relationship \(v = r\omega\).
If both particles have the same angular velocity \(\omega\), but Particle 2 is moved to a radius of \(kR\), find the value of \(k\) such that Particle 2's linear velocity is exactly 5 times that of Particle 1.
Critical Thinking: The Record Player
Vinyl records are played at a constant angular velocity (e.g., 33 1/3 RPM). As the needle moves from the outer edge toward the center, what happens to the linear speed of the needle relative to the record's surface? How might this affect audio quality or data density?
Velocity Master Guide Velocity Master Guide
Teacher Solutions & Instructional Notes
Answer Key
1. The Dual-Horse Carousel
a) RPM to Radians per Second
\( \omega = 4 \, \text{rev/min} \times \frac{2\pi \, \text{rad}}{1 \, \text{rev}} \times \frac{1 \, \text{min}}{60 \, \text{sec}} = \frac{8\pi}{60} \approx 0.4189 \, \text{rad/s} \)
Tip: Remind students to carry \(\pi\) until the final step for precision.
b) Horse A (\(r = 2.5m\))
\( v_A = r_A\omega = 2.5 \times 0.4189 \approx 1.047 \, \text{m/s} \)
c) Horse B (\(r = 6.0m\))
\( v_B = r_B\omega = 6.0 \times 0.4189 \approx 2.513 \, \text{m/s} \)
2. High-Speed Turbine
a) Arc Length in 10s
First, find total radians in 10s:
\( \omega = 15 \, \text{RPM} = \frac{15 \times 2\pi}{60} = 0.5\pi \, \text{rad/s} \)
b) Breaking Sound Barrier (\(v = 343 \, m/s\))
\( v = r\omega \implies 343 = 45\omega \implies \omega \approx 7.622 \, \text{rad/s} \)
Note: Explain that real wind turbines rarely reach these speeds to avoid structural failure.
3. Theoretical Synthesis
Part A: Since \(v_1 = v_2\), then \(R\omega_1 = 3R\omega_2\). Thus, \(\omega_1 / \omega_2 = 3\). The inner particle must rotate 3x faster to maintain the same linear speed.
Part B: \(v_1 = R\omega\). We want \(v_2 = 5v_1\), so \(kR\omega = 5(R\omega)\). This simplifies to \(k = 5\).
Pedagogical Notes
Common Misconceptions
Students often forget to convert degrees/rev to radians.
Confusing "rotational speed" (RPM) with "tangential speed" (m/s).
Thinking Horse B has a larger \(\theta\) because it's further out (both sweep the same angle).
Extension Question
Ask students to consider Earth. A person at the equator and a person at 45° latitude both rotate 360° in 24 hours. Who is traveling "faster" in terms of miles per hour? (The person at the equator, as their radius from Earth's axis is larger).
Planetary Sweep Slides Celestial Mechanics
Planetary Sweep
Applying Sector Area to the Laws of the Universe
The Observation
In 1609, Johannes Kepler realized planets don't move in perfect circles. They move in ellipses.
Crucially, they move faster when closer to the Sun.
"How can we mathematically describe this inconsistent speed?"
Perihelion (Fast) Aphelion (Slow)
The Law of Equal Areas
Primary Definition
"A line segment joining a planet and the Sun sweeps out equal areas during equal intervals of time."
\[ \frac{dA}{dt} = \text{constant} \]
The "Areal Velocity" is invariant.
Near the sun: Wide angle, short radius.
Far from sun: Narrow angle, long radius.
From Sector to Sweep
The Sector Area Formula
If motion were circular:
\[ A = \frac{1}{2} r^2 \theta \]
The Rate of Change
Taking the derivative with respect to time:
\[ \frac{dA}{dt} = \frac{1}{2} r^2 \frac{d\theta}{dt} \]
\[ \frac{dA}{dt} = \frac{1}{2} r^2 \omega \]
Physics Insight
Conservation of Angular Momentum (\(L\)) is the reason \(\frac{dA}{dt}\) is constant.
\[ L = m r^2 \omega \] \[ \frac{dA}{dt} = \frac{L}{2m} \]
Halley's Comet Case Study
Halley's Comet has a highly eccentric orbit. At its closest point (perihelion), it is \(0.58 \, AU\) from the sun. At its furthest point (aphelion), it is \(35.1 \, AU\) from the sun.
Perihelion Speed
54.6 km/s
Aphelion Speed
0.9 km/s
Why does the area sweep stay the same despite this massive speed difference?
Calculation Challenge
If the comet sweeps an area of \(X\) million \(km^2\) in 30 days during Perihelion...
How much area does it sweep in 30 days during Aphelion?
?

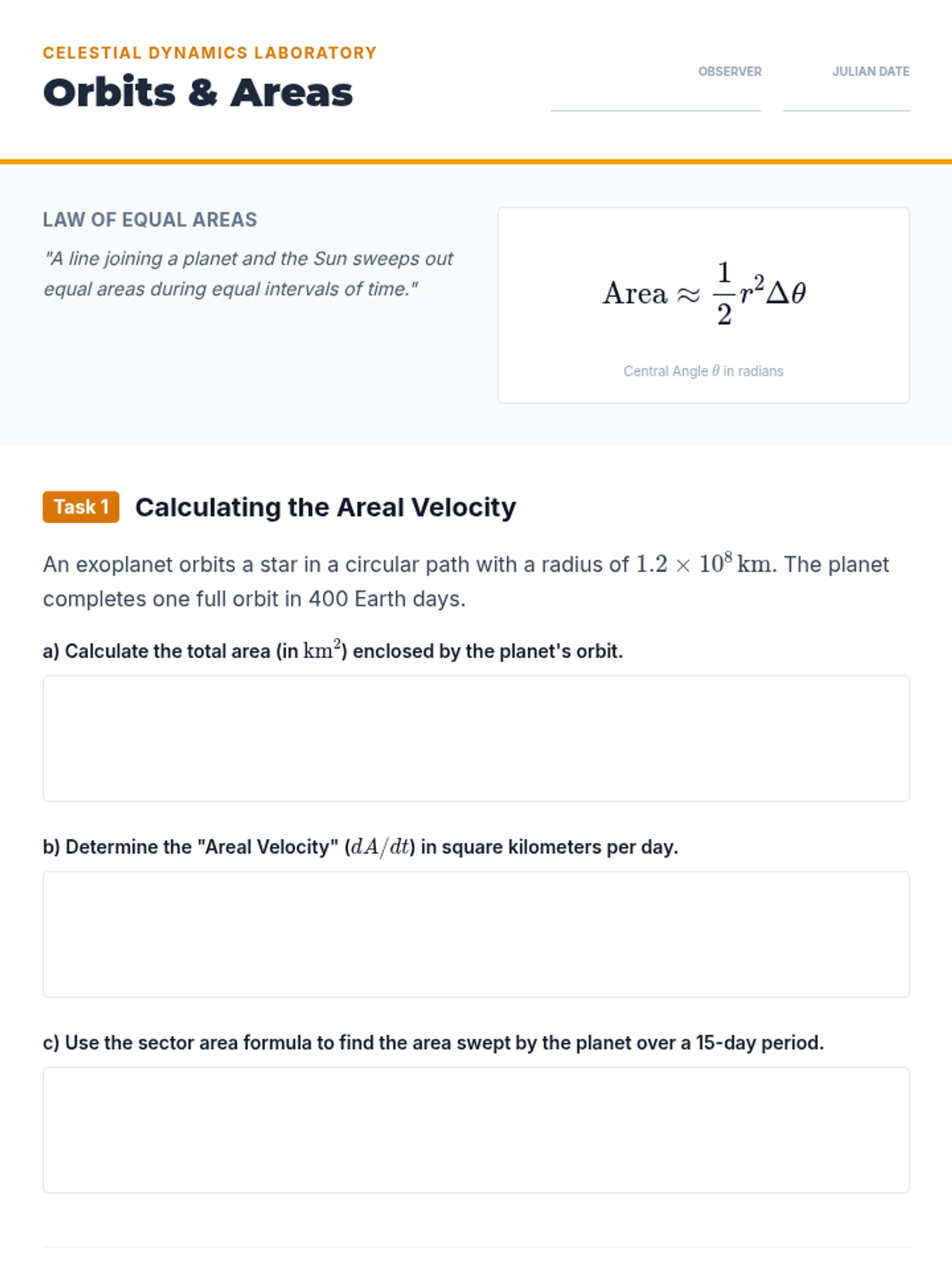

Orbit Area Worksheet Celestial Dynamics Laboratory
Orbits & Areas
Observer
Julian Date
Law of Equal Areas
"A line joining a planet and the Sun sweeps out equal areas during equal intervals of time."
\[ \text{Area} \approx \frac{1}{2} r^2 \Delta \theta \]
Central Angle \(\theta\) in radians
Task 1 Calculating the Areal Velocity
An exoplanet orbits a star in a circular path with a radius of \(1.2 \times 10^8 \, \text{km}\). The planet completes one full orbit in 400 Earth days.
a) Calculate the total area (in \(\text{km}^2\)) enclosed by the planet's orbit.
b) Determine the "Areal Velocity" (\(dA/dt\)) in square kilometers per day.
c) Use the sector area formula to find the area swept by the planet over a 15-day period.
Task 2 Comparing Perihelion & Aphelion
A comet follows an elliptical orbit. At Point P (Perihelion), it is \(50 \, \text{million km}\) from the star. At Point A (Aphelion), it is \(250 \, \text{million km}\) from the star.
Key Assumption: For very small time intervals (\(\Delta t\)), we can approximate the swept area using the circular sector formula \(A \approx \frac{1}{2} r^2 \Delta \theta\).
In one week, the comet sweeps a central angle of \(0.15 \, \text{rad}\) at Perihelion. Calculate this week's swept area.
Kepler's Second Law states the comet must sweep the same area in one week at Aphelion. What central angle \(\Delta \theta\) (in radians) will it sweep at Aphelion?
Theoretical Synthesis
The linear speed of the comet is given by \(v \approx r (\Delta \theta / \Delta t)\). Based on your results above, calculate the ratio of the comet's linear speed at Perihelion to its speed at Aphelion (\(v_P / v_A\)). What does this tell you about how comets behave as they approach the sun?

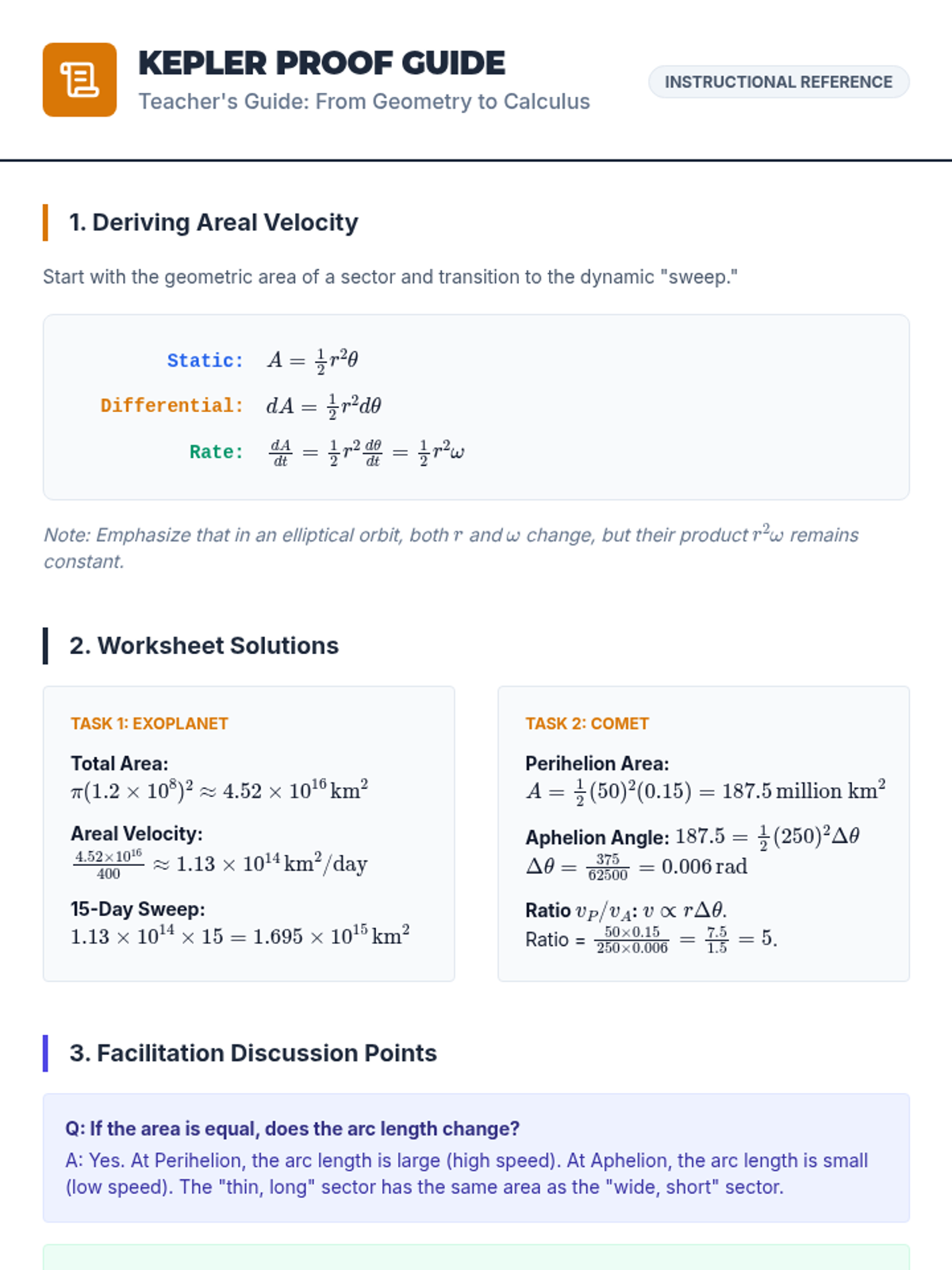

Kepler Proof Guide Kepler Proof Guide
Teacher's Guide: From Geometry to Calculus
INSTRUCTIONAL REFERENCE
1. Deriving Areal Velocity
Start with the geometric area of a sector and transition to the dynamic "sweep."
Static: \( A = \frac{1}{2} r^2 \theta \)
Differential: \( dA = \frac{1}{2} r^2 d\theta \)
Rate: \( \frac{dA}{dt} = \frac{1}{2} r^2 \frac{d\theta}{dt} = \frac{1}{2} r^2 \omega \)
Note: Emphasize that in an elliptical orbit, both \(r\) and \(\omega\) change, but their product \(r^2 \omega\) remains constant.
2. Worksheet Solutions
Task 1: Exoplanet
Total Area: \( \pi (1.2 \times 10^8)^2 \approx 4.52 \times 10^{16} \, \text{km}^2 \)Areal Velocity: \( \frac{4.52 \times 10^{16}}{400} \approx 1.13 \times 10^{14} \, \text{km}^2/\text{day} \)15-Day Sweep: \( 1.13 \times 10^{14} \times 15 = 1.695 \times 10^{15} \, \text{km}^2 \)
Task 2: Comet
Perihelion Area: \( A = \frac{1}{2} (50)^2 (0.15) = 187.5 \, \text{million km}^2 \)Aphelion Angle: \( 187.5 = \frac{1}{2} (250)^2 \Delta \theta \)Ratio \(v_P/v_A\): \( v \propto r\Delta \theta \).
3. Facilitation Discussion Points
Q: If the area is equal, does the arc length change?
A: Yes. At Perihelion, the arc length is large (high speed). At Aphelion, the arc length is small (low speed). The "thin, long" sector has the same area as the "wide, short" sector.
Q: How does this relate to Calculus?
A: This is a classic application of integration in polar coordinates. The area of a curve \(r(\theta)\) is \(\int \frac{1}{2} r^2 d\theta\).
Physics Lab Manual | Section II: Central Force Motion
Global Coverage Slides Network Architecture
Global Coverage
Spherical Geometry & Satellite Footprints
Orbit Altitude: 35,786 km
The Line of Sight
A satellite can only "see" a portion of the Earth's surface. This is its footprint.
The footprint is determined by the central angle (\(\theta\)) subtended by the arc on the Earth's surface.
"How high must a satellite be to cover 1,000 km of arc length?"
Calculating the Footprint
1. Arc Length Method
If the Earth's radius is \(R \approx 6,371 \, km\), the surface distance is:
\[ S = R\theta \]
Where \(\theta\) is the central angle in radians.
2. Coverage Area
The surface area of the spherical "cap" (footprint) is:
\[ A = 2\pi R^2 (1 - \cos(\theta/2)) \]
Wait... is this related to sector area?
The "Magic" Angle
A satellite at Geostationary Orbit (GEO) stays fixed above one spot on the equator.
Altitude (\(h\)) = 35,786 km.
Total Radius (\(r\)) = \(R + h\).
Max visibility angle (\(\theta\)) is limited by Earth's horizon.
Trigonometric Constraint
\[ \cos(\theta/2) = \frac{R}{R+h} \]
The horizon occurs where the satellite's line of sight is tangent to the Earth.
The Global Grid Challenge
Sat 1
Sat 2
Sat 3
Why 24 Satellites?
The GPS constellation uses 24 satellites at Medium Earth Orbit (MEO). This ensures that at any point on Earth, at least 4 satellites are "above the horizon."
"Calculate the arc length subtended by a single GPS satellite's 120° field of view on the Earth's surface."

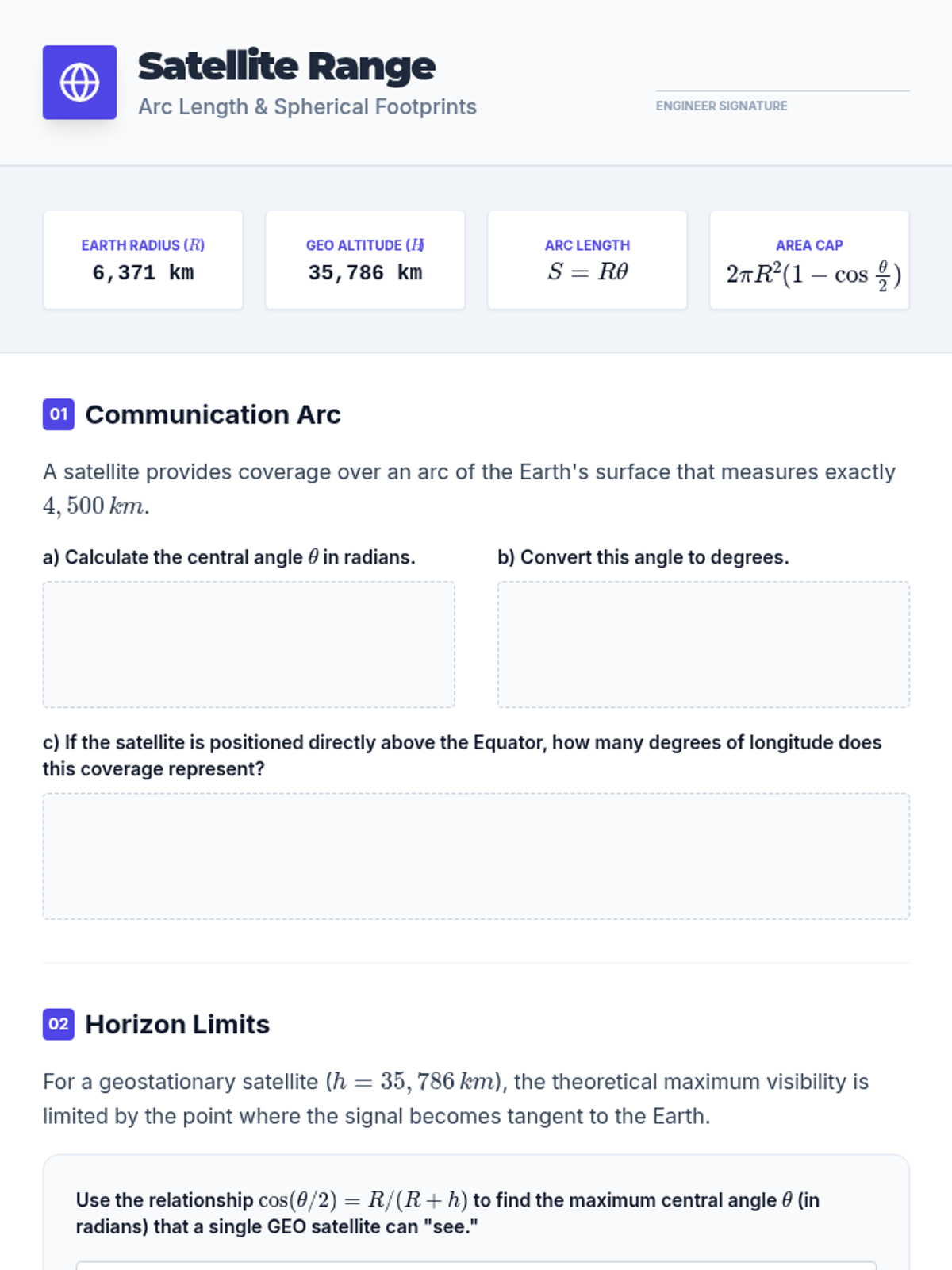

Satellite Range Worksheet Satellite Range
Arc Length & Spherical Footprints
Engineer Signature
Earth Radius (\(R\))
6,371 km
GEO Altitude (\(h\))
35,786 km
Arc Length
\(S = R\theta\)
Area Cap
\(2\pi R^2(1-\cos\frac{\theta}{2})\)
01 Communication Arc
A satellite provides coverage over an arc of the Earth's surface that measures exactly \(4,500 \, km\).
a) Calculate the central angle \(\theta\) in radians.
b) Convert this angle to degrees.
c) If the satellite is positioned directly above the Equator, how many degrees of longitude does this coverage represent?
02 Horizon Limits
For a geostationary satellite (\(h = 35,786 \, km\)), the theoretical maximum visibility is limited by the point where the signal becomes tangent to the Earth.
Use the relationship \(\cos(\theta/2) = R / (R+h)\) to find the maximum central angle \(\theta\) (in radians) that a single GEO satellite can "see."
Calculate the total surface arc length (in km) covered by this maximum visibility angle.
The Global Challenge: Theoretically, how many geostationary satellites are required to provide 100% coverage of the Earth's Equator? (Note: The Equator is a full circle of radius \(R\)).
3D Visualization Challenge
If a satellite's footprint covers 10% of the Earth's total surface area, calculate the required central angle \(\theta\) using the spherical cap area formula. Does this require a higher or lower orbit than GEO?

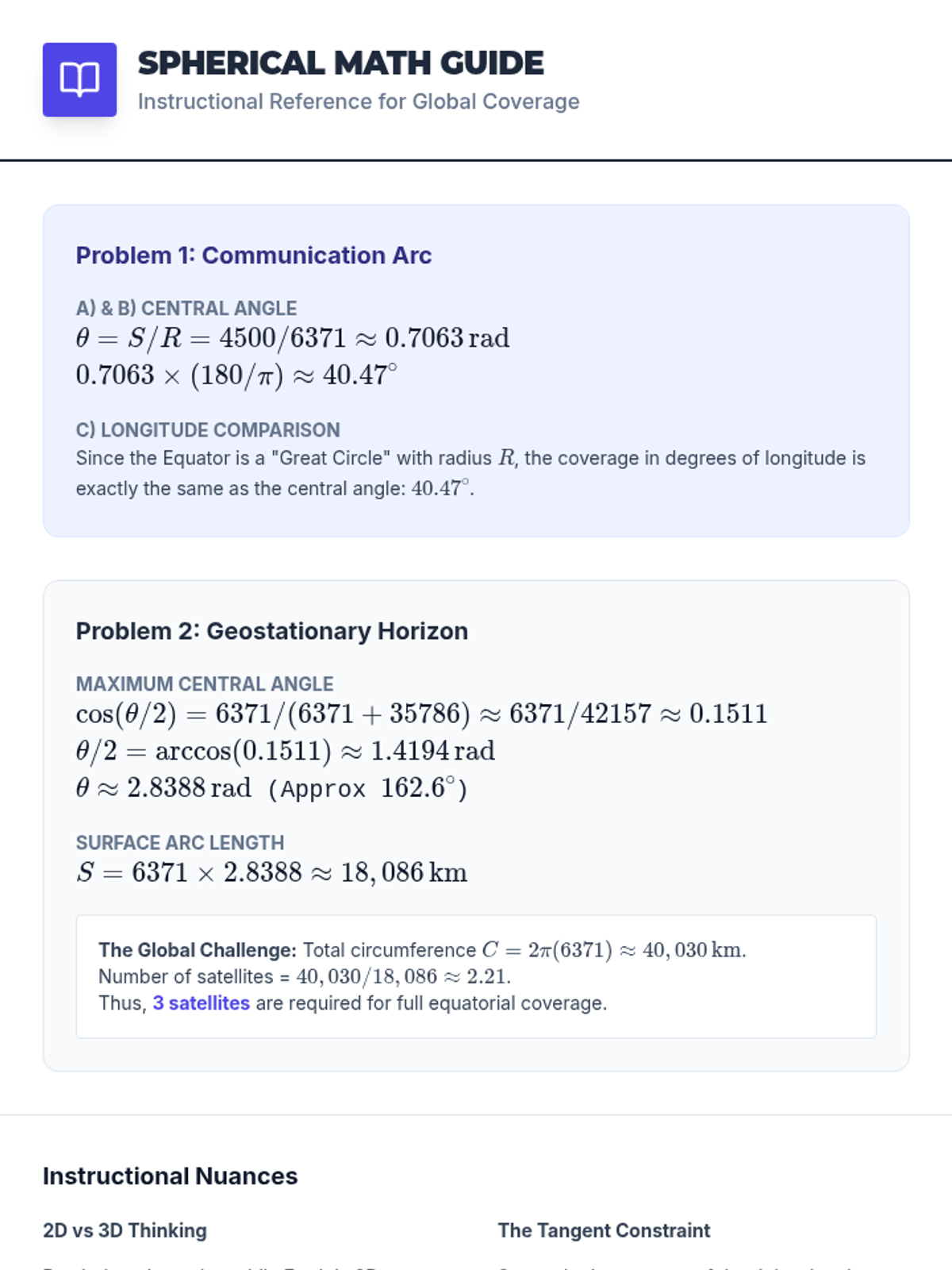

Spherical Math Guide Spherical Math Guide
Instructional Reference for Global Coverage
Problem 1: Communication Arc
a) & b) Central Angle
\( \theta = S/R = 4500 / 6371 \approx 0.7063 \, \text{rad} \)
c) Longitude Comparison
Since the Equator is a "Great Circle" with radius \(R\), the coverage in degrees of longitude is exactly the same as the central angle: \(40.47^\circ\).
Problem 2: Geostationary Horizon
Maximum Central Angle
\( \cos(\theta/2) = 6371 / (6371 + 35786) \approx 6371 / 42157 \approx 0.1511 \)
Surface Arc Length
\( S = 6371 \times 2.8388 \approx 18,086 \, \text{km} \)
The Global Challenge: Total circumference \(C = 2\pi(6371) \approx 40,030 \, \text{km}\).
Instructional Nuances
2D vs 3D Thinking
Remind students that while Earth is 3D, calculations for the Equator or Great Circles reduce to 2D circular geometry. However, "Area" requires the Spherical Cap formula, which differs from the 2D Sector Area formula (\(1/2 r^2 \theta\)).
The Tangent Constraint
Stress the importance of the right triangle formed by the Satellite, the Center of Earth, and the Horizon Point. The angle at the Horizon is \(90^\circ\) because the signal is tangent.
Satellite R h
Visual Angle Slides Optical Geometry
Visual Angle
Perspective, Perception, and Arc Length on the Retina
The Solar Eclipse
The Sun is roughly 400 times larger than the Moon.
Yet, during a total eclipse, the Moon perfectly covers the Sun.
"Why do they appear to be the same size?"
Perfect Alignment
Subtended Angle (\(\alpha\))
The Small Angle Approximation
For distant objects, the "arc length" on our field of vision is related to the physical height (\(h\)) and distance (\(d\)).
\[ \alpha \approx \frac{h}{d} \]
* \(\alpha\) is in radians.
The Logic
Two objects look the same size if they subtend the same angle at the observer's eye.
Geometry of Sight
h distance (d)
The Human Sensor
The human eye is essentially a spherical chamber with a radius of approximately 12 mm.
The image height on the retina is the arc length (s) subtended by the visual angle.
Retinal Image Size
\[ s = (12 \, \text{mm}) \cdot \alpha \]
The resolution of our vision depends on how many "pixels" (photoreceptors) this arc covers.
Why \(\alpha_{Moon} \approx \alpha_{Sun}\)
The Sun
Diameter (\(h_s\)): \(1,392,700 \, km\)
Distance (\(d_s\)): \(149,600,000 \, km\)
\(\alpha_s \approx 0.0093 \, \text{rad}\)
The Moon
Diameter (\(h_m\)): \(3,474 \, km\)
Distance (\(d_m\)): \(384,400 \, km\)
\(\alpha_m \approx 0.0090 \, \text{rad}\)
Both subtend approximately 0.5 degrees!
Eclipse Geometry Worksheet Eclipse Geometry
Apparent Size & Visual Angles
Investigator
1 The Thumb Rule
A person holds their thumb (approx \(2 \, cm\) wide) at arm's length (\(60 \, cm\)) from their eye.
a) Calculate the visual angle \(\alpha\) subtended by the thumb in radians.
b) Convert this angle to degrees.
"Interesting fact: The full moon also subtends about 0.5 degrees. Can you cover the full moon with your thumb at arm's length?"
2 Perfect Alignment
During a solar eclipse, the Moon's distance from Earth varies between \(363,104 \, km\) (perigee) and \(405,696 \, km\) (apogee). The Moon's diameter is fixed at \(3,474 \, km\).
Calculate the Moon's visual angle (in radians) when it is at perigee (closest to Earth).
The Sun's visual angle is approximately \(0.0093 \, rad\). If the Moon is at apogee (furthest from Earth), will we see a total eclipse or an annular eclipse (where a "ring of fire" is visible)? Justify with a calculation.
3. Retinal Arc Length
An eagle has an eye with a radius of \(10 \, mm\). It can distinguish objects that subtend an angle as small as \(0.0001 \, rad\). Calculate the arc length (in micrometers, \(\mu m\)) that this angle subtends on the eagle's retina.
Optics Insight Guide Optics Insight Guide
Teacher's Guide to Apparent Size
Problem 1: The Thumb Rule
a) Visual Angle in Radians
\( \alpha = h/d = 2 / 60 \approx 0.0333 \, \text{rad} \)
b) Angle in Degrees
\( 0.0333 \times (180/\pi) \approx 1.91^\circ \)
Context: Since the Moon is only 0.5°, your thumb (\(\sim 2^\circ\)) easily covers it at arm's length.
Problem 2: Perfect Alignment
Moon at Perigee
\( \alpha_{perigee} = 3474 / 363104 \approx 0.00957 \, \text{rad} \)
Moon at Apogee & Eclipse Type
\( \alpha_{apogee} = 3474 / 405696 \approx 0.00856 \, \text{rad} \)
Since \( \alpha_{apogee} (0.00856) < \alpha_{sun} (0.0093) \), the Moon does not fully cover the Sun. This results in an Annular Eclipse (Ring of Fire).
Problem 3: Eagle Retina
\( s = r\alpha = (10 \, \text{mm}) \times (0.0001 \, \text{rad}) = 0.001 \, \text{mm} \)
Instructional Note: Compare this to a human's photoreceptor size (approx 2-3 \(\mu m\)) to show why eagles see more detail.
Pedagogical Advice
Small Angle Approximation
Technically, the formula is \( \alpha = 2 \arctan(h/2d) \). However, for angles under 10°, \(\alpha \approx h/d\) is accurate within 1%. For the Sun/Moon (\(0.5^\circ\)), the error is negligible. Use this to teach students when mathematical modeling permits simplification.
Retinal "Pixels"
Connect arc length to digital photography. If a retina has a fixed "pixel" density, a larger subtended angle covers more sensors, providing a higher-resolution mental image.
Parametric Path Slides Computational Lab 05
Parametric Path
Modeling Continuous Circular Motion
x(t) = r cos(wt) | y(t) = r sin(wt)
The Dynamic Shift
Until now, we've looked at fixed segments and arcs.
In reality, motion is a function of time.
"How do arc length and area accumulate as a particle moves?"
# Position Vector
\( \vec{r}(t) = [r \cos(\omega t), r \sin(\omega t)] \)
# Arc Length Accumulation
\( s(t) = \int_{0}^{t} |\vec{v}(u)| du \)
Defining the Motion
Inputs (Independent)
r Radius (meters)
w Angular Velocity (rad/s)
t Time Elapsed (seconds)
Outputs (Dependent)
s Total distance traveled
A Total area swept
Note: For circular motion, these are linear with time!
Lab Objectives
Graphing
Plot \(s(t)\) and \(A(t)\) against time. Identify the slope.
Validation
Compare computational results with our \(s = r\theta\) and \(A = 1/2 r^2 \theta\) formulas.
Variation
What happens when \(\omega(t)\) is not constant? (Angular Acceleration).
Final Mission
"Model a bug walking radially outward at 1 cm/s while the record spins at 33 RPM."
This creates an Archimedean Spiral!
Does the area formula still work? Discuss.

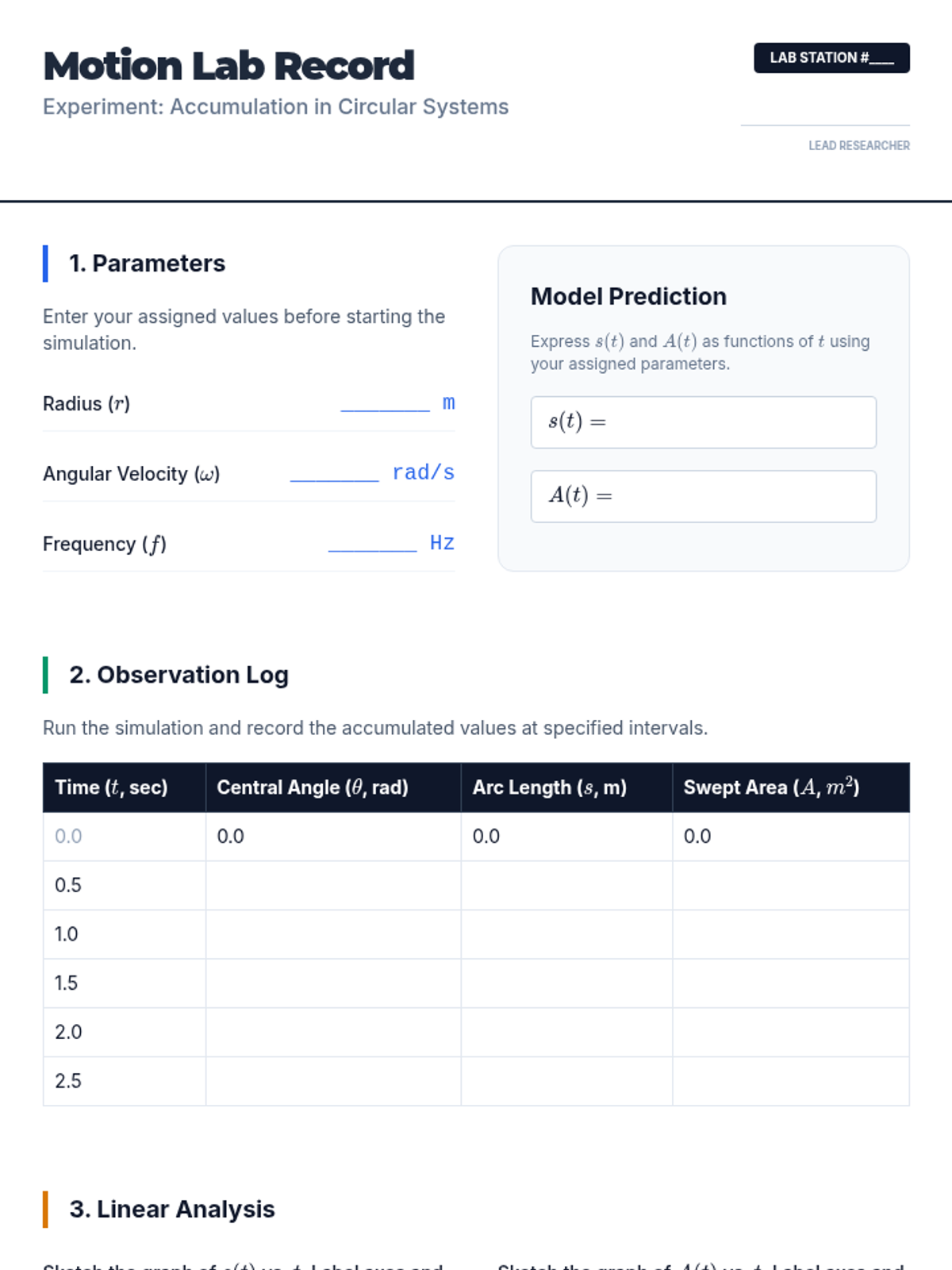

Motion Lab Record Motion Lab Record
Experiment: Accumulation in Circular Systems
Lab Station #____
Lead Researcher
1. Parameters
Enter your assigned values before starting the simulation.
Radius (\(r\)) _______ m
Angular Velocity (\(\omega\)) _______ rad/s
Frequency (\(f\)) _______ Hz
Model Prediction
Express \(s(t)\) and \(A(t)\) as functions of \(t\) using your assigned parameters.
\(s(t) = \)
\(A(t) = \)
2. Observation Log
Run the simulation and record the accumulated values at specified intervals.
Time (\(t\), sec) Central Angle (\(\theta\), rad) Arc Length (\(s\), m) Swept Area (\(A\), \(m^2\)) 0.0 0.0 0.0 0.0 0.5 1.0 1.5 2.0 2.5
3. Linear Analysis
Sketch the graph of \(s(t)\) vs. \(t\). Label axes and units.
Sketch the graph of \(A(t)\) vs. \(t\). Label axes and units.
Reflective Conclusion
Compare the slopes of your two graphs to the initial parameters \(r\) and \(\omega\). What physical quantity does the slope of \(s(t)\) represent? What about \(A(t)\)?

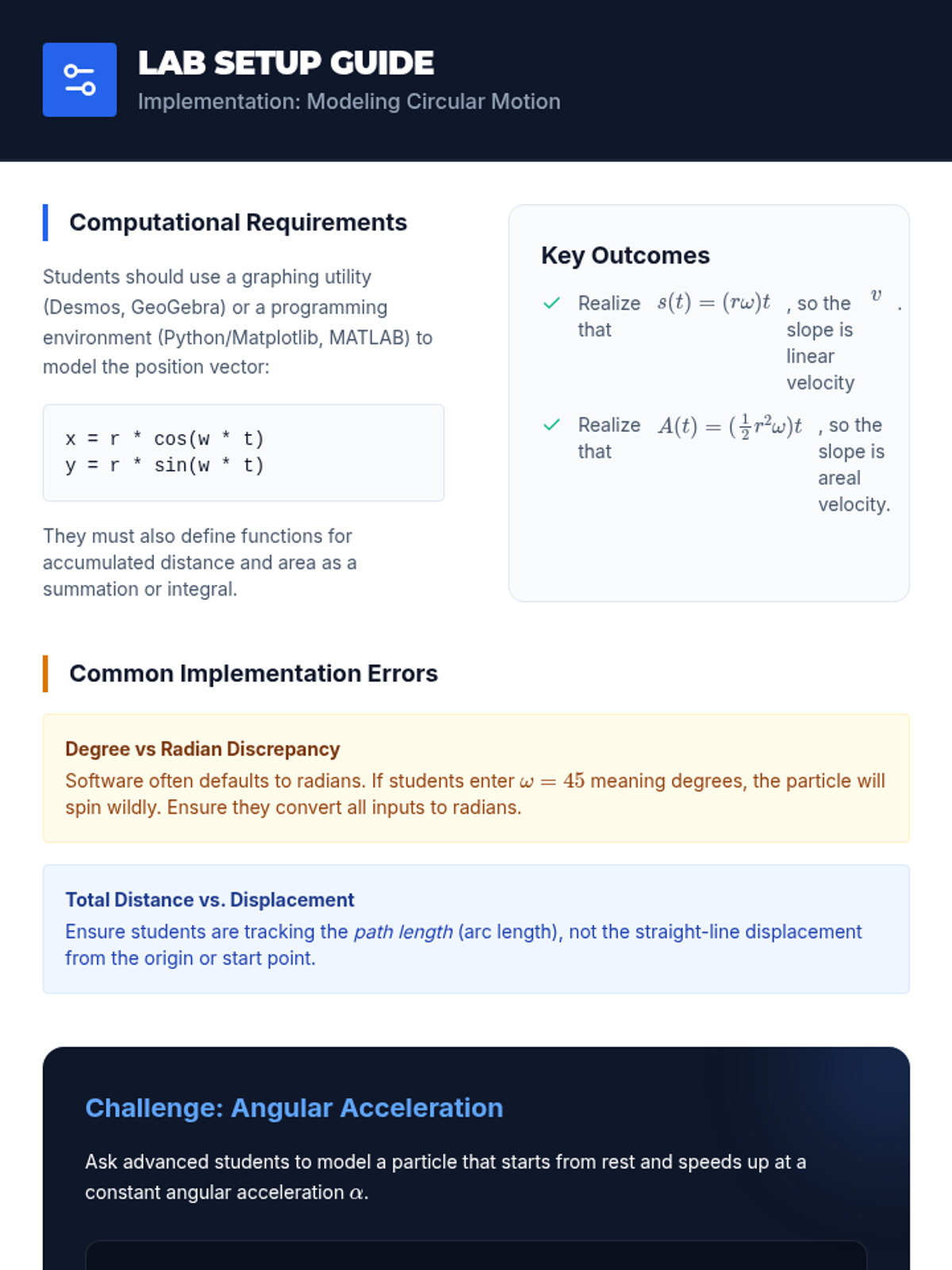

Lab Setup Guide Lab Setup Guide
Implementation: Modeling Circular Motion
Computational Requirements
Students should use a graphing utility (Desmos, GeoGebra) or a programming environment (Python/Matplotlib, MATLAB) to model the position vector:
x = r * cos(w * t)
They must also define functions for accumulated distance and area as a summation or integral.
Key Outcomes
Realize that \(s(t) = (r\omega)t\), so the slope is linear velocity \(v\).
Realize that \(A(t) = (\frac{1}{2}r^2\omega)t\), so the slope is areal velocity.
Common Implementation Errors
Degree vs Radian Discrepancy
Software often defaults to radians. If students enter \(\omega = 45\) meaning degrees, the particle will spin wildly. Ensure they convert all inputs to radians.
Total Distance vs. Displacement
Ensure students are tracking the path length (arc length), not the straight-line displacement from the origin or start point.
Challenge: Angular Acceleration
Ask advanced students to model a particle that starts from rest and speeds up at a constant angular acceleration \(\alpha\).
# Prediction
\( \omega(t) = \alpha t \)
\( \theta(t) = \frac{1}{2}\alpha t^2 \)
# New Accumulation
\( s(t) = r (\frac{1}{2}\alpha t^2) \)
\( A(t) = \frac{1}{2}r^2 (\frac{1}{2}\alpha t^2) \)
The resulting graphs should be quadratic (parabolas) rather than linear!
Physics Lab Pedagogy | Unit 05: Computational Modeling
