Drafting Area Teacher Guide Day 1 Lesson Plan (90 Mins)
Decompose & Design
Unit: Blueprint Builders • Area of Polygons by Composing & Decomposing
Grade 6 Math NC.6.G.1
Lesson Objectives
Decompose complex polygons (including parallelograms) into rectangles and triangles.Compose shapes back together to calculate the total area of the original polygon.Identify and apply the six core vocabulary words: Area, Parallelogram, Perpendicular, Polygon, Decompose, Volume .Briefly explore coordinate plane representation of polygons.
Core Vocabulary
Area: 2D space inside.
Polygon: Closed 2D shape.
Parallelogram: Slanted parallel sides.
Decompose: Break into parts.
Perpendicular: Meets at 90°.
Volume: 3D space occupied.
Materials & Preparation
For Each Student:
Grid paper with test polygons, scissors, glue sticks, rulers, colored pencils, Doodle Notes Sheet.
For the Teacher:
Master slide deck, oversized cardboard polygons for physical decomposition modeling, coordinate plane chart.
Pacing & Activities (0 - 55 mins)
15 Mins
Phase 1: Warm-Up & Vocabulary Introduction
Project a simple rectangle and a multi-sided polygon. Ask: "How do we measure the flat space inside?" Introduce Area and Polygon . Hand out Doodle Drafting Guided Notes . Introduce the other 4 words: Decompose, Perpendicular, Parallelogram , and preview Volume as the 3D expansion of flat area.
25 Mins
Phase 2: Hands-On Exploration (The Decompose & Slide)
Have students cut out their grid paper parallelogram. Guide them to draw a perpendicular height line (at 90° to the base). Cut along that line to create a right triangle, then slide it to the right side to compose a rectangle. Write the derived formula: \(Area = base \times height\).
Instructional Connection: Emphasize that decomposing means breaking down a complex polygon into familiar shapes (like rectangles and triangles) to make calculating area simple.
15 Mins
Phase 3: Coordinate Plane Touch-On
Briefly project a grid with plotted coordinate vertices forming a polygon. Show how counting coordinates of the horizontal and vertical lines gives the same dimensions as physical grids. "A coordinate grid is just a mathematical map of our shapes!"
Blueprint Builders • Day 1 Teacher Guide Page 1 of 2
Day 1 Lesson Plan (90 Mins)
Guided Work & Close
Unit: Blueprint Builders • Area of Polygons by Composing & Decomposing
Grade 6 Math NC.6.G.1
Pacing & Activities (55 - 90 mins)
15 Mins
Phase 4: Guided Blueprint Decompositions
Work through three complex polygon decompositions on the slides. Model splitting an L-shaped floor plan and an irregular hexagon into rectangles and triangles. Record sub-areas and sum them to obtain the total area.
15 Mins
Phase 5: Independent Practice Worksheet
Distribute the updated Blueprint Basics Worksheet . Walk the room to assist students in drawing dividing dashed lines to successfully decompose irregular polygons.
05 Mins
Phase 6: Exit Ticket & Reflection
Have students complete the Day One Inspection Ticket as a formative assessment check to evaluate understanding before launching Day 2.
Common Misconceptions
Overlapping Sub-Areas: Adding an overlapping section twice when calculating compound parts. Remind: "Cut the shape cleanly like cake; sections cannot overlap!" Confusing Area & Volume: Standard unit errors. Emphasize that Area is 2D (flat, measured in \(units^2\)) while Volume is 3D (cubic, space filled, measured in \(units^3\)).Selecting Slant Heights: Choosing diagonal lines instead of perpendicular heights when calculating the sub-areas of parallelograms.
Differentiation Strategies
Support Options:
Keep coordinate plane lines bold and prominent.
Provide grid papers with pre-drawn dashed line options.
Provide plastic geometric overlays to help identify sub-shapes.
Challenge Options:
Incorporate fractional coordinate points.
Calculate coordinate side lengths using direct subtraction of opposite pairs.
Create a 3D architectural mockup (Volume preview).
Blueprint Builders • Day 1 Teacher Guide Page 2 of 2

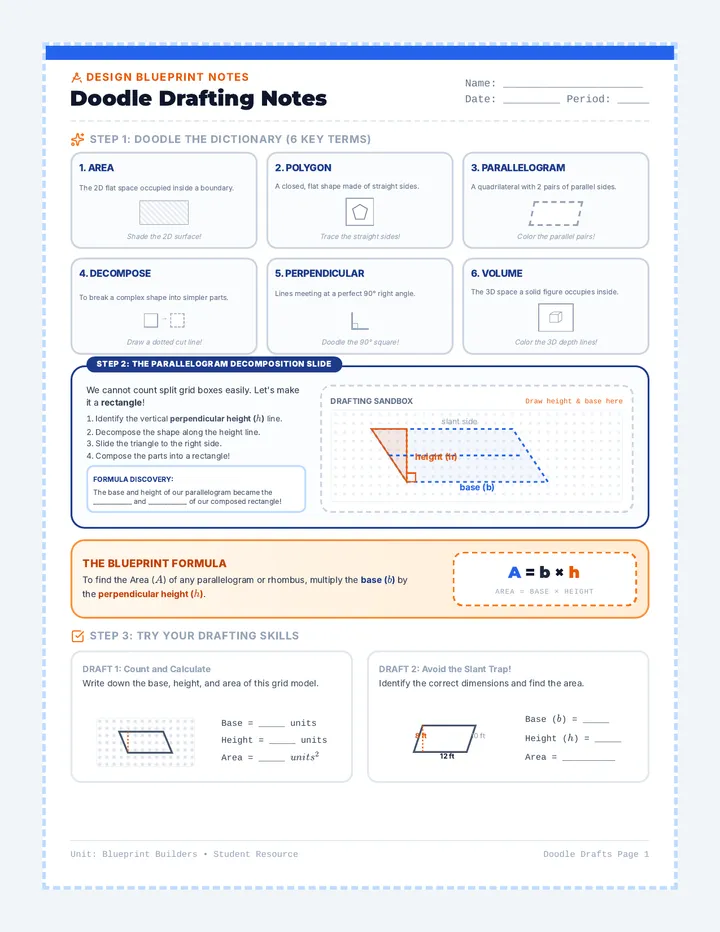

Doodle Drafting Guided Notes Design Blueprint Notes
Doodle Drafting Notes
Name: ______________________
Date: _________ Period: _____
STEP 1: DOODLE THE DICTIONARY (6 KEY TERMS)
1. Area
The 2D flat space occupied inside a boundary.
Shade the 2D surface!
2. Polygon
A closed, flat shape made of straight sides.
Trace the straight sides!
3. Parallelogram
A quadrilateral with 2 pairs of parallel sides.
Color the parallel pairs!
4. Decompose
To break a complex shape into simpler parts.
→
Draw a dotted cut line!
5. Perpendicular
Lines meeting at a perfect 90° right angle.
Doodle the 90° square!
6. Volume
The 3D space a solid figure occupies inside.
Color the 3D depth lines!
STEP 2: THE PARALLELOGRAM DECOMPOSITION SLIDE
We cannot count split grid boxes easily. Let's make it a rectangle !
Identify the vertical perpendicular height (\(h\)) line.
Decompose the shape along the height line.
Slide the triangle to the right side.
Compose the parts into a rectangle!
FORMULA DISCOVERY:
The base and height of our parallelogram became the ____________ and ____________ of our composed rectangle!
Drafting Sandbox Draw height & base here
height (h) base (b) slant side
The Blueprint Formula
To find the Area (\(A\)) of any parallelogram or rhombus, multiply the base (\(b\)) by the perpendicular height (\(h\)) .
A = b × h
Area = Base × Height
STEP 3: TRY YOUR DRAFTING SKILLS
DRAFT 1: Count and Calculate
Write down the base, height, and area of this grid model.
Base = _____ units
Height = _____ units
Area = _____ \(units^2\)
DRAFT 2: Avoid the Slant Trap!
Identify the correct dimensions and find the area.
12 ft 8 ft 10 ft
Base (\(b\)) = _____
Height (\(h\)) = _____
Area = __________
Unit: Blueprint Builders • Student Resource Doodle Drafts Page 1

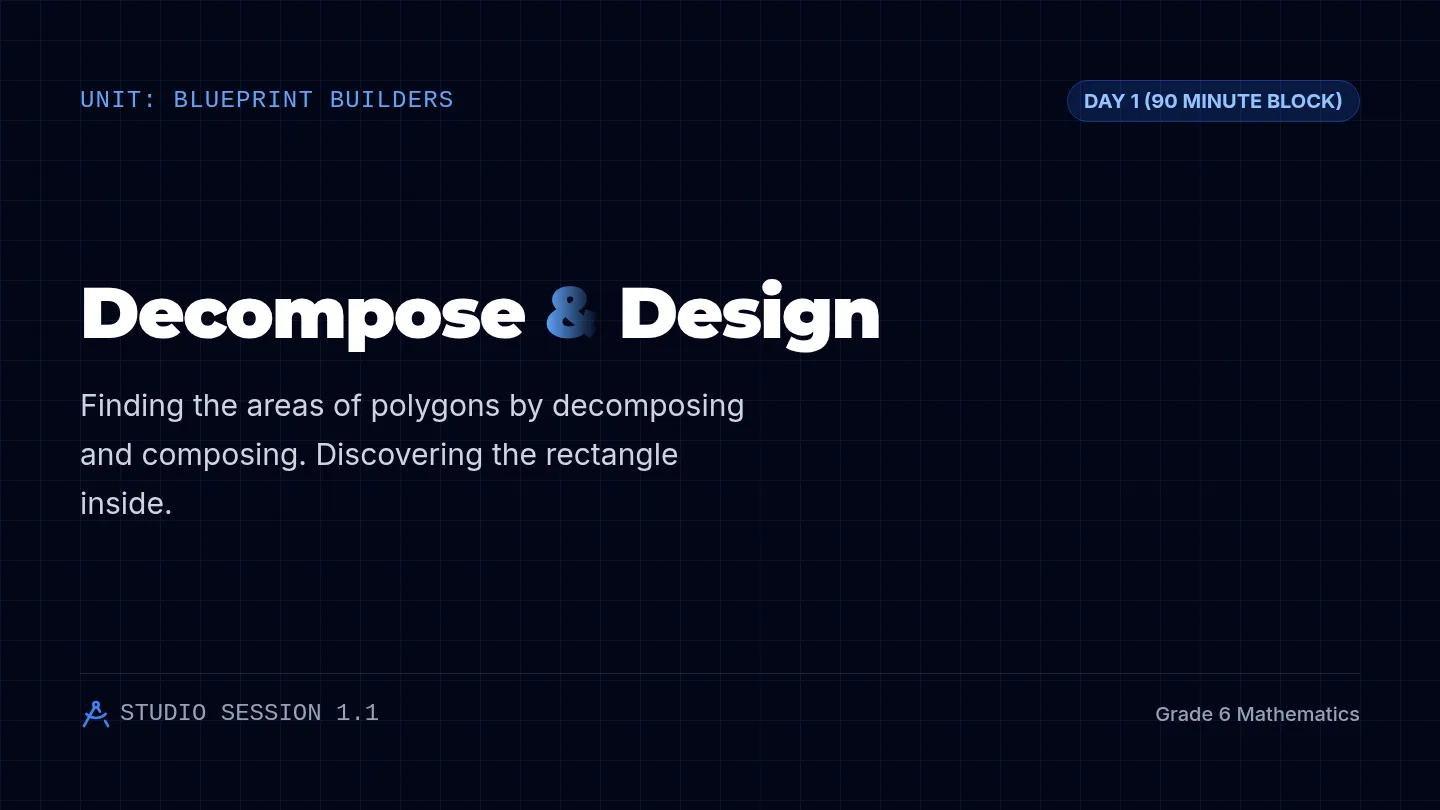

Deconstruction Drafts Slides UNIT: BLUEPRINT BUILDERS DAY 1 (90 MINUTE BLOCK)
Decompose & Design
Finding the areas of polygons by decomposing and composing. Discovering the rectangle inside.
STUDIO SESSION 1.1
Grade 6 Mathematics
The Studio Dictionary
01 / Vocabulary
1. Area
The flat 2-dimensional space inside a boundary (measured in square units).
2. Polygon
A flat, 2D closed figure bound by three or more straight side segments.
3. Parallelogram
A 4-sided polygon where opposite sides are parallel and of equal length.
4. Decompose
To break an irregular shape down into simpler, smaller geometric figures.
5. Perpendicular
Lines that intersect at a perfect, square \(90^\circ\) right angle.
6. Volume
The 3-dimensional space occupied by a solid shape (measured in cubic units).
Blueprint Builders Sequence Grade 6 Math
Decompose & Compose
02 / Concept
Visual Shape Shifting
Irregular polygons look hard, but we can decompose (cut) them into simple pieces and compose (combine) them into a rectangle.
1
Cut: Locate the vertical perpendicular height line and cut.
2
Slide: Shift the cut right-triangle to the far opposite side.
3
Area Rule: The total Area (\(A\)) equals base (\(b\)) multiplied by height (\(h\)).
Transformation Sandbox
height (h) base (b)
Area stays the same! Base × Height = Area of Rectangle
Blueprint Builders Sequence Grade 6 Math
The Coordinate Map Preview
03 / Map Preview
Shapes on a Grid Map
Sometimes, our architectural designs are drawn on a coordinate plane!
A coordinate plane has an X-axis (horizontal ground) and a Y-axis (vertical rise).
Each corner is an ordered pair coordinate point: (X, Y).
We can count the grid blocks or subtract points to find bases and heights directly!
(2, 2) (8, 2) (10, 7) LOT SURVEY #1
Blueprint Builders Sequence Grade 6 Math
Complex Polygons
04 / Multi-Shape
Shape A Shape B Decomposed L-Shape Office Floor Plan

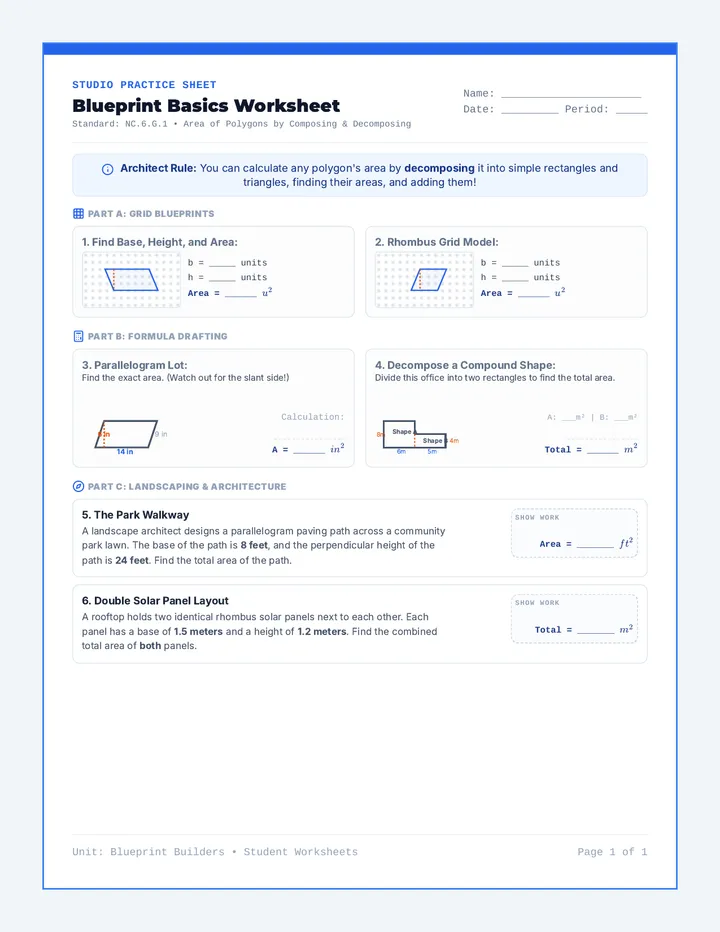

Blueprint Basics Worksheet STUDIO PRACTICE SHEET
Blueprint Basics Worksheet
Standard: NC.6.G.1 • Area of Polygons by Composing & Decomposing
Name: ______________________
Date: _________ Period: _____
Architect Rule: You can calculate any polygon's area by decomposing it into simple rectangles and triangles, finding their areas, and adding them!
Part A: Grid Blueprints
1. Find Base, Height, and Area:
b = _____ units
h = _____ units
Area = ______ \(u^2\)
2. Rhombus Grid Model:
b = _____ units
h = _____ units
Area = ______ \(u^2\)
Part B: Formula Drafting
3. Parallelogram Lot:
Find the exact area. (Watch out for the slant side!)
14 in 6 in 9 in
Calculation:
A = ______ \(in^2\)
4. Decompose a Compound Shape:
Divide this office into two rectangles to find the total area.
Shape A Shape B 6m 5m 4m 8m
A: ___m² | B: ___m²
Total = ______ \(m^2\)
Part C: Landscaping & Architecture
5. The Park Walkway
A landscape architect designs a parallelogram paving path across a community park lawn. The base of the path is 8 feet , and the perpendicular height of the path is 24 feet . Find the total area of the path.
Show Work
Area = _______ \(ft^2\)
6. Double Solar Panel Layout
A rooftop holds two identical rhombus solar panels next to each other. Each panel has a base of 1.5 meters and a height of 1.2 meters . Find the combined total area of both panels.
Show Work
Total = _______ \(m^2\)
Unit: Blueprint Builders • Student Worksheets Page 1 of 1

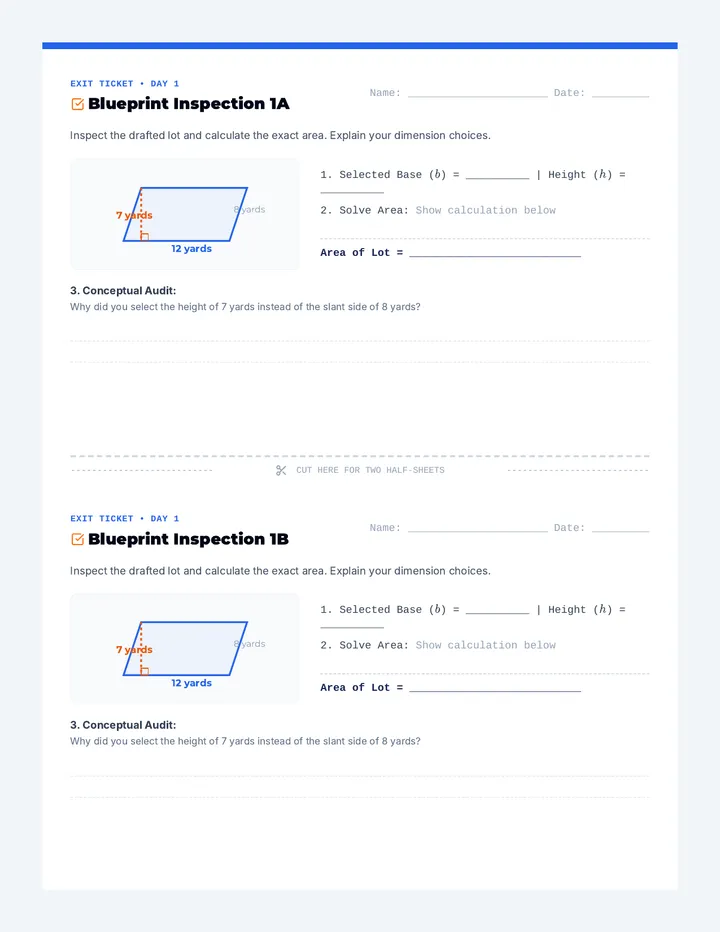

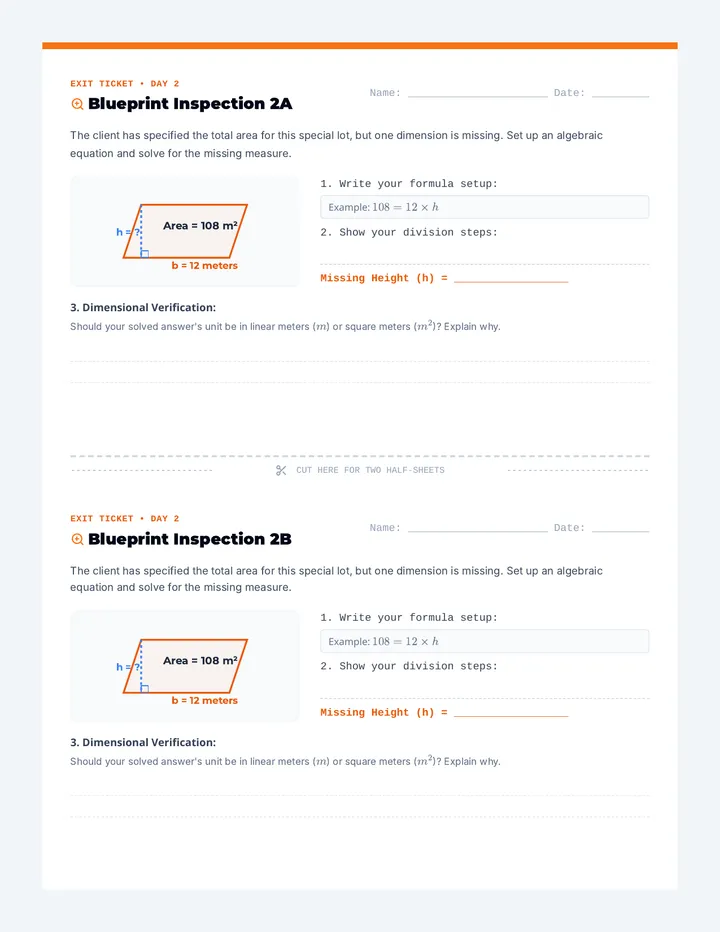

Day One Inspection Ticket EXIT TICKET • DAY 1
Blueprint Inspection 1A
Name: ______________________ Date: _________
Inspect the drafted lot and calculate the exact area. Explain your dimension choices.
12 yards 7 yards 8 yards
1. Selected Base (\(b\)) = __________ | Height (\(h\)) = __________
2. Solve Area: Show calculation below
Area of Lot = ___________________________
3. Conceptual Audit:
Why did you select the height of 7 yards instead of the slant side of 8 yards?
--------------------------- CUT HERE FOR TWO HALF-SHEETS ---------------------------
EXIT TICKET • DAY 1
Blueprint Inspection 1B
Name: ______________________ Date: _________
Inspect the drafted lot and calculate the exact area. Explain your dimension choices.
12 yards 7 yards 8 yards
1. Selected Base (\(b\)) = __________ | Height (\(h\)) = __________
2. Solve Area: Show calculation below
Area of Lot = ___________________________
3. Conceptual Audit:
Why did you select the height of 7 yards instead of the slant side of 8 yards?

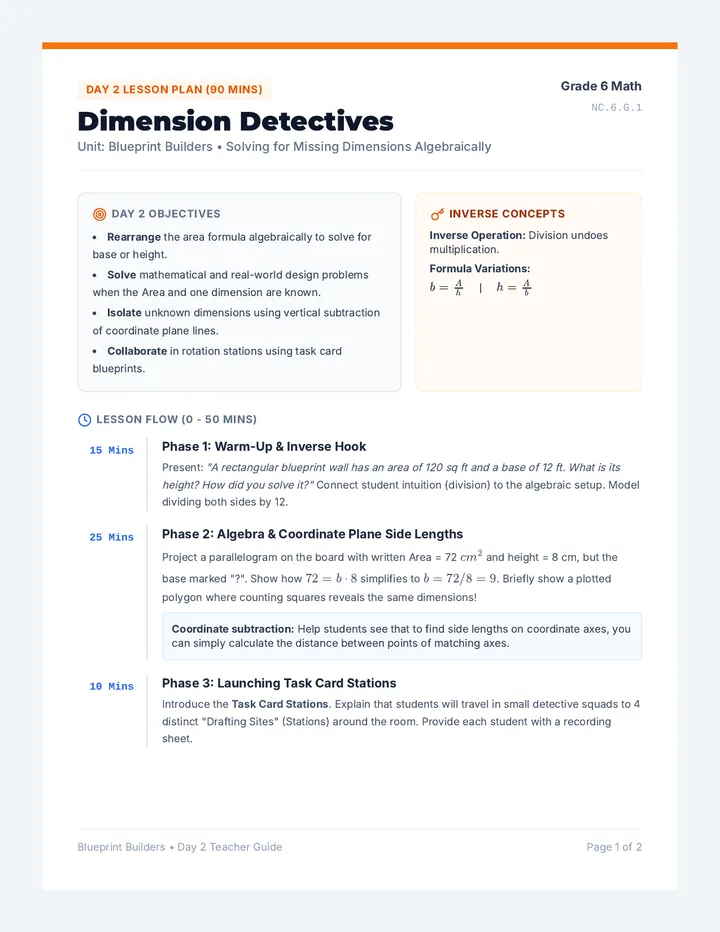

Dimension Detectives Teacher Plan Day 2 Lesson Plan (90 Mins)
Dimension Detectives
Unit: Blueprint Builders • Solving for Missing Dimensions Algebraically
Grade 6 Math NC.6.G.1
Day 2 Objectives
Rearrange the area formula algebraically to solve for base or height.Solve mathematical and real-world design problems when the Area and one dimension are known.Isolate unknown dimensions using vertical subtraction of coordinate plane lines.Collaborate in rotation stations using task card blueprints.
Inverse Concepts
Inverse Operation: Division undoes multiplication.
Formula Variations:
\(b = \frac{A}{h}\) | \(h = \frac{A}{b}\)
Lesson Flow (0 - 50 mins)
15 Mins
Phase 1: Warm-Up & Inverse Hook
Present: "A rectangular blueprint wall has an area of 120 sq ft and a base of 12 ft. What is its height? How did you solve it?" Connect student intuition (division) to the algebraic setup. Model dividing both sides by 12.
25 Mins
Phase 2: Algebra & Coordinate Plane Side Lengths
Project a parallelogram on the board with written Area = 72 \(cm^2\) and height = 8 cm, but the base marked "?". Show how \(72 = b \cdot 8\) simplifies to \(b = 72/8 = 9\). Briefly show a plotted polygon where counting squares reveals the same dimensions!
Coordinate subtraction: Help students see that to find side lengths on coordinate axes, you can simply calculate the distance between points of matching axes.
10 Mins
Phase 3: Launching Task Card Stations
Introduce the Task Card Stations . Explain that students will travel in small detective squads to 4 distinct "Drafting Sites" (Stations) around the room. Provide each student with a recording sheet.
Blueprint Builders • Day 2 Teacher Guide Page 1 of 2
Day 2 Lesson Plan (90 Mins)
Station Management & Close
Unit: Blueprint Builders • Solving for Missing Dimensions
Grade 6 Math NC.6.G.1
Lesson Flow (50 - 90 mins)
25 Mins
Phase 4: Task Card Station Rotations
Students work in groups of 3-4. Every 5-6 minutes, signal groups to rotate to the next card location.Station 1: Standard missing bases.Station 2: Standard missing heights.
Dimension Drafts Slides UNIT: BLUEPRINT BUILDERS DAY 2
Dimension Detectives
Solving for missing bases and heights algebraically when the area is already known.
STUDIO SESSION 1.2
Grade 6 Mathematics
The Mystery Lot
01 / Introduction
A land surveyor is inspecting a parallelogram-shaped commercial lot.
The Survey Data:
We know the total land area is exactly 180 square yards , and the base measures 15 yards .
How do we find the perpendicular depth (height) of the lot?
base = 15 yd height = ? Area = 180 yd²
Blueprint Builders Sequence Grade 6 Math
Inverse Operations
02 / Mathematical Concept
Undo Multiplication!
Because finding Area involves multiplication (\(A = b \cdot h\)), we must use its opposite—division —to isolate the missing dimension.
To isolate the height (h) :
Divide Area by Base!
\(h = \frac{A}{b}\)
To isolate the base (b) :
Divide Area by Height!
\(b = \frac{A}{h}\)
The Golden Variable Order:
Always divide the Area (the big total) by the known side length. Do not divide backwards!
Blueprint Builders Sequence Grade 6 Math
Solving for Height
03 / Step-by-Step
b = 15 yd h = ? Area = 180 yd²
Finding the Missing Height:
Step 1: Set up formula
\(Area = b \cdot h\) → \(180 = 15 \cdot h\)
Step 2: Isolate variable (Divide!)
\(h = \frac{180}{15}\)
Final Solution: \(h = \mathbf{12\ yards}\)
Blueprint Builders Sequence Grade 6 Math
Solving for Base
04 / Step-by-Step
b = ? h = 6 ft Area = 42 ft²
Finding the Missing Base:
Step 1: Set up formula
\(Area = b \cdot h\) → \(42 = b \cdot 6\)
Step 2: Isolate variable (Divide!)
\(b = \frac{42}{6}\)
Final Solution: \(b = \mathbf{7\ feet}\)
Blueprint Builders Sequence Grade 6 Math
Station Operations
05 / Activities
Dimension Detectives Stations
Rotate with your detective squad through 4 blueprint-drafting challenge zones around the room:

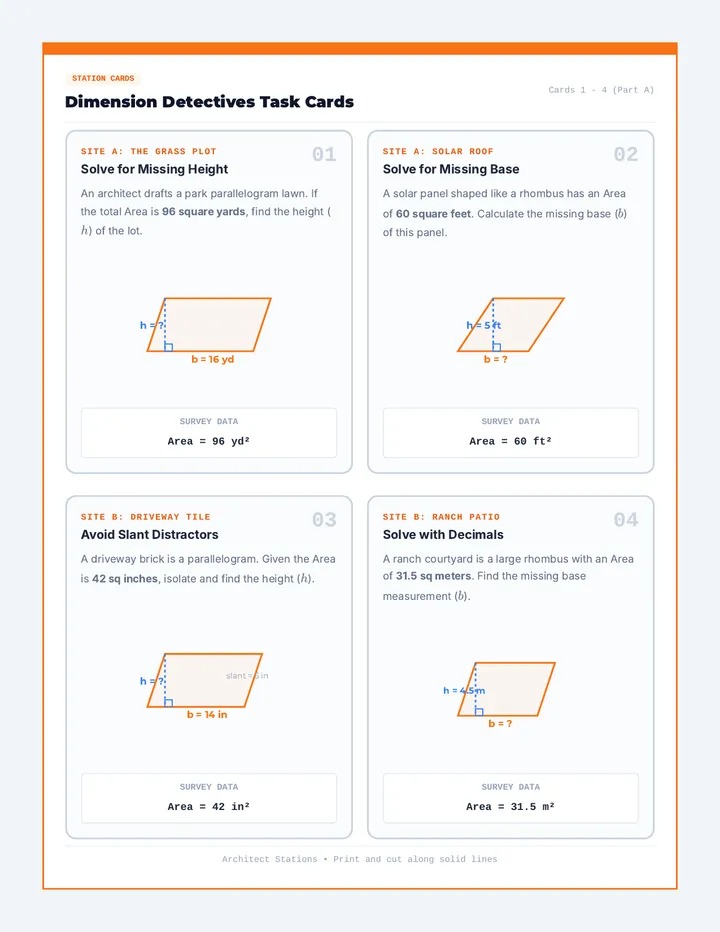

Dimension Detectives Task Cards STATION CARDS
Dimension Detectives Task Cards
Cards 1 - 4 (Part A)
01
SITE A: THE GRASS PLOT
Solve for Missing Height
An architect drafts a park parallelogram lawn. If the total Area is 96 square yards , find the height (\(h\)) of the lot.
b = 16 yd h = ?
Survey Data Area = 96 yd²
02
SITE A: SOLAR ROOF
Solve for Missing Base
A solar panel shaped like a rhombus has an Area of 60 square feet . Calculate the missing base (\(b\)) of this panel.
b = ? h = 5 ft
Survey Data Area = 60 ft²
03
SITE B: DRIVEWAY TILE
Avoid Slant Distractors
A driveway brick is a parallelogram. Given the Area is 42 sq inches , isolate and find the height (\(h\)).
b = 14 in h = ? slant = 5 in
Survey Data Area = 42 in²
04
SITE B: RANCH PATIO
Solve with Decimals
A ranch courtyard is a large rhombus with an Area of 31.5 sq meters . Find the missing base measurement (\(b\)).
b = ? h = 4.5 m
Survey Data Area = 31.5 m²
Architect Stations • Print and cut along solid lines
STATION CARDS
Dimension Detectives Task Cards
Cards 5 - 8 (Part B)
05
SITE C: PARK FLOWERBED
Real-World Landscape
A landscaper seeds a parallelogram-shaped wildflower meadow. The Area is 150 square feet , and the base measures 12.5 feet . Find the vertical height (\(h\)).
b = 12.5 ft h = ?
Survey Data Area = 150 ft²
06
SITE C: TEXTILE LOGO
Real-World Design
A sportswear design team creates a logo containing a large rhombus. The Area is 120 square millimeters and the height is 8 millimeters . What is the base length (\(b\))?
b = ? h = 8 mm
Survey Data Area = 120 mm²
07
SITE D: DOUBLE PAVERS
Compound Area
Two identical parallelograms form a courtyard. The combined Area of both together is 160 sq meters . The base of one parallelogram is 10 meters . Find the height (\(h\)).
b = 10 m h = ?
Survey Data Total Combo Area = 160 m²

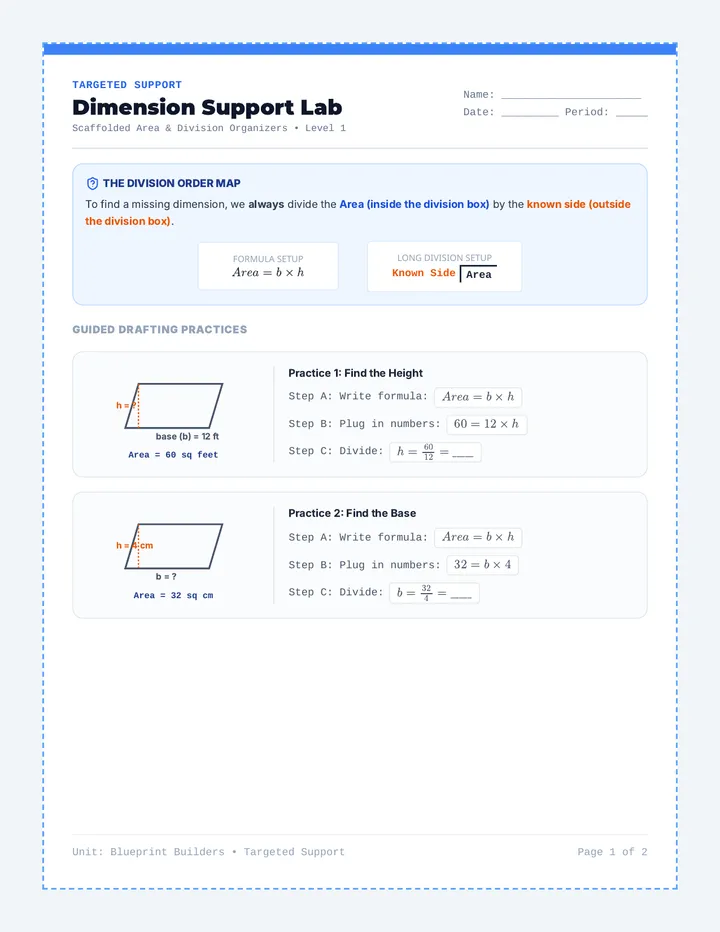

Remediation and Extension Packet TARGETED SUPPORT
Dimension Support Lab
Scaffolded Area & Division Organizers • Level 1
Name: ______________________
Date: _________ Period: _____
The Division Order Map
To find a missing dimension, we always divide the Area (inside the division box) by the known side (outside the division box).
Formula Setup
\(Area = b \times h\)
Long Division Setup
Known Side Area
Guided Drafting Practices
base (b) = 12 ft h = ? Area = 60 sq feet
Practice 1: Find the Height
Step A: Write formula: \(Area = b \times h\)
Step B: Plug in numbers: \(60 = 12 \times h\)
Step C: Divide: \(h = \frac{60}{12} = \_\_\_\_\_\)
b = ? h = 4 cm Area = 32 sq cm
Practice 2: Find the Base
Step A: Write formula: \(Area = b \times h\)
Step B: Plug in numbers: \(32 = b \times 4\)
Step C: Divide: \(b = \frac{32}{4} = \_\_\_\_\_\)
Unit: Blueprint Builders • Targeted Support Page 1 of 2
CHALLENGE EXTENSION
Coordinate Drafting Studio
Standard: NC.6.G.3 & NC.6.G.1 • Coordinates & Area
Name: ______________________
Date: _________ Period: _____
The Architectural Plot Assignment:
You are drafting a residential building lot. Plot the coordinates of the vertices on the plane below to trace the boundaries. Then find the side lengths and area.
A (2, 2)
B (8, 2)
C (11, 7)
D (5, 7)
0 4 8 12 15 4 8 12 X Y STUDIO MAP GRID
STUDIO CALCULATIONS:
1. Find length of horizontal base \(AB\):
Subtract x-coordinates of A and B.
b = _____ units
2. Find vertical perpendicular height \(h\):
Subtract y-coordinates from bottom to top.
h = _____ units
3. Find the final Area of the lot:
Area = _________ \(units^2\)
Unit: Blueprint Builders • Challenge Extension Page 2 of 2
Day Two Inspection Ticket EXIT TICKET • DAY 2
Blueprint Inspection 2A
Name: ______________________ Date: _________
The client has specified the total area for this special lot, but one dimension is missing. Set up an algebraic equation and solve for the missing measure.
b = 12 meters h = ? Area = 108 m²
1. Write your formula setup:
Example: \(108 = 12 \times h\)
2. Show your division steps:
Missing Height (h) = __________________
3. Dimensional Verification:
Should your solved answer's unit be in linear meters (\(m\)) or square meters (\(m^2\))? Explain why.
--------------------------- CUT HERE FOR TWO HALF-SHEETS ---------------------------
EXIT TICKET • DAY 2
Blueprint Inspection 2B
Name: ______________________ Date: _________
The client has specified the total area for this special lot, but one dimension is missing. Set up an algebraic equation and solve for the missing measure.
b = 12 meters h = ? Area = 108 m²
1. Write your formula setup:
Example: \(108 = 12 \times h\)
2. Show your division steps:
Missing Height (h) = __________________
3. Dimensional Verification:
Should your solved answer's unit be in linear meters (\(m\)) or square meters (\(m^2\))? Explain why.

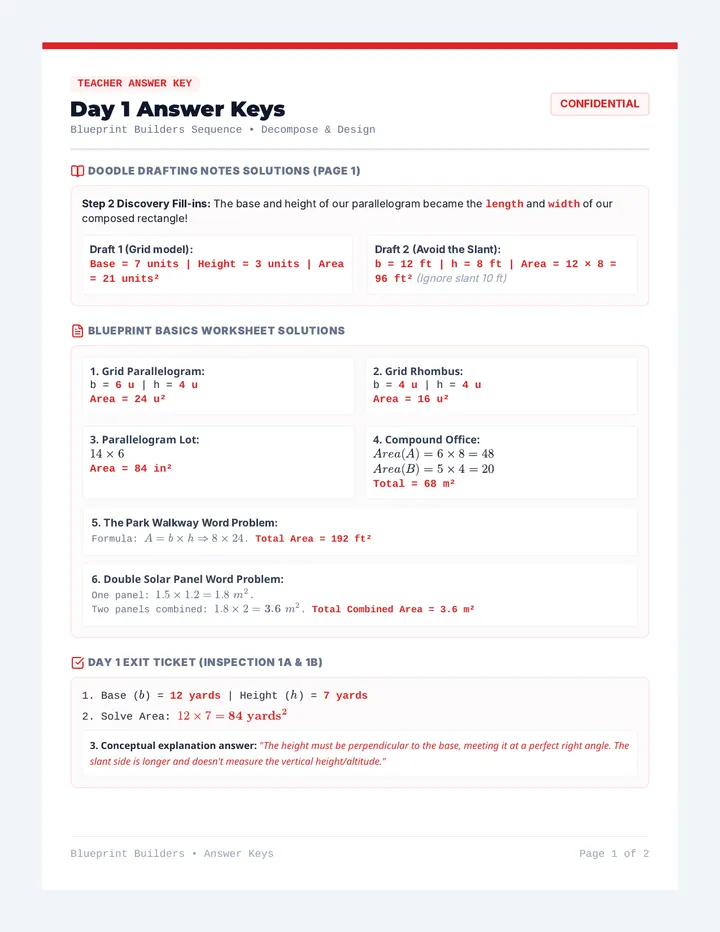

Blueprint Builders Answer Keys TEACHER ANSWER KEY
Day 1 Answer Keys
Blueprint Builders Sequence • Decompose & Design
CONFIDENTIAL
Doodle Drafting Notes Solutions (Page 1)
Step 2 Discovery Fill-ins: The base and height of our parallelogram became the length and width of our composed rectangle!
Draft 1 (Grid model): Base = 7 units | Height = 3 units | Area = 21 units²
Draft 2 (Avoid the Slant): b = 12 ft | h = 8 ft | Area = 12 × 8 = 96 ft² (Ignore slant 10 ft)
Blueprint Basics Worksheet Solutions
1. Grid Parallelogram: b = 6 u | h = 4 u
Area = 24 u²
2. Grid Rhombus: b = 4 u | h = 4 u
Area = 16 u²
3. Parallelogram Lot: \(14 \times 6\)
Area = 84 in²
4. Compound Office: \(Area(A) = 6 \times 8 = 48\)
Total = 68 m²
5. The Park Walkway Word Problem:
Formula: \(A = b \times h \Rightarrow 8 \times 24\). Total Area = 192 ft²
6. Double Solar Panel Word Problem:
One panel: \(1.5 \times 1.2 = 1.8\ m^2\).Total Combined Area = 3.6 m²
Day 1 Exit Ticket (Inspection 1A & 1B)
1. Base (\(b\)) = 12 yards | Height (\(h\)) = 7 yards
2. Solve Area: \(12 \times 7 = \mathbf{84\ yards^2}\)
3. Conceptual explanation answer: "The height must be perpendicular to the base, meeting it at a perfect right angle. The slant side is longer and doesn't measure the vertical height/altitude."
Blueprint Builders • Answer Keys Page 1 of 2
TEACHER ANSWER KEY
Day 2 Answer Keys
Blueprint Builders Sequence • Dimension Detectives
CONFIDENTIAL
Station Cards Solutions (1 - 8)
Card 01 (Grass Plot): \(h = \frac{96}{16} = \mathbf{6\ yards}\)
Card 02 (Solar Roof): \(b = \frac{60}{5} = \mathbf{12\ feet}\)
Card 03 (Driveway Tile): \(h = \frac{42}{14} = \mathbf{3\ inches}\)
Card 04 (Ranch Patio): \(b = \frac{31.5}{4.5} = \mathbf{7\ meters}\)
Card 05 (Meadow): \(h = \frac{150}{12.5} = \mathbf{12\ feet}\)
Card 06 (Textile Logo): \(b = \frac{120}{8} = \mathbf{15\ mm}\)
Card 07 (Double Pavers): \(h = \frac{80}{10} = \mathbf{8\ meters}\)
