Transversal Trail Stations
01
Trail Marker 1 • Alternate Interior
Campfire Clearing
Previous Check-In
136°
Lines \(l\) and \(m\) are parallel (\(l \parallel m\))
The two highlighted angles form an alternate interior angle pair. Their algebraic expressions are:
\(\angle 1 = (4x + 16)^\circ\)
\(\angle 2 = (5x - 8)^\circ\)
Task: Set up an equation and solve for \(x\).
l m t 4x + 16° 5x - 8°
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
✂ Cut along dashed line for half-page task cards
02
Trail Marker 2 • Same-Side Interior
Granite Ridge Pass
Previous Check-In
24
Lines \(p \parallel q\) cut by transversal \(k\)
In the trail map diagram, an interior angle measures \(112^\circ\). Angle \(\angle 1\) is on the same side of the transversal inside the parallel lines.
• Relationship: Consecutive / Same-Side Interior
• Property: Supplementary (\(\text{sum} = 180^\circ\))
Task: Calculate the exact degree measure of \(\angle 1\).
p q k 112° ∠1
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
03
Trail Marker 3 • Consecutive Equations
Pine Needle Valley
Previous Check-In
68°
Lines \(a \parallel b\) cut by transversal \(d\)
Two consecutive interior angles are represented by algebraic expressions. Because the lines are parallel, these two angles are supplementary:
\(\text{Angle } A = (7x + 5)^\circ\)
\(\text{Angle } B = (4x + 10)^\circ\)
Task: Set up a supplementary equation and solve for \(x\).
a b d 7x + 5° 4x + 10°
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
✂ Cut along dashed line for half-page task cards
04
Trail Marker 4 • Corresponding Angles
Wilderness Lookout
Previous Check-In
15
Lines \(r \parallel s\) cut by transversal \(u\)
\(\angle A\) and \(\angle B\) occupy matching corresponding positions. The expression for \(\angle A\) is given below:
\(m\angle A = (6x + 22)^\circ\)
\(\text{Given: } x = 15\)
Task: Evaluate \(m\angle A\) to find the degree measure of its corresponding angle \(m\angle B\).
r s u ∠A ∠B
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
05
Trail Marker 5 • Alternate Exterior
Falcon Summit Peak
Previous Check-In
112°
Parallel lines \(x_1 \parallel x_2\) with transversal \(y_1\)
The two exterior angles shown on opposite sides of the transversal are alternate exterior angles. Therefore, they are equal:
\(\text{Angle } 1 = (4x - 18)^\circ\)
\(\text{Angle } 2 = (3x + 19)^\circ\)
Task: Equate the expressions and find the value of \(x\).
x₁ x₂ y₁ 4x - 18° 3x + 19°
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
✂ Cut along dashed line for half-page task cards
06
Trail Marker 6 • Linear Pairs & Transversals
Cascade Spring Basin
Previous Check-In
37
Lines \(j \parallel k\) cut by line \(w\)
An obtuse angle along line \(j\) has a measure of \(126^\circ\). Angle \(\angle 4\) is an acute angle on line \(k\) that forms a linear pair with the corresponding angle.
• Given obtuse angle = \(126^\circ\)
• Linear pairs are supplementary (\(180^\circ\))
Task: Find the degree measure of \(\angle 4\).
j k w 126° ∠4
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
07
Trail Marker 7 • Alternate Interior Equations
Timberline Trail Junction
Previous Check-In
54°
Parallel lines \(c \parallel d\) cut by line \(g\)
Two interior angles located on opposite sides of transversal \(g\) are alternate interior angles:
\(\angle M = (9x - 6)^\circ\)
\(\angle N = (7x + 10)^\circ\)
Task: Set the two expressions equal and solve for \(x\).
c d g 9x - 6° 7x + 10°
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
✂ Cut along dashed line for half-page task cards
08
Trail Marker 8 • Consecutive Angle Measures
Echo Canyon Bluff
Previous Check-In
8
Lines \(u \parallel v\) cut by line \(z\)
\(\angle 1\) and \(\angle 2\) are consecutive interior angles.
\(m\angle 2 = (6x + 6)^\circ\)
\(\text{Given: } x = 8\)
Remember: \(\angle 1\) and \(\angle 2\) add up to \(180^\circ\).
Task: Evaluate \(m\angle 2\), then calculate \(m\angle 1\).
u v z ∠1 6x + 6°
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
09
Trail Marker 9 • Corresponding Equations
Boulder Stream Bend
Previous Check-In
126°
Lines \(s_1 \parallel s_2\) cut by line \(t_1\)
A pair of corresponding angles lie on the same side of transversal \(t_1\) in identical relative positions:
\(\text{Angle } 1 = (3x - 28)^\circ\)
\(\text{Angle } 2 = (2x + 14)^\circ\)
Task: Write and solve an equation to find the value of \(x\).
s₁ s₂ t₁ 3x - 28° 2x + 14°
Log your steps on your Trail Trek Log Next Destination: Find card with this result!
✂ Cut along dashed line for half-page task cards
10
Trail Marker 10 • Alternate Interior Measures
Trailhead Basecamp Return
Previous Check-In
42
Parallel lines \(m_1 \parallel m_2\) cut by line \(n\)
\(\angle K\) and \(\angle L\) are alternate interior angles.
\(m\angle K = (2x + 52)^\circ\)
\(\text{Given: } x = 42\)
Remember: Alternate interior angles are congruent (\(m\angle L = m\angle K\)).
Task: Calculate the exact degree measure of \(\angle L\).
m₁ m₂ n 2x + 52° ∠L
Log your steps on your Trail Trek Log Loop Complete! Check your starting station check-in!

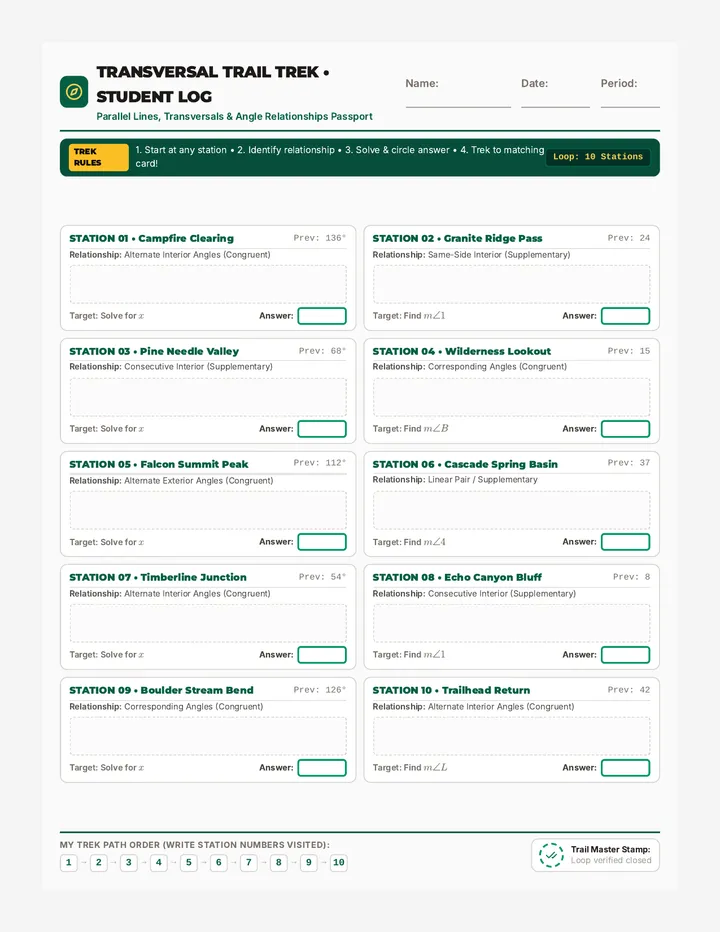

Transversal Trail Log
Transversal Trail Trek • Student Log
Parallel Lines, Transversals & Angle Relationships Passport
Name:
Date:
Period:
Trek Rules 1. Start at any station • 2. Identify relationship • 3. Solve & circle answer • 4. Trek to matching card!
Loop: 10 Stations
STATION 01 • Campfire Clearing Prev: 136°
Relationship: Alternate Interior Angles (Congruent)
Target: Solve for \(x\)
Answer:
STATION 02 • Granite Ridge Pass Prev: 24
Relationship: Same-Side Interior (Supplementary)
Target: Find \(m\angle 1\)
Answer:
STATION 03 • Pine Needle Valley Prev: 68°
Relationship: Consecutive Interior (Supplementary)
Target: Solve for \(x\)
Answer:
STATION 04 • Wilderness Lookout Prev: 15
Relationship: Corresponding Angles (Congruent)
Target: Find \(m\angle B\)
Answer:
STATION 05 • Falcon Summit Peak Prev: 112°
Relationship: Alternate Exterior Angles (Congruent)
Target: Solve for \(x\)
Answer:
STATION 06 • Cascade Spring Basin Prev: 37
Relationship: Linear Pair / Supplementary
Target: Find \(m\angle 4\)
Answer:
STATION 07 • Timberline Junction Prev: 54°
Relationship: Alternate Interior Angles (Congruent)
Target: Solve for \(x\)
Answer:
STATION 08 • Echo Canyon Bluff Prev: 8
Relationship: Consecutive Interior (Supplementary)
Target: Find \(m\angle 1\)
Answer:
STATION 09 • Boulder Stream Bend Prev: 126°
Relationship: Corresponding Angles (Congruent)
Target: Solve for \(x\)
Answer:
STATION 10 • Trailhead Return Prev: 42
Relationship: Alternate Interior Angles (Congruent)
Target: Find \(m\angle L\)
Answer:
My Trek Path Order (Write Station Numbers Visited):
1 → 2 → 3 → 4 → 5 → 6 → 7 → 8 → 9 → 10
Trail Master Stamp:
Loop verified closed
Teacher Reference
Transversal Trail Trek • Master Pathway & Key
Quick-check loop sequence, worked algebraic steps, and common student errors
Total Stations: 10
Closed Loop Check
Official Station Sequence & Loop Chain:
#1 (ans: 24) → #2 (ans: 68°) → #3 (ans: 15) → #4 (ans: 112°) → #5 (ans: 37) → #6 (ans: 54°) → #7 (ans: 8) → #8 (ans: 126°) → #9 (ans: 42) → #10 (ans: 136°) → loops back to #1!

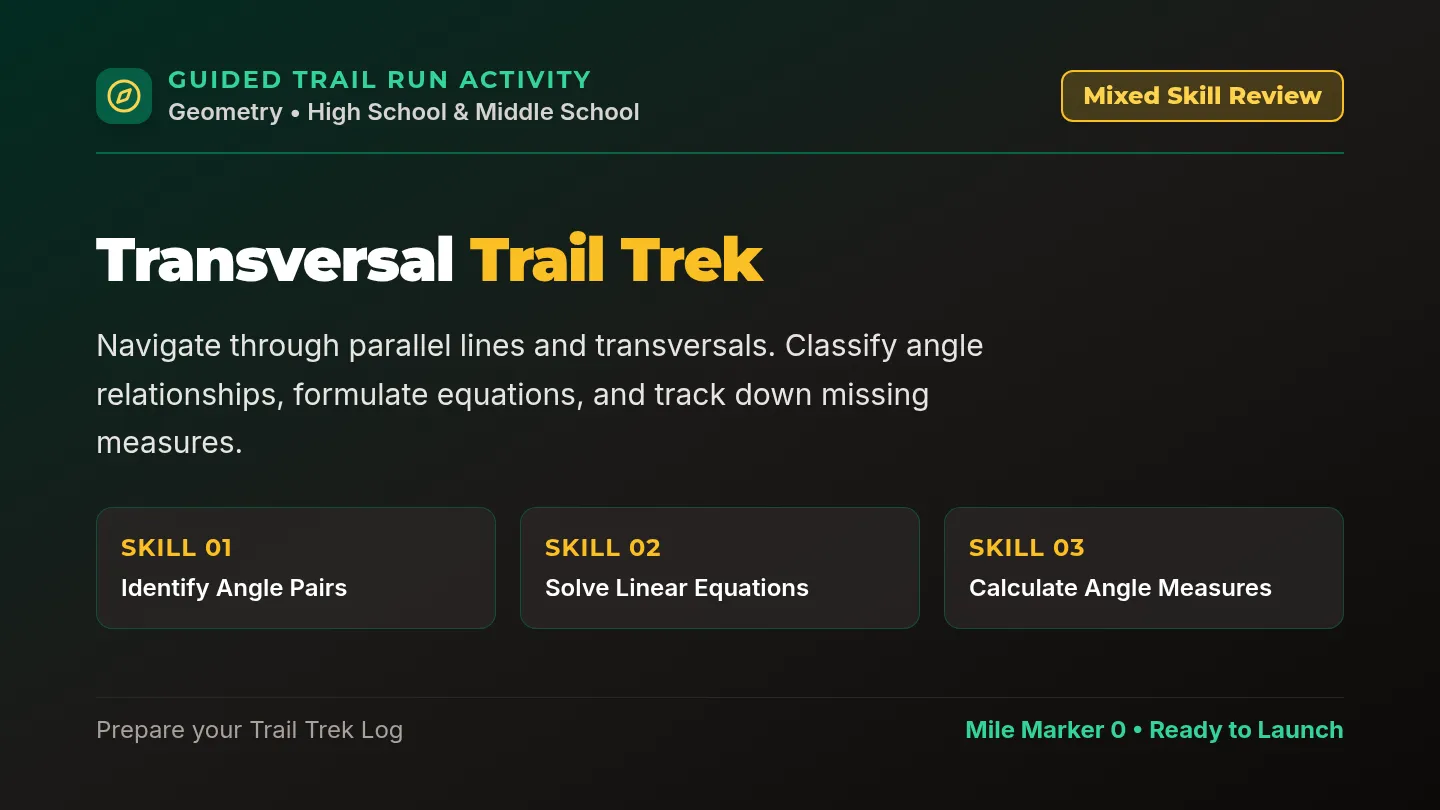

Transversal Trail Slides
Guided Trail Run Activity
Geometry • High School & Middle School
Mixed Skill Review
Transversal Trail Trek
Navigate through parallel lines and transversals. Classify angle relationships, formulate equations, and track down missing measures.
Skill 01
Identify Angle Pairs
Skill 02
Solve Linear Equations
Skill 03
Calculate Angle Measures
Prepare your Trail Trek Log Mile Marker 0 • Ready to Launch
REF
Trail Rules & Angle Relationships
Two Parallel Lines Cut by a Transversal
Congruent Pairs (=)
Equal Measures
- • Corresponding Angles: Same relative corner at each intersection
- • Alternate Interior Angles: Opposite sides inside the parallel lines
- • Alternate Exterior Angles: Opposite sides outside the parallel lines
- • Vertical Angles: Directly opposite at single vertex
Supplementary Pairs (180°)
Sum = 180°
- • Consecutive (Same-Side) Interior: Same side inside lines: \(\angle 1 + \angle 2 = 180^\circ\)
- • Linear Pairs: Adjacent angles forming a straight line: \(\angle A + \angle B = 180^\circ\)
- • Consecutive Exterior: Same side outside lines: \(\text{Sum} = 180^\circ\)
Trek Tip: Visual check! Acute = Acute, Obtuse = Obtuse, Acute + Obtuse = 180° Next: Trail Station 01
01
Trail Marker 1 • Campfire Clearing
Solving for \(x\) with Alternate Interior Angles
Check-In Marker
136°
Given Conditions:
Lines \(l \parallel m\). Two alternate interior angles are \((4x + 16)^\circ\) and \((5x - 8)^\circ\).
Step-by-Step Solution:
1. Alternate interior angles are equal:
\(5x - 8 = 4x + 16\)
2. Subtract \(4x\) from both sides: \(x - 8 = 16\)
3. Add \(8\) to both sides: \(x = 24\)
l m t 4x + 16° 5x - 8°
Next Destination on Trail: Search for Marker 24 →
Verify: \(4(24)+16 = 112^\circ\) and \(5(24)-8 = 112^\circ\) ✓ Next: Trail Station 02
02
Trail Marker 2 • Granite Ridge Pass
Calculating Angle Measures: Consecutive Interior
Check-In Marker
