A comprehensive 6th grade mathematics lesson exploring rational numbers on number lines and the four-quadrant coordinate plane, covering opposites, sign patterns, and axis reflections.

AAbigail

6.NS.6

A comprehensive 6th grade mathematics lesson exploring rational numbers on number lines and the four-quadrant coordinate plane, covering opposites, sign patterns, and axis reflections.

AAbigail

Mirror Grid Lesson Plan

Grade 6 Mathematics • The Number System CCSS 6.NS.C.6 (a, b, c)

Mirror Grid Mission: Rational Numbers & Coordinates

Extending number lines and coordinate systems to negative rational numbers, opposites, and reflections.

Duration 60–75 Minutes

Format Whole Group / Pairs / Solo

Key Vocabulary Rational, Opposite, Quadrant, Reflection

Core Tools Grid Worksheet, Slides, Whiteboard

Learning Objectives

Identify opposite rational numbers on horizontal and vertical lines.
Explain why \(-(-a) = a\) and how zero acts as its own opposite.
Determine coordinate plane quadrants based purely on signs.
Predict and plot points reflected across the \(x\)-axis and \(y\)-axis.

Success Criteria (Student "I Can")

"I can place fractions and decimals like \(-1.5\) and \(0.75\) accurately."
"I can state the quadrant of \((-4, -7)\) in under 3 seconds."
"I can flip \((3, -5)\) over the \(x\)-axis to get \((3, 5)\) and explain why."
"I can justify why the opposite of the opposite is the original number."

Critical Misconceptions to Address

Sign Confusion on Negative Numbers: Students may think a negative sign always means "smaller absolute value" without recognizing position relative to 0 (e.g., thinking \(-5 > -2\)).

Reflection Coordinate Swap: Students frequently change the wrong coordinate during axis reflection (e.g., negating the \(x\)-value when reflecting across the \(x\)-axis instead of the \(y\)-value).

Instructional Pacing • Part 1

1 Phase 1: Warm-Up & Opposites Launch (10 mins)

Whole Class / Think-Pair

Hook: Display a vertical thermometer and an ocean depth line on the slides. Ask students: "If sea level is \(0\), where is a submarine at \(-250\) meters, and where is a drone at \(+250\) meters?"

Key Concept: Opposite numbers are identical in distance from 0 but situated in opposite directions. Introduce the double-negative notation \(-(-a) = a\): walking backwards while facing in reverse means moving forward! Zero is exactly 0 units from itself, so \(-0 = 0\).

2 Phase 2: Rational Numbers on Dual Lines (15 mins)

Guided Exploration

Transition from whole integers to rational numbers (fractions and decimals). Guide students to locate \(-2.5\), \(-\frac{3}{4}\), and \(1\frac{1}{2}\) on both horizontal and vertical lines.

Teacher Prompt: "Is \(-\frac{3}{4}\) closer to \(0\) or to \(-1\)? How do you know?" Look for students reasoning about distance from 0.

Mirror Grid Mission • Comprehensive Lesson Plan Page 1 of 2

Instructional Sequence (Continued) & Differentiation

Part 2 • 60–75 min plan

3 Phase 3: The 4 Quadrants & Sign Patterns (15 mins)

Interactive Modeling

Construct the 2D plane by intersecting a horizontal \(x\)-axis and vertical \(y\)-axis at \((0, 0)\). Highlight the Roman numeral convention (counter-clockwise: I, II, III, IV).

Quad I: \((+, +)\)

Quad II: \((-, +)\)

Quad III: \((-, -)\)

Quad IV: \((+, -)\)

Rapid Fire Check: Call out ordered pairs like \((-8, 3)\), \((5, -9)\), \((-2, -6)\). Have students flash fingers (1, 2, 3, or 4) to reveal quadrant without graphing.

4 Phase 4: Reflection Radar Across Axes (15 mins)

Partner Investigation

Students explore what happens to coordinates when points jump across mirror lines. Distribute the Mirror Grid Student Worksheet.

Reflecting across \(x\)-axis:

Horizontal position stays identical, vertical position inverts: \((x, y) \rightarrow (x, -y)\).

Reflecting across \(y\)-axis:

Vertical position stays identical, horizontal position inverts: \((x, y) \rightarrow (-x, y)\).

5 Phase 5: Synthesis & Exit Ticket Assessment (10 mins)

Individual Assessment

Lead a 3-minute synthesis on the core takeaway: "A change in sign represents an exact geometric flip across an axis of symmetry." Administer the independent Exit Ticket.

Differentiation & Universal Support

Support / Intervention

Color-coded axes (red for \(x\), blue for \(y\)). Use tactile transparent patty paper to fold coordinates over axes directly.

English Learners (ELL)

Anchor visual cards with arrows for "Opposite" (bidirectional) and "Reflection" (mirror). Emphasize Latin root quad- (four).

Extension / Challenge

Investigate double reflection across both axes: \((x, y) \rightarrow (-x, -y)\). Connect this to a 180° rotation around the origin.

Teacher Probing Questions During Practice:

• "If a point has a positive \(x\) and negative \(y\), which direction do you walk from origin?" • "What stays identical and what changes when you reflect point \(P(2, 4)\) over the \(y\)-axis?"

Mirror Grid Mission • Comprehensive Lesson Plan Page 2 of 2

Mirror Grid Slides

Grade 6 Mathematics • 6.NS.C.6

Mirror Grid Mission

Rational Numbers, Opposite Signs & Reflections across the Coordinate Plane

Opposites on Number Lines • Four Quadrants • Axis Reflections

The Number Line Fulcrum

What Are Opposite Numbers?

Opposites are the same distance from zero, in opposite directions.

-4 4 units left

0 Own Opposite

+4 4 units right

-(-a) = a The opposite of the opposite returns to the original!

-0 = 0 Zero is neither positive nor negative; it is its own opposite.

Beyond Integers

Rational Numbers Live Everywhere

Horizontal (Left & Right)

Values to the left of 0 are negative. Values to the right are positive.

-2 -1 0 1 2

Vertical (Up & Down)

Values above 0 are positive (elevation, temperature). Below 0 are negative.

↑ Drone: +120.5 m • ↓ Sub: -85.2 m

Remember: As you move left or down, numbers decrease. As you move right or up, numbers increase!

The Coordinate Plane Map

Where Are the Quadrants Located?

+y -y

-x +x

(0, 0)

Quadrant II (-, +)

Quadrant I (+, +)

Quadrant III (-, -)

Quadrant IV (+, -)

The "Letter C" Trick

Start at Quadrant I (top-right) and move counter-clockwise like tracing a giant letter C:

I → II → III → IV

Crucial Axis Rule:

Points lying directly on the x-axis or y-axis (like (0, 4) or (-3, 0)) are not in any quadrant!

The two axes intersect at a 90° right angle at the Origin (0, 0).

The Coordinate Plane

Signs Reveal the Quadrant

Quadrant II (-, +)

Left on x-axis, Up on y-axis

Example: (-5, 8)

Quadrant I (+, +)

Right on x-axis, Up on y-axis

Example: (4, 6)

Quadrant III (-, -)

Left on x-axis, Down on y-axis

Example: (-7, -3)

Quadrant IV (+, -)

Right on x-axis, Down on y-axis

Example: (9, -2)

Quadrants are numbered in a circle starting at the top-right!

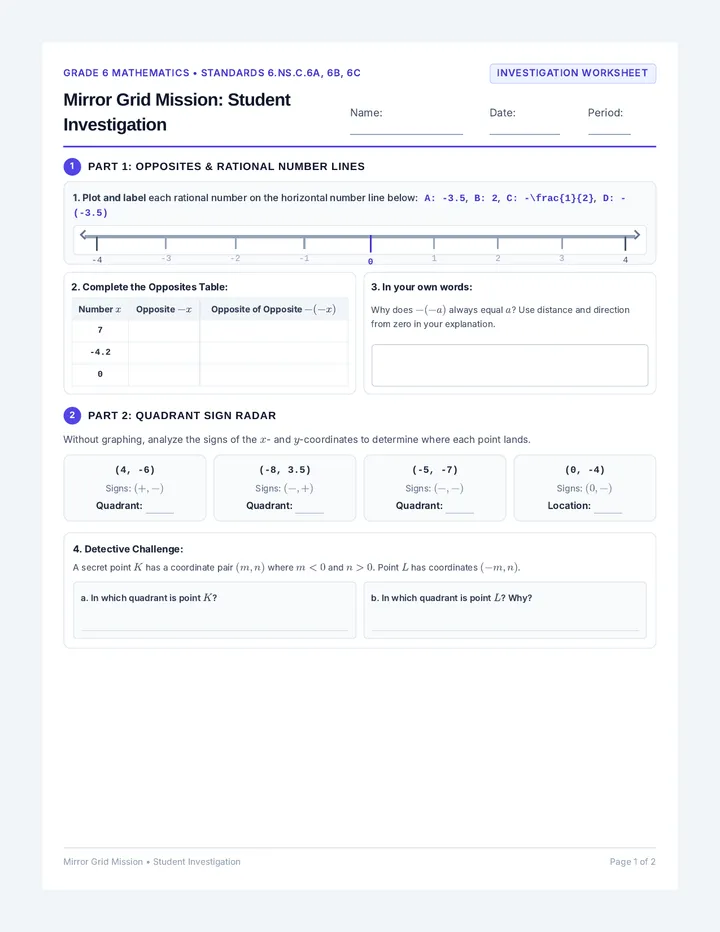

Mirror Grid Student Worksheet

Grade 6 Mathematics • Standards 6.NS.C.6a, 6b, 6c Investigation Worksheet

Mirror Grid Mission: Student Investigation

Name:

Date:

Period:

1

Part 1: Opposites & Rational Number Lines

1. Plot and label each rational number on the horizontal number line below: A: -3.5, B: 2, C: -\frac{1}{2}, D: -(-3.5)

-4

-3

-2

-1

0

1

2

3

4

2. Complete the Opposites Table:

Number \(x\)	Opposite \(-x\)	Opposite of Opposite \(-(-x)\)
7
-4.2
0

3. In your own words:

Why does \(-(-a)\) always equal \(a\)? Use distance and direction from zero in your explanation.

2

Part 2: Quadrant Sign Radar

Without graphing, analyze the signs of the \(x\)- and \(y\)-coordinates to determine where each point lands.

(4, -6)

Signs: \((+, -)\)

Quadrant:

(-8, 3.5)

Signs: \((-, +)\)

Quadrant:

(-5, -7)

Signs: \((-, -)\)

Quadrant:

(0, -4)

Signs: \((0, -)\)

Location:

4. Detective Challenge:

A secret point \(K\) has a coordinate pair \((m, n)\) where \(m < 0\) and \(n > 0\). Point \(L\) has coordinates \((-m, n)\).

a. In which quadrant is point \(K\)?

b. In which quadrant is point \(L\)? Why?

Mirror Grid Mission • Student Investigation Page 1 of 2

Part 3: Axis Reflections & Real-World Grid Mission

Page 2 Practice

3

Axis Reflection Lab

Reflect each original point across the specified axis. Write the new coordinates and identify what changed.

Original Point	Reflect Across	Reflected Point	Which Sign Changed?
P (3, 4)	\(x\)-axis
Q (-5, 2)	\(y\)-axis
R (-2, -6)

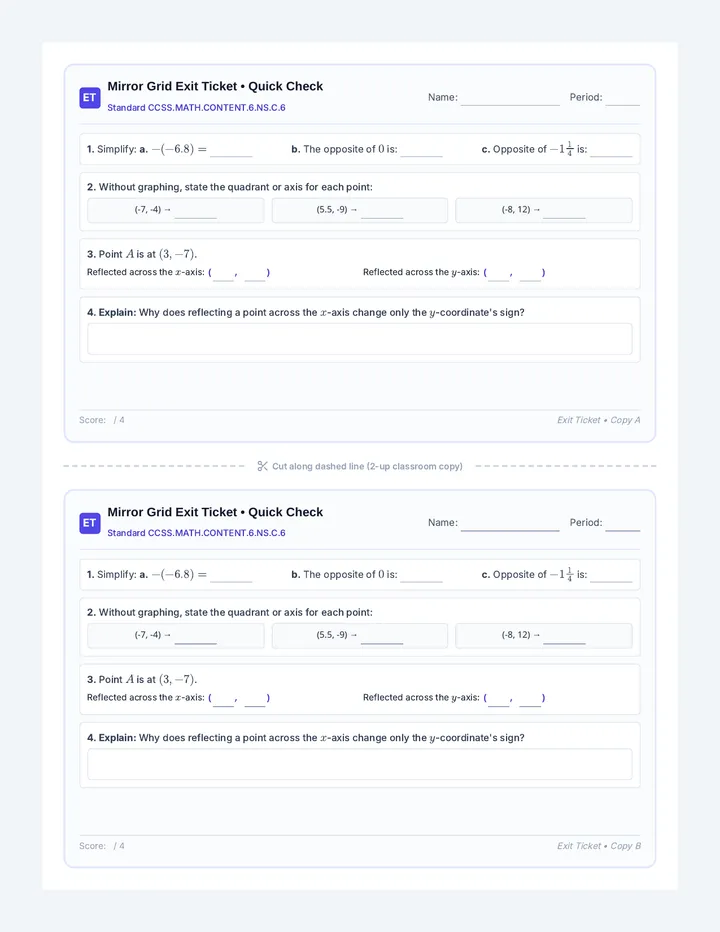

Mirror Grid Exit Ticket

ET

Mirror Grid Exit Ticket • Quick Check

Standard CCSS.MATH.CONTENT.6.NS.C.6

Name:

Period:

1. Simplify: a. \(-(-6.8) =\) b. The opposite of \(0\) is: c. Opposite of \(-1\frac{1}{4}\) is:

2. Without graphing, state the quadrant or axis for each point:

(-7, -4) →

(5.5, -9) →

(-8, 12) →

3. Point \(A\) is at \((3, -7)\).

Reflected across the \(x\)-axis: ( , )

Reflected across the \(y\)-axis: ( , )

4. Explain: Why does reflecting a point across the \(x\)-axis change only the \(y\)-coordinate's sign?

Score: / 4 Exit Ticket • Copy A

Cut along dashed line (2-up classroom copy)

ET

Mirror Grid Exit Ticket • Quick Check

Standard CCSS.MATH.CONTENT.6.NS.C.6

Name:

Period:

1. Simplify: a. \(-(-6.8) =\) b. The opposite of \(0\) is: c. Opposite of \(-1\frac{1}{4}\) is:

2. Without graphing, state the quadrant or axis for each point:

(-7, -4) →

(5.5, -9) →

(-8, 12) →

3. Point \(A\) is at \((3, -7)\).

Reflected across the \(x\)-axis: ( , )

Reflected across the \(y\)-axis: ( , )

4. Explain: Why does reflecting a point across the \(x\)-axis change only the \(y\)-coordinate's sign?

Score: / 4 Exit Ticket • Copy B

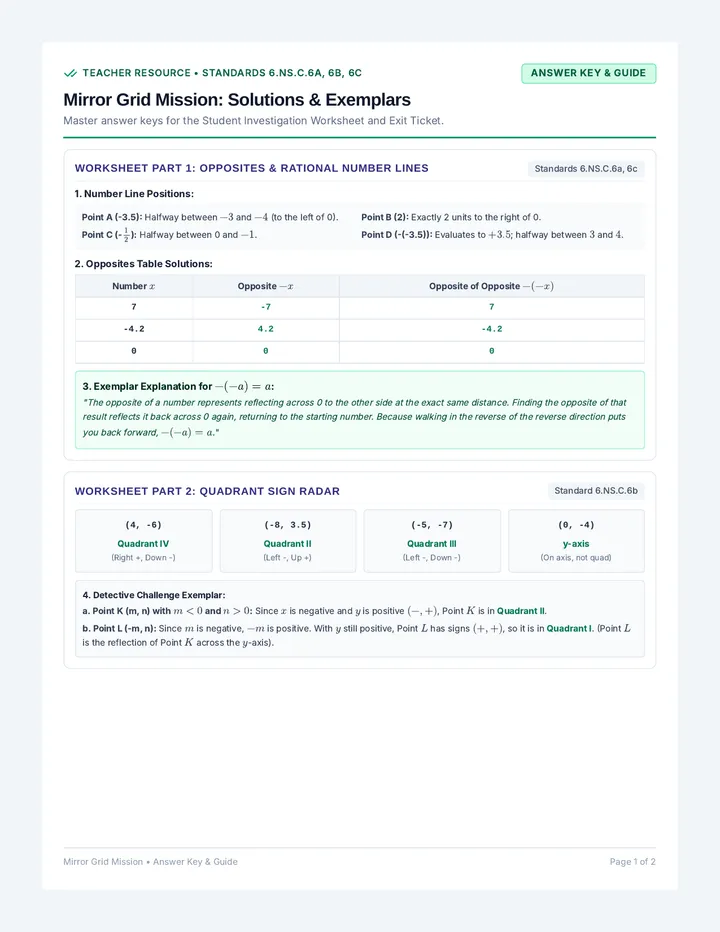

Mirror Grid Answer Key

Teacher Resource • Standards 6.NS.C.6a, 6b, 6c Answer Key & Guide

Mirror Grid Mission: Solutions & Exemplars

Master answer keys for the Student Investigation Worksheet and Exit Ticket.

Worksheet Part 1: Opposites & Rational Number Lines Standards 6.NS.C.6a, 6c

1. Number Line Positions:

Point A (-3.5): Halfway between \(-3\) and \(-4\) (to the left of 0).
Point B (2): Exactly 2 units to the right of 0.
Point C (-\(\frac{1}{2}\)): Halfway between 0 and \(-1\).
Point D (-(-3.5)): Evaluates to \(+3.5\); halfway between \(3\) and \(4\).

2. Opposites Table Solutions:

Number \(x\)	Opposite \(-x\)	Opposite of Opposite \(-(-x)\)
7	-7	7
-4.2	4.2	-4.2
0	0	0

3. Exemplar Explanation for \(-(-a) = a\):

"The opposite of a number represents reflecting across 0 to the other side at the exact same distance. Finding the opposite of that result reflects it back across 0 again, returning to the starting number. Because walking in the reverse of the reverse direction puts you back forward, \(-(-a) = a\)."

Worksheet Part 2: Quadrant Sign Radar Standard 6.NS.C.6b

(4, -6)

Quadrant IV

(Right +, Down -)

(-8, 3.5)

Quadrant II

(Left -, Up +)

(-5, -7)

Quadrant III

(Left -, Down -)

(0, -4)

y-axis

(On axis, not quad)

4. Detective Challenge Exemplar:

a. Point K (m, n) with \(m < 0\) and \(n > 0\): Since \(x\) is negative and \(y\) is positive \((-, +)\), Point \(K\) is in Quadrant II.

b. Point L (-m, n): Since \(m\) is negative, \(-m\) is positive. With \(y\) still positive, Point \(L\) has signs \((+, +)\), so it is in Quadrant I. (Point \(L\) is the reflection of Point \(K\) across the \(y\)-axis).

Mirror Grid Mission • Answer Key & Guide Page 1 of 2

Worksheet Parts 3 & 4 and Exit Ticket Solutions

Page 2 Key

Worksheet Part 3: Axis Reflections Standard 6.NS.C.6b

counter-clockwise

The Mirror Effect

Reflections Across the Axes

X

Reflect Across X-Axis Vertical Flip (Up ↔ Down)

(x, y) → (x, -y)

The x-coordinate stays! The y-sign flips!

Example: (3, 5) flips to (3, -5)

Y

Reflect Across Y-Axis Horizontal Flip (Left ↔ Right)

(x, y) → (-x, y)

The y-coordinate stays! The x-sign flips!

Example: (3, 5) flips to (-3, 5)

Notice the pattern: Whichever axis you cross over, the other coordinate inverts its sign!

Live Speed Check

Can You Crack the Coordinates?

Question 1

Which quadrant contains the point:

(-6, 4)

Think: Left then Up!

Question 2

Reflect point (-4, -5) across the:

x-axis

Which sign changes?

Question 3

What is the simplified value of:

-(-8.5)

Opposite of opposite!

Ready for the Mirror Grid Student Worksheet! Good luck, Navigators!

State the General Rules:

Reflecting \((a, b)\) over the \(x\)-axis results in:

Reflecting \((a, b)\) over the \(y\)-axis results in:

4

Real-World Navigation: The Coastal Drone & Submarine

A coastal rescue drone flies above the ocean at coordinate D (4, 3), where the \(x\)-axis represents the ocean surface (sea level) and the \(y\)-axis is the coastal control tower. A research submarine is located at point S, which is the reflection of the drone across the \(x\)-axis.

a. Submarine Location

Coordinates of point \(S\):

b. Distance Comparison

How far is each vehicle from sea level (\(x\)-axis)?

c. Double Reflection

If the sub reflects over \(y\)-axis, where is it?

Show your thinking / Justification:

Navigator Self-Check

How confident do you feel identifying quadrants and reflections?

Need Practice Getting It Master Navigator!

Mirror Grid Mission • Student Investigation Page 2 of 2

Original	Reflect Across	Reflected Point	Which Sign Changed?
P (3, 4)	\(x\)-axis	(3, -4)	\(y\)-coordinate sign changed
Q (-5, 2)	\(y\)-axis	(5, 2)	\(x\)-coordinate sign changed
R (-2, -6)	\(x\)-axis	(-2, 6)	\(y\)-coordinate sign changed
S (4.5, -3)	\(y\)-axis	(-4.5, -3)	\(x\)-coordinate sign changed

General Rules: Over \(x\)-axis: \((a, b) \rightarrow (a, -b)\). Over \(y\)-axis: \((a, b) \rightarrow (-a, b)\).

Worksheet Part 4: Coastal Drone & Submarine Mission Application

a. Submarine Location: Drone is at \(D(4, 3)\). Reflecting across \(x\)-axis (sea level) yields \(S(4, -3)\).

b. Distance Comparison: Both are exactly 3 units from sea level (drone is 3 units above, sub is 3 units below; \(|3| = |-3| = 3\)).

c. Double Reflection: Reflecting \(S(4, -3)\) over the \(y\)-axis produces (-4, -3) in Quadrant III.

Exit Ticket Master Key (4 Points Total) 1 pt each

1. Simplification: a. \(-(-6.8) = \mathbf{6.8}\) • b. Opposite of \(0\) is \(\mathbf{0}\) • c. Opposite of \(-1\frac{1}{4}\) is \(\mathbf{1\frac{1}{4}}\) (or \(1.25\)).

2. Quadrant Identification: \((-7, -4) \rightarrow \mathbf{\text{Quadrant III}}\) • \((5.5, -9) \rightarrow \mathbf{\text{Quadrant IV}}\) • \((-8, 12) \rightarrow \mathbf{\text{Quadrant II}}\).

3. Point A (3, -7) Reflection: Across \(x\)-axis: \(\mathbf{(3, 7)}\) • Across \(y\)-axis: \(\mathbf{(-3, -7)}\).

4. Conceptual Justification:

"The \(x\)-axis is a horizontal mirror line. Jumping across it flips a point vertically (up ↔ down), which changes only the vertical distance and direction (the \(y\)-coordinate). The horizontal position (\(x\)-coordinate) does not shift left or right."

Mirror Grid Mission • Answer Key & Guide Page 2 of 2

You might also like

Subtraction Mastery

A three-day intervention sequence designed for resource math groups targeting standard algorithm subtraction with 3-digit numbers within 1,000. Features systematic, mixed practice across single regrouping, double regrouping, and borrowing across zeros for Tuesday, Wednesday, and Thursday.

QP

Quinn Pink

6

Expression Architects

A comprehensive 6th-grade mathematics lesson aligned to CCSS 6.EE.2 covering expression anatomy, translating verbal phrases to algebraic expressions, and evaluating expressions with exponents and geometric formulas.

A

Abigail

4

Expression Architects Answer Key

A complete two-page answer key and scoring guide with step-by-step solutions, intermediate work, and grading notes corresponding to the student worksheet.

A

Abigail

Equation Detectives

A three-day instructional unit mastering multi-digit addition and subtraction word problems with unknowns in any position. Students model situations using bar models, write algebraic equations with unknown symbols, and check solutions for reasonableness.

CJ

Courtney Jewell

9

6.NS.9

A comprehensive 6th-grade math lesson introducing integer addition and subtraction through additive inverses, horizontal and vertical number line models, and real-world opposite scenarios like elevation and temperature.

A

Abigail

5

Expression Architects Teacher Guide

A comprehensive teacher facilitation guide providing standard breakdowns, pacing, pedagogical scripts, common student misconceptions, and differentiation strategies for CCSS 6.EE.2.

A

Abigail

Math and Economics

A secondary curriculum sequence covering advanced mathematical modeling alongside foundational economic systems and financial literacy concepts.

JT

Jasia Tahir

4

Ratio Radar

An engaging introductory 6th-grade math lesson establishing foundational ratio concepts under CCSS 6.RP.A.1. Students explore part-to-part and part-to-whole comparisons, express ratios in three standard notations, and connect visual models to real-world contexts.

A

Abigail

5

Expression Architects Worksheet

A two-page student guided practice worksheet covering parts of expressions, translation of verbal phrases, order-of-operations evaluation, and geometric formulas.

A

Abigail

Factor Forge Fluency

A three-week intensive unit focusing on multiplication and division fact families for factors 6, 7, and 8, using a blacksmith 'Factor Forge' theme to build math fluency and conceptual understanding.

KW

Kellie Walsh

10

Radical Roots

An introductory lesson exploring the foundational concepts of squaring, square roots, and perfect squares. Students master essential mathematical vocabulary, analyze radical notation, and connect algebraic operations to geometric area models.

CJ

Christy Jones

3

Expression Architects Slides

Visual presentation slides introducing 6th-grade expression anatomy, verbal phrase translation, and step-by-step evaluation using the order of operations and formulas.

A
