Master Builder Teacher Guide Teacher Resource • Grade 4
Master Builder
Division Strategies & Tiered Lesson Plan
4.NBT.B.6
Lesson Topic
Multi-digit division using Area Models, Partial Quotients, and Long Division.
Duration
60 Minutes total (15m Teach, 30m Tiered Work, 15m Share/Debrief)
Differentiation
3 Differentiated Tiers (Blueprint, Room Designer, Skyscraper)
Instructional Flow & Pacing
00 - 10 Min
Review & Warm-Up: Review division as fair sharing using concrete examples (e.g., dividing 12 tokens among 4 people). Connect concrete grouping directly to arrays.
10 - 25 Min
Guided Blueprint (Area Models & Partial Quotients): Draw a "blueprint room" on the board (e.g., area = 72, width = 6). Explain how place value helps us split 72 into 60 and 12, yielding side length quotients of 10 and 2.
25 - 55 Min
Tiered Workshop & Architectural Drafts: Distribute differentiated drafts based on student preparedness. Monitor and facilitate math discourse while students solve using target strategies.
55 - 60 Min
Debrief & Structural Sign-Off: Have one student from each tier present a solution. Ask: "How does splitting a number into friendly blocks help us divide larger amounts?"
Tiered Differentiation Details
Tier 1: Blueprint
Focus: Concrete Sharing & Guided Area Model.Numbers: Clean 2-digit divided by 1-digit with no remainder or very basic regrouping. Highly scaffolded grids provided.
Tier 2: Room Designer
Focus: Area Model & Partial Quotients.Numbers: 2-digit and minor 3-digit dividends by 1-digit divisors. Balanced scaffolds with some self-drawn structures.
Tier 3: Skyscraper
Focus: Partial Quotients, Algorithm & 2-Digit Divisors.Numbers: 3-digit dividends by 1-digit and 2-digit divisors. Complex scaling and standard long division comparisons.
Grade 4 Mathematics • Division Architects Page 1 of 2
Teacher Resource • Answer Key
Architectural Solutions
Direct reference guide for scoring and feedback
Tier 1: Blueprint Blocks Worksheet
Q1: Concrete Sharing: 15 items among 3 groups = 5 per group.
Q2: Concrete Sharing: 24 blocks among 4 buckets = 6 per bucket.
Q3: Area Model (36 ÷ 3): Split 36 into 30 + 6. 10 + 2 = 12.
Q4: Area Model (48 ÷ 4): Split 48 into 40 + 8. 10 + 2 = 12.
Q5: Area Model (65 ÷ 5): Split 65 into 50 + 15. 10 + 3 = 13.
Q6: Quick Build Check: 56 ÷ 4 = Split into 40 and 16. Quotient = 14.
Tier 2: Room Designer Worksheet
Q1: Area Model (84 ÷ 6): Split into 60 + 24. quotients: 10 + 4 = 14.
Q2: Area Model (96 ÷ 4): Split into 80 + 16. quotients: 20 + 4 = 24.
Q3: Partial Quotients (75 ÷ 5): Subtracted chunks of 50 (10x) and 25 (5x). Quotient = 15.
Q4: Partial Quotients (138 ÷ 6): Subtracted 120 (20x) and 18 (3x). Quotient = 23.
Q5: Builder Challenge (145 ÷ 5): Area model split into 100 + 45. quotients: 20 + 9 = 29.
Q6: Concept Question: Why split 138 into 120 and 18? Because 120 is 6 × 20 (a clear multiple) and 18 is easy.
Tier 3: Skyscraper Drafts Worksheet
Q1: Partial Quotients (256 ÷ 8): Subtracted 240 (30x) and 16 (2x). Quotient = 32.
Q2: Partial Quotients (378 ÷ 6): Subtracted 360 (60x) and 18 (3x). Quotient = 63.
Q3: Standard Algorithm (425 ÷ 5): 42 tens ÷ 5 = 8 (R2). 25 ones ÷ 5 = 5. Quotient = 85.
Q4: Standard Algorithm (612 ÷ 4): 6 hundreds ÷ 4 = 1 (R2). 21 tens ÷ 4 = 5 (R1). 12 ÷ 4 = 3. Quotient = 153.
Q5: Skyscraper Challenge (182 ÷ 13): 13 × 10 = 130. Remainder = 52. 13 × 4 = 52. Quotient = 14.
Q6: Structural Compare: Long division places quotients by place value directly above; Partial Quotients stacks them to the side.
Facilitation Tip: Promoting Error Analysis
Ask students: "If a contractor made an area model for 84 ÷ 6 and split the rectangle into 50 and 34, is that correct? Why or why not?" Draw out that while 50 + 34 = 84, neither 50 nor 34 are easily divisible by 6. Splitting into 60 and 24 is "mathematical drafting"—choosing shapes that easily fit our toolset (multiples of 6).
Grade 4 Mathematics • Division Architects Page 2 of 2
Division Architects Slides Grade 4 Math • Section 1 Lesson 1: Drafting Quotients
Division Architects
Designing division solutions using concrete blocks, area model rooms, and partial quotient chunks.
Today's Goal: Break apart larger dividends into masterfully engineered math shapes.
Step 1: Concrete Building Blocks
Concept Phase
Before we draft, we build! Equal sharing means distributing total parts into equal groups.
Building Plan: 12 Blocks ÷ 3 Columns
Column A
Column B
Column C
1
Equal Partitioning
Each bucket or column must contain the exact same quantity before structural sign-off.
2
Remainders are Spares
Any blocks that cannot be shared equally are leftover materials (remainders!).
Architects: Use blocks to visualize division before drawing paper blueprints. Slide 2
Step 2: Drawing the Area Model
Visual Drafting
An Area Model shows a rectangular plot of land. We know the total size (Area) and one fence length (Width). We are looking for the other fence length (Height!).
Drafting 72 ÷ 6
Split 72 into friendly buildings that easily divide by 6:
72 = 60 + 12
Width: 6
Section Area A
60
Height: 10
Section B
12
Height: 2
Total Height (Quotient) = 10 + 2 = 12
Splitting numbers into multiples of 10 keeps construction math fast and simple! Slide 3
Step 3: Partial Quotients Method
Subtracting Chunks
Think of division as taking bricks away from a massive tower. Subtract known multiples (chunks) of the divisor until nothing remains!
Why Use Partial Quotients?
No need to find the perfect answer instantly.
Safe and modular—work with easy multiples (10x, 5x, 2x).
Stack your mini-answers and sum them at the end.
Example: 138 ÷ 6
Tower Subtraction Chunk Count
Start with: 138
20 chunks
Remaining: 18
3 chunks
0 remaining Total: 23
Combining 20 chunks and 3 chunks guarantees a flawless final measurement of 23. Slide 4
Step 4: Workshop Draft Assignments
Implementation Phase

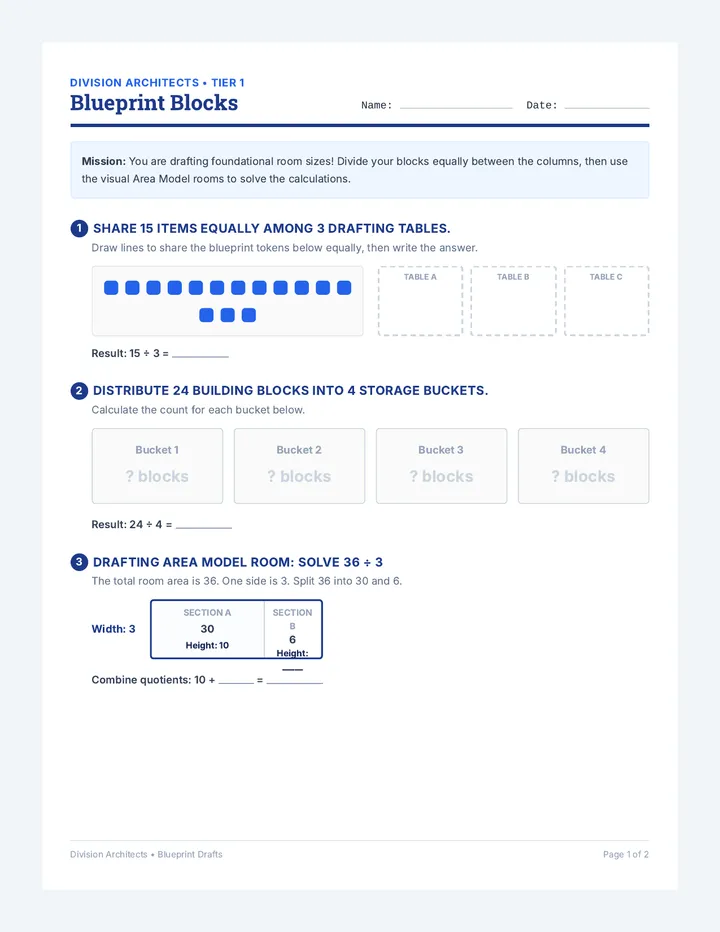

Blueprint Blocks Worksheet Division Architects • Tier 1
Blueprint Blocks
Name:
Date:
Mission: You are drafting foundational room sizes! Divide your blocks equally between the columns, then use the visual Area Model rooms to solve the calculations.
1 Share 15 items equally among 3 drafting tables.
Draw lines to share the blueprint tokens below equally, then write the answer.
Table A
Table B
Table C
Result: 15 ÷ 3 =
2 Distribute 24 building blocks into 4 storage buckets.
Calculate the count for each bucket below.
Bucket 1 ? blocks
Bucket 2 ? blocks
Bucket 3 ? blocks
Bucket 4 ? blocks
Result: 24 ÷ 4 =
3 Drafting Area Model Room: Solve 36 ÷ 3
The total room area is 36. One side is 3. Split 36 into 30 and 6.
Width: 3
Section A 30 Height: 10
Section B 6 Height: _____
Combine quotients: 10 + =
Division Architects • Blueprint Drafts Page 1 of 2
Division Architects • Tier 1
Drafting Deeper
4 Drafting Area Model Room: Solve 48 ÷ 4
Fill in the missing values in the blueprint below.
Width: 4
Section A (Area: 40) 40 Height: 10
Section B (Area: 8) 8 Height: _____
Result: 48 ÷ 4 =
5 Build Your Own Model: Solve 65 ÷ 5
Split 65 into a group of 50 and a group of 15. Fill out the entire blueprint room.
Width: 5
Area 50 Height: _____
Area 15 Height: _____
Result: 65 ÷ 5 =
6 Quick Build Challenge: Solve 56 ÷ 4
Draw a quick sketch of an area model or show your splitting calculation in the box below.
Final Quotient: 56 ÷ 4 =
Division Architects • Blueprint Drafts Page 2 of 2

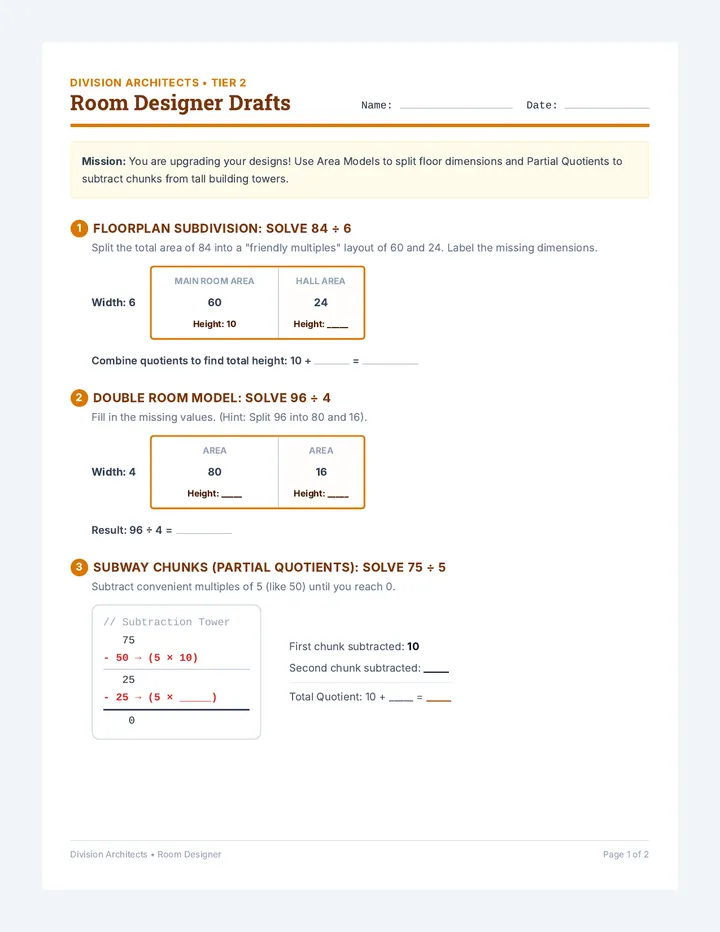

Room Designer Worksheet Division Architects • Tier 2
Room Designer Drafts
Name:
Date:
Mission: You are upgrading your designs! Use Area Models to split floor dimensions and Partial Quotients to subtract chunks from tall building towers.
1 Floorplan Subdivision: Solve 84 ÷ 6
Split the total area of 84 into a "friendly multiples" layout of 60 and 24. Label the missing dimensions.
Width: 6
Main Room Area 60 Height: 10
Hall Area 24 Height: _____
Combine quotients to find total height: 10 + =
2 Double Room Model: Solve 96 ÷ 4
Fill in the missing values. (Hint: Split 96 into 80 and 16).
Width: 4
Area 80 Height: _____
Area 16 Height: _____
Result: 96 ÷ 4 =
3 Subway Chunks (Partial Quotients): Solve 75 ÷ 5
Subtract convenient multiples of 5 (like 50) until you reach 0.
// Subtraction Tower
75
- 50 → (5 × 10)
25
- 25 → (5 × _____)
0
First chunk subtracted: 10
Second chunk subtracted: _____
Total Quotient: 10 + _____ = _____
Division Architects • Room Designer Page 1 of 2
Division Architects • Tier 2
Structural Calculations
4 Subtracting Chunks: Solve 138 ÷ 6
Use the subtraction column to subtract easy groups of 6 (such as 120 or 60).
// Tower Workspace (blank for your handwriting)
Architect's Checklist: Subtract 120 (6 × 20) Find remaining amount (18) Subtract remaining (6 × 3)
Final Answer:
138 ÷ 6 =
5 Unscaffolded Model: Solve 145 ÷ 5
Draw your own Area Model room below to find the quotient. (Hint: Split into 100 and 45).
Show Area Model Drawing Here
Result: 145 ÷ 5 =
6 Structural Design Discussion
Why does splitting 138 into 120 and 18 make it easier to divide by 6 than splitting it into 100 and 38? Explain your thinking below.
Division Architects • Room Designer Page 2 of 2

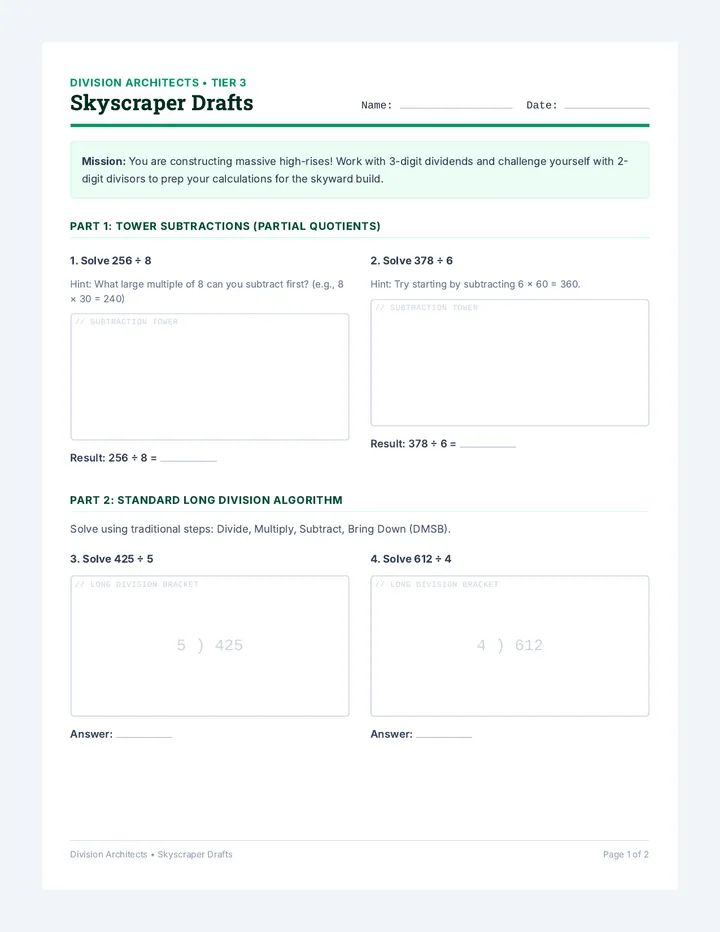

Skyscraper Drafts Worksheet Division Architects • Tier 3
Skyscraper Drafts
Name:
Date:
Mission: You are constructing massive high-rises! Work with 3-digit dividends and challenge yourself with 2-digit divisors to prep your calculations for the skyward build.
Part 1: Tower Subtractions (Partial Quotients)
1. Solve 256 ÷ 8
Hint: What large multiple of 8 can you subtract first? (e.g., 8 × 30 = 240)
// Subtraction Tower
Result: 256 ÷ 8 =
2. Solve 378 ÷ 6
Hint: Try starting by subtracting 6 × 60 = 360.
// Subtraction Tower
Result: 378 ÷ 6 =
Part 2: Standard Long Division Algorithm
Solve using traditional steps: Divide, Multiply, Subtract, Bring Down (DMSB).
3. Solve 425 ÷ 5
// Long Division Bracket 5 ) 425
Answer:
4. Solve 612 ÷ 4
// Long Division Bracket 4 ) 612
Answer:
Division Architects • Skyscraper Drafts Page 1 of 2
Division Architects • Tier 3
Engineering Masterclass
5 Skyscraper Challenge: 2-Digit Divisors
Some skyscrapers require dividing resources among larger contractor groups. Let's solve: 182 ÷ 13 .
Use the subtraction workspace below. (Hint: 13 × 10 = 130. Subtract that first, then look at the remaining amount!).
// Subtraction Workspace
Step-by-Step Breakdown:
What is 13 × 10 ?
Subtract that from 182.
How many times does 13 fit into that remainder?
Final Quotient:
182 ÷ 13 =
6 Architect's Design Compare
Compare the Standard Long Division Algorithm and the Partial Quotients Method .
Write one similarity in how they calculate the answer, and one structural difference in how they display your work.
One similarity:
One structural difference:
Division Architects • Skyscraper Drafts Page 2 of 2
