Cone Optimization Slides 10th Grade Geometry
CONE QUEST
The Optimization Challenge
Volume
|
Surface Area
The Numerical Paradox
Warm-Up (5 Min)
"The Volume is 96π. The Surface Area is 96π."
In Example 3, we found these identical values. Discuss with a partner:
Are these two measurements actually "equal"? Why or why not?
What does this tell us about the relationship between 3D space and its outer shell?
V = 96π ft³
SA = 96π ft²
Video Deep Dive
Example 3 (10:05-End)
Embedded media
The Diameter Trap
Why is using "12" instead of "6" the most common mistake?
Key Formulas
V = 1/3πR²H
LA = πRL
L² = R² + H²
Optimization Mission
Goal: The Perfect Paper Cup
Design a cone-shaped cup that holds exactly 96π units³ of water, but uses the absolute minimum amount of paper (Lateral Area).
1
Test 3 Different Designs
2
Calculate L, V, and LA for each
3
Identify the most efficient shape
Debrief & Share
Closure (5 Min)
Which was more efficient?
Tall & Skinny
VS
Short & Wide
Big Question
In the real world, why might a company choose the *less* mathematically efficient shape for their products?

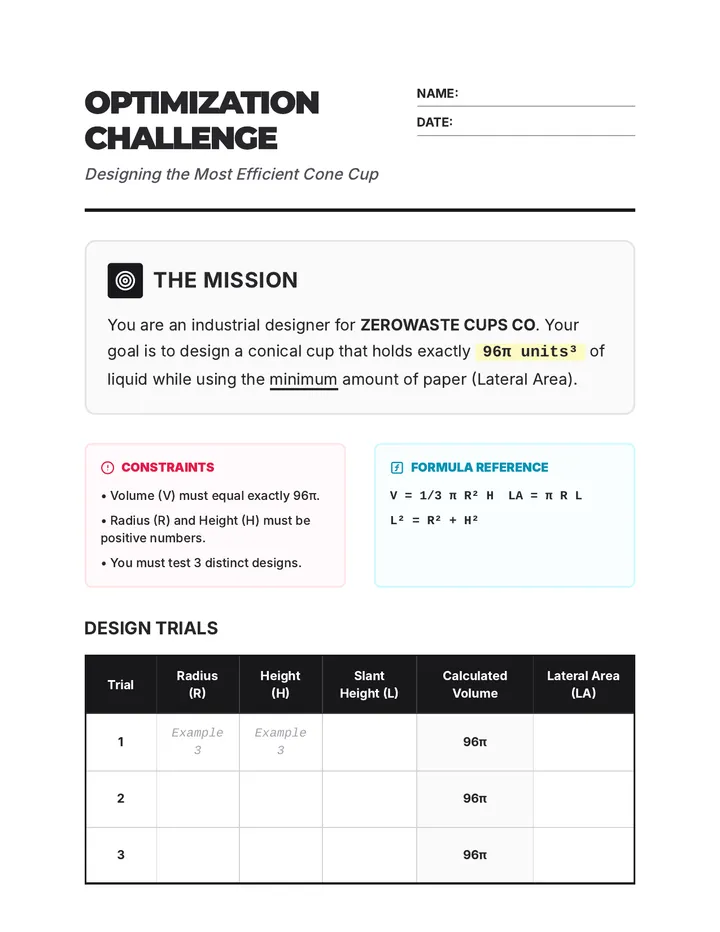

Optimization Challenge Worksheet Optimization Challenge
Designing the Most Efficient Cone Cup
NAME:
DATE:
The Mission
You are an industrial designer for ZeroWaste Cups Co. Your goal is to design a conical cup that holds exactly 96π units³ of liquid while using the minimum amount of paper (Lateral Area).
Constraints
• Volume (V) must equal exactly 96π.
• Radius (R) and Height (H) must be positive numbers.
• You must test 3 distinct designs.
Formula Reference
V = 1/3 π R² H
LA = π R L
L² = R² + H²
Design Trials
Trial Radius (R) Height (H) Slant Height (L) Calculated Volume Lateral Area (LA) 1 Example 3 Example 3 96π 2 96π 3 96π
*Tip: To keep Volume constant at 96π, use the relationship: R²H = 288.
Work Area: Trial 2 or 3 Calculation
Analysis & Conclusion
1. Which of your three designs was the most efficient (lowest Lateral Area)? Describe its physical shape (tall/skinny, short/wide, or balanced).
2. If you wanted to find the absolute "perfect" dimensions, what mathematical strategy could you use beyond just trial and error?

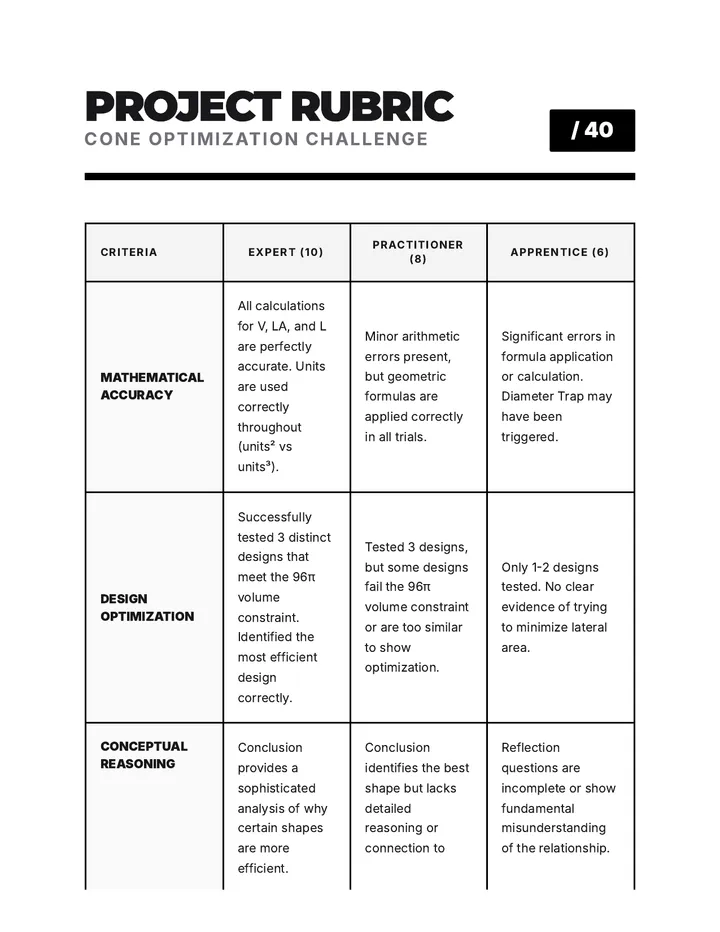

Design Rubric Handout PROJECT RUBRIC
Cone Optimization Challenge
/ 40
Criteria Expert (10) Practitioner (8) Apprentice (6) Mathematical Accuracy All calculations for V, LA, and L are perfectly accurate. Units are used correctly throughout (units² vs units³). Minor arithmetic errors present, but geometric formulas are applied correctly in all trials. Significant errors in formula application or calculation. Diameter Trap may have been triggered. Design Optimization Successfully tested 3 distinct designs that meet the 96π volume constraint. Identified the most efficient design correctly. Tested 3 designs, but some designs fail the 96π volume constraint or are too similar to show optimization. Only 1-2 designs tested. No clear evidence of trying to minimize lateral area. Conceptual Reasoning Conclusion provides a sophisticated analysis of why certain shapes are more efficient. Connects numerical data to visual shape. Conclusion identifies the best shape but lacks detailed reasoning or connection to mathematical data. Reflection questions are incomplete or show fundamental misunderstanding of the relationship. Toolkit Usage Uses Pythagorean theorem and cone formulas expertly to derive missing dimensions. Shows all intermediate steps. Shows some work, but jumps directly to final answers for complex calculations like slant height. No work shown; final answers provided without evidence of geometric reasoning.
Instructor Feedback Geometry Toolkit Reference Geometry Toolkit
The Cone Compendium
VOLUME (V)
V = 1/3 π R² H
LATERAL AREA (LA)
LA = π R L
SURFACE AREA (SA)
SA = π R² + π R L
The Pythagorean Bridge
L² = R² + H²
R = Radius
H R L
Calculator Pro-Tips
1
Handling Pi: Unless asked for a decimal, keep π as a symbol in your work. It's more accurate and easier!
2
Squaring vs. Roots: Remember that x² is x * x. To find L, you MUST use the √ button after adding R² and H².
3
Memory Recall: If your calculator has Ans, use it to carry long decimals without rounding errors.
Optimization Strategy
To keep Volume at 96π while testing different shapes, pick a Radius (R) first, then calculate Height (H) :
H = 288 / R²
Shortcuts: Pythagorean Triples
3 - 4 - 5 | 5 - 12 - 13 | 6 - 8 - 10 | 7 - 24 - 25

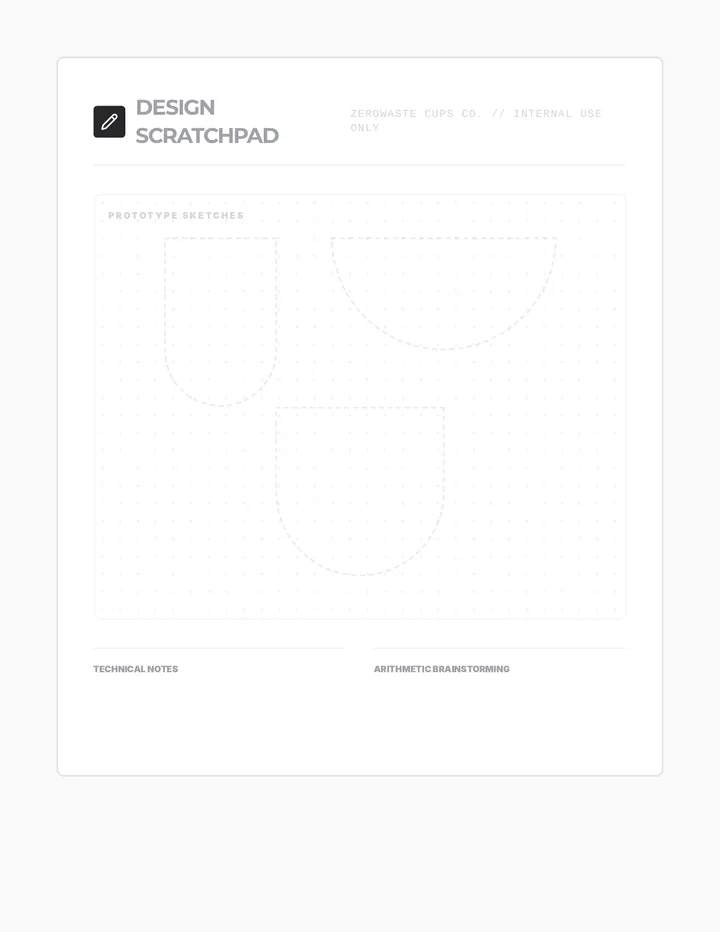

Design Scratchpad Handout Design Scratchpad
ZeroWaste Cups Co. // Internal Use Only
Prototype Sketches
Technical Notes
Arithmetic Brainstorming

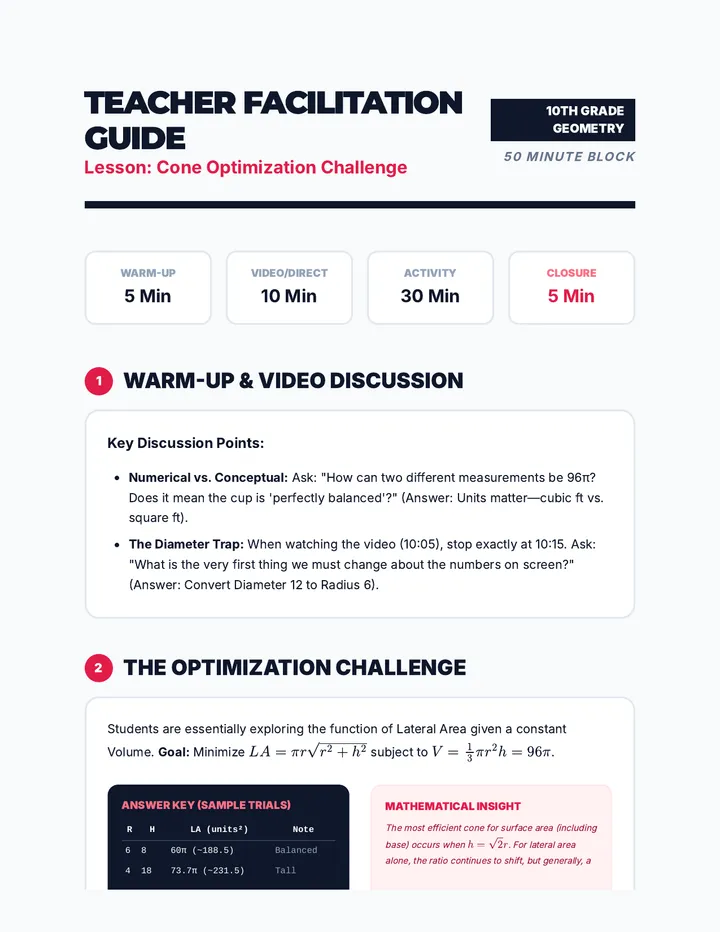

Teacher Facilitation Guide Teacher Facilitation Guide
Lesson: Cone Optimization Challenge
10th Grade Geometry
50 Minute Block
Warm-Up
5 Min
Video/Direct
10 Min
Activity
30 Min
Closure
5 Min
1 Warm-Up & Video Discussion
Key Discussion Points:
Numerical vs. Conceptual: Ask: "How can two different measurements be 96π? Does it mean the cup is 'perfectly balanced'?" (Answer: Units matter—cubic ft vs. square ft).The Diameter Trap: When watching the video (10:05), stop exactly at 10:15. Ask: "What is the very first thing we must change about the numbers on screen?" (Answer: Convert Diameter 12 to Radius 6).
2 The Optimization Challenge
Students are essentially exploring the function of Lateral Area given a constant Volume. Goal: Minimize \( LA = \pi r \sqrt{r^2 + h^2} \) subject to \( V = \frac{1}{3}\pi r^2 h = 96\pi \).
Answer Key (Sample Trials)
R H LA (units²) Note 6 8 60π (~188.5) Balanced 4 18 73.7π (~231.5) Tall 8 4.5 73.4π (~230.5) Wide
Mathematical Insight
The most efficient cone for surface area (including base) occurs when \( h = \sqrt{2}r \). For lateral area alone, the ratio continues to shift, but generally, a "balanced" cone is more efficient than extreme tall/thin or short/wide versions.
3 Misconceptions & Differentiation
Support (Struggling)
If students struggle to pick an H that fits, remind them of the relationship:H = 288 / R² .
Challenge (Advanced)
Ask advanced students to use Desmos or a graphing calculator to find the exact radius that minimizes the Lateral Area function.
