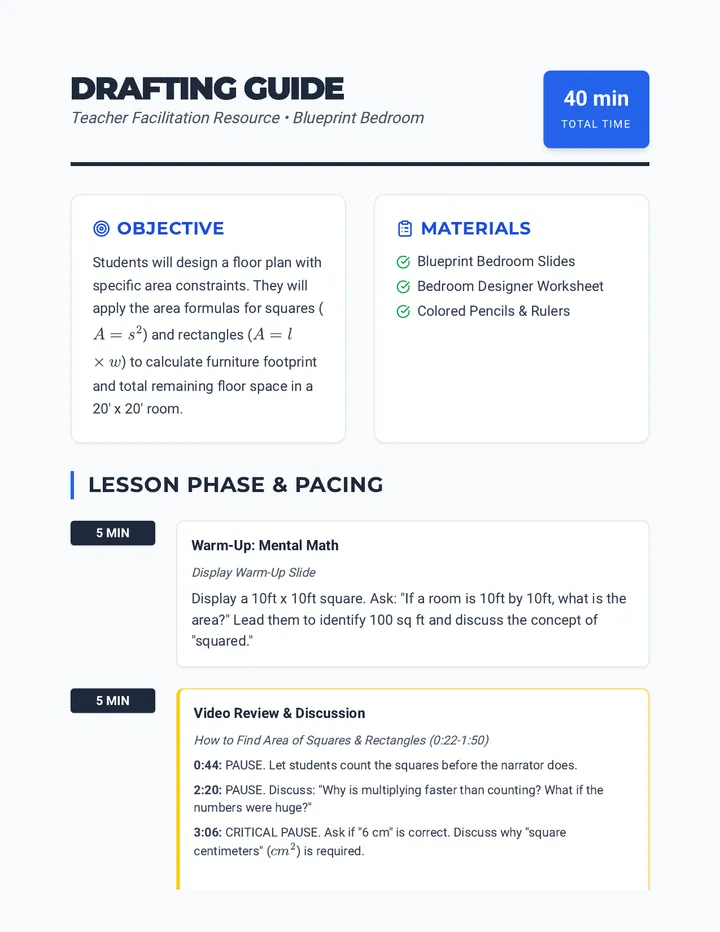

Drafting Guide Teacher Resource Drafting Guide
Teacher Facilitation Resource • Blueprint Bedroom
40 min Total Time
Objective
Students will design a floor plan with specific area constraints. They will apply the area formulas for squares (\(A = s^2\)) and rectangles (\(A = l \times w\)) to calculate furniture footprint and total remaining floor space in a 20' x 20' room.
Materials
Blueprint Bedroom Slides
Bedroom Designer Worksheet
Colored Pencils & Rulers
Lesson Phase & Pacing
5 MIN
Warm-Up: Mental Math
Display Warm-Up Slide
Display a 10ft x 10ft square. Ask: "If a room is 10ft by 10ft, what is the area?" Lead them to identify 100 sq ft and discuss the concept of "squared."
5 MIN
Video Review & Discussion
How to Find Area of Squares & Rectangles (0:22-1:50)
0:44: PAUSE. Let students count the squares before the narrator does.2:20: PAUSE. Discuss: "Why is multiplying faster than counting? What if the numbers were huge?"3:06: CRITICAL PAUSE. Ask if "6 cm" is correct. Discuss why "square centimeters" (\(cm^2\)) is required.3:25: PAUSE. Have students sketch what a 6in square looks like without the grid.
25 MIN
Activity: Bedroom Design
Distribute the Bedroom Designer Worksheet . Students must:
Draw furniture as rectangles or squares on the 20x20 grid.
Use a ruler to ensure clean drafting lines.
Calculate the area for every item using the formulas from the video.
Calculate the "Remaining Floor Space" by subtracting total furniture area from 400 sq ft.
5 MIN
Closure: Architect Review
Partners swap designs. They must "verify the blueprints" by re-calculating one piece of furniture and checking the final subtraction for the floor space. If it's correct, they sign off as the "Senior Architect."
Area
The space inside a 2D shape.
Dimensions
Measurements of length & width.
Squared
Units that represent area (\(ft^2\)).

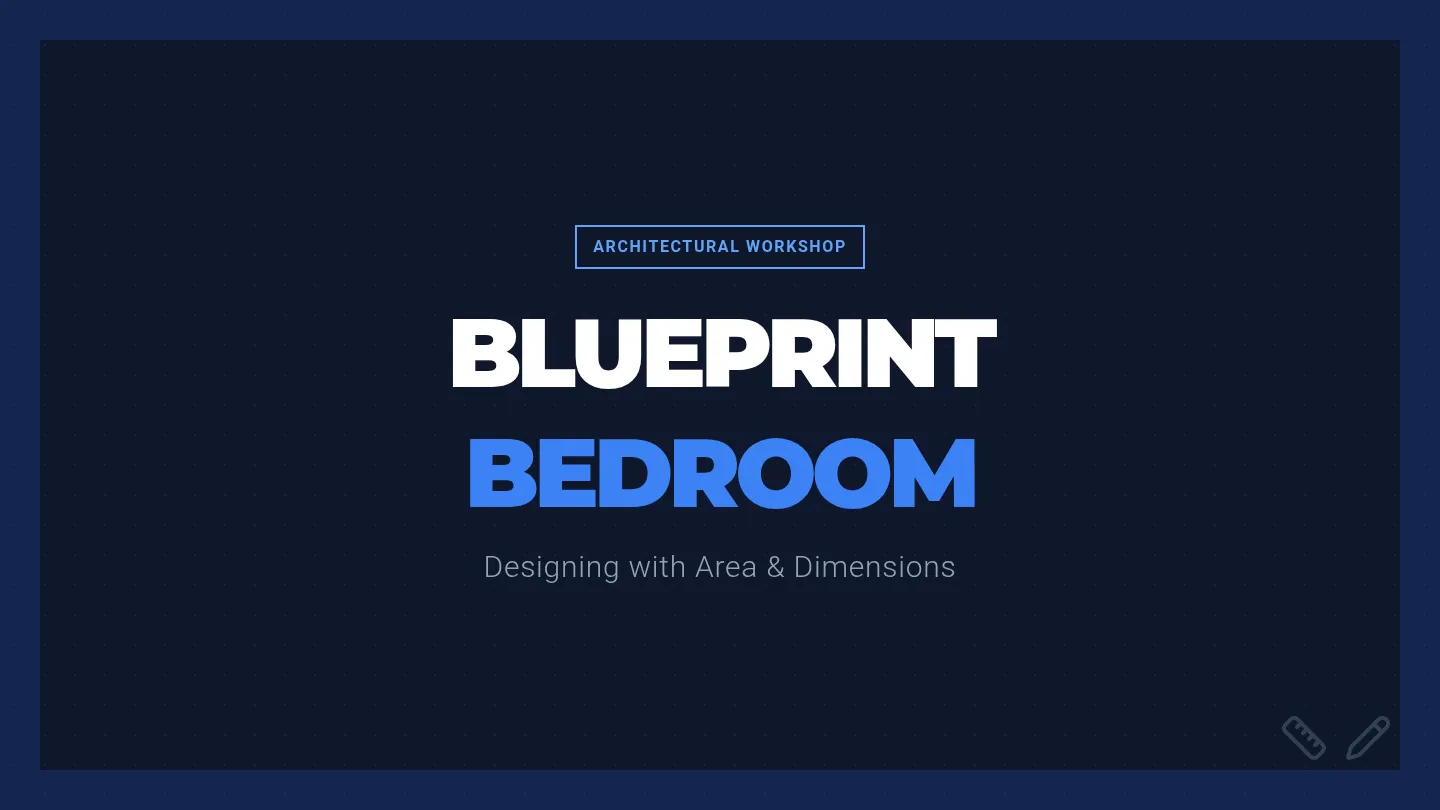

Blueprint Bedroom Slides Architectural Workshop
Blueprint
Bedroom
Designing with Area & Dimensions
Warm Up
5 Minutes
You are designing a square storage closet. The side length is 10 feet.
What is the total AREA?
Think: How many 1x1 foot squares fit inside?
10 ft 10 ft
?
Expert Insight
WATCH: 0:22 - 1:50
Embedded media
Pay close attention to the formulas and labels!
The Architect's Formulas
Rectangles
\(A = l \times w\)
Length \(\times\) Width
Squares
\(A = s^2\)
Side \(\times\) Side
The Mission
Design Your Dream Bedroom
1
Design on the 20x20 foot grid. Every box equals 1 square foot.
2
Draw furniture using perfect squares and rectangles.
3
Color code your blueprint and label the dimensions.
Requirements
Minimum of 4 pieces of furniture
Calculate Area for EACH item
Calculate total floor space left
Label all units as ft2
Architectural Review
Swap blueprints with a partner. Re-calculate their furniture areas to verify their designs.
The Senior Architect Checklist
Did they use the correct formula?
Are the labels ft²?
Is the math accurate?

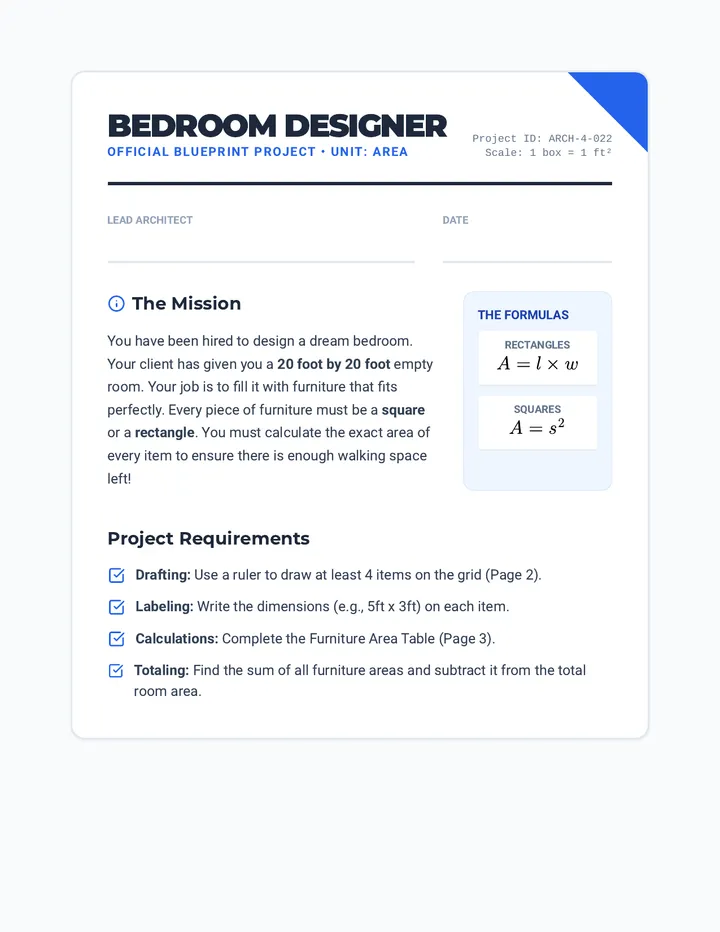

Bedroom Designer Worksheet Bedroom Designer
Official Blueprint Project • Unit: Area
Project ID: ARCH-4-022
Lead Architect
Date
The Mission
You have been hired to design a dream bedroom. Your client has given you a 20 foot by 20 foot empty room. Your job is to fill it with furniture that fits perfectly. Every piece of furniture must be a square or a rectangle . You must calculate the exact area of every item to ensure there is enough walking space left!
The Formulas
Rectangles
\(A = l \times w\)
Squares
\(A = s^2\)
Project Requirements
Drafting: Use a ruler to draw at least 4 items on the grid (Page 2).Labeling: Write the dimensions (e.g., 5ft x 3ft) on each item.Calculations: Complete the Furniture Area Table (Page 3).Totaling: Find the sum of all furniture areas and subtract it from the total room area.
The Blueprint
Draw your 20' x 20' bedroom layout below. Use colored pencils to differentiate items.
0'5'10'15'20'
0'5'10'15'20'
Total Room Width
20 ft
Total Room Length
20 ft
Total Room Area
400 ft²
Furniture Area Table
Item Name Dimensions (l × w) Show Your Work (\(A = l \times w\)) Total Area Bed Ex: 6 × 4 = 24 ft² Desk ft² Rug ft² ft² ft² Grand Total Furniture Area ft²
Final Calculation: Remaining Floor Space
Total Room
400
−
Furniture Area
=
Walking Space
Don't forget your units (ft²)!
Senior Architect Verification
"Blueprints reviewed and verified for area accuracy."
