Kleiber Law Slides Lesson 1: Allometry
Kleiber's Law &
Rational Exponents
Why do mice live fast and die young, while whales live slow and long? The answer is hidden in the power of 3/4.
The Mouse vs. The Elephant
Heart Rate
Mouse: ~600 bpm | Elephant: ~30 bpm
Metabolic Cost
Small animals consume far more energy per gram of body mass than large ones.
The Question
Is this relationship linear? (Spoiler: No.)
1:1,000
Mass Ratio
Defining Kleiber's Law
The Model
\[ B = c \cdot M^{3/4} \]
B
Basal Metabolic Rate (Energy consumption)
M
Body Mass
"c" is a constant that varies by taxonomic group (e.g., mammals vs. reptiles).
Interpreting \(M^{3/4}\)
Algebraic View
\( M^{3/4} \) is the same as:
\[ \sqrt[4]{M^3} \]
We cube the mass and then take the fourth root. This results in "sub-linear" scaling (0.75 < 1.0).
Physical Intuition
If mass doubles (\( 2 \)), metabolic rate increases by \( 2^{0.75} \approx 1.68 \).
Energy needs don't grow as fast as body size.
This is why large animals are "energy efficient."
Why not 2/3?
Early theories suggested surface-area scaling (\( 2/3 \) power), as heat is lost through skin.
The Fractal Theory
Modern biology suggests the \( 3/4 \) power comes from the fractal-like distribution of nutrients through blood vessels.
Branching
Vascular networks optimize flow
4D Geometry
Fractals effectively add a dimension
Let's Calculate
Suppose a 10kg dog has a metabolic rate of 400 kcal/day.
1
Find the constant \( c \) using \( B = c \cdot M^{3/4} \).
2
Predict the metabolic rate of a 1000kg cow.
3
Explain why the cow doesn't need 100x the food of the dog.
Metabolic Math Worksheet Metabolic Math
Laboratory Worksheet: Allometric Scaling
NAME: ____________________________________
DATE: ____________________________________
The Kleiber Law Model
In biology, allometry is the study of the relationship between body size and shape, anatomy, physiology and finally behavior. One of the most famous allometric laws is Kleiber's Law, which states that for the vast majority of animals, an animal's metabolic rate \( B \) scales to the \( 3/4 \) power of the animal's mass \( M \):
\[ B = c \cdot M^{3/4} \]
Where \( B \) is measured in kilocalories per day (kcal/day), \( M \) in kilograms (kg), and \( c \) is a constant.
Part 1: Algebraic Fundamentals
1. Rewrite the expression \( M^{3/4} \) in radical form. Then, explain in words the sequence of operations you would perform on a calculator if you didn't have an exponent key.
2. Calculate the value of \( M^{3/4} \) for the following masses (round to 2 decimal places):
M = 1 kg
M = 16 kg
M = 10,000 kg
Part 2: Determining the Constant
A typical domestic cat has an average mass of \( 4.5 \text{ kg} \) and requires approximately \( 215 \text{ kcal} \) of energy per day to maintain its basal metabolism.
3. Use the cat's data to solve for the constant \( c \) in Kleiber's Law. Show your steps below.
4. Using your constant from Question 3, predict the basal metabolic rate for a human with a mass of \( 70 \text{ kg} \).
Part 3: Comparative Scaling
Consider two animals: a Pocket Mouse (\( 20 \text{ g} = 0.02 \text{ kg} \)) and a Blue Whale (\( 150,000 \text{ kg} \)). Use the mammal constant \( c \approx 70 \).
Mouse Metabolic Rate (B)
Whale Metabolic Rate (B)
5. Mass Ratio vs. Metabolic Ratio:
Calculate the ratio of Whale Mass to Mouse Mass: \( \frac{M_{whale}}{M_{mouse}} \) = ____________________
Calculate the ratio of Whale Metabolism to Mouse Metabolism: \( \frac{B_{whale}}{B_{mouse}} \) = ____________________
6. Interpretation:
Explain why the metabolic ratio is significantly smaller than the mass ratio. What does this imply about the energy efficiency of large bodies?
Part 4: The "Specific" Rate
The "mass-specific metabolic rate" is the energy used PER UNIT of mass: \( S = \frac{B}{M} = c \cdot M^{-1/4} \).
7. Simplify the expression \( \frac{M^{3/4}}{M} \) using exponent rules to show that the specific rate is indeed \( M^{-1/4} \).
8. Real-World Application:
A hummingbird has a mass-specific rate nearly 100x that of a sloth. Based on the negative exponent \( -1/4 \), as an animal gets larger , what happens to the energy cost per gram of tissue? How does this explain why tiny animals must eat constantly?
Data based on West, Brown, and Enquist (1997) fractal network scaling model.
Allometry Teacher Guide Teacher Guide
Lesson 1: Biological Scaling Laws
Answer Key Included
Pedagogical Context
This lesson shifts rational exponents from abstract manipulation to a foundational principle of biology. Undergraduate students often struggle with the "why" of rational exponents; Kleiber's Law provides a rigorous physical justification. The 3/4 power isn't arbitrary—it represents the geometric constraints of 3D vascular networks branching into a 4D fractal efficient space.
Key Discussion Prompts:
Why don't animals scale linearly? (Heat loss, nutrient transport limits).
What would happen to an elephant if its metabolism scaled at \( M^{1.0} \)? (It would likely overheat and cook its own organs).
Why does a mouse's heart beat so fast? (To sustain the high mass-specific metabolic rate).
Learning Objectives
Evaluate expressions with rational exponents in context.
Solve power equations for a constant coefficient.
Interpret the physical meaning of sub-linear scaling (\( b < 1 \)).
Answer Key & Solutions
Part 1: Algebraic Fundamentals
1. Radical Form: \( \sqrt[4]{M^3} \) or \( (\sqrt[4]{M})^3 \). Sequence: Raise mass to power of 3, then take the square root twice (or use the \( y^x \) key with 0.75).
2. Calculations:
\( M=1 \implies 1.00 \)
\( M=16 \implies 16^{3/4} = (\sqrt[4]{16})^3 = 2^3 = 8.00 \)
\( M=10,000 \implies (\sqrt[4]{10,000})^3 = 10^3 = 1,000.00 \)
Part 2: Determining the Constant
3. Solve for \( c \): \( 215 = c \cdot (4.5)^{3/4} \). \( (4.5)^{3/4} \approx 3.089 \). \( c = 215 / 3.089 \approx \mathbf{69.6} \). (Note: Standard mammalian constant is usually cited as ~70).
4. Human BMR: \( B = 70 \cdot (70)^{3/4} = 70^1 \cdot 70^{0.75} = 70^{1.75} \approx \mathbf{1,700 \text{ kcal/day}} \). (Accept range 1600-1800 based on rounding).
Part 3: Comparative Scaling
5. Ratios:
Mass Ratio: \( 150,000 / 0.02 = \mathbf{7,500,000} \).
Metabolism Ratio: \( (150,000/0.02)^{3/4} = (7,500,000)^{0.75} \approx \mathbf{107,331} \).
6. Interpretation: The whale is ~7.5 million times heavier but only needs ~107 thousand times the food. This means large animals are much more energy-efficient per gram of tissue. Heat retention and vascular efficiency allow for this economies of scale.
Part 4: Specific Rate
Planetary Motion Slides Lesson 2: Orbital Mechanics
Cosmic Power Laws
Using rational exponents to map the solar system through Kepler's Third Law of Planetary Motion.
Johannes Kepler's Breakthrough
In 1619, Kepler discovered a precise mathematical relationship between a planet's distance from the Sun and its orbital period.
The Harmonic Law
"The ratio of the square of the period to the cube of the distance is constant for all planets."
\[ P^2 \propto a^3 \]
Where \( P \) is the period (time) and \( a \) is the semi-major axis (distance).
The Power Function Form
Solving for Distance (\( a \))
If we start with \( a^3 = P^2 \), we raise both sides to the \( 1/3 \) power:
\[ a = P^{2/3} \]
Distance is the period raised to the 2/3 power.
Solving for Period (\( P \))
If we start with \( P^2 = a^3 \), we raise both sides to the \( 1/2 \) power:
\[ P = a^{3/2} \]
Period is the distance raised to the 3/2 power.
Testing the Model: Mars
Distance (a)
1.524 AU
(Astronomical Units - Earth-Sun distances)
Calculation
\( P = (1.524)^{3/2} \)
\( P \approx 1.881 \) Earth Years
"The Observed Period of Mars is 1.881 Earth years. The math matches reality almost perfectly."
This confirms that the laws of physics are written in the language of algebra and rational exponents.
Universal Units
Solar Units
If we use:
\( P \) in Earth Years
\( a \) in AU (93 million miles)
Constant = 1
Standard Metric (SI)
If we use seconds and meters:
\( P^2 = \left(\frac{4\pi^2}{GM}\right) a^3 \)
Where \( G \) is gravity and \( M \) is the Sun's mass.
Launch Prep
A hypothetical planet "Epsilon" is discovered orbiting a star. It is 4 AU from its star. How many Earth years does one orbit take?
\( P = 4^{3/2} = (\sqrt{4})^3 = \text{?} \)

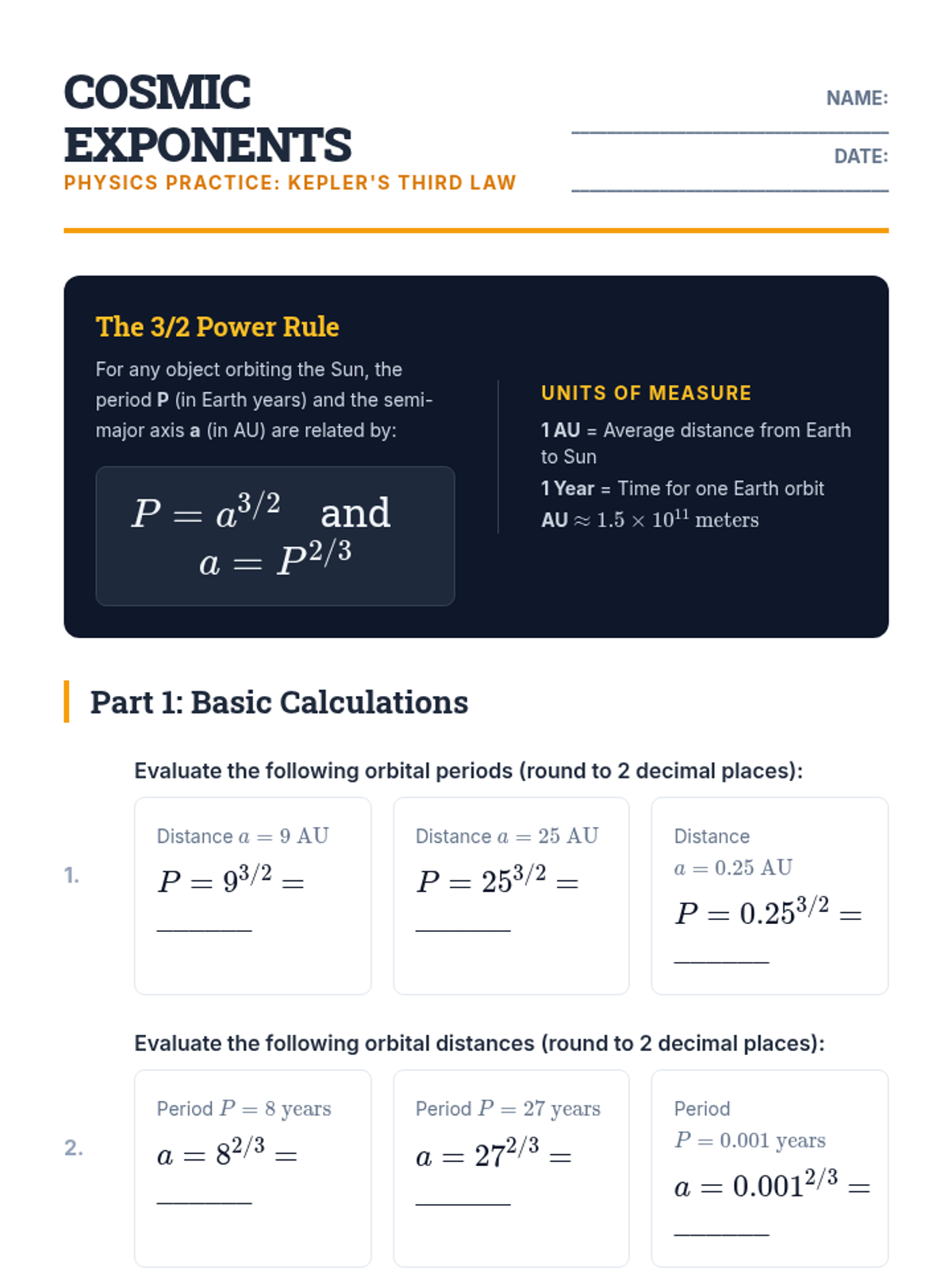

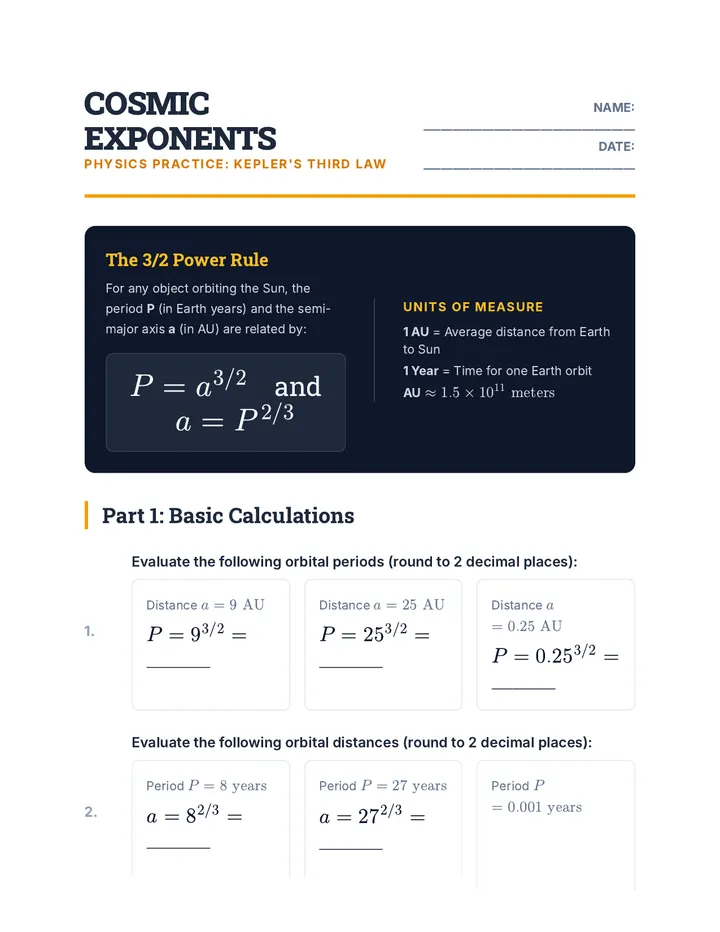

Cosmic Exponents Practice Cosmic Exponents
Physics Practice: Kepler's Third Law
NAME: ____________________________________
DATE: ____________________________________
The 3/2 Power Rule
For any object orbiting the Sun, the period P (in Earth years) and the semi-major axis a (in AU) are related by:
\( P = a^{3/2} \) and \( a = P^{2/3} \)
Units of Measure
1 AU = Average distance from Earth to Sun1 Year = Time for one Earth orbitAU \(\approx 1.5 \times 10^{11} \text{ meters}\)
Part 1: Basic Calculations
Evaluate the following orbital periods (round to 2 decimal places):
Distance \( a = 9 \text{ AU} \)
\( P = 9^{3/2} = \) ______
Distance \( a = 25 \text{ AU} \)
\( P = 25^{3/2} = \) ______
Distance \( a = 0.25 \text{ AU} \)
\( P = 0.25^{3/2} = \) ______
Evaluate the following orbital distances (round to 2 decimal places):
Period \( P = 8 \text{ years} \)
\( a = 8^{2/3} = \) ______
Period \( P = 27 \text{ years} \)
\( a = 27^{2/3} = \) ______
Period \( P = 0.001 \text{ years} \)
\( a = 0.001^{2/3} = \) ______
Part 2: Real World Observations
Object Distance (a) in AU Observed Period (P) in Years Calculated \( P = a^{3/2} \) Jupiter 5.203 11.86 Calculate below... Saturn 9.537 29.45 Calculate below... Neptune 30.07 164.8 Calculate below...
3. Pick one object from the table and show the step-by-step calculation to verify Kepler's Law.
Part 3: Deep Space Exploration
4
Halley's Comet: This famous comet has a highly elliptical orbit. Its average orbital distance (semi-major axis) is \( 17.8 \text{ AU} \). Calculate how many years we must wait between sightings on Earth.
5
Exoplanet Proxima b: A planet orbits the star Proxima Centauri with a period of only \( 11.2 \text{ Earth days} \).

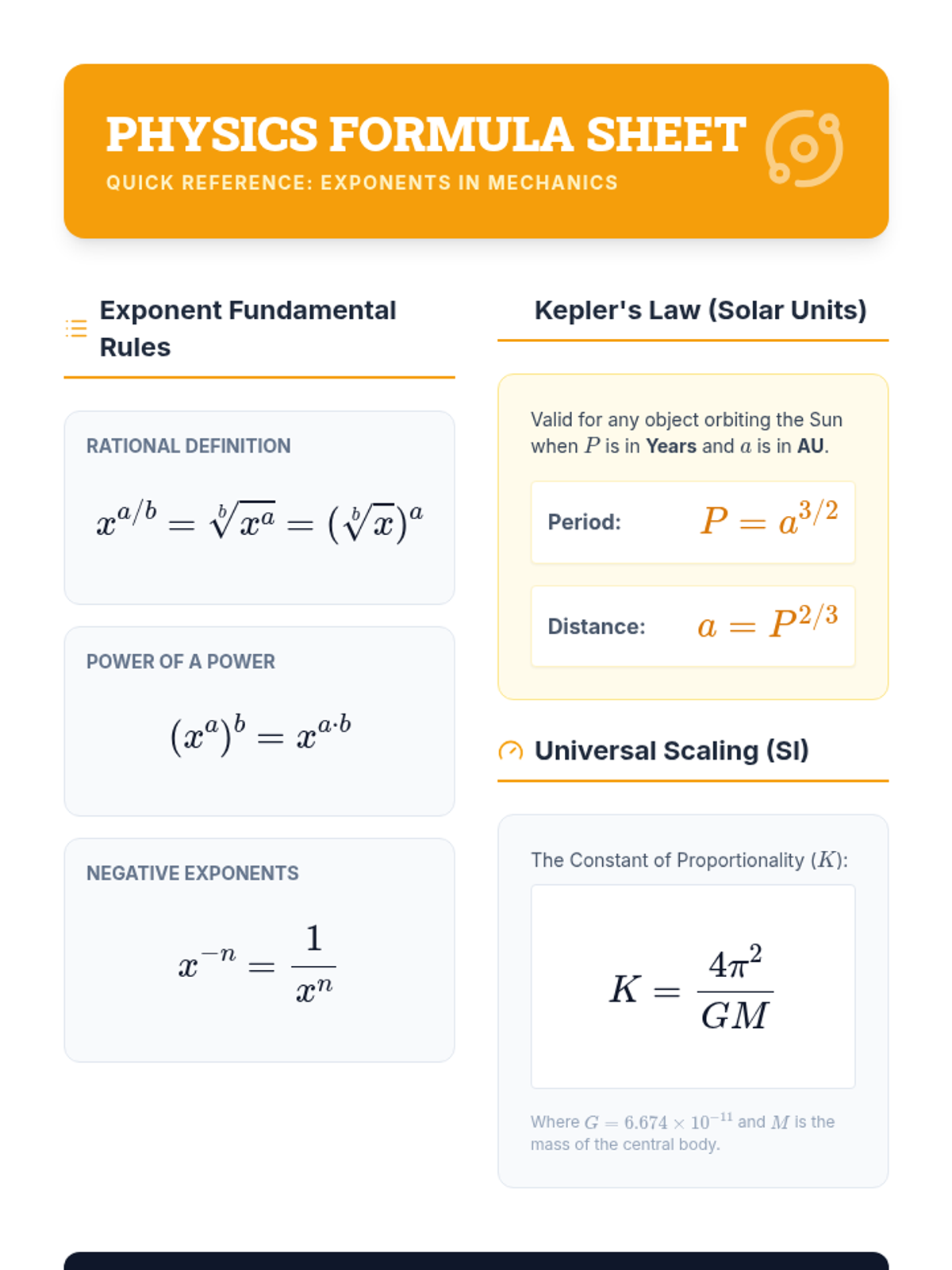

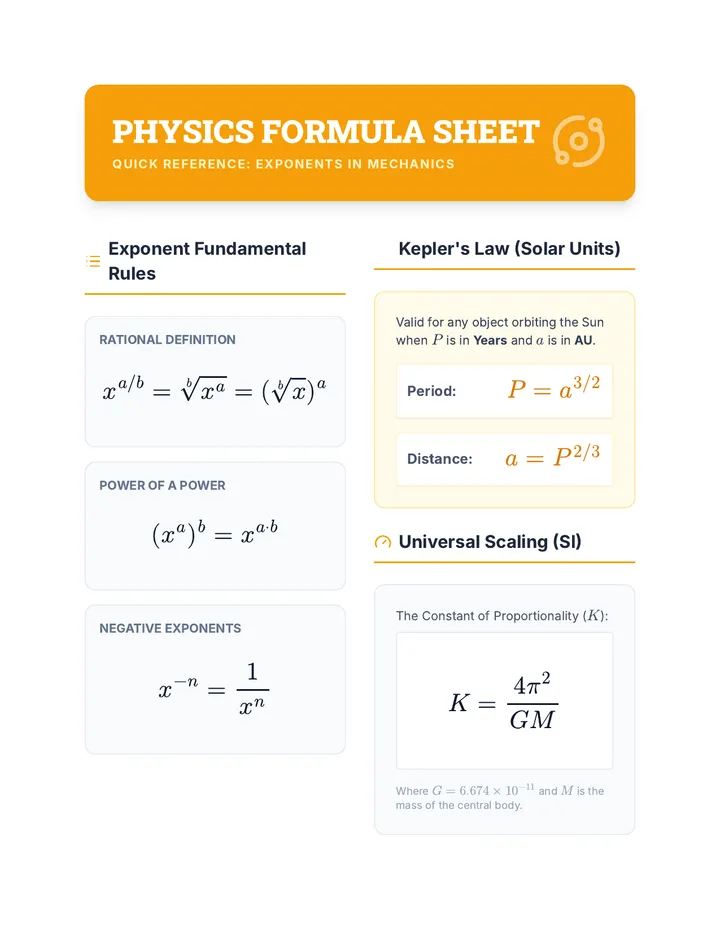

Physics Formula Sheet Physics Formula Sheet
Quick Reference: Exponents in Mechanics
Exponent Fundamental Rules
Rational Definition
\[ x^{a/b} = \sqrt[b]{x^a} = (\sqrt[b]{x})^a \]
Power of a Power
\[ (x^a)^b = x^{a \cdot b} \]
Negative Exponents
\[ x^{-n} = \frac{1}{x^n} \]
Kepler's Law (Solar Units)
Valid for any object orbiting the Sun when \( P \) is in Years and \( a \) is in AU .
Period: \( P = a^{3/2} \)
Distance: \( a = P^{2/3} \)
Universal Scaling (SI)
The Constant of Proportionality (\( K \)):
\[ K = \frac{4\pi^2}{GM} \]
Where \( G = 6.674 \times 10^{-11} \) and \( M \) is the mass of the central body.
Computation Tip
To calculate \( x^{3/2} \) on a basic scientific calculator, use:
Planetary Quick-Reference
Mercury
0.39 AU
Venus
0.72 AU
Earth
1.00 AU
Mars
1.52 AU
Jupiter
5.20 AU
Saturn
9.54 AU
Uranus
19.2 AU
Neptune
30.1 AU
Fractional Finance Slides Lesson 3: Financial Precision
Fractional Finance
& Compound Growth
Calculating growth over partial periods. Why rational exponents are the gold standard for banking accuracy.
The "Partial Period" Problem
Most interest is quoted annually. But what if you withdraw your money after 7 months and 12 days ?
Simple Interest Approximation
Splits the annual rate linearly. (Less accurate over time).
Exponential Precision
Uses a rational exponent to find the exact multiplier for a fraction of a year.
Time as a Fraction
\( t = \frac{225}{365} \approx 0.6164 \)
Fraction of a Year
Precision Compound Interest
Precision: High
\[ A = P(1 + r)^t \]
\( A \)
Total Amount
\( r \)
Annual Rate
\( t \)
Fractional Time
When \( t \) is not an integer, we are evaluating a rational exponent .
The 6-Month GIC
Investment Data
Principal: $10,000
Annual Rate: 8% (0.08)
Term: 0.5 years
The Power of Square Roots:
\( (1.08)^{1/2} = \sqrt{1.08} \)
Calculation
\( 10,000 \cdot (1.08)^{0.5} \)
\( 10,000 \cdot 1.03923... \)
$10,392.30
Notice: This is slightly LESS than half of 8% ($10,400). Compound interest grows faster at the end of the year than the beginning.
Visualizing Fractional Growth
Start of Year End of Year
NON-LINEAR
Linear (Simple) interest assumes you earn the same amount every single day.
Exponential interest recognizes that your interest EARNS interest, even on day 2.
Workshop Challenge
A high-yield savings account offers 12% APR.
1
Express the growth factor for exactly 4 months as a rational exponent.
2
Calculate the exact multiplier: \( (1.12)^{4/12} \).
3
Why is this multiplier different than 1.04 (one-third of 12%)?

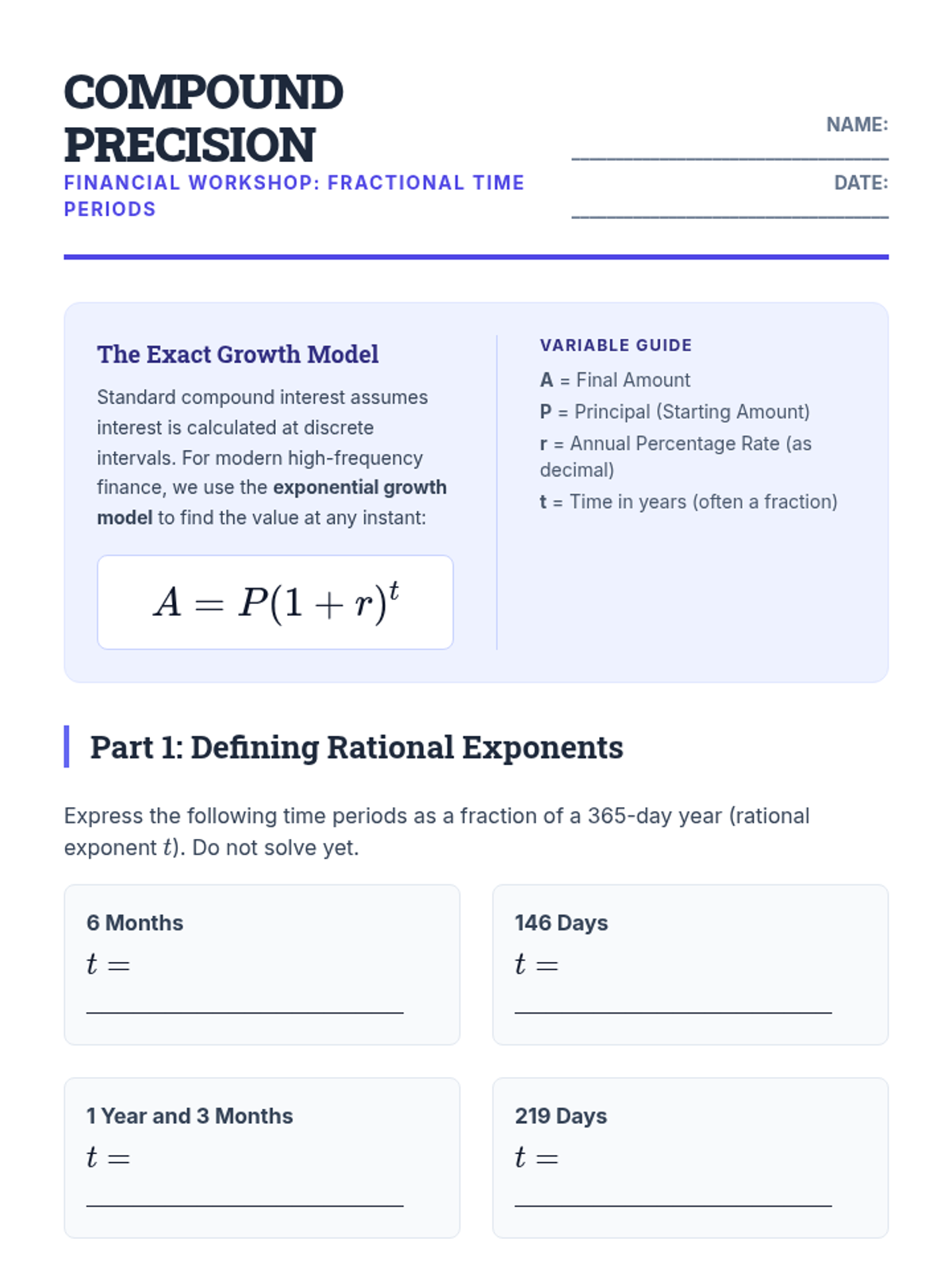

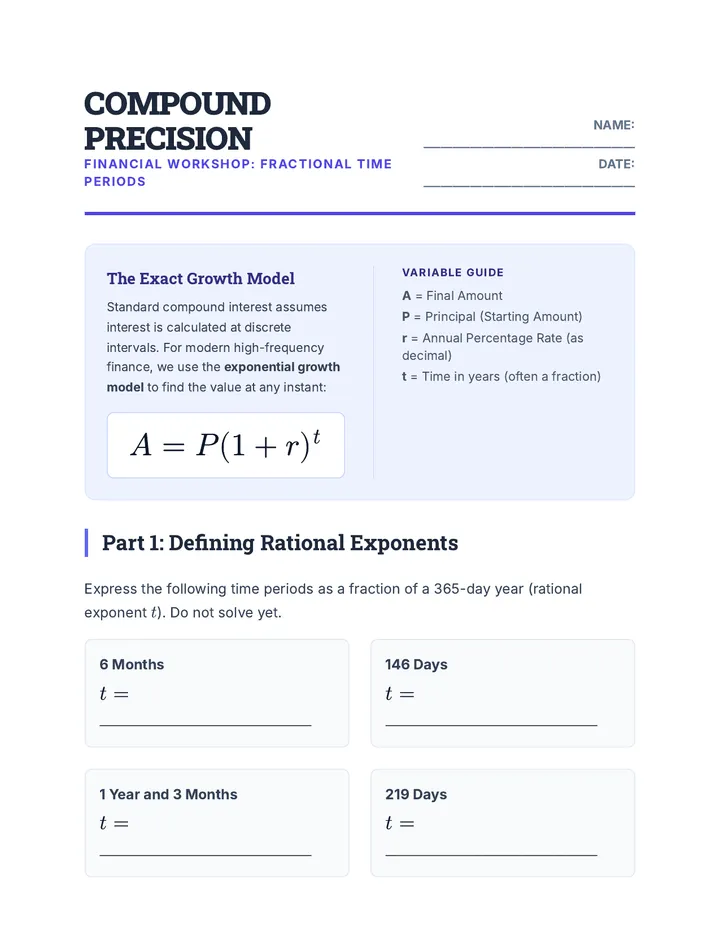

Compound Interest Workshop Compound Precision
Financial Workshop: Fractional Time Periods
NAME: ____________________________________
DATE: ____________________________________
The Exact Growth Model
Standard compound interest assumes interest is calculated at discrete intervals. For modern high-frequency finance, we use the exponential growth model to find the value at any instant:
\( A = P(1 + r)^t \)
Variable Guide
A = Final AmountP = Principal (Starting Amount)r = Annual Percentage Rate (as decimal)t = Time in years (often a fraction)
Part 1: Defining Rational Exponents
Express the following time periods as a fraction of a 365-day year (rational exponent \( t \)). Do not solve yet.
6 Months
\( t = \) ____________________
146 Days
\( t = \) ____________________
1 Year and 3 Months
\( t = \) ____________________
219 Days
\( t = \) ____________________
Part 2: Calculating Multipliers
For an account with a 10% annual rate (\( r = 0.10 \)) , calculate the growth multiplier \( (1.10)^t \) for the following terms. Round to 5 decimal places.
Term (Years) Calculation Process Growth Multiplier 0.5 \( \sqrt{1.10} \) ________________ 1/3 (4 mo) \( \sqrt[3]{1.10} \) ________________ 0.25 (3 mo) \( \sqrt[4]{1.10} \) ________________ 0.75 (9 mo) \( (1.10)^{3/4} \) or \( \sqrt[4]{1.10^3} \) ________________
Part 3: Solving the Millionaire's Gap
"A client invests $50,000 in a venture fund returning 15% annually. They decide to pull out the investment after exactly 200 days ."
1. Linear Approximation (Simple Interest):
Calculate 15% of $50,000, then multiply by the fraction of the year (200/365).
2. Exponential Precision (Rational Exponents):
Calculate the amount using \( A = 50,000 \cdot (1.15)^{200/365} \).
3. Critical Analysis:

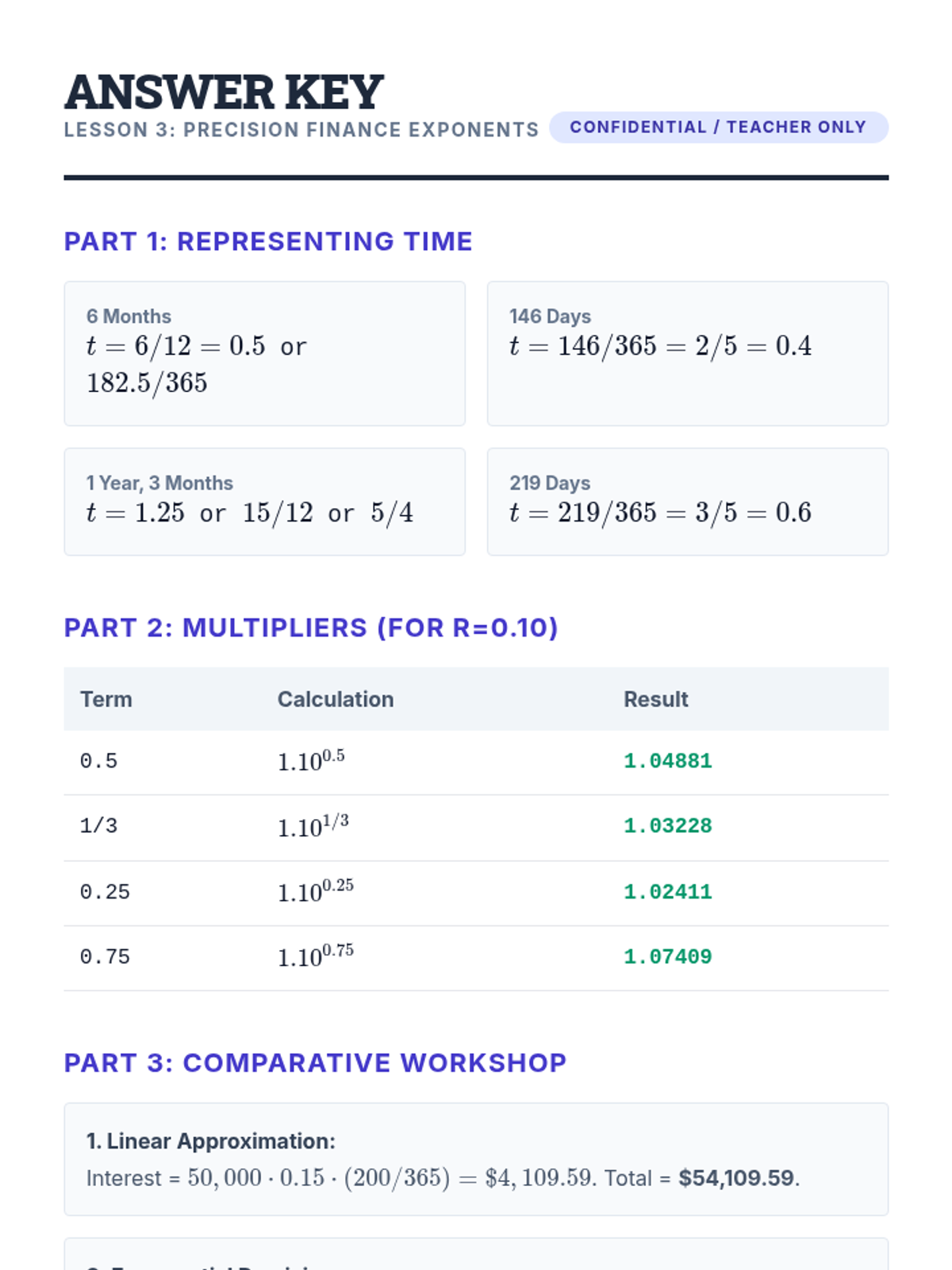

Finance Answer Key Answer Key
Lesson 3: Precision Finance Exponents
Confidential / Teacher Only
Part 1: Representing Time
6 Months
\( t = 6/12 = 0.5 \) or \( 182.5/365 \)
146 Days
\( t = 146/365 = 2/5 = 0.4 \)
1 Year, 3 Months
\( t = 1.25 \) or \( 15/12 \) or \( 5/4 \)
219 Days
\( t = 219/365 = 3/5 = 0.6 \)
Part 2: Multipliers (for r=0.10)
Term Calculation Result 0.5 \( 1.10^{0.5} \) 1.04881 1/3 \( 1.10^{1/3} \) 1.03228 0.25 \( 1.10^{0.25} \) 1.02411 0.75 \( 1.10^{0.75} \) 1.07409
Part 3: Comparative Workshop
1. Linear Approximation:
Interest = \( 50,000 \cdot 0.15 \cdot (200/365) = \$4,109.59 \). Total = \$54,109.59.
2. Exponential Precision:
\( A = 50,000 \cdot (1.15)^{200/365} \approx 50,000 \cdot 1.07923 = \mathbf{\$53,961.50} \).
3. Analysis:
The linear method yields a higher payout for the investor (\( \$54,109.59 > \$53,961.50 \)). This is because compound interest growth is "convex"—it curves upward. In the early part of the year, the linear line sits ABOVE the exponential curve. Banks usually use the exponential method for precision, which actually saves the bank money on early withdrawals compared to simple interest.
Part 4: Targeted Growth
\( 2 = (1.10)^t \implies \ln(2) = t \cdot \ln(1.10) \implies t = \frac{\ln(2)}{\ln(1.10)} \approx \mathbf{7.27 \text{ years}} \).
Check: \( 1.10^{7.27} \approx 1.999 \). Doubling time is approximately 7 years and 3 months.
Power Law Regression Slides Lesson 4: Statistical Modeling
Data Driven
Power Laws
Fitting equations of the form \( y = ax^b \) to real-world data where the exponent \( b \) reveals the physics of the system.
Regression Analysis
Regression is the process of finding the "best fit" mathematical model for a set of observations.
Linear: \( y = mx + b \)
Power Law: \( y = ax^b \)
Why use Power Laws?
Models growth that is neither linear nor exponential.
Scaling laws (like Kleiber's or Kepler's) are naturally power laws.
Works across multiple orders of magnitude.
Linearizing the Power Law
How do computers find the best fit for \( y = ax^b \)? They use logarithms!
\( \ln(y) = \ln(ax^b) \)
\( \ln(y) = b \cdot \ln(x) + \ln(a) \)
This is a linear equation where the slope is the exponent \( b \).
Log(Y)
Log(X)
On a log-log scale,
Biological Data: Wing Area
Hypothesis
Wing area (\( A \)) should scale with body mass (\( M \)).
Theoretical Exponent
\( 2/3 \approx 0.67 \)
(Area vs. Volume scaling)
Bird Species Mass (kg) Wing Area (\( m^2 \)) Hummingbird 0.003 0.0006 Sparrow 0.025 0.0051 Pigeon 0.300 0.0630 Albatross 8.500 0.6500
Regression result: \( A = 0.16 M^{0.69} \). Extremely close to \( 2/3 \)!
Evaluating the Model
What is \( R^2 \)?
The Coefficient of Determination measures how much of the data's variation is explained by the model.
0.0 - 1.0
\( > 0.9 \): Excellent Fit
\( 0.7 - 0.9 \): Moderate Fit
\( < 0.5 \): Poor Fit
The Dragon Problem
Using the bird scaling law (\( A = 0.16 M^{0.67} \)), predict the wing area required for a 2,000 kg dragon to fly.
\( A = 0.16 \cdot (2000)^{0.67} = \text{?} \)
Is this realistic for a living creature?

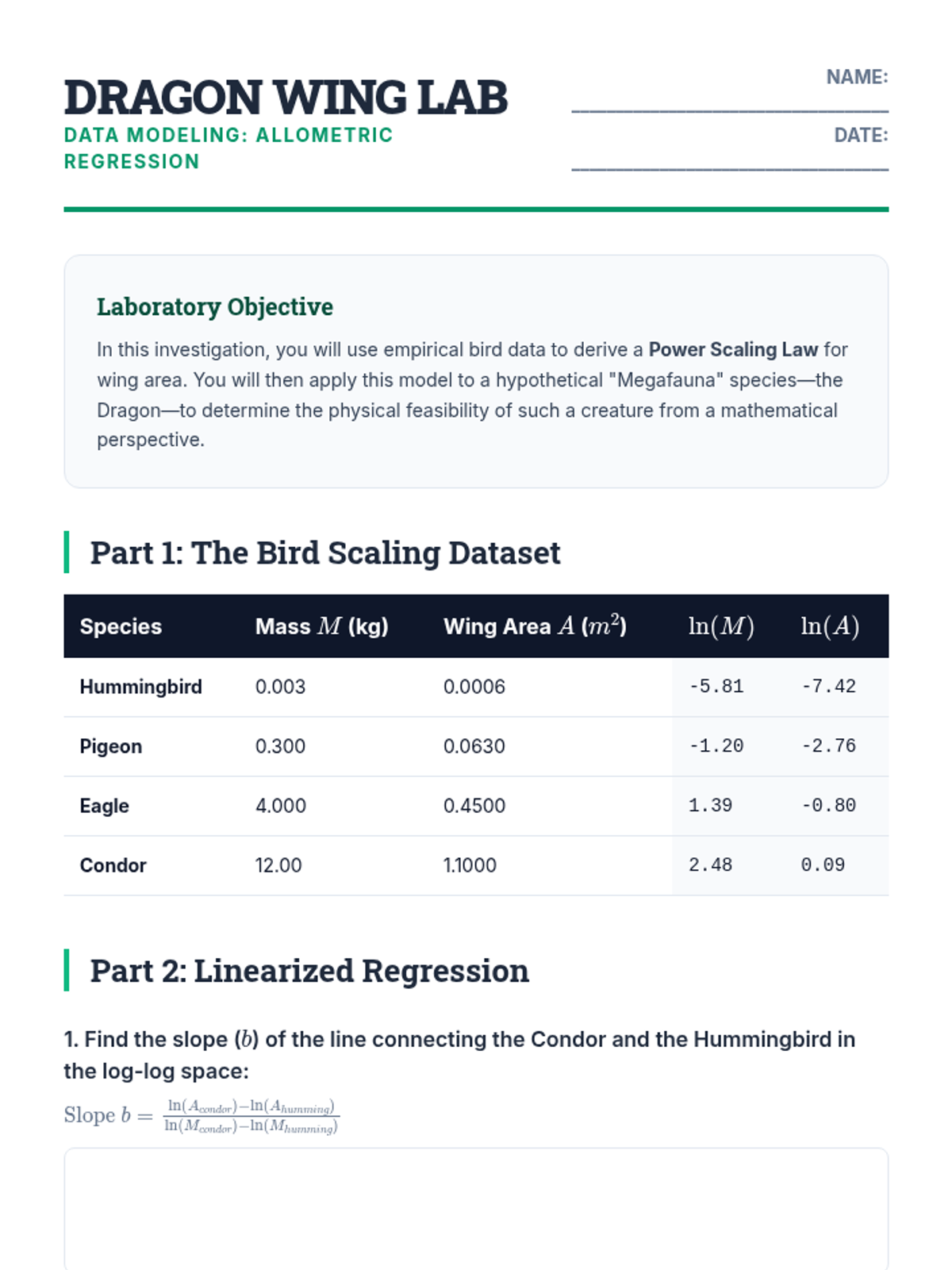

Dragon Wing Data Lab Dragon Wing Lab
Data Modeling: Allometric Regression
NAME: ____________________________________
DATE: ____________________________________
Laboratory Objective
In this investigation, you will use empirical bird data to derive a Power Scaling Law for wing area. You will then apply this model to a hypothetical "Megafauna" species—the Dragon—to determine the physical feasibility of such a creature from a mathematical perspective.
Part 1: The Bird Scaling Dataset
Species Mass \( M \) (kg) Wing Area \( A \) (\( m^2 \)) \( \ln(M) \) \( \ln(A) \) Hummingbird 0.003 0.0006 -5.81 -7.42 Pigeon 0.300 0.0630 -1.20 -2.76 Eagle 4.000 0.4500 1.39 -0.80 Condor 12.00 1.1000 2.48 0.09
Part 2: Linearized Regression
1. Find the slope (\( b \)) of the line connecting the Condor and the Hummingbird in the log-log space:
\( \text{Slope } b = \frac{\ln(A_{condor}) - \ln(A_{humming})}{\ln(M_{condor}) - \ln(M_{humming})} \)
2. Write the resulting Power Law equation in the form \( A = a \cdot M^b \).
Assume the coefficient \( a \approx 0.16 \). Use your calculated \( b \) from Question 1.
\( A = \) __________________________
Part 3: Scaling to the Mythical
You are a biologist advising a fantasy film crew. They want to design a dragon with a body mass of 2,500 kg . Using your model from Part 2, perform the following calculations:
3. Predictive Modeling:
Calculate the required Wing Area (\( A \)) for this dragon based on the bird scaling law.
4. Dimensional Analysis:
If the dragon's wings are roughly square, what would be the length of one wing ? (Square root of your answer in Q3).
5. Biological Critique:
The largest flying bird ever known (Argentavis) was 70 kg. Using the concept of rational exponents, explain why wing area requirements become "problematic" as animals get very large. (Hint: Does mass increase faster than wing area? Compare \( M^1 \) to \( M^{0.67} \)).
Part 4: Goodness of Fit
A researcher fits a power law to insect wing data and gets \( R^2 = 0.62 \). A second researcher fits the same data to a linear model and gets \( R^2 = 0.45 \). Which model is more reliable, and what does this tell you about the relationship between insect mass and wing size?

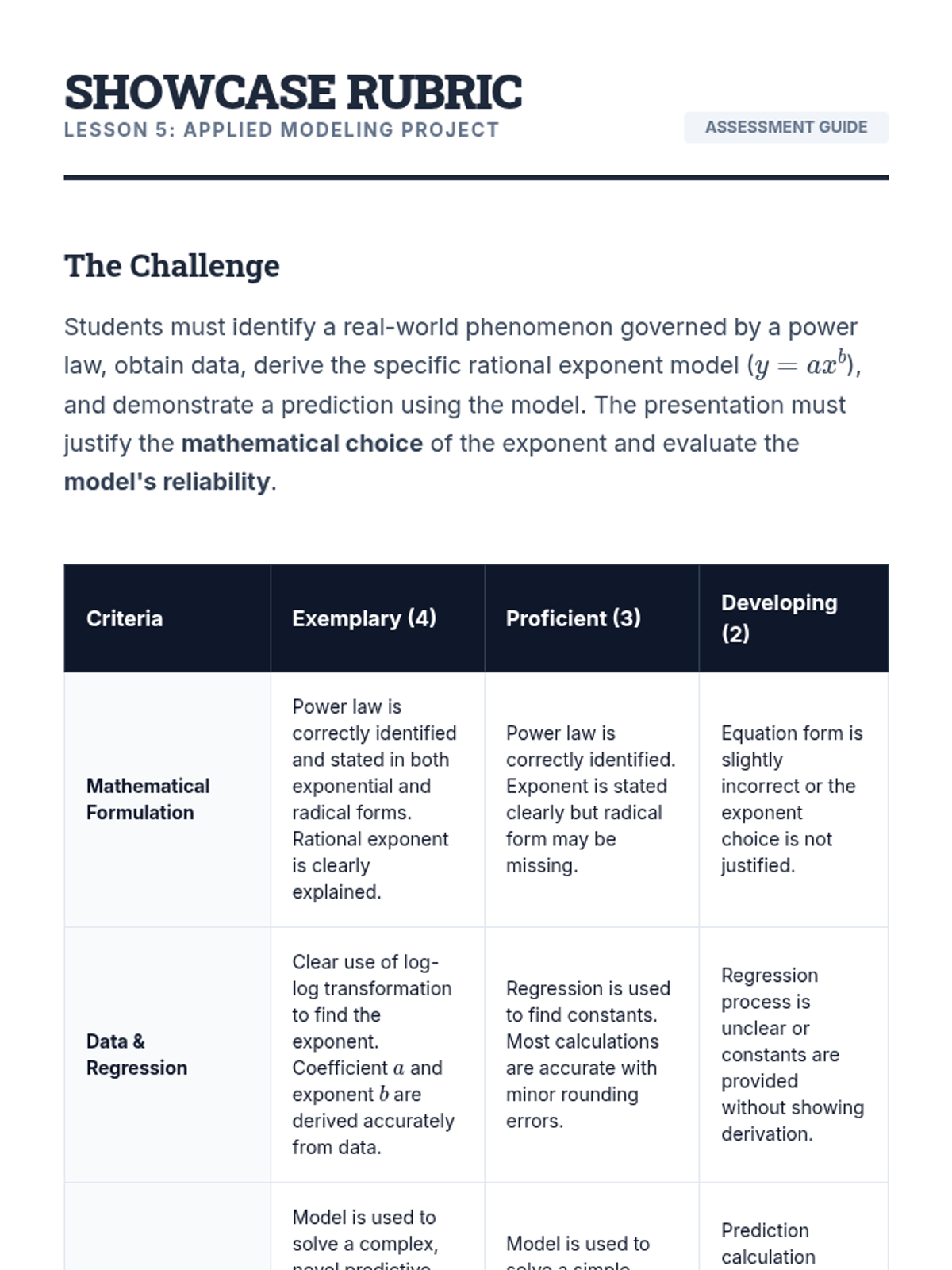

Modeling Project Rubric Showcase Rubric
Lesson 5: Applied Modeling Project
Assessment Guide
The Challenge
Students must identify a real-world phenomenon governed by a power law, obtain data, derive the specific rational exponent model (\( y = ax^b \)), and demonstrate a prediction using the model. The presentation must justify the mathematical choice of the exponent and evaluate the model's reliability .
Criteria Exemplary (4) Proficient (3) Developing (2) Mathematical Formulation Power law is correctly identified and stated in both exponential and radical forms. Rational exponent is clearly explained. Power law is correctly identified. Exponent is stated clearly but radical form may be missing. Equation form is slightly incorrect or the exponent choice is not justified. Data & Regression Clear use of log-log transformation to find the exponent. Coefficient \( a \) and exponent \( b \) are derived accurately from data. Regression is used to find constants. Most calculations are accurate with minor rounding errors. Regression process is unclear or constants are provided without showing derivation. Predictive Power Model is used to solve a complex, novel predictive problem. Prediction is interpreted within physical context. Model is used to solve a simple predictive problem. Interpretation is basic. Prediction calculation contains errors or is not linked back to the physical model. Scientific Communication Highly polished presentation. Visuals effectively use graphs and diagrams to explain non-linear scaling. Effective communication. Visuals are clear but may be missing key annotations. Visuals are cluttered or difficult to read. Presentation lacks cohesive flow.
Potential Phenomenon Ideas
• City Size vs. Economic Output (Super-linear scaling)
• Earthquake Frequency vs. Magnitude (Gutenberg-Richter)
• River Network Branching (Horton's Laws)
• Star Luminosity vs. Mass (Mass-Luminosity relation)
• Stock Market Volatility Patterns
Technical Requirements
• Minimum 5 data points for regression.
• Must show log-log linearization graph.
• Include \( R^2 \) value and critique it.
• Slides or digital poster format.

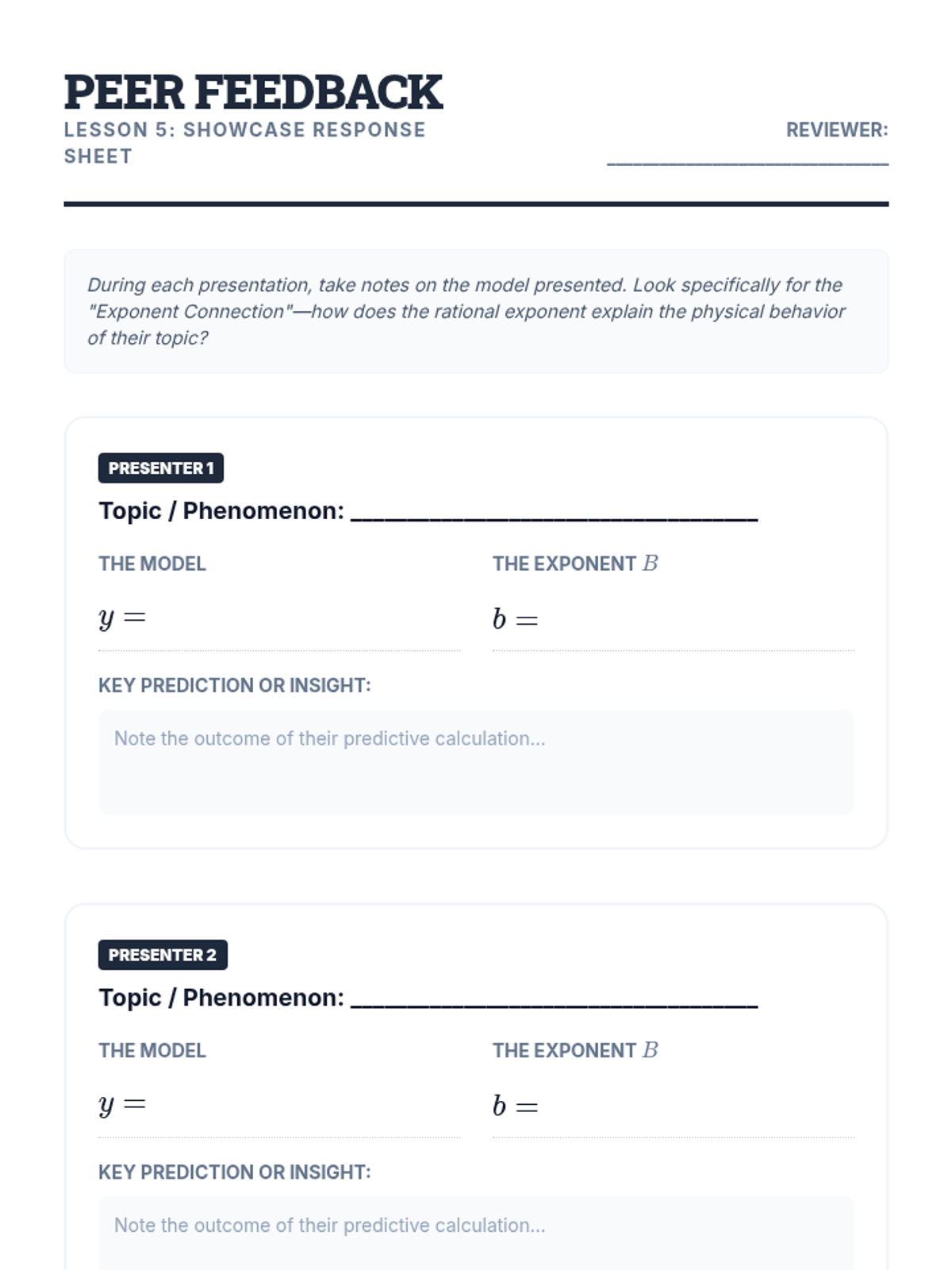

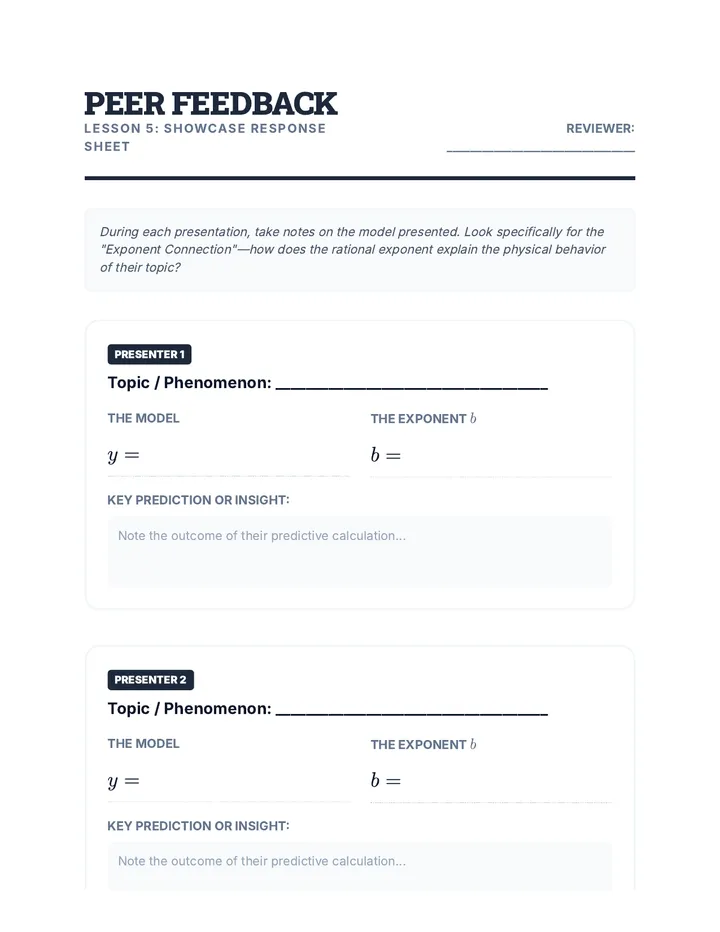

Presentation Feedback Form Peer Feedback
Lesson 5: Showcase Response Sheet
REVIEWER: ________________________________
During each presentation, take notes on the model presented. Look specifically for the "Exponent Connection"—how does the rational exponent explain the physical behavior of their topic?
PRESENTER 1
Topic / Phenomenon: ____________________________________
The Model
\( y = \)
The Exponent \( b \)
\( b = \)
Key Prediction or Insight:
Note the outcome of their predictive calculation...
PRESENTER 2
Topic / Phenomenon: ____________________________________
The Model
\( y = \)
The Exponent \( b \)
\( b = \)
Key Prediction or Insight:
Note the outcome of their predictive calculation...
PRESENTER 3
Topic / Phenomenon: ____________________________________
The Model
\( y = \)
The Exponent \( b \)
\( b = \)
Key Prediction or Insight:
Note the outcome of their predictive calculation...
Final Reflection
Of the presentations you watched today, which one used a rational exponent in the most surprising way? How did the math change your understanding of that real-world topic?
