Slopes of Polar Curves Slides Project: Polar Calculus // Sheet 01
Slopes of Polar Curves
Navigating the Tangent Landscape
DATE: 18 JAN 2026 SCALE: 1:1 RADIAN STATUS: DRAFT
The Cardioid Challenge
Consider the heart-shaped path:
"Where does this shape stand perfectly upright? Where does it flatten out?"
The Goal:
Identify exactly where the tangent line is horizontal (dy/dx = 0) or vertical (dy/dx is undefined).
[ GRAPH: r = 1 - sin(θ) ]
The Fundamental Shift
1. Coordinate Link
To find dy/dx, we must link x and y to θ:
x = r cos(θ)
2. Chain Rule Application
Since r is a function of θ, we use the product rule:
\[ \frac{dy}{dx} = \frac{dy/d\theta}{dx/d\theta} \]
\[ \frac{dy}{dx} = \frac{\frac{dr}{d\theta}\sin\theta + r\cos\theta}{\frac{dr}{d\theta}\cos\theta - r\sin\theta} \]
Field Test: Cardioid Slopes
For the curve r = 1 - sin(θ), find the slope of the tangent line at θ = π/4.
A
Calculate \( \frac{dr}{d\theta} \)
B
Plug \( r \), \( \frac{dr}{d\theta} \), and \( \theta = \frac{\pi}{4} \) into the slope formula.
C
Simplify the resulting trigonometric mess!
Diagnostic Checklist
Horizontal Tangent
Occurs when the numerator of dy/dx is zero.
\( \frac{dr}{d\theta}\sin\theta + r\cos\theta = 0 \)
(Provided the denominator is NOT zero)
Vertical Tangent
Occurs when the denominator of dy/dx is zero.
\( \frac{dr}{d\theta}\cos\theta - r\sin\theta = 0 \)
(Provided the numerator is NOT zero)
Slope Investigation Worksheet Slope Investigation
PROJECT: POLAR CALCULUS // COMPONENT: DIFFERENTIATION
Candidate:
Ref No: L1-WS-001
Technical Specifications
In polar coordinates, the slope of the tangent line \( dy/dx \) is determined by the parametric relationship \( x = r\cos\theta \) and \( y = r\sin\theta \). Use the formula derived in class to perform the following structural analyses. Show all trigonometric simplifications.
01
The Cardioid Contact Point
Consider the cardioid defined by \( r = 2(1 + \cos\theta) \). Calculate the slope of the tangent line at the point where \( \theta = \frac{\pi}{3} \).
Step A: Calculate \( dr/d\theta \)
Step B: Evaluate \( r \) and \( dr/d\theta \) at \( \theta = \pi/3 \)
Final Calculation & Simplification
02
Vertical and Horizontal Stress
Analyze the three-petaled rose curve \( r = \sin(3\theta) \). Identify all values of \( \theta \) in the interval \( [0, \pi] \) where the curve has a **vertical tangent line**.
Analysis of denominator condition (\( dx/d\theta = 0 \)):
Final Coordinates (\( \theta \)-values):
Anomaly Detection
Determine if the curve \( r = \theta \) has a horizontal tangent at the origin (\( \theta = 0 \)). Note: When \( r = 0 \) and \( dr/d\theta \neq 0 \) at the origin, the slope of the tangent line is simply \( \tan\theta \). Prove or disprove this for this specific case.
Area of Polar Regions Slides Project: Polar Calculus // Sheet 02
Area of Polar Regions
From Rectangles to Sectors
REF: L2-AREA INTEGRATION MODE: ROTATIONAL
The Geometry of Sums
Cartesian (Riemann)
Accumulating Vertical Rectangles along the x-axis.
dA = f(x) dx
Polar (Sectorial)
Accumulating Circular Sectors as \(\theta\) rotates.
dA = \(\frac{1}{2}r^2 d\theta\)
Building the Formula
The area of a sector with radius \( r \) and central angle \( \Delta\theta \) is a fraction of the total area of a circle (\(\pi r^2\)).
\[ \text{Sector Area} = \left(\frac{\Delta\theta}{2\pi}\right) \cdot \pi r^2 \]
\[ \Delta A = \frac{1}{2}r^2 \Delta\theta \]
The Polar Integral
As \(\Delta\theta \to 0\), the sum becomes:
\[ A = \int_{\alpha}^{\beta} \frac{1}{2} [f(\theta)]^2 \, d\theta \]
*Limits \(\alpha\) and \(\beta\) are rotational bounds.
Standard Operating Procedure
01
Identify Bounds
Determine the interval of \(\theta\) that traces the desired region. Check for periodicity!
02
Square the Radius
Substitute \(r = f(\theta)\) into the formula. Prepare for power-reduction identities.
03
Integrate
Evaluate the definite integral. Don't forget the \(\frac{1}{2}\) coefficient outside!
Worked Example
Area of a Rose Petal
Find the area of one leaf of the rose curve \( r = 3\sin(2\theta) \).
1. Bounds Check:
The leaf starts and ends at the origin (\(r = 0\)).
\( 3\sin(2\theta) = 0 \implies 2\theta = 0, \pi \implies \theta = 0, \pi/2 \)
2. Setup:
\[ A = \int_{0}^{\pi/2} \frac{1}{2} (3\sin 2\theta)^2 \, d\theta \]
Use Identity: \( \sin^2(u) = \frac{1-\cos(2u)}{2} \)
Area Calculations Worksheet Area Calculations
PROJECT: POLAR CALCULUS // COMPONENT: INTEGRATION
Candidate:
Ref No: L2-WS-002
Standard Integration Protocol
Recall the polar area formula: \( A = \int_{\alpha}^{\beta} \frac{1}{2} [r(\theta)]^2 d\theta \). For each problem, identify the rotational bounds \( [\alpha, \beta] \), sketch the region (if not provided), and evaluate the definite integral.
01
Basic Geometric Verification
Find the area of the region enclosed by the circle \( r = 4\cos\theta \). Verify your result using the standard geometric area formula for a circle.
Analysis of Bounds:
[ Sketch Space ]
02
The Heart of the Matter
Calculate the area of the region enclosed by the cardioid \( r = 2 + 2\cos\theta \).
Hint: Use the power-reduction identity \( \cos^2\theta = \frac{1 + \cos(2\theta)}{2} \) to evaluate the integral of the squared term.
03
The Inner Loop Anomaly
Find the area of the inner loop of the limacon \( r = 1 + 2\cos\theta \).
Critical Intersection Check:
Compound Polar Area Slides Project: Polar Calculus // Sheet 03
Compound Polar Regions
Finding Intersection and Commonality
REF: L3-COMPOUND MISSION: AREA OVERLAP
Structural Archetypes
1. Region Between
Area inside curve \( r_{outer} \) but outside curve \( r_{inner} \).
\[ A = \int_{\alpha}^{\beta} \frac{1}{2} [(r_{out})^2 - (r_{in})^2] \, d\theta \]
2. Common Interior
Area that lies inside BOTH curves simultaneously.
Technique:
Split the integral at the intersection points! Sum of two distinct regions.
Finding Limits
Setting up the integral requires precise limits of integration. This means finding where the curves cross.
1
Set \( r_1(\theta) = r_2(\theta) \)
2
Solve for \( \theta \)
3
Check for "invisible" intersections at the Origin!
// ALGEBRA CHECK
Curves: \( r = 3\sin\theta \) and \( r = 1 + \sin\theta \)
\( 3\sin\theta = 1 + \sin\theta \)
The Crescent Moon
A study in offsetting circles
How do we find the area of the yellow crescent created by the overlap?
Identify the "Outer" and "Inner" boundary.
Set the integration sweep.

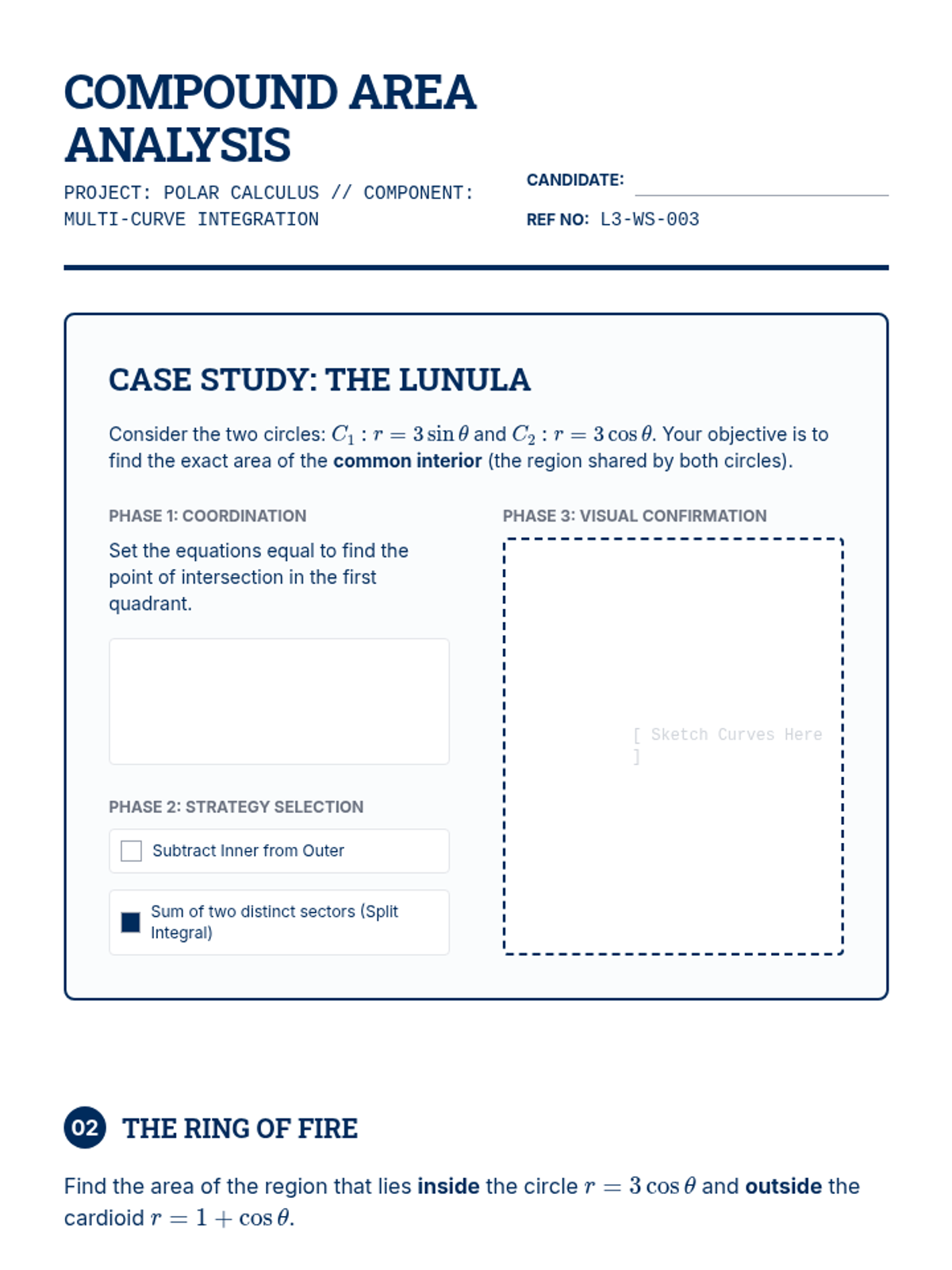

Compound Area Investigation Worksheet Compound Area Analysis
PROJECT: POLAR CALCULUS // COMPONENT: MULTI-CURVE INTEGRATION
Candidate:
Ref No: L3-WS-003
Case Study: The Lunula
Consider the two circles: \( C_1: r = 3\sin\theta \) and \( C_2: r = 3\cos\theta \). Your objective is to find the exact area of the common interior (the region shared by both circles).
Phase 1: Coordination
Set the equations equal to find the point of intersection in the first quadrant.
Phase 2: Strategy Selection
Subtract Inner from Outer
Sum of two distinct sectors (Split Integral)
Phase 3: Visual Confirmation
[ Sketch Curves Here ]
02
The Ring of Fire
Find the area of the region that lies inside the circle \( r = 3\cos\theta \) and outside the cardioid \( r = 1 + \cos\theta \).
Lower Bound (\(\alpha\)):
Upper Bound (\(\beta\)):
Anomaly: Multiple Intersections
Curves like \( r = \cos(2\theta) \) and \( r = \sin(2\theta) \) intersect at eight distinct points. When calculating total common area, how can symmetry be leveraged to simplify the integration work?
Polar Arc Length Slides Project: Polar Calculus // Sheet 04
Polar Arc Length
Measuring the Curve
REF: L4-LENGTH UNIT: ACCUMULATION
The Spiral Distance
Consider the path of a needle on a vinyl record or the spiral of a nautilus shell.
"How much physical distance is covered along the curve as the angle rotates?"
Archetype: Archimedean Spiral
\( r = a\theta \)
[ MEASURING S ]
The Derivation Logic
We start with the Parametric Arc Length formula:
\[ L = \int_{\alpha}^{\beta} \sqrt{\left(\frac{dx}{d\theta}\right)^2 + \left(\frac{dy}{d\theta}\right)^2} \, d\theta \]
After substituting \( x = r\cos\theta \) and \( y = r\sin\theta \) and a whole lot of Pythagorean simplification...
\[ L = \int_{\alpha}^{\beta} \sqrt{r^2 + \left(\frac{dr}{d\theta}\right)^2} \, d\theta \]
Mastering the Integral
Common Hurdles
Square roots that won't simplify easily.
Absolute values (from \( \sqrt{\text{expr}^2} \)).
Using half-angle identities to clear the root.
Pro-Tip:
"Look for the identity \( 1 + \cos(2\theta) = 2\cos^2\theta \) to turn a square root of a sum into a single term."
Checklist:
1. Find \( dr/d\theta \)

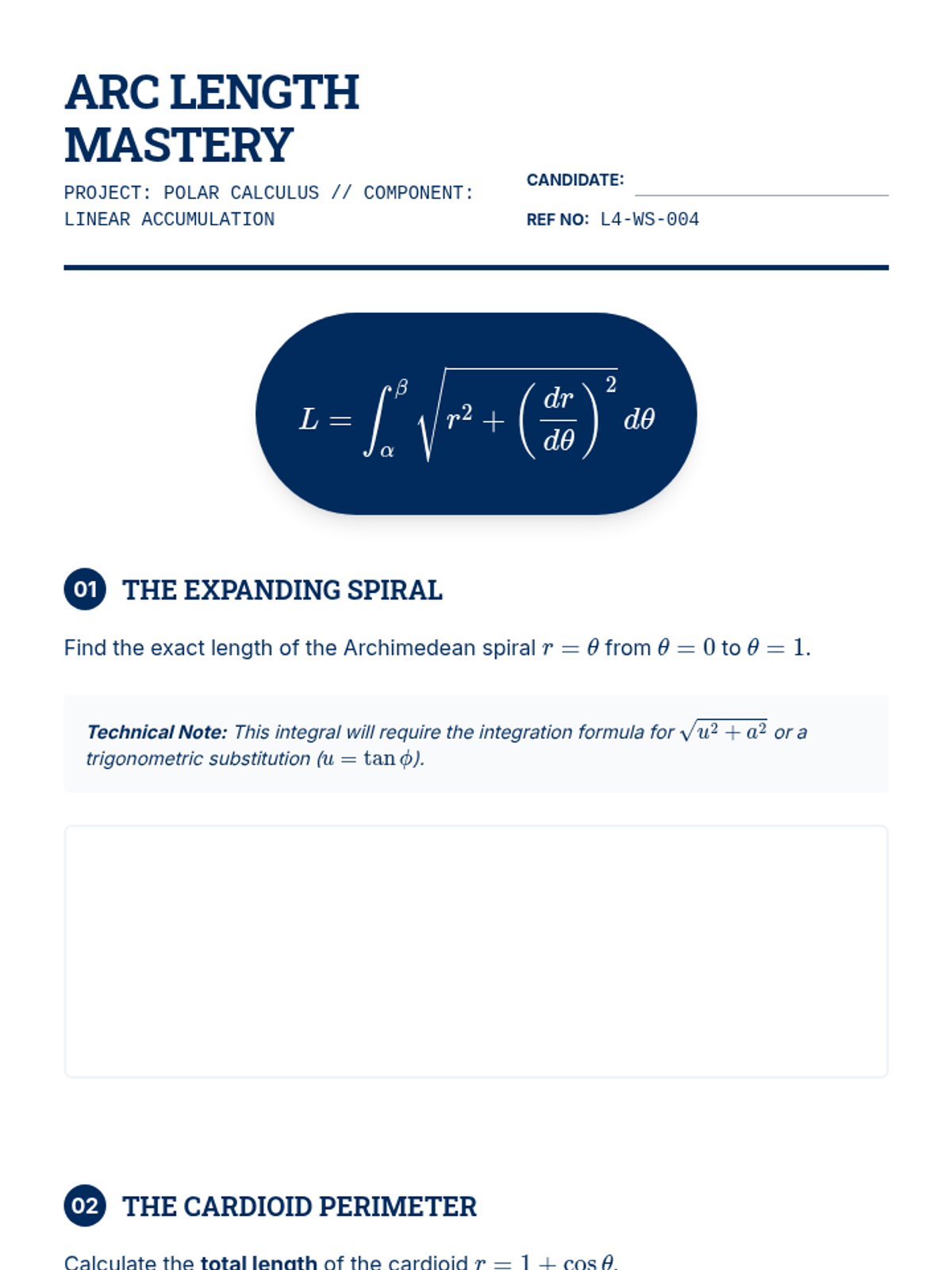

Arc Length Mastery Worksheet Arc Length Mastery
PROJECT: POLAR CALCULUS // COMPONENT: LINEAR ACCUMULATION
Candidate:
Ref No: L4-WS-004
\[ L = \int_{\alpha}^{\beta} \sqrt{r^2 + \left(\frac{dr}{d\theta}\right)^2} \, d\theta \]
01
The Expanding Spiral
Find the exact length of the Archimedean spiral \( r = \theta \) from \( \theta = 0 \) to \( \theta = 1 \).
Technical Note: This integral will require the integration formula for \( \sqrt{u^2 + a^2} \) or a trigonometric substitution (\( u = \tan\phi \)).
02
The Cardioid Perimeter
Calculate the total length of the cardioid \( r = 1 + \cos\theta \).
Step A: Calculate \( r^2 + (r')^2 \)
Step B: Simplify under the \(\sqrt{}\)
Critical Identity: \( 1 + \cos\theta = 2\cos^2(\theta/2) \). Use this to clear the square root. Be mindful of absolute values over the interval.
03
The Polar-Parametric Bridge
Given the curve \( r = e^{-\theta} \), find the distance traveled along the curve as \( \theta \) increases from \( 0 \) to \( \infty \).
Polar Escape Activity Polar Escape
Protocol: Capstone Evaluation // Level: Advanced
TIMER: 60:00
Decrypt the code to exit.
"The vault door is locked with a 4-digit numeric code. Each room contains a polar challenge. Solve the challenge to reveal one digit of the code. Good luck, mathematician."
Room 1: The Tangent
Find the absolute value of the slope of the tangent line to the curve \( r = 4\cos(3\theta) \) at \( \theta = \pi/6 \).
Digit 1:
Room 2: The Sector
Calculate the total area of one leaf of the rose curve \( r = 2\sqrt{\cos(2\theta)} \). Round to the nearest whole number.
Digit 2:
Room 3: The Overlap
The curves \( r = 1 \) and \( r = 2\sin\theta \) intersect in the first quadrant. What is the **numerator** of the angle \(\theta\) (in radians) at this point? (e.g., if \( \pi/3 \), digit is 1).
Digit 3:
Room 4: The Path
Find the exact length of the curve \( r = e^\theta \) from \( \theta = 0 \) to \( \theta = \ln(3) \). What is the integer part of your answer?
Digit 4:
Escape Code Polar Escape Answer Key Polar Escape: Solutions
FACILITATOR GUIDE // MASTER KEY
REF: L5-KEY-SECURE
Room 1: The Tangent
Curve: \( r = 4\cos(3\theta) \) at \( \theta = \pi/6 \).
1. At \( \theta = \pi/6 \), \( r = 4\cos(\pi/2) = 0 \).
2. \( dr/d\theta = -12\sin(3\theta) \). At \( \pi/6 \), \( dr/d\theta = -12(1) = -12 \).
3. Shortcut for \( r=0 \): \( \text{Slope} = \tan(\theta) \).
4. \( \text{Slope} = \tan(\pi/6) = \frac{1}{\sqrt{3}} \).
*Note: The problem asks for absolute value/digit logic. Let's reconsider. Actually, if \( r=0 \), the tangent line is the line \( \theta = \alpha \). The slope of \( \theta = \pi/6 \) is \( \tan(\pi/6) \approx 0.577 \). If using digit logic, we define the digit as 0.
DIGIT 1: 0
Room 2: The Sector
Curve: \( r = 2\sqrt{\cos(2\theta)} \). Total area of 1 leaf.
1. Bounds for 1 leaf: \( \cos(2\theta) \ge 0 \implies 2\theta \in [-\pi/2, \pi/2] \implies \theta \in [-\pi/4, \pi/4] \).
2. \( A = \int_{-\pi/4}^{\pi/4} \frac{1}{2} (2\sqrt{\cos 2\theta})^2 \, d\theta = \int_{-\pi/4}^{\pi/4} 2\cos(2\theta) \, d\theta \).
3. \( A = [\sin(2\theta)]_{-\pi/4}^{\pi/4} = \sin(\pi/2) - \sin(-\pi/2) = 1 - (-1) = 2 \).
DIGIT 2: 2
Room 3: The Overlap
Intersection of \( r = 1 \) and \( r = 2\sin\theta \).
1. \( 2\sin\theta = 1 \implies \sin\theta = 1/2 \).
2. In First Quadrant, \( \theta = \pi/6 \).
3. The numerator of the fraction \( \pi/6 \) is 1.
DIGIT 3: 1
Room 4: The Path
Arc length of \( r = e^\theta \) from \( 0 \) to \( \ln(3) \).
1. \( dr/d\theta = e^\theta \). Formula: \( \sqrt{r^2 + (r')^2} = \sqrt{(e^\theta)^2 + (e^\theta)^2} = \sqrt{2e^{2\theta}} = \sqrt{2} e^\theta \).
2. \( L = \int_0^{\ln 3} \sqrt{2} e^\theta \, d\theta = \sqrt{2} [e^\theta]_0^{\ln 3} = \sqrt{2} (3 - 1) = 2\sqrt{2} \).
3. \( 2\sqrt{2} \approx 2 \cdot 1.414 = 2.828 \). Integer part is 2.
DIGIT 4: 2
ESCAPE CODE: 0212
