Shadow Master Teacher Guide Shadow Master
Teacher Facilitation Guide | Related Rates
Lesson 01
Instructional Focus
This lesson shifts students from basic differentiation to geometric modeling. The primary hurdle is often the setup: identifying the horizontal distance of the person (\(x\)) and the length of the shadow (\(s\)), and recognizing that the speed of the shadow's tip is \(\frac{d}{dt}(x + s)\). Using similar triangles is the "key" that unlocks the relationship between variables before time-differentiation occurs.
Essential Questions
How does the rate of a moving object relate to the rate of its projected shadow?
Why is the speed of the shadow tip different from the rate of shadow lengthening?
How do similar triangles allow us to reduce multivariable problems to a single variable?
Materials Needed
High-intensity flashlight
Meter sticks
Shadow Scenarios Worksheet
Shadow Speed Slides
Lesson Delivery Timeline
0-10 MIN
The Hook: Live Shadow Projection
Position a student (or figurine) in front of a flashlight against a whiteboard. Move the object away from the light. Ask: "If the object moves at a constant speed, does the shadow grow at a constant speed?" Have students make initial guesses.
10-25 MIN
Modeling the Geometry
Transition to the slides. Use the "Similar Triangles" slide to establish the ratio: \(\frac{\text{Height of Light}}{\text{Total Distance}} = \frac{\text{Height of Person}}{\text{Shadow Length}}\). Explicitly define \(x\) as distance from pole and \(s\) as length of shadow.
25-45 MIN
Guided Practice: Tip vs. Growth
Work through the "Streetlight Problem." Focus heavily on the difference between \(\frac{ds}{dt}\) (shadow growth) and \(\frac{d}{dt}(x+s)\) (tip speed). Most students fail to add the rates; emphasize that the tip speed includes the movement of the base of the shadow.
45-60 MIN
Independent Scenarios
Students complete the "Shadow Scenarios Worksheet." Circulate and check for the "similar triangle setup" before they begin differentiating. If the setup is wrong, the calculus won't save them!
Lenny's Instructional Tips
Common Pitfall Students often confuse the total distance from the light source with the length of the shadow. Use a visual 'bracket' on the board to show that \(x + s\) is the position of the tip.
Vector Perspective For advanced students, mention that this is a 1D vector problem. The velocity of the tip is the sum of the person's velocity and the shadow's growth rate.
Shadow Speed Slides Shadow
Speed
Modeling Dynamic Projections
Lesson 01
Calculus II
The Chase
Imagine a person walking away from a lamppost at 5 ft/s.
"As they walk further away, does the tip of their shadow move faster, slower, or at the same speed as the person?"
[ Interactive Demo: Flashlight & Shadow ]
The Model
Variables
x Distance from Pole to Person
s Length of Shadow
L Position of Shadow Tip (\(x+s\))
H h x s
\[ \frac{H}{x+s} = \frac{h}{s} \]
Growth vs. Tip Speed
Rate of Growth
The rate at which the length of the shadow is increasing.
\[ \frac{ds}{dt} \]
Speed of the Tip
The rate at which the end of the shadow moves away from the light pole.
\[ \frac{dx}{dt} + \frac{ds}{dt} \]
Step-by-Step Logic
1
Set up ratio: \( Hs = h(x+s) \)
2
Solve for \(s\): \( s(H-h) = hx \implies s = \frac{h}{H-h}x \)
3
Differentiate w.r.t time: \( \frac{ds}{dt} = \frac{h}{H-h} \cdot \frac{dx}{dt} \)
4
Calculate Tip Speed: \( \text{Tip} = \frac{dx}{dt} + \frac{ds}{dt} \)
Shadow Scenarios Worksheet Shadow Scenarios
Calculus II | Related Rates: Similar Triangles
Name:
Date:
Geometric Protocol 1. Sketch the situation. 2. Identify variables for object distance (\(x\)) and shadow length (\(s\)). 3. Set up a proportion using similar triangles. 4. Differentiate with respect to time (\(t\)). 5. Solve for the target rate.
1
A person 6 feet tall walks away from a streetlight that is 15 feet high at a rate of 5 feet per second. How fast is the length of the person's shadow changing when the person is 10 feet from the pole?
Sketch Area
Calculation Area
2
Using the same conditions as Problem 1 (6ft person, 15ft light, 5ft/s walk), how fast is the tip of the shadow moving?
Work Space
Thinking Prompt: Does the distance from the pole (10 feet) actually affect either of these rates? Why or why not?
3
A spotlight on the ground shines on a wall 12 meters away. If a man 2 meters tall walks from the spotlight toward the wall at a speed of 1.6 m/s, how fast is the height of his shadow on the wall decreasing when he is 4 meters from the wall?
Sketch Area
Calculation Area
C
The Vertical Ascent
A light is 10 feet directly above a vertical path. A 5-foot figurine is hoisted straight up the path toward the light at a rate of 2 ft/s. If the figurine is 4 feet from the ground, how fast is its shadow on the ground changing?
Work Space (Calculus & Reasoning)

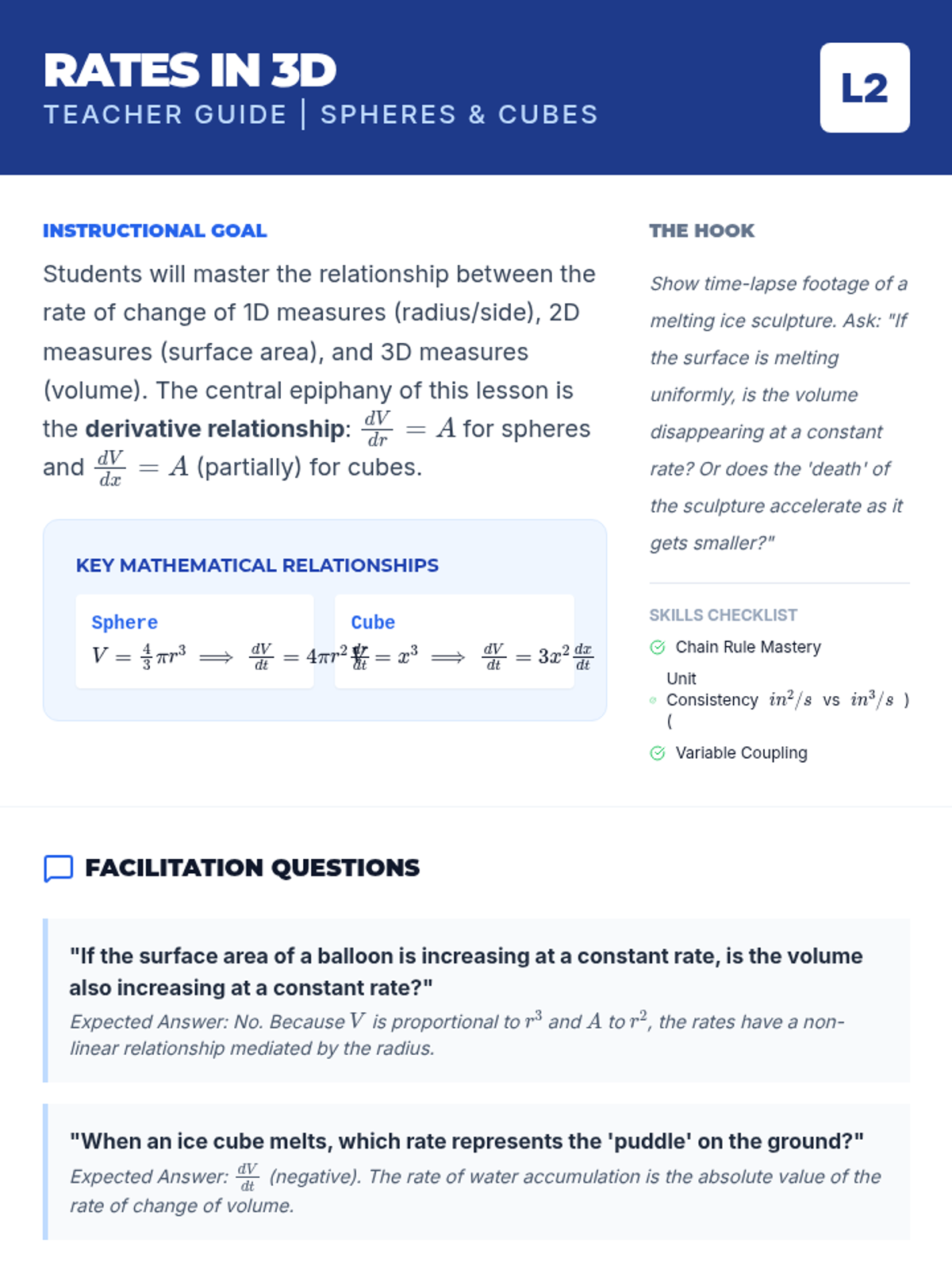

Rates 3D Teacher Guide Rates in 3D
Teacher Guide | Spheres & Cubes
L2
Instructional Goal
Students will master the relationship between the rate of change of 1D measures (radius/side), 2D measures (surface area), and 3D measures (volume). The central epiphany of this lesson is the derivative relationship : \(\frac{dV}{dr} = A\) for spheres and \(\frac{dV}{dx} = A\) (partially) for cubes.
Key Mathematical Relationships
Sphere \(V = \frac{4}{3}\pi r^3 \implies \frac{dV}{dt} = 4\pi r^2 \frac{dr}{dt}\)
Cube \(V = x^3 \implies \frac{dV}{dt} = 3x^2 \frac{dx}{dt}\)
The Hook
Show time-lapse footage of a melting ice sculpture. Ask: "If the surface is melting uniformly, is the volume disappearing at a constant rate? Or does the 'death' of the sculpture accelerate as it gets smaller?"
Skills Checklist
Chain Rule Mastery
Unit Consistency (\(in^2/s\) vs \(in^3/s\))
Variable Coupling
Facilitation Questions
"If the surface area of a balloon is increasing at a constant rate, is the volume also increasing at a constant rate?"
Expected Answer: No. Because \(V\) is proportional to \(r^3\) and \(A\) to \(r^2\), the rates have a non-linear relationship mediated by the radius.
"When an ice cube melts, which rate represents the 'puddle' on the ground?"
Expected Answer: \(\frac{dV}{dt}\) (negative). The rate of water accumulation is the absolute value of the rate of change of volume.
Common Student Misconceptions
Dimension Confusion
Students often try to relate \(\frac{dV}{dt}\) directly to \(\frac{dA}{dt}\) without finding \(\frac{dr}{dt}\) as an intermediate step. Always force them to "find the bridge" (the 1D rate).
The Cube Surface Area
Students often forget that a cube has 6 faces. When differentiating \(A = 6x^2\), they must yield \(\frac{dA}{dt} = 12x \frac{dx}{dt}\). Contrast this with the sphere's \(\frac{dV}{dt}\) relationship.

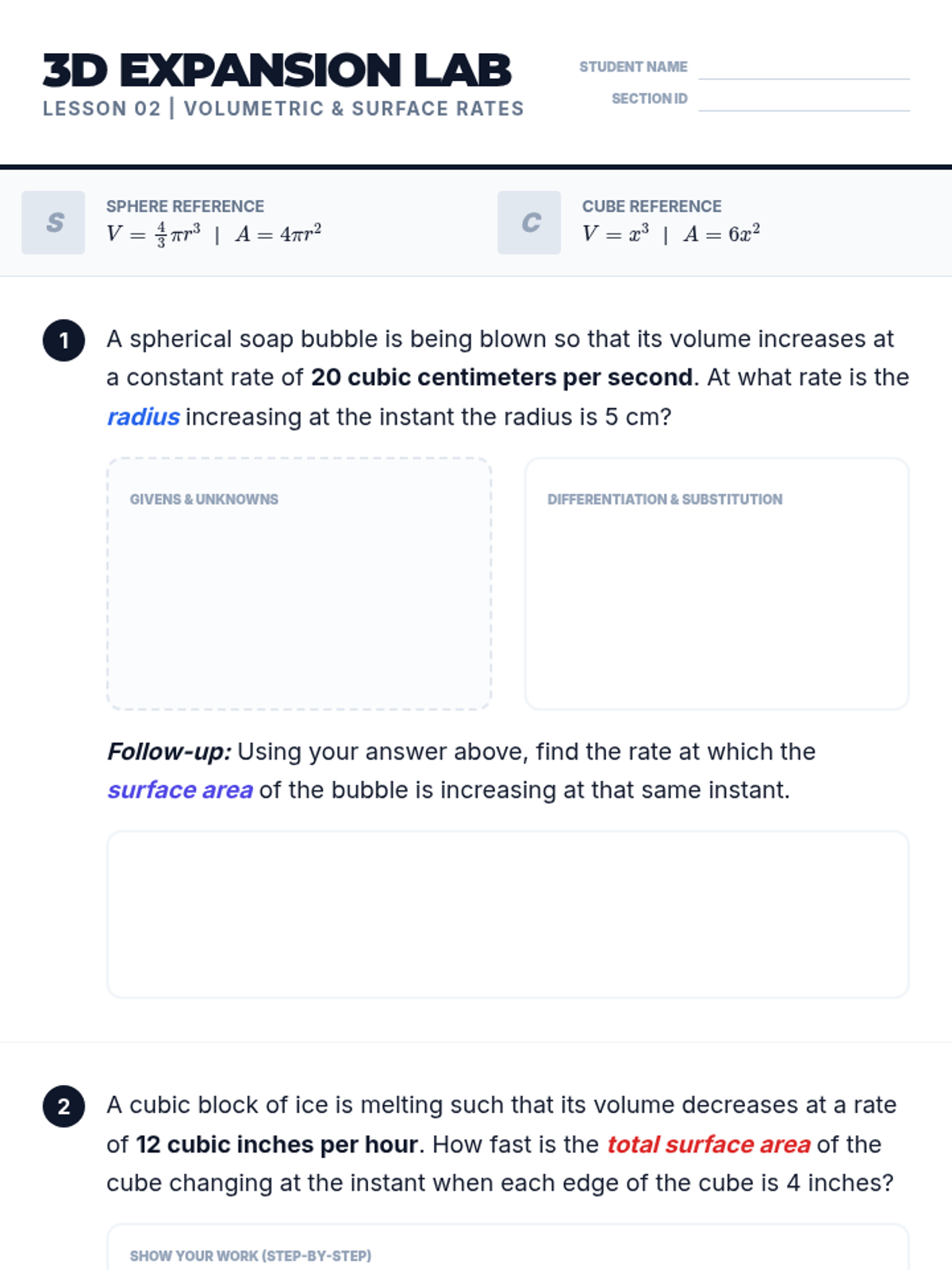

Expansion Lab Worksheet 3D Expansion Lab
Lesson 02 | Volumetric & Surface Rates
Student Name
Section ID
S
Sphere Reference \(V = \frac{4}{3}\pi r^3\) | \(A = 4\pi r^2\)
C
Cube Reference \(V = x^3\) | \(A = 6x^2\)
1
A spherical soap bubble is being blown so that its volume increases at a constant rate of 20 cubic centimeters per second. At what rate is the radius increasing at the instant the radius is 5 cm?
Givens & Unknowns
Differentiation & Substitution
Follow-up: Using your answer above, find the rate at which the surface area of the bubble is increasing at that same instant.
2
A cubic block of ice is melting such that its volume decreases at a rate of 12 cubic inches per hour. How fast is the total surface area of the cube changing at the instant when each edge of the cube is 4 inches?
Show Your Work (Step-by-Step)
Non-Linear Intuition
In Problem 1, if the volume continues to increase at a constant rate , will the radius growth speed up, slow down, or stay the same as the bubble gets larger? Justify your answer using the derivative relationship you found.
Cylinder Logic Teacher Guide Cylindrical Flow
Teacher Facilitation Guide | Lesson 03
Calculus II
Pedagogical Bridge
This lesson acts as a critical bridge between simple 1-variable rates and the complex 2-variable substitution required for conical tanks. The objective is for students to distinguish between constants (radius in a cylinder) and variables (height and volume).
The Mathematical Shift
In a cylinder, \(V = \pi r^2 h\). Because \(r\) is constant, we do not use the product rule. We differentiate as:
\[ \frac{dV}{dt} = (\pi r^2) \frac{dh}{dt} \]
Hook Discussion
"If I pour water into a thin test tube vs. a wide bucket at the same rate, which water level rises faster? Why does the radius matter so much even if it isn't changing?"
Key Vocabulary
Cross-sectional Area Flow Rate Inflow vs Outflow
Facilitation Timeline
10m
Constant Verification
Show a diagram of a cylinder. Ask students to identify which parts change as water is added. Many will mistakenly say the radius changes. Correct this immediately before doing any calculus.
20m
Flow Rate Synthesis
Introduce problems with both an intake pipe (\(+\)) and a leak (\(-\)). Show that \(\frac{dV}{dt} = \text{Rate}_{\text{in}} - \text{Rate}_{\text{out}}\). This is a conceptual leap for some students who treat rates as static values.
30m
Linear Rise Analysis
Challenge students to prove that if \(\frac{dV}{dt}\) is constant in a cylinder, then \(\frac{dh}{dt}\) must also be constant. This sets up the 'surprise' in Lesson 4 where \(\frac{dh}{dt}\) is NOT constant in a cone.
Conceptual Trap
Beware of the "Implicit Radius" trap. Students often see \(r^2\) in the formula and reflexively differentiate it to \(2r \frac{dr}{dt}\). Emphasize that in a standard tank, \(\frac{dr}{dt} = 0\), effectively zeroing out that entire branch of the product rule. Encourage them to plug in the radius before differentiating to simplify the expression.
Cylindrical Flow Worksheet Constant Containers
Lesson 03 | Cylindrical Fluid Dynamics
Engineer:
Station:
Critical Verification
A cylindrical tank has a fixed radius of 4 meters. As water is pumped in, which variables are changing over time and which are constant ? Circle the dynamic variables:
Radius (r) Height (h) Volume (V) Diameter (d)
1
The Fill Rate
Water is being pumped into a vertical cylindrical tank at a constant rate of 3 cubic meters per minute. The tank has a radius of 5 meters. How fast is the water level rising?
Setup Equation
Solve for \(\frac{dh}{dt}\)
2
The Leaking Tank
A cylindrical swimming pool (radius = 12 ft) is being filled with a hose at 25 \(ft^3/min\). However, there is a leak at the bottom causing water to escape at 8 \(ft^3/min\).
A) Calculate the net rate of change for volume (\(\frac{dV}{dt}\)):
B) Find the rate at which the water level is rising (or falling):
Calculation Area
Geometric Intuition
If you doubled the radius of the tank in Scenario 1, what would happen to the rate at which the water level rises (\(\frac{dh}{dt}\))? Would it be half as fast, or some other factor? Explain using the relationship between \(r\) and \(\frac{dh}{dt}\).

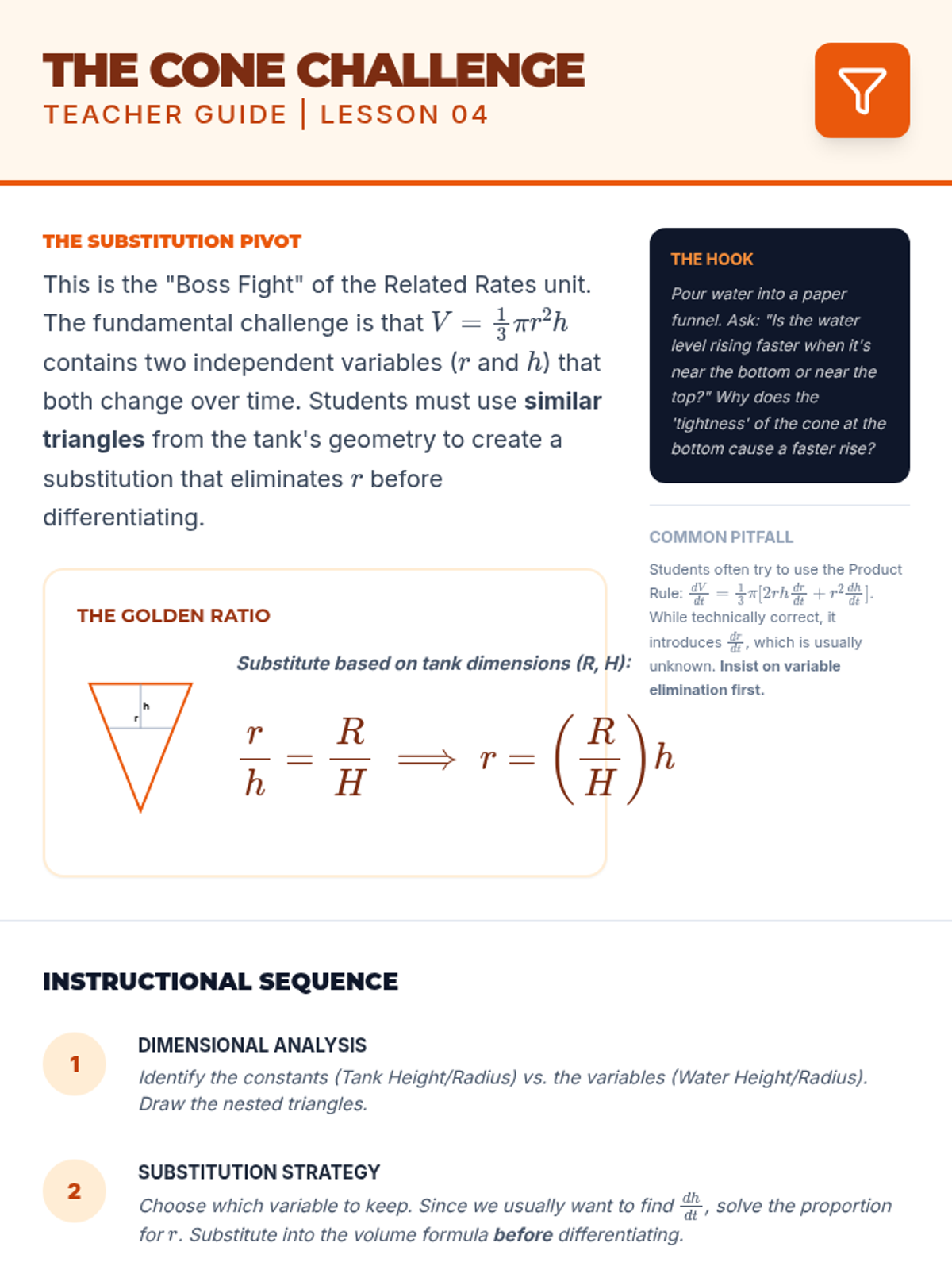

Conical Logic Teacher Guide The Cone Challenge
Teacher Guide | Lesson 04
The substitution pivot
This is the "Boss Fight" of the Related Rates unit. The fundamental challenge is that \(V = \frac{1}{3}\pi r^2 h\) contains two independent variables (\(r\) and \(h\)) that both change over time. Students must use similar triangles from the tank's geometry to create a substitution that eliminates \(r\) before differentiating.
The Golden Ratio
r h
Substitute based on tank dimensions (R, H):
\[ \frac{r}{h} = \frac{R}{H} \implies r = \left(\frac{R}{H}\right)h \]
The Hook
Pour water into a paper funnel. Ask: "Is the water level rising faster when it's near the bottom or near the top?" Why does the 'tightness' of the cone at the bottom cause a faster rise?
Common Pitfall
Students often try to use the Product Rule: \( \frac{dV}{dt} = \frac{1}{3}\pi [2rh \frac{dr}{dt} + r^2 \frac{dh}{dt}] \). While technically correct, it introduces \(\frac{dr}{dt}\), which is usually unknown. Insist on variable elimination first.
Instructional Sequence
1
Dimensional Analysis
Identify the constants (Tank Height/Radius) vs. the variables (Water Height/Radius). Draw the nested triangles.
2
Substitution Strategy
Choose which variable to keep. Since we usually want to find \(\frac{dh}{dt}\), solve the proportion for \(r\). Substitute into the volume formula before differentiating.
3
The "Squaring" Surprise
Show that \(V \propto h^3\) after substitution. This explains why the rate of rise (\(\frac{dh}{dt}\)) changes so drastically as height increases.
Synthesis Question
"If the rate of inflow (\(\frac{dV}{dt}\)) is constant, and the radius is getting larger as the tank fills, does \(\frac{dh}{dt}\) increase or decrease? How does our final derivative formula support this?"

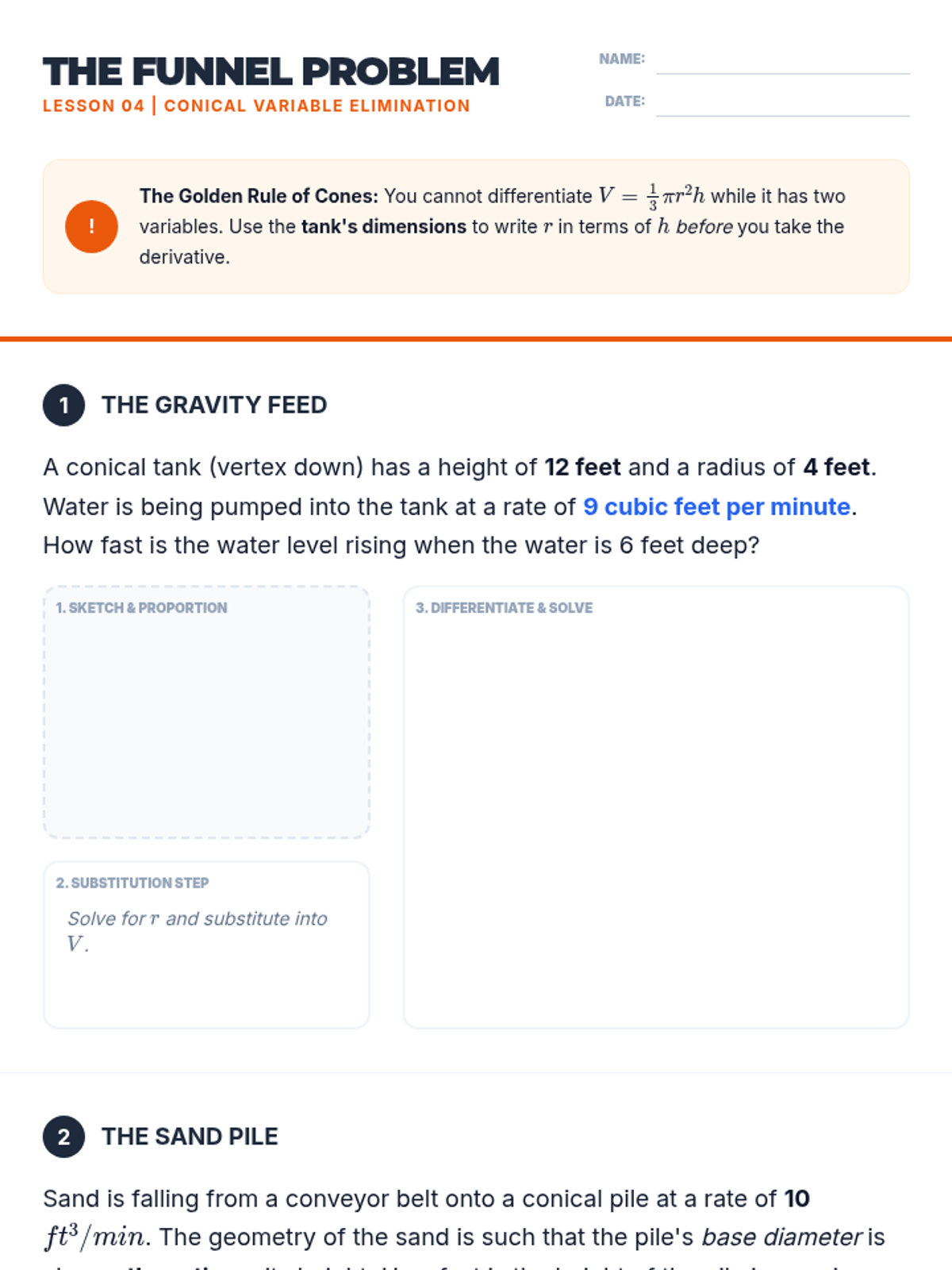

Conical Funnel Worksheet The Funnel Problem
Lesson 04 | Conical Variable Elimination
Name:
Date:
!
The Golden Rule of Cones: You cannot differentiate \(V = \frac{1}{3}\pi r^2 h\) while it has two variables. Use the tank's dimensions to write \(r\) in terms of \(h\) before you take the derivative.
1
The Gravity Feed
A conical tank (vertex down) has a height of 12 feet and a radius of 4 feet. Water is being pumped into the tank at a rate of 9 cubic feet per minute. How fast is the water level rising when the water is 6 feet deep?
1. Sketch & Proportion
2. Substitution Step
Solve for \(r\) and substitute into \(V\).
3. Differentiate & Solve
2
The Sand Pile
Sand is falling from a conveyor belt onto a conical pile at a rate of 10 \(ft^3/min\). The geometry of the sand is such that the pile's base diameter is always three times its height. How fast is the height of the pile increasing when the pile is 15 feet high?
Full Derivation Area
Non-Linear Analysis
In Problem 1, as the water gets deeper , does the water level rise faster or slower? Use your derivative formula (\(\frac{dh}{dt}\) in terms of \(h\)) to prove your answer.

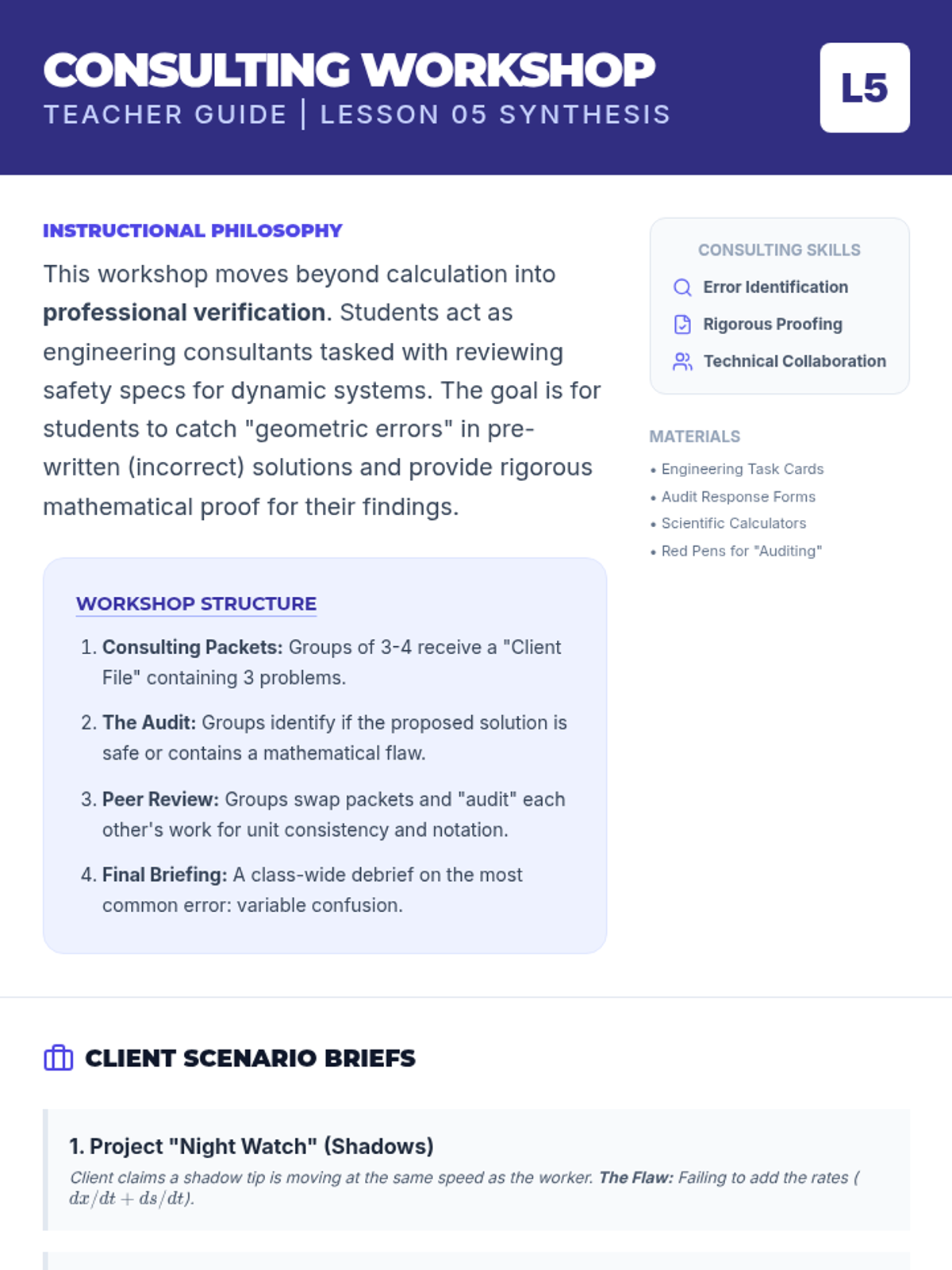

Workshop Consultant Teacher Guide Consulting Workshop
Teacher Guide | Lesson 05 Synthesis
L5
Instructional Philosophy
This workshop moves beyond calculation into professional verification . Students act as engineering consultants tasked with reviewing safety specs for dynamic systems. The goal is for students to catch "geometric errors" in pre-written (incorrect) solutions and provide rigorous mathematical proof for their findings.
Workshop Structure
Consulting Packets: Groups of 3-4 receive a "Client File" containing 3 problems.The Audit: Groups identify if the proposed solution is safe or contains a mathematical flaw.Peer Review: Groups swap packets and "audit" each other's work for unit consistency and notation.Final Briefing: A class-wide debrief on the most common error: variable confusion.
Consulting Skills
Error Identification
Rigorous Proofing
Technical Collaboration
Materials
• Engineering Task Cards
• Audit Response Forms
• Scientific Calculators
• Red Pens for "Auditing"
Client Scenario Briefs
1. Project "Night Watch" (Shadows)
Client claims a shadow tip is moving at the same speed as the worker. The Flaw: Failing to add the rates (\(dx/dt + ds/dt\)).
2. Project "Deep Freeze" (3D Expansion)
Client claims volume is decreasing linearly over time. The Flaw: Radius is the independent variable, making \(\frac{dV}{dt}\) non-linear with respect to radius.
3. Project "Sand Trap" (Conical Substitution)
Client used the product rule on \(V = \frac{1}{3}\pi r^2 h\) but treated \(r\) as a constant. The Flaw: Ignored similar triangles for variable elimination.
Peer Review Protocol
During the peer review phase, tell students to look for "The Calculus Lie." This is when a student has a correct numerical answer but an illegal mathematical step (e.g., plugging in the constant before differentiating a variable). Use the provided rubric to penalize "legalizing" a result through incorrect logic.

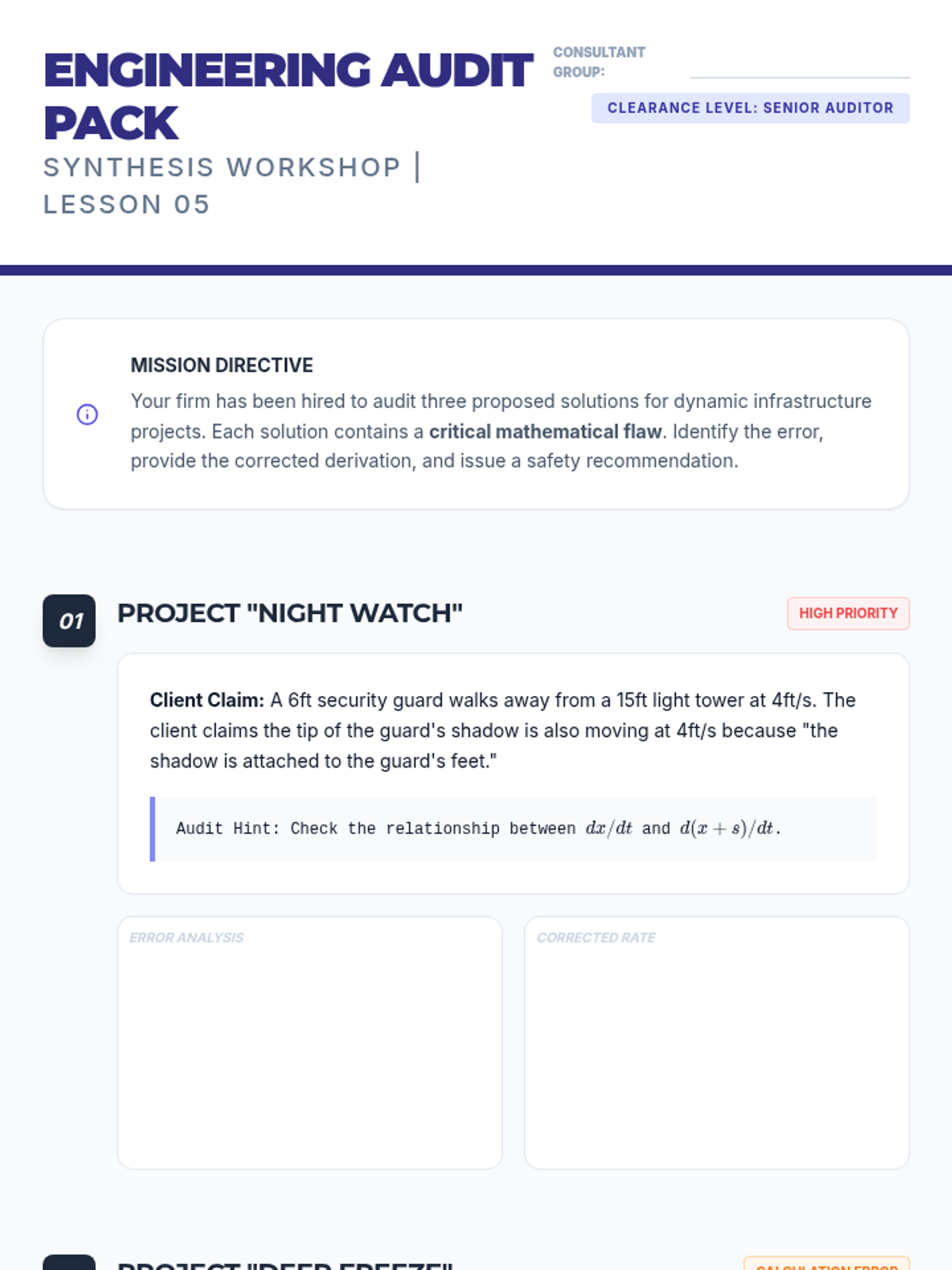

Engineering Task Cards Engineering Audit Pack
Synthesis Workshop | Lesson 05
Consultant Group:
Clearance Level: Senior Auditor
Mission Directive Your firm has been hired to audit three proposed solutions for dynamic infrastructure projects. Each solution contains a critical mathematical flaw . Identify the error, provide the corrected derivation, and issue a safety recommendation.
01
Project "Night Watch"
High Priority
Client Claim: A 6ft security guard walks away from a 15ft light tower at 4ft/s. The client claims the tip of the guard's shadow is also moving at 4ft/s because "the shadow is attached to the guard's feet."
Audit Hint: Check the relationship between \(dx/dt\) and \(d(x+s)/dt\).
Error Analysis
Corrected Rate
02
Project "Deep Freeze"
Calculation Error
Client Claim: A cubic ice sculpture (side length \(s\)) is melting. The client measured that the surface area is decreasing at a constant rate. They concluded that the volume must also be decreasing at a constant rate.
Audit Hint: Differentiate \(V=s^3\) and \(A=6s^2\). Can both rates be constant?
Mathematical Proof
Executive Summary
03
Project "Sand Trap"
Geometric Flaw
Client Claim: Sand is poured into a conical funnel. The technician differentiated \(V = \frac{1}{3}\pi r^2 h\) as \(\frac{dV}{dt} = \frac{1}{3}\pi r^2 \frac{dh}{dt}\), stating that the radius doesn't matter because "we only care about the height."
Audit Hint: Did they use the similar triangle proportion? Is \(r\) actually constant?
Full Technical Audit (Correct the Derivation)
