Imaginary Unit Slides Defining the imaginary
Introducing the Imaginary Unit and the Set of Complex Numbers (\(\mathbb{C}\))
Mathematics
Algebra II / Undergraduate
The Algebraic Crisis
Consider the equation: \(x^2 + 1 = 0\) To solve for \(x\), we find: \(x^2 = -1 \implies x = \pm\sqrt{-1}\)
"No real number multiplied by itself results in a negative value. We are stuck... unless we expand our definitions."
Real Number Line Graph
Where does \(\sqrt{-1}\) live?
The Imaginary Unit
We define the imaginary unit, denoted by i, as:
Definition 1
\(i = \sqrt{-1}\)
Definition 2
\(i^2 = -1\)
Note: Although called "imaginary," this number is a rigorous mathematical tool used extensively in engineering, physics, and signal processing.
The Set of Complex Numbers (\(\mathbb{C}\))
A complex number is a number that can be expressed in the form:
\(a + bi\)
where \(a\) and \(b\) are real numbers.
\(a\) is the...
Real Part
\(Re(z)\)
\(bi\) is the...
Imaginary Part
\(Im(z)\)
Examples
\(3 + 4i\) Complex
\(-5i\) Pure Imaginary
\(12\) Pure Real
\(\pi - i\sqrt{2}\) Complex
Expansion of Systems
\(\mathbb{C}\) (Complex)
\(\mathbb{R}\) (Real)
Rational, Integers, etc.
Pure Imaginary (\(a=0\))
\(2i, -i\sqrt{5}\)
Every real number is a complex number where \(b = 0\).
e.g., \(5 = 5 + 0i\)
Complex Anatomy Worksheet Anatomy of the Complex Number
Lesson 1: Defining the Imaginary Unit and Set \(\mathbb{C}\)
Name:
Date:
Core Definitions
Imaginary Unit:
\(i = \sqrt{-1}\) | \(i^2 = -1\)
Standard Form:
\(z = a + bi\)
Part 1: Identifying and Classifying
For each number below, identify the Real Part \(a\), the Imaginary Part \(b\), and classify it as Pure Real , Pure Imaginary , or Complex .
Number (\(z\)) Real Part (\(a\)) Imaginary Part (\(b\)) Classification \(5 + 2i\) \(-3i\) \(\sqrt{7}\) \(1 - i\sqrt{3}\)
Part 2: Expressing in Terms of \(i\)
Simplify each radical expression using the imaginary unit \(i\). Show your steps.
\(\sqrt{-16}\)
\(\sqrt{-75}\)
\(2 + \sqrt{-49}\)
\(\frac{-6 - \sqrt{-18}}{3}\)
Part 3: Conceptual Analysis
5. True or False: Every real number is a complex number.
Justify your answer by providing a general form representation.
6. Solving Quadratic Limitations
The equation \(x^2 + 9 = 0\) has no solutions in the set of Real Numbers (\(\mathbb{R}\)). Solve the equation in the set of Complex Numbers (\(\mathbb{C}\)).
Part 4: The Geometry of i (Preview)
If the Real Numbers live on a horizontal line, where do you think the Imaginary Numbers live? Reflect on the idea of a "Complex Plane" where the \(y\)-axis represents imaginary units.
Real Imaginary
Sketch a point for \(3 + 2i\)
Challenge Check
Is it possible for a complex number to have a real part that is an irrational number and an imaginary part that is a rational number? Give an example if so.
Imaginary Beginnings Guide Teacher Facilitation Guide
Lesson 1: Defining the Imaginary Unit
Duration
50 min
Learning Objectives
Define the imaginary unit \(i\) as \(\sqrt{-1}\).
Construct the set of complex numbers \(\mathbb{C}\) in standard form \(a + bi\).
Classify numbers as pure real, pure imaginary, or complex.
The "Hook" Discussion
"We have been told for years that you cannot take the square root of a negative number. But in mathematics, when we hit a wall, we build a door. Today, we are building a door into a new dimension of numbers."
Materials Needed
Imaginary Unit Slides
Complex Anatomy Worksheet
Scientific Calculators
Instructional Flow
10 min
The historical crisis
Challenge students to solve \(x^2 + 1 = 0\). Discuss why \(\mathbb{R}\) fails. Introduce the term "Imaginary"—not because they aren't 'real' in existence, but as a historical snub by Descartes that stuck.
15 min
Direct Instruction: Defining \(i\) and \(\mathbb{C}\)
Use the Imaginary Unit Slides . Emphasize that \(i^2 = -1\) is the functional definition that allows for algebraic manipulation. Introduce \(a + bi\) and define the parts.
15 min
Guided Practice: Anatomy of a Complex Number
Distribute the Complex Anatomy Worksheet . Work through the first two classification problems together. Ensure students understand that \(b\) is a real number—it's the coefficient of \(i\).
10 min
The Geometric Teaser
Wrap up by asking where \(3 + 2i\) might "live" on a graph. This sets the stage for future lessons on the Complex Plane. Collect worksheets for a quick diagnostic check.
Critical Watch-Outs
Misconception: \(b\) includes \(i\)
Example: Students saying the imaginary part of \(3 + 4i\) is "\(4i\)". Correct them: the imaginary part is the coefficient \(4\).
Misconception: \(\sqrt{-16} = -4\)
Remind students that \((-4)^2 = +16\). A negative under a square root MUST produce an \(i\) in the result.
Powers of i Slides The i Cycle
Exploring the Repetitive Nature of Powers of the Imaginary Unit
Lesson 2
Modular Arithmetic
Building the Pattern
\(i^1\)
\(i\)
Definition
\(i^2\)
\(-1\)
Square of \(\sqrt{-1}\)
\(i^3\)
\(-i\)
\(i^2 \cdot i = -1 \cdot i\)
\(i^4\)
\(1\)
\(i^2 \cdot i^2 = -1 \cdot -1\)
What happens at \(i^5\)?
\(i^5 = i^4 \cdot i = 1 \cdot i = \mathbf{i}\). The cycle repeats every 4 powers!
The "Clock" of Imaginary Units
\(i^4 = 1\)
\(i^1 = i\)
\(i^2 = -1\)
\(i^3 = -i\)
The Algorithm
To simplify \(i^n\):
Divide the exponent \(n\) by 4.
Find the remainder (\(r\)).
The simplified result is \(i^r\).
Modular Arithmetic Basis
The powers of \(i\) behave like Modulo 4 arithmetic.
Rules Table
Rem = 0 \(i^n = 1\)
Rem = 1 \(i^n = i\)
Rem = 2 \(i^n = -1\)
Rem = 3 \(i^n = -i\)
Example: Simplify \(i^{23}\)
1 Divide: \(23 \div 4 = 5\)
2 Remainder: \(23 - (4 \times 5) = \mathbf{3}\)
3 Result: \(i^{23} = i^3 = \mathbf{-i}\)
Predicting the Future
Quickfire Challenge
Without doing 1,000 multiplications, what is the value of:
\(i^{1000}\)
1
i
-1
Hint: Is 1,000 divisible by 4?
Cycle of i Worksheet The Cycle of \(i\)
Lesson 2: Pattern Recognition & Modular Arithmetic
Name:
Date:
Part 1: Discovering the Cycle
Multiply by \(i\) at each step to find the next value. Simplify as you go.
\(i^1\)
\(i\)
\(i^2\)
\(-1\)
\(i^3\)
\(i^4\)
\(i^5\)
\(i^6\)
\(i^7\)
\(i^8\)
Part 2: The Remainder Rule
Because the cycle has a length of 4 , the value of \(i^n\) depends solely on the remainder when \(n\) is divided by 4.
Remainder of \(n \div 4\) Simplified Form 1 i 2 -1 3 -i 0 (Divisible by 4) 1
Part 3: Simplifying Large Powers
\(i^{15}\)
\(i^{42}\)
\(i^{103}\)
\(i^{80}\)
\(i^{201}\)
\(i^{14}\)
Part 4: Algebraic Combinations
Simplify the following expressions. Combine like terms where necessary.
\(i^5 + i^9 + i^{13}\)
\((i^2)(i^3)(i^4)\)
\(\frac{i^{11}}{i^3}\)
\(3i^{18} - 5i^{22}\)
Mastery Challenge
Prove that the sum of any four consecutive powers of \(i\) (e.g., \(i^n + i^{n+1} + i^{n+2} + i^{n+3}\)) is always zero.

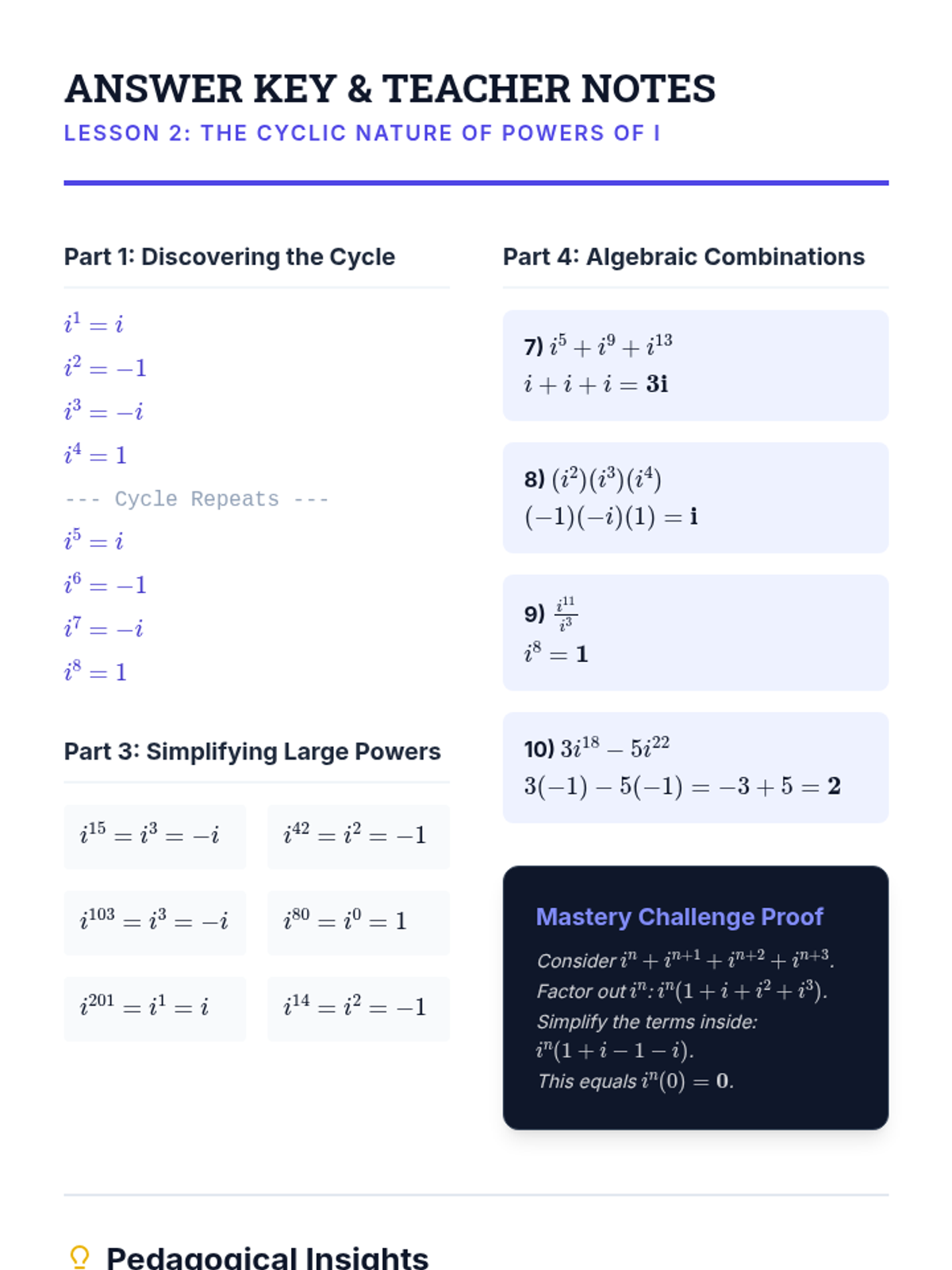

Cycle of i Answer Key Answer Key & Teacher Notes
Lesson 2: The Cyclic Nature of Powers of i
Part 1: Discovering the Cycle
\(i^1 = i\)
\(i^2 = -1\)
\(i^3 = -i\)
\(i^4 = 1\)
--- Cycle Repeats ---
\(i^5 = i\)
\(i^6 = -1\)
\(i^7 = -i\)
\(i^8 = 1\)
Part 3: Simplifying Large Powers
\(i^{15} = i^3 = -i\)
\(i^{42} = i^2 = -1\)
\(i^{103} = i^3 = -i\)
\(i^{80} = i^0 = 1\)
\(i^{201} = i^1 = i\)
\(i^{14} = i^2 = -1\)
Part 4: Algebraic Combinations
\(i^5 + i^9 + i^{13}\) \(i + i + i = \mathbf{3i}\)
\((i^2)(i^3)(i^4)\) \((-1)(-i)(1) = \mathbf{i}\)
\(\frac{i^{11}}{i^3}\) \(i^8 = \mathbf{1}\)
\(3i^{18} - 5i^{22}\) \(3(-1) - 5(-1) = -3 + 5 = \mathbf{2}\)
Mastery Challenge Proof
Consider \(i^n + i^{n+1} + i^{n+2} + i^{n+3}\).
Pedagogical Insights
The "Why"
This lesson bridges algebra and modular arithmetic. It’s the first time many students see a linear sequence "loop" on itself. Use the "Clock" analogy heavily.
Common Error
Students often confuse \(i^2 = -1\) with \((-i)^2\). Emphasize that the power only applies to the \(i\). For \(i^{22}\), they should focus on \(22 \div 4\).
Expansion
Ask students if they can find a pattern for \(1/i\). They should discover that \(1/i = i^3 = -i\) by multiplying numerator/denominator by \(i\).
Complex Arithmetic Slides Complex Arithmetic
Addition and Subtraction in the Complex Number System
Lesson 3
Linear Operations
The "Like Terms" Strategy
Just like in basic algebra, where you cannot add 3x and 5...
The Rule:
Combine Real with Real and Imaginary with Imaginary.
Analogy
Think of complex numbers as 2D vectors:
3 + 4i
The 3 is the horizontal component.
Defining Addition
Given two complex numbers \(z_1 = a + bi\) and \(z_2 = c + di\):
\((a + bi) + (c + di) = (a + c) + (b + d)i\)
Example:
\((3 + 5i) + (2 - 1i)\)
Solution:
\((3 + 2) + (5 - 1)i = \mathbf{5 + 4i}\)
The Subtraction Pitfall
The most common error is failing to distribute the negative to both parts of the second number.
\((a + bi) - (c + di) = a + bi \mathbf{- c - di}\)
Walkthrough
\((10 - 4i) - (6 + 2i)\)
\(10 - 4i - 6 - 2i\)
\(4 - 6i\)
Geometric Result
The Parallelogram Law
Adding complex numbers is equivalent to Tip-to-Tail vector addition in the complex plane.
This connects algebra to geometry—a hallmark of advanced mathematics.

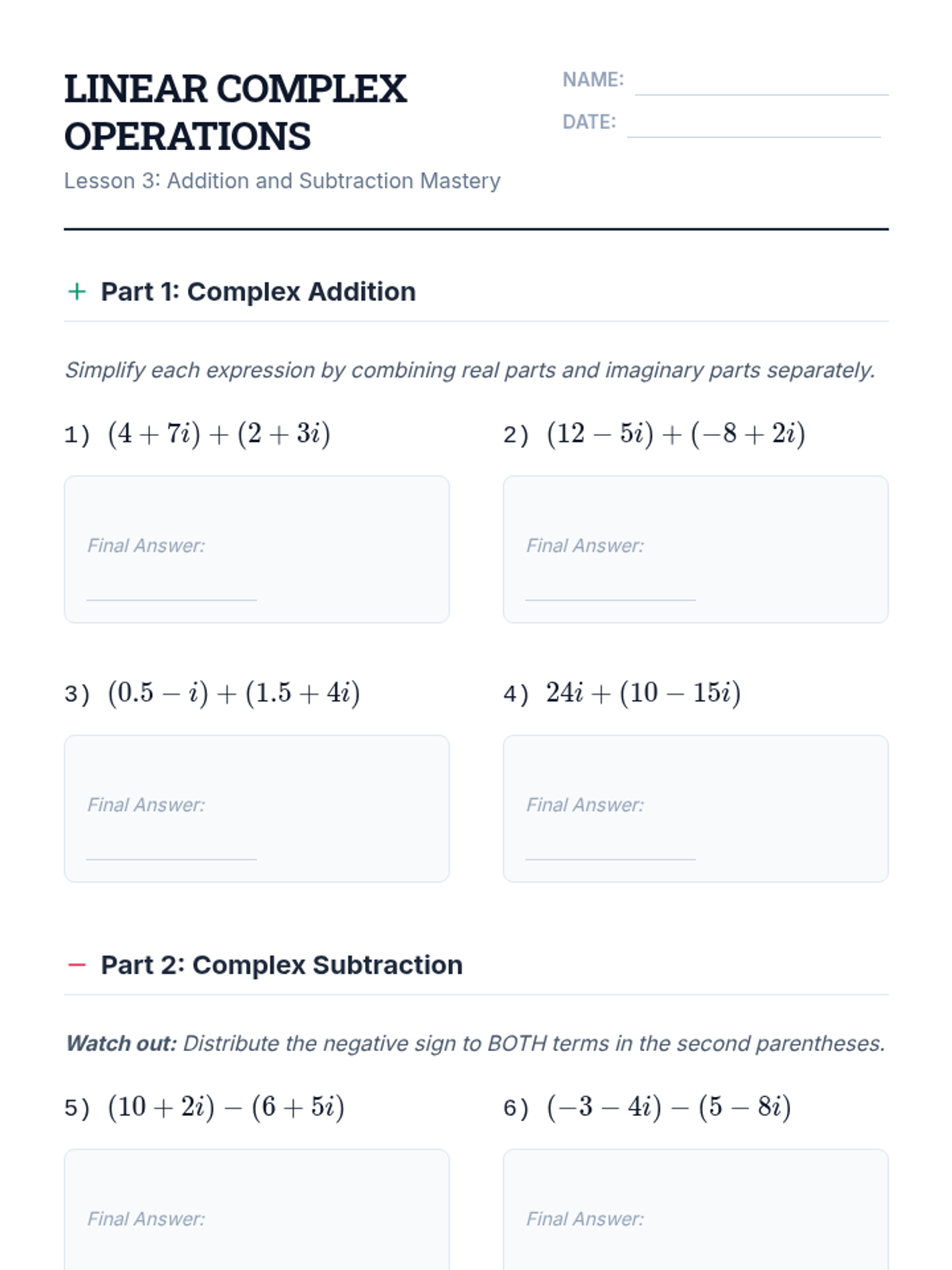

Complex Arithmetic Worksheet Linear Complex Operations
Lesson 3: Addition and Subtraction Mastery
Name:
Date:
Part 1: Complex Addition
Simplify each expression by combining real parts and imaginary parts separately.
\((4 + 7i) + (2 + 3i)\)
Final Answer:
\((12 - 5i) + (-8 + 2i)\)
Final Answer:
\((0.5 - i) + (1.5 + 4i)\)
Final Answer:
\(24i + (10 - 15i)\)
Final Answer:
Part 2: Complex Subtraction
Watch out: Distribute the negative sign to BOTH terms in the second parentheses.
\((10 + 2i) - (6 + 5i)\)
Final Answer:
\((-3 - 4i) - (5 - 8i)\)
Final Answer:
\((1 - i) - (1 + i)\)
Final Answer:
\(15 - (7 - 12i)\)
Final Answer:
Part 3: Multi-Step Expressions
Simplify fully using the order of operations.
\((3 + i) + (4 - 2i) - (5 + 6i)\)
\(-2(3 - 4i) + (7 + i)\)
Hint: Distribute the -2 first.
The Additive Inverse
An additive inverse of a number \(z\) is a number that, when added to \(z\), results in zero.
11. Find the inverse of \(z = 5 - 3i\).
12. Verify by adding them together.
Concept Check
"Is it possible to add two pure imaginary numbers and get a pure real number?" Explain why or why not.
Complex Field Slides The Complex Field
Verifying Field Axioms and Algebraic Structure
Lesson 4
Abstract Algebra
The Definition of a Field
In mathematics, a Field is a set of elements on which two operations (addition and multiplication) are defined such that they follow specific rules called Axioms .
We already know the set of Real Numbers (\(\mathbb{R}\)) is a field. Does the set of Complex Numbers (\(\mathbb{C}\)) share these rules?
The "Big Five" Axioms
1. Closure z + w ∈ C
2. Commutative z + w = w + z
3. Associative (z+w)+v = z+(w+v)
4. Identity z + 0 = z
5. Inverses z + (-z) = 0
Closure & Commutativity
Closure
Whenever we add two complex numbers, is the result ALWAYS another complex number?
\((a+bi) + (c+di) = (a+c) + (b+d)i\)
Since \((a+c)\) and \((b+d)\) are real, the result is in the form \(A + Bi\). Yes.
Commutativity
Does order matter? Does \(z + w = w + z\)?
\((a+c) + (b+d)i \stackrel{?}{=} (c+a) + (d+b)i\)
Addition of real numbers is commutative, so the components are equal. Yes.
The Additive Identity
Does Zero Exist in C?
\(0 + 0i\)
"Zero is the real number \(0\), which can be written as \(0 + 0i\). It acts as the anchor for the entire field structure."
Structural Conclusion
Because \(\mathbb{C}\) satisfies all additive and multiplicative axioms...
\(\mathbb{C}\) is a Field.
"This means all the rules of algebra you've used for Real numbers—like factoring, distribution, and solving equations—apply perfectly to Complex numbers."

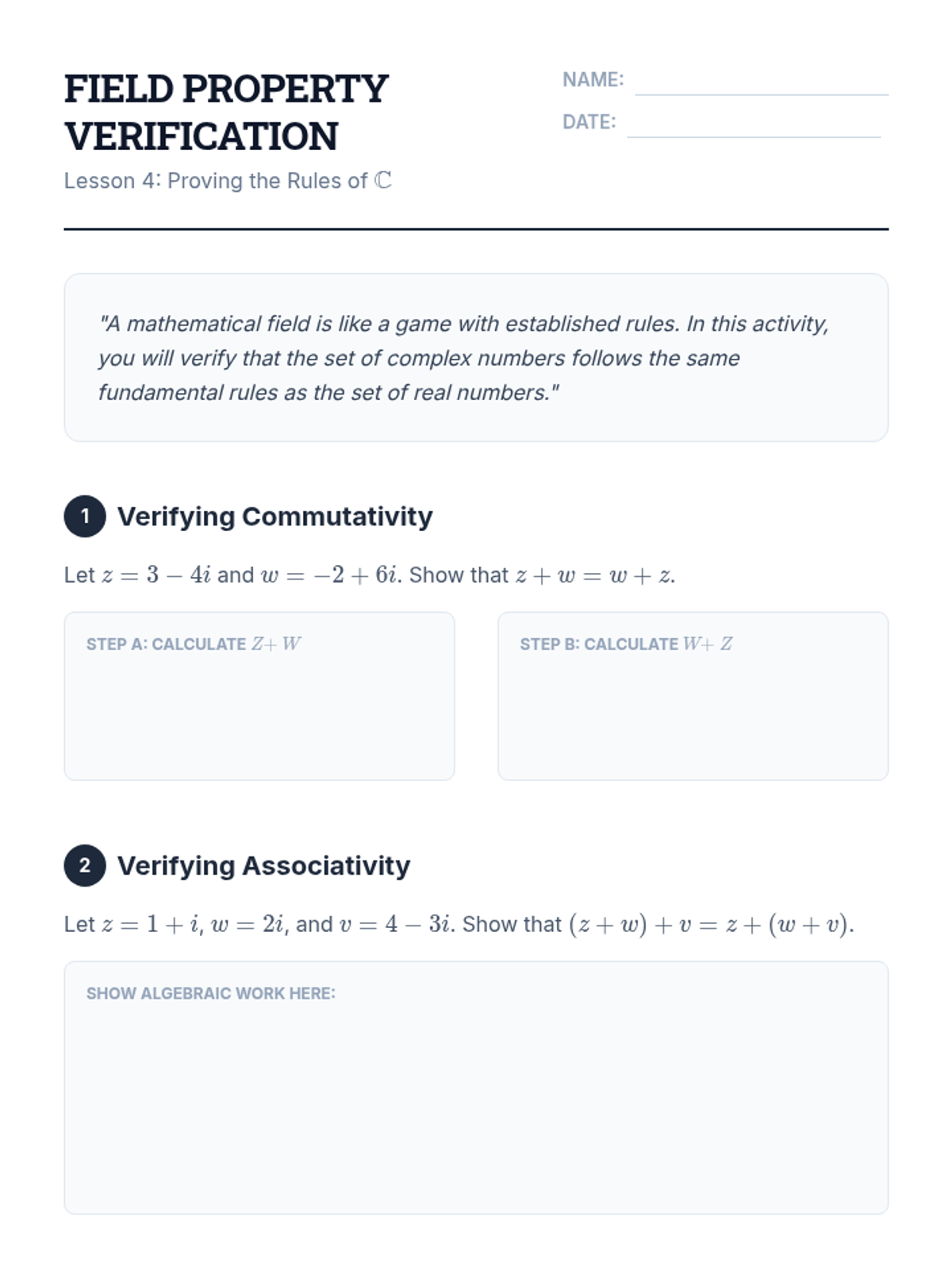

Field Property Worksheet Field Property Verification
Lesson 4: Proving the Rules of \(\mathbb{C}\)
Name:
Date:
"A mathematical field is like a game with established rules. In this activity, you will verify that the set of complex numbers follows the same fundamental rules as the set of real numbers."
1 Verifying Commutativity
Let \(z = 3 - 4i\) and \(w = -2 + 6i\). Show that \(z + w = w + z\).
Step A: Calculate \(z + w\)
Step B: Calculate \(w + z\)
2 Verifying Associativity
Let \(z = 1 + i\), \(w = 2i\), and \(v = 4 - 3i\). Show that \((z + w) + v = z + (w + v)\).
Show algebraic work here:
3 Distributing Real Multipliers
Show that \(k(z + w) = kz + kw\) where \(k = -3\), \(z = 5 + 2i\), and \(w = 1 - 4i\).
Verification work:
Part 2: Abstract Thinking
The Zero Element
In a field, there must exist an element \(\mathbf{0}\) such that \(z + 0 = z\) for all \(z\).
4. If \(z = a + bi\), what specific values must the real and imaginary parts of \(\mathbf{0}\) have? Explain.
Complex vs. Real
5. Many properties of \(\mathbb{R}\) carry over to \(\mathbb{C}\). However, one property that does not carry over is the "Order Property." In \(\mathbb{R}\), we can say \(5 > 2\). In \(\mathbb{C}\), we generally cannot say one complex number is "greater than" another.
Why might it be difficult to define "greater than" for two points on a 2D plane compared to a 1D line?
Structural Summary
6. Based on today's work, if we are given an equation like \(z + (4 - 2i) = 10 + 5i\), can we use standard subtraction to solve for \(z\)? Why or why not?
Closure Check
If \(z \in \mathbb{C}\) and \(w \in \mathbb{R}\), is \(z - w\) guaranteed to be in \(\mathbb{C}\)?
Complex Circuit Slides The Complex Circuit
Mastering Expressions and Synthesizing Complex Skills
Lesson 5
Mastery Review
Synthesis Checklist
To evaluate a complex expression, you must apply three distinct layers of knowledge:
1
Radical Reduction Convert \(\sqrt{-n}\) to \(i\sqrt{n}\) immediately.
2
Exponent Simplification Reduce all \(i^n\) terms to \(\{i, -1, -i, 1\}\).
3
Linear Arithmetic Combine Real with Real and Imaginary with Imaginary.
Standard Form Goal
\(a + bi\)
"The ultimate destination of every complex problem."
Synthesis: Tier 1
Simplify first!
\(3i^9 + \sqrt{-25}\)
\(3(i) + 5i\)
\(8i\)
Multi-Power
\(i^{20} - i^{21}\)
\(1 - i\)
\(2i^2 + 4i^4\)
\(2(-1) + 4(1) = 2\)
Synthesis: Tier 2
The "Boss" Expression
\((4 - 3i^7) - (6 + \sqrt{-16})\)
Step 1: Simplify Terms
\(i^7 = -i\)
\(\sqrt{-16} = 4i\)
Step 2: Rewrite
\((4 + 3i) - (6 + 4i)\)
Step 3: Combine
\(-2 - i\)
Mission Ready
You are now prepared for the Complex Circuit Challenge.
Speed
Simplify powers instantly.
Accuracy
Distribute negatives carefully.
Mastery
Express as a + bi.
"The complex plane is yours to command."
Complex Circuit Mastery Worksheet The Complex Circuit
Lesson 5: Mastery Evaluation & Synthesis
Name:
Date:
Mission Briefing
Complete the "circuit" by evaluating each expression. Every answer must be in the standard form \(a + bi\) . Each problem increases in complexity, requiring you to combine radical reduction, power simplification, and linear arithmetic.
1
Evaluate: \(\sqrt{-49} + i^3\)
Show work:
2
Evaluate: \(2(5 + 3i) - i^2\)
Show work:
3
Evaluate: \((i^{14} + i^{15}) + (i^{16} + i^{17})\)
Show work:
4
Evaluate: \( (3 - \sqrt{-64}) - (i^{21} + 12) \)
Show work:
The Final Analysis
5. Error Analysis Challenge
A student simplified \(\sqrt{-4} + \sqrt{-9}\) and got \(\sqrt{-13}\). Explain why this is incorrect and provide the correct simplification in standard form.
6. Connecting to the Future
In our next unit, we will explore Multiplication of complex numbers (e.g., \((2+i)(3+2i)\)). Using your knowledge of the distributive property and the fact that \(i^2 = -1\), make a prediction: What would you get if you multiplied \((1+i)\) by \((1-i)\)?
Standard Form Checklist
No radicals remaining
No \(i^n\) with \(n > 1\)
Real & Imaginary separate
Complex Mastery Answer Key Unit Answer Key
Fundamentals of Imaginary Numbers
Mastery Level
Undergraduate Algebra
The Complex Circuit (Lesson 5)
Problem 1
\(\sqrt{-49} + i^3 = 7i - i = \mathbf{6i}\)
Problem 2
\(2(5 + 3i) - i^2 = 10 + 6i - (-1) = \mathbf{11 + 6i}\)
Problem 3
\((i^{14} + i^{15}) + (i^{16} + i^{17}) = (-1 - i) + (1 + i) = \mathbf{0}\)
Problem 4
\( (3 - \sqrt{-64}) - (i^{21} + 12) \)
\(= (3 - 8i) - (i + 12)\)
5. Error Analysis
"The student treated radicals like variables or tried to use \(\sqrt{a} + \sqrt{b} = \sqrt{a+b}\), which is false even for real numbers. Correct approach: \(\sqrt{-4} + \sqrt{-9} = 2i + 3i = \mathbf{5i}\)."
6. Multiplication Prediction
"Using FOIL/Distribution: \(1(1) - 1(i) + 1(i) - i^2 = 1 - i^2\). Since \(i^2 = -1\), this is \(1 - (-1) = \mathbf{2}\). This shows that multiplying complex numbers can result in a real number (conjugate multiplication)."
Final Unit Reflections
Mastery Check
By the end of this sequence, students should be fluent in converting any linear complex expression into \(a+bi\). If students struggle with the 'Circuit', review distribution of negatives specifically.
Success Metrics
Success is defined by the student's ability to maintain the separation of the real and imaginary parts throughout multi-step operations without 'conflating' the components.
Next Steps
The prediction in Problem 6 is crucial. It transitions the class from additive structure (where \(\mathbb{C}\) acts like \(\mathbb{R}^2\)) to multiplicative structure (where \(\mathbb{C}\)'s unique field properties shine).
