Estimation Foundation Slides Project: Estimating the Foundation
Blueprint Builders
Lesson 1: Mastering Benchmarks and Material Estimates
Your New Role: Project Planner
Welcome to the crew! As a Project Planner, your first job is to order materials.
The High Stakes:
Too much: You waste money and lumber sits in the rain.Too little: Work stops, workers wait, and the project is late.
Toolbox: Benchmark Fractions
Before we calculate, we estimate. Use these three anchors:
0
Zero
Fractions that are very small (tiny scraps).
1/2
One Half
Fractions where the top is about half the bottom.
1
One Whole
Fractions where the top and bottom are close.
Quick Order Estimate
Estimate the total length of these two scrap boards:
\(4 \frac{1}{8}\)
Board A (feet)
\(2 \frac{7}{9}\)
Board B (feet)
1
\(4 \frac{1}{8}\) is close to 4 .
2
\(2 \frac{7}{9}\) is close to 3 .
3
Total estimate: 4 + 3 = 7 feet .
Reasonableness Check
If our real answer is \(5 \frac{1}{2}\), did we make a mistake?
Yes! Our estimate tells us the real answer must be near 7.
Ready to estimate?
Open your Material Estimator Worksheet . You have a list of lumber orders that need quick totals before the truck arrives at 8:00 AM.
"Good planning today prevents building disasters tomorrow."
Material Estimator Worksheet Material Estimator
Blueprint Builders | Unit 1: Estimation Scenarios
Planner:
Shift Date:
Site Briefing
The delivery truck is arriving soon. Before we unload, we must quickly estimate the total material lengths to ensure they fit in the storage bays. Use benchmark fractions (0, 1/2, or 1) to round each piece to the nearest whole or half number before finding the total.
Scenario A: Vertical Support Beams Bay #1
Lengths to combine:
\(5 \frac{1}{9}\) ft
\(3 \frac{7}{8}\) ft
Your Estimation Logic:
\(5 \frac{1}{9} \approx\) ___________
\(3 \frac{7}{8} \approx\) ___________
Total Estimate: ______________ ft
Scenario B: Plumbing Pipe Scrap Bay #2
Lengths to combine:
\(12 \frac{5}{11}\) in
\(2 \frac{1}{10}\) in
Your Estimation Logic:
\(12 \frac{5}{11} \approx\) ___________
\(2 \frac{1}{10} \approx\) ___________
Total Estimate: ______________ in
Scenario C: Deck Planks Bay #3
Lengths to combine:
\(8 \frac{4}{7}\) ft
\(6 \frac{5}{9}\) ft
Your Estimation Logic:
\(8 \frac{4}{7} \approx\) ___________
\(6 \frac{5}{9} \approx\) ___________
Total Estimate: ______________ ft
The Planner's Decision
Imagine you estimated the total lumber needed for a wall to be 15 feet . The real calculation turns out to be 15 ¼ feet .
1. Is your estimate "reasonable"? Explain why or why not.
2. If you only bought 15 feet of wood based on your estimate, what would happen on the construction site?
3. Challenge: Give a fraction that is closer to 1 than to 1/2, but is not 1.
?
How do you know?
Estimation Teacher Guide Instructional Guide
Lesson 1: Estimating the Foundation
Teacher Resource
Learning Objective
Students will use benchmark fractions (0, 1/2, 1) to estimate sums of fractions and mixed numbers, assessing the reasonableness of their answers within a construction project simulation.
The Hook
"If you guess wrong on how much wood to buy, you lose money. If you buy too little, the whole crew sits around doing nothing. How close can your estimate get?"
At a Glance
Duration: 60 Mins
Group Size: Pairs/Indiv
Materials: Slides, Estimator Worksheet
Direct Instruction (20 min)
1
Set the Scene
Use Slide 2 to introduce the "Project Planner" role. Emphasize the financial and time-management consequences of poor estimation.
2
Benchmark Anchors
Use Slide 3 to define benchmarks. Key Tip: Ask students to visualize a 12-inch ruler. If a scrap is only 1/8 inch, it's effectively 0 for a big lumber order. If it's 11/12 inch, it's effectively 1.
Guided Practice (15 min)
Work through Slide 4 as a class. Model the thinking process out loud:
"I see 4 and 1/8. 1/8 is a tiny sliver of a foot, so I'll call it 4."
"I see 2 and 7/9. 7/9 is nearly 9/9, which is a whole, so I'll bump that 2 up to a 3."
"4 + 3 is 7. My answer should be around 7."
Independent Application (20 min)
Distribute the Material Estimator Worksheet . Students should complete the scenarios individually or in pairs. Circulate and look for:
Look For
Correct rounding to benchmarks.
Reasoning in the reflection sections.
Common Pitfalls
Rounding every fraction down.
Adding numerators/denominators before rounding.
Debrief Question:
"If you are a contractor, is it better to slightly overestimate or slightly underestimate ? Why?"
Structural Beam Slides Project: Structural Beam Assembly
Precise Connections
Lesson 2: Adding Fractions with Unlike Denominators
The Problem: Unlike Scraps
We need to bridge a gap, but our beam pieces are measured in different increments.
You have a piece that is 1/2 yard and another that is 1/4 yard.
1/2 + 1/4 = ?
Stop! You cannot add these directly. Why not?
1/2 Yard Piece
1/4 Yard Piece
They don't speak the same "Math Language"
Strategy: The Common Ground
To add fractions, we must make their "labels" (denominators) the same.
1
Find a Multiple
List multiples of 2 and 4.
2
Convert
Turn 1/2 into 4ths.
3
Assemble
Now add the numerators.
Site Check: Mixed Denominators
Connect these Structural Beams:
\( \frac{2}{3} \)
Beam A
\( \frac{1}{6} \)
Beam B
"Can we use 6 as our common denominator? Let's prove it."
Time to Assemble
Open your Beam Builder Worksheet . You must find the total length of the supports for the main structure. Accuracy is non-negotiable!
"Measure twice, add once!"

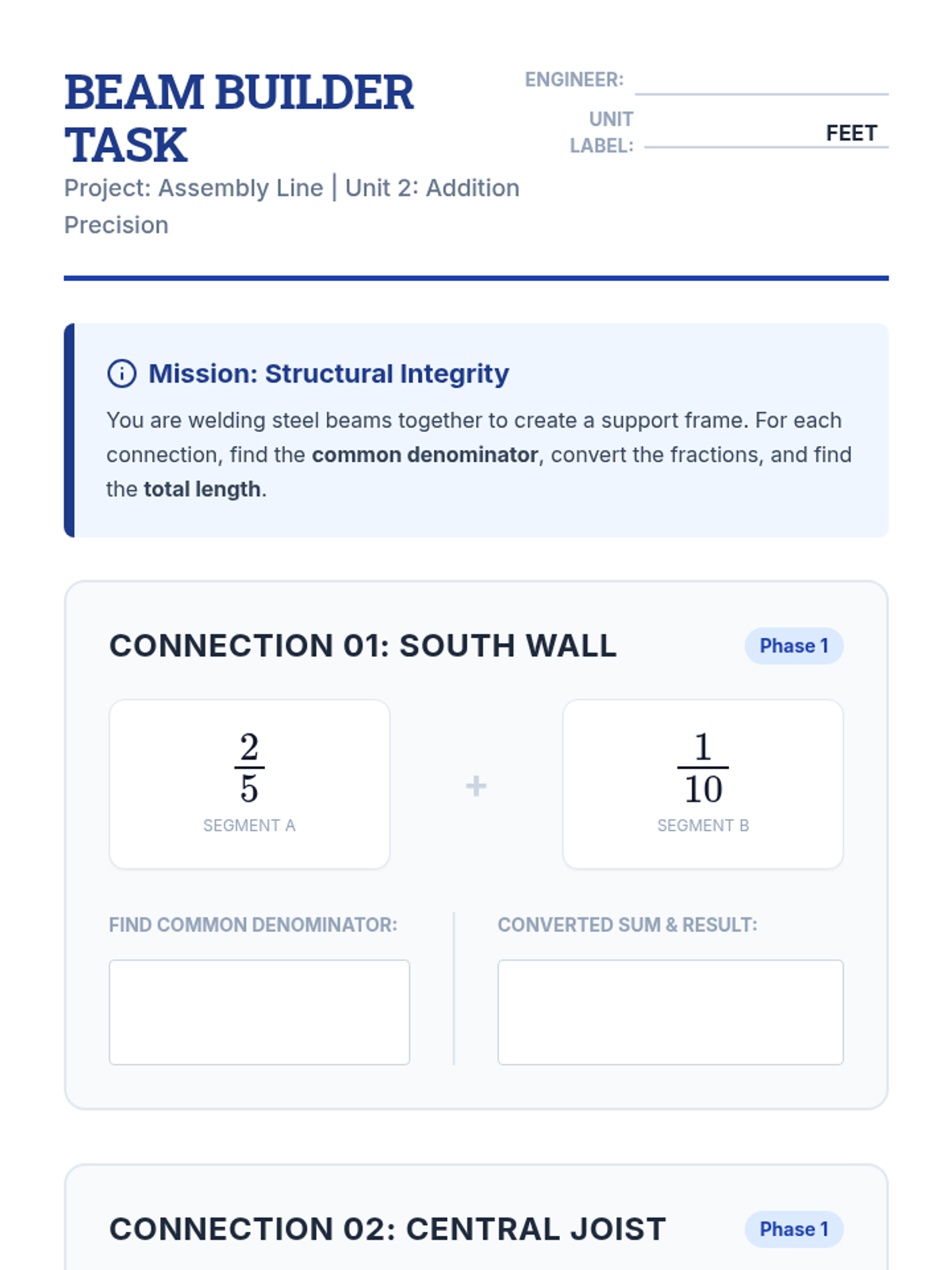

Beam Builder Worksheet Beam Builder Task
Project: Assembly Line | Unit 2: Addition Precision
Engineer:
Unit Label:
FEET
Mission: Structural Integrity
You are welding steel beams together to create a support frame. For each connection, find the common denominator , convert the fractions, and find the total length .
Connection 01: South Wall
Phase 1
\( \frac{2}{5} \)
Segment A
\( \frac{1}{10} \)
Segment B
Find Common Denominator:
Converted Sum & Result:
Connection 02: Central Joist
Phase 1
\( \frac{1}{3} \)
Segment C
\( \frac{1}{4} \)
Segment D
Find Common Denominator:
Converted Sum & Result:
Connection 03: The Master Span
Phase 2: ADVANCED
We need to combine THREE pieces for the main entrance support.
\( \frac{1}{2} \)
\( \frac{1}{4} \)
\( \frac{1}{8} \)
Show your assembly logic here:
Total Span: ________________ ft
Authorized by the Structural Safety Board | Precision is Protection

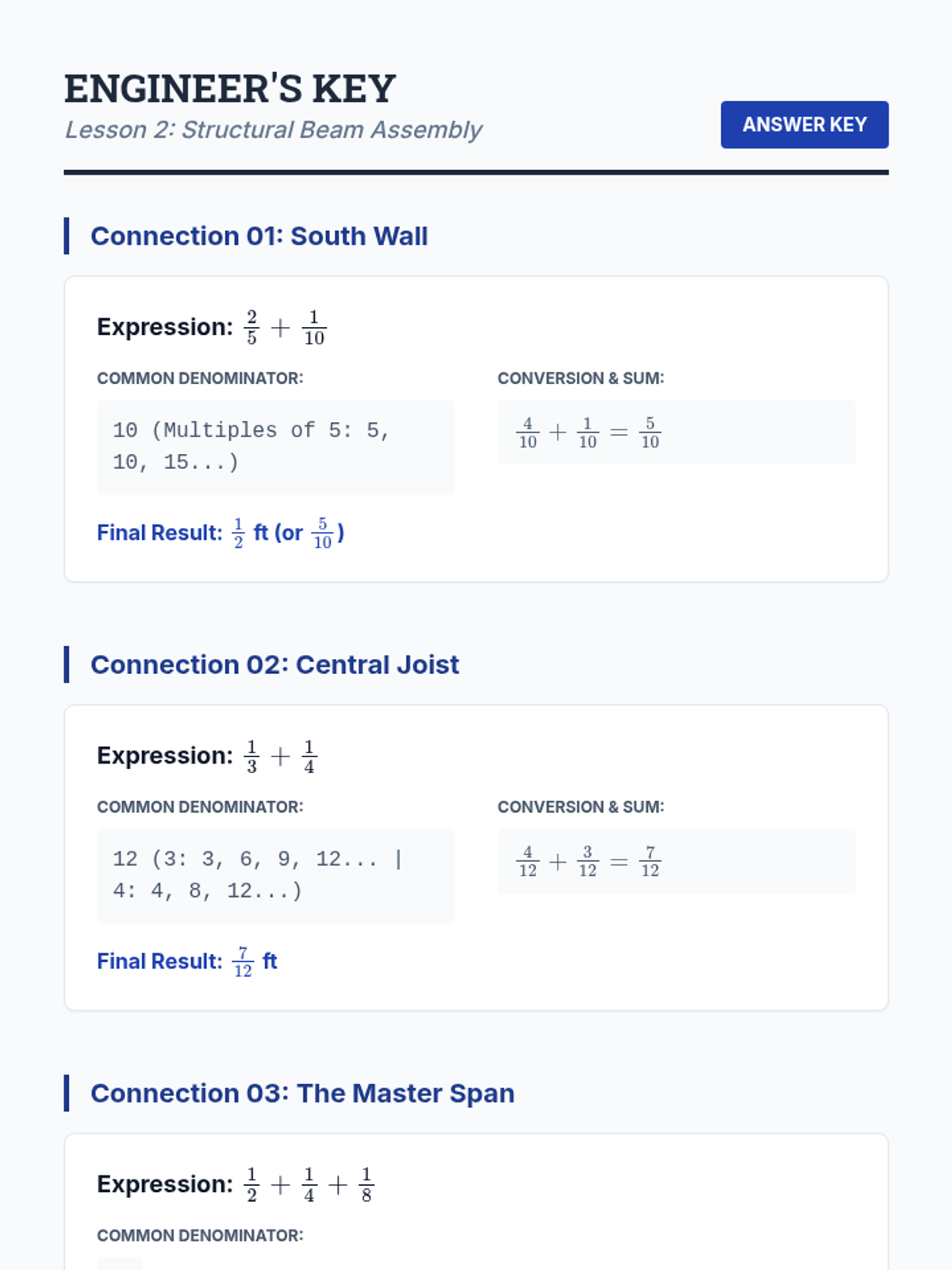

Beam Builder Answer Key Engineer's Key
Lesson 2: Structural Beam Assembly
Answer Key
Connection 01: South Wall
Expression: \( \frac{2}{5} + \frac{1}{10} \)
Common Denominator:
10 (Multiples of 5: 5, 10, 15...)
Conversion & Sum:
\( \frac{4}{10} + \frac{1}{10} = \frac{5}{10} \)
Final Result: \( \frac{1}{2} \) ft (or \( \frac{5}{10} \))
Connection 02: Central Joist
Expression: \( \frac{1}{3} + \frac{1}{4} \)
Common Denominator:
12 (3: 3, 6, 9, 12... | 4: 4, 8, 12...)
Conversion & Sum:
\( \frac{4}{12} + \frac{3}{12} = \frac{7}{12} \)
Final Result: \( \frac{7}{12} \) ft
Connection 03: The Master Span
Expression: \( \frac{1}{2} + \frac{1}{4} + \frac{1}{8} \)
Common Denominator:
8
Conversion Steps:
\( \frac{4}{8} + \frac{2}{8} + \frac{1}{8} = \frac{7}{8} \)
Final Result: \( \frac{7}{8} \) ft
Quick Diagnostic
If students are getting 7/12 for Connection 01, they are adding the denominators (5+10=15) and numerators (2+1=3) and then simplifying or making an error. Re-teach the concept of "common units" using a ruler as a visual.
Precision Cut Slides Project: Precision Cut Calculations
Cutting & Waste
Lesson 3: Subtraction with Regrouping
The Stock Cut
Most lumber comes in whole-foot lengths (8ft, 10ft, 12ft).
Scenario:
You have a 12 ft board.
You cut off 3 \frac{5}{8} ft.
12 - \( 3 \frac{5}{8} \) = ?
WHOLE BOARD (12 FT)
CUT OFF
REMAINING WASTE
Strategy: "The Swap"
You can't subtract 5/8 from "nothing." You must rename the whole number.
12
becomes...
\( 11 \frac{8}{8} \)
Why 8/8?
"Since we are cutting eighths, we turn 1 whole foot into 8/8. Now we have something to subtract from!"
The Calculation
\( 11 \frac{8}{8} \)
Stock
-
\( 3 \frac{5}{8} \)
Cut
\( 8 \frac{3}{8} \)
Remaining Scrap
Report to the Saw
Open your Scrap Manager Worksheet . We need to calculate how much material is left from our 10ft and 12ft stock boards. Don't waste an inch!
"Precision cuts build stable homes."

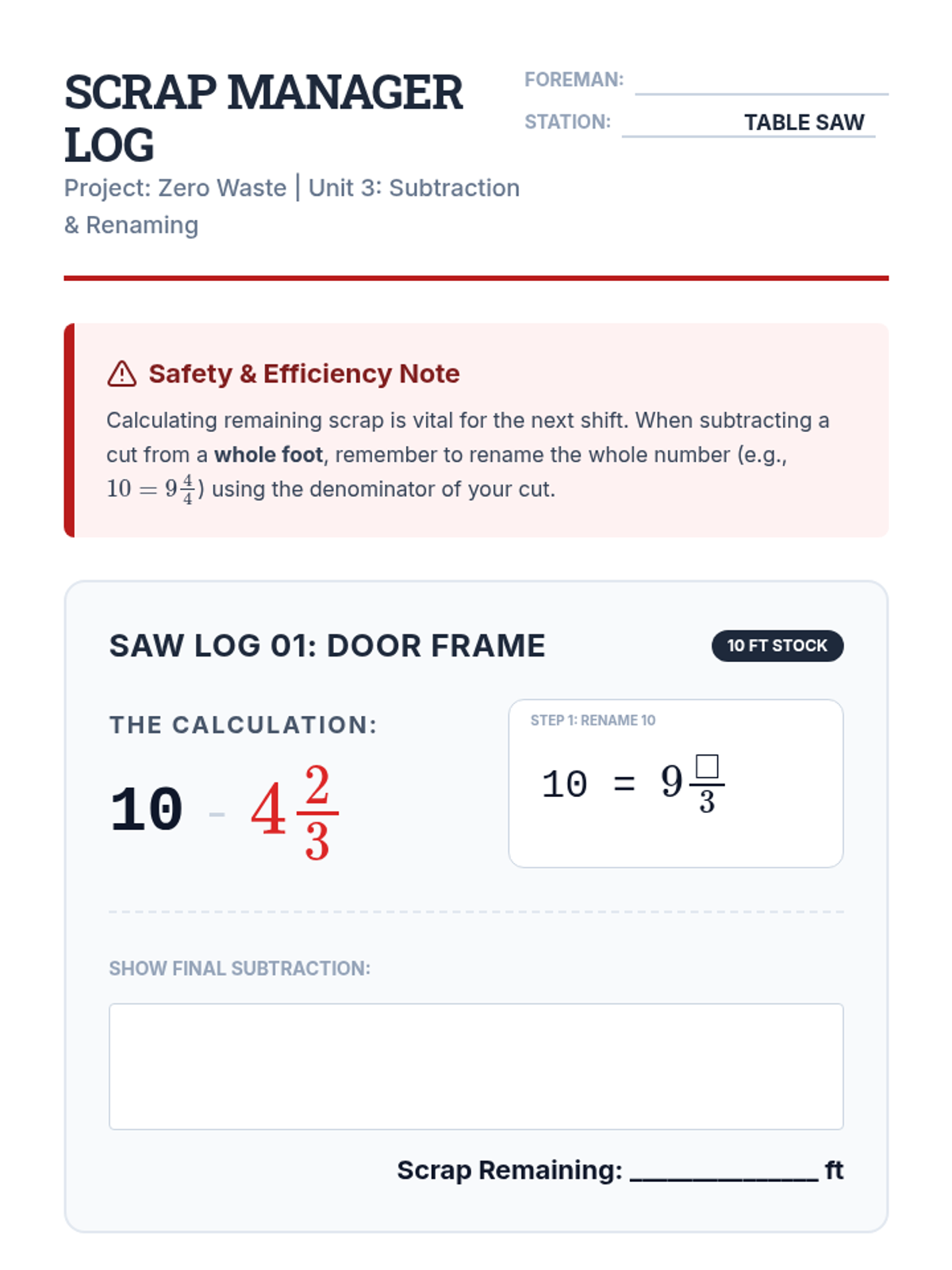

Scrap Manager Worksheet Scrap Manager Log
Project: Zero Waste | Unit 3: Subtraction & Renaming
Foreman:
Station:
Table Saw
Safety & Efficiency Note
Calculating remaining scrap is vital for the next shift. When subtracting a cut from a whole foot , remember to rename the whole number (e.g., \( 10 = 9 \frac{4}{4} \)) using the denominator of your cut.
Saw Log 01: Door Frame
10 ft Stock
The Calculation:
10
-
\( 4 \frac{2}{3} \)
Step 1: Rename 10
10 = \( 9 \frac{\square}{3} \)
Show final subtraction:
Scrap Remaining: _______________ ft
Saw Log 02: Window Header
12 ft Stock
The Calculation:
12
-
\( 7 \frac{5}{8} \)
Step 1: Rename 12
_____ \(\frac{\square}{\square}\)
Show final subtraction:
Scrap Remaining: _______________ ft
Case Study: The Mismatched Scrap
Worker Sam has a scrap piece that is \( 5 \frac{3}{4} \) feet long. He needs to cut off \( 2 \frac{7}{8} \) feet for a brace.
1. What is the challenge here compared to the whole number problems?
2. Solve the subtraction: \( 5 \frac{3}{4} - 2 \frac{7}{8} \). (Hint: You may need to rename twice!)
Final Cut Remaining: _______________ ft

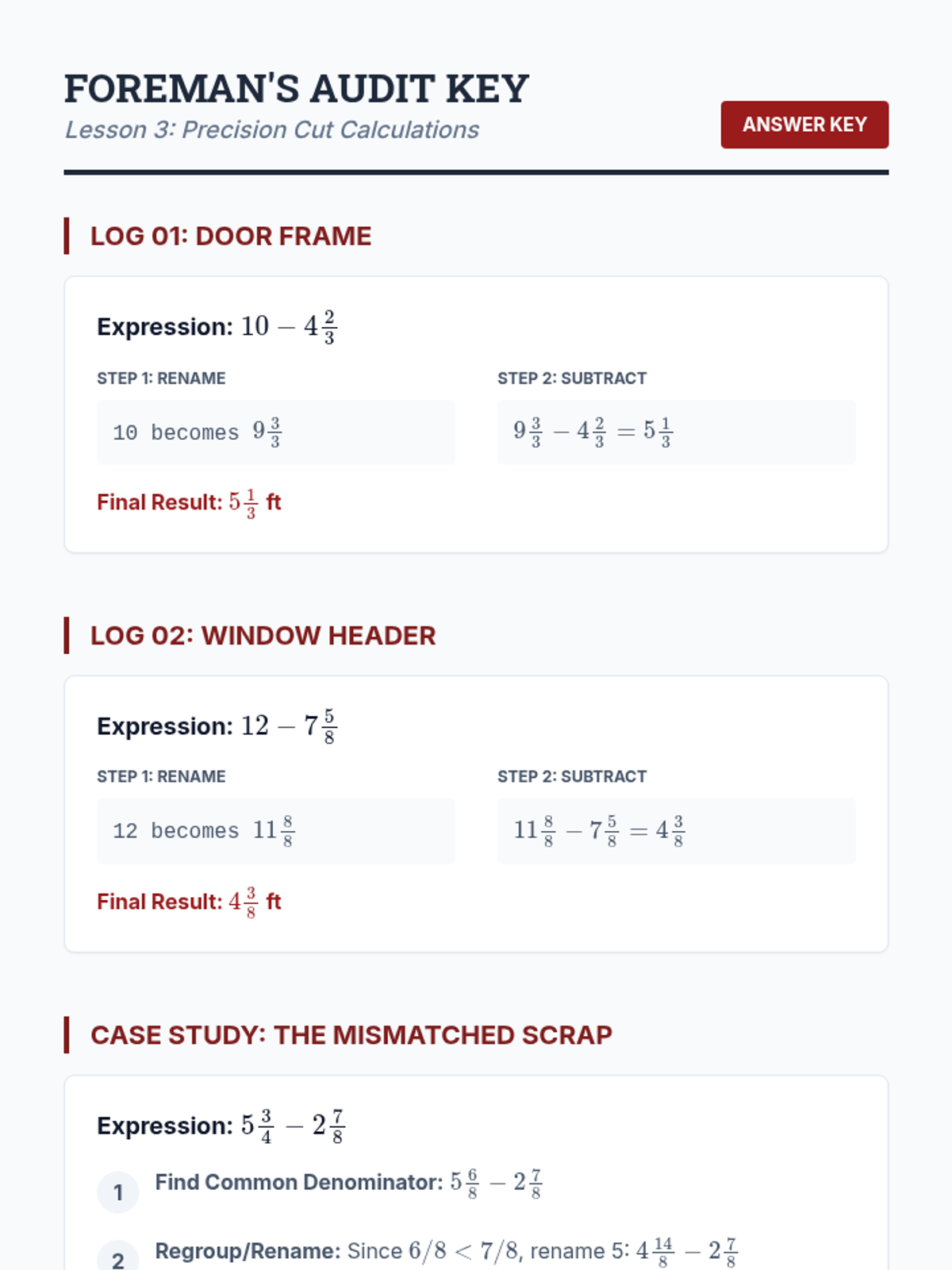

Scrap Manager Answer Key Foreman's Audit Key
Lesson 3: Precision Cut Calculations
Answer Key
Log 01: Door Frame
Expression: \( 10 - 4 \frac{2}{3} \)
Step 1: Rename
10 becomes \( 9 \frac{3}{3} \)
Step 2: Subtract
\( 9 \frac{3}{3} - 4 \frac{2}{3} = 5 \frac{1}{3} \)
Final Result: \( 5 \frac{1}{3} \) ft
Log 02: Window Header
Expression: \( 12 - 7 \frac{5}{8} \)
Step 1: Rename
12 becomes \( 11 \frac{8}{8} \)
Step 2: Subtract
\( 11 \frac{8}{8} - 7 \frac{5}{8} = 4 \frac{3}{8} \)
Final Result: \( 4 \frac{3}{8} \) ft
Case Study: The Mismatched Scrap
Expression: \( 5 \frac{3}{4} - 2 \frac{7}{8} \)
1
Find Common Denominator: \( 5 \frac{6}{8} - 2 \frac{7}{8} \)
2
Regroup/Rename: Since \( 6/8 < 7/8 \), rename 5: \( 4 \frac{14}{8} - 2 \frac{7}{8} \)
3
Subtract: \( (4-2) \) and \( (14/8 - 7/8) = 2 \frac{7}{8} \)
Final Result: \( 2 \frac{7}{8} \) ft
Misconception Alert
Watch for students who simply subtract the whole numbers and keep the fraction as-is (e.g., \( 12 - 3 \frac{5}{8} = 9 \frac{5}{8} \)). They are forgetting that the cut is removed from the total, not added to it. Use a physical piece of paper to demonstrate cutting away a portion from a whole.
Blueprint Logic Slides Project: The Blueprint Challenge
Blueprint Logic
Lesson 4: Multi-Step Fraction Deduction
Mystery Dimensions
Sometimes blueprints don't label every wall. You have to use the other numbers to "deduce" the missing length.
Planner Strategy:
Add small pieces to find a total.
Subtract a piece from the total to find a gap.
Total: 10 ft
\( 3 \frac{1}{2} \)
\( 2 \frac{1}{4} \)
?
Two-Step Logic
Step 1: Combine
Add up the segments you DO know first.
\( 3 \frac{1}{2} + 2 \frac{1}{4} \)
\( = 5 \frac{3}{4} \)
Step 2: Compare
Subtract that sum from the total length.
\( 10 - 5 \frac{3}{4} \)
\( = 4 \frac{1}{4} \)
Reading the Schematic
Dimension Lines
Arrows show exactly where a measurement starts and ends.
Critical Notes
Look for standard sizes (like "8ft stud") in the plan text.
The "X" Variable
This is your target. All other numbers lead to X.
The Blueprint Challenge
Open your Blueprint Puzzle Worksheet . Use your addition and subtraction skills to find the missing measurements for the "Eco-Home" project.
"If the blueprint is wrong, the building is wrong."

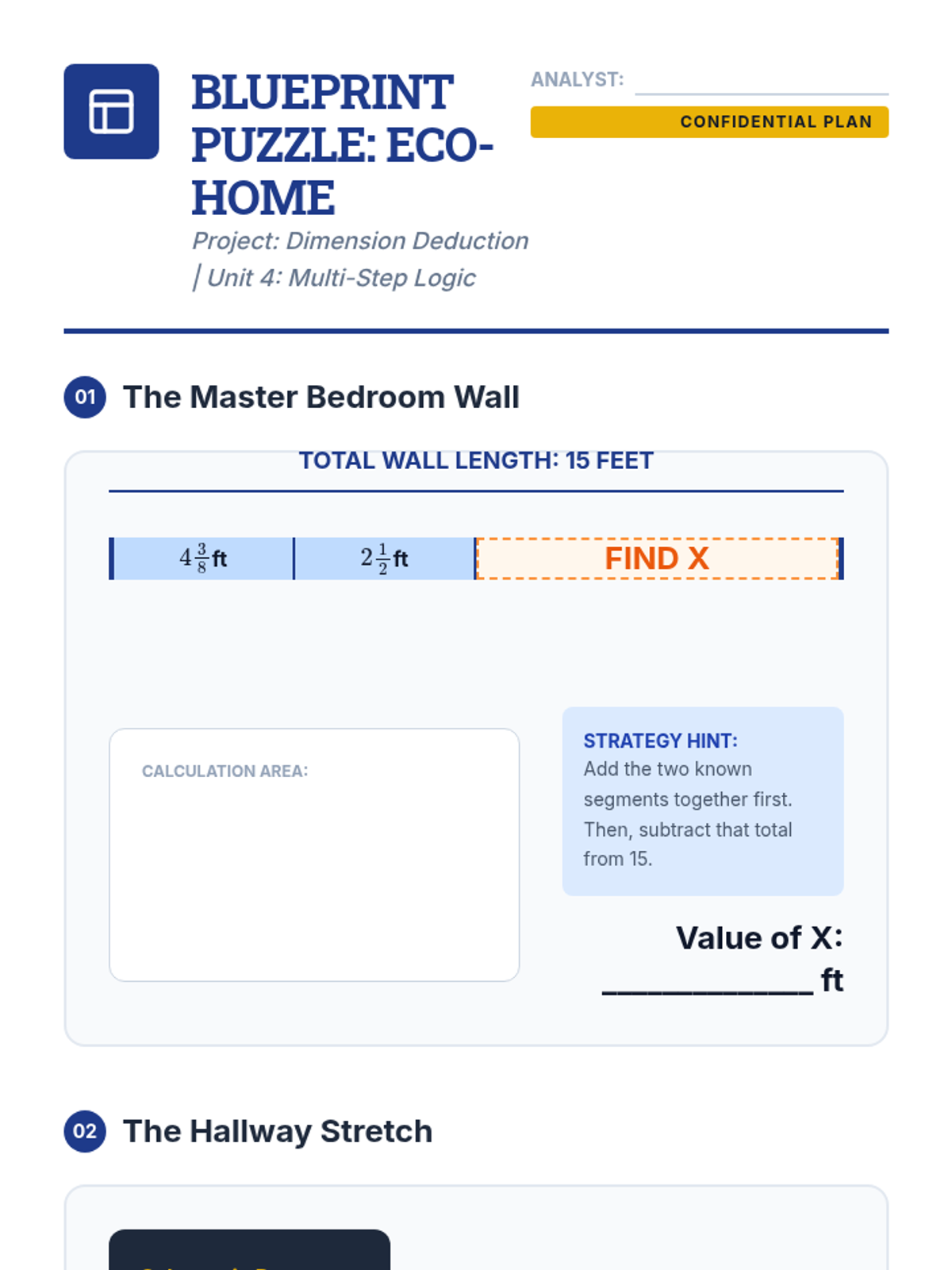

Blueprint Puzzle Worksheet Blueprint Puzzle: Eco-Home
Project: Dimension Deduction | Unit 4: Multi-Step Logic
Analyst:
Confidential Plan
01 The Master Bedroom Wall
\( 4 \frac{3}{8} \) ft
\( 2 \frac{1}{2} \) ft
FIND X
TOTAL WALL LENGTH: 15 FEET
Calculation Area:
Strategy Hint:
Add the two known segments together first. Then, subtract that total from 15.
Value of X: ______________ ft
02 The Hallway Stretch
Schematic Data:
• Segment A: \( 5 \frac{3}{4} \) yards
• Segment B: \( 2 \frac{1}{6} \) yards
What is the TOTAL hallway length (A + B)?
Work:
Total: _______________ yds
Segment A
Segment B
START TOTAL DISTANCE = ? END
The Level 5 Challenge
An architect made an error. They labeled a total wall as 12 feet . But the three segments labeled are: \( 4 \frac{1}{2} \) ft, \( 3 \frac{3}{4} \) ft, and \( 4 \frac{1}{8} \) ft.
1. Prove there is an error. Calculate the actual total of the three segments.
2. Is the labeled total (12 ft) too long or too short? By how much?

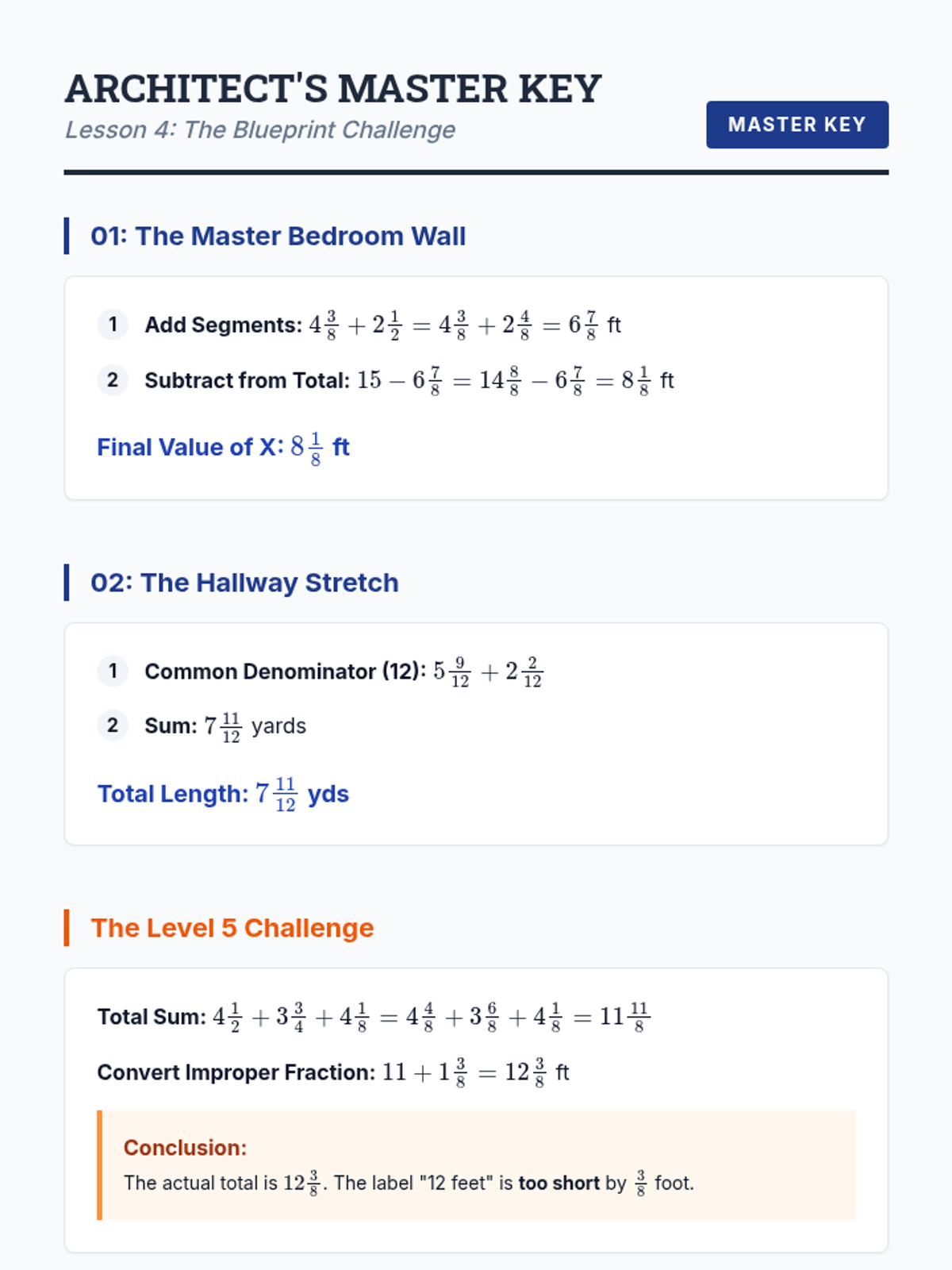

Blueprint Puzzle Answer Key Architect's Master Key
Lesson 4: The Blueprint Challenge
Master Key
01: The Master Bedroom Wall
1
Add Segments: \( 4 \frac{3}{8} + 2 \frac{1}{2} = 4 \frac{3}{8} + 2 \frac{4}{8} = 6 \frac{7}{8} \) ft
2
Subtract from Total: \( 15 - 6 \frac{7}{8} = 14 \frac{8}{8} - 6 \frac{7}{8} = 8 \frac{1}{8} \) ft
Final Value of X: \( 8 \frac{1}{8} \) ft
02: The Hallway Stretch
1
Common Denominator (12): \( 5 \frac{9}{12} + 2 \frac{2}{12} \)
2
Sum: \( 7 \frac{11}{12} \) yards
Total Length: \( 7 \frac{11}{12} \) yds
The Level 5 Challenge
Total Sum: \( 4 \frac{1}{2} + 3 \frac{3}{4} + 4 \frac{1}{8} = 4 \frac{4}{8} + 3 \frac{6}{8} + 4 \frac{1}{8} = 11 \frac{11}{8} \)
Convert Improper Fraction: \( 11 + 1 \frac{3}{8} = 12 \frac{3}{8} \) ft
Conclusion:
The actual total is \( 12 \frac{3}{8} \) . The label "12 feet" is too short by \( \frac{3}{8} \) foot.
Inspection Report Slides Project: Final Safety Inspection
Quality Control
Lesson 5: Error Analysis & Mastery
Your New Authority
A subcontractor submitted their final report, but something feels off.
The Inspector's Checklist:
Check the Denominators. Are they common?
Check the Whole Numbers. Did they rename?
Check the Result. Is it reasonable?
Warning!
A single math error can delay a $1M project.
Exhibit A: The Beam Report
Subcontractor Work:
\( \frac{2}{3} + \frac{1}{4} = \frac{3}{7} \)
Identify the Error
The worker added the numerators AND the denominators.
The Correction
They need a common denominator (12). Correct answer: 11/12.
Exhibit B: The Scrap Log
Subcontractor Work:
\( 10 - 3 \frac{1}{2} = 7 \frac{1}{2} \)
Identify the Error
They subtracted the whole numbers but forgot to rename the 10.
The Correction
10 becomes \( 9 \frac{2}{2} \). Correct answer: \( 6 \frac{1}{2} \).
Safety First
Open your Safety Inspector Worksheet . Your job is to find the mistakes in the Project Report and explain to the crew how to fix them.
"Mastery is the bridge between a plan and a building."

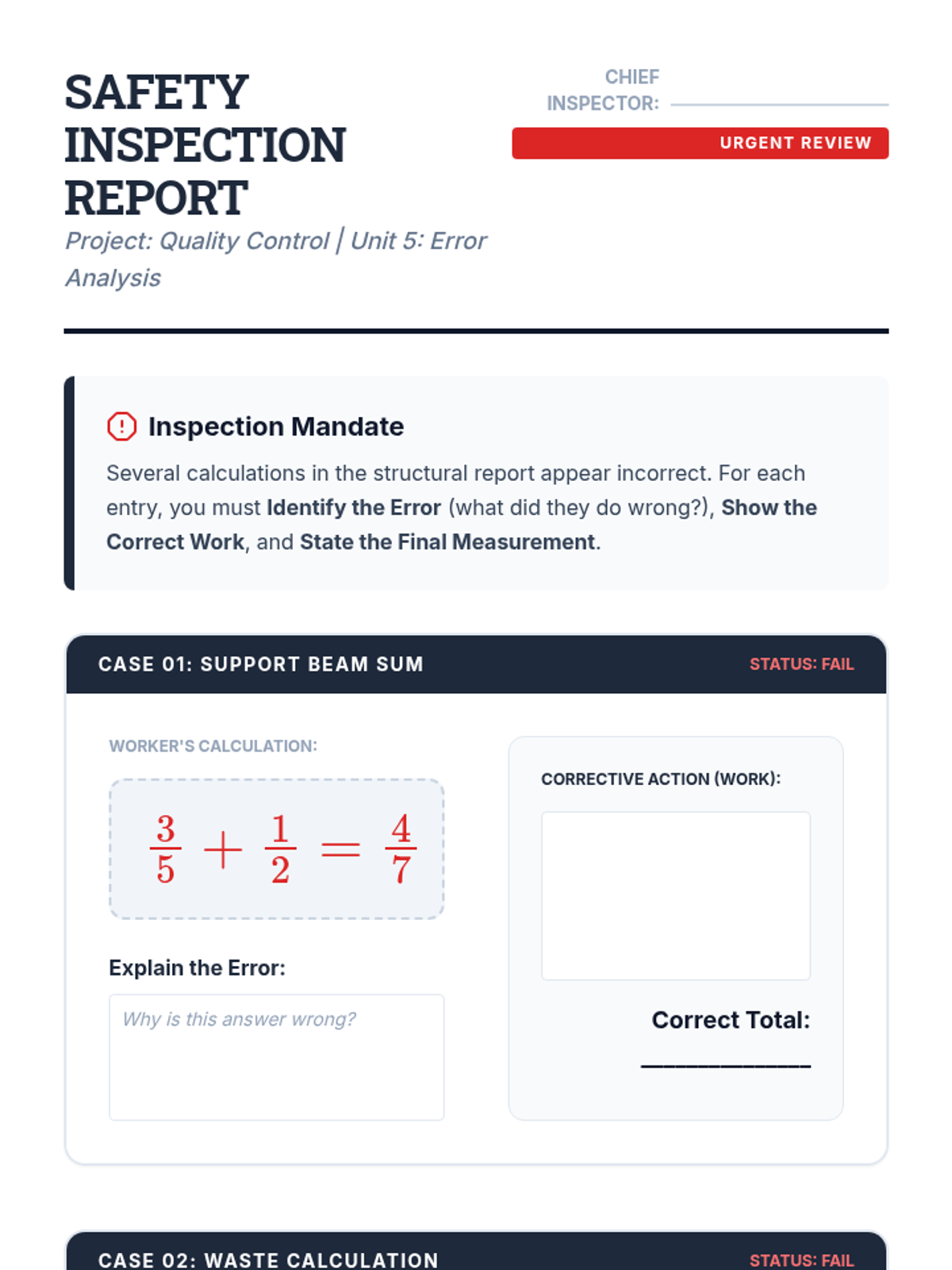

Safety Inspector Worksheet Safety Inspection Report
Project: Quality Control | Unit 5: Error Analysis
Chief Inspector:
Urgent Review
Inspection Mandate
Several calculations in the structural report appear incorrect. For each entry, you must Identify the Error (what did they do wrong?), Show the Correct Work , and State the Final Measurement .
Case 01: Support Beam Sum STATUS: FAIL
Worker's Calculation:
\( \frac{3}{5} + \frac{1}{2} = \frac{4}{7} \)
Explain the Error:
Why is this answer wrong?
Corrective Action (Work):
Correct Total: _______________
Case 02: Waste Calculation STATUS: FAIL
Worker's Calculation:
\( 12 - 5 \frac{3}{4} = 7 \frac{3}{4} \)
Explain the Error:
Where did the worker miss a step?
Corrective Action (Work):
Correct Total: _______________
Case 03: Mixed Number Addition STATUS: FAIL
Worker's Calculation:
\( 4 \frac{1}{2} + 2 \frac{5}{6} = 6 \frac{6}{8} \)
Explain the Error:
Check the common denominator.
Corrective Action (Work):
Correct Total: _______________
Inspector Certification
"I have reviewed the structural reports and certified that the calculations are accurate and safe for construction."
Signature of Chief Inspector
STAMP OF APPROVAL

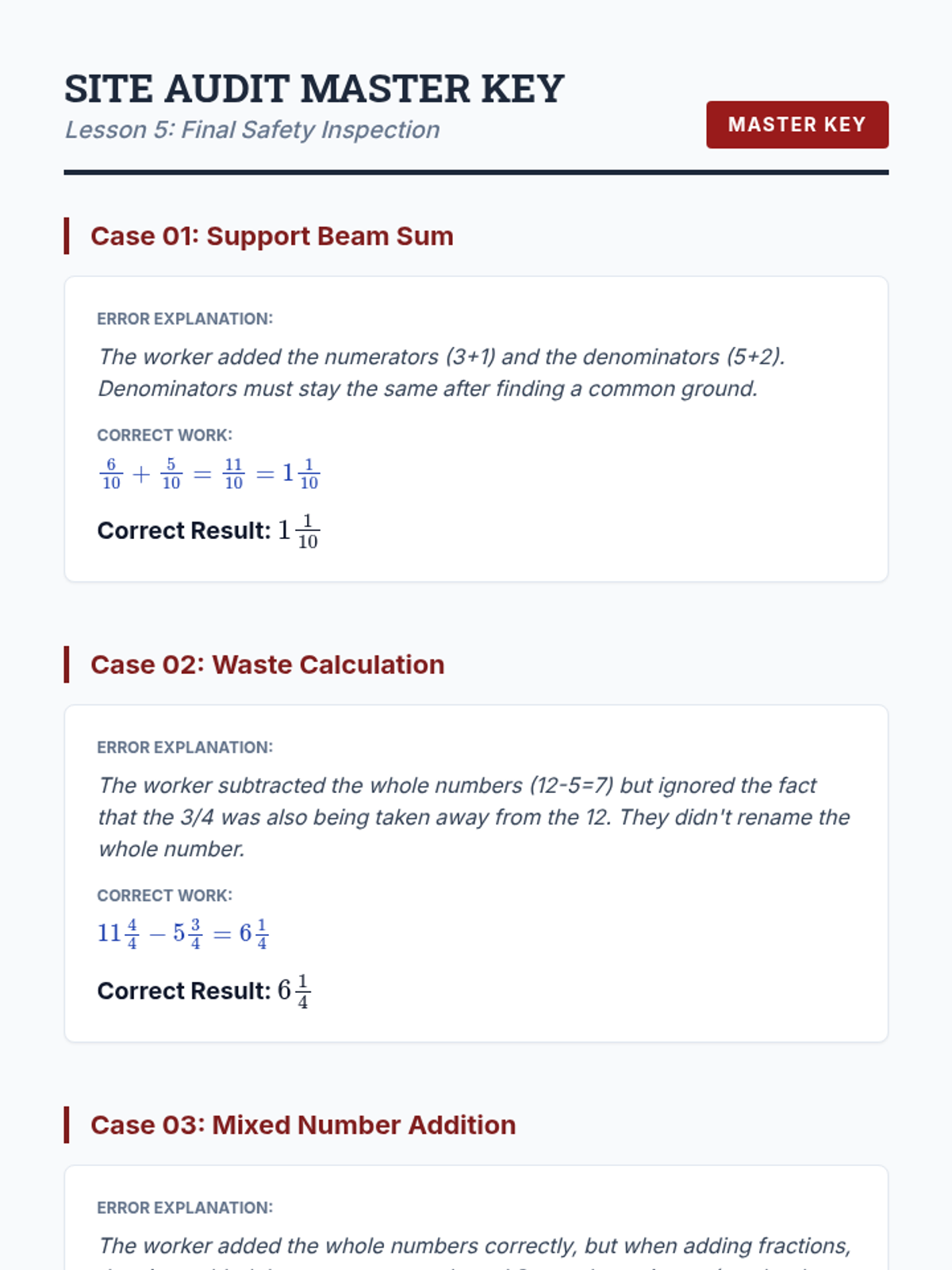

Safety Inspector Answer Key Site Audit Master Key
Lesson 5: Final Safety Inspection
Master Key
Case 01: Support Beam Sum
Error Explanation:
The worker added the numerators (3+1) and the denominators (5+2). Denominators must stay the same after finding a common ground.
Correct Work:
\( \frac{6}{10} + \frac{5}{10} = \frac{11}{10} = 1 \frac{1}{10} \)
Correct Result: \( 1 \frac{1}{10} \)
Case 02: Waste Calculation
Error Explanation:
The worker subtracted the whole numbers (12-5=7) but ignored the fact that the 3/4 was also being taken away from the 12. They didn't rename the whole number.
Correct Work:
\( 11 \frac{4}{4} - 5 \frac{3}{4} = 6 \frac{1}{4} \)
Correct Result: \( 6 \frac{1}{4} \)
Case 03: Mixed Number Addition
Error Explanation:
The worker added the whole numbers correctly, but when adding fractions, they just added the numerators and used 8 as a denominator (maybe they added 2+6?). They didn't find a proper common denominator.
Correct Work:
\( 4 \frac{3}{6} + 2 \frac{5}{6} = 6 \frac{8}{6} = 6 + 1 \frac{2}{6} = 7 \frac{1}{3} \)
Correct Result: \( 7 \frac{1}{3} \)
Teaching Strategy:
Encourage students to use "Reasonableness Checks" (benchmark fractions from Lesson 1) to spot these errors quickly. For example, in Case 01, \( 3/5 \) is more than half and \( 1/2 \) is half. The sum must be more than 1. \( 4/7 \) is barely more than half, so it's clearly incorrect.
