Corner Secrets Notes MISSION 01
CORNER & LINE SECRETS
Cracking Angle Codes using 90° Corners and 180° Flatlines
OPERATOR: _________________
DATE: _____/_____/_____
THE CORNER 90° TOTAL
Complementary Angles fit inside a square corner. They always add up to 90°.
x 60°
Equation: x + 60 = 90
THE FLATLINE 180° TOTAL
Supplementary Angles form a straight flat line. They always add up to 180°.
x 135°
Equation: x + 135 = 180
MISSION PRACTICALS: BUILD & SOLVE
CODE 01 Find \(x\)
x 40°
Equation & Solve:
CODE 02 Find \(k\)
k 50°
Equation & Solve:
CODE 03 Find \(y\)
25° y
Equation & Solve:
CODE 04 Find \(m\)
115° m
Equation & Solve:
Quick Check Routine
Is it a Corner? Set up: x + angle = 90 Is it a Line? Set up: x + angle = 180

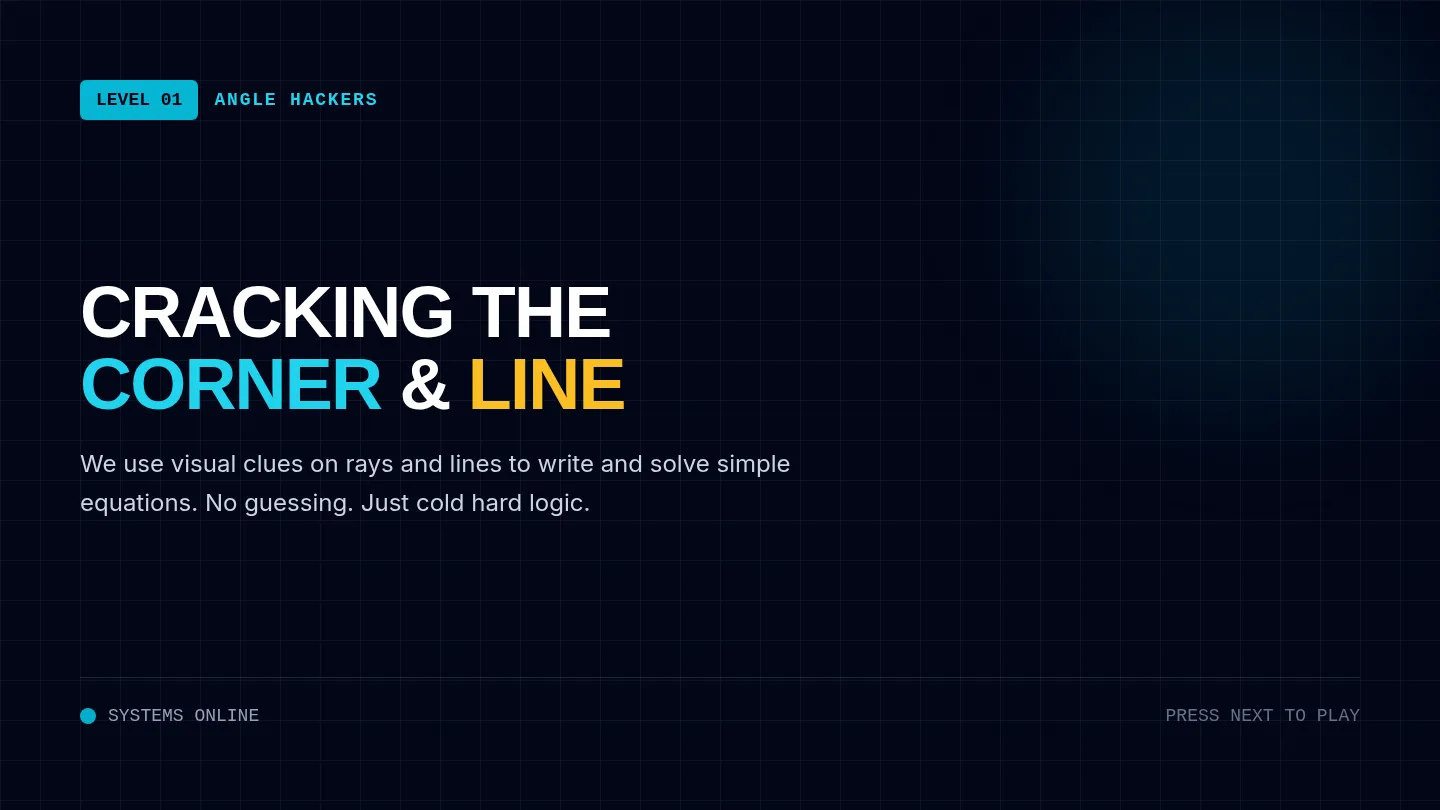

Corner Secrets Slides LEVEL 01 ANGLE HACKERS
CRACKING the
CORNER & LINE
We use visual clues on rays and lines to write and solve simple equations. No guessing. Just cold hard logic.
SYSTEMS ONLINE
PRESS NEXT TO PLAY
THE SQUARE CORNER
COMPLEMENTARY ANGLES
When two angles fit perfectly inside a square corner, their measures always add up to exactly 90°.
THE CODE FORMULA:
Angle A + Angle B = 90°
x 55°
Solve the Code: x + 55 = 90. What is x?
THE FLATLINE
SUPPLEMENTARY ANGLES
When angles sit on a straight flat line, they combine to make a straight-angle semicircle of exactly 180°.
THE CODE FORMULA:
Angle A + Angle B = 180°
k 120°
Solve the Code: k + 120 = 180. What is k?
GUIDED DEMO HOW TO SOLVE IN 3 STEPS
STEP 01
SPOT THE CLUE
Look at the diagram. Do you see a square corner (90°) or a flat line (180°)?
Identify target sum
STEP 02
WRITE EQUATION
Put the missing angle \(x\) and the known number together, setting them equal to the target sum from Step 1.
\(x + \text{angle} = \text{sum}\)
STEP 03
SOLVE & CHECK
Subtract the known angle from the sum to find \(x\). Add them back up to make sure you get 90 or 180!
Subtract to solve
Now let's crack the problems on your Mission notes !

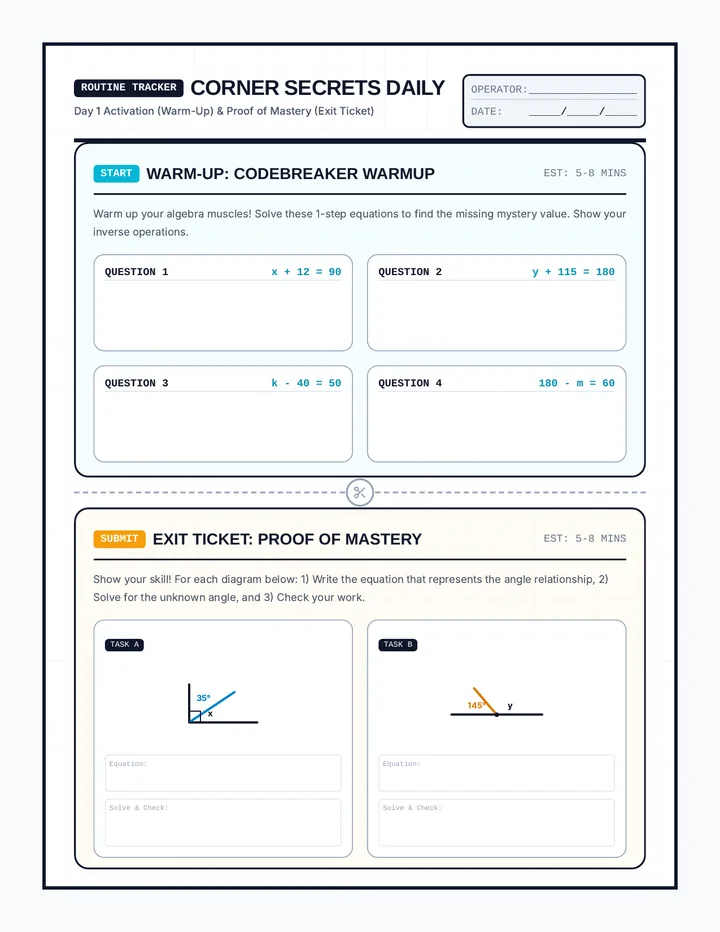

Corner Secrets Routine ROUTINE TRACKER
CORNER SECRETS DAILY
Day 1 Activation (Warm-Up) & Proof of Mastery (Exit Ticket)
OPERATOR: _________________
DATE: _____/_____/_____
START WARM-UP: CODEBREAKER WARMUP
EST: 5-8 MINS
Warm up your algebra muscles! Solve these 1-step equations to find the missing mystery value. Show your inverse operations.
QUESTION 1 x + 12 = 90
QUESTION 2 y + 115 = 180
QUESTION 3 k - 40 = 50
QUESTION 4 180 - m = 60
SUBMIT EXIT TICKET: PROOF OF MASTERY
EST: 5-8 MINS
Show your skill! For each diagram below: 1) Write the equation that represents the angle relationship, 2) Solve for the unknown angle, and 3) Check your work.
TASK A
x 35°
Equation:
Solve & Check:
TASK B
145° y
Equation:
Solve & Check:

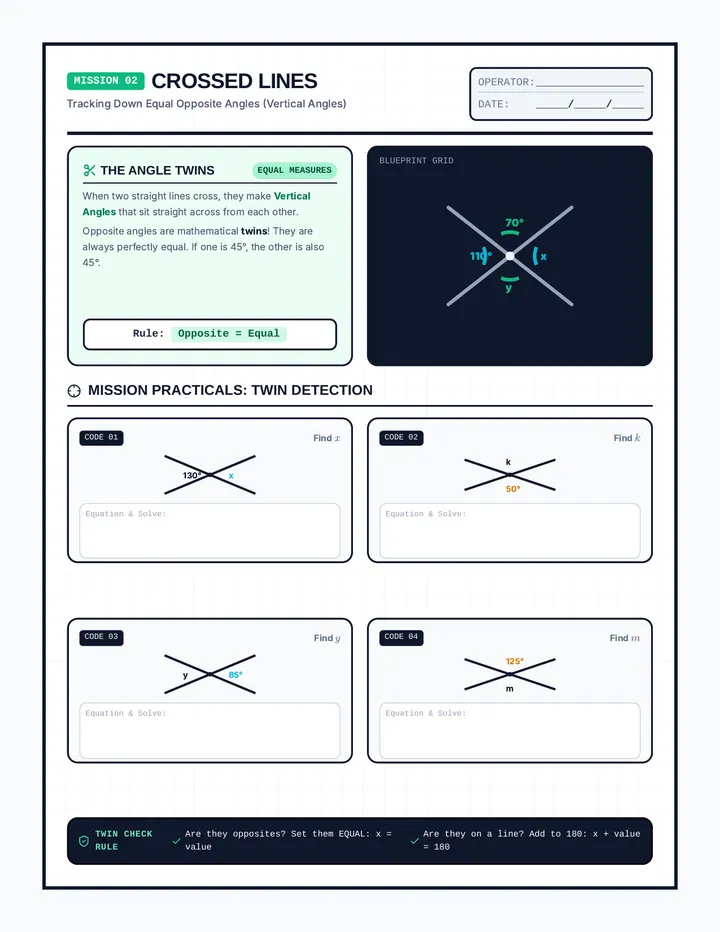

Crossed Lines Notes MISSION 02
CROSSED LINES
Tracking Down Equal Opposite Angles (Vertical Angles)
OPERATOR: _________________
DATE: _____/_____/_____
THE ANGLE TWINS EQUAL MEASURES
When two straight lines cross, they make Vertical Angles that sit straight across from each other.
Opposite angles are mathematical twins ! They are always perfectly equal. If one is 45°, the other is also 45°.
Rule: Opposite = Equal
BLUEPRINT GRID 110° x 70° y
MISSION PRACTICALS: TWIN DETECTION
CODE 01 Find \(x\)
130° x
Equation & Solve:
CODE 02 Find \(k\)
k 50°
Equation & Solve:
CODE 03 Find \(y\)
y 85°
Equation & Solve:
CODE 04 Find \(m\)
125° m
Equation & Solve:
Twin Check Rule
Are they opposites? Set them EQUAL: x = value Are they on a line? Add to 180: x + value = 180
Crossed Lines Slides LEVEL 02 ANGLE HACKERS
DETECTING the
ANGLE TWINS
Straight lines crossing over. Two opposite zones. One incredible rule: They are mathematical clones.
SYSTEMS ONLINE
PRESS NEXT TO PLAY
THE SCISSORS PRINCIPLE
VERTICAL ANGLES
Open a pair of scissors. As the top blades spread apart, the bottom handles spread apart by the exact same amount.
THE GOLDEN CLUE:
OPPOSITES ARE EQUAL!
65° x
Solve the Code: What is the measure of angle x?
TWIN HUNT PRACTICE
IDENTIFY & MATCH
CASE FILE A
Opposite Partners
The two highlighted angles sit directly across from each other. They are opposite.
Rule: Equal!
CASE FILE B
Flatline Neighbors
The two highlighted angles sit side-by-side along a straight flat line.
Rule: Add to 180!
Always check: Are they Opposites or are they Neighbors?
THE DUAL CODES LEVEL 2 BOSS CHALLENGE
130° a b
CAN YOU FIND BOTH?
Angle a
Is straight across from 130°.So \(a = 130^\circ\) (Twins!)
Angle b
Is on a flatline neighbor to 130°.So \(b + 130 = 180 \rightarrow b = 50^\circ\)
Let's complete your Crossed Lines Daily Tracker !

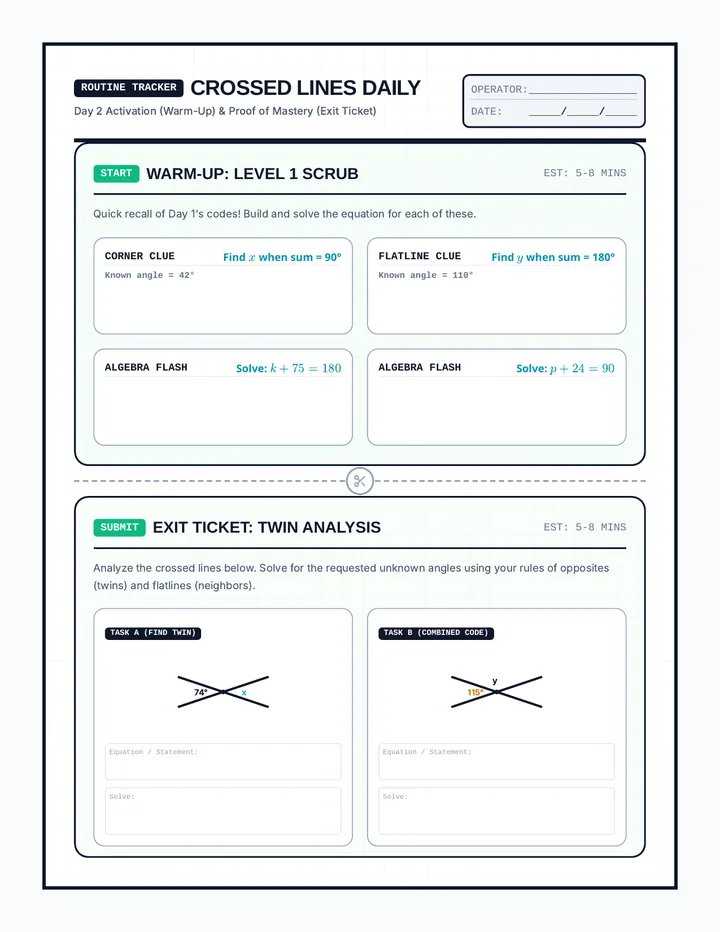

Crossed Lines Routine ROUTINE TRACKER
CROSSED LINES DAILY
Day 2 Activation (Warm-Up) & Proof of Mastery (Exit Ticket)
OPERATOR: _________________
DATE: _____/_____/_____
START WARM-UP: LEVEL 1 SCRUB
EST: 5-8 MINS
Quick recall of Day 1's codes! Build and solve the equation for each of these.
CORNER CLUE Find \(x\) when sum = 90°
Known angle = 42°
FLATLINE CLUE Find \(y\) when sum = 180°
Known angle = 110°
ALGEBRA FLASH Solve: \(k + 75 = 180\)
ALGEBRA FLASH Solve: \(p + 24 = 90\)
SUBMIT EXIT TICKET: TWIN ANALYSIS
EST: 5-8 MINS
Analyze the crossed lines below. Solve for the requested unknown angles using your rules of opposites (twins) and flatlines (neighbors).
TASK A (FIND TWIN)
74° x
Equation / Statement:
Solve:
TASK B (COMBINED CODE)
115° y
Equation / Statement:
Solve:

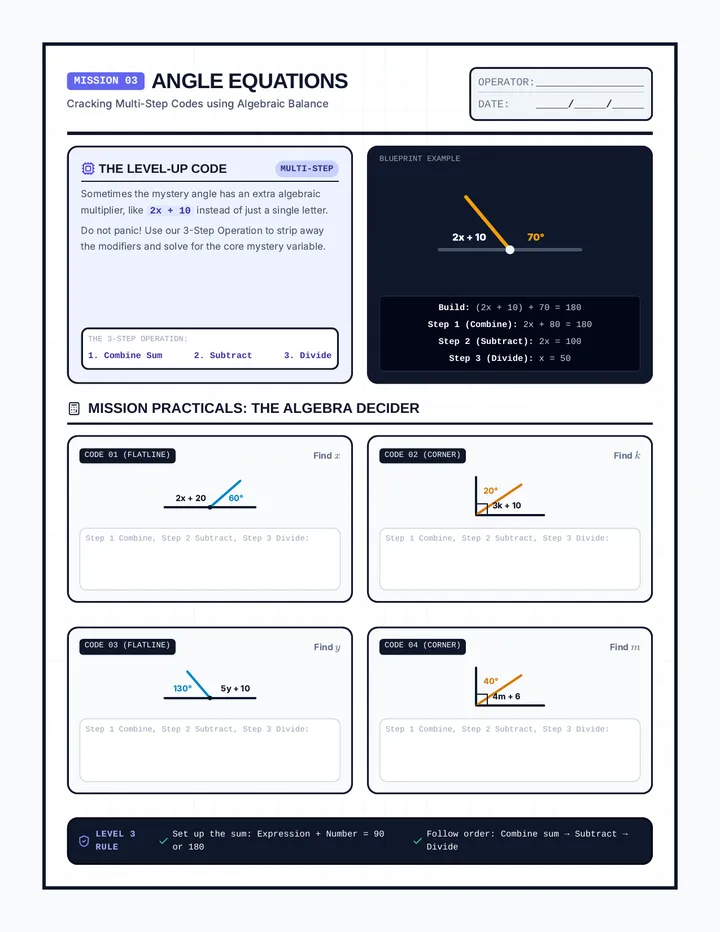

Angle Equations Notes MISSION 03
ANGLE EQUATIONS
Cracking Multi-Step Codes using Algebraic Balance
OPERATOR: _________________
DATE: _____/_____/_____
THE LEVEL-UP CODE MULTI-STEP
Sometimes the mystery angle has an extra algebraic multiplier, like 2x + 10 instead of just a single letter.
Do not panic! Use our 3-Step Operation to strip away the modifiers and solve for the core mystery variable.
The 3-Step Operation:
1. Combine Sum 2. Subtract 3. Divide
BLUEPRINT EXAMPLE
2x + 10 70°
Build: (2x + 10) + 70 = 180
Step 1 (Combine): 2x + 80 = 180
Step 2 (Subtract): 2x = 100
Step 3 (Divide): x = 50
MISSION PRACTICALS: THE ALGEBRA DECIDER
CODE 01 (FLATLINE) Find \(x\)
2x + 20 60°
Step 1 Combine, Step 2 Subtract, Step 3 Divide:
CODE 02 (CORNER) Find \(k\)
3k + 10 20°
Step 1 Combine, Step 2 Subtract, Step 3 Divide:
CODE 03 (FLATLINE) Find \(y\)
130° 5y + 10
Step 1 Combine, Step 2 Subtract, Step 3 Divide:
CODE 04 (CORNER) Find \(m\)
4m + 6 40°
Step 1 Combine, Step 2 Subtract, Step 3 Divide:
Level 3 Rule
Set up the sum: Expression + Number = 90 or 180 Follow order: Combine sum → Subtract → Divide

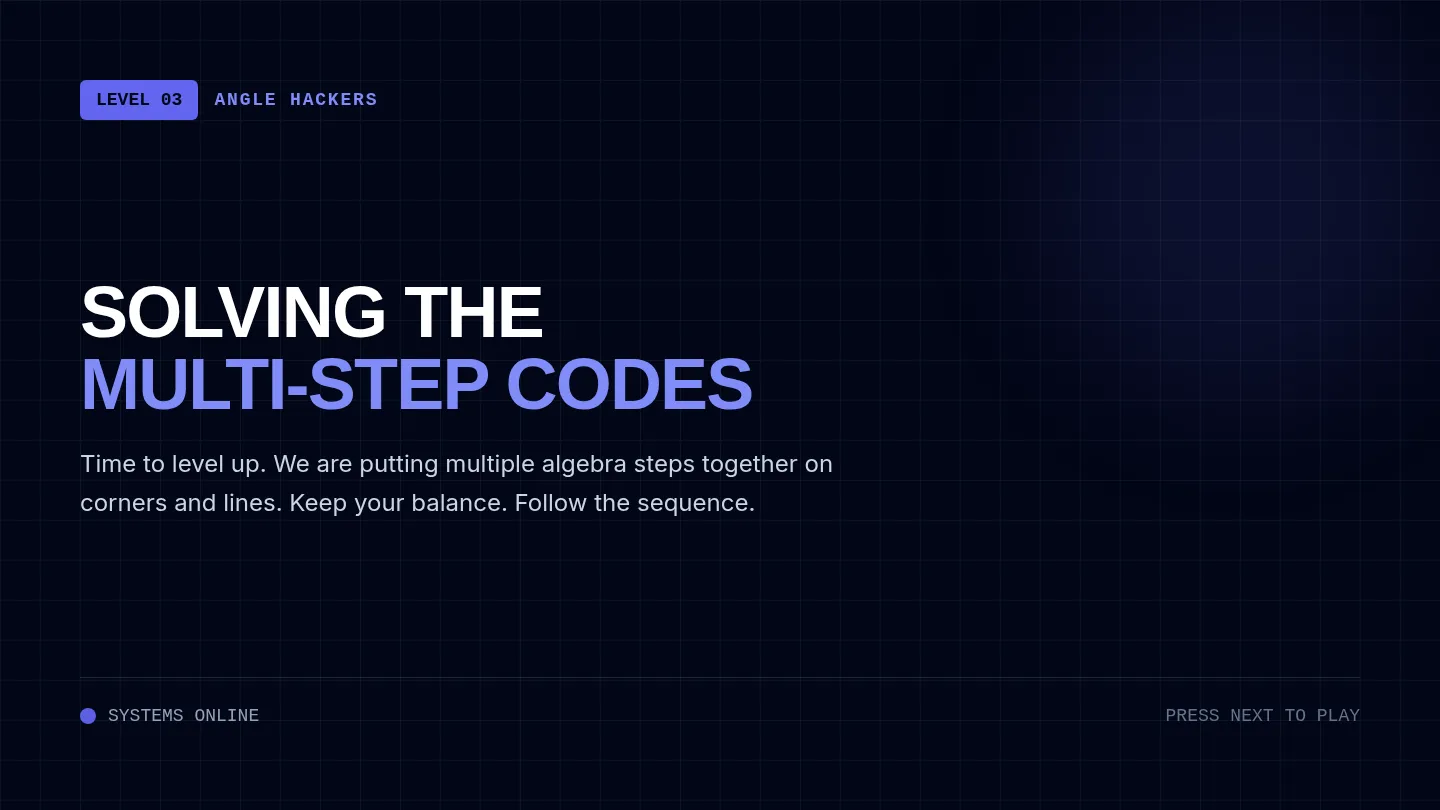

Angle Equations Slides LEVEL 03 ANGLE HACKERS
SOLVING the
MULTI-STEP CODES
Time to level up. We are putting multiple algebra steps together on corners and lines. Keep your balance. Follow the sequence.
SYSTEMS ONLINE
PRESS NEXT TO PLAY
THE 3-STEP STRIP
MULTI-STEP EQUATIONS
When \(x\) has multipliers and additives, strip them away in order to find the core value:
01 COMBINE terms: \((2x + 10) + 70 \rightarrow 2x + 80\)
02 SUBTRACT constant: \(2x = 180 - 80 \rightarrow 2x = 100\)
03 DIVIDE to isolate: \(x = 100 \div 2 \rightarrow x = 50\)
2x + 10 70°
Solve the Code: (2x + 10) + 70 = 180. Is x = 50 correct? Check by plugging in!
CODEBREAKING CHANNELS
GUIDED WALKTHROUGH
THE CORNER CASE
Find k: \(3k + 15\) and \(45^\circ\)
These angles fit inside a square corner. Sum is 90° .
Equation: \(3k + 15 + 45 = 90\)
Combine: \(3k + 60 = 90\)
Subtract: \(3k = 30 \rightarrow k = 10\)
THE LINE CASE
Find y: \(4y + 20\) and \(80^\circ\)
These angles form a flat straight line. Sum is 180° .
Equation: \(4y + 20 + 80 = 180\)
Combine: \(4y + 100 = 180\)
Subtract: \(4y = 80 \rightarrow y = 20\)
Always start by writing the equation! Don't try to solve in your head.
REAL WORLD METRICS ROOF TRUSS ENGINEERING
3x + 10 110°
THE STRUCTURAL STRESS CODE
Carpenters and mechanical engineers use these exact angle rules when building roof rafters and steel bridge frames.
If the flat support line is straight, the two angles on the bottom beam MUST sum up to exactly 180° . If they don't, the roof will buckle and collapse.
Let's solve these stress codes on your Mission Code Sheets !

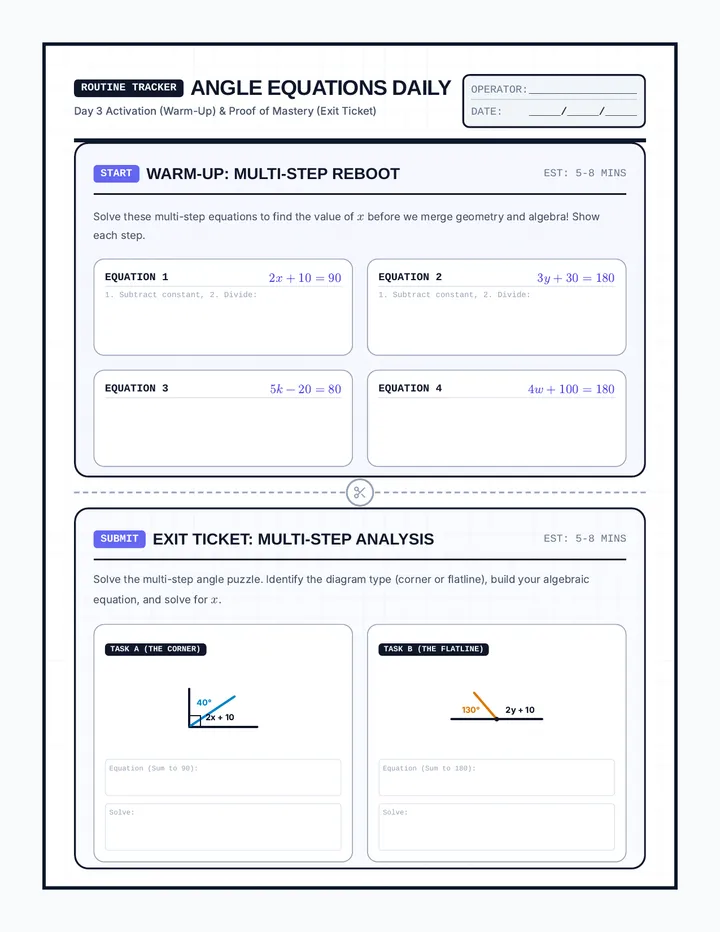

Angle Equations Routine ROUTINE TRACKER
ANGLE EQUATIONS DAILY
Day 3 Activation (Warm-Up) & Proof of Mastery (Exit Ticket)
OPERATOR: _________________
DATE: _____/_____/_____
START WARM-UP: MULTI-STEP REBOOT
EST: 5-8 MINS
Solve these multi-step equations to find the value of \(x\) before we merge geometry and algebra! Show each step.
EQUATION 1 \(2x + 10 = 90\)
1. Subtract constant, 2. Divide:
EQUATION 2 \(3y + 30 = 180\)
1. Subtract constant, 2. Divide:
EQUATION 3 \(5k - 20 = 80\)
EQUATION 4 \(4w + 100 = 180\)
SUBMIT EXIT TICKET: MULTI-STEP ANALYSIS
EST: 5-8 MINS
Solve the multi-step angle puzzle. Identify the diagram type (corner or flatline), build your algebraic equation, and solve for \(x\).
TASK A (THE CORNER)
2x + 10 40°
Equation (Sum to 90):
Solve:
TASK B (THE FLATLINE)
130° 2y + 10
Equation (Sum to 180):
Solve:

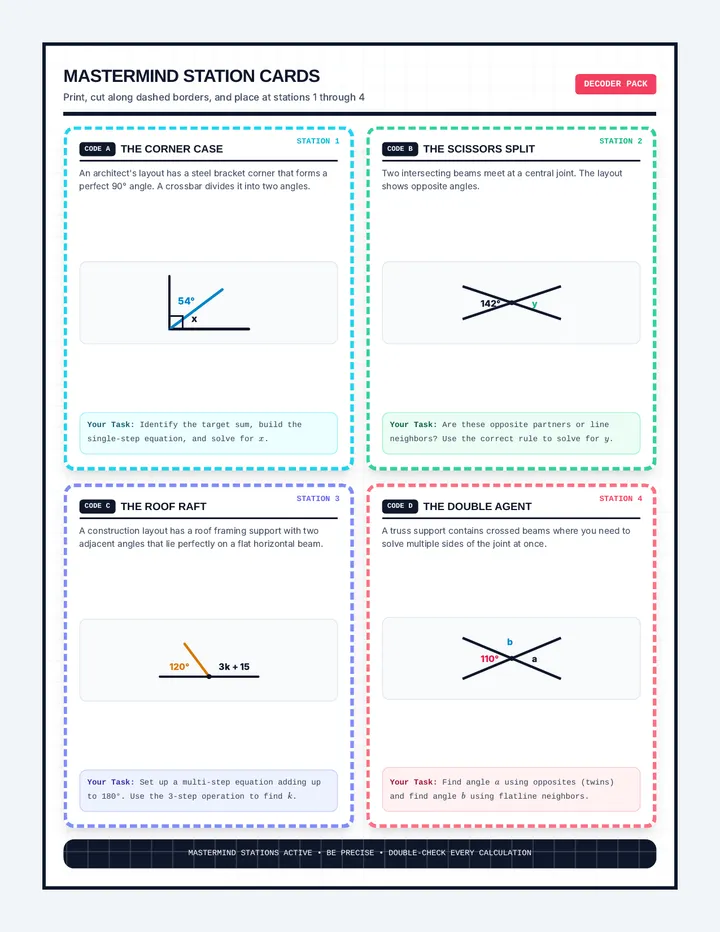

Mastermind Station Cards MASTERMIND STATION CARDS
Print, cut along dashed borders, and place at stations 1 through 4
DECODER PACK
STATION 1
CODE A
THE CORNER CASE
An architect's layout has a steel bracket corner that forms a perfect 90° angle. A crossbar divides it into two angles.
x 54°
Your Task: Identify the target sum, build the single-step equation, and solve for \(x\).
STATION 2
CODE B
THE SCISSORS SPLIT
Two intersecting beams meet at a central joint. The layout shows opposite angles.
142° y
Your Task: Are these opposite partners or line neighbors? Use the correct rule to solve for \(y\).
STATION 3
CODE C
THE ROOF RAFT
A construction layout has a roof framing support with two adjacent angles that lie perfectly on a flat horizontal beam.
120° 3k + 15
Your Task: Set up a multi-step equation adding up to 180°. Use the 3-step operation to find \(k\).
STATION 4
CODE D
THE DOUBLE AGENT
A truss support contains crossed beams where you need to solve multiple sides of the joint at once.
110° a b
Your Task: Find angle \(a\) using opposites (twins) and find angle \(b\) using flatline neighbors.
MASTERMIND STATIONS ACTIVE • BE PRECISE • DOUBLE-CHECK EVERY CALCULATION

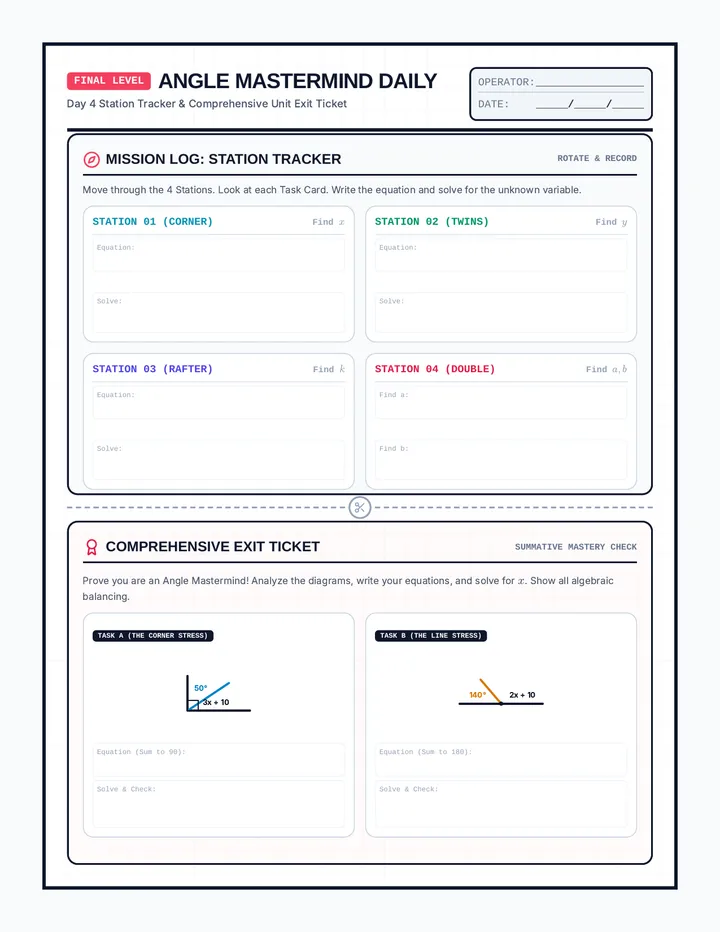

Mastermind Tracker Assessment FINAL LEVEL
ANGLE MASTERMIND DAILY
Day 4 Station Tracker & Comprehensive Unit Exit Ticket
OPERATOR: _________________
DATE: _____/_____/_____
MISSION LOG: STATION TRACKER
ROTATE & RECORD
Move through the 4 Stations. Look at each Task Card. Write the equation and solve for the unknown variable.
STATION 01 (CORNER) Find \(x\)
Equation:
Solve:
STATION 02 (TWINS) Find \(y\)
Equation:
Solve:
STATION 03 (RAFTER) Find \(k\)
Equation:
Solve:
STATION 04 (DOUBLE) Find \(a, b\)
Find a:
Find b:
COMPREHENSIVE EXIT TICKET
SUMMATIVE MASTERY CHECK
Prove you are an Angle Mastermind! Analyze the diagrams, write your equations, and solve for \(x\). Show all algebraic balancing.
TASK A (THE CORNER STRESS)
3x + 10 50°
Equation (Sum to 90):
Solve & Check:
TASK B (THE LINE STRESS)
140° 2x + 10
Equation (Sum to 180):
Solve & Check:
Angle Mastermind Slides LEVEL 04 ANGLE HACKERS
THE STATION
SHOWDOWN
This is the final test of your decryption skills. Rotate through 4 specialized stations, crack the code boards, and prove your mastery.
SYSTEMS ONLINE
PRESS NEXT TO START
STATION PROTOCOLS
HOW IT WORKS
Work in pairs or tackle the challenge solo. Maintain security clearance at every checkpoint:
01 Spend 6 minutes at each of the 4 stations.
02 Write your equations and solve on your Tracker sheet .
03 Check each other's work. Teamwork prevents error!
STATION DIRECTORY
STATION 1: COMPLEMENTARY CODE
STATION 2: VERTICAL TWINS
STATION 3: MULTI-STEP RAFTERS
STATION 4: THE DOUBLE AGENT
No calculator shortcuts! Write down the algebraic balance steps.
MASTERMIND STRATEGY
DECODER RULES
STAGE 1: IDENTIFY RELATIONSHIP
Find the Visual Target
Does the diagram show a Square Corner (90° total), a Flat Line (180° total), or Opposites (Equal to each other)?
90° • 180° • EQUAL
STAGE 2: ALGEBRAIC BALANCE
Write, Solve, and Prove
Put the terms into your equation. Solve step-by-step. Plug your final answer back into the diagram to prove it works!
Combine • Subtract • Divide
An expert codebreaker ALWAYS tests their answer before final submission!
ACTIVE ROTATION TIMER CONSOLIDATION DEBRIEF
06:00
STATION ROTATION TIME
Rotate to the next station when the timer chimes!
DEBRIEF QUESTIONS
Which station required the most algebra steps? What made it difficult?
How did identifying complementary vs. supplementary shapes help you setup the target sums?
Once all 4 stations are complete, open your tracker and tackle the Summative Exit Ticket .
