Trig Ratios Reading Guide
Geometry 10 Trigonometric Foundations
Unlocking the Right Triangle
How Sine, Cosine, and Tangent Turn Angles into Distances
Name:
Date: Period:
1 Anatomy of a Right Triangle
In any right triangle, one angle is always exactly \(90^\circ\). The other two angles are acute (less than \(90^\circ\)). The side lengths are labeled according to which reference angle (\(\theta\)) you choose:
- • Hypotenuse: The longest side, always directly opposite the \(90^\circ\) right angle.
- • Opposite: The leg positioned directly across from your chosen acute angle \(\theta\).
- • Adjacent: The leg touching angle \(\theta\) that is not the hypotenuse.
θ Adjacent Leg Opposite Leg Hypotenuse Sides are defined relative to θ
The Big Mathematical Discovery: Similarity & Invariance
Why do these ratios work for every triangle? By the Angle-Angle (AA) Similarity Theorem, any two right triangles sharing the same acute angle \(\theta\) are geometrically similar. While the physical side lengths change depending on how big you draw the triangle, the ratio between any two sides is invariant.
Vocabulary
Invariant (/ɪnˈvɛə.ri.ənt/): In mathematics, an invariant is a property, ratio, or value that remains unchanged even after other transformations take place (such as dilating, enlarging, shrinking, or rotating a figure). No matter the size of a right triangle, \(\frac{\text{Opp}}{\text{Hyp}}\), \(\frac{\text{Adj}}{\text{Hyp}}\), and \(\frac{\text{Opp}}{\text{Adj}}\) never vary for a specific angle \(\theta\).
2 The Three Ratios: SOH – CAH – TOA
SINE (\(\sin\)) SOH
\(\sin(\theta) = \frac{\text{Opposite}}{\text{Hypotenuse}}\)
Compares vertical reach to diagonal path length.
COSINE (\(\cos\)) CAH
\(\cos(\theta) = \frac{\text{Adjacent}}{\text{Hypotenuse}}\)
Compares horizontal base distance to diagonal length.
TANGENT (\(\tan\)) TOA
\(\tan(\theta) = \frac{\text{Opposite}}{\text{Adjacent}}\)
Compares steepness: rise divided by run (slope).
3 Solving Protocol & Worked Example
Step 1: Orient: Circle reference angle (\(\theta\)) and label Opp, Adj, and Hyp.
Step 2: Select: Pick the ratio linking your known value and target variable.
Step 3: Solve: Write an algebraic equation and isolate the unknown using a calculator.
Example: Finding Missing Height (\(x\))
Given \(\theta = 32^\circ\) and Hypotenuse \(= 14\text{ cm}\). Find Opposite side \(x\):
\(\sin(32^\circ) = \frac{\text{Opp}}{\text{Hyp}} = \frac{x}{14}\)
\(x = 14 \cdot \sin(32^\circ) \approx 14 \cdot 0.5299 \approx \mathbf{7.42\text{ cm}}\)
Turn to Page 2 to complete the 4 Conceptual Reflection Questions.
Student Worksheet
Check Your Understanding
Answer each question below in complete sentences based on the reading on Page 1.
4 Questions • 100 Points
Question 1 Identifying Triangle Sides 25 pts
In a right triangle, why does the hypotenuse stay the same no matter which acute angle you look from, while the opposite and adjacent sides switch places when you look from the other acute angle?
Question 2 Triangle Size & Invariance 25 pts
Imagine a small right triangle on paper with a \(30^\circ\) angle, and a giant right triangle on a billboard that also has a \(30^\circ\) angle. Will \(\sin(30^\circ)\) be larger for the billboard triangle, or will both values be equal? Explain why using the idea of similarity or invariance.
Question 3 Picking the Right Tool (SOH – CAH – TOA) 25 pts
You are given a right triangle where you know the adjacent side is \(10\text{ meters}\) and the angle is \(35^\circ\). You want to find the opposite side (\(x\)). Which ratio must you choose: \(\sin\), \(\cos\), or \(\tan\)? Explain how you know.
Question 4 Understanding Sine Values 25 pts
Since \(\sin(\theta) = \frac{\text{Opposite}}{\text{Hypotenuse}}\), explain why the sine of an acute angle is always less than 1. (Hint: Can the opposite leg ever be longer than the hypotenuse in a right triangle?)
Right Triangle Trigonometry • Reading & Reflection Remember to use complete sentences and refer back to Page 1 for help!

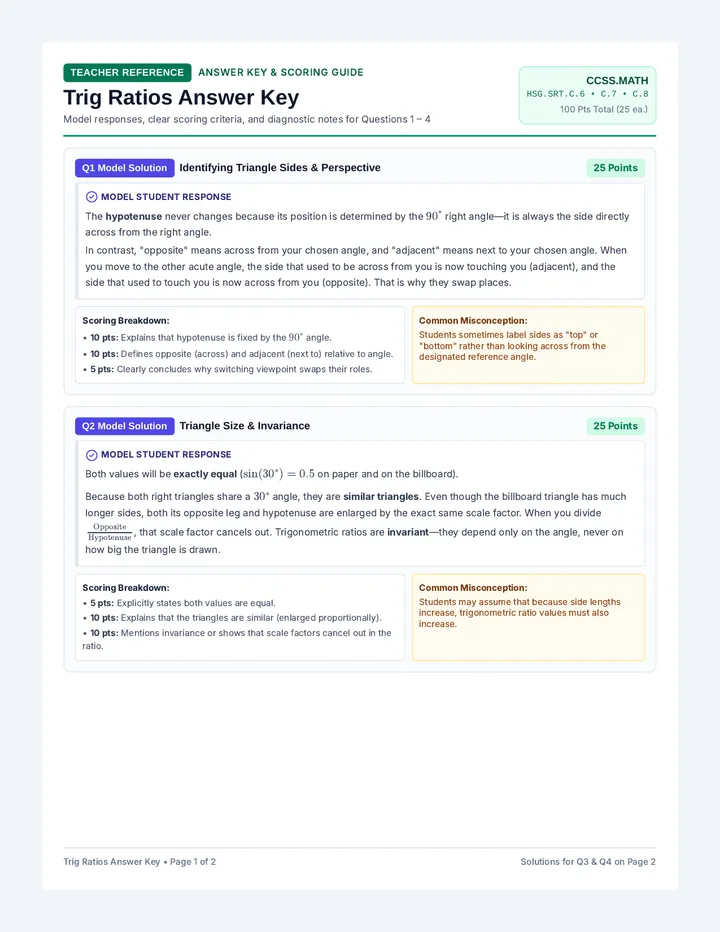

Trig Ratios Answer Key
Teacher Reference Answer Key & Scoring Guide
Trig Ratios Answer Key
Model responses, clear scoring criteria, and diagnostic notes for Questions 1 – 4
CCSS.MATH
HSG.SRT.C.6 • C.7 • C.8
100 Pts Total (25 ea.)
Q1 Model Solution Identifying Triangle Sides & Perspective
25 Points
Model Student Response
The hypotenuse never changes because its position is determined by the \(90^\circ\) right angle—it is always the side directly across from the right angle.
In contrast, "opposite" means across from your chosen angle, and "adjacent" means next to your chosen angle. When you move to the other acute angle, the side that used to be across from you is now touching you (adjacent), and the side that used to touch you is now across from you (opposite). That is why they swap places.
Scoring Breakdown:
- • 10 pts: Explains that hypotenuse is fixed by the \(90^\circ\) angle.
- • 10 pts: Defines opposite (across) and adjacent (next to) relative to angle.
- • 5 pts: Clearly concludes why switching viewpoint swaps their roles.
Common Misconception:
Students sometimes label sides as "top" or "bottom" rather than looking across from the designated reference angle.
Q2 Model Solution Triangle Size & Invariance
25 Points
Model Student Response
Both values will be exactly equal (\(\sin(30^\circ) = 0.5\) on paper and on the billboard).
Because both right triangles share a \(30^\circ\) angle, they are similar triangles. Even though the billboard triangle has much longer sides, both its opposite leg and hypotenuse are enlarged by the exact same scale factor. When you divide \(\frac{\text{Opposite}}{\text{Hypotenuse}}\), that scale factor cancels out. Trigonometric ratios are invariant—they depend only on the angle, never on how big the triangle is drawn.
Scoring Breakdown:
- • 5 pts: Explicitly states both values are equal.
- • 10 pts: Explains that the triangles are similar (enlarged proportionally).
- • 10 pts: Mentions invariance or shows that scale factors cancel out in the ratio.
Common Misconception:
Students may assume that because side lengths increase, trigonometric ratio values must also increase.
Trig Ratios Answer Key • Page 1 of 2 Solutions for Q3 & Q4 on Page 2
