Right Triangle Mastery Slides
Geometry Fundamentals
The Pythagorean Theorem
Unlocking right triangles, hypotenuses, and the hidden math of distances.
\(a^2 + b^2 = c^2\)
Middle & High School Mathematics
Slide 1 of 10
Foundations
Anatomy of a Right Triangle
Rule #1
Leg a Leg b Hypotenuse (c)
Always locate the 90° angle first!
The Legs (\(a\) and \(b\))
The two shorter sides that meet to form the 90-degree right angle.
The Hypotenuse (\(c\))
The longest side of the triangle. It is always directly opposite the right angle.
Key Rule: The theorem works ONLY for right triangles. Slide 2 of 10
Visual Concept
What Does \(a^2 + b^2 = c^2\) Actually Mean?
Geometric Proof
\(a^2\) \(b^2\) \(c^2\)
Area of Square A + Area of Square B = Area of Square C
1 Build Squares on Each Side
If you construct a physical square along each side of the triangle, its area is literally side length squared.
2 Combine the Two Smaller Areas
Pouring liquid from squares \(a^2\) and \(b^2\) fills square \(c^2\) exactly to the brim with zero leftover!
Named after the ancient Greek mathematician Pythagoras of Samos (~500 BCE) Slide 3 of 10
Methodology
The 4-Step Strategy
Step-by-Step
01
Identify
Spot the 90° angle. Label legs \(a\) and \(b\), and label hypotenuse \(c\).
Which side is \(c\)?
02
Substitute
Write the formula:
\(a^2 + b^2 = c^2\)
Plug in known numbers.
Replace variables
03
Square
Multiply each number by itself. Add (to find \(c\)) or subtract (to find a leg).
Simplify terms
04
Square Root
Take \(\sqrt{\phantom{x}}\) on both sides to isolate the final side length!
\(c = \sqrt{c^2}\)
Crucial tip: Never forget Step 4! The side length is \(c\), not \(c^2\). Slide 4 of 10
Example 1
Finding the Missing Hypotenuse (\(c\))
Solve for \(c\)
a = 6 b = 8 c = ?
Legs: 6 and 8 | Find \(c\)
1. State Formula: \(a^2 + b^2 = c^2\)
2. Substitute Values: \(6^2 + 8^2 = c^2\)
3. Square & Add: \(36 + 64 = 100 = c^2\)
4. Take Square Root: \(c = \sqrt{100}\)
\(c = 10\)
Notice: 10 is greater than both 6 and 8, confirming the hypotenuse is the longest side! Slide 5 of 10
Example 2
Solving for a Missing Leg (\(b\))
Subtract When Leg Is Missing
a = 5 b = ? c = 13
Hypotenuse \(c = 13\) is known | Solve for \(b\)
1. Substitute into Formula: \(5^2 + b^2 = 13^2\)
2. Calculate Squares: \(25 + b^2 = 169\)
3. Subtract Leg Square: \(b^2 = 169 - 25 = 144\)
4. Take Square Root: \(b = \sqrt{144}\)
\(b = 12\)
Golden Rule: Missing hypotenuse \(\rightarrow\) ADD. Missing leg \(\rightarrow\) SUBTRACT. Slide 6 of 10
Math Shortcuts
Pythagorean Triples
Mental Math Hacks
A Pythagorean Triple is a set of three positive integers that satisfy \(a^2 + b^2 = c^2\) with no decimals or fractions!
Most Common
3 - 4 - 5
\(9 + 16 = 25\)
Scaled Multiples:
6 - 8 - 10
9 - 12 - 15
The "13" Family
5 - 12 - 13
\(25 + 144 = 169\)
Scaled Multiples:
10 - 24 - 26
15 - 36 - 39
The "17" Family
8 - 15 - 17
\(64 + 225 = 289\)
Scaled Multiples:
16 - 30 - 34
24 - 45 - 51
The "25" Family
7 - 24 - 25
\(49 + 576 = 625\)
Scaled Multiples:
14 - 48 - 50
21 - 72 - 75
Pro Tip: Memorizing (3, 4, 5) and (5, 12, 13) saves huge time on standardized tests! Slide 7 of 10
Real-Life Math
Where Is This Used in the Real World?
Applications
Architecture & Carpentry
Builders use the 3-4-5 rule with measuring tapes to make sure room corners and foundations are perfectly square (\(90^\circ\)).
Prevents crooked walls & ceilings
Display & TV Sizing
Screen sizes (like a 55" TV or 16" laptop) are always measured along the diagonal hypotenuse, calculated from width and height.
\(\text{Width}^2 + \text{Height}^2 = \text{Diagonal}^2\)
GPS & Navigation
Airlines and navigation apps compute the "as the crow flies" straight-line distance between coordinates using Pythagorean math.
Foundation of the Distance Formula
From ancient pyramids to modern smartphone satellites! Slide 8 of 10
Check for Understanding
Your Turn: Solve These Two!
Practice Round
Problem A Find Hypotenuse
A right triangle has legs \(a = 9\) and \(b = 12\).
1. Write formula: \(9^2 + 12^2 = c^2\)
2. Calculate: \(81 + 144 = 225\)
3. Take the root: \(c = \sqrt{225}\)
Answer: \(c = 15\)
Problem B Find Missing Leg
Hypotenuse is \(c = 10\), and one leg is \(a = 8\).
1. Write formula: \(8^2 + b^2 = 10^2\)
2. Calculate: \(64 + b^2 = 100\)
3. Subtract: \(b^2 = 100 - 64 = 36\)
Answer: \(b = 6\)
Notice both problems are members of the famous (3, 4, 5) family scaled up! Slide 9 of 10
Takeaways
Summary & 3 Golden Rules
Mastery Checklist
1
Right Triangles Only
The theorem only applies when one angle is exactly \(90^\circ\). Acute or obtuse triangles require other rules.
2
Hypotenuse is Always \(c\)
The side across from the right angle must always sit alone on one side of the equation: \(c^2\).
3
Add vs. Subtract
Finding \(c\)? Add the squares (\(a^2 + b^2\)). Finding a leg? Subtract from \(c^2\) (\(c^2 - a^2\)).
Formula to Remember: \(a^2 + b^2 = c^2\)
Great job! Ready for independent practice.
Geometry Unit • Pythagorean Theorem Presentation Complete Slide 10 of 10

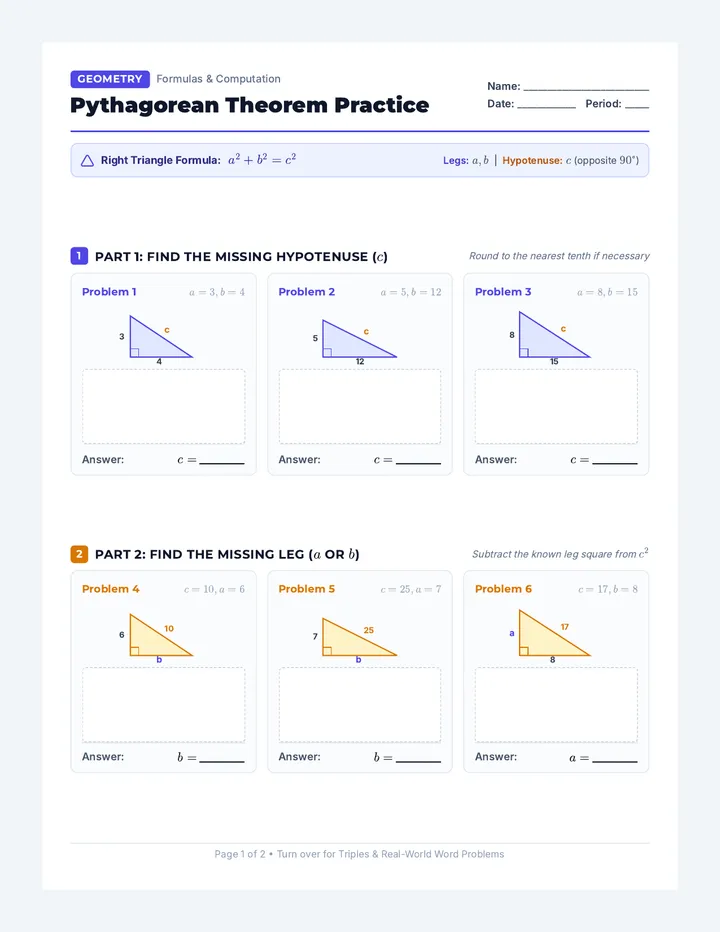

Right Triangle Practice Worksheet
Geometry Formulas & Computation
Pythagorean Theorem Practice
Name: __________________________
Date: ____________ Period: _____
Right Triangle Formula: \(a^2 + b^2 = c^2\)
Legs: \(a, b\) | Hypotenuse: \(c\) (opposite \(90^\circ\))
1
Part 1: Find the Missing Hypotenuse (\(c\))
Round to the nearest tenth if necessary
Problem 1 \(a=3, b=4\)
3 4 c
Answer: \(c =\) _________
Problem 2 \(a=5, b=12\)
5 12 c
Answer: \(c =\) _________
Problem 3 \(a=8, b=15\)
8 15 c
Answer: \(c =\) _________
2
Part 2: Find the Missing Leg (\(a\) or \(b\))
Subtract the known leg square from \(c^2\)
Problem 4 \(c=10, a=6\)
6 b 10
Answer: \(b =\) _________
Problem 5 \(c=25, a=7\)
7 b 25
Answer: \(b =\) _________
Problem 6 \(c=17, b=8\)
a 8 17
Answer: \(a =\) _________
Page 1 of 2 • Turn over for Triples & Real-World Word Problems
Geometry
Pythagorean Theorem • Page 2
Student Practice & Application
3
Part 3: Right Triangle Verification
Determine whether each set of side lengths forms a right triangle by testing \(a^2 + b^2 = c^2\).
Set A: 9, 12, 15 \(9^2 + 12^2 \stackrel{?}{=} 15^2\)
Right triangle? [ ] YES [ ] NO
Set B: 6, 8, 11 \(6^2 + 8^2 \stackrel{?}{=} 11^2\)
Right triangle? [ ] YES [ ] NO
Set C: 10, 24, 26 \(10^2 + 24^2 \stackrel{?}{=} 26^2\)
Right triangle? [ ] YES [ ] NO
Set D: 7, 10, 13 \(7^2 + 10^2 \stackrel{?}{=} 13^2\)
Right triangle? [ ] YES [ ] NO
4
Part 4: Real-World Word Problems
Problem 7: The Leaning Ladder
A 13-foot rescue ladder leans against a building. The base of the ladder is 5 feet away from the wall. How many feet up the wall does the top reach?
13ft 5ft h
Height reached: Height = _________ feet
Problem 8: The Park Diagonal Shortcut
Marcus walks 120 meters East, then turns North for 90 meters to reach school. If he cuts diagonally across the park instead, how long is the shortcut?
120m 90m d = ?
Shortcut distance: Distance = _________ meters
5

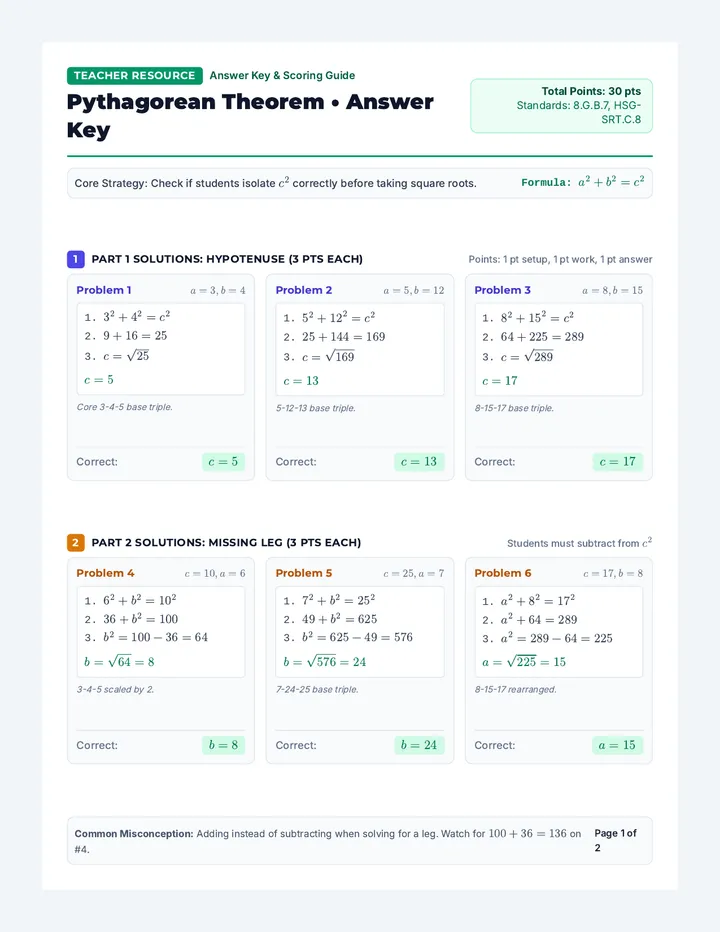

Right Triangle Practice Answers
Teacher Resource Answer Key & Scoring Guide
Pythagorean Theorem • Answer Key
Total Points: 30 pts
Standards: 8.G.B.7, HSG-SRT.C.8
Core Strategy: Check if students isolate \(c^2\) correctly before taking square roots. Formula: \(a^2 + b^2 = c^2\)
1
Part 1 Solutions: Hypotenuse (3 pts each)
Points: 1 pt setup, 1 pt work, 1 pt answer
Problem 1 \(a=3, b=4\)
1. \(3^2 + 4^2 = c^2\)
2. \(9 + 16 = 25\)
3. \(c = \sqrt{25}\)
\(c = 5\)
Core 3-4-5 base triple.
Correct: \(c = 5\)
Problem 2 \(a=5, b=12\)
1. \(5^2 + 12^2 = c^2\)
2. \(25 + 144 = 169\)
3. \(c = \sqrt{169}\)
\(c = 13\)
5-12-13 base triple.
Correct: \(c = 13\)
Problem 3 \(a=8, b=15\)
1. \(8^2 + 15^2 = c^2\)
2. \(64 + 225 = 289\)
3. \(c = \sqrt{289}\)
\(c = 17\)
8-15-17 base triple.
Correct: \(c = 17\)
2
Part 2 Solutions: Missing Leg (3 pts each)
Students must subtract from \(c^2\)
Problem 4 \(c=10, a=6\)
1. \(6^2 + b^2 = 10^2\)
2. \(36 + b^2 = 100\)
3. \(b^2 = 100 - 36 = 64\)
\(b = \sqrt{64} = 8\)
3-4-5 scaled by 2.
Correct: \(b = 8\)
Problem 5 \(c=25, a=7\)
1. \(7^2 + b^2 = 25^2\)
2. \(49 + b^2 = 625\)
3. \(b^2 = 625 - 49 = 576\)
\(b = \sqrt{576} = 24\)
7-24-25 base triple.
Correct: \(b = 24\)
Problem 6 \(c=17, b=8\)
1. \(a^2 + 8^2 = 17^2\)
2. \(a^2 + 64 = 289\)
3. \(a^2 = 289 - 64 = 225\)
\(a = \sqrt{225} = 15\)
8-15-17 rearranged.
Correct: \(a = 15\)
Common Misconception: Adding instead of subtracting when solving for a leg. Watch for \(100 + 36 = 136\) on #4. Page 1 of 2
Teacher Resource
Answer Key • Page 2
Applications & Error Analysis
3
Part 3 Solutions: Verification (1 pt each = 4 pts)
Set A: 9, 12, 15 [ X ] YES
\(9^2 + 12^2 = 81 + 144 = 225 = 15^2\) (Holds true)
3-4-5 multiplied by 3
Set B: 6, 8, 11 [ X ] NO
\(6^2 + 8^2 = 36 + 64 = 100 \neq 11^2 (121)\)
