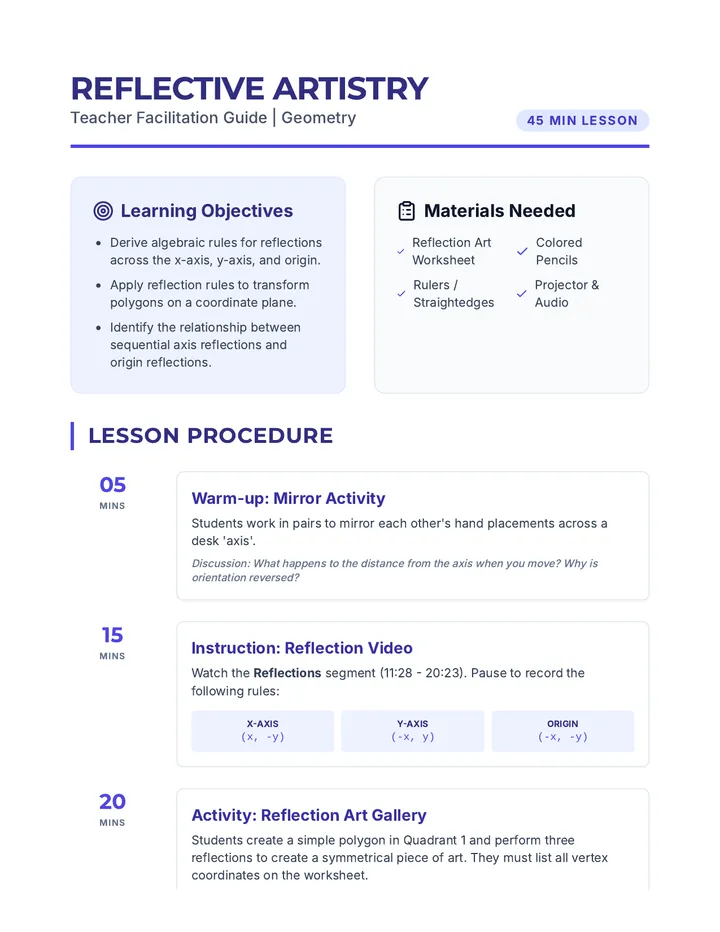

Reflective Artistry Teacher Guide Reflective Artistry
Teacher Facilitation Guide | Geometry
45 Min Lesson
Learning Objectives
Derive algebraic rules for reflections across the x-axis, y-axis, and origin.
Apply reflection rules to transform polygons on a coordinate plane.
Identify the relationship between sequential axis reflections and origin reflections.
Materials Needed
Reflection Art Worksheet
Colored Pencils
Rulers / Straightedges
Projector & Audio
Lesson Procedure
05
MINS
Warm-up: Mirror Activity
Students work in pairs to mirror each other's hand placements across a desk 'axis'.
Discussion: What happens to the distance from the axis when you move? Why is orientation reversed?
15
MINS
Instruction: Reflection Video
Watch the Reflections segment (11:28 - 20:23). Pause to record the following rules:
X-AXIS
(x, -y)
Y-AXIS
(-x, y)
ORIGIN
(-x, -y)
20
MINS
Activity: Reflection Art Gallery
Students create a simple polygon in Quadrant 1 and perform three reflections to create a symmetrical piece of art. They must list all vertex coordinates on the worksheet.
Tip: Circulate to check that students are correctly applying negative signs in the tables before they start plotting.
05
MINS
Closure: Discussion
Discuss the relationship between origin reflections and axis reflections.
Question: "Is reflecting over the origin the same as reflecting over both axes? Does the order of X then Y matter?"
Quick Reference Table
Transformation Algebraic Rule What Changes? Reflect over X-Axis \( (x, y) \to (x, -y) \) Y changes sign; X stays same. Reflect over Y-Axis \( (x, y) \to (-x, y) \) X changes sign; Y stays same. Reflect over Origin \( (x, y) \to (-x, -y) \) Both X and Y change signs.
Reflective Artistry Slides REFLECTIVE ARTISTRY
Transforming Points into Masterpieces
High School Geometry Reflections Unit
Warm-up: The Mirror
With a partner, use your desk's edge as a "Line of Reflection".
Partner A is the Pre-Image (the leader).
Partner B is the Image (the mirror).
Slowly move your hand. Your partner must mirror your distance and orientation exactly.
What happens to the distance from the line as you move closer or further away?
Today's Mission
1
Define and apply algebraic rules for reflecting over the x-axis, y-axis, and the origin.
2
Create a Reflection Art Piece using coordinate geometry transformations.
3
Explore the connection between double reflections and origin reflections.
Expert Insight
Watching for the Algebraic Rules
Embedded media
Listen for...
"What coordinate changes when we flip over a horizontal line?"
Watch for...
"How is reflecting over the origin different from the axes?"
Reflection over X-Axis
The horizontal axis acts as the mirror. The shape flips up or down.
Algebraic Rule:
\( (x, y) \to (x, -y) \)
X Y
X Y
Reflection over Y-Axis
The vertical axis acts as the mirror. The shape flips left or right.
Algebraic Rule:
\( (x, y) \to (-x, y) \)
Reflection over Origin
This is like reflecting over BOTH axes at once. The shape moves to the opposite corner.
Algebraic Rule:
\( (x, y) \to (-x, -y) \)
Project: Art Gallery
20 MINUTES
Step 1: Design
Create a polygon in Quadrant 1 with 4-6 vertices. Label them A, B, C...
Step 2: Transform
Apply the three rules to reflect your art into all four quadrants.
Step 3: Document
List all coordinates in the table. Verify the signs match the quadrant!
Your masterpiece will be perfectly symmetrical!
Reflective Thinking
"If you reflect a point over the X-axis and then reflect that new point over the Y-axis...
What is the final result?

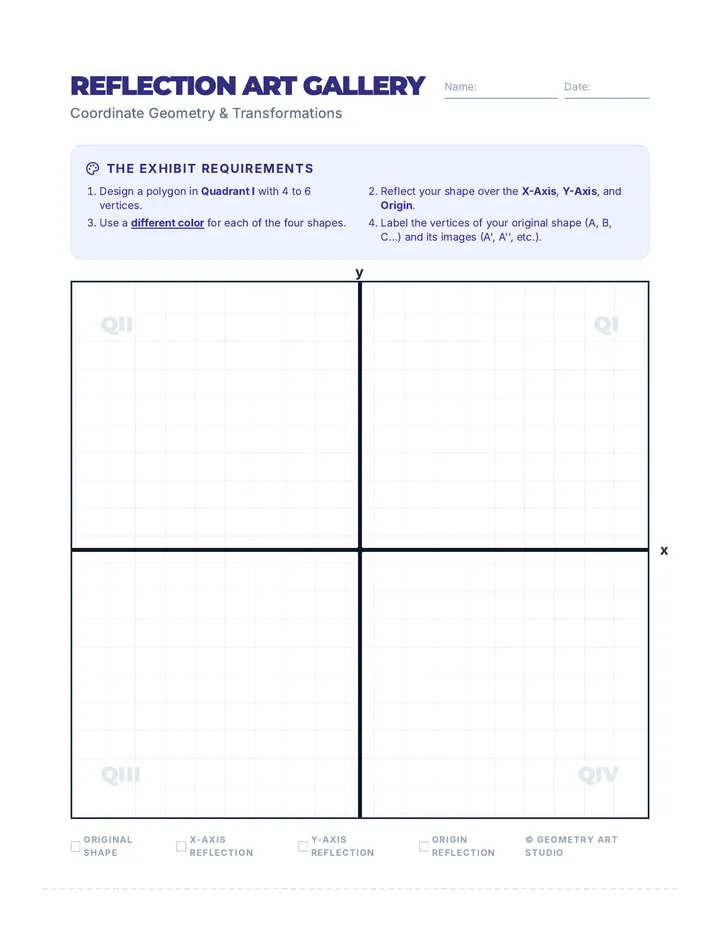

Reflection Art Gallery Worksheet Reflection Art Gallery
Coordinate Geometry & Transformations
Name:
Date:
The Exhibit Requirements
Design a polygon in Quadrant I with 4 to 6 vertices.
Reflect your shape over the X-Axis, Y-Axis, and Origin.
Use a different color for each of the four shapes.
Label the vertices of your original shape (A, B, C...) and its images (A', A'', etc.).
QI QII QIII QIV
x y
Original Shape
X-Axis Reflection
Y-Axis Reflection
Origin Reflection
© Geometry Art Studio
The Archive: Coordinate Data
PRE-IMAGE (Quadrant I) (x, y)
Point Coordinates A (_, _) B (_, _) C (_, _) D (_, _) E (_, _) F (_, _)
REFLECT X-AXIS (x, -y)
Point Coordinates A' (_, _) B' (_, _) C' (_, _) D' (_, _) E' (_, _) F' (_, _)
REFLECT Y-AXIS (-x, y)
Point Coordinates A'' (_, _) B'' (_, _) C'' (_, _) D'' (_, _) E'' (_, _) F'' (_, _)
REFLECT ORIGIN (-x, -y)
Point Coordinates A''' (_, _) B''' (_, _) C''' (_, _) D''' (_, _)

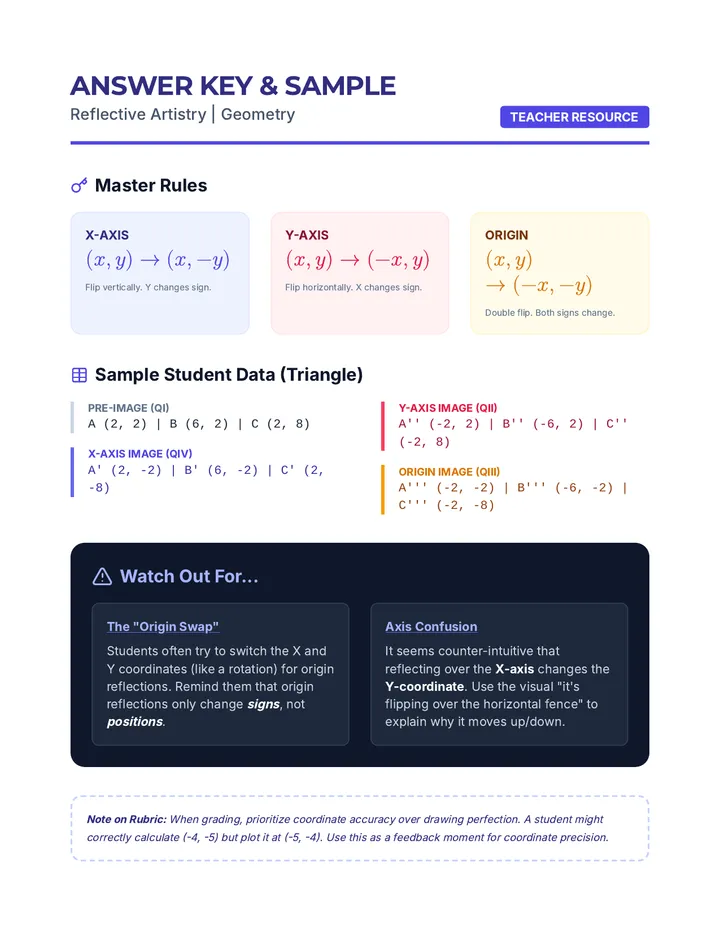

Reflective Artistry Answer Key Answer Key & Sample
Reflective Artistry | Geometry
Teacher Resource
Master Rules
X-Axis
\( (x, y) \to (x, -y) \)
Flip vertically. Y changes sign.
Y-Axis
\( (x, y) \to (-x, y) \)
Flip horizontally. X changes sign.
Origin
\( (x, y) \to (-x, -y) \)
Double flip. Both signs change.
Sample Student Data (Triangle)
Pre-Image (QI)
A (2, 2) | B (6, 2) | C (2, 8)
X-Axis Image (QIV)
A' (2, -2) | B' (6, -2) | C' (2, -8)
Y-Axis Image (QII)
A'' (-2, 2) | B'' (-6, 2) | C'' (-2, 8)
Origin Image (QIII)
A''' (-2, -2) | B''' (-6, -2) | C''' (-2, -8)
Watch Out For...
The "Origin Swap"
Students often try to switch the X and Y coordinates (like a rotation) for origin reflections. Remind them that origin reflections only change signs, not positions.
Axis Confusion
It seems counter-intuitive that reflecting over the X-axis changes the Y-coordinate. Use the visual "it's flipping over the horizontal fence" to explain why it moves up/down.
Note on Rubric: When grading, prioritize coordinate accuracy over drawing perfection. A student might correctly calculate (-4, -5) but plot it at (-5, -4). Use this as a feedback moment for coordinate precision.
