Park Blueprint Teacher Guide Park Blueprint
Teacher Facilitation Guide
Lesson Duration
45 MIN
Learning Objectives
• Apply area and perimeter formulas for triangles, circles, and rectangles.
• Use the standard equation of a circle to define features on a coordinate plane.
• Connect geometric properties to real-world cost calculations.
Materials Needed
Park Blueprint Slides
Scientific Calculators
Design Templates
Colored Pencils
Formula Reference
Straightedges
Instructional Flow
05 MIN
Warm-Up: Shape Sketch
Students quickly sketch a circle, square, and rectangle on their template. They must label the essential dimensions (radius, side length, width, etc.).
Discussion Tip: Ask students which dimension is most critical for a circle compared to a rectangle.
10 MIN
Video Viewing & Discussion
Watch segments 1:43 - 3:37 of the "Algebra Formulas" video. This covers Triangles, Circles, and Rectangles.
Key Discussion Question:
"Why does the equation of a circle \((x-h)^2 + (y-k)^2 = r^2\) look so much like the distance formula or the Pythagorean theorem?"
Expected insight: The circle is the set of all points at a fixed distance (radius) from a central point (h, k).
20 MIN
Main Activity: Design a Park
Students use the coordinate grid template to layout their park. Constraints:
1+ Circle (Pond/Fountain)
1+ Triangle (Garden)
1+ Rectangle (Playground)
Students must identify coordinates for all vertices and centers, then calculate the area (for mulch/turf) and perimeter (for fencing costs).
10 MIN
Closure: Peer Review
Students present their designs and "bid" their fencing costs. Peer groups verify one calculation on a neighbor's design.
Teacher Reference Sheet
Common Misconceptions
Radius vs. Diameter: Students often use the diameter in the area formula. Remind them that \(A = \pi r^2\).The Circle Equation Signs: In \((x-h)^2 + (y-k)^2 = r^2\), students often flip the signs of the center coordinates. If the center is at \((3, -2)\), the equation should show \((x-3)^2 + (y+2)^2\).Triangle Height: Remind students that the height must be perpendicular to the base.
Calculation Benchmarks
Feature Units Formula Note Fencing Linear Feet Perimeter / Circumference Mulch/Turf Square Feet Area Costing USD ($) Area/Perim × Unit Rate
Video Deep-Dive Points
1:43 - Triangles
Focus on the relationship between the hypotenuse and the sides. This is the foundation for the distance formula.
2:19 - Circles
Emphasize the standard equation \((x-h)^2 + (y-k)^2 = r^2\). This is often the most abstract part of coordinate geometry for students.
3:03 - Rectangles/Squares
Quick review of area vs. perimeter. High-schoolers often mix these up during complex word problems.
Park Blueprint Slides Geometry Unit: Coordinate Applications
Park Blueprint
Designing a community space through the lens of coordinate geometry and algebraic formulas.
Circle Equation • Area Formulas • Perimeter
Warm-Up: Sketch Pad
On the top of your design template, quickly sketch and label the dimensions for:
A Circle
A Right Triangle
A Rectangle
Thought Prompt
"What is the minimum number of labels needed to describe each shape perfectly?"
Formula Review
WATCH: 1:43 — 3:37
Embedded media
Focus Topics
Triangles Pythagorean Theorem & Area
Circles Center (h,k) & Standard Equation
Polygons Perimeter vs. Area
The Geometric Connection
"Why does the circle equation look so much like the distance formula?"
\((x-h)^2 + (y-k)^2 = r^2\)
↔
\(d = \sqrt{(x_2-x_1)^2 + (y_2-y_1)^2}\)
Project Phase: Park Layout
Site Requirements
01 One Circular Pond or Fountain
02 One Triangular Flower Bed
03 One Rectangular Play Zone
Data Deliverables
Identify all Center Points & Vertices
Calculate Square Footage (Area)
Calculate Fencing Length (Perimeter)
Calculations Required
"Your city budget depends on accuracy. Check your work!"
Fencing
$12 / ft
Mulch
$3 / sq ft
Use Colored Pencils to distinguish between Landscaping and Amenities.

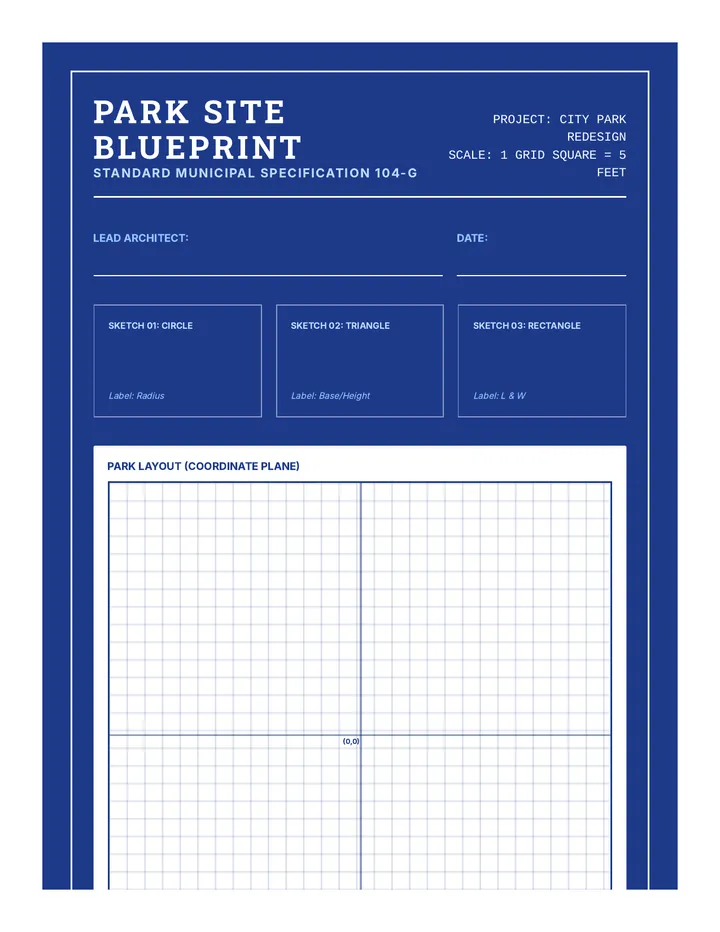

Park Blueprint Design Template Park Site Blueprint
Standard Municipal Specification 104-G
PROJECT: CITY PARK REDESIGN
SCALE: 1 GRID SQUARE = 5 FEET
Lead Architect:
Date:
Sketch 01: Circle
Label: Radius
Sketch 02: Triangle
Label: Base/Height
Sketch 03: Rectangle
Label: L & W
Park Layout (Coordinate Plane)
(0,0)
Calculation Ledger
Feature Name Shape Type Key Coordinates / Radius Equation (Circles Only) Pond (Circle) \( (x-h)^2 + (y-k)^2 = r^2 \) Playground (Rect) --- Garden (Triangle) ---
Area Analysis (Mulch/Turf)
Total Area (sq ft):
Cost ($3 / sq ft):
Calculations / Show Your Work:
Fencing Analysis (Linear)
Total Perimeter (ft):
Cost ($12 / ft):
Calculations / Show Your Work:

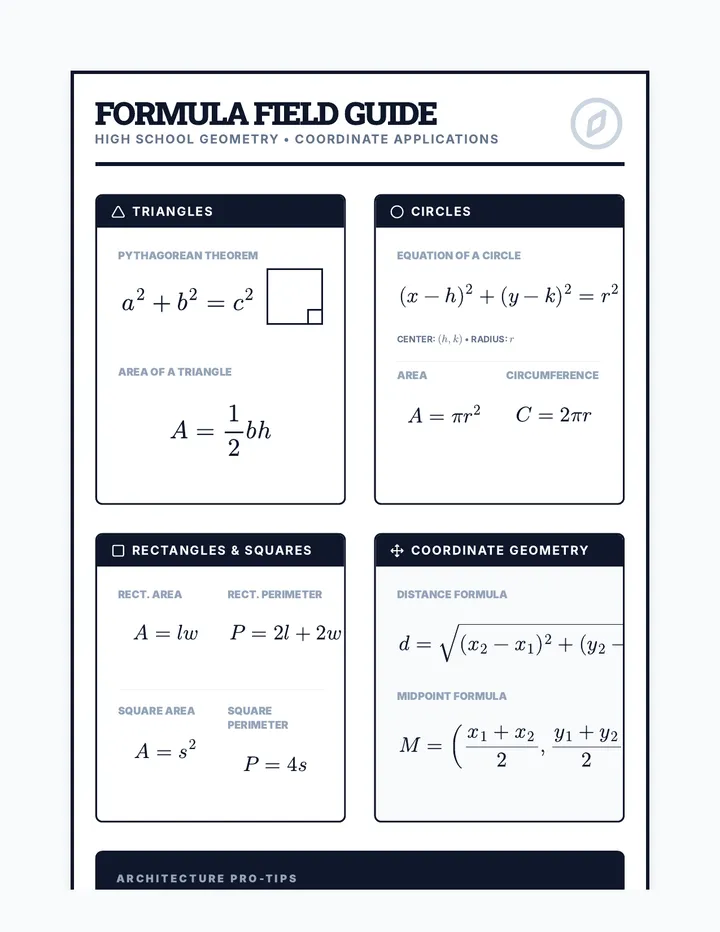

Formula Field Guide Reference Formula Field Guide
High School Geometry • Coordinate Applications
Triangles
Pythagorean Theorem
\[a^2 + b^2 = c^2\]
Area of a Triangle
\[A = \frac{1}{2}bh\]
Circles
Equation of a Circle
\[(x - h)^2 + (y - k)^2 = r^2\]
Center: \((h, k)\) • Radius: \(r\)
Area
\[A = \pi r^2\]
Circumference
\[C = 2\pi r\]
Rectangles & Squares
Rect. Area
\[A = lw\]
Rect. Perimeter
\[P = 2l + 2w\]
Square Area
\[A = s^2\]
Square Perimeter
\[P = 4s\]
Coordinate Geometry
Distance Formula
\[d = \sqrt{(x_2-x_1)^2 + (y_2-y_1)^2}\]
Midpoint Formula
\[M = \left(\frac{x_1+x_2}{2}, \frac{y_1+y_2}{2}\right)\]
Architecture Pro-Tips
UNITS MATTER: If coordinates are in feet, area is in square feet and perimeter is in linear feet.
CENTER SIGNS: In the circle equation, the signs are opposite the center. Center (3, -4) → \((x-3)^2 + (y+4)^2 = r^2\).
ACCURACY: Use the \(\pi\) button on your calculator rather than 3.14 for professional-grade results.
1 UNIT = 5 FEET REFERENCE ONLY
SHEET NO. 001 OF 001
