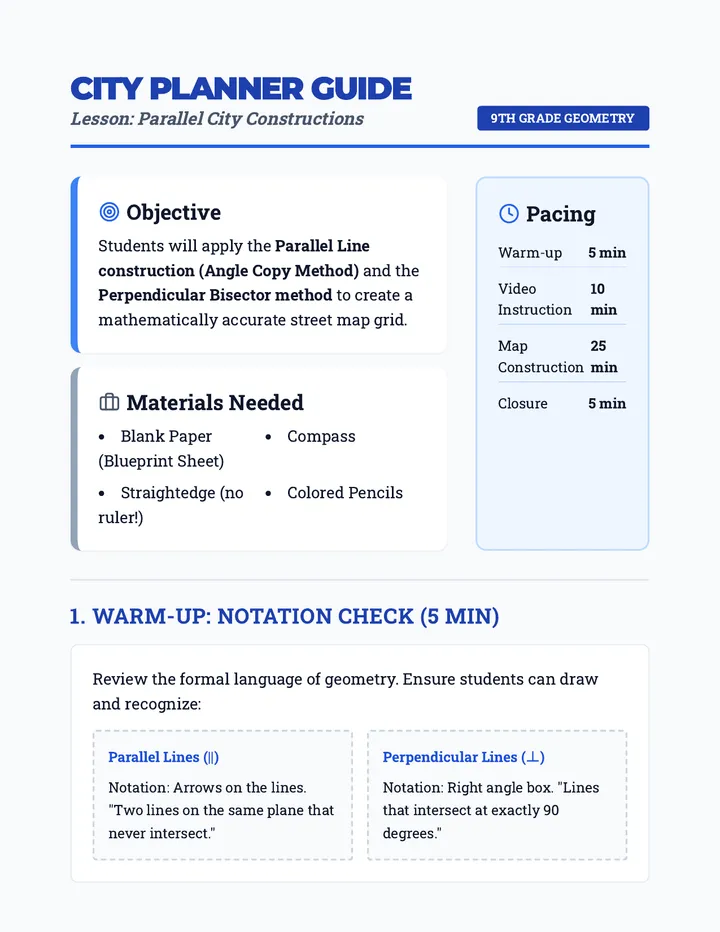

City Planner GuideCity Planner Guide Lesson: Parallel City Constructions 9TH GRADE GEOMETRY Objective Students will apply the Parallel Line construction (Angle Copy Method) and the Perpendicular Bisector method to create a mathematically accurate street map grid. Materials Needed Blank Paper (Blueprint Sheet) Compass Straightedge (no ruler!) Colored Pencils Pacing Warm-up5 min Video Instruction10 min Map Construction25 min Closure5 min 1. Warm-up: Notation Check (5 min) Review the formal language of geometry. Ensure students can draw and recognize: Parallel Lines (||) Notation: Arrows on the lines. "Two lines on the same plane that never intersect." Perpendicular Lines (⊥) Notation: Right angle box. "Lines that intersect at exactly 90 degrees." 2. Video Viewing: The Angle Copy Method (10 min) Focus on the Angle Copy Method (2:09-4:11). Use these discussion anchors: 2:09 Pause Point: Preparation "Ensure everyone has their compass ready. Why do we tuck the ruler away?" (Because measurement is prone to human error; construction relies on geometric properties.) 5:11 Pause Point: Perpendicular Bisector Settings "What happens if the compass is less than half the length of the segment?" (The arcs won't touch, and we can't find the intersection.) 3. Main Activity: Parallel City (25 min) The Mission Students transform a blank sheet into a city grid. They must start with one Main Highway (a single line across the page). Construction Requirements: 3 Parallel Streets: Constructed using the Angle Copy Method from the highway. 2 Perpendicular Streets: Constructed using the Perpendicular Bisector method. Labels: Use arrows for parallel, boxes for right angles, and creative names for city blocks. Common Misconceptions to Watch For: Changing Compass Width: Students often bump their compass between arcs. Emphasize "locking" the setting. Measuring with Straightedges: Watch for students trying to mark centimeters with the straightedge. Remind them: "Tuck the ruler away!" Arc Visibility: Encourage students to keep their construction arcs light so they don't clutter the city, but they MUST be visible for credit. 4. Closure: The Reflection (5 min) Discussion Prompts "Why is it important for city streets to be truly parallel?" Response: Consistent traffic flow, equal block sizes, utility pipe alignment. "What happens if they are slightly off—say, 88 degrees instead of 90?" Response: Streets would eventually collide; building shapes would be irregular (parallelograms instead of rectangles).
Parallel City SlidesParallel City Urban Planning through Geometric Construction Construct Design 01 WARM-UP: NOTATION Parallel Lines ▶ ▶ Symbol: || Perpendicular Lines Symbol: ⊥ 02 MASTER CLASS Embedded media "Tuck that ruler away!" 03 THE MISSION Construction Rules: Start with 1 Main Highway. Construct 3 Parallel Streets. Construct 2 Perpendicular Streets. Leave construction arcs visible (lightly). Labels Required: Parallel arrows (▶) Right angle boxes (⬜) Street names and Block names. Blueprint Thinking If your construction is off by even 1mm, your city will eventually collide! Exit Briefing Why must city streets be truly parallel? Think about traffic flow, land ownership, and construction. What happens if they are slightly off? Imagine a building that should be a rectangle, but it's a parallelogram.

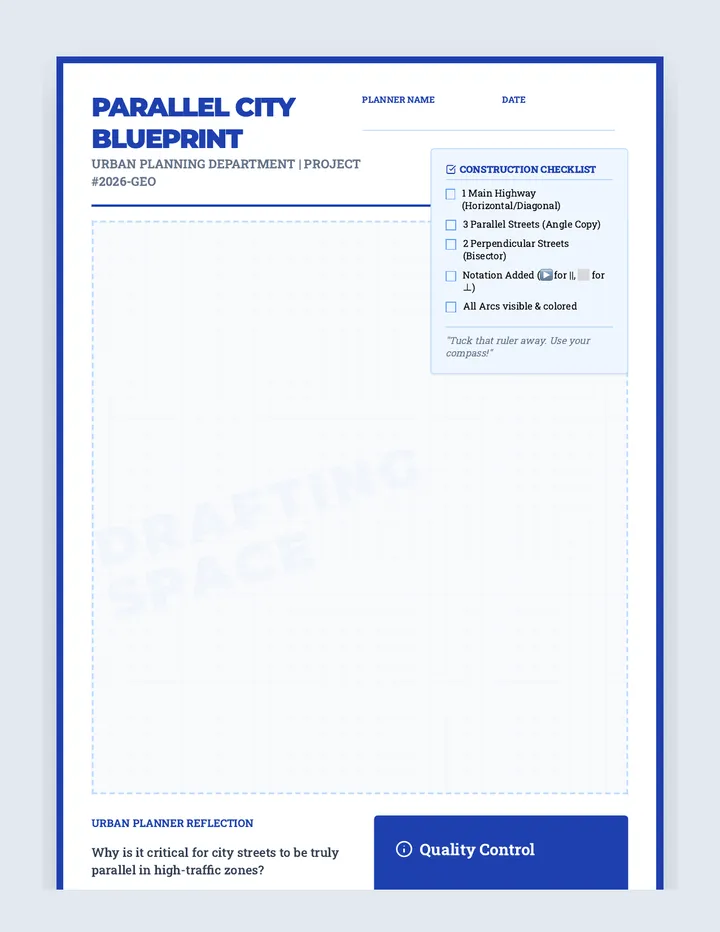

Parallel City BlueprintParallel City Blueprint Urban Planning Department | Project #2026-GEO PLANNER NAME DATE Construction Checklist 1 Main Highway (Horizontal/Diagonal) 3 Parallel Streets (Angle Copy) 2 Perpendicular Streets (Bisector) Notation Added (▶ for ||, ⬜ for ⊥) All Arcs visible & colored "Tuck that ruler away. Use your compass!" Drafting Space Urban Planner Reflection Why is it critical for city streets to be truly parallel in high-traffic zones? What happens to the shape of a city block if the perpendicular street is slightly off (e.g., 92°)? Quality Control "Geometric perfection is the foundation of structural integrity." OFFICIAL STAMP OF COMPLETION: _________________________
