Body Graphs Slides
Math in Motion
Activity Introduction
Body Graphs
Data in Motion: Translating our physical coordinates into statistical charts & community stories.
Get Ready to Move & Measure
Slide 1 of 8
The Rules of the Grid
Safety First
Moving Responsibly
We are turning our classroom floor into a large coordinate plane. To keep everyone safe and make sure our data is highly accurate, we must follow three simple guidelines.
Did You Know?
In statistical studies, "noise" or "uncontrolled variables" can ruin data. In our classroom, bumping or moving too fast is our version of static noise!
1
Silent Navigation
Move to your destination at a calm, controlled walking pace. No running, hopping, or sliding.
2
Respect Physical Space
Each coordinate spot is for one person. Keep hands to yourself and allow at least 1 foot of breathing room.
3
Hold Your Position
Once you choose your data point, stand still. You are a live data node until the teacher says "freeze frame" is complete!
Ensure your workspace is clear of backpacks and obstacles!
Slide 2 of 8
Setting the Stage
The Coordinate System
Anatomy of our Classroom Grid
Before we stand, let's establish our spatial baseline.
- X-Axis (Horizontal): The tape line along the front whiteboard. It divides our categories.
- Y-Axis (Vertical): The distance you walk forward from the baseline back wall. Represents intensity, quantity, or agreement.
- Origin (0,0): The back-left corner of the classroom. Every coordinate starts here!
Y-Axis (Magnitude)
X-Axis (Categories)
Origin (0,0)
Back-Left Corner
A
A
Category A
B
B
B
Category B
Students stand in rows extending outwards to form bars.
Wait for the teacher's axis designations before standing.
Slide 3 of 8
Round 1: Play
Categorical Data
ACTIVITY PROMPT
What's Your Fuel?
Walk to the category tape marker on the horizontal X-axis that matches your favorite breakfast or energy food.
Once there, stand directly behind the person in front of you. Form a neat, straight vertical line pointing away from the board.
A: Grains & Cereals
Cereal, toast, oatmeal, bagels, waffles, pancakes.
B: Protein Power
Eggs, bacon, sausage, yogurt, tofu scramble, peanut butter.
C: Fresh Fruits
Bananas, apples, berries, smoothies, orange juice, melon.
D: Skip/Other
Nothing at all, liquids only, or a completely different meal.
Freeze in position when your row is established!
Slide 4 of 8
Data Transition
The Analytics Phase
Freeze-Frame Calculations
While standing, look around. We have built a living bar chart! Let's extract the key numbers:
Sample Size
N = ?
Total active students
Mode (Most Common)
?
Tallest student line
How to record on your worksheet:
- 1 Count the heads in each line. Do not guess. Check your adjacent column.
- 2 Fill in the frequency table on your sheet under "Round 1".
- 3 Calculate the percentage of the class in each category: \[ \text{Percentage} = \frac{\text{Category Count}}{\text{Total Class Size (N)}} \times 100 \]
Quietly record these initial numbers when authorized by the teacher.
Slide 5 of 8
Round 2: Play
The Opinion Spectrum
INTERVAL & LIKERT DATA
Opinion Axis
We will present an opinion prompt. Your horizontal X-axis is now a scale from 1 (Strongly Disagree) to 5 (Strongly Agree).
Position yourself precisely on the spectrum line. If you feel neutral, find spot 3.
Sample Opinions to Graph:
"Hot weather is vastly superior to cold weather."
"A hot dog is mathematically a sandwich."
"Artificial Intelligence will do more good than harm."
1: Disagree 3: Neutral 5: Agree
Watch where the clusters form. What does this shape suggest?
Slide 6 of 8
Data Literacy
Analyzing Distribution Shapes
01
Skewed Data
When most people cluster on one side, and only a few tail off to the opposite side.
02
Symmetric (Bell)
A high central cluster (usually neutral or average) with balanced, shrinking tails on both sides.
03
Bimodal (U-Shape)
High peaks at the extremes (Strongly Agree and Strongly Disagree) with a very low valley in the middle.
Which distribution pattern fits our classroom for each prompt?
Slide 7 of 8
Mission Debrief
Next Steps
Return to Your Desk
The physical tracking is over! Now, we pivot from actors to analysts.
Complete the analysis and reflection questions on Page 2 of your worksheet. Focus on finding mathematical justifications for your findings.
Your Analyst Goals:
- Plot the exact counts on the grid. Build your formal bar graphs.
- Calculate proportions and write fractions in simplest terms.
- Identify outliers, modes, and compare the distributions mathematically.
Data tells stories—what does our classroom story look like?
Slide 8 of 8

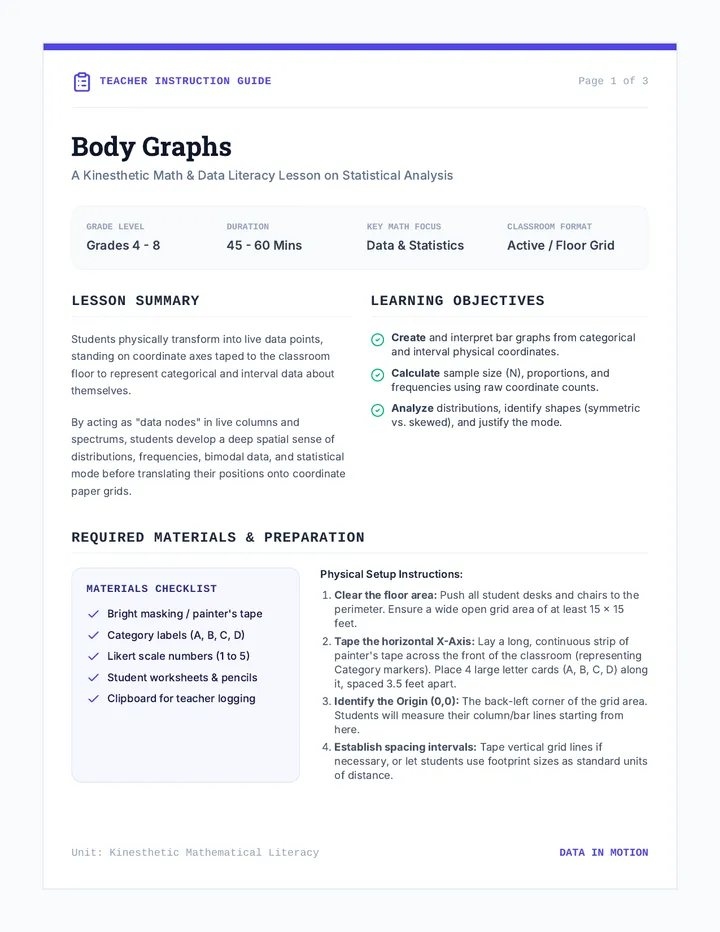

Body Graphs Teacher Guide
Teacher Instruction Guide
Page 1 of 3
Body Graphs
A Kinesthetic Math & Data Literacy Lesson on Statistical Analysis
Grade Level Grades 4 - 8
Duration 45 - 60 Mins
Key Math Focus Data & Statistics
Classroom Format Active / Floor Grid
Lesson Summary
Students physically transform into live data points, standing on coordinate axes taped to the classroom floor to represent categorical and interval data about themselves.
By acting as "data nodes" in live columns and spectrums, students develop a deep spatial sense of distributions, frequencies, bimodal data, and statistical mode before translating their positions onto coordinate paper grids.
Learning Objectives
- Create and interpret bar graphs from categorical and interval physical coordinates.
- Calculate sample size (N), proportions, and frequencies using raw coordinate counts.
- Analyze distributions, identify shapes (symmetric vs. skewed), and justify the mode.
Required Materials & Preparation
Materials Checklist
- Bright masking / painter's tape
- Category labels (A, B, C, D)
- Likert scale numbers (1 to 5)
- Student worksheets & pencils
- Clipboard for teacher logging
Physical Setup Instructions:
- Clear the floor area: Push all student desks and chairs to the perimeter. Ensure a wide open grid area of at least 15 x 15 feet.
- Tape the horizontal X-Axis: Lay a long, continuous strip of painter's tape across the front of the classroom (representing Category markers). Place 4 large letter cards (A, B, C, D) along it, spaced 3.5 feet apart.
- Identify the Origin (0,0): The back-left corner of the grid area. Students will measure their column/bar lines starting from here.
- Establish spacing intervals: Tape vertical grid lines if necessary, or let students use footprint sizes as standard units of distance.
Unit: Kinesthetic Mathematical Literacy DATA IN MOTION
Step-by-Step Delivery
Page 2 of 3
Activity Sequence
Detailed pacing and scripting instructions for conducting the classroom graphing sessions.
1
Orientation & Physical Rules 10 MINS
Introduce the lesson using the slides. Emphasize safety: "Noise inside our dataset comes from physical bumping. We must move in slow motion, keeping a one-foot boundary from other data nodes." Have students demonstrate walking safely to the origin.

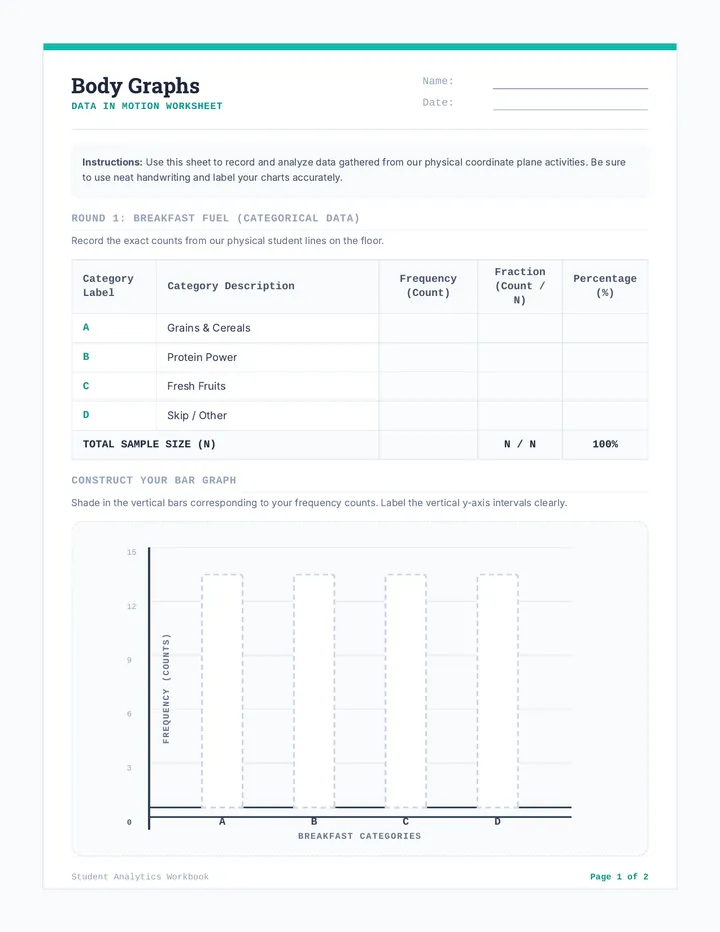

Body Graphs Worksheet
Body Graphs
Data in Motion Worksheet
Name:
Date:
Instructions: Use this sheet to record and analyze data gathered from our physical coordinate plane activities. Be sure to use neat handwriting and label your charts accurately.
Round 1: Breakfast Fuel (Categorical Data)
Record the exact counts from our physical student lines on the floor.
| Category Label | Category Description | Frequency (Count) | Fraction (Count / N) | Percentage (%) |
|---|
| A | Grains & Cereals | | | |
| B | Protein Power | | | |
| C | Fresh Fruits | | | |
| D | Skip / Other | | | |
| Total Sample Size (N) | | N / N | 100% | |
Construct Your Bar Graph
Shade in the vertical bars corresponding to your frequency counts. Label the vertical y-axis intervals clearly.
15
12
9
6
3
0
Frequency (Counts)
A
B
C
D
Breakfast Categories
Student Analytics Workbook Page 1 of 2
Round 2: Opinion Spectrum
Interval Scale & Distribution Shape
Section 2
Statement:
Record the frequency of students standing at each interval card:
1 Strongly Disagree
2 Disagree
3 Neutral
4 Agree
5 Strongly Agree
Identify the Shape of this Distribution:
Skewed Left
Skewed Right
Symmetric / Bell
Bimodal / U-Shape
Mathematical Analysis & Reasoning
1. Define the Mode of our Round 1 dataset. Explain how you can determine this statistic instantly from looking at the physical lines of students standing in the room.
2. Select Category B (Protein Power) from Round 1. Express its frequency as a simplified fraction of the total class size (N). Show your mathematical division or simplification process below.
3. Compare our two distributions. Why do opinions (Round 2) often display a "Bimodal" or skewed pattern, while categorical choices (Round 1) might distribute more evenly? Use community evidence to support your logic.
Body Graphs Cards
Printable Facilitation Cards
Cut along the dotted lines
Use these cards to prompt different graphing rounds. Each card outlines a physical floor setup, active discussion questions, and an algebraic or statistical math challenge.
Round Category A
Habit Tracker
Focus: Categorical Distributions
Floor X-Axis Setup:
A: Wake before 6:30 AM | B: 6:30 - 7:15 AM | C: After 7:15 AM
Discussion Script:
"Look at our three lines. How does our sleep/wake data explain our class energy levels? If we shifted school times, how would this graph adapt?"
Math Challenge
Compare Column A to Column C. Calculate the percentage difference.
Round Spectrum B
Digital Balance
Focus: Discrete Numeric Scale
Floor X-Axis Setup:
Scale of 1 (Disagree) to 5 (Agree): "I can easily go a weekend without using screen tech."
Discussion Script:
"Our center node (3) is neutral. Why are so many people clustered at the extremes? What makes digital detox difficult?"
Math Challenge
Assume each person is an integer (1 to 5). Find the arithmetic mean of our spectrum.
Round Spectrum C
Future Tech
Focus: Bimodal & Split Data
Floor X-Axis Setup:
Scale 1 (Disagree) to 5 (Agree): "Artificial Intelligence will solve more problems than it creates."
Discussion Script:
"We see massive split peaks at 1 and 5. This is bimodal. Why do futuristic topics divide communities so strongly?"
Math Challenge
Is the mode on this spectrum a useful representative average? Why or why not?
Round Category D
Community Vibe
Focus: High-Density Categories
Floor X-Axis Setup:
A: Fine Arts (Music/Art) | B: Athletics & Sports | C: Science & Coding
Discussion Script:
"What forms our strongest subcultures? If a new student joined, what is the probability they would stand in Column B?"
Math Challenge
Calculate the ratio of category A to category C. Simplify the ratio.
Unit: Kinesthetic Mathematical Literacy BODY GRAPH CARDS
