Digit Drift Slides GRADE 8 MATH • LESSON 1.1 GRID INTERCEPT // ACTIVATED
Place Value & Scientific Notation
DIGIT DRIFT
Why do digits move when we scale? Master the mechanics of multiplying by 10, powers of 10, and scientific notation.
Ready to shift perspective?
SLIDE 01 / 06
The Grade 5 Secret: Digits Drift!
CONCEPT BLOCK 01
The Core Mechanism:
Multiplying by 10 shifts every digit ONE space left . (Value increases)
Dividing by 10 shifts every digit ONE space right . (Value decreases)
Crucial Rule: The decimal point never moves . The digits are the physical components drifting across the place-value framework!
Let's Drift: 4.5 × 10
Tens
Ones
.
Tenths
-
4
.
5
ALL DIGITS DRIFT LEFT
4
5
.
-
Grade 8 Anchor: Scaling is just multiple continuous shifts. SLIDE 02 / 06
Exponents: The Scale Controllers
CONCEPT BLOCK 02
Instead of writing out long strings of zeros, we compress scaling instructions using powers of 10 .
Positive Exponents Shift Left (Multiply)
\(10^3\) means 1,000. Shift digits 3 spaces LEFT relative to the decimal point.
Negative Exponents Shift Right (Divide)
\(10^{-3}\) means 0.001 (or \(\frac{1}{10^3}\)). Shift digits 3 spaces RIGHT relative to the decimal.
The Power Scale
Standard Scientific Shift Power
10,000 \(10^4\) (4 spaces Left)
1 \(10^0\) (No Shifts)
0.01 \(10^{-2}\) (2 spaces Right)
Every change of exponent magnitude is exactly ONE additional position shift. SLIDE 03 / 06
Anatomy of Scientific Notation
CONCEPT BLOCK 03
Scientific notation represents extremely large or small numbers in a standard, readable format.
a × 10n
Coefficient (a)
Must be \(\ge 1\) and \(< 10\). Usually has one non-zero digit to the left of the decimal.
Exponent (n)
The exact count of digit shifts required to return to standard form.
Rule of Standard Form Return
If Exponent is POSITIVE
Digits shifted left. To get back to standard, we reconstruct the large number.
If Exponent is NEGATIVE
Digits shifted right. To get back to standard, we reconstruct the fractional value.
"To translate standard numbers, move decimal to create a single digit lead. Count the spaces jumped—this is your exponent power!"
Warning: Don't just blindly count zeros. Count the visual grid drifts! SLIDE 04 / 06
Guided Drift Lab: Visual Examples
LAB 01
CASE ALPHA
Convert \( 3.12 \times 10^5 \)
Multiply coefficient by 100,000 (5 left digit shifts).
Base Drifting Action Result
3.12 × 100,000 312,000
The digits '3', '1', and '2' migrated 5 units left. Empty decimal slots filled with placeholder zeroes.
CASE BETA
Convert \( 8.7 \times 10^{-4} \)
Divide coefficient by 10,000 (4 right digit shifts).
Base Drifting Action Result
8.7 ÷ 10,000 0.00087
The digits '8' and '7' drifted 4 positions right, transitioning deep behind the stationary decimal.
Observe: The negative exponent creates standard fractions. SLIDE 05 / 06
Check Your Signal: Board Practice
ACTIVE DRILL
01
Identify
Is this written correctly in scientific notation?
\( 23.4 \times 10^4 \)
If not, explain why!
02
Drift Forward
Expand this value into Standard Form:
\( 6.03 \times 10^3 \)
How many digits shifted?
03
Compress Shift
Translate to Scientific Notation:
0.0079
Positive or negative exponent?
Ready? Fill out Section 1 of your Guided Notes.
SLIDE 06 / 06

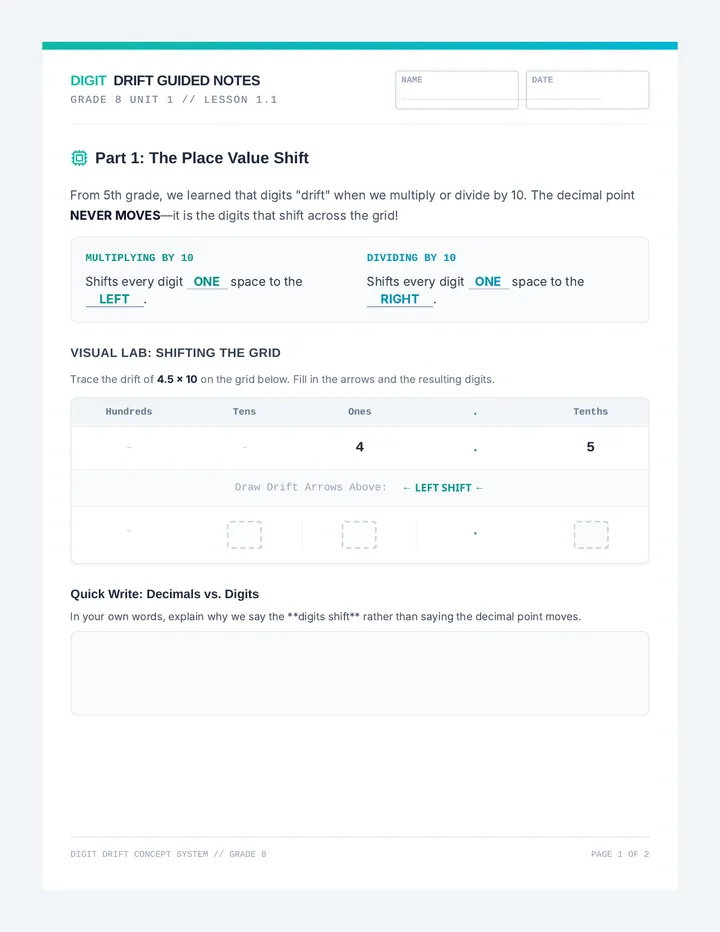

Digit Drift Guided Notes DIGIT DRIFT GUIDED NOTES
Grade 8 Unit 1 // Lesson 1.1
Name ______________________
Date ___________
Part 1: The Place Value Shift
From 5th grade, we learned that digits "drift" when we multiply or divide by 10. The decimal point NEVER MOVES —it is the digits that shift across the grid!
Multiplying by 10
Shifts every digit ONE space to the LEFT.
Dividing by 10
Shifts every digit ONE space to the RIGHT.
Visual Lab: Shifting the Grid
Trace the drift of 4.5 × 10 on the grid below. Fill in the arrows and the resulting digits.
Hundreds
Tens
Ones
.
Tenths
-
-
4
.
5
Draw Drift Arrows Above: ← LEFT SHIFT ←
-
.
Quick Write: Decimals vs. Digits
In your own words, explain why we say the **digits shift** rather than saying the decimal point moves.
DIGIT DRIFT CONCEPT SYSTEM // GRADE 8 PAGE 1 OF 2
GUIDED NOTES TRACKER PART 2: SCIENTIFIC SHIFT POWER
Part 2: Exponents & Scientific Notation
Exponents tell us exactly how many place value shifts occur. We compress giant or tiny numbers using a standard template:
a × 10n
Coefficient (a)
Must be greater than or equal to 1 and strictly less than 10 .
Exponent (n)
Represents the total number of digit shifts completed from standard form.
Drift Lab: Step-by-Step Table
Follow the model to fill in standard forms, shifts, and final scientific notation.
Standard Form Drift Action & Count Scientific Notation 45,000 4.5 × 10 × 10 × 10 × 10 ← 4 Left Shifts \( 4.5 \times 10^4 \) 320,000 _______________________________ _____ Left Shifts \( \text{___} \times 10^{\text{_}} \) 0.0078 7.8 ÷ 10 ÷ 10 ÷ 10 → 3 Right Shifts \( 7.8 \times 10^{-3} \) 0.00004

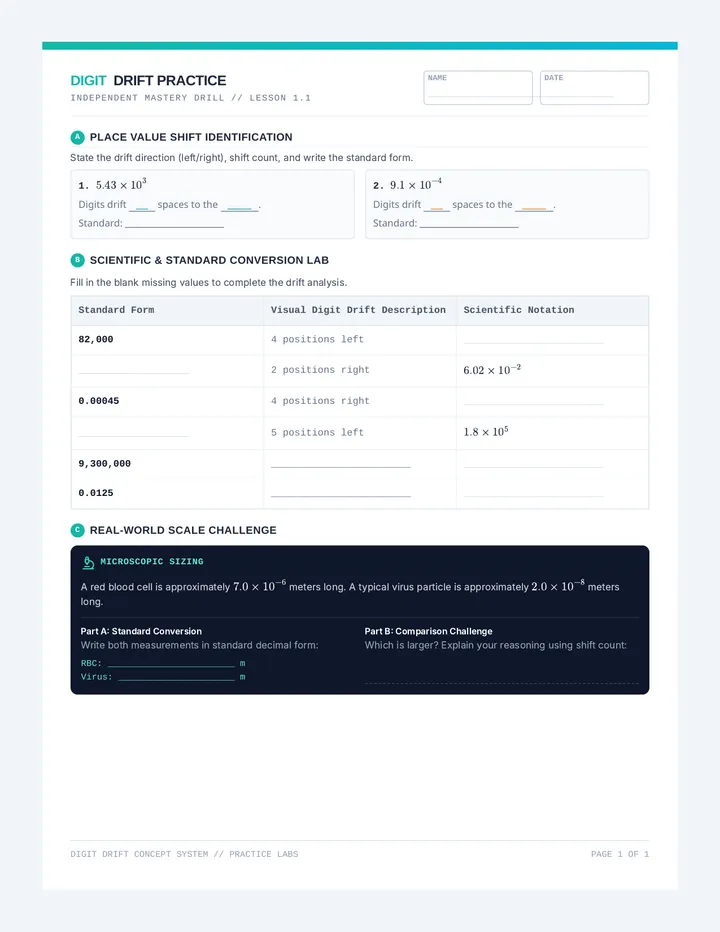

Digit Drift Practice Worksheet DIGIT DRIFT PRACTICE
Independent Mastery Drill // Lesson 1.1
Name ______________________
Date ___________
A Place Value Shift Identification
State the drift direction (left/right), shift count, and write the standard form.
1. \( 5.43 \times 10^3 \)
Digits drift ___ spaces to the ______.
Standard: _________________
2. \( 9.1 \times 10^{-4} \)
Digits drift ___ spaces to the ______.
Standard: _________________
B Scientific & Standard Conversion Lab
Fill in the blank missing values to complete the drift analysis.
Standard Form Visual Digit Drift Description Scientific Notation 82,000 4 positions left ________________________ ___________________ 2 positions right \( 6.02 \times 10^{-2} \) 0.00045 4 positions right ________________________ ___________________ 5 positions left \( 1.8 \times 10^5 \) 9,300,000 ________________________ ________________________ 0.0125 ________________________ ________________________
C Real-World Scale Challenge
Microscopic Sizing
A red blood cell is approximately \( 7.0 \times 10^{-6} \) meters long. A typical virus particle is approximately \( 2.0 \times 10^{-8} \) meters long.
Part A: Standard Conversion Write both measurements in standard decimal form:
RBC: ________________________ m
Part B: Comparison Challenge Which is larger? Explain your reasoning using shift count:
DIGIT DRIFT CONCEPT SYSTEM // PRACTICE LABS PAGE 1 OF 1

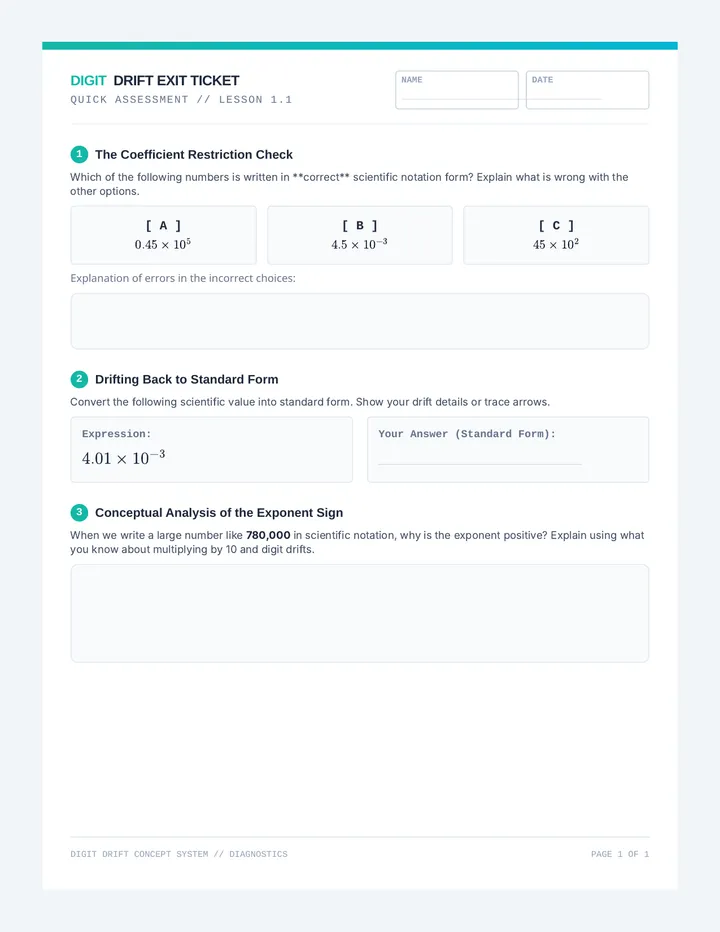

Digit Drift Exit Ticket DIGIT DRIFT EXIT TICKET
Quick Assessment // Lesson 1.1
Name ______________________
Date ___________
1 The Coefficient Restriction Check
Which of the following numbers is written in **correct** scientific notation form? Explain what is wrong with the other options.
[ A ] \( 0.45 \times 10^5 \)
[ B ] \( 4.5 \times 10^{-3} \)
[ C ] \( 45 \times 10^2 \)
Explanation of errors in the incorrect choices:
2 Drifting Back to Standard Form
Convert the following scientific value into standard form. Show your drift details or trace arrows.
Expression:
\( 4.01 \times 10^{-3} \)
Your Answer (Standard Form):
________________________
3 Conceptual Analysis of the Exponent Sign
When we write a large number like 780,000 in scientific notation, why is the exponent positive? Explain using what you know about multiplying by 10 and digit drifts.
DIGIT DRIFT CONCEPT SYSTEM // DIAGNOSTICS PAGE 1 OF 1

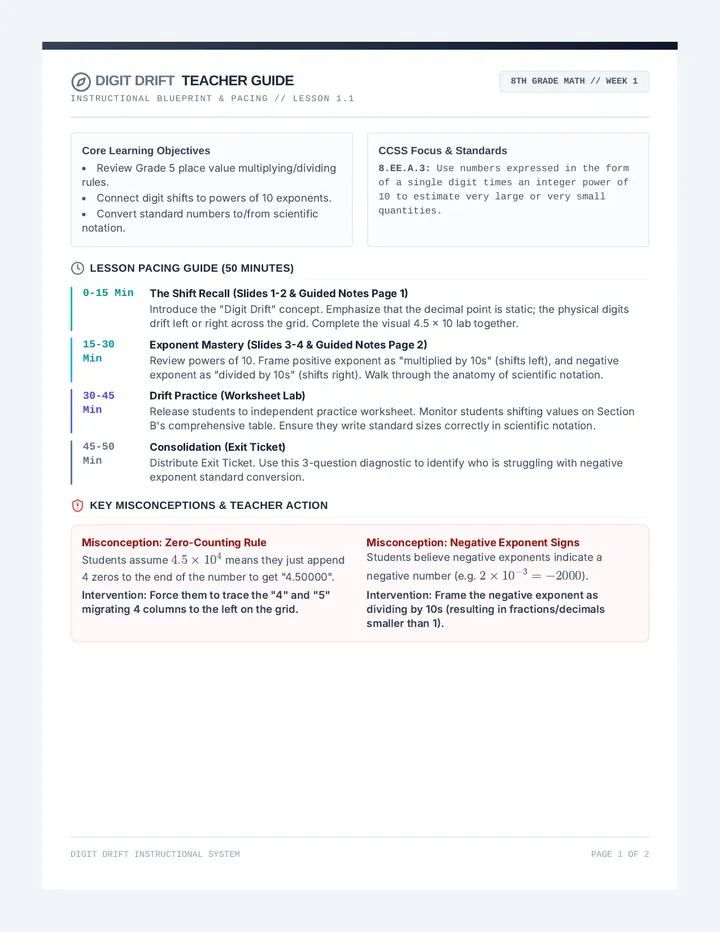

Digit Drift Teacher Guide DIGIT DRIFT TEACHER GUIDE
Instructional Blueprint & Pacing // Lesson 1.1
8TH GRADE MATH // WEEK 1
Core Learning Objectives
Review Grade 5 place value multiplying/dividing rules.
Connect digit shifts to powers of 10 exponents.
Convert standard numbers to/from scientific notation.
CCSS Focus & Standards
8.EE.A.3: Use numbers expressed in the form of a single digit times an integer power of 10 to estimate very large or very small quantities.
Lesson Pacing Guide (50 Minutes)
0-15 Min
The Shift Recall (Slides 1-2 & Guided Notes Page 1)
Introduce the "Digit Drift" concept. Emphasize that the decimal point is static; the physical digits drift left or right across the grid. Complete the visual 4.5 × 10 lab together.
15-30 Min
Exponent Mastery (Slides 3-4 & Guided Notes Page 2)
Review powers of 10. Frame positive exponent as "multiplied by 10s" (shifts left), and negative exponent as "divided by 10s" (shifts right). Walk through the anatomy of scientific notation.
30-45 Min
Drift Practice (Worksheet Lab)
Release students to independent practice worksheet. Monitor students shifting values on Section B's comprehensive table. Ensure they write standard sizes correctly in scientific notation.
45-50 Min
Consolidation (Exit Ticket)
Distribute Exit Ticket. Use this 3-question diagnostic to identify who is struggling with negative exponent standard conversion.
Key Misconceptions & Teacher Action
Misconception: Zero-Counting Rule
Students assume \( 4.5 \times 10^4 \) means they just append 4 zeros to the end of the number to get "4.50000".
Intervention: Force them to trace the "4" and "5" migrating 4 columns to the left on the grid.
Misconception: Negative Exponent Signs
Students believe negative exponents indicate a negative number (e.g. \( 2 \times 10^{-3} = -2000 \)).
Intervention: Frame the negative exponent as dividing by 10s (resulting in fractions/decimals smaller than 1).
DIGIT DRIFT INSTRUCTIONAL SYSTEM PAGE 1 OF 2
FACILITATION TRACKER LESSON COMPLETE KEY
Guided Notes Answer Key
Page 1 Answers:
Multiplying: ONE space LEFT
Dividing: ONE space RIGHT
Visual Lab Table: Result is 45.0 (digits '4' and '5' shift 1 spot left; tens box gets '4', ones gets '5')
