Deep Sea Lesson Plan
Educator Instructional Framework • Grade 6 Math
Deep Sea Dive Lesson Plan
Duration: 60 Mins
Standards: 6.NS.C.5, 6.NS.C.6, 6.NS.C.7
LEARNING OBJECTIVES
- Represent elevations above and below sea level using positive and negative integers on a vertical axis.
- Interpret absolute value as distance from sea level (0 meters) regardless of direction: \(|x|\).
- Calculate vertical distance traveled between two depth coordinates using \(|y_1 - y_2|\).
KEY VOCABULARY
Zero Datum: Reference point (Sea Level = \(0\text{ m}\)).
Negative Integer: Values below sea level (\(-x\)).
Absolute Value: Magnitude/distance from zero; \(|-450| = 450\).
Vertical Displacement: Change in depth coordinate.
Required Materials:
Submarine Dive Mission Game sheets (1 per pair) • Standard 6-sided die or Depth Event Cards • Colored pencils
Stage 1: The Pressure Below (Hook & Anchor)
10 Minutes
Display a vertical scale on the board extending from \(+100\text{ m}\) (research vessel mast) down to \(-4,000\text{ m}\) (abyssal plain). Ask: "If a submersible is at \(-350\text{ m}\) and an albatross flies at \(+50\text{ m}\), which is farther from the ocean surface?"
Key Clarification: Emphasize that while \(-350 < +50\), its distance from zero (\(|-350| = 350\)) is greater than \(|+50| = 50\). Negative indicates position below reference, never negative distance.
Stage 2: Vertical Number Line & Absolute Value Modeling
15 Minutes
Guide students to connect horizontal number line intuition to vertical oceanic columns. Teach the two essential dive calculation formulas:
1. Depth Magnitude:
Absolute distance from ocean surface:
Distance to Surface = \(|y|\)
E.g., at \(-1,200\text{ m}\), distance is \(|-1,200| = 1,200\text{ m}\).
2. Inter-Submersible Distance:
Vertical separation between two vessels:
Distance = \(|y_1 - y_2|\)
E.g., Sub A at \(-400\text{ m}\), Sub B at \(-1,100\text{ m}\): \(|-400 - (-1,100)| = 700\text{ m}\).
Deep Sea Descent • Teacher Lesson Plan Page 1 of 2
Facilitation & Assessment
Game Mechanics & Misconception Guide
Stages 3 & 4
Stage 3: Submarine Dive Mission Game Simulation
20 Minutes
Organize students into pairs: Pilot (tracks vehicle depth coordinates and plotting) and Sonar Officer (computes distance traveled and absolute value oxygen draw).
1
Roll for Depth Maneuver: Teams roll a die to determine descent rate (e.g., Roll \(\times -150\text{ m}\)) or ocean current shifts (+ and - rational movements).
2
Coordinate Logging: Log new depth \(y_2\). Plot on vertical bathymetric gauge. Calculate vertical displacement \(\Delta y\) and absolute distance \(|\Delta y|\).
3
Specimen Retrieval: Reaching target oceanic zones (Sunlight, Twilight, Midnight, Abyss) earns research telemetry points.
Stage 4: Synthesis, Debrief & Exit Ticket
15 Minutes
Lead a class-wide debrief connecting game mechanics to rigorous integer operations.
Debrief Prompt A
Why can temperature change or vertical displacement be negative, but absolute distance traveled is always positive?
Debrief Prompt B
If Sub 1 is at \(-1,500\text{ m}\) and Sub 2 is at \(-2,200\text{ m}\), which submarine has the greater coordinate value? Which is deeper?
Debrief Prompt C
Explain how subtracting a negative depth coordinate \(y_1 - (-y_2)\) is equivalent to moving upward toward the surface.
Critical Misconceptions & Teacher Interventions
| Student Misconception | Targeted Instructional Intervention |
|---|
| Believing \(-800 > -200\) because the digit \(800\) is larger than \(200\). | Anchor to vertical position: higher is always greater. \(-200\text{ m}\) is physically higher than \(-800\text{ m}\), so \(-200 > -800\). |
| Reporting negative distance: "The submarine moved \(-300\text{ m}\)". | Distinguish displacement (\(-300\text{ m}\) downward) from distance traveled (\( |
| Adding coordinates instead of finding the difference to determine distance. | Use tick-mark counting along the vertical axis, then demonstrate \( |
Differentiation & Extension Pathways
Support / Scaffolding: Provide tactile vertical ruler strips marked with increments of 50. Have students physically hop a mini-sub counter upward and downward to verify sign rules.
Enrichment / Challenge: Introduce 4-quadrant sonar coordinates \((x, y)\) where \(x\) is horizontal distance from launch ship and \(y\) is ocean depth. Calculate composite Pythagorean distance.
Deep Sea Descent • Teacher Lesson Plan Page 2 of 2

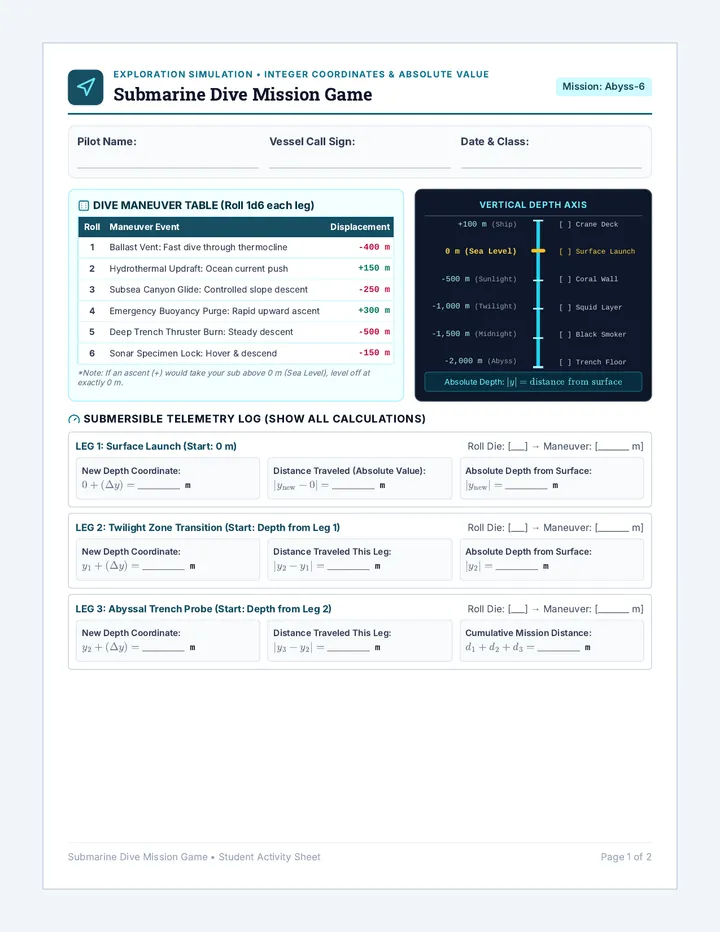

Submarine Dive Mission Game
Exploration Simulation • Integer Coordinates & Absolute Value
Submarine Dive Mission Game
Mission: Abyss-6
Pilot Name:
Vessel Call Sign:
Date & Class:
DIVE MANEUVER TABLE (Roll 1d6 each leg)
| Roll | Maneuver Event | Displacement |
|---|
| 1 | Ballast Vent: Fast dive through thermocline | -400 m |
| 2 | Hydrothermal Updraft: Ocean current push | +150 m |
| 3 | Subsea Canyon Glide: Controlled slope descent | -250 m |
| 4 | Emergency Buoyancy Purge: Rapid upward ascent | +300 m |
| 5 | Deep Trench Thruster Burn: Steady descent | -500 m |
| 6 | Sonar Specimen Lock: Hover & descend | -150 m |
*Note: If an ascent (+) would take your sub above 0 m (Sea Level), level off at exactly 0 m.
Vertical Depth Axis
+100 m (Ship) 0 m (Sea Level) -500 m (Sunlight) -1,000 m (Twilight) -1,500 m (Midnight) -2,000 m (Abyss)
[ ] Crane Deck [ ] Surface Launch [ ] Coral Wall [ ] Squid Layer [ ] Black Smoker [ ] Trench Floor
Absolute Depth: \(|y| = \text{distance from surface}\)
Submersible Telemetry Log (Show all calculations)
LEG 1: Surface Launch (Start: 0 m) Roll Die: [___] → Maneuver: [_______ m]
New Depth Coordinate: \(0 + (\Delta y) =\) ________ m
Distance Traveled (Absolute Value): \(|y_{\text{new}} - 0| =\) ________ m
Absolute Depth from Surface: \(|y_{\text{new}}| =\) ________ m
LEG 2: Twilight Zone Transition (Start: Depth from Leg 1) Roll Die: [___] → Maneuver: [_______ m]
New Depth Coordinate: \(y_1 + (\Delta y) =\) ________ m
Distance Traveled This Leg: \(|y_2 - y_1| =\) ________ m
Absolute Depth from Surface: \(|y_2| =\) ________ m
LEG 3: Abyssal Trench Probe (Start: Depth from Leg 2) Roll Die: [___] → Maneuver: [_______ m]
New Depth Coordinate: \(y_2 + (\Delta y) =\) ________ m
Distance Traveled This Leg: \(|y_3 - y_2| =\) ________ m
Cumulative Mission Distance: \(d_1 + d_2 + d_3 =\) ________ m
Submarine Dive Mission Game • Student Activity Sheet Page 1 of 2
Tactical Navigation
Four-Quadrant Sonar Grid Operations
Part 2: 2D Dive Mapping

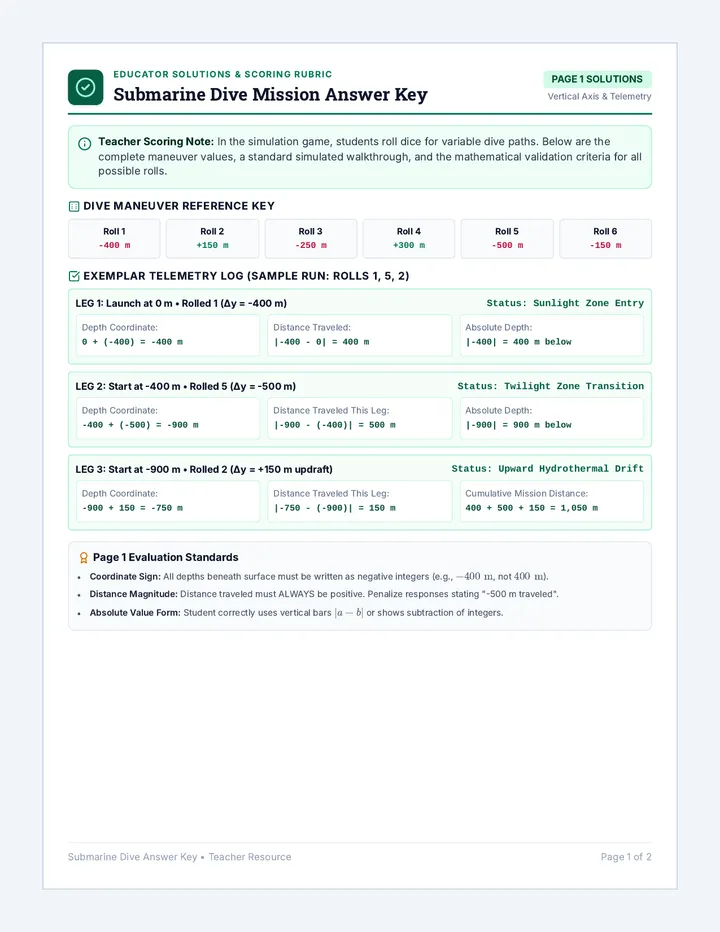

Submarine Dive Answer Key
Educator Solutions & Scoring Rubric
Submarine Dive Mission Answer Key
PAGE 1 SOLUTIONS
Vertical Axis & Telemetry
Teacher Scoring Note: In the simulation game, students roll dice for variable dive paths. Below are the complete maneuver values, a standard simulated walkthrough, and the mathematical validation criteria for all possible rolls.
Dive Maneuver Reference Key
Roll 1 -400 m
Roll 2 +150 m
Roll 3 -250 m
Roll 4 +300 m
Roll 5 -500 m
Roll 6 -150 m
Exemplar Telemetry Log (Sample Run: Rolls 1, 5, 2)
LEG 1: Launch at 0 m • Rolled 1 (Δy = -400 m) Status: Sunlight Zone Entry
Depth Coordinate: 0 + (-400) = -400 m
Distance Traveled: |-400 - 0| = 400 m
Absolute Depth: |-400| = 400 m below
LEG 2: Start at -400 m • Rolled 5 (Δy = -500 m) Status: Twilight Zone Transition
Depth Coordinate: -400 + (-500) = -900 m
Distance Traveled This Leg: |-900 - (-400)| = 500 m
Absolute Depth: |-900| = 900 m below
LEG 3: Start at -900 m • Rolled 2 (Δy = +150 m updraft) Status: Upward Hydrothermal Drift
Depth Coordinate: -900 + 150 = -750 m
Distance Traveled This Leg: |-750 - (-900)| = 150 m
Cumulative Mission Distance: 400 + 500 + 150 = 1,050 m
Page 1 Evaluation Standards
- Coordinate Sign: All depths beneath surface must be written as negative integers (e.g., \(-400\text{ m}\), not \(400\text{ m}\)).
- Distance Magnitude: Distance traveled must ALWAYS be positive. Penalize responses stating "-500 m traveled".
- Absolute Value Form: Student correctly uses vertical bars \(|a - b|\) or shows subtraction of integers.
Submarine Dive Answer Key • Teacher Resource Page 1 of 2
Educator Solutions & Step-by-Step Proofs
Sonar Grid & Coordinate Analysis Key
PAGE 2 SOLUTIONS
Part 2: Target Registry & Quadrant Verification Grid Scale: 1 tick = 100 m
Target A (+300, -300)
Quadrant IV (+, -)
Target B (-400, -700)
Quadrant III (-, -)
Target C (-300, +50)
Quadrant II (-, +)
Target D (Answer) (+500, -500)
Quadrant IV (+, -)
Problem 1: Vertical Distance Between Drone C (+50 m) and Vent B (-700 m) Answer: 750 m
Step 1: Set up distance expression: \(\text{Distance} = |y_1 - y_2| = |(+50) - (-700)|\)
Step 2: Subtracting a negative is adding: \(|50 + 700| = |750|\)
