Station Master Teacher Guide Grade 3 Math Arizona Standards
10 Min / Day • 3-Day Rotation
Area Architects: Station Master Guide
Instructional roadmap and daily management framework for 4 ten-minute area stations across three days.
Arizona Mathematics Standards Alignment (Grade 3)
Center 1: Tile & Multiply (3.MD.C.7a, b)
Find area of rectangles by unit tiling and relate directly to row-by-column multiplication (\(l \times w\)).
Center 2: Distributive Split (3.MD.C.7c)
Decompose side lengths into friendly addends: \(a \times (b + c) = (a \times b) + (a \times c)\) using area models.
Center 3: Mystery Measure (3.MD.C.7b, 3.OA.A.4)
Solve for unknown side length when total area and one dimension are known (\(Area \div known = unknown\)).
Center 4: Composite Blueprint (3.MD.C.7d)
Recognize area as additive; partition rectilinear L/T shapes into non-overlapping rectangles and sum areas.
Recommended 3-Day Rotation Schedule (10 Min Work Blocks)
Cohort / Group Day 1 Focus (Build & Model) Day 2 Focus (Solve & Explain) Day 3 Focus (Architect Missions) Group A (Saguaro) Center 1 → Center 2 Center 3 → Center 4 Day 3 Mastery Challenges Group B (Agave) Center 2 → Center 3 Center 4 → Center 1 Day 3 Mastery Challenges Group C (Ocotillo) Center 3 → Center 4 Center 1 → Center 2 Day 3 Mastery Challenges Group D (Cholla) Center 4 → Center 1 Center 2 → Center 3 Day 3 Mastery Challenges
Structure: 2 rotations × 10 min on Days 1 & 2 (covers all 4 centers). Day 3 delivers the 10-min applied mission review & passport verification.
Station Materials Kit & Physical Setup
Center 1 Kit
• 1-inch square tiles (30)
• Center 1 Task Cards
• Dry-erase rulers / mats
Center 2 Kit
• 2-color counters or tiles
• Center 2 Task Cards
• Color dry-erase markers
Center 3 Kit
• Grid whiteboards
• Center 3 Task Cards
• Square centimeter cubes
Center 4 Kit
• Highlighters (2 colors)
• Center 4 Task Cards
• Scissors/tape (optional)
Architect Stamp Verification
Each student carries their Mission Tracker Student Passport . At the 10-minute bell, students show their recorded work to earn an approval initial or stamp.
10 MIN / STATION
Timer + Clean-up Prompt
Teacher Station Coaching Pacing & Scaffolding
Instructional Prompts, Misconceptions & Differentiation
Center 1: Multiplying for Area
3.MD.C.7a,b
Target Questioning:
"How do rows and columns connect to factor pairs?"
"Why does \(4 \times 7\) equal counting all 28 tiles one-by-one?"
Watch Out For:
Adding side lengths instead of multiplying (confusing perimeter with area) or omitting square units.
Scaffold: Provide grid graph paper to physically shade rows in alternating tones before writing equations.
Center 2: Distributive Property
3.MD.C.7c
Target Questioning:
"Which factor did you break apart, and why?"
"How does breaking \(8\) into \(5 + 3\) make mental multiplication faster?"
Watch Out For:
Splitting both factors at once or multiplying the partitioned parts instead of adding them together.
Scaffold: Have students draw a bold "crack" line through the rectangle and write two separate mini-equations.
Center 3: Missing Dimensions
3.MD.C.7b / 3.OA.4
Target Questioning:
"If the rug covers 36 sq ft and is 6 ft wide, what multiplication fact helps?"
"How is finding a side length like division?"
Watch Out For:
Subtracting the given side length from the total area instead of dividing or finding the missing factor.
Scaffold: Frame problem as a sentence starter: "\(known \times \underline{\hspace{0.5cm}} = total\)".
Center 4: Composite Blueprints
3.MD.C.7d
Target Questioning:
"Where is the cleanest place to slice this L-shape into two rectangles?"
"Did slicing it horizontally give the same total area as slicing vertically?"
Watch Out For:
Using the original outer side length for a partitioned rectangle after a slice cut has shortened it.
Scaffold: Color-code Rectangle A in blue highlighter and Rectangle B in yellow highlighter before calculating.
Arizona Classroom Context: All center scenarios are grounded in southwestern architecture and desert living—such as courtyard gardens in Tucson, solar shade canopies in Phoenix, and adobe pueblo floor plans. This satisfies Arizona's mathematical problem-solving focus on applying area concepts to authentic regional environments.

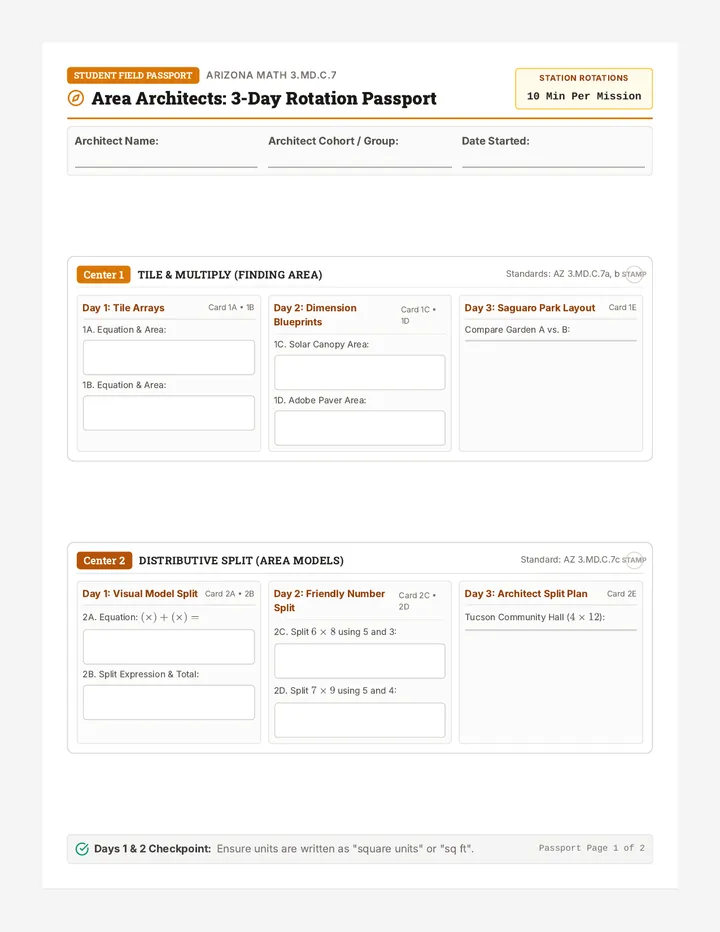

Mission Tracker Student Passport Student Field Passport Arizona Math 3.MD.C.7
Area Architects: 3-Day Rotation Passport
Station Rotations 10 Min Per Mission
Architect Name:
Architect Cohort / Group:
Date Started:
Center 1
Tile & Multiply (Finding Area)
Standards: AZ 3.MD.C.7a, b
STAMP
Day 1: Tile Arrays Card 1A • 1B
1A. Equation & Area:
1B. Equation & Area:
Day 2: Dimension Blueprints Card 1C • 1D
1C. Solar Canopy Area:
1D. Adobe Paver Area:
Day 3: Saguaro Park Layout Card 1E
Compare Garden A vs. B:
Center 2
Distributive Split (Area Models)
Standard: AZ 3.MD.C.7c
STAMP
Day 1: Visual Model Split Card 2A • 2B
2A. Equation: \(( \times ) + ( \times ) =\)
2B. Split Expression & Total:
Day 2: Friendly Number Split Card 2C • 2D
2C. Split \(6 \times 8\) using 5 and 3:
2D. Split \(7 \times 9\) using 5 and 4:
Day 3: Architect Split Plan Card 2E
Tucson Community Hall (\(4 \times 12\)):
Days 1 & 2 Checkpoint: Ensure units are written as "square units" or "sq ft".
Passport Page 1 of 2
Student Field Passport Stations 3 & 4 + Master Reflection
Architect Investigations & Debrief
10 Min / Session
Center 3
Mystery Measure (Finding Missing Sides)
Standards: AZ 3.MD.C.7b, 3.OA.A.4
STAMP
Day 1: Missing Side Equations Card 3A • 3B
3A. \(Area = 24\text{ sq cm}, w = 4\text{ cm}\):
3B. \(Area = 35\text{ sq ft}, l = 7\text{ ft}\):
Day 2: Division Connections Card 3C • 3D
3C. Show Division Equation:
3D. Show Missing Factor:
Day 3: Desert Zoo Habitats Card 3E
Tortoise Habitat Dimensions & Proof:
Center 4
Composite Blueprint (Combined Areas)
Standard: AZ 3.MD.C.7d
STAMP
Day 1: L-Shapes with Tiles Card 4A • 4B
4A. Part A + Part B = Total:
4B. Part A + Part B = Total:
Day 2: Cut Lines & Equations Card 4C • 4D
4C. Slice & Sum Equation:
4D. Slice & Sum Equation:
Day 3: Adobe Pueblo House Card 4E
Multi-room total floor plan area:
3-Day Architect Self-Assessment & Certification

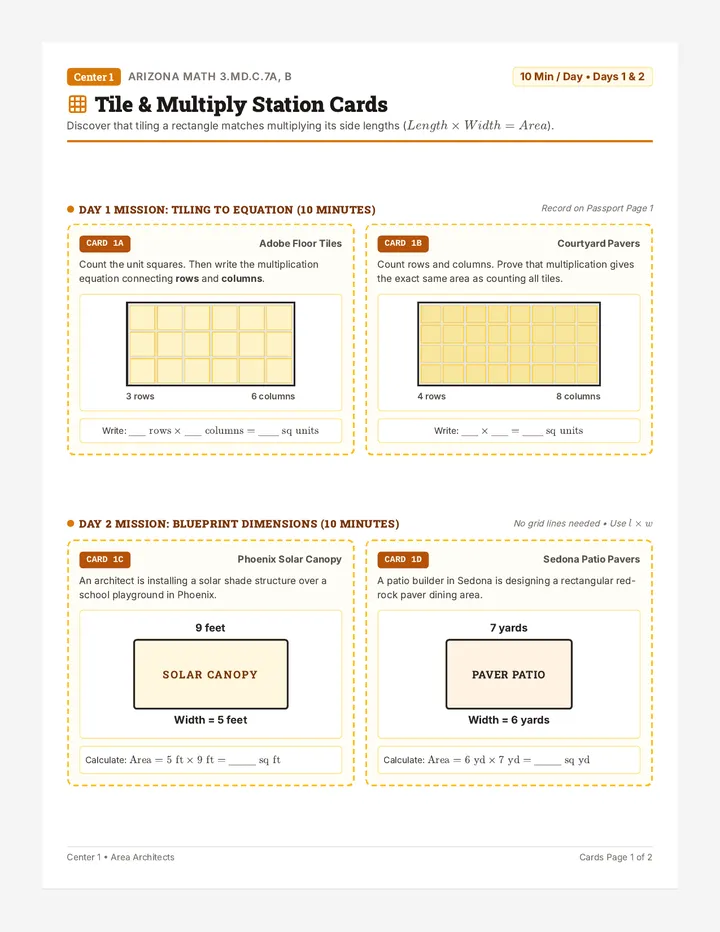

Tile Multiply Station Cards Center 1 Arizona Math 3.MD.C.7a, b
10 Min / Day • Days 1 & 2
Tile & Multiply Station Cards
Discover that tiling a rectangle matches multiplying its side lengths (\(Length \times Width = Area\)).
Day 1 Mission: Tiling to Equation (10 Minutes) Record on Passport Page 1
CARD 1A Adobe Floor Tiles
Count the unit squares. Then write the multiplication equation connecting rows and columns .
3 rows 6 columns
Write: \(\underline{\hspace{0.5cm}} \text{ rows} \times \underline{\hspace{0.5cm}} \text{ columns} = \underline{\hspace{0.6cm}} \text{ sq units}\)
CARD 1B Courtyard Pavers
Count rows and columns. Prove that multiplication gives the exact same area as counting all tiles.
4 rows 8 columns
Write: \(\underline{\hspace{0.5cm}} \times \underline{\hspace{0.5cm}} = \underline{\hspace{0.6cm}} \text{ sq units}\)
Day 2 Mission: Blueprint Dimensions (10 Minutes) No grid lines needed • Use \(l \times w\)
CARD 1C Phoenix Solar Canopy
An architect is installing a solar shade structure over a school playground in Phoenix.
9 feet
Solar Canopy
Width = 5 feet
Calculate: \(\text{Area} = 5\text{ ft} \times 9\text{ ft} = \underline{\hspace{0.8cm}}\text{ sq ft}\)
CARD 1D Sedona Patio Pavers
A patio builder in Sedona is designing a rectangular red-rock paver dining area.
7 yards
Paver Patio
Width = 6 yards
Calculate: \(\text{Area} = 6\text{ yd} \times 7\text{ yd} = \underline{\hspace{0.8cm}}\text{ sq yd}\)
Center 1 • Area Architects Cards Page 1 of 2
Center 1 Master Mission Day 3 (10 Minutes)
Saguaro Community Garden Challenge
CARD 1E: ARCHITECT SHOWDOWN Comparing Rectangular Plots
Tucson City Parks wants to plant a desert pollinator garden. Two community members submit different blueprint options:
Design A: Agave Plot
Length: 4 meters • Width: 9 meters
Equation: \(4\text{ m} \times 9\text{ m} = \text{Area A}\)
Design B: Prickly Pear Plot
Length: 6 meters • Width: 6 meters
Equation: \(6\text{ m} \times 6\text{ m} = \text{Area B}\)
Mission Tasks for Passport:
Calculate the area of Design A and Design B.
What do you notice about their areas? Are they equal or different?
Why can two rectangles have different dimensions but the same total area? Explain your reasoning!

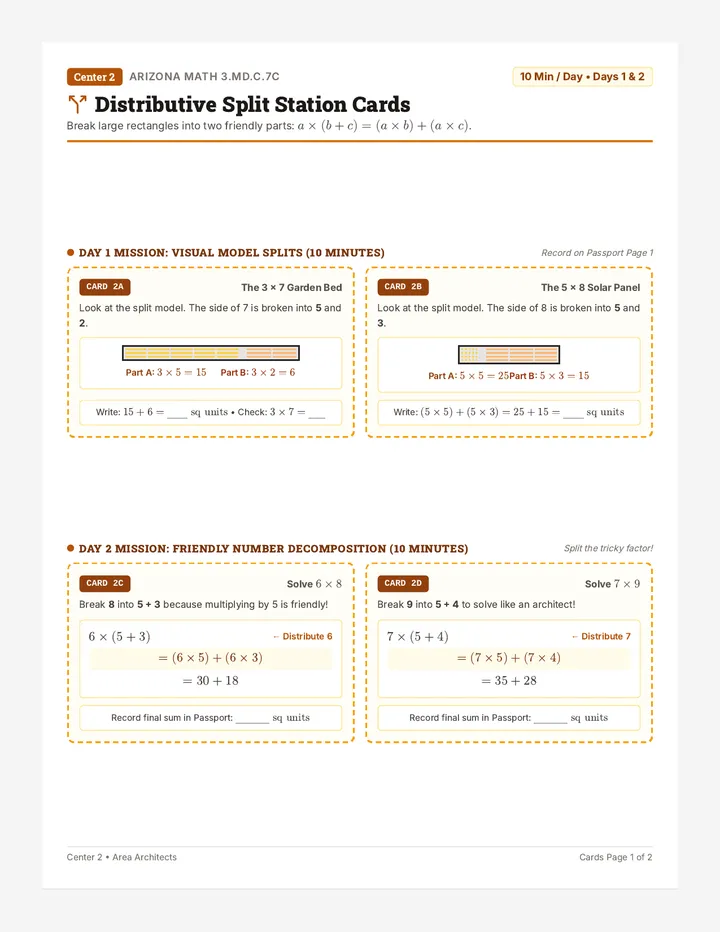

Distributive Split Station Cards Center 2 Arizona Math 3.MD.C.7c
10 Min / Day • Days 1 & 2
Distributive Split Station Cards
Break large rectangles into two friendly parts: \(a \times (b + c) = (a \times b) + (a \times c)\).
Day 1 Mission: Visual Model Splits (10 Minutes) Record on Passport Page 1
CARD 2A The 3 × 7 Garden Bed
Look at the split model. The side of 7 is broken into 5 and 2 .
Part A: \(3 \times 5 = 15\) Part B: \(3 \times 2 = 6\)
Write: \(15 + 6 = \underline{\hspace{0.6cm}}\text{ sq units}\) • Check: \(3 \times 7 = \underline{\hspace{0.5cm}}\)
CARD 2B The 5 × 8 Solar Panel
Look at the split model. The side of 8 is broken into 5 and 3 .
Part A: \(5 \times 5 = 25\) Part B: \(5 \times 3 = 15\)
Write: \((5 \times 5) + (5 \times 3) = 25 + 15 = \underline{\hspace{0.6cm}}\text{ sq units}\)
Day 2 Mission: Friendly Number Decomposition (10 Minutes) Split the tricky factor!
CARD 2C Solve \(6 \times 8\)
Break 8 into 5 + 3 because multiplying by 5 is friendly!
\(6 \times (5 + 3)\) ← Distribute 6
\(= (6 \times 5) + (6 \times 3)\)
\(= 30 + 18\)
Record final sum in Passport: \(\underline{\hspace{1cm}}\text{ sq units}\)
CARD 2D Solve \(7 \times 9\)
Break 9 into 5 + 4 to solve like an architect!
\(7 \times (5 + 4)\) ← Distribute 7
\(= (7 \times 5) + (7 \times 4)\)
\(= 35 + 28\)
Record final sum in Passport: \(\underline{\hspace{1cm}}\text{ sq units}\)
Center 2 • Area Architects Cards Page 1 of 2
Center 2 Master Mission Day 3 (10 Minutes)
Tucson Community Hall Blueprint Challenge
CARD 2E: LARGE RECTANGLE BREAKDOWN Hall Dimensions: \(4\text{ m} \times 12\text{ m}\)
An architect is drafting the flooring plan for a community gathering hall in Tucson. The room measures 4 meters wide and 12 meters long . Multiplying by 12 can be intimidating, so the architect uses the distributive property!
Main Hall \(4\text{ m} \times 10\text{ m} = 40\text{ sq m}\) 10 meters
Entry \(4\text{ m} \times 2\text{ m} = 8\text{ sq m}\) 2 meters
Total Length: \(10\text{ m} + 2\text{ m} = 12\text{ meters}\) • Width: \(4\text{ meters}\)
Architect Passport Analysis (Record in Passport):

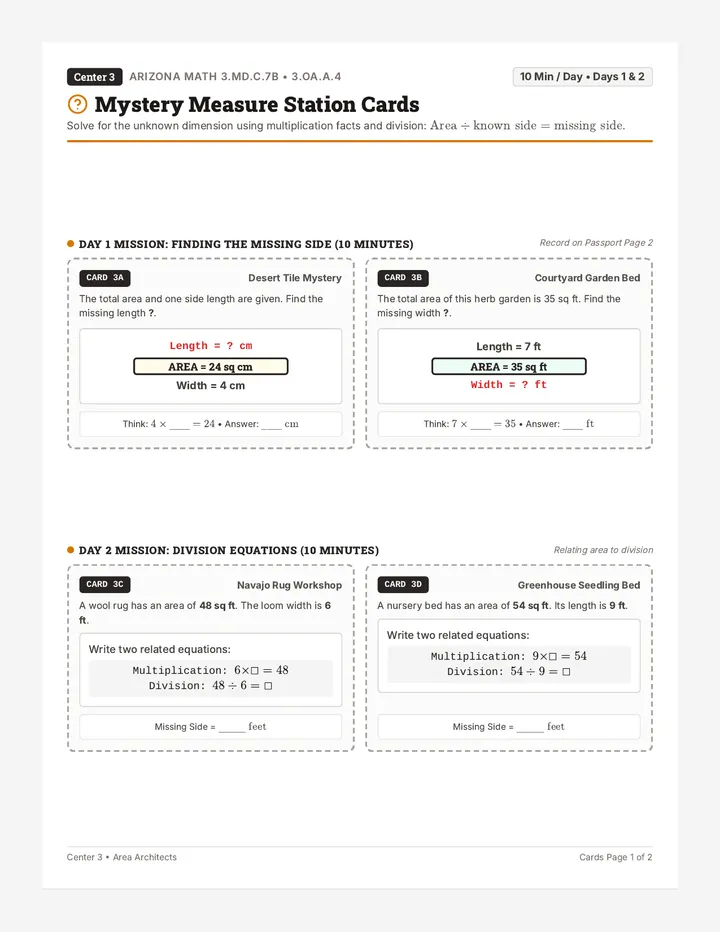

Mystery Measure Station Cards Center 3 Arizona Math 3.MD.C.7b • 3.OA.A.4
10 Min / Day • Days 1 & 2
Mystery Measure Station Cards
Solve for the unknown dimension using multiplication facts and division: \(\text{Area} \div \text{known side} = \text{missing side}\).
Day 1 Mission: Finding the Missing Side (10 Minutes) Record on Passport Page 2
CARD 3A Desert Tile Mystery
The total area and one side length are given. Find the missing length ? .
Length = ? cm
AREA = 24 sq cm
Width = 4 cm
Think: \(4 \times \underline{\hspace{0.6cm}} = 24\) • Answer: \(\underline{\hspace{0.6cm}}\text{ cm}\)
CARD 3B Courtyard Garden Bed
The total area of this herb garden is 35 sq ft. Find the missing width ? .
Length = 7 ft
AREA = 35 sq ft
Width = ? ft
Think: \(7 \times \underline{\hspace{0.6cm}} = 35\) • Answer: \(\underline{\hspace{0.6cm}}\text{ ft}\)
Day 2 Mission: Division Equations (10 Minutes) Relating area to division
CARD 3C Navajo Rug Workshop
A wool rug has an area of 48 sq ft . The loom width is 6 ft .
Write two related equations:
Multiplication: \(6 \times \Box = 48\)
Missing Side = \(\underline{\hspace{0.8cm}}\text{ feet}\)
CARD 3D Greenhouse Seedling Bed
A nursery bed has an area of 54 sq ft . Its length is 9 ft .
Write two related equations:
Multiplication: \(9 \times \Box = 54\)
Missing Side = \(\underline{\hspace{0.8cm}}\text{ feet}\)
Center 3 • Area Architects Cards Page 1 of 2
Center 3 Master Mission Day 3 (10 Minutes)
Desert Wildlife Habitat Blueprint
CARD 3E: HABITAT ARCHITECT CHALLENGE Sonoran Desert Museum Sanctuary
The desert sanctuary is designing a new habitat for rescued desert tortoises. The sanctuary director gives you this blueprint specification:
Existing Stone Wall: 8 meters
Tortoise Habitat Total Target Area: 40 sq meters
Width = ? m
Architect Passport Analysis (Record in Passport):
What is the unknown width of the tortoise habitat? Show your work with a division equation.
Phase 2 Expansion: The director decides to increase the habitat size to 56 square meters while keeping the
Composite Blueprint Station Cards Center 4 Arizona Math 3.MD.C.7d
10 Min / Day • Days 1 & 2
Composite Blueprint Station Cards
Decompose rectilinear figures into non-overlapping rectangles and add their areas together.
Day 1 Mission: Tiled L-Shapes & Cut Lines (10 Minutes) Record on Passport Page 2
CARD 4A L-Shaped Flagstone Patio
The dotted line slices this patio into Rectangle A and Rectangle B .
Part A: \(4 \times 2 = 8\) Part B: \(2 \times 4 = 8\)
Total Area: \(8 + 8 = \underline{\hspace{0.8cm}}\text{ sq units}\)
CARD 4B Desert Plaza Stepped Deck
Find the area of both sections and add them to find the grand area.
Part A: \(3 \times 3 = 9\) Part B: \(5 \times 3 = 15\)
Total Area: \(9 + 15 = \underline{\hspace{0.8cm}}\text{ sq units}\)
Day 2 Mission: Slicing Without Grid Lines (10 Minutes) Determine the side lengths of each rectangle
CARD 4C Courtyard Blueprint
Make a slice cut. Then calculate the area of both rectangles.
A
B
Total Left Height = 6 m • Top Width = 2 m • Total Bottom = 7 m
A: \(6 \times 2 = 12\) • B: \((7-2) \times 3 = 15\) • Total = 27 sq m
CARD 4D Shaded Ramada Deck
Slice horizontally or vertically. Both methods give the exact same area!
Top (4m × 3m)
Base (8m × 3m)
Top Area = 12 sq m • Base Area = 24 sq m
Total Deck Area: \(12 + 24 = \underline{\hspace{0.8cm}}\text{ sq m}\)
Center 4 • Area Architects Cards Page 1 of 2
Center 4 Master Mission Day 3 (10 Minutes)
Historic Adobe Pueblo Floor Plan Challenge
CARD 4E: MULTI-ROOM BLUEPRINT Decompose into 3 Rooms
An Arizona historical preservation architect is documenting the floor area of a traditional 3-room adobe house. The outer walls form a complex rectilinear shape:
Room 1: Living Hall
6 m × 5 m = 30 sq m
Length: 6m • Width: 5m
Room 2: Kitchen
4 m × 5 m = 20 sq m
Length: 4m • Width: 5m
Room 3: Pantry
3 m × 3 m = 9 sq m
3m × 3m
Architect Passport Analysis (Record in Passport):
Find the area of each individual room:
Living Hall: \(6\text{ m} \times 5\text{ m} = \text{sq m}\)
Kitchen: \(4\text{ m} \times 5\text{ m} = \text{sq m}\)
Pantry: \(3\text{ m} \times 3\text{ m} = \text{sq m}\)
Master Blueprint Answer Key Teacher Resource Stations 1 & 2 Solutions
Days 1, 2, and 3
Master Blueprint Answer Key
Complete solutions, equations, and scoring checkpoints for student passports.
Center 1: Tile & Multiply (AZ 3.MD.C.7a, b)
Multiplying Rows × Columns
Day 1: Tile Arrays
Card 1A:
Card 1B:
Day 2: Blueprints
Card 1C (Solar Canopy):
Card 1D (Sedona Patio):
Day 3: Saguaro Garden
Card 1E: Conclusion: Both garden plots have the exact same area (36 sq m)!
Center 2: Distributive Split (AZ 3.MD.C.7c)
Decomposing Factors Into Friendly Numbers
Day 1: Model Splits
Card 2A (\(3 \times 7\)):
Card 2B (\(5 \times 8\)):
Day 2: Friendly Numbers
Card 2C (\(6 \times 8\)):
Card 2D (\(7 \times 9\)):
Day 3: Tucson Hall
Card 2E (\(4\text{ m} \times 12\text{ m}\)): Bonus Check:
