Footprint Flip Activity Sheet Small Group Lab • Day 1
Footprint Flip Activity Sheet
TEKS 1.7C Intervention • Connecting Unit Size to Total Count
Name: ___________________________
Date: ___________________________
Investigation Question:
If we measure the exact same distance using a long tool and a short tool, which tool will give us a bigger number? Why?
Part 1: Dual Measurement Log
Object / Distance Unit A: Long Tool (Craft Stick) Unit B: Short Tool (Paperclip) Desk Length Count: _______ sticks Count: _______ paperclips Math Book Spine Count: _______ sticks Count: _______ paperclips Whiteboard Tray Count: _______ sticks Count: _______ paperclips
Part 2: Look at Your Numbers
1. Which unit gave a GREATER count every time?
The longer unit (Craft Stick) The shorter unit (Paperclip)
2. Why did that unit have a bigger count?
Write your reasoning in your own words:
Big Math Truth (Fill In The Blanks)
When the measuring unit is LARGER, it takes ____________________ (MORE / FEWER) units to cover the distance.
When the measuring unit is SMALLER, it takes ____________________ (MORE / FEWER) units to cover the same distance.
Part 3: Detective Check
Marcus measured a table and got 8 craft sticks . Devon measured the same table with pennies. Could Devon's count be 4 pennies ? Explain why or why not.
Unit Switch Lab • Lesson 1 Student Activity Target: TEKS 1.7C & Measurement Foundations

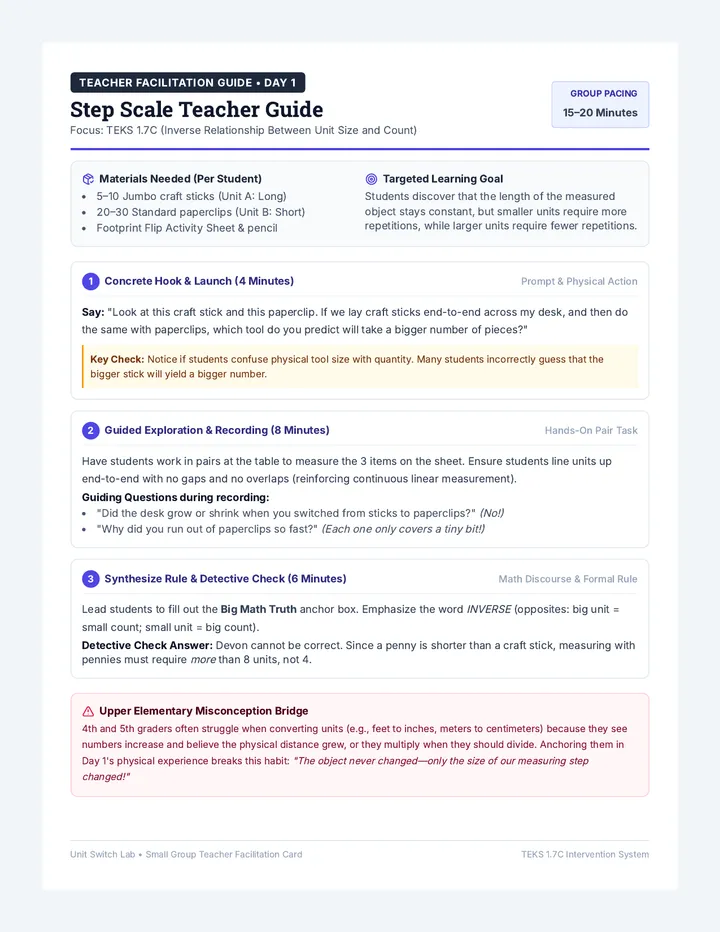

Step Scale Teacher Guide Teacher Facilitation Guide • Day 1
Step Scale Teacher Guide
Focus: TEKS 1.7C (Inverse Relationship Between Unit Size and Count)
Group Pacing 15–20 Minutes
Materials Needed (Per Student)
5–10 Jumbo craft sticks (Unit A: Long)
20–30 Standard paperclips (Unit B: Short)
Footprint Flip Activity Sheet & pencil
Targeted Learning Goal
Students discover that the length of the measured object stays constant, but smaller units require more repetitions, while larger units require fewer repetitions.
1 Concrete Hook & Launch (4 Minutes) Prompt & Physical Action
Say: "Look at this craft stick and this paperclip. If we lay craft sticks end-to-end across my desk, and then do the same with paperclips, which tool do you predict will take a bigger number of pieces?"
Key Check: Notice if students confuse physical tool size with quantity. Many students incorrectly guess that the bigger stick will yield a bigger number.
2 Guided Exploration & Recording (8 Minutes) Hands-On Pair Task
Have students work in pairs at the table to measure the 3 items on the sheet. Ensure students line units up end-to-end with no gaps and no overlaps (reinforcing continuous linear measurement).
Guiding Questions during recording:
"Did the desk grow or shrink when you switched from sticks to paperclips?" (No!)
"Why did you run out of paperclips so fast?" (Each one only covers a tiny bit!)
3 Synthesize Rule & Detective Check (6 Minutes) Math Discourse & Formal Rule
Lead students to fill out the Big Math Truth anchor box. Emphasize the word INVERSE (opposites: big unit = small count; small unit = big count).
Detective Check Answer: Devon cannot be correct. Since a penny is shorter than a craft stick, measuring with pennies must require more than 8 units, not 4.
Upper Elementary Misconception Bridge
4th and 5th graders often struggle when converting units (e.g., feet to inches, meters to centimeters) because they see numbers increase and believe the physical distance grew, or they multiply when they should divide. Anchoring them in Day 1's physical experience breaks this habit: "The object never changed—only the size of our measuring step changed!"
Unit Switch Lab • Small Group Teacher Facilitation Card TEKS 1.7C Intervention System

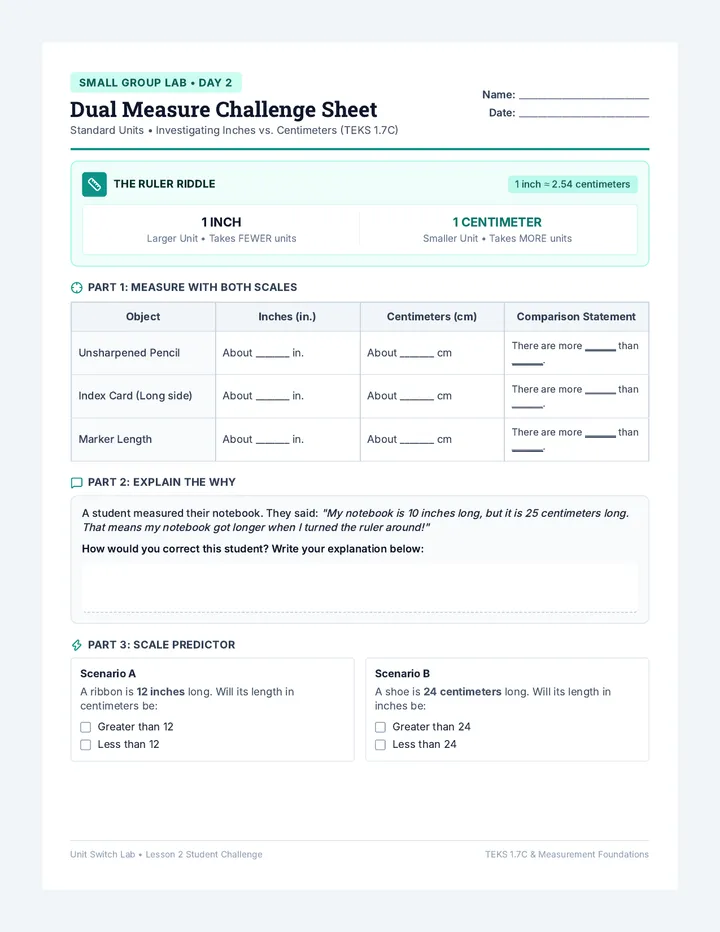

Dual Measure Challenge Sheet Small Group Lab • Day 2
Dual Measure Challenge Sheet
Standard Units • Investigating Inches vs. Centimeters (TEKS 1.7C)
Name: ___________________________
Date: ___________________________
The Ruler Riddle
1 inch ≈ 2.54 centimeters
1 INCH Larger Unit • Takes FEWER units
1 CENTIMETER Smaller Unit • Takes MORE units
Part 1: Measure With Both Scales
Object Inches (in.) Centimeters (cm) Comparison Statement Unsharpened Pencil About _______ in. About _______ cm There are more _______ than _______. Index Card (Long side) About _______ in. About _______ cm There are more _______ than _______. Marker Length About _______ in. About _______ cm There are more _______ than _______.
Part 2: Explain the Why
A student measured their notebook. They said: "My notebook is 10 inches long, but it is 25 centimeters long. That means my notebook got longer when I turned the ruler around!"
How would you correct this student? Write your explanation below:
Part 3: Scale Predictor
Scenario A
A ribbon is 12 inches long. Will its length in centimeters be:
Greater than 12 Less than 12
Scenario B
A shoe is 24 centimeters long. Will its length in inches be:
Greater than 24 Less than 24
Unit Switch Lab • Lesson 2 Student Challenge TEKS 1.7C & Measurement Foundations

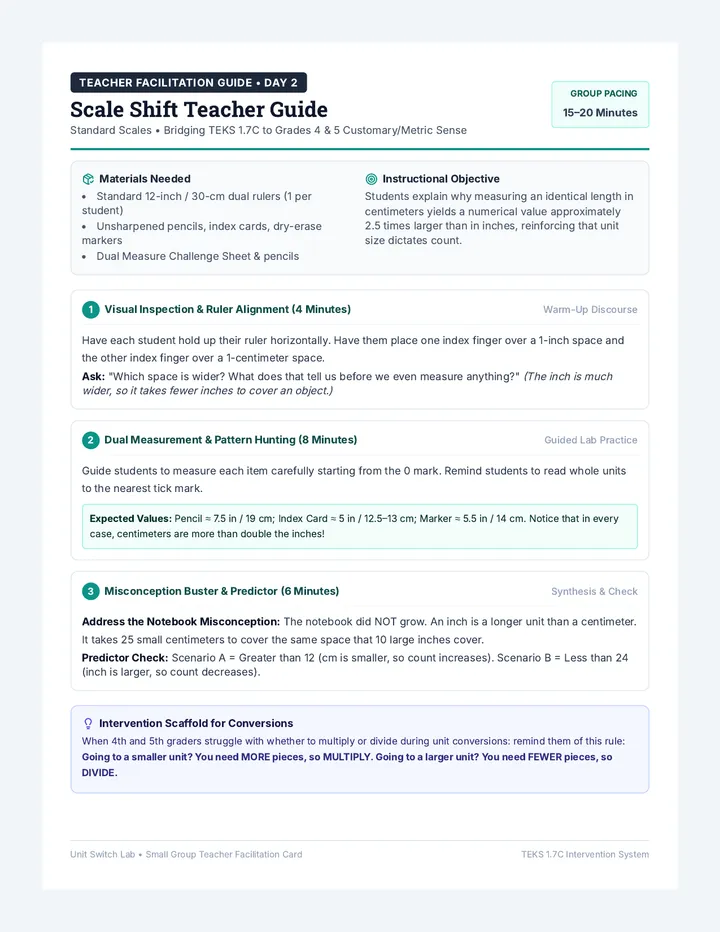

Scale Shift Teacher Guide Teacher Facilitation Guide • Day 2
Scale Shift Teacher Guide
Standard Scales • Bridging TEKS 1.7C to Grades 4 & 5 Customary/Metric Sense
Group Pacing 15–20 Minutes
Materials Needed
Standard 12-inch / 30-cm dual rulers (1 per student)
Unsharpened pencils, index cards, dry-erase markers
Dual Measure Challenge Sheet & pencils
Instructional Objective
Students explain why measuring an identical length in centimeters yields a numerical value approximately 2.5 times larger than in inches, reinforcing that unit size dictates count.
1 Visual Inspection & Ruler Alignment (4 Minutes) Warm-Up Discourse
Have each student hold up their ruler horizontally. Have them place one index finger over a 1-inch space and the other index finger over a 1-centimeter space.
Ask: "Which space is wider? What does that tell us before we even measure anything?" (The inch is much wider, so it takes fewer inches to cover an object.)
2 Dual Measurement & Pattern Hunting (8 Minutes) Guided Lab Practice
Guide students to measure each item carefully starting from the 0 mark. Remind students to read whole units to the nearest tick mark.
Expected Values: Pencil ≈ 7.5 in / 19 cm; Index Card ≈ 5 in / 12.5–13 cm; Marker ≈ 5.5 in / 14 cm. Notice that in every case, centimeters are more than double the inches!
3 Misconception Buster & Predictor (6 Minutes) Synthesis & Check
Address the Notebook Misconception: The notebook did NOT grow. An inch is a longer unit than a centimeter. It takes 25 small centimeters to cover the same space that 10 large inches cover.
Predictor Check: Scenario A = Greater than 12 (cm is smaller, so count increases). Scenario B = Less than 24 (inch is larger, so count decreases).
Intervention Scaffold for Conversions
When 4th and 5th graders struggle with whether to multiply or divide during unit conversions: remind them of this rule: Going to a smaller unit? You need MORE pieces, so MULTIPLY. Going to a larger unit? You need FEWER pieces, so DIVIDE.
Unit Switch Lab • Small Group Teacher Facilitation Card TEKS 1.7C Intervention System

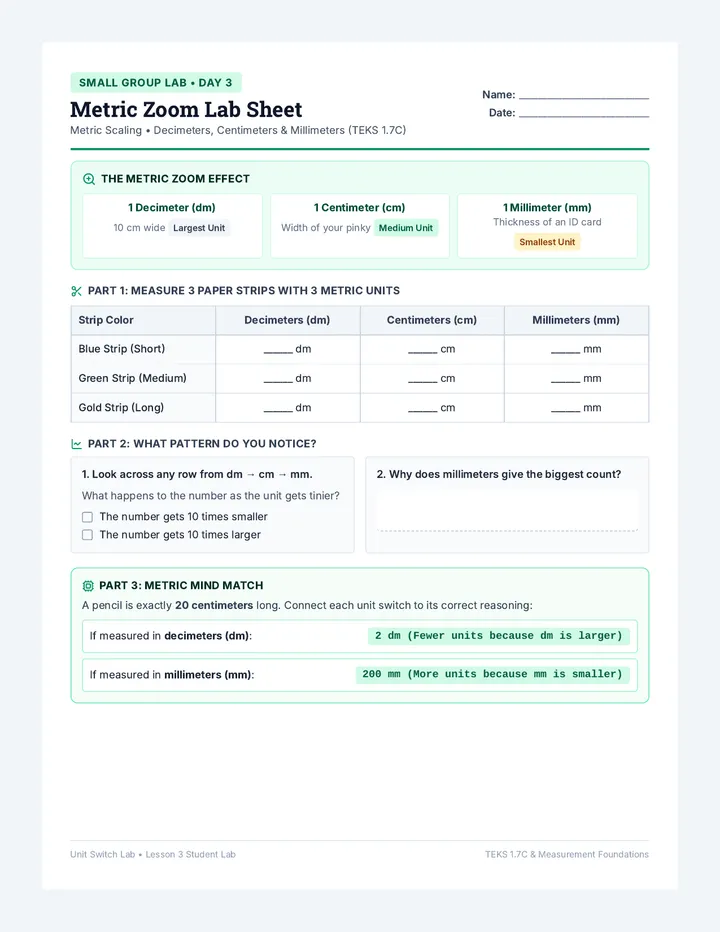

Metric Zoom Lab Sheet Small Group Lab • Day 3
Metric Zoom Lab Sheet
Metric Scaling • Decimeters, Centimeters & Millimeters (TEKS 1.7C)
Name: ___________________________
Date: ___________________________
The Metric Zoom Effect
1 Decimeter (dm) 10 cm wide Largest Unit
1 Centimeter (cm) Width of your pinky Medium Unit
1 Millimeter (mm) Thickness of an ID card Smallest Unit
Part 1: Measure 3 Paper Strips with 3 Metric Units
Strip Color Decimeters (dm) Centimeters (cm) Millimeters (mm) Blue Strip (Short) ______ dm ______ cm ______ mm Green Strip (Medium) ______ dm ______ cm ______ mm Gold Strip (Long) ______ dm ______ cm ______ mm
Part 2: What Pattern Do You Notice?
1. Look across any row from dm → cm → mm.
What happens to the number as the unit gets tinier?
The number gets 10 times smaller The number gets 10 times larger
2. Why does millimeters give the biggest count?
Part 3: Metric Mind Match
A pencil is exactly 20 centimeters long. Connect each unit switch to its correct reasoning:
If measured in decimeters (dm) : 2 dm (Fewer units because dm is larger)
If measured in millimeters (mm) : 200 mm (More units because mm is smaller)
Unit Switch Lab • Lesson 3 Student Lab TEKS 1.7C & Measurement Foundations

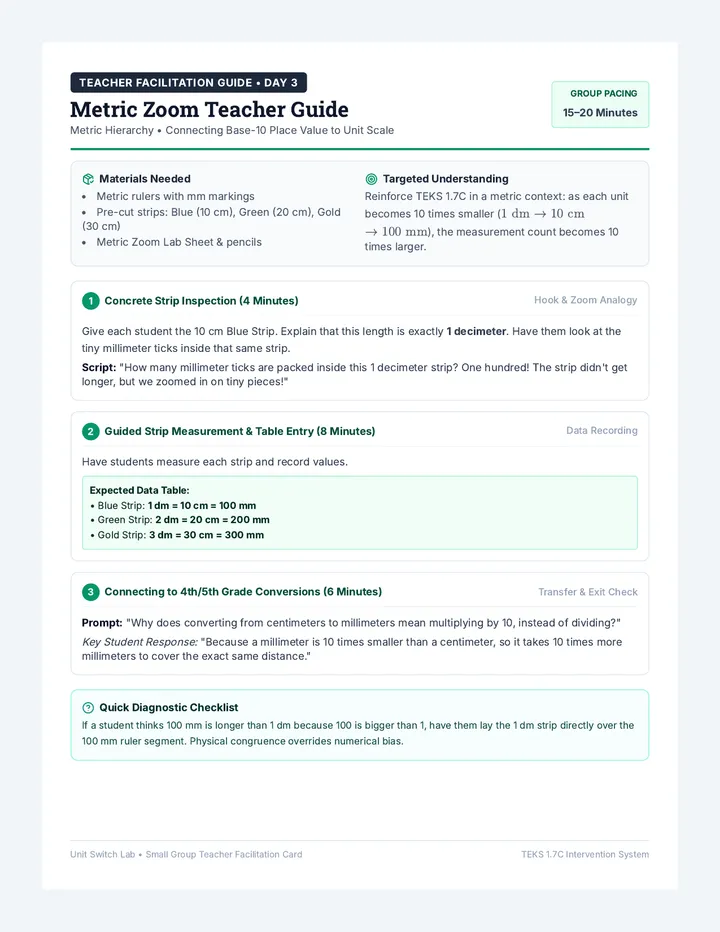

Metric Zoom Teacher Guide Teacher Facilitation Guide • Day 3
Metric Zoom Teacher Guide
Metric Hierarchy • Connecting Base-10 Place Value to Unit Scale
Group Pacing 15–20 Minutes
Materials Needed
Metric rulers with mm markings
Pre-cut strips: Blue (10 cm), Green (20 cm), Gold (30 cm)
Metric Zoom Lab Sheet & pencils
Targeted Understanding
Reinforce TEKS 1.7C in a metric context: as each unit becomes 10 times smaller (\(1\text{ dm} \to 10\text{ cm} \to 100\text{ mm}\)), the measurement count becomes 10 times larger.
1 Concrete Strip Inspection (4 Minutes) Hook & Zoom Analogy
Give each student the 10 cm Blue Strip. Explain that this length is exactly 1 decimeter . Have them look at the tiny millimeter ticks inside that same strip.
Script: "How many millimeter ticks are packed inside this 1 decimeter strip? One hundred! The strip didn't get longer, but we zoomed in on tiny pieces!"
2 Guided Strip Measurement & Table Entry (8 Minutes) Data Recording
Have students measure each strip and record values.
Expected Data Table: 1 dm = 10 cm = 100 mm 2 dm = 20 cm = 200 mm 3 dm = 30 cm = 300 mm
3 Connecting to 4th/5th Grade Conversions (6 Minutes) Transfer & Exit Check
Prompt: "Why does converting from centimeters to millimeters mean multiplying by 10, instead of dividing?"
Key Student Response: "Because a millimeter is 10 times smaller than a centimeter, so it takes 10 times more millimeters to cover the exact same distance."
Quick Diagnostic Checklist
If a student thinks 100 mm is longer than 1 dm because 100 is bigger than 1, have them lay the 1 dm strip directly over the 100 mm ruler segment. Physical congruence overrides numerical bias.
Unit Switch Lab • Small Group Teacher Facilitation Card TEKS 1.7C Intervention System

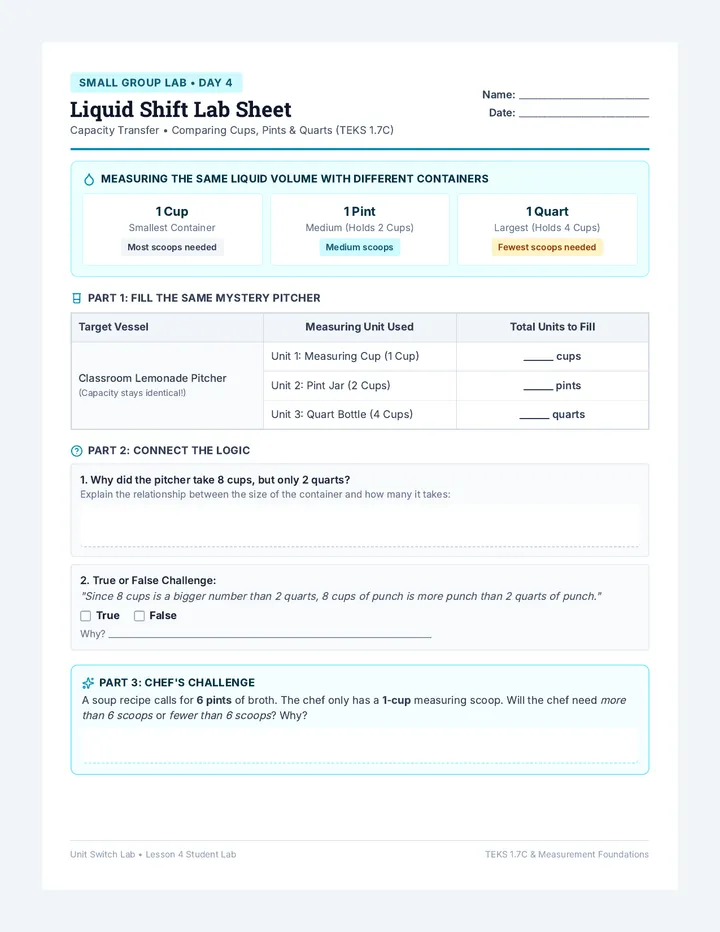

Liquid Shift Lab Sheet Small Group Lab • Day 4
Liquid Shift Lab Sheet
Capacity Transfer • Comparing Cups, Pints & Quarts (TEKS 1.7C)
Name: ___________________________
Date: ___________________________
Measuring the Same Liquid Volume with Different Containers
1 Cup Smallest Container Most scoops needed
1 Pint Medium (Holds 2 Cups) Medium scoops
1 Quart Largest (Holds 4 Cups) Fewest scoops needed
Part 1: Fill the Same Mystery Pitcher
Target Vessel Measuring Unit Used Total Units to Fill Classroom Lemonade Pitcher (Capacity stays identical!) Unit 1: Measuring Cup (1 Cup) ______ cups Unit 2: Pint Jar (2 Cups) ______ pints Unit 3: Quart Bottle (4 Cups) ______ quarts
Part 2: Connect the Logic
1. Why did the pitcher take 8 cups, but only 2 quarts?
Explain the relationship between the size of the container and how many it takes:
2. True or False Challenge:
"Since 8 cups is a bigger number than 2 quarts, 8 cups of punch is more punch than 2 quarts of punch."
True False
Why? _________________________________________________________________________
Part 3: Chef's Challenge
A soup recipe calls for 6 pints of broth. The chef only has a 1-cup measuring scoop. Will the chef need more than 6 scoops or fewer than 6 scoops ? Why?
Unit Switch Lab • Lesson 4 Student Lab TEKS 1.7C & Measurement Foundations

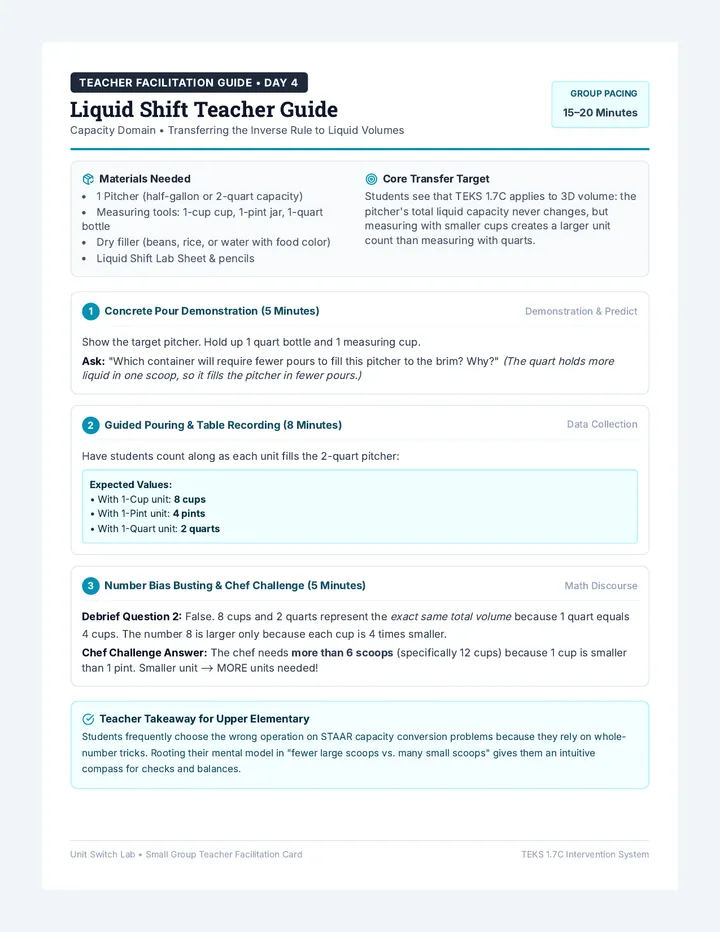

Liquid Shift Teacher Guide Teacher Facilitation Guide • Day 4
Liquid Shift Teacher Guide
Capacity Domain • Transferring the Inverse Rule to Liquid Volumes
Group Pacing 15–20 Minutes
Materials Needed
1 Pitcher (half-gallon or 2-quart capacity)
Measuring tools: 1-cup cup, 1-pint jar, 1-quart bottle
Dry filler (beans, rice, or water with food color)
Liquid Shift Lab Sheet & pencils
Core Transfer Target
Students see that TEKS 1.7C applies to 3D volume: the pitcher's total liquid capacity never changes, but measuring with smaller cups creates a larger unit count than measuring with quarts.
1 Concrete Pour Demonstration (5 Minutes) Demonstration & Predict
Show the target pitcher. Hold up 1 quart bottle and 1 measuring cup.
Ask: "Which container will require fewer pours to fill this pitcher to the brim? Why?" (The quart holds more liquid in one scoop, so it fills the pitcher in fewer pours.)
2 Guided Pouring & Table Recording (8 Minutes) Data Collection
Have students count along as each unit fills the 2-quart pitcher:
Expected Values: 8 cups 4 pints 2 quarts
3 Number Bias Busting & Chef Challenge (5 Minutes) Math Discourse
Debrief Question 2: False. 8 cups and 2 quarts represent the exact same total volume because 1 quart equals 4 cups. The number 8 is larger only because each cup is 4 times smaller.
Chef Challenge Answer: The chef needs more than 6 scoops (specifically 12 cups) because 1 cup is smaller than 1 pint. Smaller unit \(\to\) MORE units needed!
Teacher Takeaway for Upper Elementary
Students frequently choose the wrong operation on STAAR capacity conversion problems because they rely on whole-number tricks. Rooting their mental model in "fewer large scoops vs. many small scoops" gives them an intuitive compass for checks and balances.
Unit Switch Lab • Small Group Teacher Facilitation Card TEKS 1.7C Intervention System

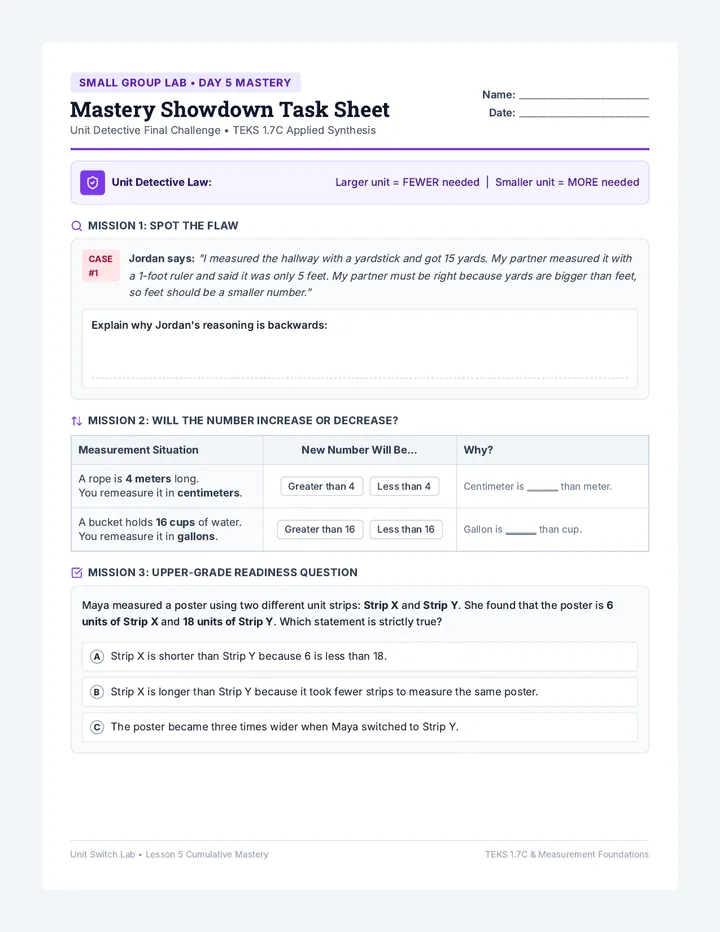

Mastery Showdown Task Sheet Small Group Lab • Day 5 Mastery
Mastery Showdown Task Sheet
Unit Detective Final Challenge • TEKS 1.7C Applied Synthesis
Name: ___________________________
Date: ___________________________
Unit Detective Law:
Larger unit = FEWER needed | Smaller unit = MORE needed
Mission 1: Spot the Flaw
CASE #1
Jordan says: "I measured the hallway with a yardstick and got 15 yards. My partner measured it with a 1-foot ruler and said it was only 5 feet. My partner must be right because yards are bigger than feet, so feet should be a smaller number."
Explain why Jordan's reasoning is backwards:
Mission 2: Will the Number Increase or Decrease?
Measurement Situation New Number Will Be... Why? A rope is 4 meters long. You remeasure it in centimeters . Greater than 4 Less than 4 Centimeter is _______ than meter. A bucket holds 16 cups of water. You remeasure it in gallons . Greater than 16 Less than 16 Gallon is _______ than cup.
Mission 3: Upper-Grade Readiness Question
Maya measured a poster using two different unit strips: Strip X and Strip Y . She found that the poster is 6 units of Strip X and 18 units of Strip Y . Which statement is strictly true?
A Strip X is shorter than Strip Y because 6 is less than 18.
B Strip X is longer than Strip Y because it took fewer strips to measure the same poster.
C The poster became three times wider when Maya switched to Strip Y.
Unit Switch Lab • Lesson 5 Cumulative Mastery TEKS 1.7C & Measurement Foundations

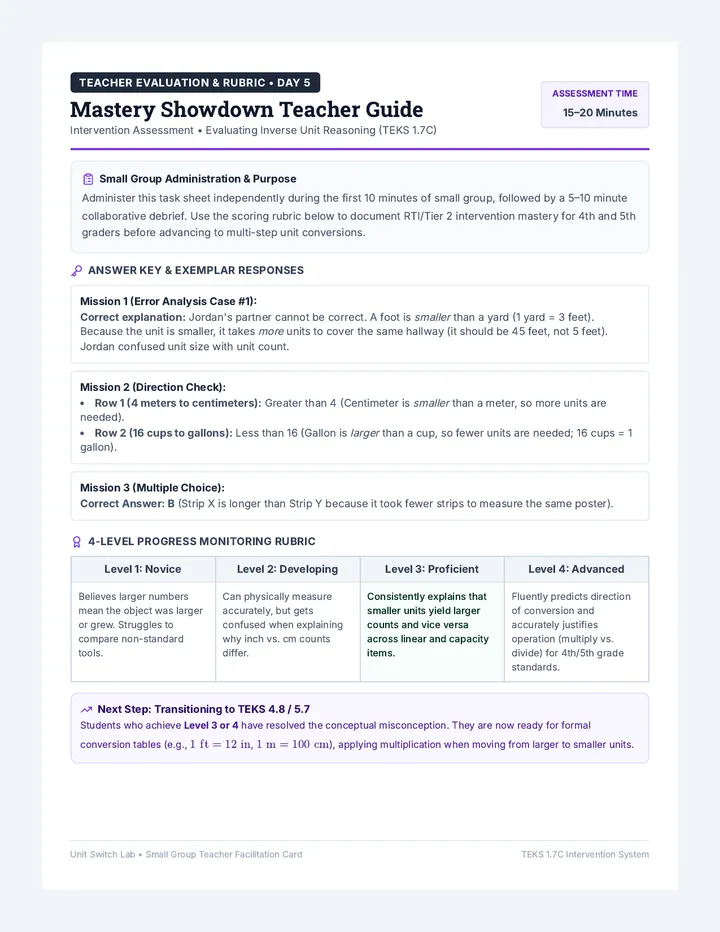

Mastery Showdown Teacher Guide Teacher Evaluation & Rubric • Day 5
Mastery Showdown Teacher Guide
Intervention Assessment • Evaluating Inverse Unit Reasoning (TEKS 1.7C)
Assessment Time 15–20 Minutes
Small Group Administration & Purpose
Administer this task sheet independently during the first 10 minutes of small group, followed by a 5–10 minute collaborative debrief. Use the scoring rubric below to document RTI/Tier 2 intervention mastery for 4th and 5th graders before advancing to multi-step unit conversions.
Answer Key & Exemplar Responses
Mission 1 (Error Analysis Case #1):
Correct explanation: Jordan's partner cannot be correct. A foot is smaller than a yard (1 yard = 3 feet). Because the unit is smaller, it takes more units to cover the same hallway (it should be 45 feet, not 5 feet). Jordan confused unit size with unit count.
Mission 2 (Direction Check):
Row 1 (4 meters to centimeters): Greater than 4 (Centimeter is smaller than a meter, so more units are needed).Row 2 (16 cups to gallons): Less than 16 (Gallon is larger than a cup, so fewer units are needed; 16 cups = 1 gallon).
Mission 3 (Multiple Choice):
Correct Answer: B (Strip X is longer than Strip Y because it took fewer strips to measure the same poster).
4-Level Progress Monitoring Rubric
Level 1: Novice Level 2: Developing Level 3: Proficient Level 4: Advanced Believes larger numbers mean the object was larger or grew. Struggles to compare non-standard tools. Can physically measure accurately, but gets confused when explaining why inch vs. cm counts differ. Consistently explains that smaller units yield larger counts and vice versa across linear and capacity items. Fluently predicts direction of conversion and accurately justifies operation (multiply vs. divide) for 4th/5th grade standards.
Next Step: Transitioning to TEKS 4.8 / 5.7
Students who achieve Level 3 or 4 have resolved the conceptual misconception. They are now ready for formal conversion tables (e.g., \(1\text{ ft} = 12\text{ in}\), \(1\text{ m} = 100\text{ cm}\)), applying multiplication when moving from larger to smaller units.
Unit Switch Lab • Small Group Teacher Facilitation Card TEKS 1.7C Intervention System
