Pythagorean Roots Slides Pythagorean Roots
Deriving the Fundamental Identity
"Geometry is the foundation of all things."
The Blueprint Hook
"If you pick any point on a circle with a radius of 1, does the square of the x-coordinate plus the square of the y-coordinate always equal the same number?"
Try it with (1, 0)
\( 1^2 + 0^2 = ? \)
Try it with (0, 1)
\( 0^2 + 1^2 = ? \)
Anatomy of the Unit Circle
(x, y) x y r = 1 θ
Defining Coordinates
For any point on the unit circle:
\( x = \cos\theta \)
\( y = \sin\theta \)
Pythagorean Theorem
\( a^2 + b^2 = c^2 \)
The Master Equation
\( x^2 + y^2 = r^2 \)
Substitute coordinates and radius
\( (\cos\theta)^2 + (\sin\theta)^2 = 1^2 \)
Standard Notation:
\( \sin^2\theta + \cos^2\theta = 1 \)
Why use it?
Missing Info
If you know sine , you can find cosine (and vice-versa) for any angle without measuring.
Simplification
Whenever you see \( \sin^2\theta + \cos^2\theta \) in a complex equation, you can replace it with a simple 1 .
Blueprint Check
True or False:
1. The Pythagorean identity only works for 45-degree angles.
2. \( \sin^2(10^\circ) + \cos^2(10^\circ) = 1 \)
3. \( \sin^2\theta = 1 - \cos^2\theta \)
Pythagorean Proofs Worksheet Pythagorean Proofs
Trigonometric Identities | Lesson 1
Name:
Date:
Part 1: The Blueprint Map
(x, y) x y r = 1
Figure 1: Unit Circle Sketch
Recall the coordinate definitions for a point on the unit circle. Use the diagram to answer:
1. Express the coordinates \( x \) and \( y \) using trigonometric functions:
\( x = \) \( y = \)
2. Using the Pythagorean Theorem (\( a^2 + b^2 = c^2 \)), write an equation for the triangle in Figure 1:
Part 2: The Master Identity
Substitute your answers from Part 1 into the Pythagorean Theorem to derive the Fundamental Identity:
\( ^2 \theta + \) \( ^2 \theta = 1 \)
Variation A: Isolate \(\sin^2\theta\)
Rearrange the equation to solve for \(\sin^2\theta\)
Variation B: Isolate \(\cos^2\theta\)
Rearrange the equation to solve for \(\cos^2\theta\)
Part 3: Field Applications
Problem 1: Given \(\cos\theta = \frac{3}{5}\) and the angle is in Quadrant I, find the value of \(\sin\theta\).
Step 1: Substitute into Identity
Step 2: Solve for \(\sin\theta\)
Problem 2: Simplify the following expression to a single number or term:
\( 5\sin^2\theta + 5\cos^2\theta \)
Your Work:
Problem 3: Use your calculator to verify the identity for \(\theta = 37^\circ\).
\( \sin^2(37^\circ) \approx \)
\( \cos^2(37^\circ) \approx \)
Sum:
Identity Insights Teacher Guide 1 Identity Insights
Teacher Facilitation Guide | Lesson 1
Lesson Objective
Students will derive the identity \( \sin^2\theta + \cos^2\theta = 1 \) using the geometry of the unit circle and the Pythagorean Theorem. They will move from memorization to conceptual understanding by linking algebraic variables to geometric lengths.
Key Vocabulary
- Unit Circle
- Identity
- Pythagorean Theorem
- Substitution
Facilitation Sequence
1
The Hook (5-10 mins)
Present the opening question: "Does the square of the x-coord plus the square of the y-coord always equal the same number?" Have students test (1,0) and (0,1). Challenge them to find another point on the circle to test.
2
The Visual Connection (10-15 mins)
Walk through the anatomy of the unit circle. Emphasize that in a circle of radius 1, the hypotenuse is always 1. Remind students that \( \cos\theta \) is horizontal (adj) and \( \sin\theta \) is vertical (opp).
3
Guided Derivation (15 mins)
Guide students through Part 2 of the worksheet. Ensure they understand that the squaring notation \( \sin^2\theta \) is just shorthand for \( (\sin\theta)^2 \).
Misconception Watch
Confusion on Notation: Students may write \( \sin\theta^2 \) meaning \( (\sin\theta)^2 \). Clarify that \( \sin\theta^2 \) implies the angle is squared, whereas \( \sin^2\theta \) implies the function value is squared.
The "Radius" Myth: Students might forget the identity assumes a radius of 1. If the radius is 5, the equation becomes \( x^2 + y^2 = 25 \), which simplifies back to 1 if divided by \( r^2 \).
Answer Key: Pythagorean Proofs
Part 1
1. \( x = \cos\theta, y = \sin\theta \)
2. \( x^2 + y^2 = 1^2 \) (or 1)
Part 2
Master: \( \cos^2\theta + \sin^2\theta = 1 \)
A: \( \sin^2\theta = 1 - \cos^2\theta \)
B: \( \cos^2\theta = 1 - \sin^2\theta \)
Part 3: Applications
Problem 1: Given \( \cos\theta = \frac{3}{5} \)
\( \sin^2\theta + (\frac{3}{5})^2 = 1 \)
\( \sin^2\theta + \frac{9}{25} = 1 \rightarrow \sin^2\theta = \frac{16}{25} \)
\( \sin\theta = \frac{4}{5} \)
Problem 2: Simplify \( 5\sin^2\theta + 5\cos^2\theta \)
Factor out 5: \( 5(\sin^2\theta + \cos^2\theta) \)
Substitute identity: \( 5(1) \)
Result: 5
Ratio Roadmaps Slides Ratio Roadmaps
Reciprocal & Quotient Identities
"Mapping the connections between the big six."
The Slope Hook
"How can we express the steepness of a slope (tangent) using only vertical and horizontal components?"
Vertical
sine
Horizontal
cosine
The Reciprocal Trio
Cosecant
\( \csc\theta \)
\( \frac{1}{\sin\theta} \)
Secant
\( \sec\theta \)
\( \frac{1}{\cos\theta} \)
Cotangent
\( \cot\theta \)
\( \frac{1}{\tan\theta} \)
Mnemonic: "S doesn't go with S. C goes with S." (csc goes with sin, sec goes with cos)
Quotient Identities
Tangent
\( \tan\theta = \frac{\sin\theta}{\cos\theta} \)
Cotangent
\( \cot\theta = \frac{\cos\theta}{\sin\theta} \)
Strategy: Sin-Cos Road
When simplifying complex trig expressions, the best roadmap is often to rewrite everything in terms of Sine and Cosine .
Example: Simplify \( \tan\theta \cdot \cos\theta \)
\( \frac{\sin\theta}{\cos\theta} \cdot \cos\theta \)
\( \sin\theta \)
Check Your Map
1. Rewrite in terms of sin/cos:
\( \csc\theta \cdot \tan\theta \)
2. Simplify:
\( \sec\theta \cdot \cos\theta \)

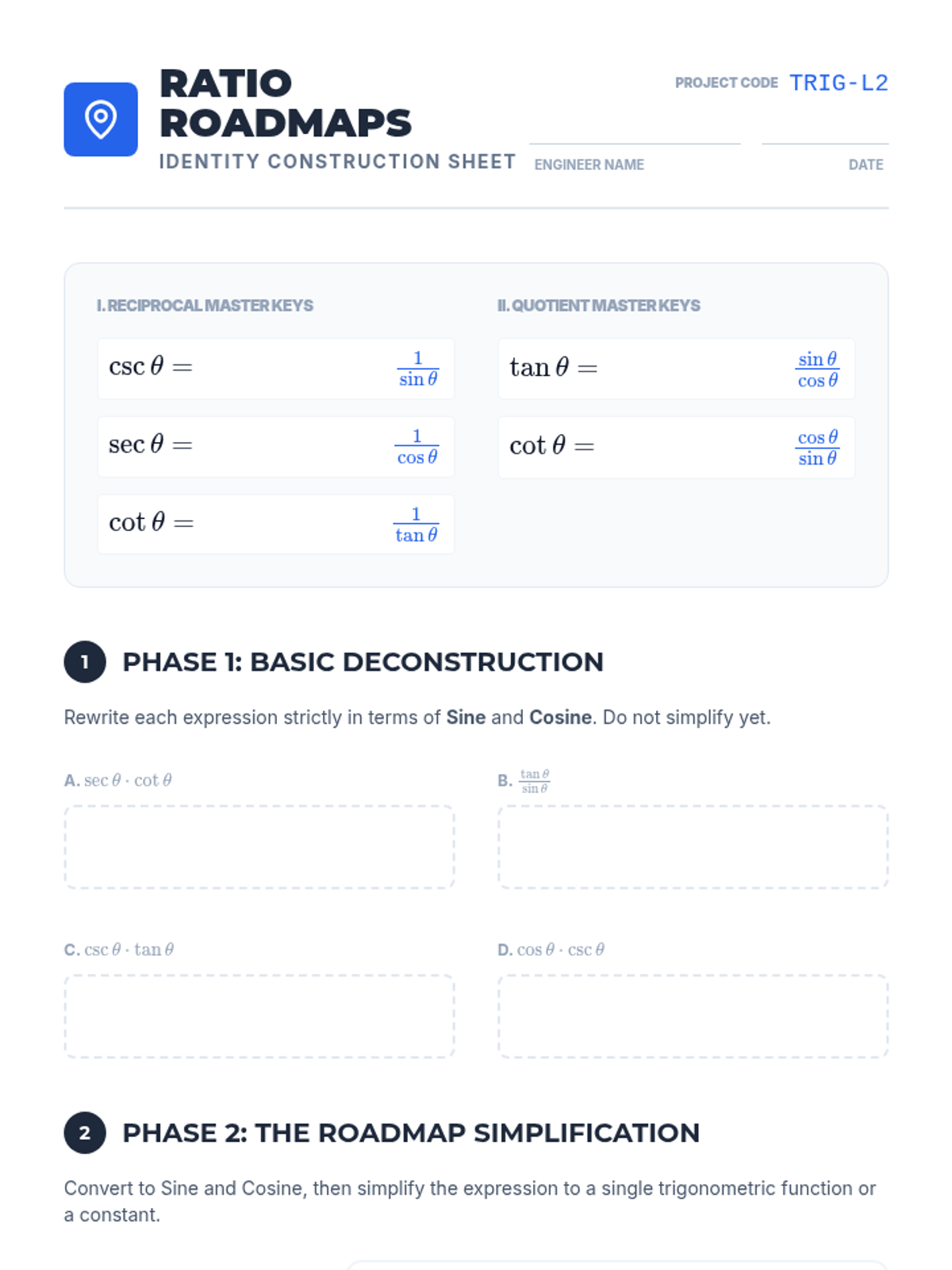

Ratio Roadmaps Activity Sheet Ratio Roadmaps
Identity Construction Sheet
Project Code TRIG-L2
ENGINEER NAME DATE
I. Reciprocal Master Keys
\( \csc\theta = \) \( \frac{1}{\sin\theta} \)
\( \sec\theta = \) \( \frac{1}{\cos\theta} \)
\( \cot\theta = \) \( \frac{1}{\tan\theta} \)
II. Quotient Master Keys
\( \tan\theta = \) \( \frac{\sin\theta}{\cos\theta} \)
\( \cot\theta = \) \( \frac{\cos\theta}{\sin\theta} \)
1 Phase 1: Basic Deconstruction
Rewrite each expression strictly in terms of Sine and Cosine . Do not simplify yet.
A. \( \sec\theta \cdot \cot\theta \)
B. \( \frac{\tan\theta}{\sin\theta} \)
C. \( \csc\theta \cdot \tan\theta \)
D. \( \cos\theta \cdot \csc\theta \)
2 Phase 2: The Roadmap Simplification
Convert to Sine and Cosine, then simplify the expression to a single trigonometric function or a constant.
\( \tan\theta \cdot \cos\theta \)
Calculations Area
\( \frac{\sin\theta}{\csc\theta} \)
Calculations Area
\( \sec\theta \cdot \cot\theta \cdot \sin\theta \)
Calculations Area
The Engineer's Insight
If \( \sin\theta = 0.6 \) and \( \cos\theta = 0.8 \), calculate the values for the other four functions using the roadmaps above.
TAN
CSC
SEC
COT

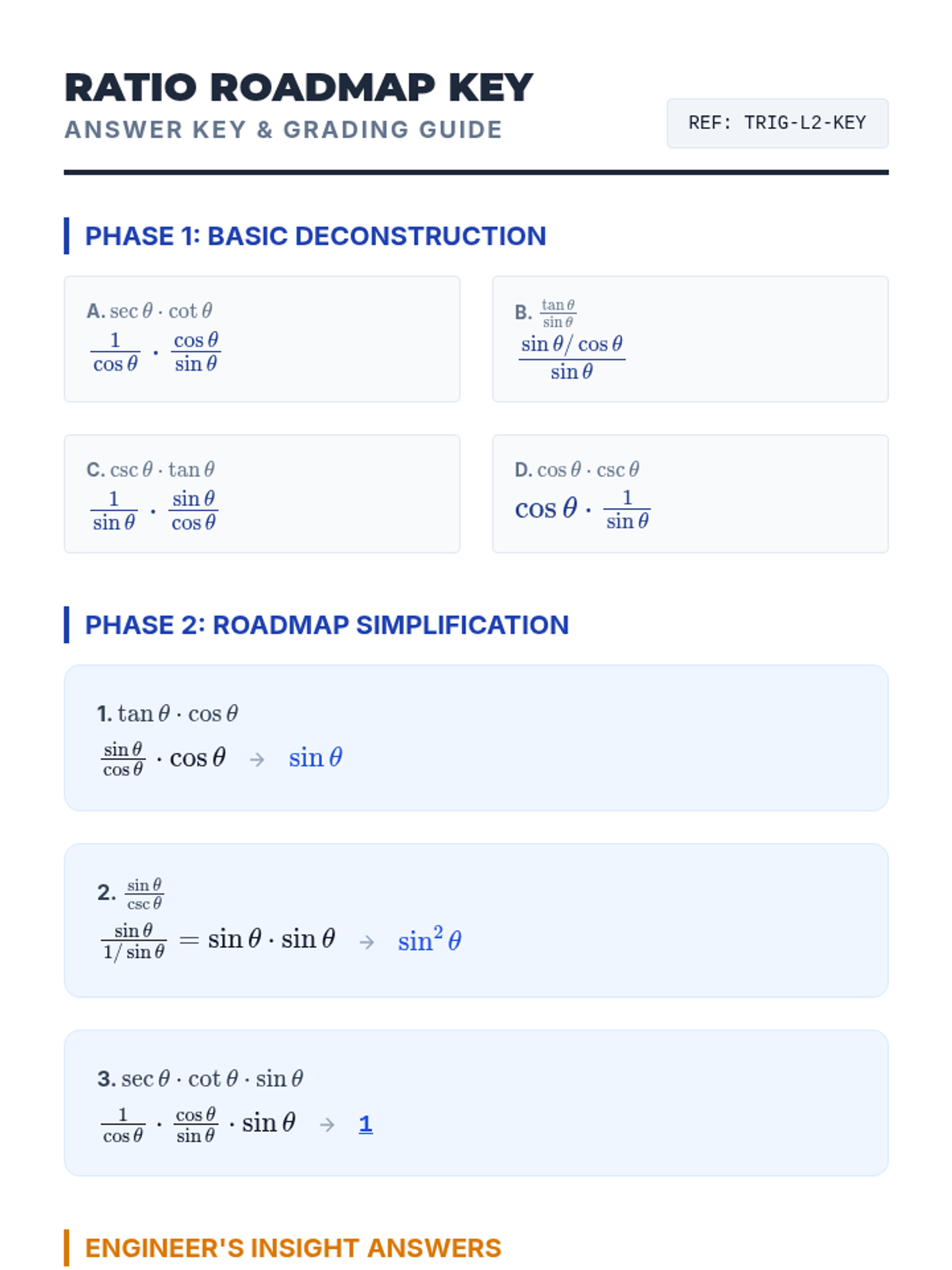

Ratio Roadmaps Answer Key Ratio Roadmap Key
Answer Key & Grading Guide
REF: TRIG-L2-KEY
Phase 1: Basic Deconstruction
A. \( \sec\theta \cdot \cot\theta \)
\( \frac{1}{\cos\theta} \cdot \frac{\cos\theta}{\sin\theta} \)
B. \( \frac{\tan\theta}{\sin\theta} \)
\( \frac{\sin\theta / \cos\theta}{\sin\theta} \)
C. \( \csc\theta \cdot \tan\theta \)
\( \frac{1}{\sin\theta} \cdot \frac{\sin\theta}{\cos\theta} \)
D. \( \cos\theta \cdot \csc\theta \)
\( \cos\theta \cdot \frac{1}{\sin\theta} \)
Phase 2: Roadmap Simplification
1. \( \tan\theta \cdot \cos\theta \)
\( \frac{\sin\theta}{\cos\theta} \cdot \cos\theta \) \( \sin\theta \)
2. \( \frac{\sin\theta}{\csc\theta} \)
\( \frac{\sin\theta}{1/\sin\theta} = \sin\theta \cdot \sin\theta \) \( \sin^2\theta \)
3. \( \sec\theta \cdot \cot\theta \cdot \sin\theta \)
\( \frac{1}{\cos\theta} \cdot \frac{\cos\theta}{\sin\theta} \cdot \sin\theta \) 1
Engineer's Insight Answers
Input: sin = 0.6 | cos = 0.8
TAN (sin/cos)
0.75
CSC (1/sin)
1.66...
SEC (1/cos)
1.25
COT (cos/sin)
1.33...
Grading Notes:
Phase 1: Look for the correct fraction form before any cancellation occurs.
Phase 2: Partial credit if they correctly rewrite but fail the algebraic simplification (cancellation).
Critical thinking: Ensure they used the ratios (e.g., \( 0.6 / 0.8 = 3/4 = 0.75 \)) rather than just calculating \( \sin^{-1} \) on a calculator.
Ghost Graphs Slides Ghost Graphs
Visualizing Identities
"When two functions become one."
The Phantom Wave
"Can two completely different-looking equations produce the exact same graph?"
Equation A
\( y = \tan x \cdot \cos x \)
Equation B
\( y = \sin x \)
What is an Identity?
The Rule
An identity is an equation that is true for every value in the domain.
The Test
If you graph both sides of the equation and they overlap perfectly , it is a visual proof of the identity.
Perfect Alignment
Lab Procedure
1
Input
Type the first expression into Desmos or your calculator as \( Y_1 \).
2
Overlay
Type the second expression as \( Y_2 \). Use a different color or line style.
3
Verify
Look for the "Ghost Wave". If they disappear into one another, you've found an identity.
Beware: Domain Dangers
Some identities have "holes" or asymptotes.
Even if they overlap 99% of the time, check the undefined values!
Example: \( \tan x = \frac{\sin x}{\cos x} \)
Both are undefined when \( \cos x = 0 \).
Launch Lab
Grab your device and the "Overlapping Waves" lab sheet.
"Is this the real wave? Is this just fantasy?"
Prove the identities visually before the timer runs out.
Overlapping Waves Lab Sheet Overlapping Waves
Graphing Identity Lab | Trig-L3
Observer:
Station:
Lab Objective
In this lab, you will use graphing technology (Desmos or a handheld calculator) to visually confirm the fundamental trigonometric identities. If two expressions are truly an identity , their graphs will overlap perfectly across their entire shared domain.
Experiment 1: The Core Identities
Trial 1.1: \( f(x) = \sin^2x + \cos^2x \) vs \( g(x) = 1 \)
No Overlap
Perfect Overlap
Sketch Observation Here
Analysis Questions:
What shape does the graph of \( \sin^2x + \cos^2x \) make?
Trial 1.2: \( f(x) = \tan x \) vs \( g(x) = \frac{\sin x}{\cos x} \)
No Overlap
Perfect Overlap
Sketch Observation Here
Analysis Questions:
Zoom in on \( x = \pi/2 \). What happens to both graphs?
Experiment 2: Identity Detective
Test the following expressions. Circle TRUE if they are an identity (overlap perfectly) or FALSE if they do not.
\( \sec x = \frac{1}{\sin x} \)
TRUE FALSE
If false, what should the right side be?
\( \cot x \cdot \tan x = 1 \)
TRUE FALSE
\( \sin^2x - \cos^2x = 1 \)
TRUE FALSE
Lab Conclusion
Based on your observations, write a one-sentence definition of an identity using the words graph , overlap , and every value .
"Technology is a ghost that lets us see the invisible connections between equations."

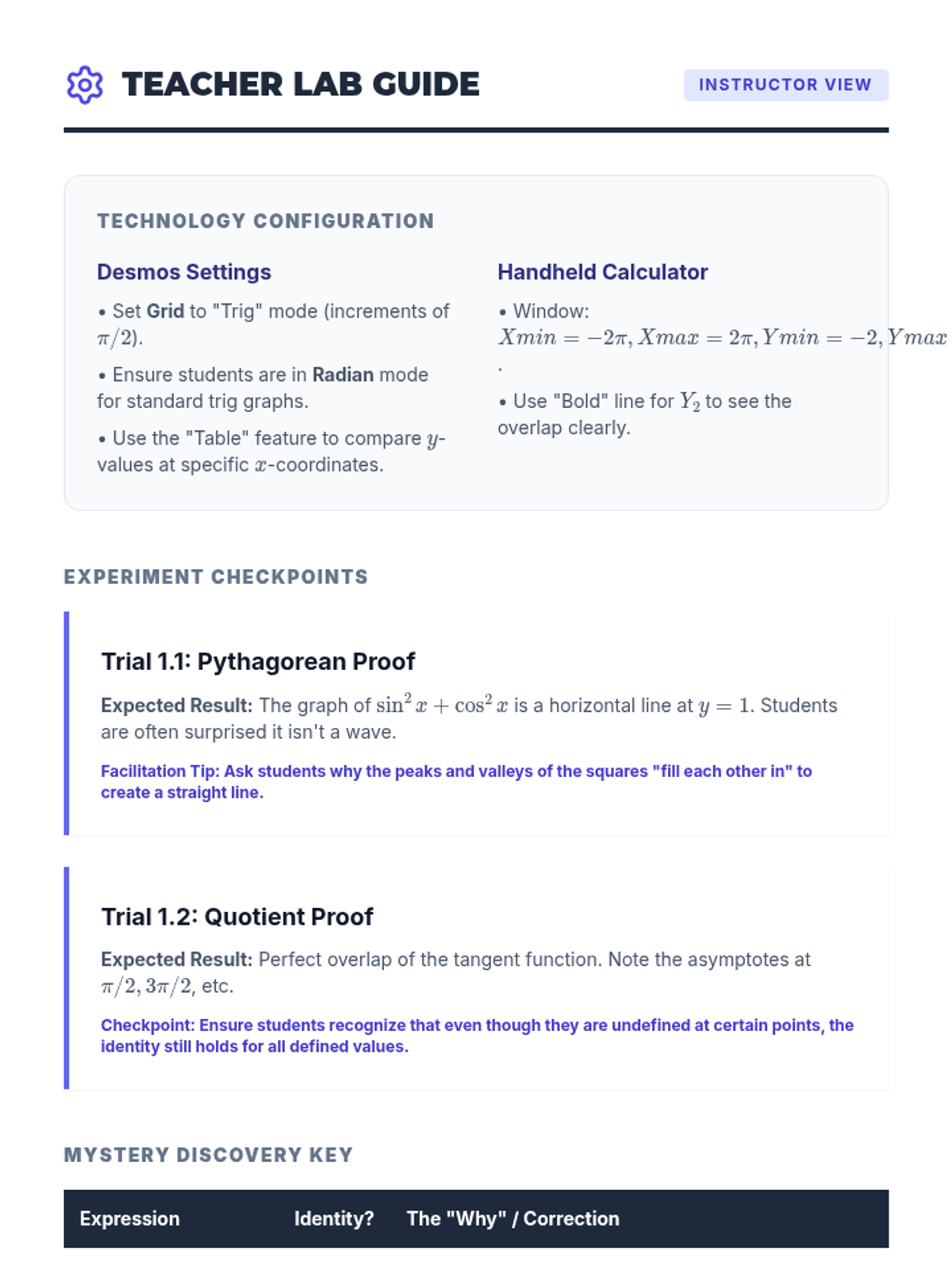

Ghost Graphs Teacher Lab Guide Teacher Lab Guide
Instructor View
Technology Configuration
Desmos Settings
• Set Grid to "Trig" mode (increments of \(\pi/2\)).
• Ensure students are in Radian mode for standard trig graphs.
• Use the "Table" feature to compare \( y \)-values at specific \( x \)-coordinates.
Handheld Calculator
• Window: \( Xmin = -2\pi, Xmax = 2\pi, Ymin = -2, Ymax = 2 \).
• Use "Bold" line for \( Y_2 \) to see the overlap clearly.
Experiment Checkpoints
Trial 1.1: Pythagorean Proof
Expected Result: The graph of \( \sin^2x + \cos^2x \) is a horizontal line at \( y = 1 \). Students are often surprised it isn't a wave.
Facilitation Tip: Ask students why the peaks and valleys of the squares "fill each other in" to create a straight line.
Trial 1.2: Quotient Proof
Expected Result: Perfect overlap of the tangent function. Note the asymptotes at \( \pi/2, 3\pi/2 \), etc.
Checkpoint: Ensure students recognize that even though they are undefined at certain points, the identity still holds for all defined values.
Mystery Discovery Key
Expression Identity? The "Why" / Correction \( \sec x = 1/\sin x \) FALSE Reciprocal of sine is cosecant (\( \csc x \)). They look like reflections of each other but don't overlap. \( \cot x \cdot \tan x = 1 \) TRUE A horizontal line at \( y = 1 \) with "holes" where functions are undefined. \( \sin^2x - \cos^2x = 1 \) FALSE Produces a cosine wave with different frequency/amplitude. The minus sign breaks the identity.
Critical Discussion Prompts
Q
"If we graph \( \sin x \) and \( \cos(x - \pi/2) \), they overlap. Is this an identity?"
Q
"Why is a visual proof sometimes 'risky'? Can a graph look identical but actually be different?"
Identity Evolution Slides Identity Evolution
Deriving the Secondary Forms
"Transforming the fundamental into the powerful."
Evolutionary Force
"What happens to our fundamental circle equation if we divide every term by \( \sin^2\theta \)? Or \( \cos^2\theta \)?"
\( \frac{\sin^2\theta}{?} + \frac{\cos^2\theta}{?} = \frac{1}{?} \)
Branch 1: Divide by \( \cos^2\theta \)
Step 1:
\( \frac{\sin^2\theta}{\cos^2\theta} + \frac{\cos^2\theta}{\cos^2\theta} = \frac{1}{\cos^2\theta} \)
Step 2:
\( \tan^2\theta + 1 = \sec^2\theta \)
"This identity connects Tangent and Secant. They are the 'Evolutionary Cousins'."
Branch 2: Divide by \( \sin^2\theta \)
Step 1:
\( \frac{\sin^2\theta}{\sin^2\theta} + \frac{\cos^2\theta}{\sin^2\theta} = \frac{1}{\sin^2\theta} \)
Step 2:
\( 1 + \cot^2\theta = \csc^2\theta \)
"This identity connects Cotangent and Cosecant. The 'CO-Identity'."
The Identity Family Tree
\( \sin^2\theta + \cos^2\theta = 1 \)
\( 1 + \tan^2\theta = \sec^2\theta \)
The "T-S" Branch
\( 1 + \cot^2\theta = \csc^2\theta \)
The "CO" Branch
Evolutionary Mastery
Which identity would you use to simplify this?
\( \csc^2\theta - \cot^2\theta \)
A) 1
B) 0
C) \( \sin^2\theta \)

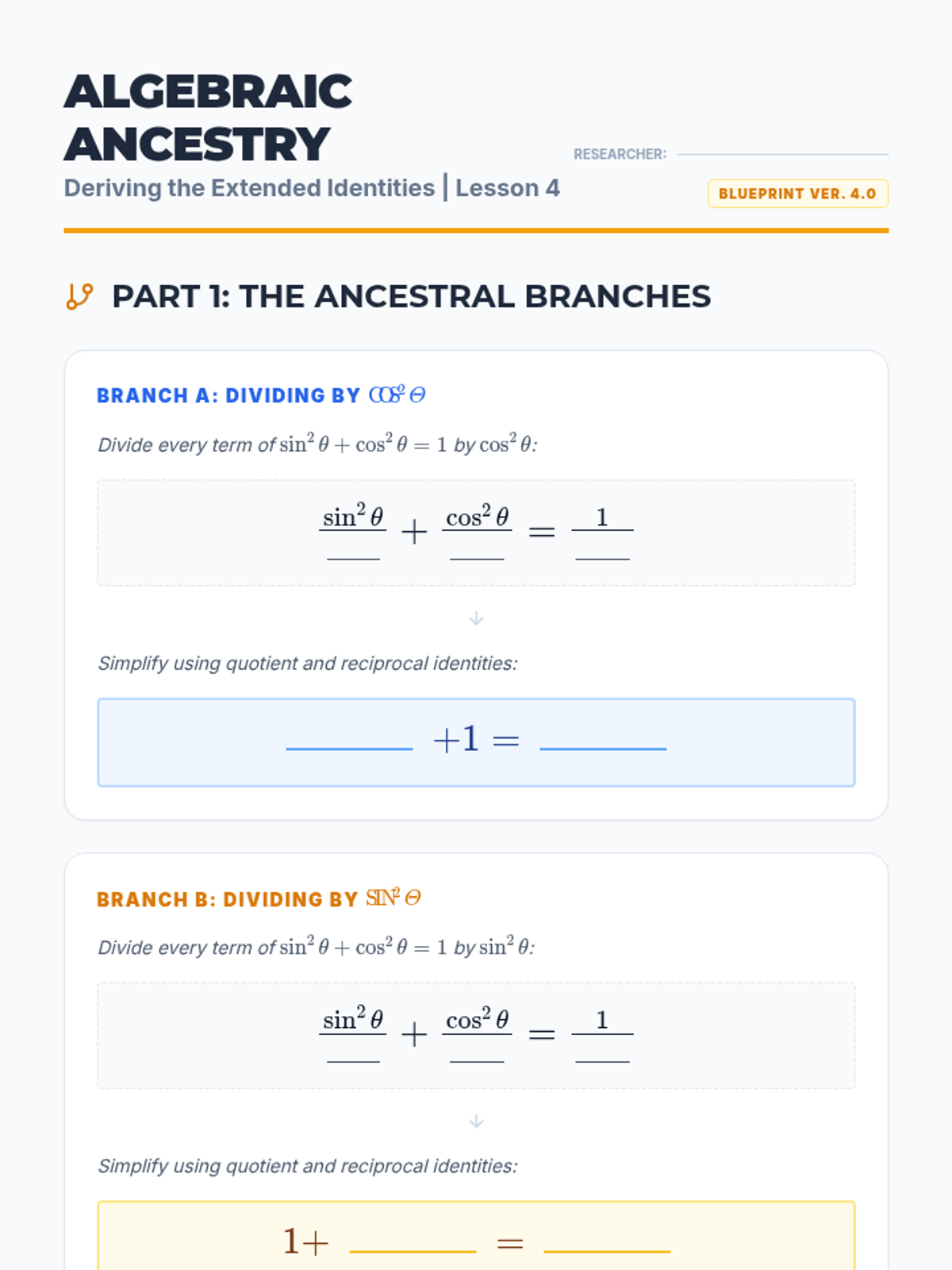

Algebraic Ancestry Worksheet Algebraic Ancestry
Deriving the Extended Identities | Lesson 4
Researcher:
Blueprint Ver. 4.0
Part 1: The Ancestral Branches
Branch A: Dividing by \(\cos^2\theta\)
Divide every term of \(\sin^2\theta + \cos^2\theta = 1\) by \(\cos^2\theta\):
\( \frac{\sin^2\theta}{\underline{\hspace{2em}}} + \frac{\cos^2\theta}{\underline{\hspace{2em}}} = \frac{1}{\underline{\hspace{2em}}} \)
Simplify using quotient and reciprocal identities:
\( + 1 = \)
Branch B: Dividing by \(\sin^2\theta\)
Divide every term of \(\sin^2\theta + \cos^2\theta = 1\) by \(\sin^2\theta\):
\( \frac{\sin^2\theta}{\underline{\hspace{2em}}} + \frac{\cos^2\theta}{\underline{\hspace{2em}}} = \frac{1}{\underline{\hspace{2em}}} \)
Simplify using quotient and reciprocal identities:
\( 1 + \) \( = \)
Part 2: Structural Rearrangement
Rearrange the evolved identities to isolate different terms. This is vital for complex simplification.
Tangent-Secant DNA
\( \tan^2\theta = \)
\( 1 = \)
Cotangent-Cosecant DNA
\( \cot^2\theta = \)
\( 1 = \)
Part 3: Mastery Application
1. Simplify the expression: \( \sec^2\theta - \tan^2\theta + \sin^2\theta + \cos^2\theta \)
Show work here
2. If \( \cot\theta = 2.4 \), use a secondary identity to find the value of \( \csc^2\theta \).
Show work here
Algebraic Ancestry Answer Key Evolution Key
Instructor Answer Key | Lesson 4
REF: TRIG-L4-KEY
Part 1: Branching Derivations
Branch A: Divide by \(\cos^2\theta\)
\( \frac{\sin^2\theta}{\cos^2\theta} + \frac{\cos^2\theta}{\cos^2\theta} = \frac{1}{\cos^2\theta} \)
\( \tan^2\theta + 1 = \sec^2\theta \)
Branch B: Divide by \(\sin^2\theta\)
\( \frac{\sin^2\theta}{\sin^2\theta} + \frac{\cos^2\theta}{\sin^2\theta} = \frac{1}{\sin^2\theta} \)
\( 1 + \cot^2\theta = \csc^2\theta \)
Part 2: Structural Rearrangement
\( \tan^2\theta = \sec^2\theta - 1 \)
\( 1 = \sec^2\theta - \tan^2\theta \)
\( \cot^2\theta = \csc^2\theta - 1 \)
\( 1 = \csc^2\theta - \cot^2\theta \)
Part 3: Mastery Application
1. Simplify: \( (\sec^2\theta - \tan^2\theta) + (\sin^2\theta + \cos^2\theta) \)
\( = (1) + (1) \)
\( = 2 \)
2. If \( \cot\theta = 2.4 \), find \( \csc^2\theta \):
\( 1 + \cot^2\theta = \csc^2\theta \)
\( 1 + (2.4)^2 = \csc^2\theta \)
\( 1 + 5.76 = \csc^2\theta \)
\( = 6.76 \)
Pedagogical Insight:
In Part 3, Problem 1, students might try to convert to Sine/Cosine. While that works, the goal is for them to recognize the identity grouping . Praise students who spot that the groups simplify to 1 immediately. This pattern recognition is the highest level of mastery for this unit.
Puzzle Master Slides Puzzle Master
Identity Match-Up Challenge
Fluency Speed Mastery
The Mission
"Can you decode the message by simplifying these trigonometric puzzle pieces before time runs out?"
10
Complex Expressions
10
Simplified Forms
1
Master Code
Rules of Engagement
1
Identify the Complex Piece (Expression) on your sheet.
2
Use your Roadmap and Evolution identities to simplify it.
3
Match the result to the Simplified Piece to find the letter code.
Pro-Tips for Speed
Pattern Spotting
Look for \( 1 \pm \text{trig}^2 \). Those are almost always Pythagorean identities in disguise!
Sin-Cos Default
If you get stuck, revert everything to Sine and Cosine. It's the "universal translator" of trig.
START!
"Simplify the complex. Reveal the truth."
Puzzle sheets are on your desk. You have 15 minutes.

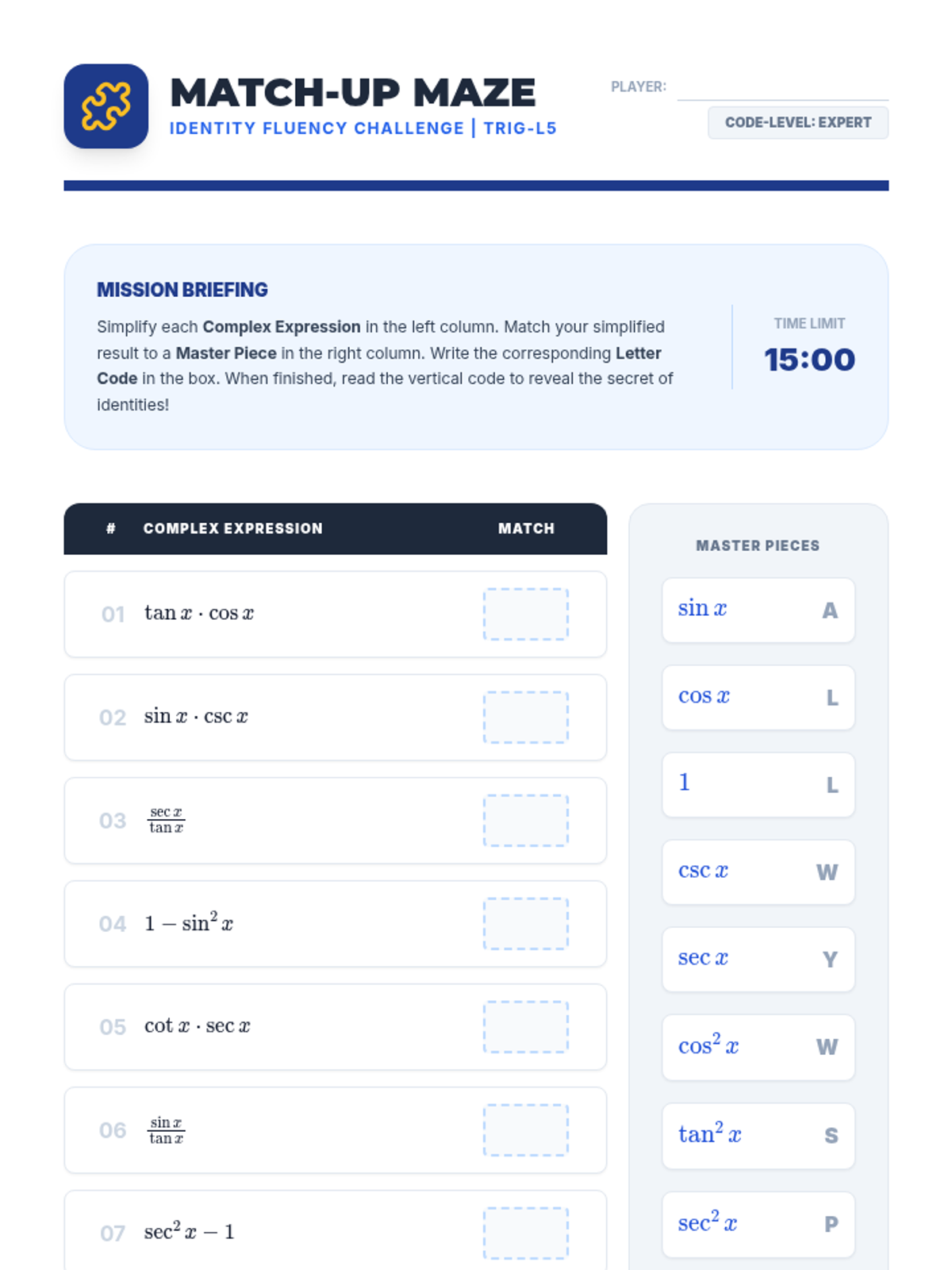

Match-Up Maze Challenge Sheet Match-Up Maze
Identity Fluency Challenge | Trig-L5
Player:
Code-Level: EXPERT
Mission Briefing
Simplify each Complex Expression in the left column. Match your simplified result to a Master Piece in the right column. Write the corresponding Letter Code in the box. When finished, read the vertical code to reveal the secret of identities!
Time Limit
15:00
Complex Expression
Match
01
\( \tan x \cdot \cos x \)
02
\( \sin x \cdot \csc x \)
03
\( \frac{\sec x}{\tan x} \)
04
\( 1 - \sin^2x \)
05
\( \cot x \cdot \sec x \)
06
\( \frac{\sin x}{\tan x} \)
07
\( \sec^2x - 1 \)
08
\( \csc x \cdot \tan x \)
Master Pieces
\( \sin x \) A
\( \cos x \) L
\( 1 \) L
\( \csc x \) W
\( \sec x \) Y
\( \cos^2x \) W
\( \tan^2x \) S
\( \sec^2x \) P
The Master Code
"Simplification is the ultimate sophistication." — Leonardo da Vinci

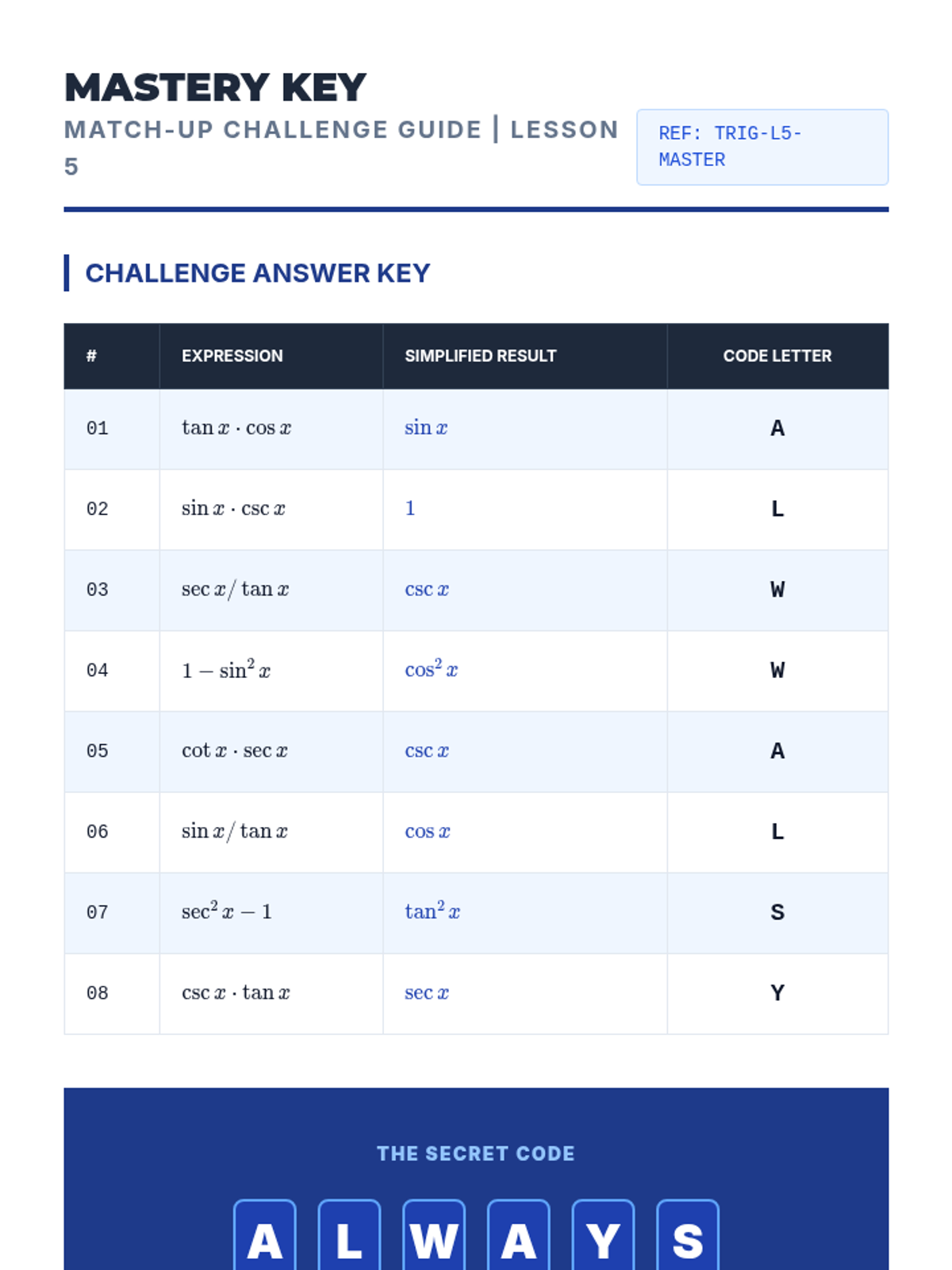

Puzzle Master Answer Key 5 Mastery Key
Match-Up Challenge Guide | Lesson 5
REF: TRIG-L5-MASTER
Challenge Answer Key
# Expression Simplified Result Code Letter 01 \( \tan x \cdot \cos x \) \( \sin x \) A 02 \( \sin x \cdot \csc x \) \( 1 \) L 03 \( \sec x / \tan x \) \( \csc x \) W 04 \( 1 - \sin^2x \) \( \cos^2x \) W 05 \( \cot x \cdot \sec x \) \( \csc x \) A 06 \( \sin x / \tan x \) \( \cos x \) L 07 \( \sec^2x - 1 \) \( \tan^2x \) S 08 \( \csc x \cdot \tan x \) \( \sec x \) Y
The Secret Code
A
L
W
A
Y
S
"ALWAYS"
Note: If students follow the row numbers, the code is "ALW W A L S Y" — The Master Code word is "ALWAYS" (derived from the core concepts of identities being true ALWAYS).
Facilitation Tips:
The Timer Pressure
Use an on-screen timer with dramatic music to increase engagement. The goal is fluency . Students should start "seeing" the cancellations without writing out every step for simple cases like \( \sin \cdot \csc \).
Differentiation
For struggling students, allow them to use their "Roadmap" and "Ancestry" sheets. For advanced students, challenge them to complete the maze without any notes.
