Angle Anatomy
Mastering the Art of Precision Measurement
The Pizza Problem
Not all pizza slices are created equal. Some are skinny, some are wide.
Your Mission:
Measure the "sharpness" (angle) of each slice to find the perfect bite.
🍕
Meet the Protractor
1
The Center Point
Align this exactly on the point where the two lines meet (the vertex).
2
The Baseline
Make sure one side of your angle rests perfectly along the 0° line.
3
The Reading
Find where the second side crosses the scale and read the degrees.
Digital Simulation: 45°
The Double Scale Trap
Outer Scale
Use this if your angle opens to the left .
Start at 0 on the left side of the tool.
Inner Scale
Use this if your angle opens to the right .
Start at 0 on the right side of the tool.
Always ask: "Is this angle bigger or smaller than a square corner (90°)?"
Lab Protocol
Step 1
Obtain your Precision Pits worksheet.
Step 2
Measure each pizza slice at its vertex.
Step 3
Record data and find the 'Perfect Bite'.
Precision Pits Worksheet Precision Pits
Lab Data Sheet: Angle Measurement
Agent Name
Lab Date
Mission: The pizzeria is having a "Sharpest Slice" competition. Measure the angle of each slice at its center point (vertex) to help find the winner. Round to the nearest degree.
1
Slice: The Razor Thin
Measurement
°
2
Slice: The Deep Dish Mega
Measurement
°
3
Slice: The Perfect Corner
Measurement
°
4
Slice: The Skinny String
Measurement
°
Lab Analysis
Which slice had the most obtuse (widest) angle? What was its measure?
If you combined Slice 1 and Slice 4, what would the total angle be?
Observation: How does the angle of the slice change the way it feels to eat? (Sketch or describe below)
Angle Workshop Guide Angle Workshop Guide
Teacher Facilitation Notes
Lesson 1
Unit 1
Learning Objective
Students will be able to precisely measure angles using a protractor to within +/- 2 degrees, identifying and avoiding the "dual-scale" error.
The Hook: Pizza Pits
Introduce the lesson by asking: "Have you ever noticed how some pizza slices are impossible to eat because they are too wide, while others are so skinny they flop over?"
Tell students they are "Geometric Quality Inspectors" for a pizza chain. Their job is to find the "Sharpness Index" (the angle) of various slices to determine which one provides the most efficient bite.
Materials List
Clear protractors (one per student)
Precision Pits Worksheets
Pencils & Erasers
Angle Anatomy Slides
Common Misconceptions
The Dual-Scale Trap
Students often read the wrong scale (e.g., reading 150° for a 30° angle). Fix: Teach them to always estimate first. "Is it skinnier or wider than a square corner?"
Vertex Misalignment
Students place the bottom edge of the tool on the line, rather than the crosshair/hole. Fix: Demonstrate under a document camera precisely where the hole goes.
Discussion Prompts
"Why do you think the protractor has two sets of numbers going in opposite directions?"
"If a slice has a measure of 90 degrees, what would we call that angle? How would it look compared to the others?"
"Can a triangle have two angles that are both 100 degrees? Why or why not?" (Previewing Lesson 4)
Sharp Corners Slides Geometry Lab: Unit 2
Sharp Corners
Classifying Triangles by Their Internal Angles
Shattered Glass!
A "Geometry Mirror" has shattered into dozens of triangular pieces.
Some corners are deadly sharp, some are perfectly square, and some are wide and blunt. We need to sort them before anyone gets cut!
Angle Archetypes
Acute
All three angles are
Right
Exactly
Obtuse
Exactly
The Impossibility Proof
"Can a triangle have TWO right angles? Or TWO obtuse angles?"
?
?
Discuss with your lab partner
Lab Mission: Shattered Shapes
A
Scan the triangles on your worksheet.
B
Find the widest angle in each shape.
C
Label: A (Acute), R (Right), or O (Obtuse).
Use your "Right-Angle Finder" (the corner of a piece of paper) for quick checks!

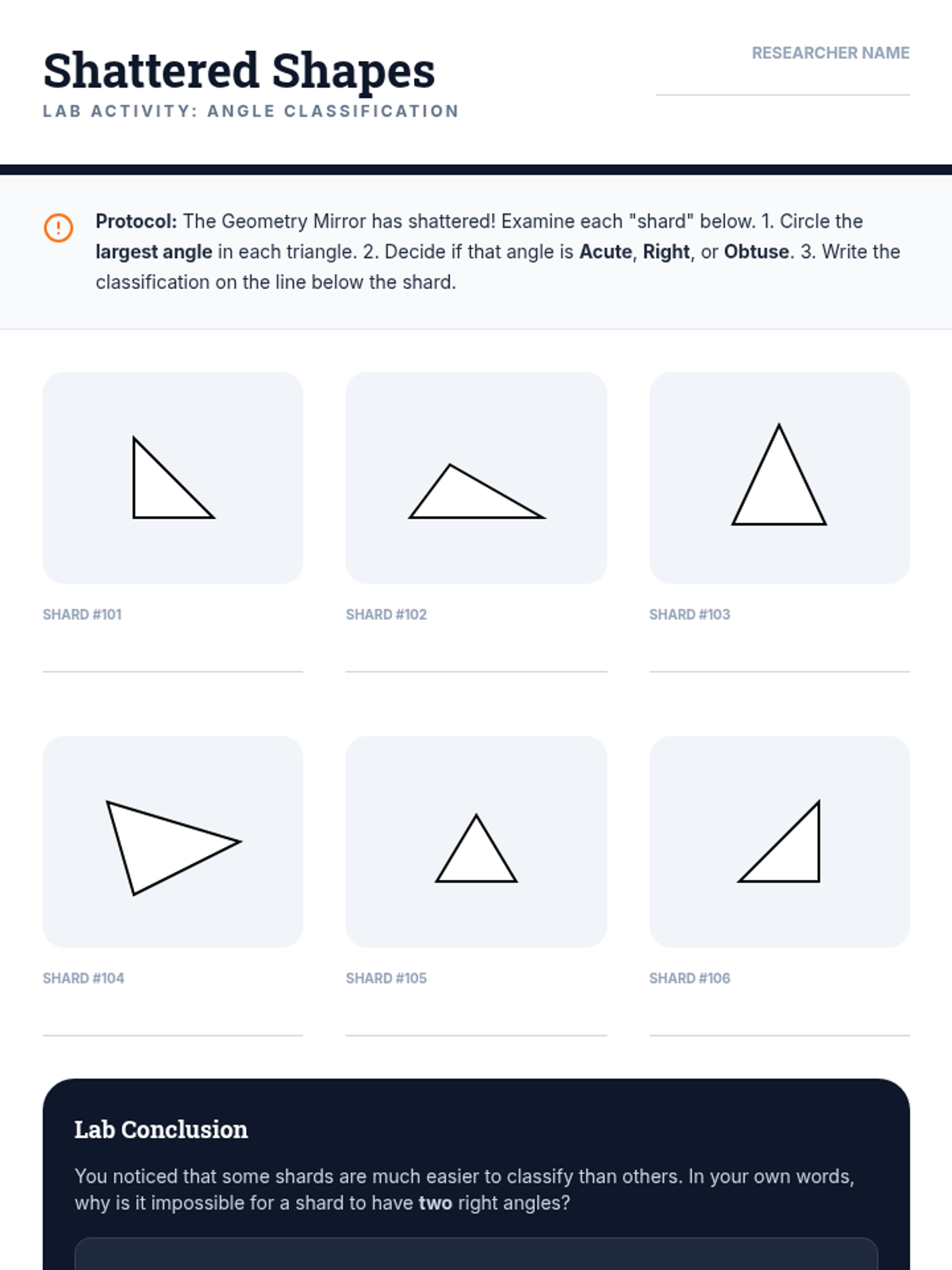

Shattered Shapes Activity Shattered Shapes
Lab Activity: Angle Classification
Researcher Name
Protocol: The Geometry Mirror has shattered! Examine each "shard" below. 1. Circle the largest angle in each triangle. 2. Decide if that angle is Acute , Right , or Obtuse . 3. Write the classification on the line below the shard.
Shard #101
Shard #102
Shard #103
Shard #104
Shard #105
Shard #106
Lab Conclusion
You noticed that some shards are much easier to classify than others. In your own words, why is it impossible for a shard to have two right angles?

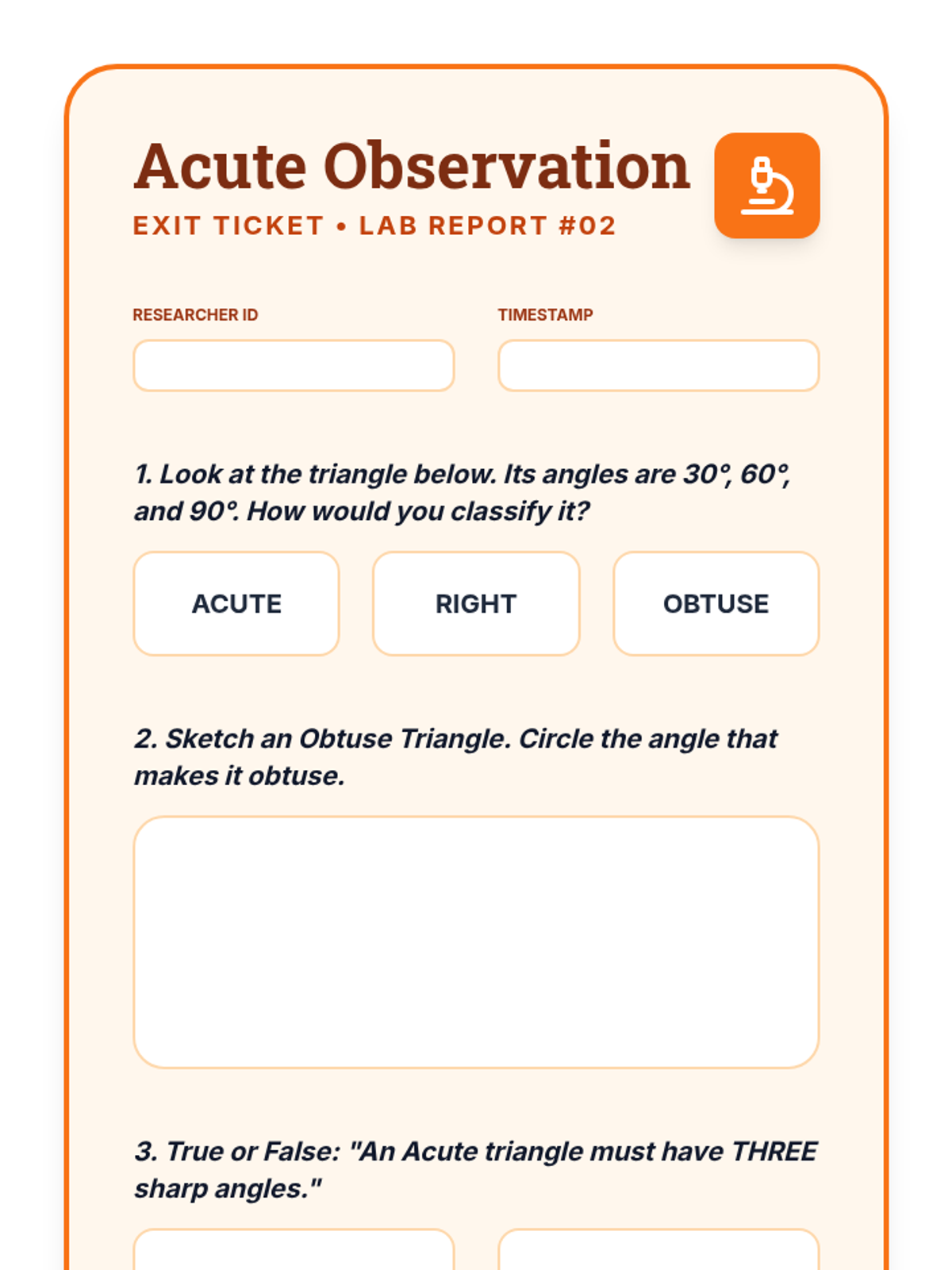

Acute Observation Ticket Acute Observation
Exit Ticket • Lab Report #02
Researcher ID
Timestamp
1. Look at the triangle below. Its angles are 30°, 60°, and 90°. How would you classify it?
Acute
Right
Obtuse
2. Sketch an Obtuse Triangle. Circle the angle that makes it obtuse.
3. True or False: "An Acute triangle must have THREE sharp angles."
True
False
DATA TRANSMISSION SECURE • GEOMETRY LAB SYSTEM V2.0
Side Story Slides Geometry Lab: Unit 3
The Side Story
Classifying Triangles by Their Side Lengths
The Architect's Dilemma
You have three different lengths of "beams" (straws).
The Challenge:
Can you build a triangle where all sides are the same? Only two? None? What happens if one "beam" is way longer than the others combined?
The Big Three
Equilateral
"Equal-Lateral"
3 Equal Sides
Isosceles
"Equal Legs"
At least 2 Equal Sides
Scalene
"Uneven Steps"
0 Equal Sides
The Mirror Rule
"In a triangle, Equal Sides always lead to Equal Angles ."
3
Equal Sides
3
Equal Angles
Triangle Architect Lab
The Rules
• Triangles must be CLOSED .
• No gaps between vertices.
• Record your 'Blueprints' on the worksheet.
The Inquiry
Can you find a combination of side lengths that is impossible to turn into a triangle?

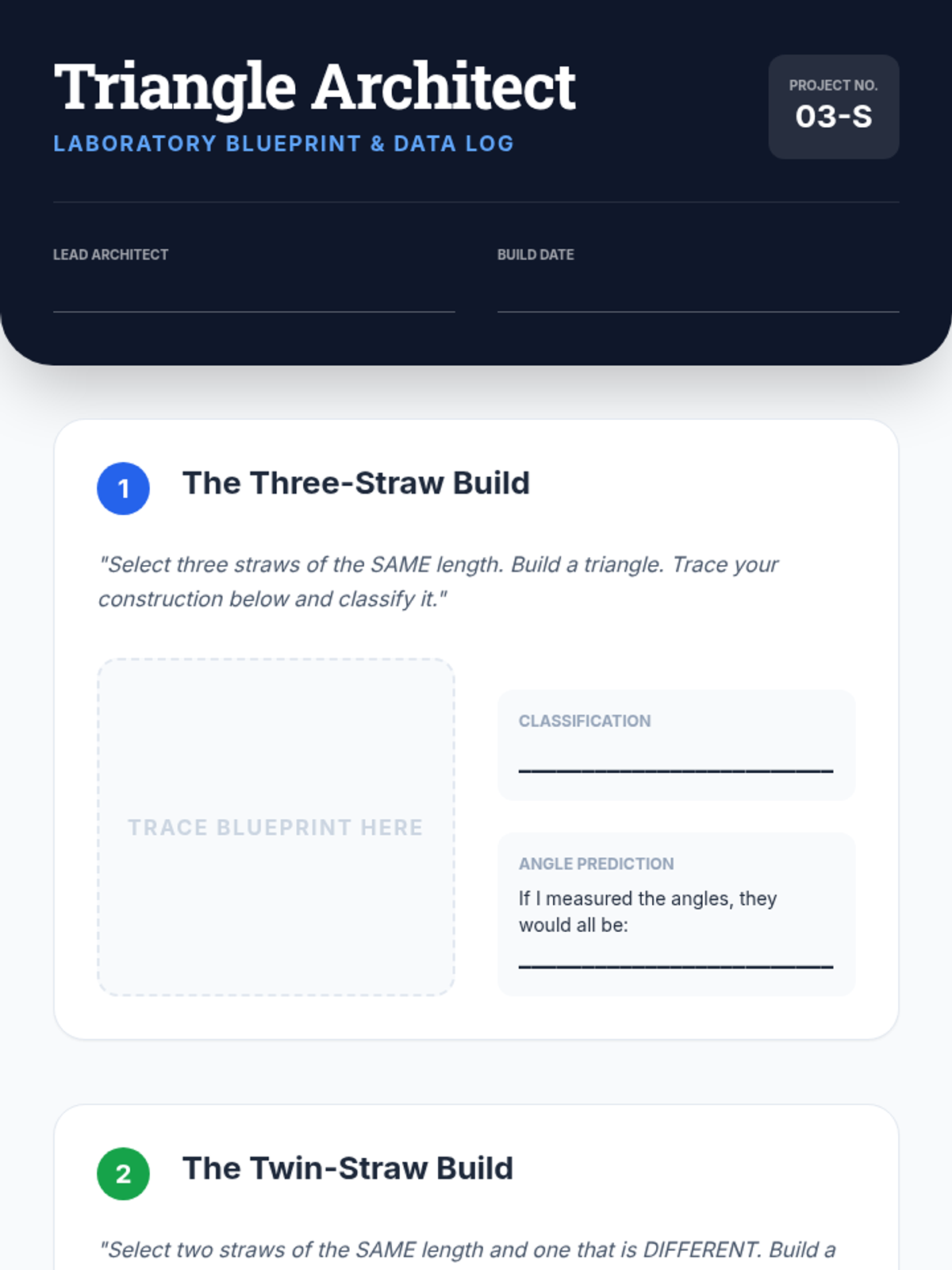

Triangle Architect Lab Worksheet Triangle Architect
Laboratory Blueprint & Data Log
Project No.
03-S
Lead Architect
Build Date
1
The Three-Straw Build
"Select three straws of the SAME length. Build a triangle. Trace your construction below and classify it."
Trace Blueprint Here
Classification
_________________________
Angle Prediction
If I measured the angles, they would all be:
_________________________
2
The Twin-Straw Build
"Select two straws of the SAME length and one that is DIFFERENT. Build a triangle. Trace and classify."
Trace Blueprint Here
Classification
_________________________
Observation
How many angles are the same size?
_________________________
3
The Impossible Case
Try to build a triangle using one very long straw and two very short straws. What happens?
Final Lab Findings
I build a Scalene triangle when...
______________________________________________________
I build an Isosceles triangle when...
______________________________________________________
The Discovery
If a triangle has 3 equal sides, its angles MUST each be ______ degrees.

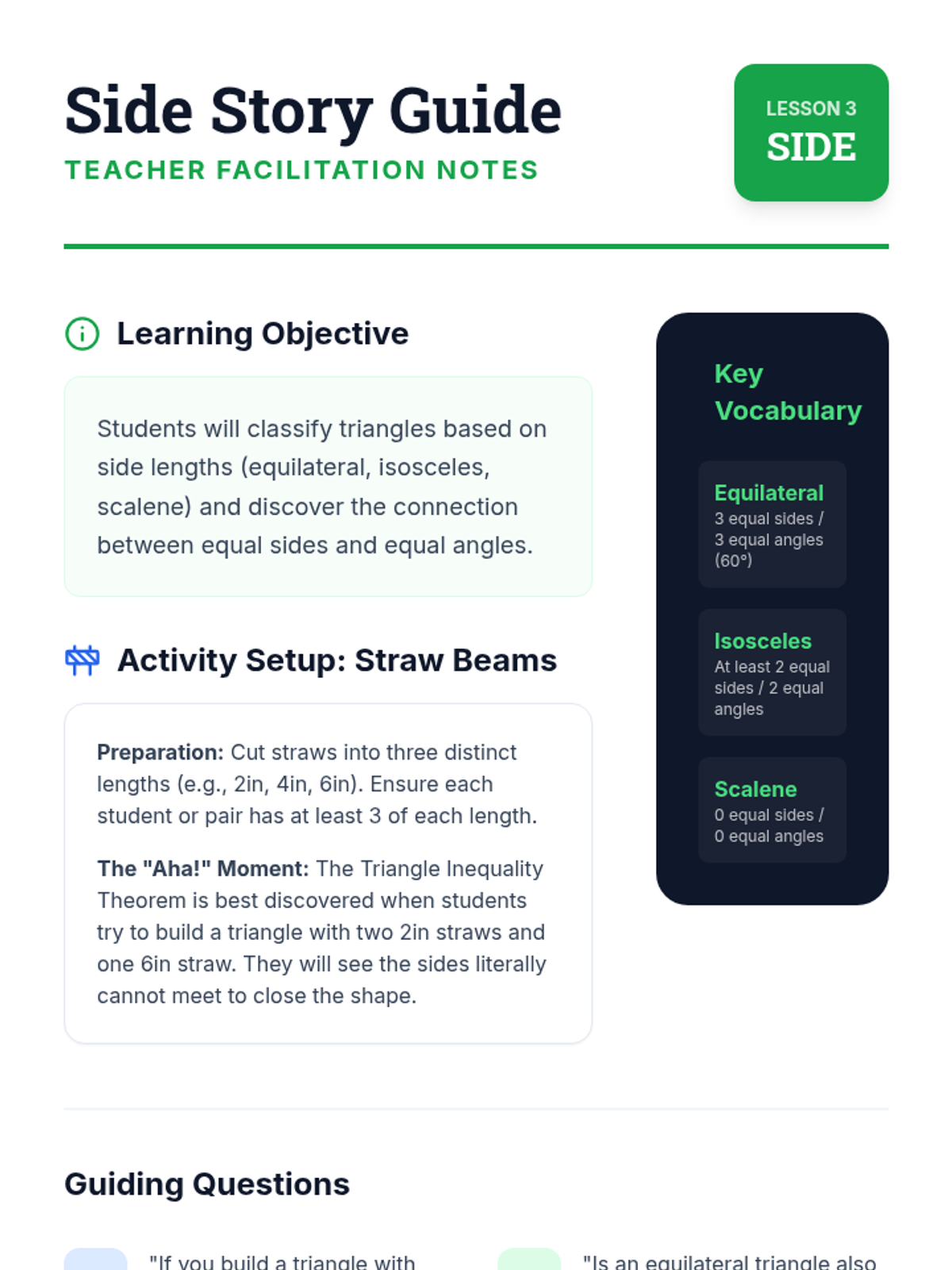

Side Classification Teacher Guide Side Story Guide
Teacher Facilitation Notes
Lesson 3
SIDE
Learning Objective
Students will classify triangles based on side lengths (equilateral, isosceles, scalene) and discover the connection between equal sides and equal angles.
Activity Setup: Straw Beams
Preparation: Cut straws into three distinct lengths (e.g., 2in, 4in, 6in). Ensure each student or pair has at least 3 of each length.
The "Aha!" Moment: The Triangle Inequality Theorem is best discovered when students try to build a triangle with two 2in straws and one 6in straw. They will see the sides literally cannot meet to close the shape.
Key Vocabulary
Equilateral
3 equal sides / 3 equal angles (60°)
Isosceles
At least 2 equal sides / 2 equal angles
Scalene
0 equal sides / 0 equal angles
Guiding Questions
Q1
"If you build a triangle with three different length straws, how do the angles look? Are they all the same or all different?"
Q2
"Is an equilateral triangle also an isosceles triangle? Why or why not?" (Hint: Isosceles means at least two equal sides).
Q3
"What did you have to do with the two short straws to make them 'reach' the ends of the long straw? Why didn't it work?"
Q4
"If you have a triangle where all sides are 5cm, what is the measure of EVERY angle in that triangle?"
Angle Sum Secrets Slides Geometry Lab: Unit 4
The 180° Secret
Discovering the Universal Law of Triangles
The Destruction Hook
We are going to do something mathematicians rarely do...
The Tear Test:
If we rip the corners off ANY triangle and line them up, what shape do they create? Is it always the same, or does it change?
A
B
C
The Discovery
Wait... they form a...
STRAIGHT LINE
Sum = 180°
Finding the Missing Link
Because we KNOW the sum is 180°, we can solve for missing angles like a detective!
\(180 - (A + B) = C\)
Example
50° 40° ?
\(180 - (50 + 40) = \dots\)
90°!
Corner Tear Lab
Grab a colored paper triangle.
Label the corners A, B, and C .
Tear them off and glue them to the straight line.
Prove it works for EVERY triangle.

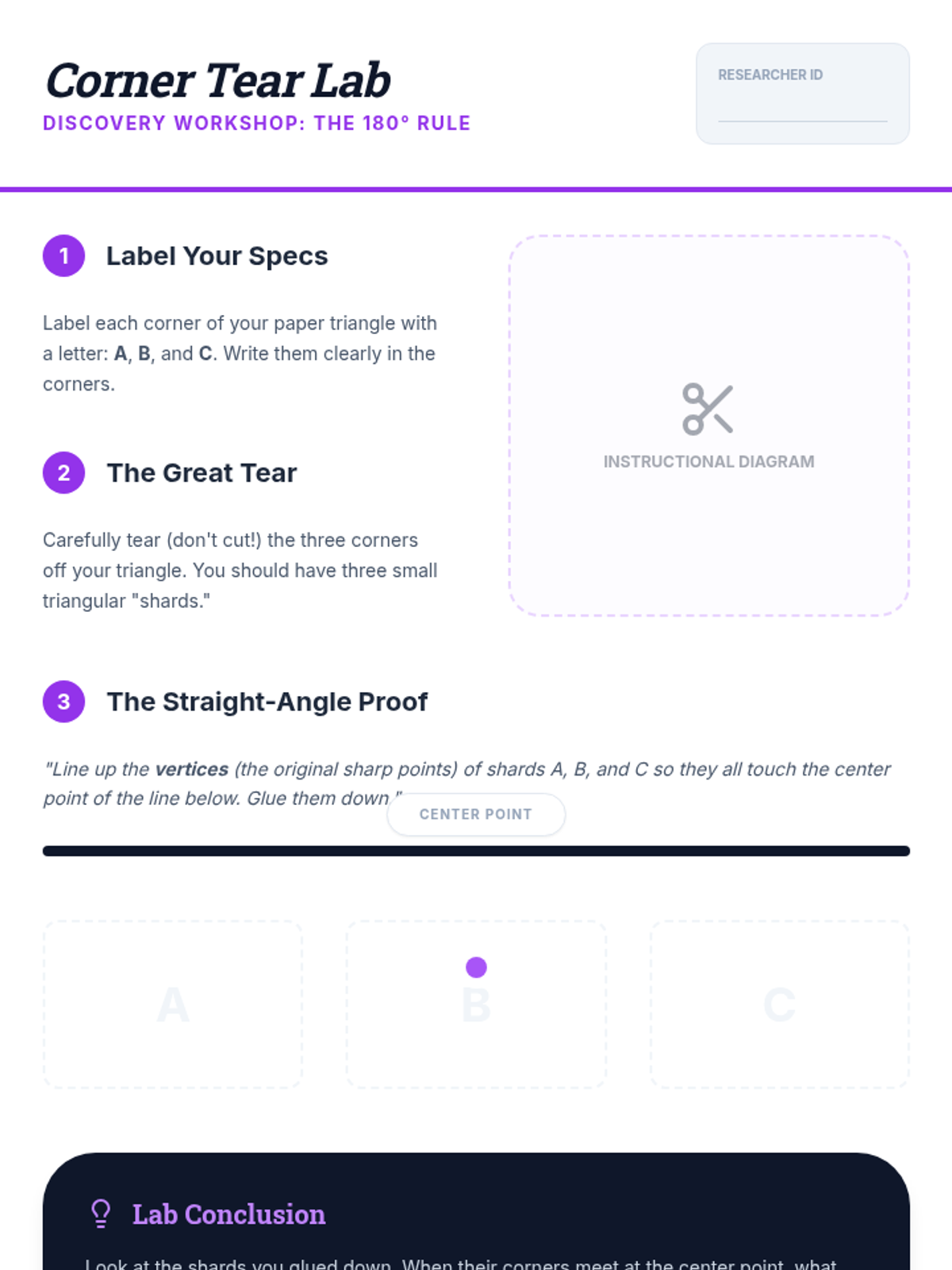

Corner Tear Lab Discovery Sheet Corner Tear Lab
Discovery Workshop: The 180° Rule
Researcher ID
1
Label Your Specs
Label each corner of your paper triangle with a letter: A , B , and C . Write them clearly in the corners.
2
The Great Tear
Carefully tear (don't cut!) the three corners off your triangle. You should have three small triangular "shards."
Instructional Diagram
3
The Straight-Angle Proof
"Line up the vertices (the original sharp points) of shards A, B, and C so they all touch the center point of the line below. Glue them down."
Center Point
A
B
C
Lab Conclusion
Look at the shards you glued down. When their corners meet at the center point, what shape do the outside edges form?
We know a straight line is 180° . Based on your experiment, the sum of the three angles in a triangle is:
Angle A + Angle B + Angle C =
°

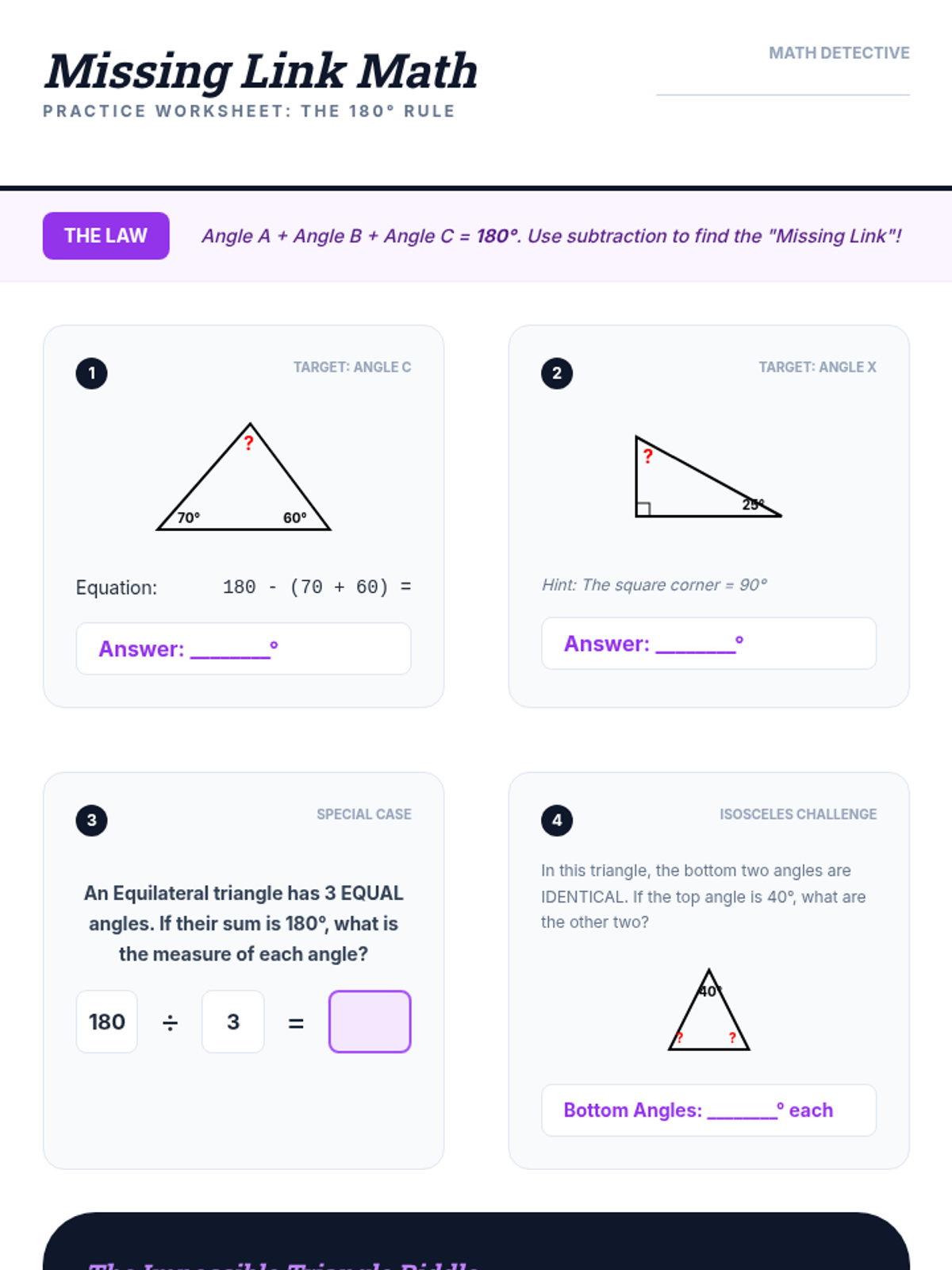

Missing Link Math Worksheet Missing Link Math
Practice Worksheet: The 180° Rule
Math Detective
THE LAW
Angle A + Angle B + Angle C = 180° . Use subtraction to find the "Missing Link"!
1 Target: Angle C
70° 60° ?
Equation: 180 - (70 + 60) =
Answer: ________°
2 Target: Angle X
25° ?
Hint: The square corner = 90°
Answer: ________°
3 Special Case
An Equilateral triangle has 3 EQUAL angles. If their sum is 180°, what is the measure of each angle?
180
÷
3
=
4 Isosceles Challenge
In this triangle, the bottom two angles are IDENTICAL. If the top angle is 40°, what are the other two?
40° ? ?
Bottom Angles: ________° each
The Impossible Triangle Riddle
"A triangle has one angle that is 100° and another that is 90°. Why did the Geometric Quality Inspector reject this triangle immediately?"
Master Detective Slides Top Secret Case File
Master Detective
The Ultimate Triangle Classification Challenge
The Double Identity
Every triangle has a First Name and a Last Name .
First Name
Angle Type
(Acute, Right, Obtuse)
Last Name
Side Type
(Equilateral, Isosceles, Scalene)
Example Suspect:
Right Isosceles
Forbidden Identites
"Can an Equilateral triangle ever be Obtuse ?"
NEVER!
(Equilateral triangles must have three 60° angles. 60 is always acute!)
Mission: Wanted Posters
1
Pick a Suspect Description from the list.
2
Sketch the triangle precisely on your Wanted Poster .
3
Label its dual identity (Angle + Side).
"I have one angle that is 110 degrees and two sides that are 5 inches long. Who am I?"
Expert Status
"A triangle is defined by the relationship between its..."
SIDES & ANGLES
Laboratory Session Concluded

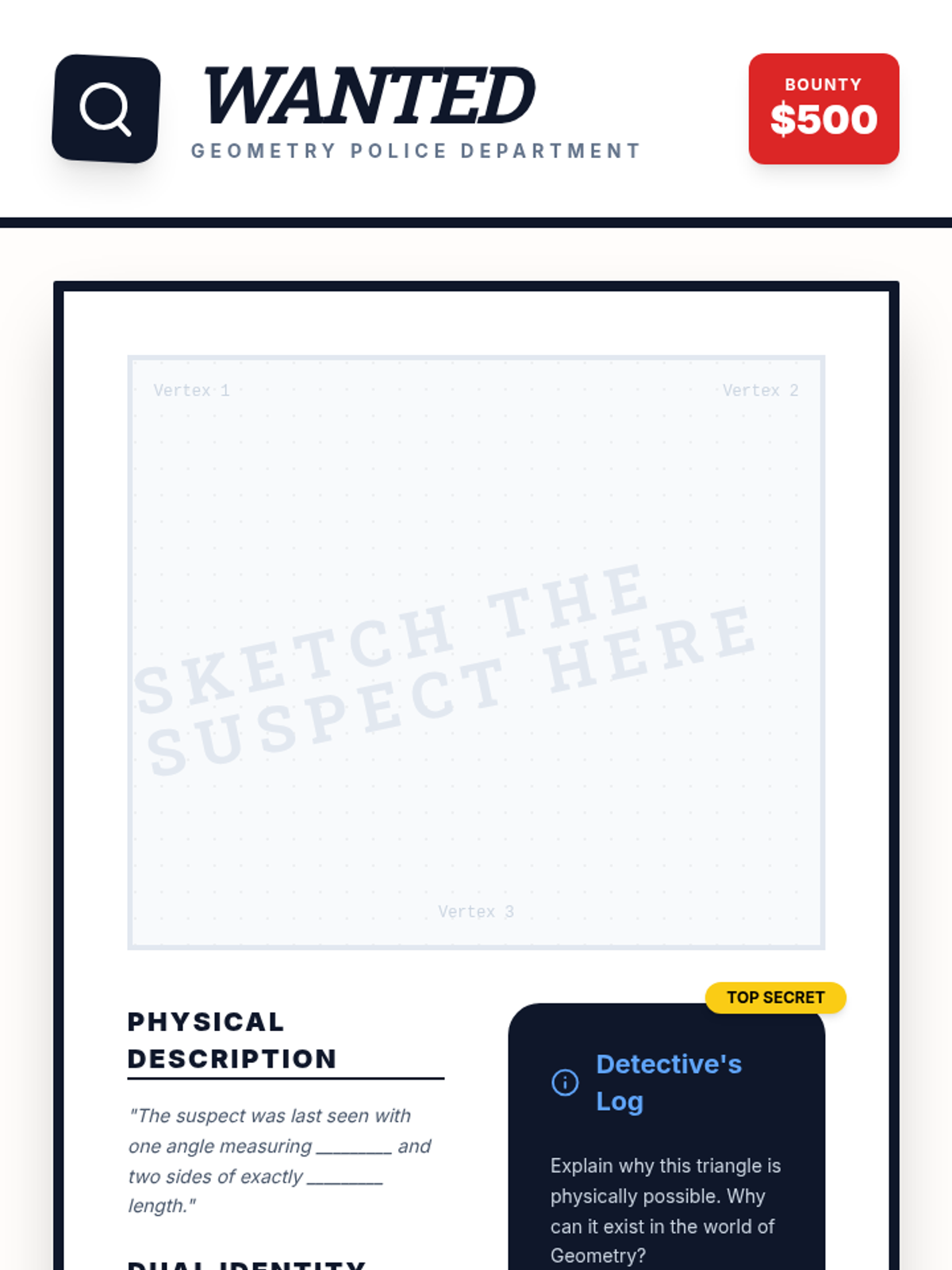

Triangle Wanted Posters Activity WANTED
Geometry Police Department
Bounty
$500
Sketch the Suspect Here
Vertex 1
Vertex 2
Vertex 3
Physical Description
"The suspect was last seen with one angle measuring _________ and two sides of exactly _________ length."
Dual Identity
First Name:
Last Name:
TOP SECRET
Detective's Log
Explain why this triangle is physically possible. Why can it exist in the world of Geometry?
Investigating Agent
CASE# 005-TRI-CLASSIFY

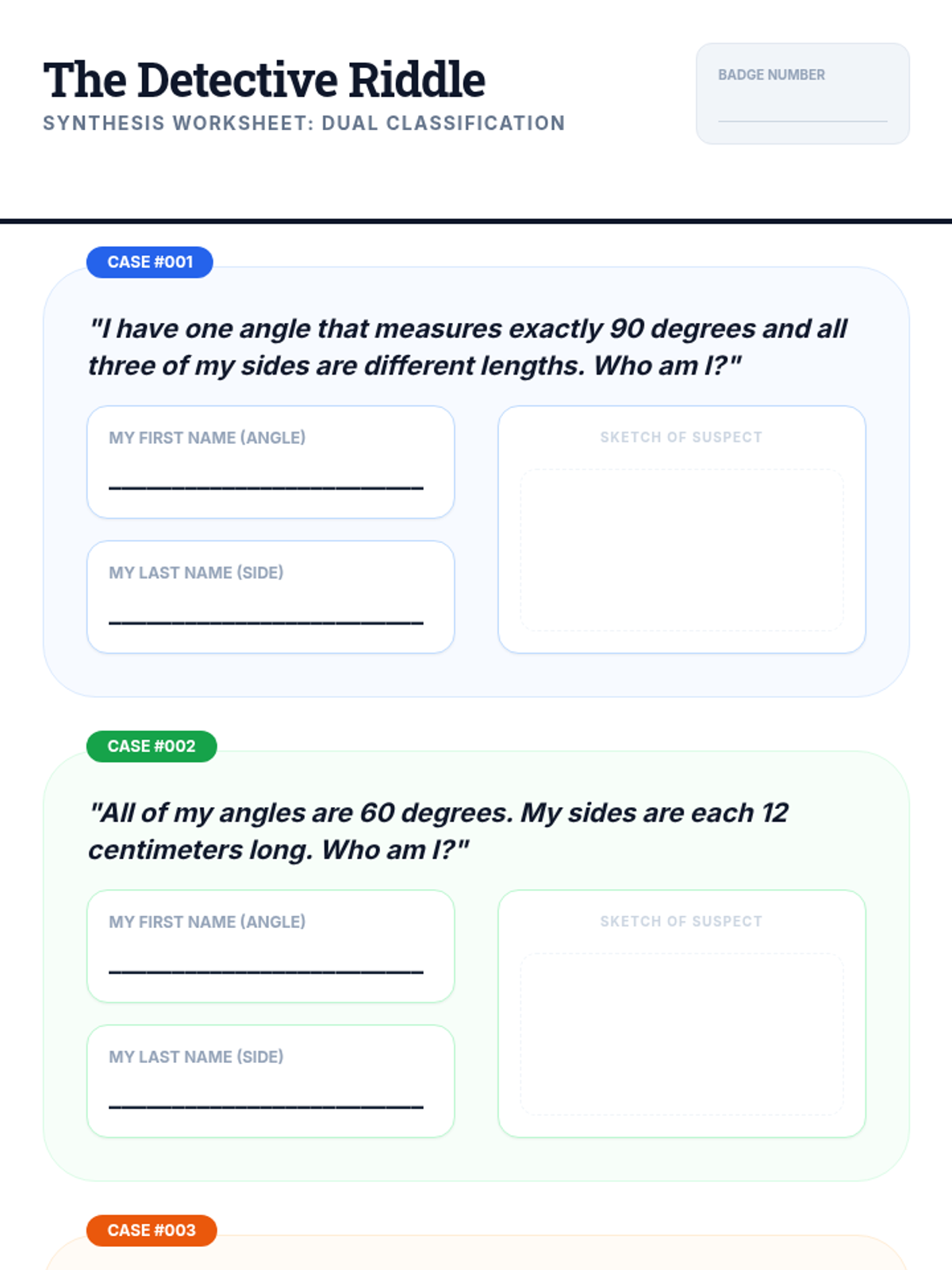

Detective Riddle Worksheet The Detective Riddle
Synthesis Worksheet: Dual Classification
Badge Number
Case #001
"I have one angle that measures exactly 90 degrees and all three of my sides are different lengths. Who am I?"
My First Name (Angle)
_________________________
My Last Name (Side)
_________________________
Sketch of Suspect
Case #002
"All of my angles are 60 degrees. My sides are each 12 centimeters long. Who am I?"
My First Name (Angle)
_________________________
My Last Name (Side)
_________________________
Sketch of Suspect
Case #003
"I have one very wide angle of 120 degrees. Two of my sides are equal in length. Who am I?"
My First Name (Angle)
_________________________
My Last Name (Side)
_________________________
Sketch of Suspect
The Detective's Theory
"Is it possible to have an Obtuse Equilateral triangle? Explain your reasoning using what you know about the Triangle Angle Sum Theorem."
