Transcendental Origins Slides Beyond the Roots
Algebraic vs. Transcendental Numbers
Infinite Horizons: Lesson One
The Square Root of Two
Imagine a square with side length 1.
The diagonal length is \(\sqrt{2}\).
Algebraic Definition:
x² - 2 = 0
\(\sqrt{2}\) is a root of a simple polynomial with integer coefficients.
1 1 √2
The Mystery of \(\pi\)
We find \(\pi\) everywhere in circles: \(C = 2\pi r\).
But try to find a polynomial like \(x^2 - 2 = 0\) where \(\pi\) is the root.
Challenge:
Can you write an equation with integer coefficients that equals zero when \(x = \pi\)?
π
3.14159...
Spoiler: You can't.
Classifying Numbers
Algebraic
A number that is a root of a non-zero polynomial equation with rational coefficients.
Examples: 2, -1/2, √3, i
Rare & Complex
Transcendental
A number that "transcends" algebra; it is not a root of any rational polynomial.
Examples: π, e, sin(1), log(2)
Which is more common?
Algebraic
"Countably Infinite"
Transcendental The Vast Majority
"Uncountably Infinite"
"Almost all" real numbers are transcendental, yet we only have names for a few of them.
Today's Mission
Can we identify a transcendental number by looking at it?
We will test our intuition and learn to hunt for the roots that define our number systems.
Root Challenge Worksheet The Root Challenge
Algebraic vs. Transcendental Investigation
Name:
Date:
Part 1: The Root Check
A number \(x\) is **algebraic** if it is a solution (root) to a polynomial equation of the form:
Example: Prove \(\sqrt{3}\) is algebraic.
1. Set \(x = \sqrt{3}\)
2. Square both sides: \(x^2 = 3\)
3. Set to zero: \(x^2 - 3 = 0\)
Coefficients are 1, 0, and -3 (all integers). Therefore, \(\sqrt{3}\) is algebraic.
Part 2: Finding the Roots
For each number below, show that it is algebraic by finding a polynomial equation with integer coefficients that has that number as a root.
1
\(x = \frac{3}{4}\)
2
\(x = 1 + \sqrt{5}\)
3
\(x = \sqrt[3]{2}\)
Part 3: Transcending the Roots
Unlike the numbers above, numbers like \(\pi\) (pi) and \(e\) (Euler's number) cannot be expressed as the root of a polynomial with integer coefficients. We call these **transcendental**.
Number: \(\pi\)
Origin: Ratio of a circle's circumference to its diameter.
3.1415926535...
Number: \(e\)
Origin: Base of natural growth and compound interest.
2.7182818284...
Explain the difference: How does the "origin" of a transcendental number differ from an algebraic number like \(\sqrt{2}\)?
Thinking Deeply: If you multiply an algebraic number by a transcendental number (e.g., \(2\pi\)), is the result likely algebraic or transcendental? Why?
Classify It!
Mark each number as Algebraic (A) or Transcendental (T).
\(\frac{1}{2}\)
\(\pi^2\)
\(\sqrt{10}\)
\(e - 1\)
\(0.333...\)
\(0\)
\(\sqrt[5]{7}\)
\(\pi + e\)
Polynomial Puzzle Facilitation Guide Teacher Facilitation Guide
Lesson 1: Beyond the Roots
Infinite Horizons Sequence
Grade 11 Mathematics
Learning Objectives
Define **algebraic numbers** as roots of polynomial equations with integer coefficients.
Define **transcendental numbers** as those that are not algebraic.
Construct polynomial equations for common algebraic irrational numbers.
Contrast the geometric origins of $\pi$ and $e$ with algebraic roots.
Preparation
Review the "Transcendental Origins" Slides.
Print "The Root Challenge" Worksheet (1 per student).
Prepare scientific calculators.
Misconception Alert!
Students often think **Irrational = Transcendental**. Clarify that all transcendental numbers are irrational, but NOT all irrational numbers are transcendental (e.g., $\sqrt{2}$ is irrational but algebraic).
Instructional Procedure
5m
Hook: The Square vs. The Circle
Use the slides to present the $\sqrt{2}$ diagonal challenge. Ask: "If we can define the length of a square's diagonal with a simple polynomial, why can't we do the same for the circumference of a circle?"
15m
Guided Investigation
Work through the first problem on the worksheet together ($x = 3/4$). Show that any rational number $p/q$ is a root of $qx - p = 0$.
"We are looking for a 'home' for these numbers—a polynomial where they belong perfectly as a solution."
20m
Active Exploration
Students work on Part 2 of the worksheet. Circulate and support students with the radical isolation technique for $1 + \sqrt{5}$. (Step: $x-1 = \sqrt{5} \rightarrow (x-1)^2 = 5$).
10m
Synthesis: The Infinite Sea
Discuss the Summary Table. Highlight that although transcendental numbers are "more common" in the real number line, they are much harder to define precisely without infinite processes.
Quick Answer Key
Part 2 Polynomials:
1. \(4x - 3 = 0\)
2. \(x^2 - 2x - 4 = 0\)
3. \(x^3 - 2 = 0\)
Classification Table:
1/2: **A**
π²: **T**
√10: **A**
e - 1: **T**
0.33: **A**
0: **A**
Polygon Bound Slides The Exhaustion Method
Bounding Pi with Polygons
Infinite Horizons: Lesson Two
Measuring the Curve
Measuring a straight line is easy. Measuring a circle is impossible... directly.
Archimedes realized that we can't measure the curve, but we can measure **straight lines that get very close to it**.
The Strategy:
Sandwich the circle between two polygons. The perimeter of the circle must be in the middle.
CIRCUMSCRIBED INSCRIBED
Archimedes' Sandwich
Lower Bound
Inscribed
Perimeter < Circle
Upper Bound
Circumscribed
Perimeter > Circle
Exhausting the Error
As you increase the number of sides (\(n\)), the gap between the polygons "exhausts" itself.
Archimedes went all the way to a **96-sided polygon**.
His Result:
3 \frac{10}{71} < \pi < 3 \frac{1}{7}
Polygon Sides Estimation of \(\pi\)
Square (4) 2.82 - 4.00
Hexagon (6) 3.00 - 3.46
Octagon (8) 3.06 - 3.31
96-gon 3.1408 - 3.1428
Birth of the Limit
This was the first time in history that humans realized they could reach a perfect value by chasing it forever with straight lines.
\(n \to \infty\)
Sides go to infinity
\(P \to 2\pi r\)
Perimeter goes to Pi

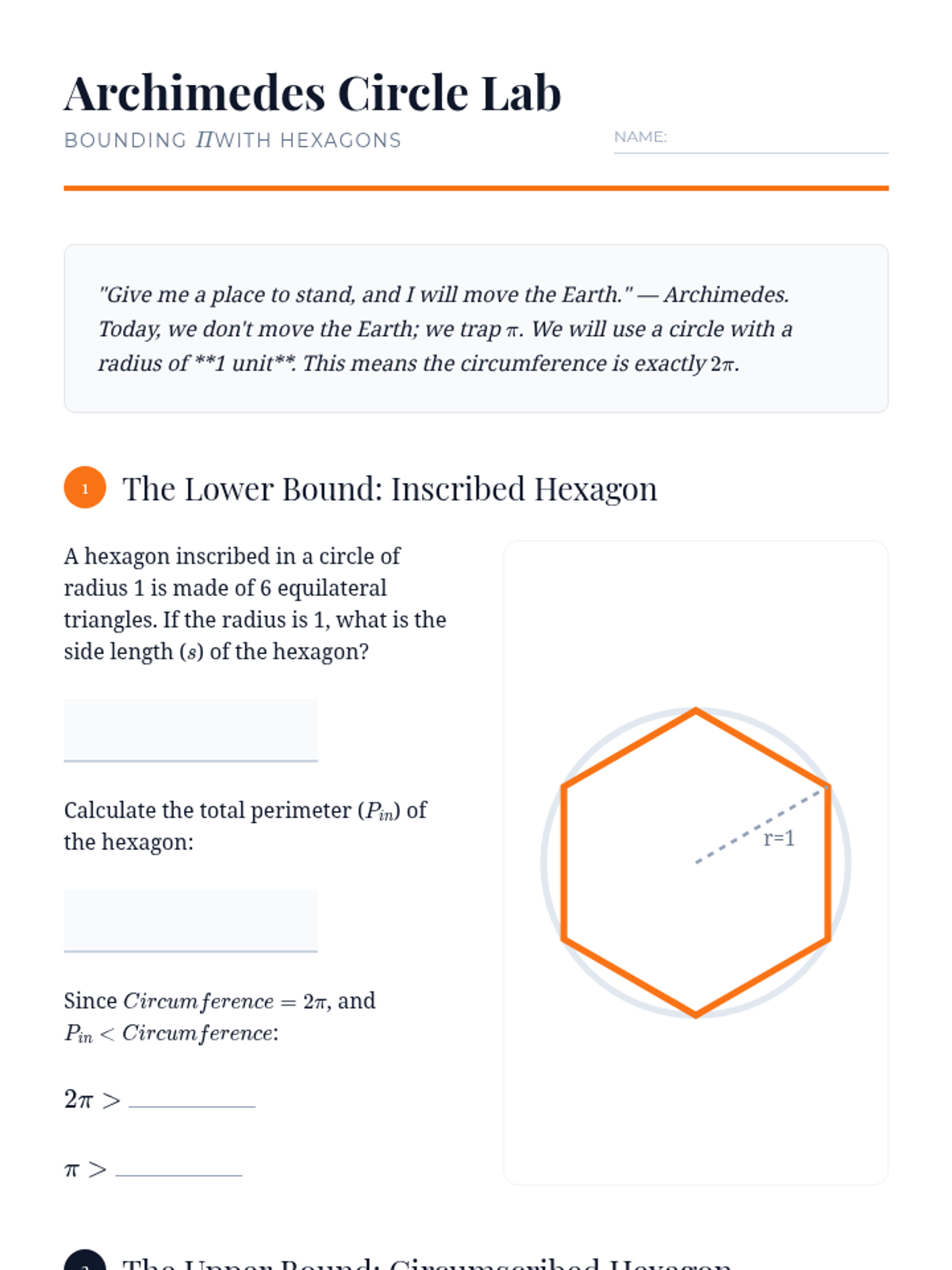

Archimedes Circle Lab Archimedes Circle Lab
Bounding \(\pi\) with Hexagons
Name:
"Give me a place to stand, and I will move the Earth." — Archimedes. Today, we don't move the Earth; we trap \(\pi\). We will use a circle with a radius of **1 unit**. This means the circumference is exactly \(2\pi\).
1 The Lower Bound: Inscribed Hexagon
A hexagon inscribed in a circle of radius 1 is made of 6 equilateral triangles. If the radius is 1, what is the side length (\(s\)) of the hexagon?
Calculate the total perimeter (\(P_{in}\)) of the hexagon:
Since \(Circumference = 2\pi\), and \(P_{in} < Circumference\):
\(2\pi >\)
\(\pi >\)
r=1
2 The Upper Bound: Circumscribed Hexagon
r=1
In a circumscribed hexagon, the **height** (apothem) of the triangle is the radius (1). The side length \(S\) is found using trigonometry: \(S = 2 \tan(30^\circ)\).
Using \(\tan(30^\circ) \approx 0.577\), calculate the side length \(S\):
Calculate the total perimeter (\(P_{out}\)):
\(2\pi <\)
\(\pi <\)
The Final Sandwich
Based on your hexagon calculations, fill in the inequality for \(\pi\):
< \(\pi\) <
Critical Thinking Question:
Archimedes doubled the sides to 12, then 24, 48, and finally 96. Why did he stop at 96? What would happen if he went to 1,000,000 sides?

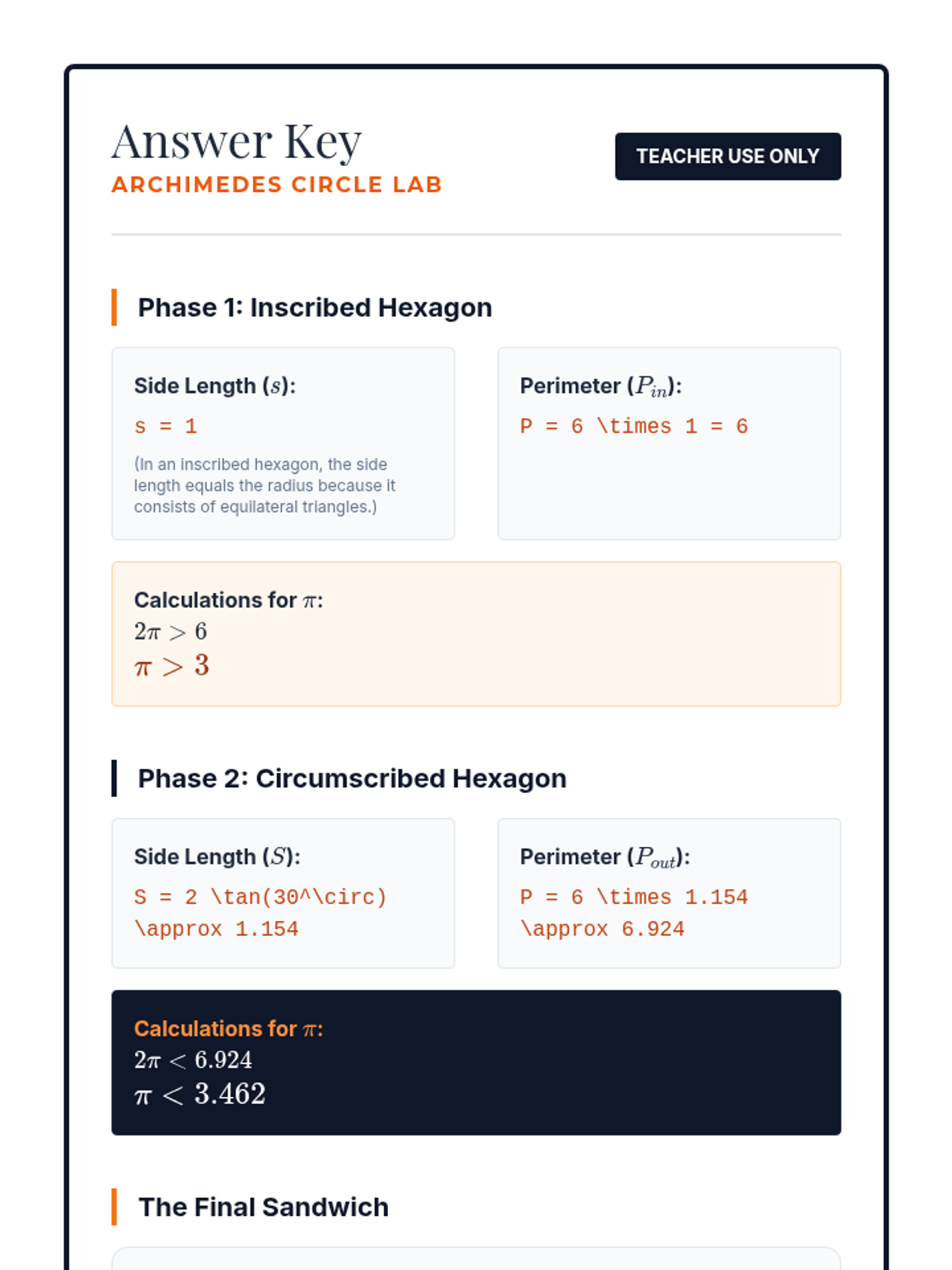

Circle Lab Solutions Answer Key
Archimedes Circle Lab
TEACHER USE ONLY
Phase 1: Inscribed Hexagon
Side Length (\(s\)):
s = 1
(In an inscribed hexagon, the side length equals the radius because it consists of equilateral triangles.)
Perimeter (\(P_{in}\)):
P = 6 \times 1 = 6
Calculations for \(\pi\):
\(2\pi > 6\)
\(\pi > 3\)
Phase 2: Circumscribed Hexagon
Side Length (\(S\)):
S = 2 \tan(30^\circ) \approx 1.154
Perimeter (\(P_{out}\)):
P = 6 \times 1.154 \approx 6.924
Calculations for \(\pi\):
\(2\pi < 6.924\)
\(\pi < 3.462\)
The Final Sandwich
3.000 < \(\pi\) < 3.462
Teacher Note on "Stopping at 96":
Archimedes stopped at 96 because the manual calculations for square roots (required to find side lengths of doubled-sided polygons) became incredibly labor-intensive. If he went to 1,000,000 sides, the polygons would be visually indistinguishable from a circle, and the gap between the upper and lower bounds would approach zero, essentially revealing \(\pi\) to many decimal places. This is the conceptual basis for the **Definite Integral** and **Limits** in Calculus.
Growth Limit Slides The Limit of Growth
Discovering Euler's Number (e)
Infinite Horizons: Lesson Three
The 100% Growth Rule
Imagine you have **$1.00** in a bank account.
The bank offers **100% interest** per year.
The Hook:
If you compound that interest more and more often, will you get infinite money?
A = P(1 + r/n)ⁿ
The Compound Interest Formula
Our Test Case
A = (1 + 1/n)ⁿ
The Compounding Race
Frequency (\(n\)) Formula Final Amount Annual (1) (1 + 1/1)¹ $2.00 Semi-Annual (2) (1 + 1/2)² $2.25 Monthly (12) (1 + 1/12)¹² $2.61 Daily (365) (1 + 1/365)³⁶⁵ $2.714... Infinite (\(\infty\)) Continuous 2.71828...
Meet \(e\)
Just like \(\pi\) is the limit of polygons, **\(e\)** is the limit of continuous growth.
!
Definition
e = 2.71828...
It is transcendental, irrational, and completely unavoidable in nature.
Radioactive decay, population growth, and the shape of hanging cables (catenaries) all rely on \(e\).
Why does it stop?
If you compound every millisecond, you don't get infinite money. Why?
Because as the **frequency** increases, the **amount added** each time gets smaller and smaller. They reach a perfect balance.
The balance point is \(e\).

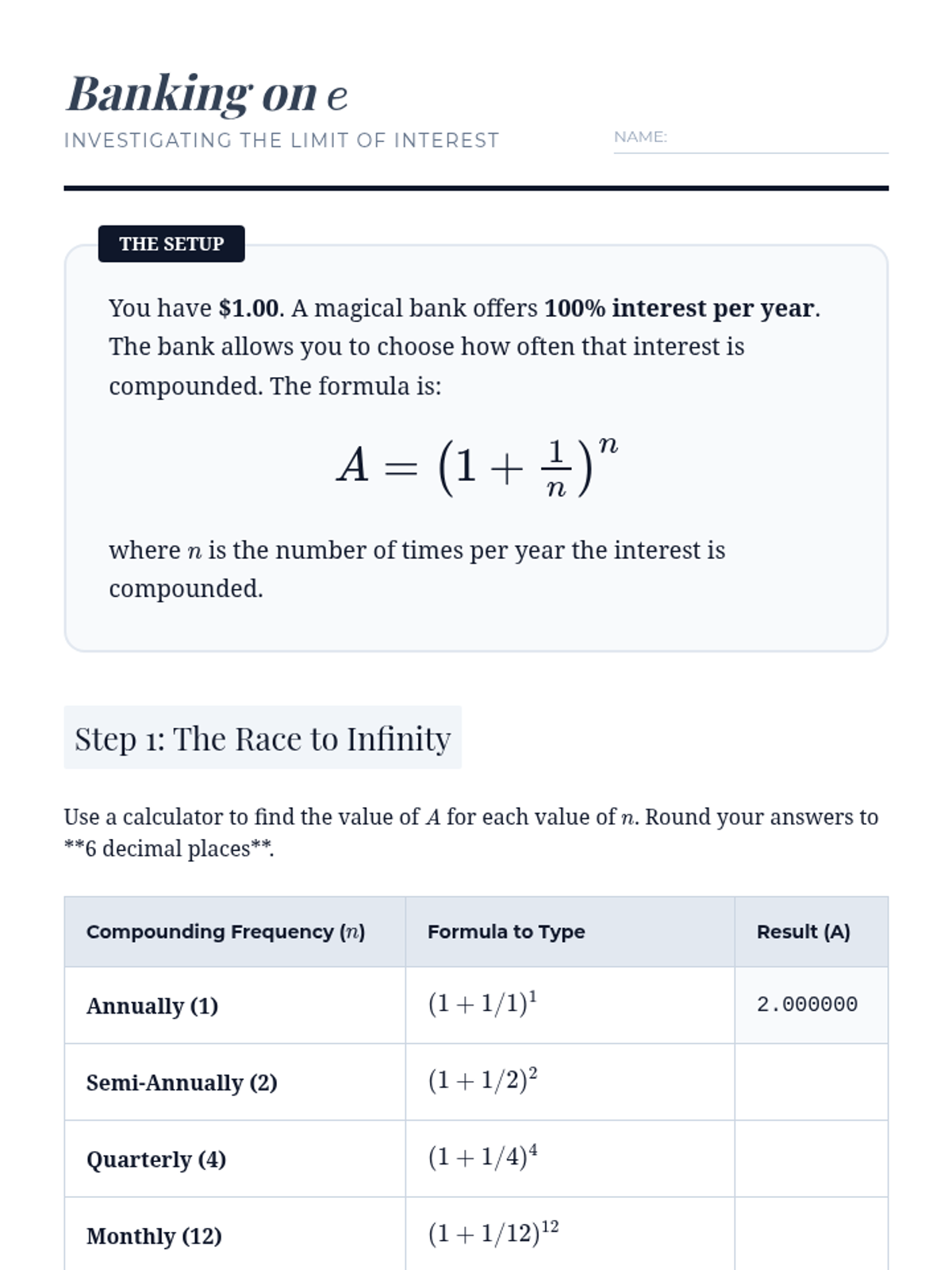

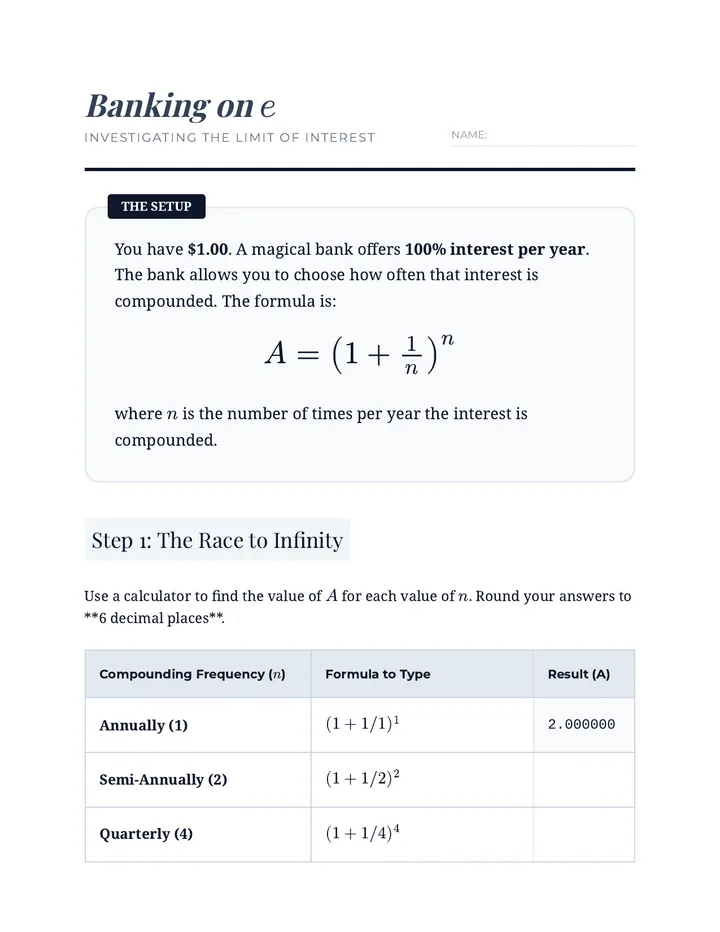

Banking on e Worksheet Banking on \(e\)
Investigating the Limit of Interest
Name:
THE SETUP
You have $1.00 . A magical bank offers 100% interest per year . The bank allows you to choose how often that interest is compounded. The formula is: \(A = \left(1 + \frac{1}{n}\right)^n\) where \(n\) is the number of times per year the interest is compounded.
Step 1: The Race to Infinity
Use a calculator to find the value of \(A\) for each value of \(n\). Round your answers to **6 decimal places**.
Compounding Frequency (\(n\)) Formula to Type Result (A) Annually (1) \( (1 + 1/1)^1 \) 2.000000 Semi-Annually (2) \( (1 + 1/2)^2 \) Quarterly (4) \( (1 + 1/4)^4 \) Monthly (12) \( (1 + 1/12)^{12} \) Daily (365) \( (1 + 1/365)^{365} \) Hourly (8,760) \( (1 + 1/8760)^{8760} \) Every Second (31,536,000) \( (1 + 1/3.15 \times 10^7)^{3.15 \times 10^7} \)
Step 2: Analysis
1. Observation: As \(n\) gets larger, does the value of \(A\) increase or decrease?
2. The Wall: Between which two frequencies did the value change the least ? Why do you think it's slowing down?
3. Definition: If we let \(n\) go to infinity, we reach the number \(e\). Look at your last two rows. What are the first five digits of \(e\) based on your data?
2 . __ __ __ __ __
Why does nature love \(e\)?
In calculus, we learn that the function \(y = e^x\) is its own derivative. This means the rate of change is exactly equal to the value of the function.
"Growth that is proportional to its current size leads directly to \(e\). It is the mathematical fingerprint of natural expansion."

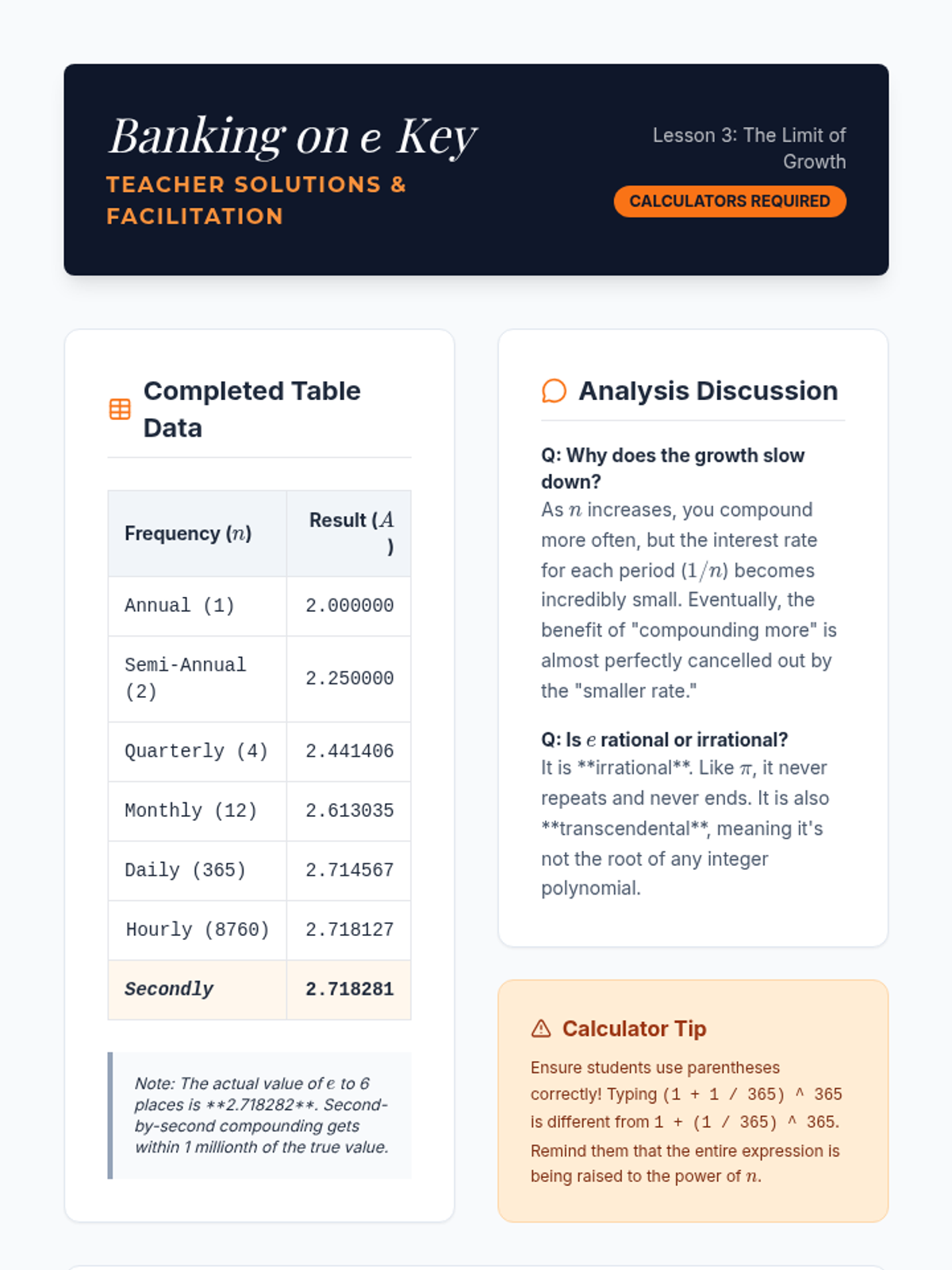

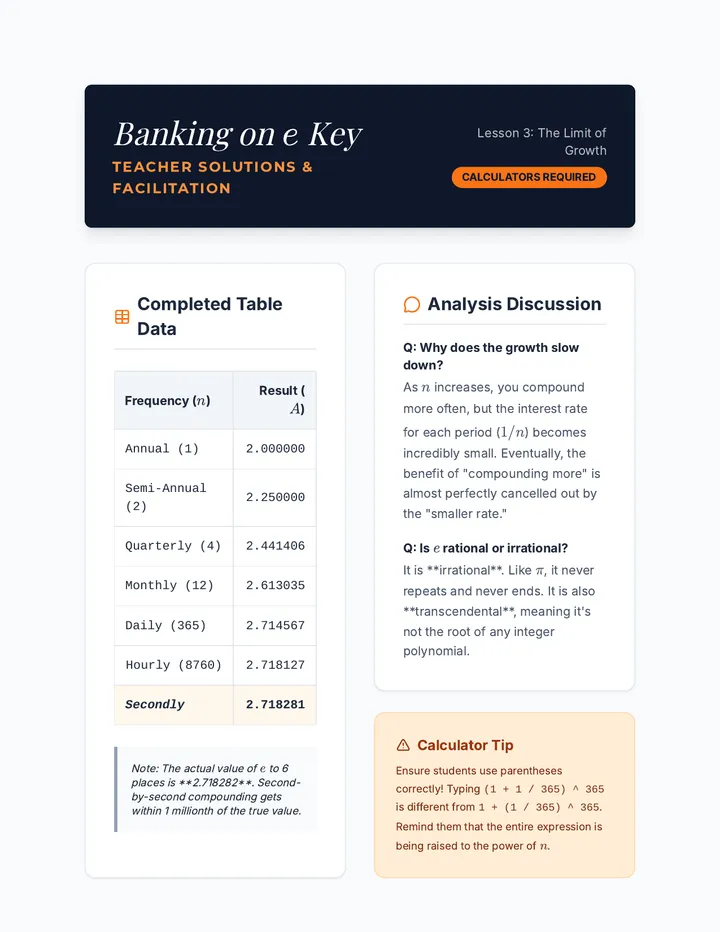

Banking on e Solutions Banking on \(e\) Key
Teacher Solutions & Facilitation
Lesson 3: The Limit of Growth
Calculators Required
Completed Table Data
Frequency (\(n\)) Result (\(A\)) Annual (1) 2.000000 Semi-Annual (2) 2.250000 Quarterly (4) 2.441406 Monthly (12) 2.613035 Daily (365) 2.714567 Hourly (8760) 2.718127 Secondly 2.718281
Note: The actual value of \(e\) to 6 places is **2.718282**. Second-by-second compounding gets within 1 millionth of the true value.
Analysis Discussion
Q: Why does the growth slow down?
As \(n\) increases, you compound more often, but the interest rate for each period (\(1/n\)) becomes incredibly small. Eventually, the benefit of "compounding more" is almost perfectly cancelled out by the "smaller rate."
Q: Is \(e\) rational or irrational?
It is **irrational**. Like \(\pi\), it never repeats and never ends. It is also **transcendental**, meaning it's not the root of any integer polynomial.
Calculator Tip
Ensure students use parentheses correctly! Typing (1 + 1 / 365) ^ 365 is different from 1 + (1 / 365) ^ 365. Remind them that the entire expression is being raised to the power of \(n\).
The "Natural" in Natural Log
Population Growth
Bacteria colonies grow proportionally to their size, following \(e^{rt}\).
Radioactive Decay
Carbon-14 dating uses \(e\) to measure the rate of atomic decay over time.
Catenary Curves
The curve of a hanging power line or a necklace is described by \(e^x + e^{-x}\).
Infinite Sum Slides Infinite Summation
Building Numbers One Fraction at a Time
Infinite Horizons: Lesson Four
The Infinite List
Can adding up an **infinite list** of rational numbers result in something irrational?
Imagine a simple list of fractions: 1, 1/3, 1/5, 1/7...
The Leibniz Discovery:
1 - 1/3 + 1/5 - 1/7 + ... = \(\frac{\pi}{4}\)
How it works
1
- 0.333
+ 0.200
- 0.142
... forever ...
What is Convergence?
Even though the sum has infinite terms, it "converges" on a specific target value.
1
Target: \(\pi\)
Why we use Series:
Computers don't draw polygons; they sum terms.
We can choose exactly how much precision we need.
Infinite sums reveal the "inner structure" of transcendental numbers.
The Factorial Factory: Building \(e\)
Euler found an incredibly fast way to calculate \(e\) using factorials:
e = 1 + \frac{1}{1!} + \frac{1}{2!} + \frac{1}{3!} + \dots
Rapid Convergence
Terms: 1 + 1 2.000
+ 1/2 2.500
+ 1/6 2.666
+ 1/24 2.708
Target \(e\) 2.718...
Summation Workshop
"Infinity is not a destination; it's a process. Today, we will master that process to unlock the values of \(\pi\) and \(e\)."
Step 1
Add Terms
Step 2
Watch it Converge
Step 3
Measure the Precision

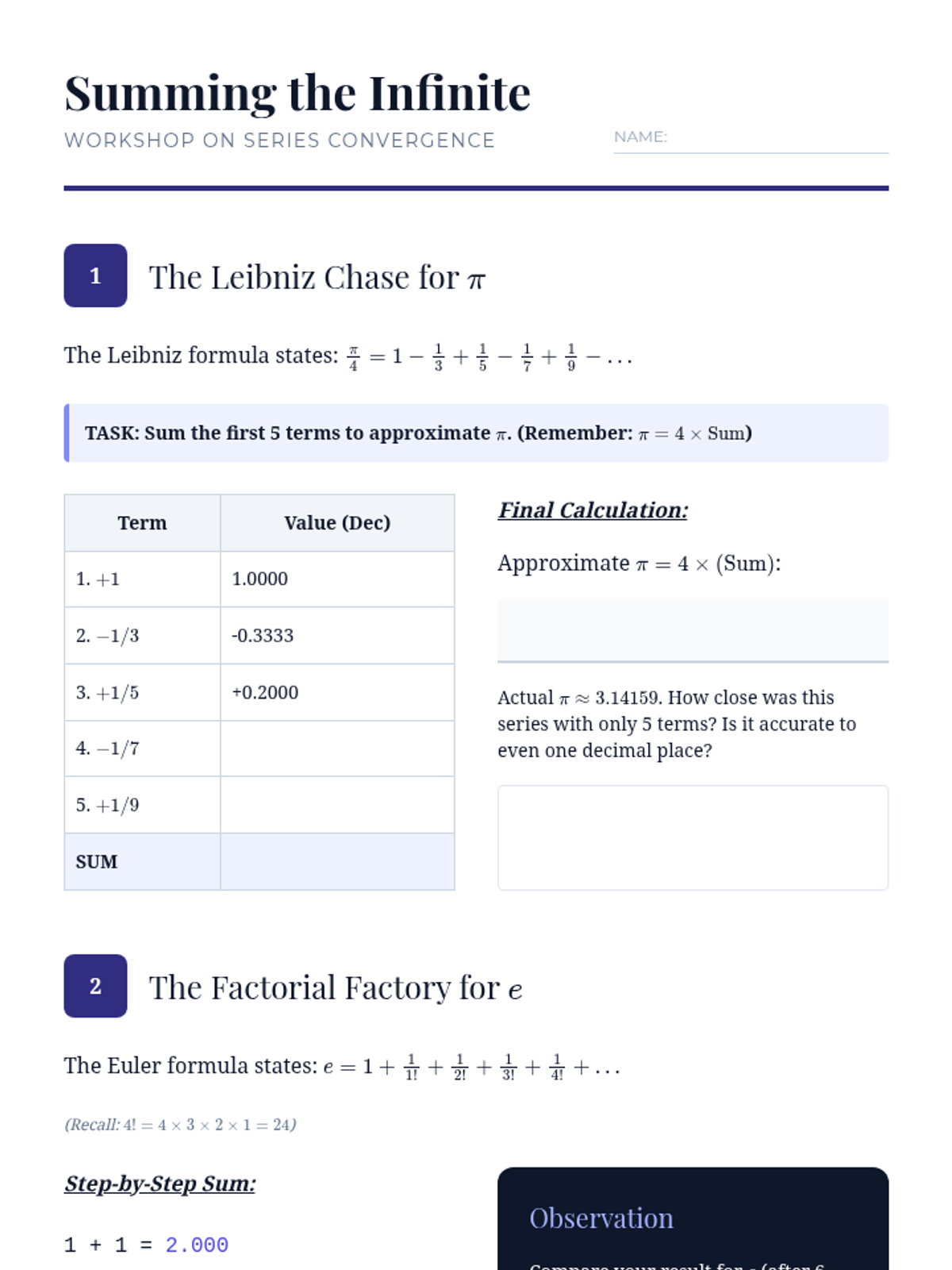

Series Convergence Worksheet Summing the Infinite
Workshop on Series Convergence
Name:
1
The Leibniz Chase for \(\pi\)
The Leibniz formula states: \(\frac{\pi}{4} = 1 - \frac{1}{3} + \frac{1}{5} - \frac{1}{7} + \frac{1}{9} - \dots\)
TASK: Sum the first 5 terms to approximate \(\pi\). (Remember: \( \pi = 4 \times \text{Sum} \))
Term Value (Dec) 1. \(+ 1\) 1.0000 2. \(- 1/3\) -0.3333 3. \(+ 1/5\) +0.2000 4. \(- 1/7\) 5. \(+ 1/9\) SUM
Final Calculation:
Approximate \(\pi = 4 \times (\text{Sum})\):
Actual \(\pi \approx 3.14159\). How close was this series with only 5 terms? Is it accurate to even one decimal place?
2
The Factorial Factory for \(e\)
The Euler formula states: \(e = 1 + \frac{1}{1!} + \frac{1}{2!} + \frac{1}{3!} + \frac{1}{4!} + \dots\)
(Recall: \(4! = 4 \times 3 \times 2 \times 1 = 24\))
Step-by-Step Sum:
1 + 1 = 2.000
2.000 + 1/2 = 2.500
2.500 + 1/6 \(\approx\)
Prev + 1/24 \(\approx\)
Prev + 1/120 \(\approx\)
Observation
Compare your result for \(e\) (after 6 terms) to the result for \(\pi\) (after 5 terms).
Which series converges faster? Why?
The Philosopher's Question:
If we could sum the Leibniz series for 1,000 years, would we ever reach exactly \(\pi\), or just a better and better approximation? Explain using the concept of a limit.

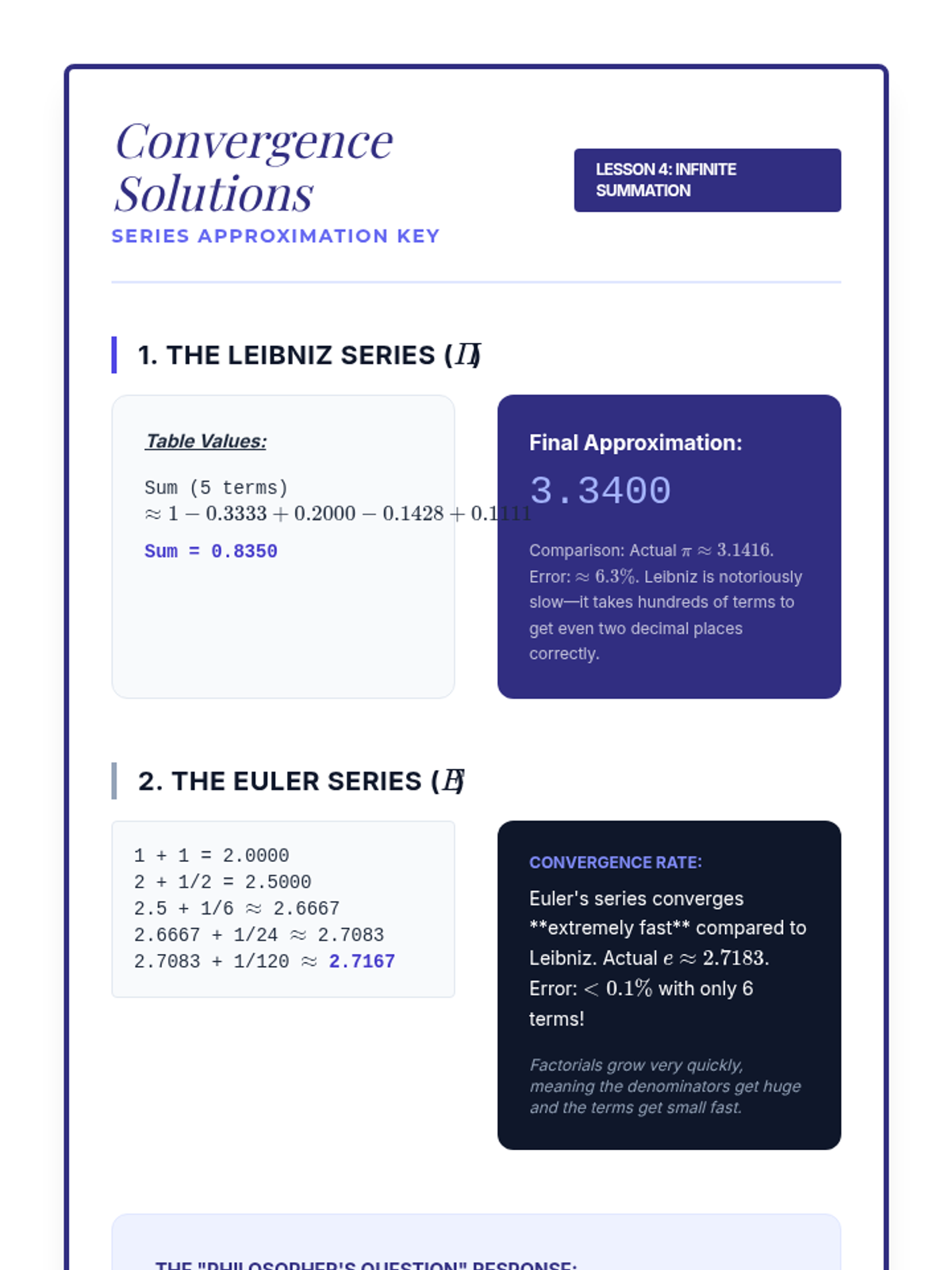

Convergence Solutions Convergence Solutions
Series Approximation Key
Lesson 4: Infinite Summation
1. The Leibniz Series (\(\pi\))
Table Values:
Sum (5 terms) \(\approx 1 - 0.3333 + 0.2000 - 0.1428 + 0.1111\)
Sum = 0.8350
Final Approximation:
3.3400
Comparison: Actual \(\pi \approx 3.1416\). Error: \(\approx 6.3\%\). Leibniz is notoriously slow—it takes hundreds of terms to get even two decimal places correctly.
2. The Euler Series (\(e\))
1 + 1 = 2.0000
2 + 1/2 = 2.5000
2.5 + 1/6 \(\approx\) 2.6667
2.6667 + 1/24 \(\approx\) 2.7083
2.7083 + 1/120 \(\approx\) 2.7167
Convergence Rate:
Euler's series converges **extremely fast** compared to Leibniz. Actual \(e \approx 2.7183\). Error: \(< 0.1\%\) with only 6 terms!
Factorials grow very quickly, meaning the denominators get huge and the terms get small fast.
The "Philosopher's Question" Response:
We would **never** reach exactly \(\pi\). Because \(\pi\) is transcendental and irrational, its decimal expansion never ends and never repeats. A finite sum of rational numbers (fractions) is always rational. An infinite sum is required to "reach" the irrational value, but in the physical world, we can only ever sum a finite number of terms. The **limit** is the theoretical destination we approach, but the individual steps never quite land on the target.
Precision Matters Slides The Precision Pursuit
How Many Digits of Pi is Enough?
Infinite Horizons: Final Lesson
Mars Rover Landing
NASA's engineers need \(\pi\) to calculate orbit trajectories and landing maneuvers.
The Voyager 1 spacecraft is about **12.5 billion miles** away.
The Big Question:
How many decimal places of \(\pi\) would you need to calculate the circumference of a circle with that radius, accurate to within the width of a human finger?
15
Digits of Pi
That's all it takes for the most precise interplanetary navigation in history.
The Error of Our Ways
Method Value Percent Error Ancient (3) 3.000... 4.507% 22/7 3.142... 0.040% 355/113 3.1415929... 0.000008% Target Precision NASA Level \(< 10^{-14}\)%
Calculating Percent Error
Precision isn't about being "perfect"—it's about knowing exactly how wrong you are.
The Formula
\(\left| \frac{\text{Actual} - \text{Approx}}{\text{Actual}} \right| \times 100\%\)
In engineering, we define "Tolerances"—the maximum allowed error before a bridge collapses or a satellite misses its mark.
Infinite Horizons
"We have seen that \(\pi\) and \(e\) are more than just numbers—they are the limits of the physical world."
Classify
Algebraic vs. Transcendental
Approximate
Polygons & Series
Analyze
Precision & Error
Time for the Final Challenge.

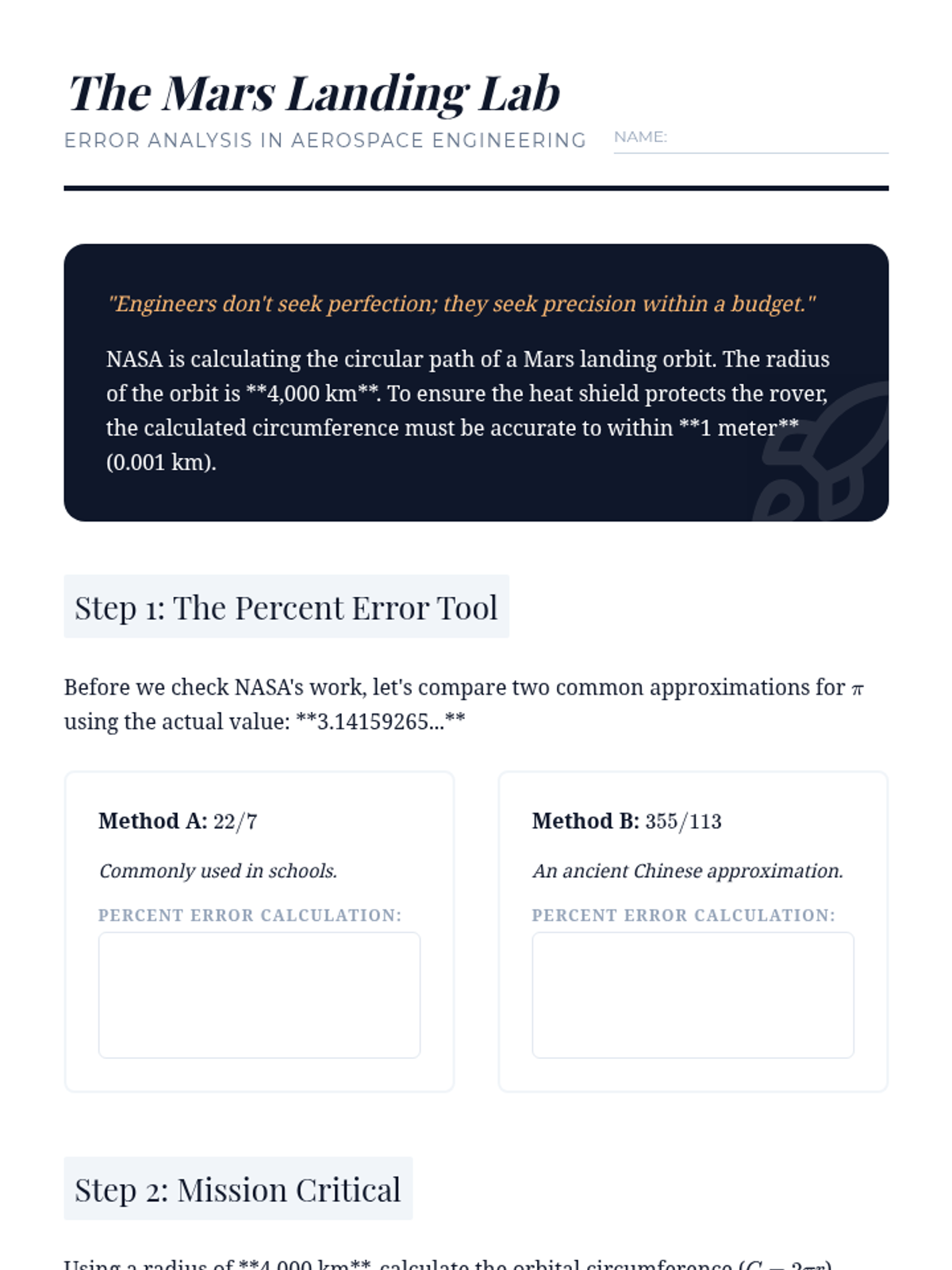

NASA Mars Landing Lab Worksheet The Mars Landing Lab
Error Analysis in Aerospace Engineering
Name:
"Engineers don't seek perfection; they seek precision within a budget."
NASA is calculating the circular path of a Mars landing orbit. The radius of the orbit is **4,000 km**. To ensure the heat shield protects the rover, the calculated circumference must be accurate to within **1 meter** (0.001 km).
Step 1: The Percent Error Tool
Before we check NASA's work, let's compare two common approximations for \(\pi\) using the actual value: **3.14159265...**
Method A: \(22/7\)
Commonly used in schools.
Percent Error Calculation:
Method B: \(355/113\)
An ancient Chinese approximation.
Percent Error Calculation:
Step 2: Mission Critical
Using a radius of **4,000 km**, calculate the orbital circumference (\(C = 2\pi r\)) using different levels of precision.
Approximation Value Used Calculated Circumference (km) Error from Actual (km) Standard 3.14 Scientific 3.14159 Actual 3.14159265 25,132.7412 0.0000
Which of the two approximations above meet NASA's requirement for being accurate within 0.001 km (1 meter)?
Final Engineering Report
Explain why a transcendental number like \(\pi\) makes engineering more complex than a rational number. If \(\pi\) were exactly 3.14, would we still need infinite series? Why or why not?
Transcendental Horizons Quiz Final Horizon Quiz
Transcendental Numbers & Approximations
Name:____________________
Score:__________ / 25
I. Classification
Circle the correct classification for each number.
1. \(\sqrt{7}\)
Rational Algebraic Irrational Transcendental
2. \(e\)
Rational Algebraic Irrational Transcendental
3. \(0.75\)
Rational Algebraic Irrational Transcendental
4. \(\pi + 1\)
Rational Algebraic Irrational Transcendental
II. Conceptual Inquiry
5. In the "Method of Exhaustion," how does the perimeter of an inscribed polygon change as you add more sides? What value does it approach?
6. Why is Euler's number \(e\) described as a "limit of growth"? (Mention the $1 bank account example).
III. Calculation & Analysis
7. Prove that \(x = \sqrt{2} - 1\) is an algebraic number by finding its polynomial equation with integer coefficients.
8. Error Analysis: If the actual value of \(\pi\) is 3.14159 and an engineer uses 3.14, what is the percent error? (Show your work).
Infinite Horizons: Mathematics of the Infinite and the Precise.
