Substitution Secrets Slides Substitution Secrets
Mastering the Art of Hidden Patterns
The Integration Illusion
Case A: Looks Easy
\[ \int \sin(x^2) \, dx \]
Can you solve this with our current tools?
Case B: Looks Hard
\[ \int \frac{x^3}{\sqrt{1-x^8}} \, dx \]
This one is actually simpler. Why?
The Secret: Recognizing the "Hidden Derivative"
The Blueprint: \( u \)-Substitution
1. Identify the 'Inside'
Look for a function \( g(x) \) whose derivative \( g'(x) \) is also present in the integrand.
2. Define \( u \) and \( du \)
Let \( u = g(x) \), then \( du = g'(x) \, dx \).
3. Rebuild and Solve
Replace all \( x \)-terms with \( u \)-terms. Integrate and substitute back.
Pro-Tip: Manipulation
Sometimes the derivative is hidden by algebra. You might need to:
Multiply by a constant
Expand or Factor
Complete the Square
Use Trig Identities
Standard Architectural Forms
Arcsine
\[ \int \frac{1}{\sqrt{1-u^2}} du \]
\( \arcsin(u) + C \)
Arctangent
\[ \int \frac{1}{1+u^2} du \]
\( \arctan(u) + C \)
Arcsecant
\[ \int \frac{1}{|u|\sqrt{u^2-1}} du \]
\( \text{arcsec}|u| + C \)
Warning: Watch for constants! Use \( u^2 = x^2/a^2 \) logic to handle denominators like \( a^2 + u^2 \).
Workshop Brief
Solving the "Impossible" Case B
\[ \int \frac{x^3}{\sqrt{1-x^8}} \, dx \]
1
Recognize that \( x^8 = (x^4)^2 \). This looks like Arcsine!
2
Let \( u = x^4 \). Then \( du = 4x^3 \, dx \).
3
We have the \( x^3 \)! We just need a factor of \( \frac{1}{4} \).
"Strategy is identifying what's missing and making it appear."
Hidden Derivative Worksheet Hidden Derivative Hunt
Advanced Substitution & Pattern Recognition
Student Name
Date / Section
Strategist's Guide
The Hunt: Look for a function \( u \) such that its derivative \( du \) (or a constant multiple) is floating elsewhere in the integral. If it's not obvious, force it with algebra.
Try \( u = \text{denominator} \) or \( u = \text{inside radical} \)
Try \( u = \text{log}(x) \) or \( u = \arctan(x) \)
Look for the structure of inverse trig forms
Level 1: The Obvious Paths
1. Evaluate:
\[ \int x^2 e^{x^3+1} \, dx \]
2. Evaluate:
\[ \int \frac{\cos(\sqrt{x})}{\sqrt{x}} \, dx \]
Level 2: Inverse Trig Blueprints
3. Evaluate (Hint: \( a^2 = 9 \)):
\[ \int \frac{1}{9 + x^2} \, dx \]
4. Evaluate:
\[ \int \frac{1}{\sqrt{4 - 25x^2}} \, dx \]
Level 3: Strategic Manipulation
In these problems, you must manipulate the integrand algebraically before the substitution becomes clear.
5. The "Numerator Split":
\[ \int \frac{x + 3}{x^2 + 1} \, dx \]
6. Completing the Square:
\[ \int \frac{1}{x^2 + 4x + 13} \, dx \]
7. The Transcendental Twist:
\[ \int \frac{1}{x \ln(x) [\ln(\ln(x))]} \, dx \]
Substitution Strategist Teacher Guide Substitution Strategist
Teacher Facilitation Guide | Lesson 1
Instructional Goal
The primary objective is to transition students from "plug-and-play" substitution to strategic pattern recognition. Students should leave this lesson viewing the integrand as a puzzle where algebraic manipulation is often the first step to revealing the solution.
Key Learning Targets
Identify \( u \) in complex transcendental functions.
Utilize algebra (splitting fractions, completing the square) to fit inverse trig forms.
Account for constant multipliers in \( du \).
Pacing Guide
00-05 min The "Impossible" Hook
05-20 min Direct Instruction (Slides)
20-45 min Tiered Workshop (Worksheet)
45-50 min Debrief & Strategy Summary
Facilitating the Hook
Present \( \int \sin(x^2) \, dx \) and give students 2 minutes to try solving it. They will likely attempt \( u = x^2 \), which yields \( du = 2x \, dx \). Ask: "Where is your \( x \)? Is it there?"
Explain that this is a Fresnel Integral and cannot be expressed in terms of elementary functions. Then present Case B: \( \int \frac{x^3}{\sqrt{1-x^8}} \, dx \). It looks harder, but we can engineer the derivative to be there.
Troubleshooting & Misconceptions
The "Missing Variable" Trap
Students often try to "pull out" variables from the integral to make \( du \) fit. Remind them: Constants can move, variables stay home.
Inverse Trig Fatigue
Students forget the \( 1/a \) factor in \( \arctan(x/a) \). Contrast this with \( \arcsin(x/a) \) which does NOT have the coefficient. (Visual mnemonic: Arcsin has the 's' for 'single' coefficient, Arctan is 'double').
Worksheet Key Highlights
Prob 5 Solution Path:
Split into \( \int \frac{x}{x^2+1} dx + \int \frac{3}{x^2+1} dx \).
Prob 6 Solution Path:
\( x^2 + 4x + 13 = (x+2)^2 + 9 \).
Parts Playbook Slides Parts Playbook
Undoing the Product Rule
The Problem with Products
Consider the integral:
\[ \int x \cos(x) \, dx \]
Attempt 1: Substitution. If \( u = x \), \( du = dx \)... we're back where we started. If \( u = \cos(x) \), \( du = -\sin(x) dx \)... even worse.
Why does this fail?
Substitution is the reverse of the Chain Rule . We need a method that reverses the Product Rule .
\( \frac{d}{dx}[uv] = u \frac{dv}{dx} + v \frac{du}{dx} \)
The Master Formula
\[ \int u \, dv = uv - \int v \, du \]
1
Choose your \( u \) (what you differentiate).
2
Choose your \( dv \) (what you integrate).
3
Differentiate \( u \) to get \( du \) . Integrate \( dv \) to get \( v \) .
4
Assemble into the formula and evaluate the remaining integral.
The LIATE Hierarchy
L
I
A
T
E
Use this order to choose your \( u \). Functions higher on the list should be \( u \).
L
Logarithmic
\( \ln(x) \)
I
Inverse Trig
\( \arctan(x) \)
A
Algebraic
\( x^2, 3x^5 \)
T
Trig
\( \sin(x), \cos(x) \)
E
Exponential
\( e^x, 2^x \)
Case Study: \( \int x \cos(x) \, dx \)
Selection (LIATE)
\( x \) is Algebraic , \( \cos(x) \) is Trig .
Therefore: \( u = x \) and \( dv = \cos(x) \, dx \)
Calculations
\( du = dx \)
\( v = \sin(x) \)
The Assembly
\( \int u \, dv = uv - \int v \, du \)
\( = x\sin(x) - \int \sin(x) \, dx \)
\( = x\sin(x) + \cos(x) + C \)

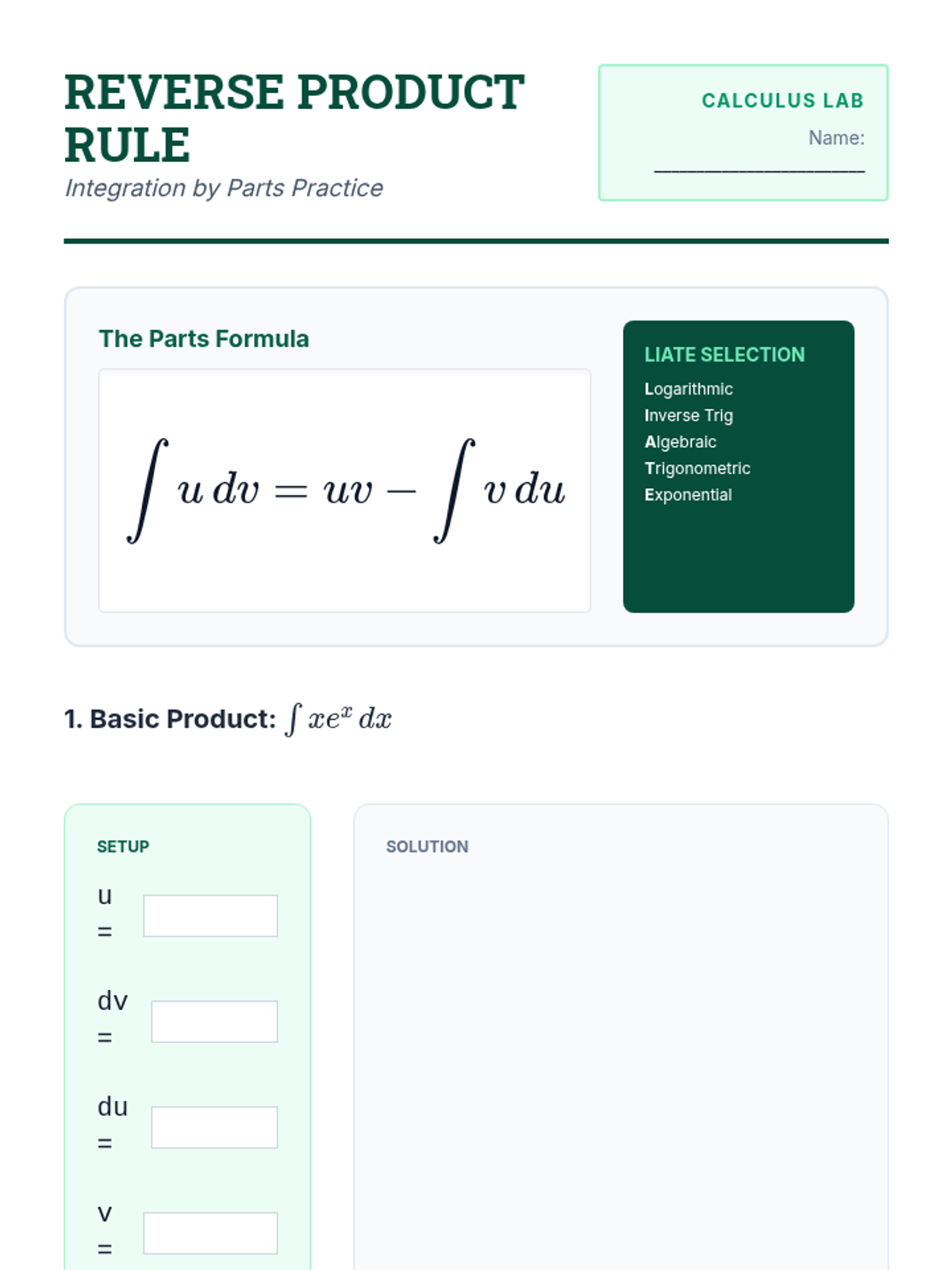

Reverse Product Worksheet Reverse Product Rule
Integration by Parts Practice
Calculus Lab
Name: _________________________
The Parts Formula
\[ \int u \, dv = uv - \int v \, du \]
LIATE Selection
L ogarithmicI nverse TrigA lgebraicT rigonometricE xponential
1. Basic Product: \( \int x e^x \, dx \)
Setup
u =
dv =
du =
v =
Solution
2. Logarithmic Selection: \( \int x^2 \ln(x) \, dx \)
Setup
u =
dv =
du =
v =
Solution
3. The Lone Function (Hint: let \( dv = dx \)): \( \int \arctan(x) \, dx \)
Setup
u =
dv =
du =
v =
Solution
Check Your Work:
"Does the derivative of my answer equal the original integrand?" Use the product rule on your result to verify.
Parts Specialist Teacher Guide Parts Specialist
Teacher Facilitation Guide | Lesson 2
Instructional Focus
Students must understand that Integration by Parts (IBP) is not just a formula, but a trade-off . We exchange a difficult integral (\( \int u \, dv \)) for a hopefully easier one (\( \int v \, du \)).
Crucial Question: "Is your new integral easier than your old one?"
LIATE Logic
LIATE is a heuristic, not a law. We choose \( u \) to be a function that "simplifies" when differentiated (like polynomials or logs) and \( dv \) to be something we know how to integrate.
Note: Some textbooks use ILATE. In 12th grade calc, they are effectively interchangeable.
Lesson Flow & Facilitation
1
The Hook (5-10 min)
Challenge them with \( \int x \cos(x) \, dx \). Let them fail with substitution first. This "need for a tool" creates buy-in for the complex formula.
2
Variable Selection (15 min)
Spend extra time on the "Setup" boxes. Many errors in IBP aren't calculus errors—they are organization errors. Emphasize the visual layout of \( u, dv, du, v \) in a 2x2 grid.
3
The "Invisible" 1 (10 min)
The most common IBP epiphany is using it for functions like \( \ln(x) \) or \( \arctan(x) \) by setting \( dv = dx \). Walk through \( \int \ln(x) dx \) together as a class.
Misconception Watch
X
Wrong \( dv \): Students forget to include \( dx \) in the \( dv \) term. Remind them: \( dv \) and \( du \) are differentials; they must have the \( dx \) or \( du \) tag.
X
Formula Flip: Students often write \( uv + \int v \, du \). Stress that IBP is a subtraction because we are moving a term from the product rule to the other side of the equation.
Problem-Specific Tips
Worksheet Problem 2:
Students often pick \( u = x^2 \) because it's simpler. But \( \int \ln(x) \) is hard! If they pick \( u = \ln(x) \), \( du = 1/x \), and the \( x^2 \) becomes \( x^3/3 \). The new integral \( \int (x^3/3)(1/x) \, dx \) is just a power rule problem.
Worksheet Problem 3:
Result is \( x \arctan(x) - \frac{1}{2} \ln(1+x^2) + C \). This requires a Substitution step for the second integral. It's a great example of technique synthesis.
Tabular Tactics Slides Tabular Tactics
Accelerating Repeated Integration
The Repeated Integration Trap
Consider the "Brute Force" Problem:
\[ \int x^4 \sin(x) \, dx \]
This would require 4 iterations of Integration by Parts. Imagine the signs, the parentheses, and the potential for error!
The Inefficiency Problem:
Repeated nested formulas
Nightmare sign tracking
Takes 10+ minutes
Is there a faster way?
The Engineering Solution
The Constraints
Works perfectly when:
\( u \) is a polynomial that eventually differentiates to 0.\( dv \) is a function that can be easily integrated repeatedly (e.g., \( \sin, \cos, e^x \)).
Column 1: Signs
Always start with (+), then alternate signs.
Column 2: Differentiations
Differentiate \( u \) until you hit zero.
Column 3: Integrations
Integrate \( dv \) the same number of times.
The Cyclic Case: "The Boomerang"
\[ \int e^x \cos(x) \, dx \]
Neither function ever differentiates to zero. They are cyclic . We integrate twice until the original integral reappears, then solve for \( I \) algebraically.
The Strategy
Set up IBP normally.
Apply IBP a second time.
Notice the integral you started with has returned.
Move the "integral term" to the other side (like \( I + I = 2I \)).
Divide by the constant.
Speedway Sprint
In 3 minutes, can you solve \( \int x^3 e^{2x} \, dx \) using the Tabular Method? Compare your speed with a peer using standard IBP.
03:00
Winner: Efficiency
✓ Accurate signs

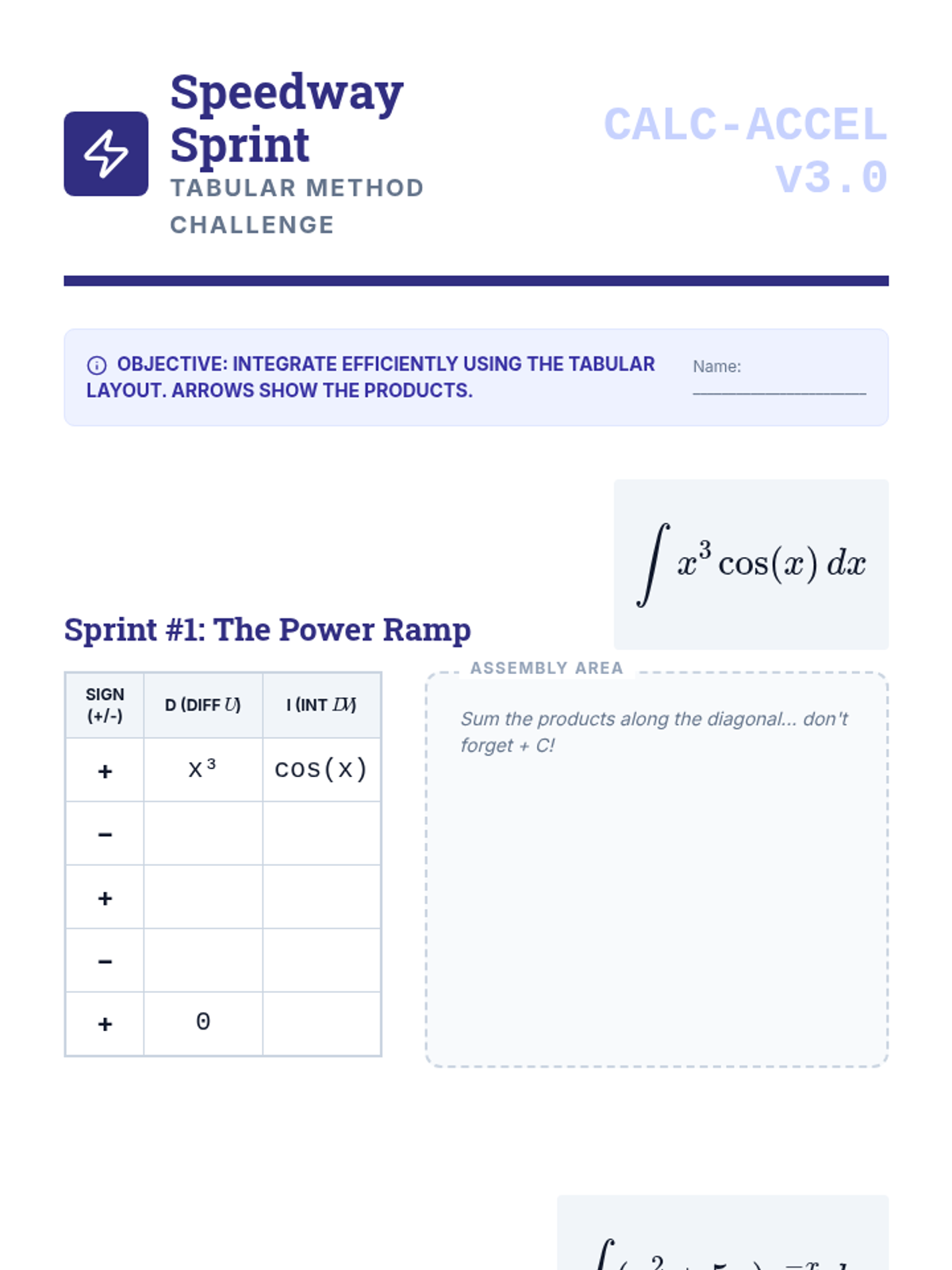

Speedway Sprint Activity Speedway Sprint
Tabular Method Challenge
CALC-ACCEL v3.0
Objective: Integrate efficiently using the tabular layout. Arrows show the products.
Name: ________________________
Sprint #1: The Power Ramp
\[ \int x^3 \cos(x) \, dx \]
Sign (+/-) D (diff \( u \)) I (int \( dv \)) + x³ cos(x) − + − + 0
Assembly Area
Sum the products along the diagonal... don't forget + C!
Sprint #2: Exponential Speed
\[ \int (x^2 + 5x) e^{-x} \, dx \]
Sign (+/-) D (diff \( u \)) I (int \( dv \)) + x² + 5x e⁻ˣ 0
Assembly Area
Sprint #3: The Boomerang (Cyclic)
Warning: This one doesn't go to zero. Use Tabular for two rows and then look for the "loop".
\[ \int e^x \sin(x) \, dx \]
Strategic Mapping
Algebraic Finish
Let \( I = \int e^x \sin(x) dx \). Solve for \( I \).
Tabular Teacher Guide Tabular Teacher
Teacher Facilitation Guide | Lesson 3
The Goal: Cognitive Offloading
Repeated Integration by Parts is notorious for "Death by a Thousand Negative Signs." The Tabular Method is not just a shortcut; it is a schema for organization . By separating the signs, the derivatives, and the integrals into distinct columns, we reduce the cognitive load and allow students to focus on the calculus rather than bookkeeping.
The Speed Race Hook
Teacher vs. Student: Choose a student who is comfortable with the Tabular Method (or pre-teach one student). Give them \( \int x^4 e^x \, dx \).
You solve it using standard IBP on the board while they use the Tabular Method. They should finish in 1 minute; you will likely take 5. This visual disparity is the ultimate buy-in.
Critical Checks
The Diagonal Rule: Products are taken on the diagonal (Row 1, Col 2 × Row 2, Col 3).The Horizontal Tail: If the table doesn't reach zero, the last horizontal product is still inside an integral sign.
Teaching the Boomerang
"Wait, it never stops!"
Students will panic when the Diff column doesn't hit zero. Explain that the goal is to see a duplicate of the original integral. When the product of a horizontal row matches the original problem, we stop and use algebra.
Row 1: (+)[e^x][sin(x)]
Pitfall Prevention
The Sign Slip
Students forget to alternate signs first . Always write (+), (-), (+), (-) before doing the math.
Chain Rule Neglect
In \( \int x^2 e^{2x} \), students forget the \( 1/2 \) when integrating \( e^{2x} \) repeatedly.
The Off-By-One
The product line starts on the first Diff row but the second Int row. Use "diagonal" visuals.
Rational Deconstruction Slides Rational Deconstruction
Mastering Partial Fraction Decomposition
The Chemical Reaction
A reaction rate is modeled by the rational function:
\[ R(t) = \frac{5t - 3}{t^2 - 2t - 3} \]
To find the total substance accumulated over time, we must integrate \( R(t) \). But how do we integrate a fraction with a quadratic denominator that doesn't fit a simple \( u \)-sub?
The Insight
In Algebra 2, you learned how to combine fractions:
In Calculus, we do the reverse . We break the complex fraction into smaller, simpler ones.
The Blueprint for Deconstruction
01
Factor
Factor the denominator completely. Linear factors are the primary goal.
02
Set Up
Assign constants \( A, B, C, \dots \) to each factor in a sum of fractions.
03
Solve
Clear fractions by multiplying by the LCD. Solve for constants using systems or strategic substitution.
\[ \frac{5x-3}{(x-3)(x+1)} = \frac{A}{x-3} + \frac{B}{x+1} \]
"Divide and Conquer"
The Repeated Factor Rule
What if the denominator is \( (x-2)^3 \)?
You must provide a partial fraction for every power of the factor from 1 up to its degree.
\[ \frac{P(x)}{(x-2)^3} = \frac{A}{x-2} + \frac{B}{(x-2)^2} + \frac{C}{(x-2)^3} \]
Critical Step:
Missing a power means the system will have no solution!
Bringing it Back to Calculus
Once decomposed, most terms become Natural Logs:
\[ \int \frac{A}{x-c} dx \]
\( A \ln|x-c| + C \)
\[ \int \frac{B}{(x-c)^n} dx \]
Use Power Rule!
\( \frac{B(x-c)^{-n+1}}{-n+1} + C \)
"Complexity is just a sum of simple parts."

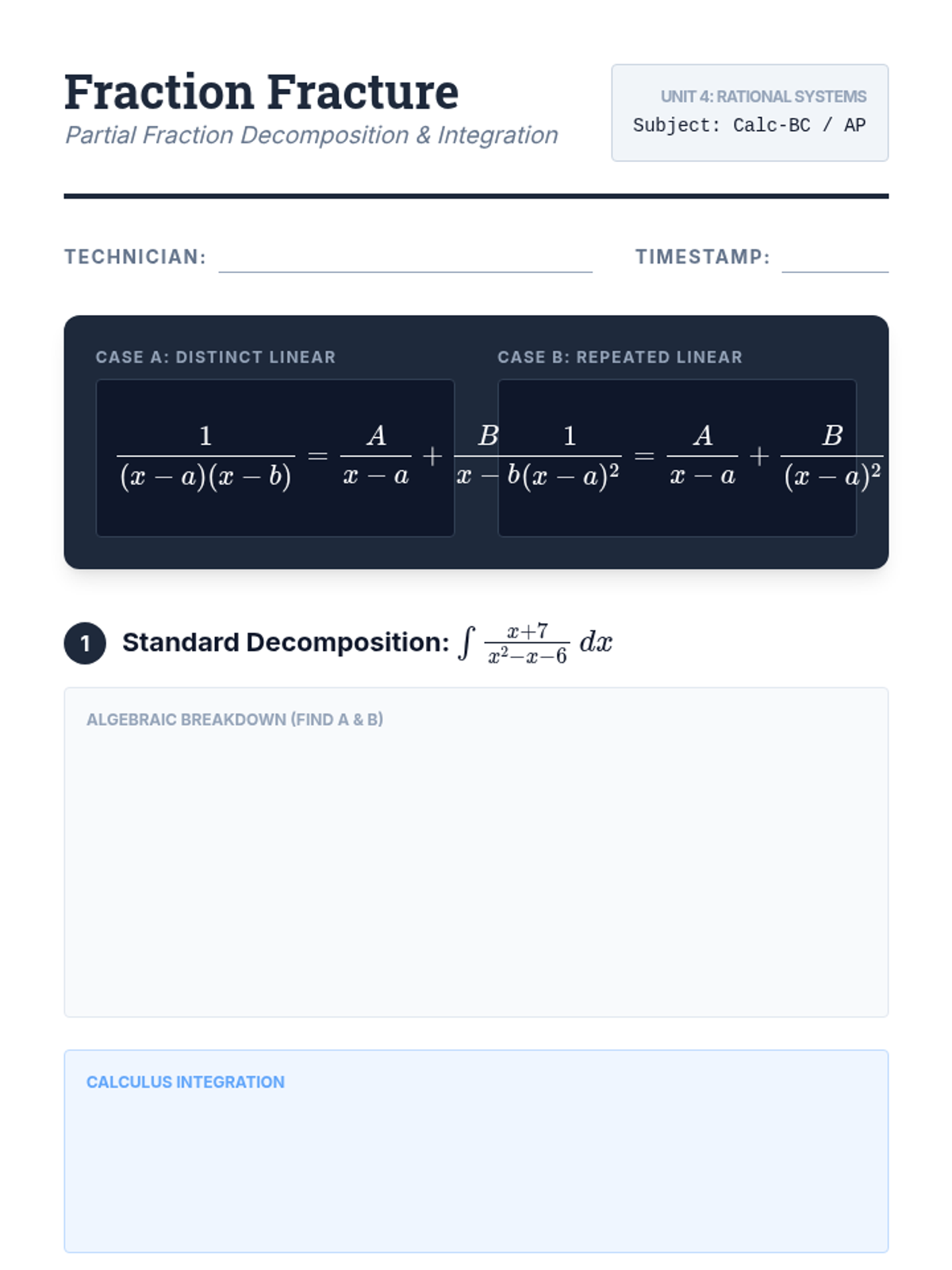

Fraction Fracture Worksheet Fraction Fracture
Partial Fraction Decomposition & Integration
Unit 4: Rational Systems
Subject: Calc-BC / AP
Technician:
Timestamp:
Case A: Distinct Linear
\[ \frac{1}{(x-a)(x-b)} = \frac{A}{x-a} + \frac{B}{x-b} \]
Case B: Repeated Linear
\[ \frac{1}{(x-a)^2} = \frac{A}{x-a} + \frac{B}{(x-a)^2} \]
1
Standard Decomposition: \( \int \frac{x+7}{x^2 - x - 6} \, dx \)
Algebraic Breakdown (Find A & B)
Calculus Integration
2
The Repeated Factor: \( \int \frac{2x}{(x-1)^2} \, dx \)
Algebraic Breakdown (Find A & B)
Calculus Integration
3
Chemical Challenge: \( \int \frac{1}{x^2 - 4} \, dx \)
Full Deconstruction and Result
Decomposition Teacher Guide Decomposition Guide
Teacher Facilitation Guide | Lesson 4
Pedagogical Shift
This lesson is 80% algebra and 20% calculus. The challenge for students is usually not the integration (which typically results in ln|u| or power rule), but the system of equations required to find the constants.
Encourage "The Heaviside Cover-Up Method" for distinct linear factors to speed up the process.
Prerequisite Check
Factoring Quadratics
Solving Systems
ln|u| Antiderivatives
Instructional Strategies
Strategy 1: "Strategic Substitution"
Once the LCD is cleared, e.g., \( 5x-3 = A(x+1) + B(x-3) \), instead of expanding, have students "kill" the variables.
Strategy 2: Addressing Repeated Factors
Emphasize the Ascending Ladder . If a factor is squared, we need a term for the 1st power and the 2nd power.
Misconception Management
The Power Rule Slip
Students will try to integrate \( \int \frac{B}{(x-1)^2} dx \) as \( B \ln|(x-1)^2| \). Remind them: Log only works for degree 1 denominators. For anything else, use \( u^{-n} \).
Factorization Fail
If students don't factor the denominator correctly at the start, the whole process collapses. Suggest a "Factor Check" before they begin the decomposition.
Worksheet Insights
Problem 1 Highlights:
\( x^2-x-6 = (x-3)(x+2) \)
\( A = 2, B = -1 \)
Result: \( 2 \ln|x-3| - \ln|x+2| + C \)
Problem 2 Highlights:
\( 2x = A(x-1) + B \)
Let \( x=1 \to B=2 \)
Equate coeffs \to \( A=2 \)
Result: \( 2 \ln|x-1| - 2(x-1)^{-1} + C \)
Integral 500 Slides Integral 500
The Mastery Challenge
The Diagnosis Phase
Up until now, your homework had a title: "Practice Integration by Parts."
In the real world (and on the AP Exam), there are no titles. There is only the problem.
The Challenge
Can you categorize a problem in under 30 seconds without putting pencil to paper?
The Goal
Develop the Decision Matrix that dictates which tool to pull from your toolbox.
The Tactical Decision Tree
1. U-SUB
Hidden Derivative?
Look for \( f(g(x))g'(x) \). Is the derivative of the "inside" present?
2. PARTS
Product / Transcendental?
Functions of different types? (Algebraic x Trig, Poly x Log). Use LIATE.
3. P.F.D.
Rational Function?
Is the denominator factorable? High-degree rational function?
4. ALGEBRA
None of the above?
Complete the square? Split the fraction? Expand? Trig identity?
Always check for a simple U-Sub first. It's the most common "hidden" path.
Sorting Session
10:00
Problem A
\[ \int \frac{\ln(x)}{x} dx \]
Sub? Parts? PFD?
Problem B
\[ \int x \ln(x) dx \]
Sub? Parts? PFD?
Problem C
TRAP!
\[ \int \frac{1}{x^2+4x+5} dx \]
Sub? Parts? Algebra?
Pro-Tip: The numerator in A is the derivative of the denominator in B... wait, no! Look closer!
Ready?
Your objective is the Integral 500 Dashboard.Step 1: Identify the method for all 10 problems.Step 2: Solve with precision.
Accuracy First
Speed kills if the strategy is wrong.
Mastery
Verify with derivatives.

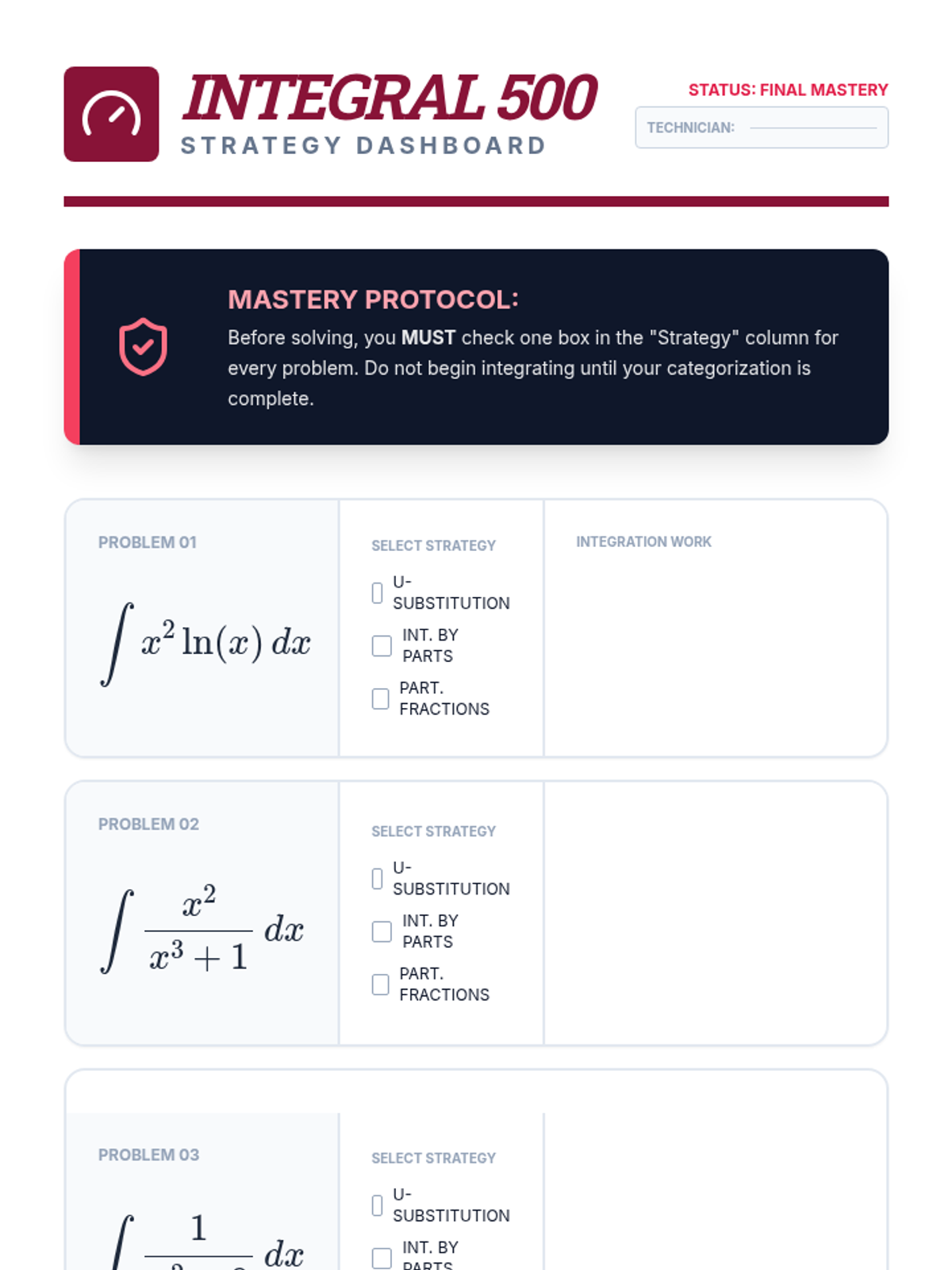

Strategy Decision Worksheet Integral 500
Strategy Dashboard
Status: Final Mastery
Technician:
Mastery Protocol:
Before solving, you MUST check one box in the "Strategy" column for every problem. Do not begin integrating until your categorization is complete.
Problem 01
\[ \int x^2 \ln(x) \, dx \]
Select Strategy
U-Substitution
Int. By Parts
Part. Fractions
Integration Work
Problem 02
\[ \int \frac{x^2}{x^3 + 1} \, dx \]
Select Strategy
U-Substitution
Int. By Parts
Part. Fractions
Problem 03
\[ \int \frac{1}{x^2 - 9} \, dx \]
Select Strategy
U-Substitution
Int. By Parts
Part. Fractions
Problem 04
\[ \int \frac{1}{x^2 + 9} \, dx \]
Select Strategy
U-Substitution
Arctan (Algebra)
Part. Fractions
Problem 05
\[ \int e^x \sin(x) \, dx \]
Select Strategy
U-Substitution
Int. By Parts
Part. Fractions
Master Integrator Teacher Guide Master Integrator
Teacher Facilitation Guide | Lesson 5
The Culmination: Strategy Over Speed
The ultimate goal of this lesson is to move students away from "rote algorithm" following and toward "diagnostic analysis." In this mixed practice session, the student must act as a doctor: diagnose the structure of the integrand before prescribing a solution method.
Collaborative Challenge
Organize students into "Pit Crews" (groups of 3). Their goal is to correctly categorize all 10 integrals on the dashboard within 10 minutes.
If a group gets one wrong, they must restart the categorization for that specific problem. Only after you (the Chief Steward) approve their "Strategy" column can they begin the "Integration Work."
Quality Control
The Sub-Check: 40% of errors in mixed practice come from overcomplicating a problem that could be solved with simple U-Sub.The Algebra Wall: Remind students to factor or simplify before deciding. A rational function might not need PFD if it's just a U-Sub in disguise.
Dashboard Strategy Key
Prob 1: Integration by Parts (Algebraic x Logarithmic)
Prob 2: U-Substitution (Numerator is derivative of denom)
Prob 3: Partial Fraction Decomposition (Distinct Linear)
Prob 4: Algebra / Arctan (No variable in numerator!)
Prob 5: Repeated IBP / Boomerang (Cyclic functions)
Expansion & Troubleshooting
For Struggling Students
Focus on "Pairs of Patterns." Ask: "Do you see a derivative buddy?" (Sub) or "Are these two different worlds?" (Parts). Use the color-coded Decision Tree from the slides as a desk reference.
For Advanced Students
Give them the "Impossible Integrals" (like \( \sin(x^2) \)) and ask them to prove why our current methods fail based on the Decision Tree.
"Integration is an art form of recognition; once the pattern is seen, the math is just gravity."
