Sphere Blueprint Slides BLUEPRINT OF A SPHERE
Deriving Volume through Geometry
A Legend Carved in Stone
Archimedes (287–212 BC) considered his greatest achievement to be finding the volume of a sphere.
"The volume of a sphere is exactly 2/3 the volume of its circumscribing cylinder."
He was so proud, he requested this diagram be carved onto his tombstone.
Sphere vs Cylinder
The Geometric Cast
To find the volume of a sphere, we compare it to two shapes we already know:
Cylinder
\( V = \pi r^2 h \)
Cone
\( V = \frac{1}{3}\pi r^2 h \)
Hemisphere
\( V = ? \)
Constraint: Height of all objects = Radius of the Sphere
The Cavalry's Principle
Imagine slicing a cylinder, a cone, and a hemisphere at the same height.
The Cylinder slice is a full circle.
The Cone slice is a smaller circle.
The Hemisphere slice is the remainder!
Key Relationship:
Volume of Hemisphere = Volume of Cylinder - Volume of Cone
Let's do the math:
\( V_{hemi} = \pi r^2(r) - \frac{1}{3}\pi r^2(r) \)
\( V_{hemi} = \pi r^3 - \frac{1}{3}\pi r^3 \)
\( V_{hemi} = \frac{2}{3}\pi r^3 \)
From Half to Whole
\( \frac{2}{3}\pi r^3 \)
\( \frac{2}{3}\pi r^3 \)
Final Formula
\( V = \frac{4}{3}\pi r^3 \)
Note: \( r \) is the radius. The formula is cubic because we are measuring 3D space.
Sphere Blueprint Teacher Guide Teacher Facilitation Guide
Lesson 1: Blueprint of a Sphere (Derivation)
Geometry: Volume
OBJECTIVE
Students will understand the conceptual origin of the sphere volume formula \( V = \frac{4}{3}\pi r^3 \) by comparing volumes of related solids (cones and cylinders) using a conceptual application of Cavalieri’s Principle.
THE BIG IDEA
The "4/3" isn't a magic number. It comes from the fact that a hemisphere is the "space left over" in a cylinder after a cone is removed. This builds spatial intuition before students start plugging numbers into a formula.
Materials Needed
Sphere Blueprint Slides
Discovery Sketchpad (Worksheet)
Optional: A clear cylinder, cone, and hemisphere of the same radius/height for water demo.
Lesson Flow
00-05 MIN
The Hook: Archimedes' Tombstone
Present Slide 2. Discuss why someone would want a math problem on their grave. Archimedes saw the beauty in the 2:3 ratio between sphere and cylinder.
05-20 MIN
Visual Derivation (Guided Practice)
Walk through Slides 3-4. If possible, perform a water demo: Fill the cone, pour it into the cylinder. Note the space left. Show that the hemisphere fits in that space exactly. Use the "Discovery Sketchpad" to have students record these relationships.
20-35 MIN
Algebraic Assembly
Transition from visual to algebraic. Help students derive \( \pi r^3 - \frac{1}{3}\pi r^3 = \frac{2}{3}\pi r^3 \). Ask: "If a half-sphere is 2/3, what is a whole sphere?"
35-45 MIN
Synthesis & Check
Students complete the "Blueprint Summary" section of their worksheet, explaining the formula in their own words.
Discussion Prompts
Check for Understanding
"If we didn't have the 4/3, and the formula was just \( V = \pi r^3 \), what shape would that look like compared to our sphere?"
Extension Thinker
"Why does the radius have an exponent of 3? What would happen if it were 2?"
Blueprint Guide: Part 2
Common Misconceptions
Confusing Height and Radius: In these comparisons, the height of the cone/cylinder MUST equal the radius of the sphere. Remind students that spheres are as "tall" as their diameter, so a hemisphere is as tall as its radius.
Fractional Errors: Many students struggle with \( 1 - 1/3 = 2/3 \). Visualize it as a pizza or pie if needed.
Discovery Sketchpad Key
Step 1: Cylinder Volume \( = \pi r^2 h = \pi r^3 \)
Step 2: Cone Volume \( = \frac{1}{3}\pi r^2 h = \frac{1}{3}\pi r^3 \)
Step 3: Difference \( = \pi r^3 - \frac{1}{3}\pi r^3 = \frac{2}{3}\pi r^3 \)
Step 4: Sphere \( = 2 \times \text{Hemisphere} = \frac{4}{3}\pi r^3 \)
Mastery Check
At the end of the lesson, students should be able to answer:
"If a cylinder and a cone have the same radius and height, what fraction of the cylinder's volume is left over after removing the cone?"
Answer: 2/3 (which is exactly one hemisphere!)
Sphere Discovery Sketchpad DISCOVERY SKETCHPAD
Project: The Volume of a Sphere
NAME:
DATE:
THE CYLINDER
Height (h) is equal to Radius (r)
Sketch cylinder here
\( V_{cyl} = \pi r^2 (r) = \) _______
THE CONE
Height (h) is equal to Radius (r)
Sketch cone here
\( V_{cone} = \frac{1}{3}\pi r^2 (r) = \) _______
THE HEMISPHERE
Radius is (r)
Sketch half-sphere here
\( V_{hemi} = \) ?
STEP 1: FINDING THE DIFFERENCE
According to our demonstration, the volume of the hemisphere is the volume of the cylinder minus the volume of the cone .
Cylinder
\( \pi r^3 \)
\( - \)
Cone
\( \frac{1}{3}\pi r^3 \)
\( = \)
Hemisphere
________
Explain in words: Why did we subtract them?
STEP 2: ASSEMBLING THE FULL SPHERE
A full sphere is composed of two hemispheres joined together.
\( 2 \times (\text{Hemisphere Volume}) \)
\( 2 \times ( \text{_________} ) \)
Final Blueprint Formula
V = _______
Precision Sphere Slides PRECISION SPHERES
Mastering the Volume Formula
Anatomy of the Formula
\( V = \frac{4}{3} \pi r^3 \)
The Multiplier
The Dimension (3D)
The Constant
Watch the Power: The radius is cubed (\( r^3 \)), not squared. This is the most common error!
Radius vs Diameter: Always check if you are given \( r \) or \( d \). If given \( d \), divide by 2 first.
The Pi Problem
In Geometry, we communicate answers in two specific ways:
Exact Answers
"In terms of Pi"
\( 36\pi \text{ cm}^3 \)
Perfect for blueprints and advanced math. No rounding needed!
Approximations
"Decimal Rounding"
\( \approx 113.10 \text{ cm}^3 \)
Uses \( \pi \approx 3.14 \). Essential for real-world manufacturing.
Example: The Silver Ball
r = 6 cm
Radius = 6 cm
1
Write the formula
\( V = \frac{4}{3} \pi r^3 \)
2
Substitute
\( V = \frac{4}{3} \pi (6)^3 \)
3
Cube the radius
\( V = \frac{4}{3} \pi (216) \)
4
Multiply & Solve
\( V = 288 \pi \text{ cm}^3 \)
The Scaling Paradox
If you double the radius of a water balloon, what happens to the volume of water it holds?
It Doubles?
It Triples?
It Octuples (x8)!
Because \( 2^3 = 8 \). Small changes in radius lead to HUGE changes in volume.
Precision Sphere Workshop Precision Workshop
Mastering the Volume of a Sphere
OPERATIVE:
SECTOR:
Standard Formula
\( V = \frac{4}{3} \pi r^3 \)
Cube Reference
\( 1^3=1, 2^3=8, 3^3=27, 4^3=64, 5^3=125, 6^3=216 \)
LEVEL 1: DIRECT CALCULATIONS
PROB-01 Radius Provided
Calculate the volume of a sphere with a radius of 3 cm .
WORK AREA
EXACT (IN TERMS OF PI)
APPROX. (3.14)
PROB-02 Diameter Warning
Calculate the volume of a sphere with a diameter of 10 in .
WORK AREA
EXACT (IN TERMS OF PI)
APPROX. (3.14)
LEVEL 2: INDUSTRIAL APPLICATIONS
d = 12 cm
"The Shot Put Ball"
A solid steel shot put ball has a diameter of 12 cm . Steel weighs approximately 7.8 grams per cubic centimeter.
1. First, find the exact volume of the sphere.
1. VOLUME (cm³)
2. MASS (g)
Step-by-Step Logic
LEVEL 3: INVERSE CHALLENGE
"Working Backwards"
A sphere has a volume of \( 288\pi \text{ cubic inches} \) . Use your algebra skills to find the radius of this sphere.
\( 288\pi = \frac{4}{3} \pi r^3 \)
Hint: Divide both sides by \( \pi \) first!
Calculations
FINAL RADIUS:
inches
MASTER'S REFLECTION
1. Why is the radius cubed instead of squared?
2. What happens to volume if radius is tripled?
Blueprint ID: GEOM-V-SPH-02 | Required Precision: 0.01

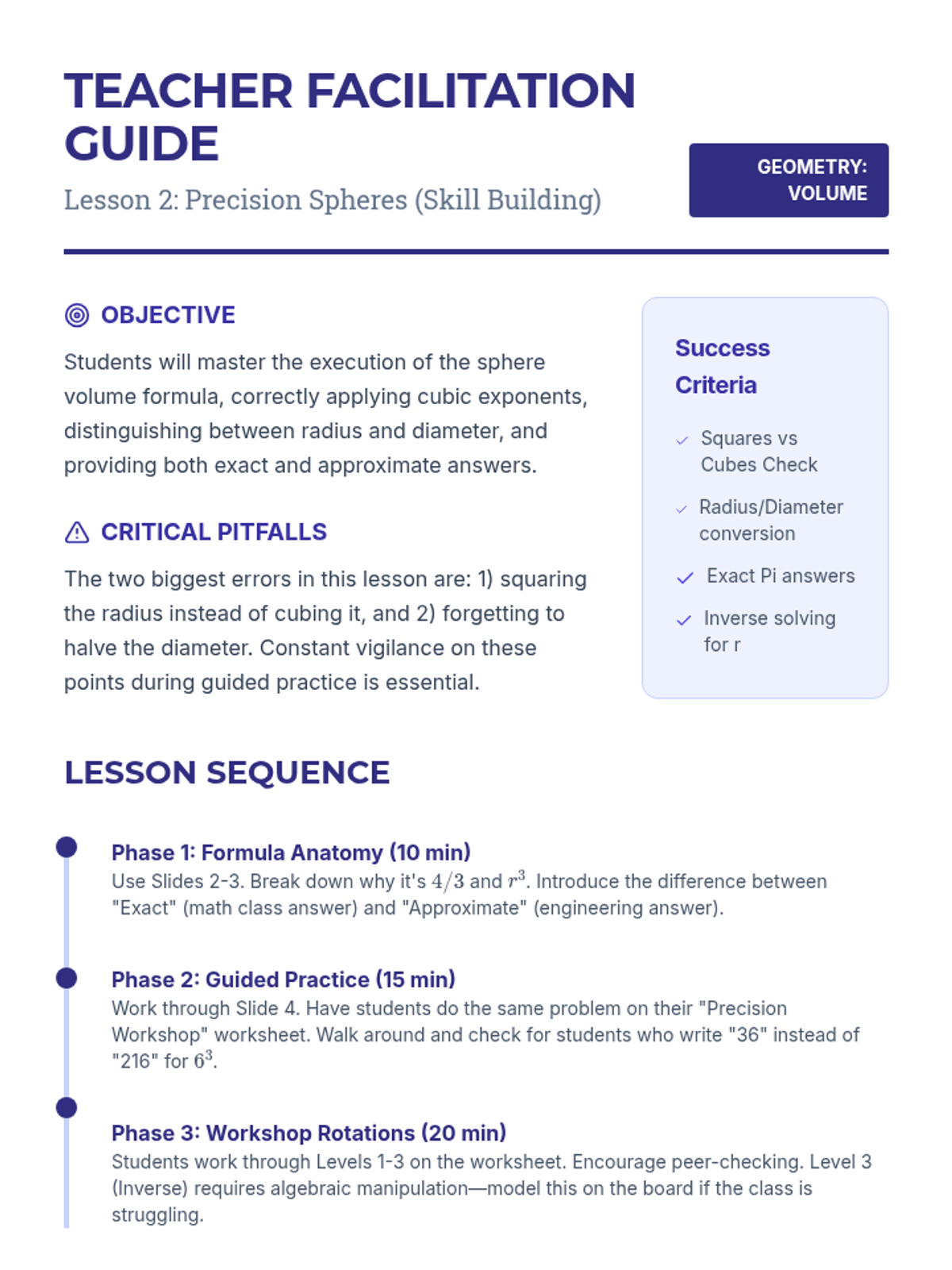

Precision Sphere Teacher Guide Teacher Facilitation Guide
Lesson 2: Precision Spheres (Skill Building)
Geometry: Volume
OBJECTIVE
Students will master the execution of the sphere volume formula, correctly applying cubic exponents, distinguishing between radius and diameter, and providing both exact and approximate answers.
CRITICAL PITFALLS
The two biggest errors in this lesson are: 1) squaring the radius instead of cubing it, and 2) forgetting to halve the diameter. Constant vigilance on these points during guided practice is essential.
Success Criteria
Squares vs Cubes Check
Radius/Diameter conversion
Exact Pi answers
Inverse solving for r
Lesson Sequence
Phase 1: Formula Anatomy (10 min)
Use Slides 2-3. Break down why it's \( 4/3 \) and \( r^3 \). Introduce the difference between "Exact" (math class answer) and "Approximate" (engineering answer).
Phase 2: Guided Practice (15 min)
Work through Slide 4. Have students do the same problem on their "Precision Workshop" worksheet. Walk around and check for students who write "36" instead of "216" for \( 6^3 \).
Phase 3: Workshop Rotations (20 min)
Students work through Levels 1-3 on the worksheet. Encourage peer-checking. Level 3 (Inverse) requires algebraic manipulation—model this on the board if the class is struggling.
Facilitator's Key
PROB-01 (r=3)
\( V = 36\pi \)
\( \approx 113.04 \)
PROB-02 (d=10)
\( r=5 \rightarrow V = \frac{500}{3}\pi \)
\( \approx 523.33 \)
Inverse (V=288pi)
\( 288 = \frac{4}{3}r^3 \)
\( 216 = r^3 \rightarrow r=6 \)
Capsule Composite Slides CAPSULES & COMPOSITES
Building Volumes with Logic
Cutting the Sphere in Half
r
The Hemisphere Formula
Simply take half of the sphere volume:
\( V = \frac{1}{2} (\frac{4}{3} \pi r^3) = \frac{2}{3} \pi r^3 \)
Watch Out: Don't forget the radius is still cubed!
The "Add-Subtract" Strategy
Composite solids are just puzzles. To solve them:
1
Deconstruct
Identify the basic shapes (cylinders, spheres, cones) hiding inside.
2
Calculate
Find the volume of each part separately using its specific formula.
3
Combine
Add (for external parts) or Subtract (for hollow parts) to get the total.
Case Study: Medical Capsules
Cylinder + 2 Hemispheres
The Logic:
2 Hemispheres = 1 Full Sphere
Total Volume = Sphere + Cylinder
"Why calculate the ends twice when they make one perfect sphere?"
Industrial Geometry
Propane tanks and industrial silos use domed ends (hemispheres) because they distribute pressure more evenly than flat ends.
Safety Fact
Spherical shapes have no "corners" for pressure to build up and cause a rupture.
Math Fact
Calculating the volume accurately ensures the tank isn't overfilled, preventing explosions.
Capsule Calc Workshop CAPSULE CALCULATOR
Composite Volume Lab
TECHNICIAN:
ID CODE:
Hemisphere
\( V = \frac{2}{3}\pi r^3 \)
Cylinder
\( V = \pi r^2 h \)
Total Sphere
\( V = \frac{4}{3}\pi r^3 \)
Task 1: The Half-Dome
r = 9 in
Calculate the volume of this hemisphere. Give your answer in exact form .
Work Area
Final Volume:
\( \pi \text{ in}^3 \)
Task 2: Pharmaceutical Precision
A gel capsule has a cylindrical center with a length of 10 mm and a radius of 2 mm . It has two hemispherical ends with the same radius.
"Pro-Tip: Combine the two hemispheres into one full sphere first!"
Volume of Sphere Part:
Volume of Cylinder Part:
Blueprint Sketch
TOTAL VOLUME:
\( \pi \text{ mm}^3 \)
Task 3: The Hollow Shell
Rubber Ball Shell
A hollow rubber ball has an outer radius of 6 cm and an inner radius of 4 cm . How much rubber material is used in the ball?
STRATEGY BOX
Total Material = (Volume of Outer Sphere) - (Volume of Inner Sphere)
Calculations
RUBBER VOLUME:
_______ \( \pi \text{ cm}^3 \)
Capsule Composite Teacher Guide Teacher Facilitation Guide
Lesson 3: Capsules and Composites (Application)
Geometry: Volume
OBJECTIVE
Students will decompose composite solids into their basic geometric components, calculate volumes using multiple formulas, and combine them (addition/subtraction) to find total volumes of complex shapes like capsules and hollow shells.
COGNITIVE LOAD
This lesson shifts from calculation to logic . The math isn't necessarily harder, but the organization of multiple steps is the challenge. Remind students: "Slow is smooth, and smooth is fast."
The Toolkit
Capsule Slides
Capsule Calc Worksheet
Formula Reference Sheet
Flow of Logic
1
Half-Sphere Hook (10 min)
Present Slide 2. Establish the Hemisphere formula. Ask: "If you have a bowl and a lid that are both hemispheres, what do you have?" (A sphere). This sets the stage for task 2.
2
The Deconstruct Strategy (15 min)
Model Slide 4 (The Capsule). Explicitly show how to draw vertical lines to "cut" the shape. Model the organization: Label parts as \( V_1 \) and \( V_2 \). Don't calculate yet; just set up the equation.
3
The Hollow Challenge (15 min)
Shift to subtraction. Use a tennis ball analogy (the fuzzy part is a shell, the air inside is the empty part). Model Task 3 from the worksheet before students start.
DETAILED ANSWER KEY
Task 1: Half-Dome
\( r=9 \)
\( V = \frac{2}{3} \pi (9^3) = \frac{2}{3} \pi (729) \)
\( V = 486\pi \text{ in}^3 \)
Task 2: Capsule
\( r=2, h=10 \)
\( V_{cyl} = \pi(2^2)(10) = 40\pi \)
\( V_{sph} = \frac{4}{3}\pi(2^3) = \frac{32}{3}\pi \)
\( V_{tot} = 50.67\pi \text{ mm}^3 \)
Task 3: Shell
\( R=6, r=4 \)
\( V_{out} = \frac{4}{3}\pi(216) = 288\pi \)
\( V_{in} = \frac{4}{3}\pi(64) = 85.33\pi \)
\( V = 202.67\pi \text{ cm}^3 \)
Cosmic Capacity Slides COSMIC CAPACITY
Geometrical Scales of the Universe
The Scale of Giants
The Earth has a radius of roughly 6,371 km.
Jupiter has a radius of roughly 69,911 km.
The Question:
"How many Earths could fit inside Jupiter?"
Jupiter
Handling Massive Numbers
When calculating planetary volumes, standard numbers are too messy. We use Scientific Notation .
The Power of 10
Volume of Earth in \( km^3 \):
\( 1.08 \times 10^{12} \)
That's 1,080,000,000,000 \( km^3 \) !
The Rule of Cubing
When you cube a power of 10, you multiply the exponent by 3.
\( (10^k)^3 = 10^{3k} \)
Step-by-Step: Lunar Volume
Moon Stats:
Radius \( \approx 1.7 \times 10^3 \text{ km} \)
1. Formula: \( V = \frac{4}{3} \pi r^3 \)
2. Substitute: \( V = \frac{4}{3} \pi (1.7 \times 10^3)^3 \)
3. Power Rule: \( V = \frac{4}{3} \pi (4.913 \times 10^9) \)
Final Calculation:
\( \approx 2.06 \times 10^{10} \)
Cubic Kilometers
GEOMETRY OF THE FUTURE
Asteroid Mining
Engineers calculate the volume of spherical asteroids to estimate how many trillions of dollars of minerals they contain.
Atmospheric Volume
Calculating the volume of air on Mars helps scientists plan how much oxygen we would need to create a colony.
Geometry isn't just on paper. It's the architecture of existence.

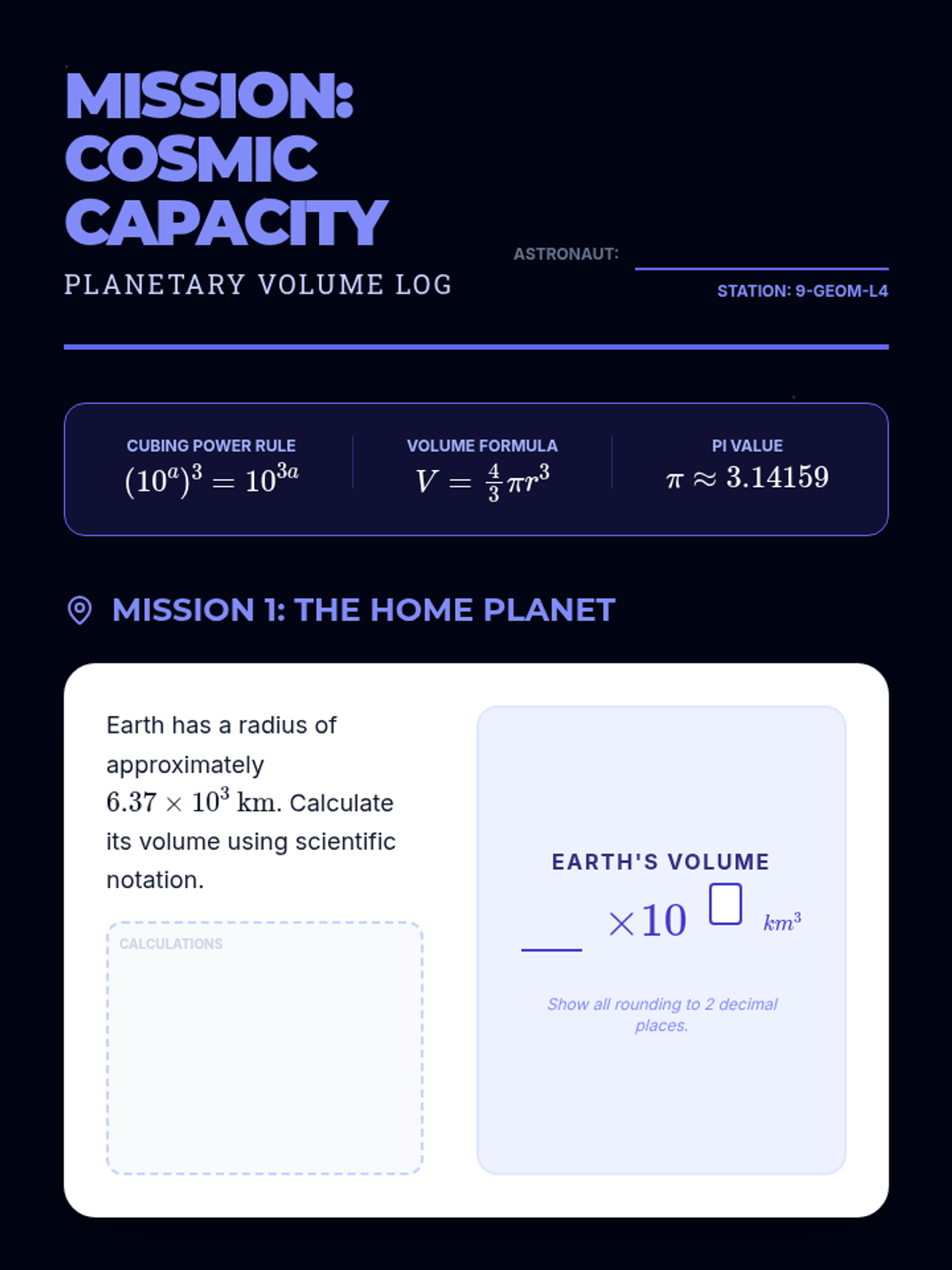

Cosmic Capacity Mission Log MISSION: COSMIC CAPACITY
Planetary Volume Log
ASTRONAUT:
STATION: 9-GEOM-L4
CUBING POWER RULE
\( (10^a)^3 = 10^{3a} \)
VOLUME FORMULA
\( V = \frac{4}{3} \pi r^3 \)
PI VALUE
\( \pi \approx 3.14159 \)
MISSION 1: THE HOME PLANET
Earth has a radius of approximately \( 6.37 \times 10^3 \text{ km} \) . Calculate its volume using scientific notation.
Calculations
Earth's Volume
\( \times 10 \)
\( km^3 \)
Show all rounding to 2 decimal places.
MISSION 2: JUPITER'S DOMINANCE
Jupiter's radius is \( 6.99 \times 10^4 \text{ km} \) . Its volume is approximately \( 1.43 \times 10^{15} \text{ km}^3 \) .
"How many Earths could fit inside Jupiter?" (Divide Jupiter's volume by Earth's volume).
Division Space
Capacity Result
~ _______
TOTAL EARTHS
MISSION 3: THE MOON'S SHELL
Cross-Section of Lunar Crust
The Moon has an outer radius of \( 1.74 \times 10^3 \text{ km} \). Its "crust" is about 50 km thick. Calculate the total volume of just the crust .
Analysis Plan:
Find Volume of Moon (Outer Radius)
Calculate Inner Radius: \( 1,740 - 50 = \) _______ km
Find Volume of Inner Core (Inner Radius)
Subtract: Outer Volume - Inner Volume
Scratchpad
Crust Volume Estimate
_______ \( \times 10 \) _______
Final answer in \( km^3 \)
DATA COLLECTION SYSTEM: ALPHA-4
PLANETARY GEOMETRY PROTOCOL: ENFORCED

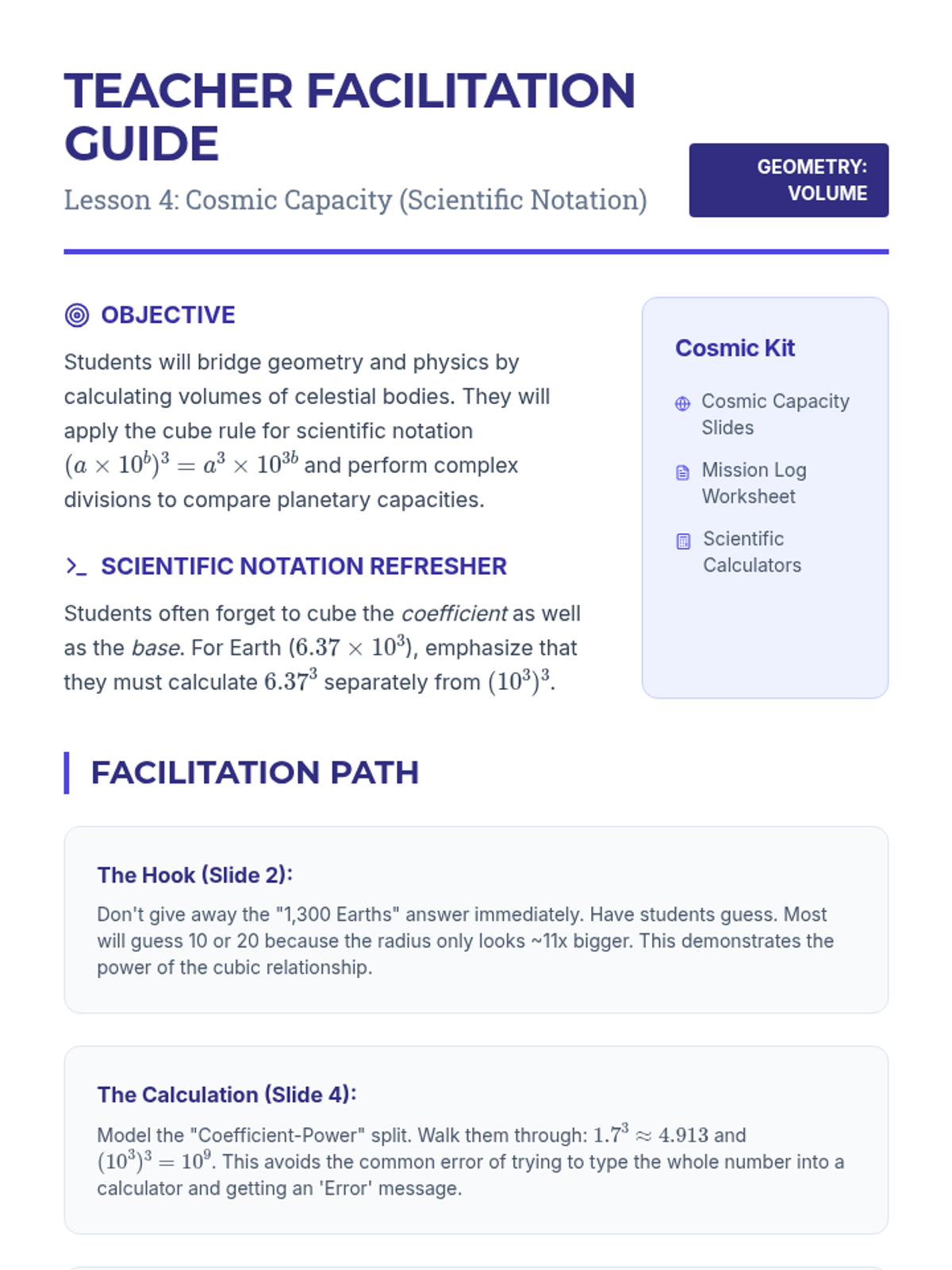

Cosmic Capacity Teacher Guide Teacher Facilitation Guide
Lesson 4: Cosmic Capacity (Scientific Notation)
Geometry: Volume
OBJECTIVE
Students will bridge geometry and physics by calculating volumes of celestial bodies. They will apply the cube rule for scientific notation \( (a \times 10^b)^3 = a^3 \times 10^{3b} \) and perform complex divisions to compare planetary capacities.
SCIENTIFIC NOTATION REFRESHER
Students often forget to cube the coefficient as well as the base. For Earth (\( 6.37 \times 10^3 \)), emphasize that they must calculate \( 6.37^3 \) separately from \( (10^3)^3 \).
Cosmic Kit
Cosmic Capacity Slides
Mission Log Worksheet
Scientific Calculators
Facilitation Path
The Hook (Slide 2):
Don't give away the "1,300 Earths" answer immediately. Have students guess. Most will guess 10 or 20 because the radius only looks ~11x bigger. This demonstrates the power of the cubic relationship.
The Calculation (Slide 4):
Model the "Coefficient-Power" split. Walk them through: \( 1.7^3 \approx 4.913 \) and \( (10^3)^3 = 10^9 \). This avoids the common error of trying to type the whole number into a calculator and getting an 'Error' message.
Differentiation:
For students struggling with notation, allow them to write out the zeros for Mission 1 (Earth) but insist on notation for Mission 2 (Jupiter), as the zeros become unmanageable.
MISSION LOG KEY
Mission 1 (Earth)
\( r = 6.37 \times 10^3 \)
\( V = \frac{4}{3} \pi (258.47 \times 10^9) \)
\( V \approx 1.08 \times 10^{12} \text{ km}^3 \)
Mission 2 (Capacity)
\( V_J = 1.43 \times 10^{15} \)
\( V_J / V_E \approx 1324 \)
\( \approx 1,324 \text{ Earths} \)
Mission 3 (Crust)
\( V_{out} = 2.21 \times 10^{10} \)
\( V_{in} = 2.02 \times 10^{10} \)
\( V \approx 1.9 \times 10^9 \text{ km}^3 \)
Volume Vault Slides THE VOLUME VAULT
Spherical Geometry Mastery Lab
The Mission
Welcome, Specialists. To "unlock the vault," you must rotate through three high-security stations .
Solve the spherical puzzles.
Find the "Security Key" at each station.
Combine the keys to crack the code.
Protocol: Precision Required to 0.01
Station 1: The Equipment Room
Sports equipment requires perfect volume to ensure fair play.
The Task:
Calculate the volume of a soccer ball (\( d = 22 \text{ cm} \)) and a tennis ball (\( d = 6.7 \text{ cm} \)).
How many tennis balls could fit inside a single soccer ball?
// SECURITY KEY ALPHA
The sum of the diameters of all balls measured at this station.
Station 2: The Industrial Silo
Industrial tanks must be measured precisely for safe storage.
The Task:
Calculate the volume of a silo that is a cylinder (\( r=5\text{m}, h=15\text{m} \)) topped with a hemisphere.
Calculate the exact volume in terms of \( \pi \).
// SECURITY KEY BETA
The exact volume coefficient (the number in front of \( \pi \)).
Station 3: The Armored Shell
Security safes use multi-layered spherical shells to prevent drilling.
The Task:
Find the volume of material in a shell with an outer radius of 10 cm and an inner radius of 7 cm .
How much heavier is this shell compared to a solid sphere of radius 7 cm?
// SECURITY KEY GAMMA
The total volume of air trapped inside the shell.

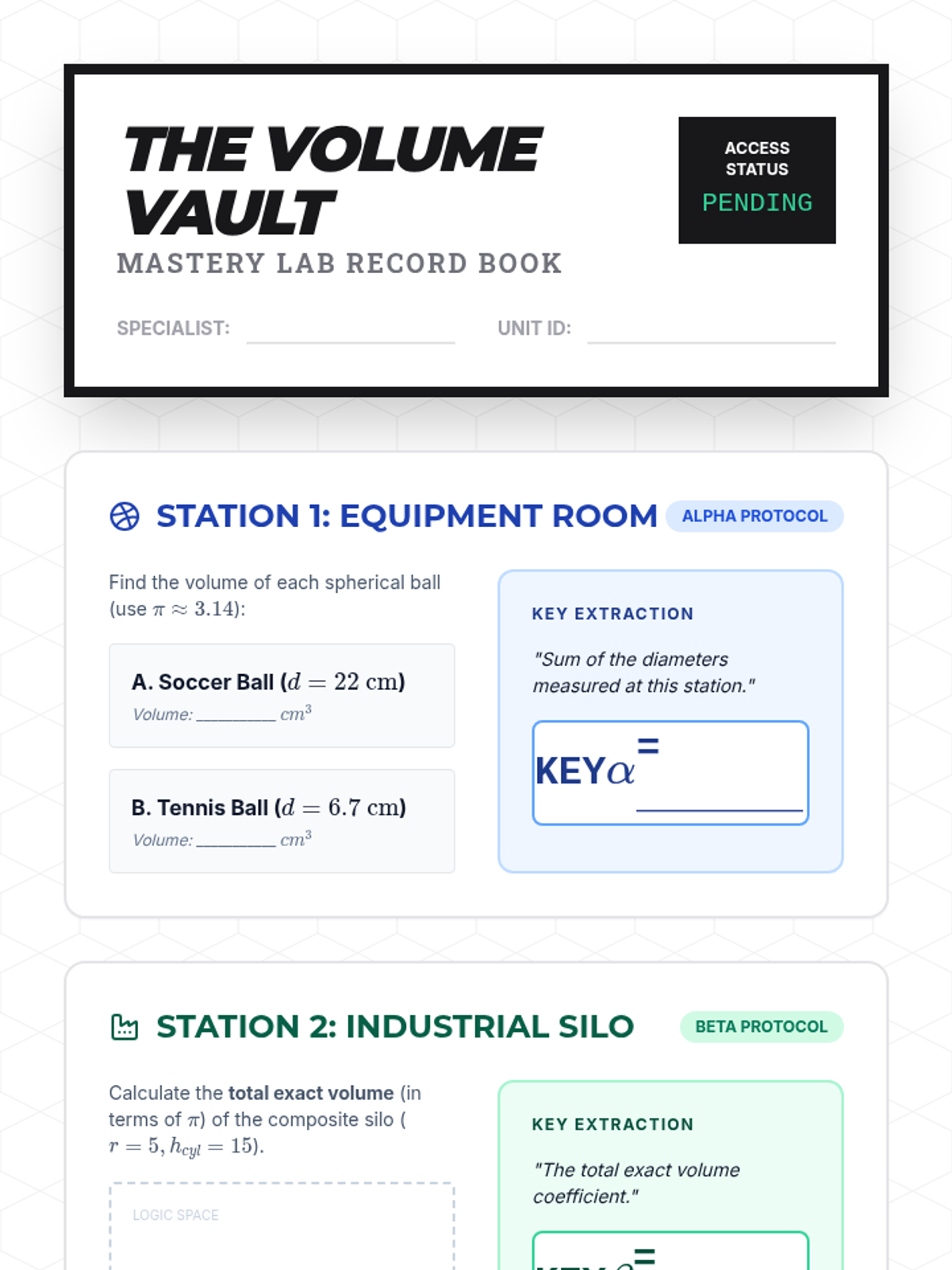

Volume Vault Mastery Record The Volume Vault
Mastery Lab Record Book
ACCESS STATUS
PENDING
Specialist:
Unit ID:
STATION 1: EQUIPMENT ROOM
Alpha Protocol
Find the volume of each spherical ball (use \( \pi \approx 3.14 \)):
A. Soccer Ball (\( d = 22 \text{ cm} \))
Volume: ___________ \( cm^3 \)
B. Tennis Ball (\( d = 6.7 \text{ cm} \))
Volume: ___________ \( cm^3 \)
Key Extraction
"Sum of the diameters measured at this station."
KEY \( \alpha \) = _______
STATION 2: INDUSTRIAL SILO
Beta Protocol
Calculate the total exact volume (in terms of \( \pi \)) of the composite silo (\( r=5, h_{cyl}=15 \)).
Logic Space
Key Extraction
"The total exact volume coefficient."
KEY \( \beta \) = _______
STATION 3: THE ARMORED SHELL
The safe shell has an outer radius of 10 cm and an inner radius of 7 cm . We need to measure the empty interior space (air) to ensure the contents fit.
Internal Scan:
\( V_{internal} = \frac{4}{3} \pi (7)^3 \)
Key Extraction
"The total volume of air inside the shell (use 3.14)."
KEY \( \gamma \) = _______
Vault Crack Protocol
To unlock the vault, calculate the Final Security Code :
\( \alpha \)
\( \beta \)
-
\( \gamma \)
Master Security Code
_______

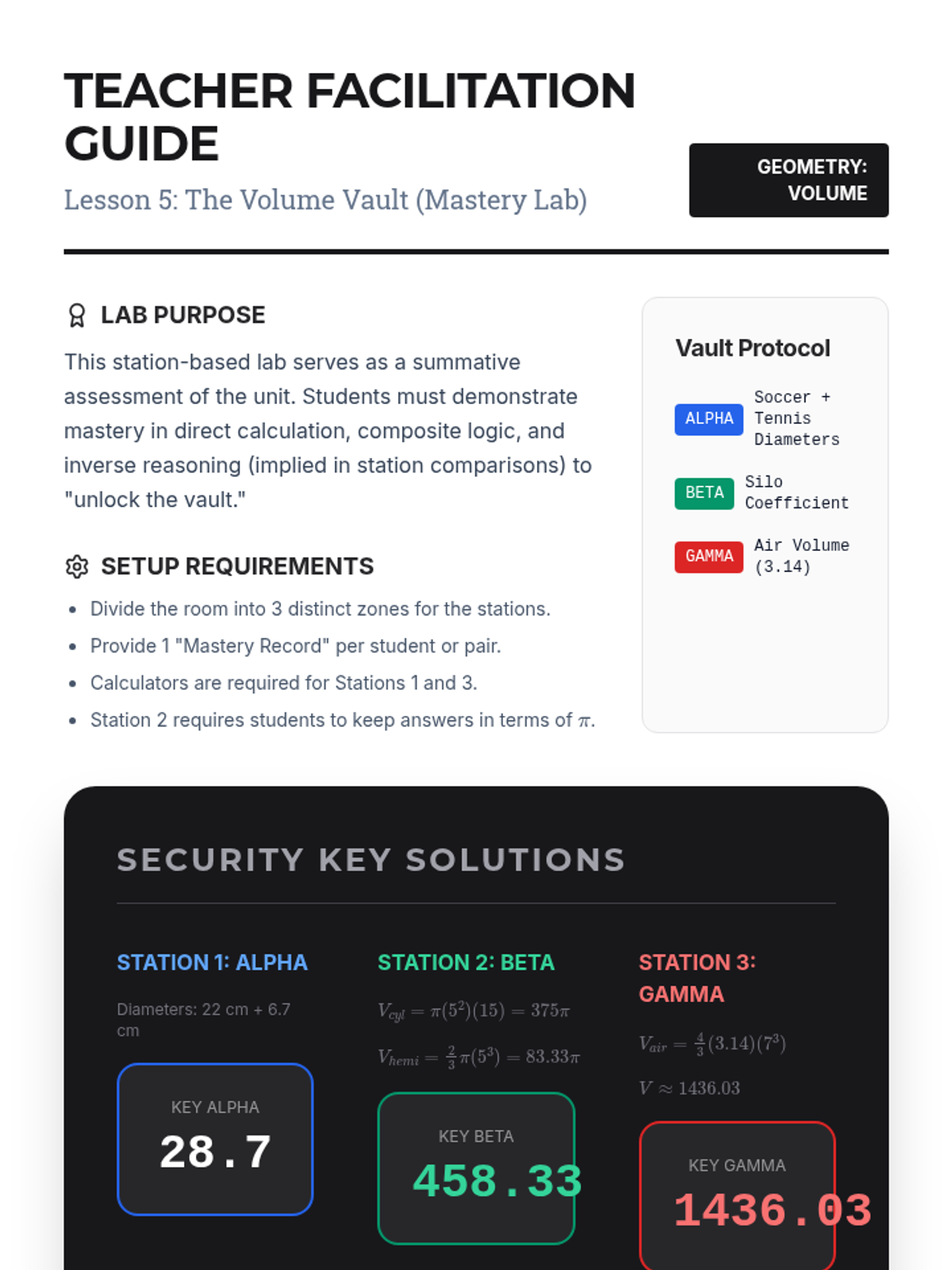

Volume Vault Teacher Guide Teacher Facilitation Guide
Lesson 5: The Volume Vault (Mastery Lab)
Geometry: Volume
LAB PURPOSE
This station-based lab serves as a summative assessment of the unit. Students must demonstrate mastery in direct calculation, composite logic, and inverse reasoning (implied in station comparisons) to "unlock the vault."
SETUP REQUIREMENTS
Divide the room into 3 distinct zones for the stations.
Provide 1 "Mastery Record" per student or pair.
Calculators are required for Stations 1 and 3.
Station 2 requires students to keep answers in terms of \( \pi \).
Vault Protocol
ALPHA Soccer + Tennis Diameters
BETA Silo Coefficient
GAMMA Air Volume (3.14)
Security Key Solutions
Station 1: Alpha
Diameters: 22 cm + 6.7 cm
KEY ALPHA
28.7
Station 2: Beta
\( V_{cyl} = \pi(5^2)(15) = 375\pi \)
\( V_{hemi} = \frac{2}{3}\pi(5^3) = 83.33\pi \)
KEY BETA
458.33
Station 3: Gamma
\( V_{air} = \frac{4}{3}(3.14)(7^3) \)
\( V \approx 1436.03 \)
KEY GAMMA
1436.03
Final Vault Formula
28.7 + 458.33 - 1436.03 = -948.97*
*Note: If results are negative, instruct students to take the Absolute Value for the vault code (949).
