Chain Reaction Slides Time Based Differentiation
The Chain Rule Meets the Clock
The Ripple Effect
Imagine a stone dropped into a still pond. A circular ripple begins to expand.
The Question:
If the radius \( r \) grows at a constant rate, does the area \( A \) also grow at a constant rate?
Area
dr/dt
The Fundamental Shift
Differentiation wrt \( x \)
Standard Implicit Differentiation:
\(\frac{d}{dx}[y^2] = 2y \frac{dy}{dx}\)
Here, \( y \) is a function of \( x \).
Differentiation wrt \( t \)
Related Rates Differentiation:
\(\frac{d}{dt}[y^2] = 2y \frac{dy}{dt}\)
Now, \( y \) is a function of time \( t \).
"Everything is a function of time! Every variable gets a 'tag' of d(variable)/dt."
The "Tag" Rule
When differentiating with respect to time (\( t \)), every variable is treated as an inner function.
\(\frac{d}{dt}[x^3]\)
\(3x^2 \cdot \frac{dx}{dt}\)
\(\frac{d}{dt}[r^2]\)
\(2r \cdot \frac{dr}{dt}\)
\(\frac{d}{dt}[A]\)
\(1 \cdot \frac{dA}{dt}\)
Pro-Tip: If you differentiate a variable that isn't \( t \), you MUST multiply by its derivative with respect to \( t \).
Guided Practice
Differentiate the following equation with respect to \( t \):
\(x^2 + y^2 = 25\)
Step 1: Differentiate \( x^2 \) wrt \( t \)
Step 2: Differentiate \( y^2 \) wrt \( t \)
Step 3: Differentiate 25 wrt \( t \)
Time Shift Worksheet Time Shift
Practice Unit: Related Rates Fundamentals
Subject
Name
Date
The Implicit Rule for Time
In related rates, we treat all variables as functions of time \( t \). When you differentiate a variable like \( x \), \( y \), or \( r \) with respect to \( t \), you must apply the Chain Rule.
Example: \(\frac{d}{dt}[y^3] = 3y^2 \cdot \frac{dy}{dt}\)
Part I: Discrete Differentiation
Differentiate each term with respect to time (\( t \)). Use proper Leibniz notation.
\( x^4 \)
Result:
\( 5A \)
Result:
\( \pi r^2 \)
Result:
\( \frac{1}{3}h^3 \)
Result:
Part II: Full Equation Differentiation
Differentiate the following equations with respect to \( t \). Show the differentiated form clearly.
05. The Pythagorean Model EQUATION: \( a^2 + b^2 = c^2 \)
06. The Volume Model EQUATION: \( V = \frac{4}{3} \pi r^3 \)
07. Product Rule Challenge EQUATION: \( A = xy \)
Caution: Remember to apply the Product Rule for term \( xy \). Both \( x \) and \( y \) are functions of \( t \).
"In calculus, time waits for no one, and neither does the chain rule."
Implicit Mastery Teacher Guide Implicit Mastery
Teacher Implementation Guide | Lesson 1
CORE SKILL: d/dt
Instructional Goal
Students must transition from seeing \( y' \) as the default derivative to understanding that time (\( t \)) is the independent variable. The goal is fluency in appending \(\frac{d[var]}{dt}\) to every differentiated term.
The Hook: Concentric Circles
Ask students to visualize a ripple. Draw two circles: one small, one large. If the radius increases by 1cm every second, does the area increase by the same amount every second?
Conceptual Reality: No. As the circle gets bigger, that 1cm increase in radius adds a much larger "ring" of area than when the circle was small.
Calculus Proof: \( A = \pi r^2 \Rightarrow \frac{dA}{dt} = 2\pi r \frac{dr}{dt} \).
Common Pitfalls
Missing the "Tag": Students often write \(\frac{d}{dt}[x^2] = 2x\) instead of \(2x \frac{dx}{dt}\). Remind them that \( x \) is a function, not the variable of differentiation.
Constants vs Variables: Students may try to differentiate constants like \(\pi\) or fixed numbers as variables. Explicitly point out that \(\frac{d}{dt}[25] = 0\).
Product Rule Amnesia: When differentiating \( A = bh \), students frequently write \(\frac{dA}{dt} = \frac{db}{dt} \frac{dh}{dt}\). Emphasize that \( b \cdot h \) requires the product rule.
Worksheet Answer Key (Quick-Ref)
01. \(\frac{d}{dt}[x^4]\) \(4x^3 \frac{dx}{dt}\)
02. \(\frac{d}{dt}[\pi r^2]\) \(2\pi r \frac{dr}{dt}\)
05. \(a^2 + b^2 = c^2\) \(2a\frac{da}{dt} + 2b\frac{db}{dt} = 2c\frac{dc}{dt}\)
06. \(V = \frac{4}{3}\pi r^3\) \(\frac{dV}{dt} = 4\pi r^2 \frac{dr}{dt}\)
07. \(A = xy\) \(\frac{dA}{dt} = x\frac{dy}{dt} + y\frac{dx}{dt}\)
Discussion Prompts
"If an object's volume is constant, what does that tell us about \(\frac{dV}{dt}\)?"
"Why don't we see a \(\frac{dt}{dt}\) term when we differentiate? (Answer: It equals 1, just like \(\frac{dx}{dx}\))"
Code Breaker Slides Code Breakers
Translating Words into Calculus Notation
The "Rate" Rosetta Stone
Calculus problems are often "hidden" in English sentences. Identifying the verb is key.
Phrases to Watch:
"Increasing at a rate of..."
"Shrinking by..."
"Constant speed..."
"Water flows in at..."
Translation Lab
Sentence:
"The radius is growing by 5 cm/s."
\(\frac{dr}{dt} = 5\)
Sentence:
"The volume is decreasing at 10 m³/min."
\(\frac{dV}{dt} = -10\)
Static vs. Dynamic
Not every number in a problem is a rate. Some numbers are snapshots.
The "When" Statement
"Find the rate... when the radius is 10. "
This 10 is NOT used until the VERY END (after differentiation).
Translation Checklist
What is changing? (Variables)
What is fixed? (Constants)
What is the goal? (Find \( \frac{d?}{dt} \))
At what moment? (The "When")
Notation Hunt
"A 20-foot ladder leans against a wall. The base of the ladder is pulled away from the wall at 2 ft/s. Find how fast the top is sliding down when the base is 12 feet from the wall."
Ladder Length (20) L = 20 (Constant)
Pulled Away (2) \(\frac{dx}{dt} = 2\)
Base distance (12) x = 12 (Snap)
Find \(\frac{dy}{dt} = ?\)

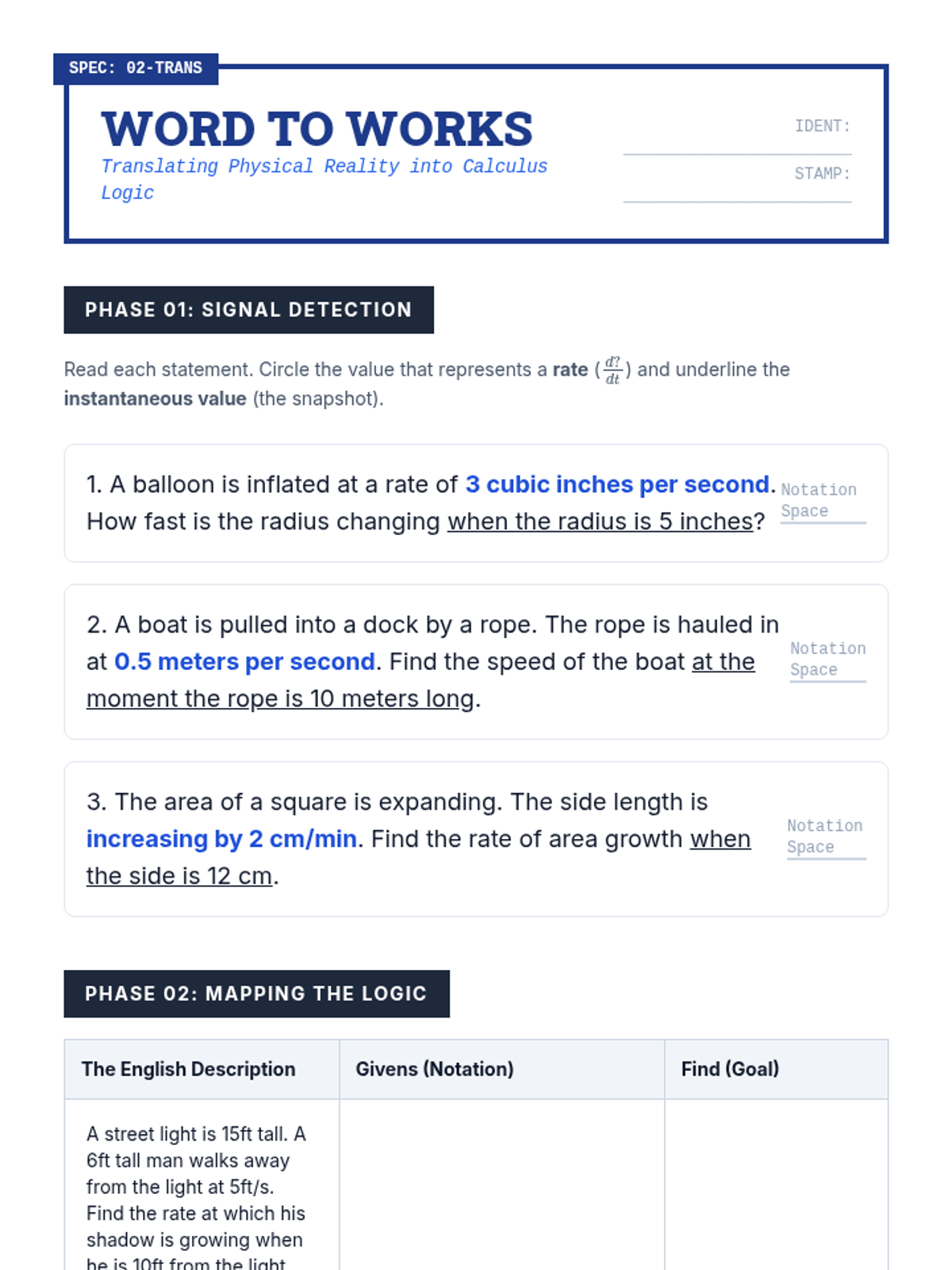

Word to Works Worksheet SPEC: 02-TRANS
Word to Works
Translating Physical Reality into Calculus Logic
IDENT: ________________________
STAMP: ________________________
Phase 01: Signal Detection
Read each statement. Circle the value that represents a rate (\( \frac{d?}{dt} \)) and underline the instantaneous value (the snapshot).
1. A balloon is inflated at a rate of 3 cubic inches per second. How fast is the radius changing when the radius is 5 inches?
Notation Space
2. A boat is pulled into a dock by a rope. The rope is hauled in at 0.5 meters per second. Find the speed of the boat at the moment the rope is 10 meters long.
Notation Space
3. The area of a square is expanding. The side length is increasing by 2 cm/min. Find the rate of area growth when the side is 12 cm.
Notation Space
Phase 02: Mapping the Logic
The English Description Givens (Notation) Find (Goal) A street light is 15ft tall. A 6ft tall man walks away from the light at 5ft/s. Find the rate at which his shadow is growing when he is 10ft from the light.
|
| Water is leaking out of a conical tank at 2 cubic feet per minute. Find the rate at which the water level is dropping when the height is 6 feet. |
|
|
Phase 03: Static vs Dynamic
In each scenario, identify which variable is a Constant (doesn't change) and which is a Variable (changes over time).
Scenario: The Sliding Ladder
"A 15-ft ladder slides down a wall..."
Ladder Length (\( L \)): __________
Distance from Wall (\( x \)): __________
Height on Wall (\( y \)): __________
Scenario: The Oil Spill
"A circular oil slick spreads on the ocean..."
Slick Radius (\( r \)): __________
Slick Area (\( A \)): __________
Total Volume of Oil: __________
Engineered for Calculus Proficiency // Lesson 02 // Related Rates Unit

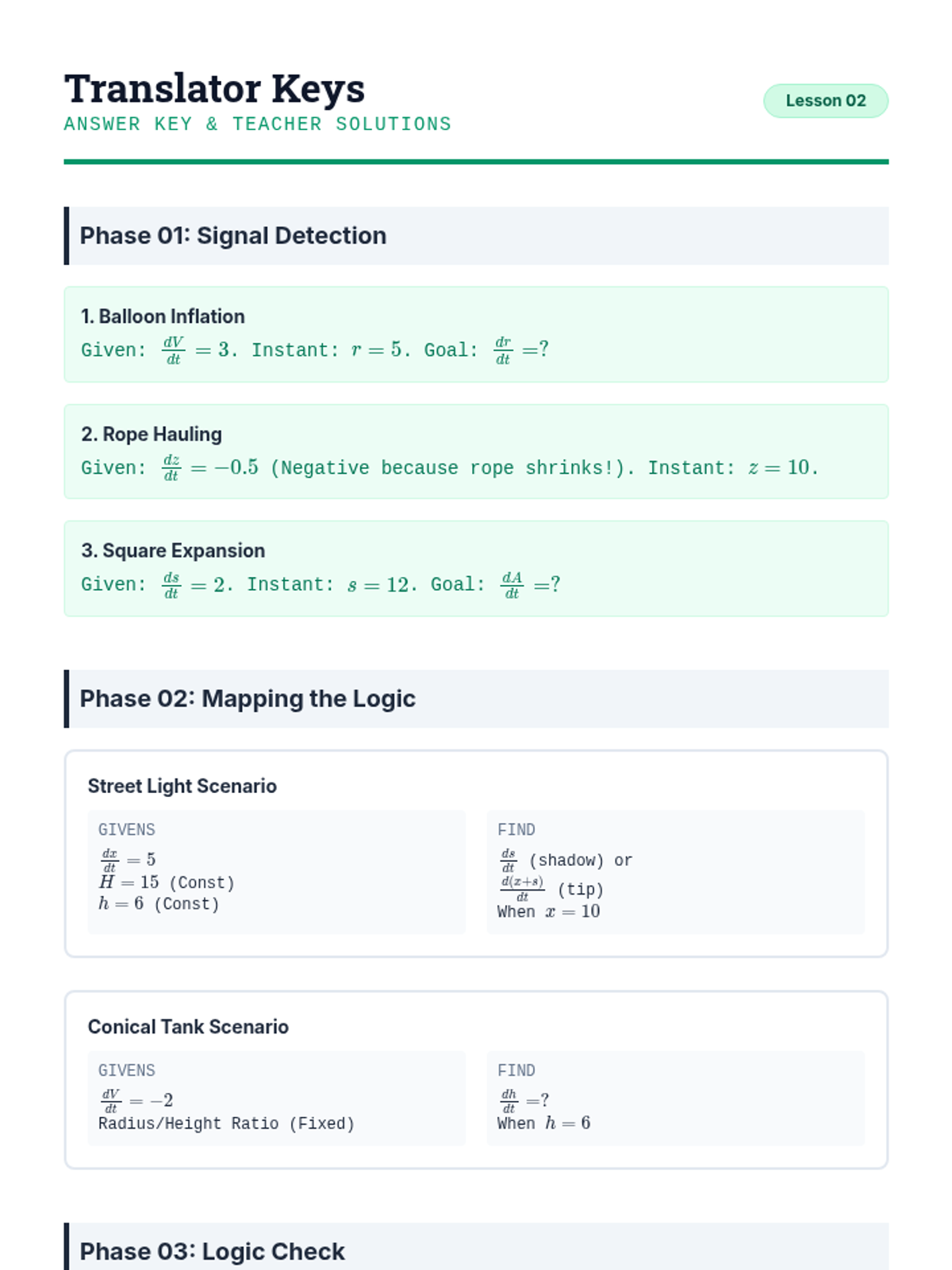

Translator Keys Answer Key Translator Keys
Answer Key & Teacher Solutions
Lesson 02
Phase 01: Signal Detection
1. Balloon Inflation
Given: \(\frac{dV}{dt} = 3\). Instant: \(r = 5\). Goal: \(\frac{dr}{dt} = ?\)
2. Rope Hauling
Given: \(\frac{dz}{dt} = -0.5\) (Negative because rope shrinks!). Instant: \(z = 10\).
3. Square Expansion
Given: \(\frac{ds}{dt} = 2\). Instant: \(s = 12\). Goal: \(\frac{dA}{dt} = ?\)
Phase 02: Mapping the Logic
Street Light Scenario
Givens \(\frac{dx}{dt} = 5\)
Find \(\frac{ds}{dt}\) (shadow) or
Conical Tank Scenario
Givens \(\frac{dV}{dt} = -2\)
Find \(\frac{dh}{dt} = ?\)
Phase 03: Logic Check
Ladder Constants
• Ladder Length (\(L\)): CONSTANT
• Wall Dist (\(x\)): VARIABLE
• Wall Height (\(y\)): VARIABLE
Oil Constants
• Slick Radius (\(r\)): VARIABLE
• Slick Area (\(A\)): VARIABLE
• Total Volume: CONSTANT
Teacher Implementation Note
When grading, look specifically for signs . Decreasing rates MUST be negative. Students often lose points on related rates because they use a positive value for "falling" or "leaking" rates.
Sliding Ladder Slides Right Angle Rates
Pythagorean Relationships in Motion
The Foundation
When objects move perpendicular to each other, the Pythagorean Theorem is our primary bridge.
\[a^2 + b^2 = c^2\]
Differentiated wrt Time:
\[2a\frac{da}{dt} + 2b\frac{db}{dt} = 2c\frac{dc}{dt}\]
a b c
The Sliding Ladder
Scenario
A 13ft ladder leans against a wall. The base is pulled away at 2ft/s.
\( c = 13 \) (Constant)
\( \frac{dc}{dt} = 0 \)
\( \frac{dx}{dt} = 2 \)
The Calculation Step
When the base is 5ft from the wall (\( x=5 \)):
Find \( y \): \( 5^2 + y^2 = 13^2 \Rightarrow y = 12 \)
Plug in rates: \( 2(5)(2) + 2(12)\frac{dy}{dt} = 2(13)(0) \)
Solve: \( 20 + 24\frac{dy}{dt} = 0 \Rightarrow \frac{dy}{dt} = -\frac{5}{6} \)
Directionality
Calculus doesn't just give you a number; it gives you a direction.
Positive (+)
The distance/dimension is INCREASING.
Example: The base of the ladder moves AWAY from the wall.
Negative (-)
The distance/dimension is DECREASING.
Example: The top of the ladder slides DOWN the wall.

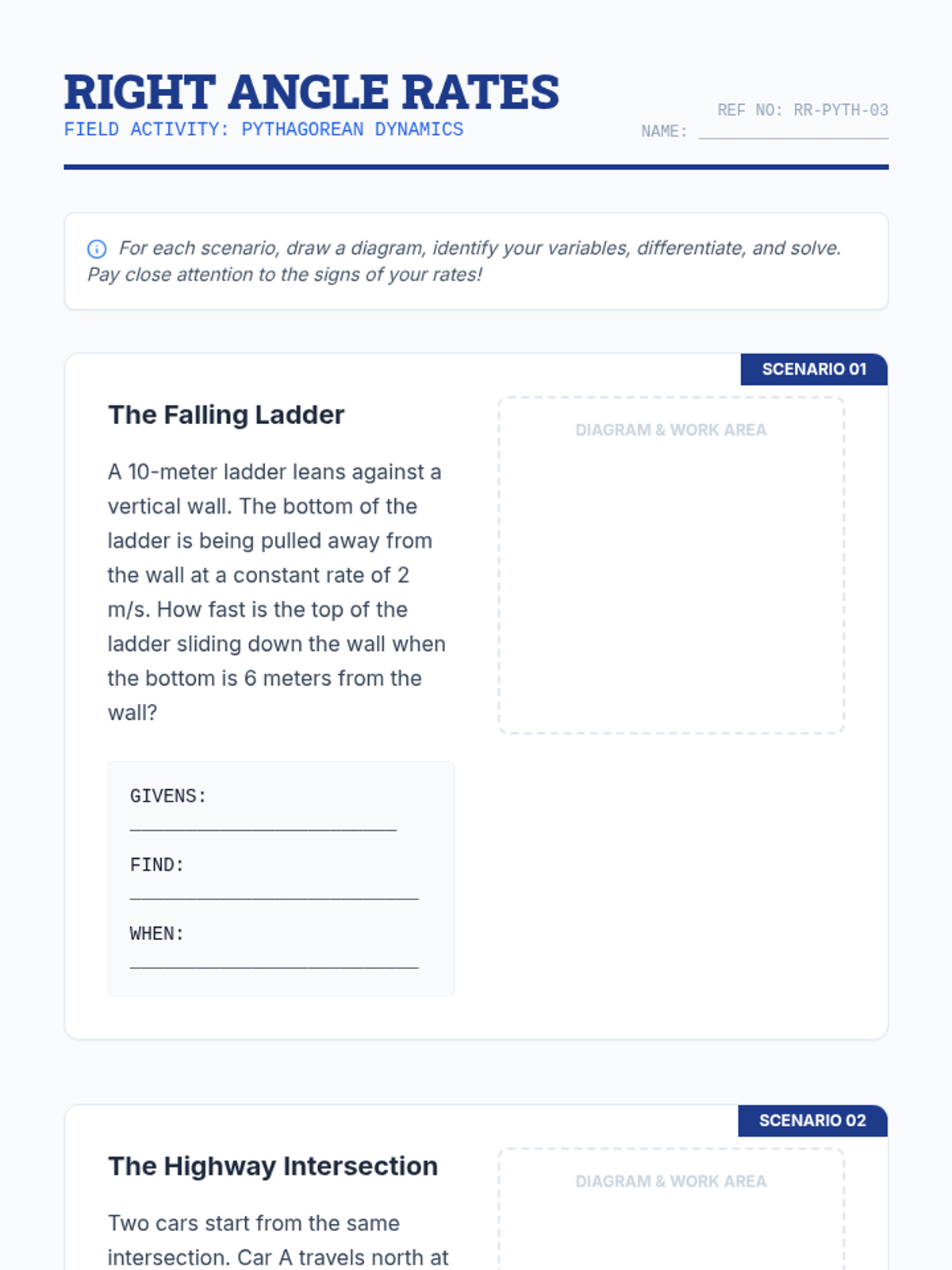

Right Angle Rates Activity Right Angle Rates
FIELD ACTIVITY: PYTHAGOREAN DYNAMICS
REF NO: RR-PYTH-03
For each scenario, draw a diagram, identify your variables, differentiate, and solve. Pay close attention to the signs of your rates!
Scenario 01
The Falling Ladder
A 10-meter ladder leans against a vertical wall. The bottom of the ladder is being pulled away from the wall at a constant rate of 2 m/s. How fast is the top of the ladder sliding down the wall when the bottom is 6 meters from the wall?
GIVENS: ________________________
FIND: __________________________
WHEN: __________________________
Diagram & Work Area
Scenario 02
The Highway Intersection
Two cars start from the same intersection. Car A travels north at 60 mph. Car B travels east at 45 mph. At what rate is the distance between the two cars changing 2 hours after they leave the intersection?
GIVENS: ________________________
FIND: __________________________
WHEN: __________________________
Diagram & Work Area
Critical Thinking
In Scenario 1, as the bottom of the ladder gets farther from the wall, does the top slide down faster, slower, or at the same speed? Justify your answer using the relationship \( \frac{dy}{dt} = -\frac{x}{y}\frac{dx}{dt} \).
© CALCULUS BLUEPRINT SERIES // RELATED RATES // UNIT 03

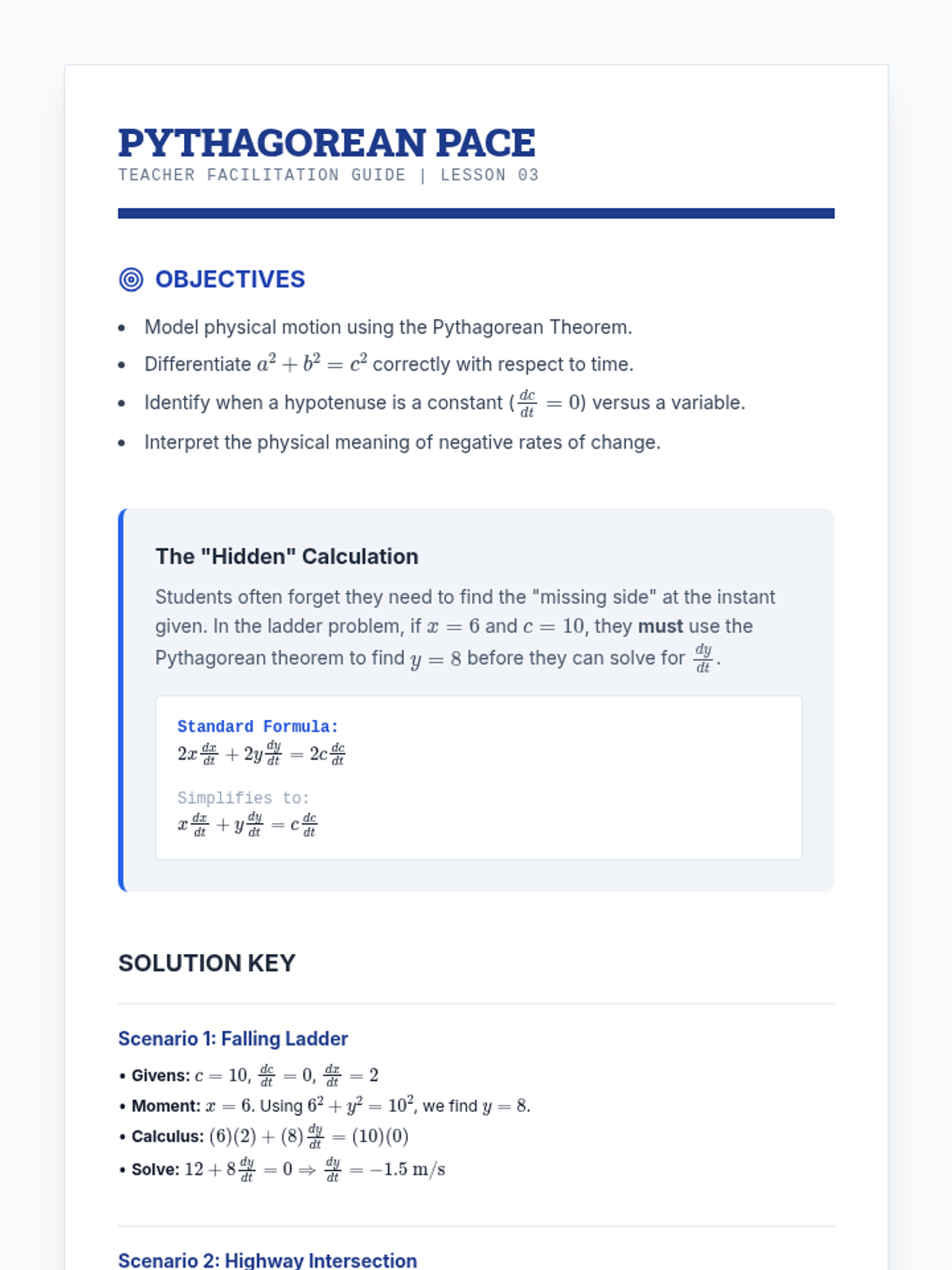

Pythagorean Pace Teacher Guide Pythagorean Pace
TEACHER FACILITATION GUIDE | LESSON 03
Objectives
Model physical motion using the Pythagorean Theorem.
Differentiate \( a^2 + b^2 = c^2 \) correctly with respect to time.
Identify when a hypotenuse is a constant (\( \frac{dc}{dt} = 0 \)) versus a variable.
Interpret the physical meaning of negative rates of change.
The "Hidden" Calculation
Students often forget they need to find the "missing side" at the instant given. In the ladder problem, if \( x=6 \) and \( c=10 \), they must use the Pythagorean theorem to find \( y=8 \) before they can solve for \( \frac{dy}{dt} \).
Standard Formula:
Simplifies to:
Solution Key
Scenario 1: Falling Ladder
• Givens: \( c=10 \), \( \frac{dc}{dt}=0 \), \( \frac{dx}{dt}=2 \)
• Moment: \( x=6 \). Using \( 6^2+y^2=10^2 \), we find \( y=8 \).
• Calculus: \( (6)(2) + (8)\frac{dy}{dt} = (10)(0) \)
• Solve: \( 12 + 8\frac{dy}{dt} = 0 \Rightarrow \frac{dy}{dt} = -1.5 \text{ m/s} \)
Scenario 2: Highway Intersection
• Givens: \( \frac{dy}{dt}=60 \), \( \frac{dx}{dt}=45 \)
• Moment: \( t=2 \text{ hrs} \Rightarrow y=120, x=90 \). Distance \( c = \sqrt{120^2+90^2} = 150 \).
• Calculus: \( (90)(45) + (120)(60) = (150)\frac{dc}{dt} \)
• Solve: \( 4050 + 7200 = 150\frac{dc}{dt} \Rightarrow \frac{dc}{dt} = 75 \text{ mph} \)
Scaffolding Tips
Visual Learners: Have them color-code their variables. Blue for what's constant, Red for what's changing.
Struggling with d/dt: Remind them that if they don't see "per second" or "per hour," it isn't a rate.
Shape Shifter Slides Shape Shifters
Area and Perimeter Dynamics
Dimension vs. Area
How does a change in a single linear dimension ripple through to the area?
Circle
\( A = \pi r^2 \)
Square
\( A = s^2 \)
Rectangle
\( A = L \cdot W \)
Rate Conversion
Notice the pattern when we differentiate wrt time:
Radius Shift: \(\frac{dA}{dt} = 2\pi r \frac{dr}{dt}\)
Side Shift: \(\frac{dA}{dt} = 2s \frac{ds}{dt}\)
Product Rule: \(\frac{dA}{dt} = L\frac{dW}{dt} + W\frac{dL}{dt}\)
The Growing Slick
"An oil spill spreads in a circular pattern. Its radius increases at 2 m/min. How fast is the area growing when the radius is 50 meters?"
Identify
\(\frac{dr}{dt} = 2\)
Model
\(A = \pi r^2\)
Differentiate
\(\frac{dA}{dt} = 2\pi r \frac{dr}{dt}\)
Solve
\(2\pi(50)(2) = 200\pi\)
Final Answer: \( 200\pi \text{ m}^2/\text{min} \)
Managing Multiple Rates
In a rectangle, both the length and width can change at different speeds.
The Expansion Rule
If length increases but width stays same, \( \frac{dW}{dt} = 0 \).
If both change, you must account for both growth directions.
Scenario: Stretching Dough
\( \frac{dL}{dt} = 3 \), \( \frac{dW}{dt} = 1 \)
Composite Rate:
\( \frac{dA}{dt} = L(1) + W(3) \)
"The area change is the sum of its horizontal and vertical expansions."

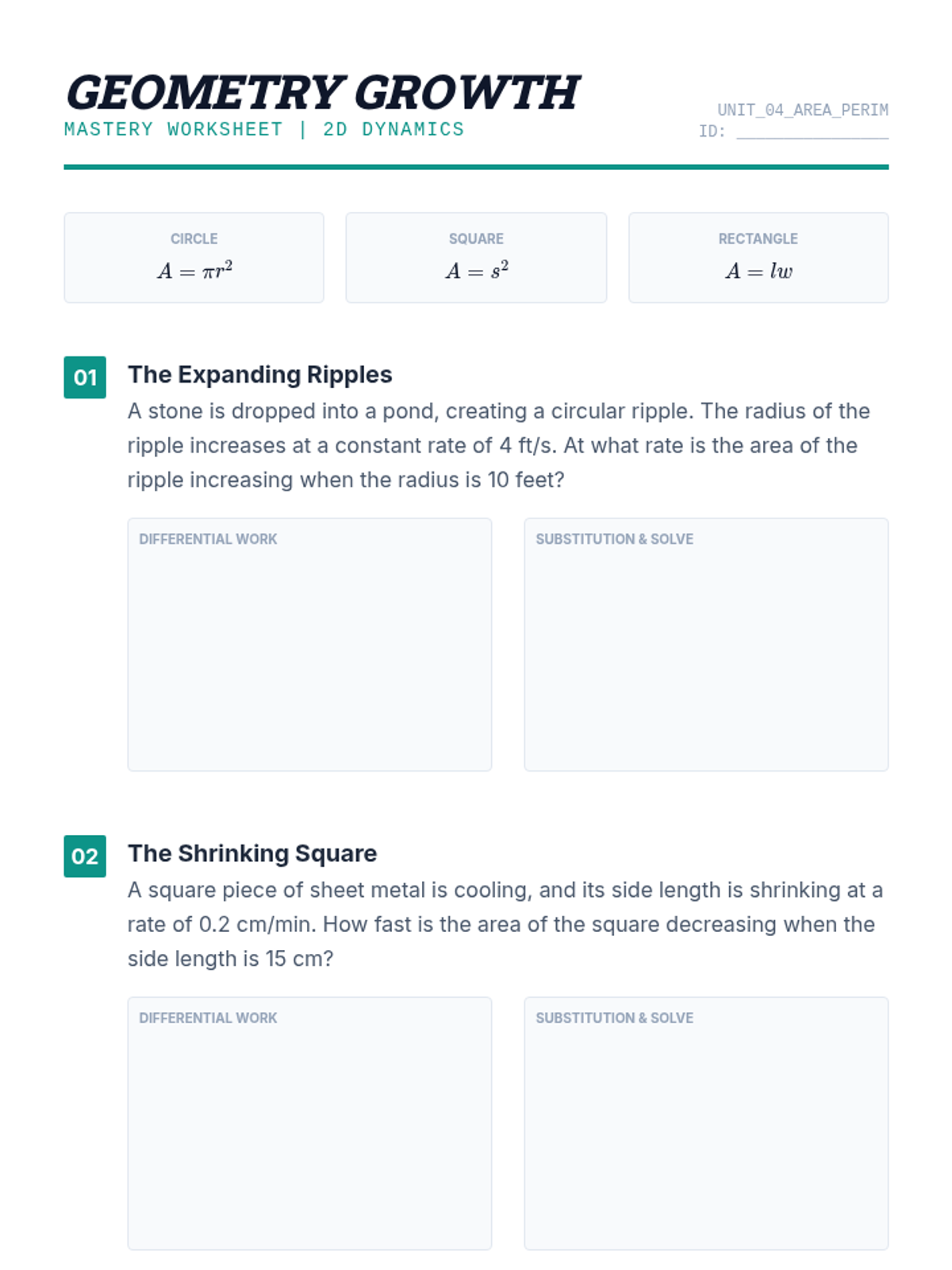

Geometry Growth Worksheet Geometry Growth
Mastery Worksheet | 2D Dynamics
UNIT_04_AREA_PERIM
Circle \( A = \pi r^2 \)
Square \( A = s^2 \)
Rectangle \( A = lw \)
01
The Expanding Ripples
A stone is dropped into a pond, creating a circular ripple. The radius of the ripple increases at a constant rate of 4 ft/s. At what rate is the area of the ripple increasing when the radius is 10 feet?
Differential Work
Substitution & Solve
02
The Shrinking Square
A square piece of sheet metal is cooling, and its side length is shrinking at a rate of 0.2 cm/min. How fast is the area of the square decreasing when the side length is 15 cm?
Differential Work
Substitution & Solve
03
The Changing Rectangle
A rectangle's length is increasing at a rate of 5 inches per minute while its width is decreasing at a rate of 2 inches per minute. At the moment the length is 10 inches and the width is 8 inches, is the area of the rectangle increasing or decreasing? By how much?
Calculus & Interpretation
Tip: Since both \( L \) and \( W \) are changing, you must use the Product Rule. Check the sign of your final answer to determine "increasing" or "decreasing".
© GEOMETRY GROWTH // UNIT 04 STAMP: ____________________

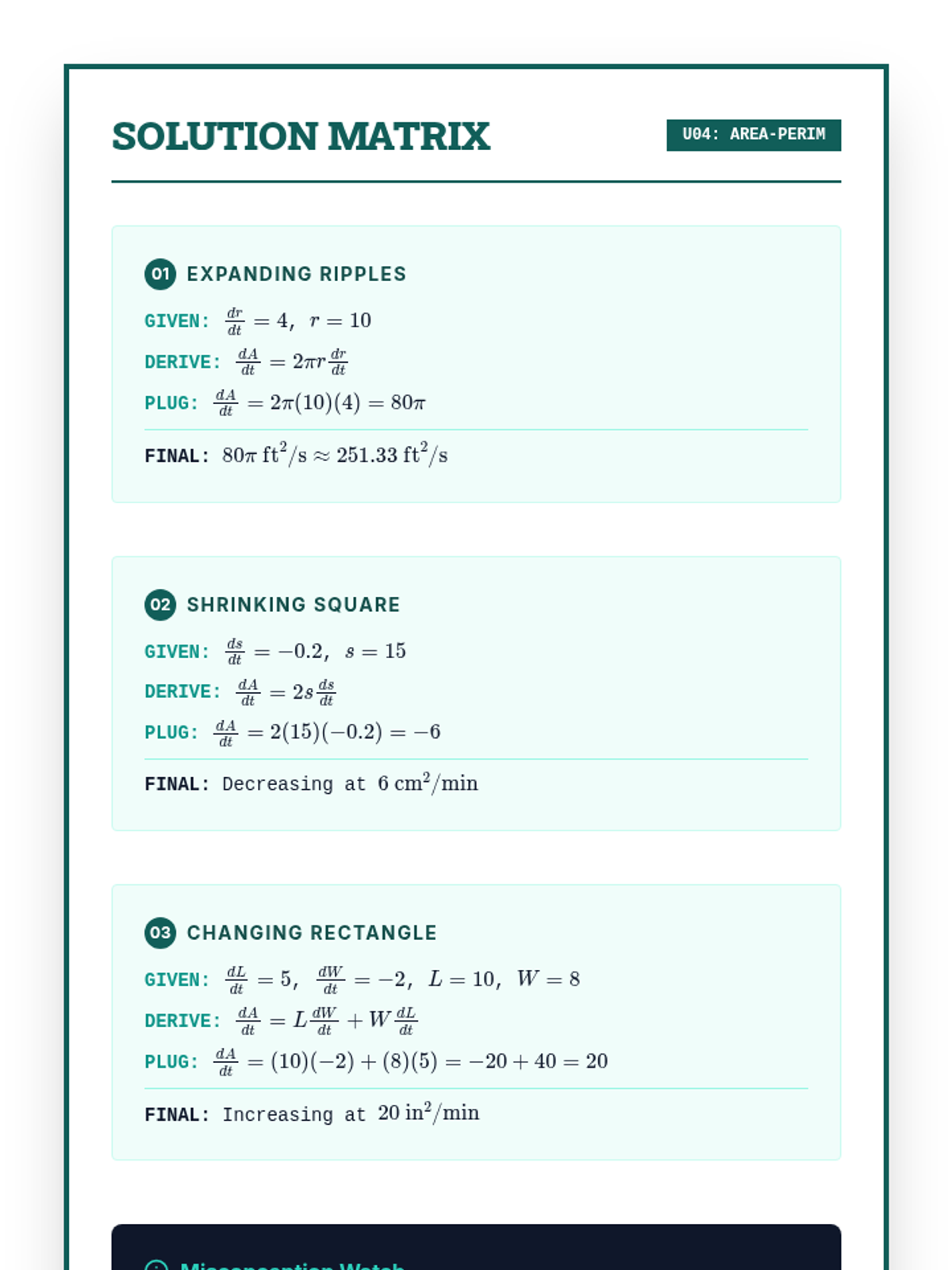

Area Dynamics Answer Key Solution Matrix
U04: AREA-PERIM
01
Expanding Ripples
GIVEN: \(\frac{dr}{dt} = 4\), \(r = 10\)
DERIVE: \(\frac{dA}{dt} = 2\pi r \frac{dr}{dt}\)
PLUG: \(\frac{dA}{dt} = 2\pi(10)(4) = 80\pi\)
FINAL: \( 80\pi \text{ ft}^2/\text{s} \approx 251.33 \text{ ft}^2/\text{s} \)
02
Shrinking Square
GIVEN: \(\frac{ds}{dt} = -0.2\), \(s = 15\)
DERIVE: \(\frac{dA}{dt} = 2s \frac{ds}{dt}\)
PLUG: \(\frac{dA}{dt} = 2(15)(-0.2) = -6\)
FINAL: Decreasing at \( 6 \text{ cm}^2/\text{min} \)
03
Changing Rectangle
GIVEN: \(\frac{dL}{dt} = 5\), \(\frac{dW}{dt} = -2\), \(L = 10\), \(W = 8\)
DERIVE: \(\frac{dA}{dt} = L\frac{dW}{dt} + W\frac{dL}{dt}\)
PLUG: \(\frac{dA}{dt} = (10)(-2) + (8)(5) = -20 + 40 = 20\)
FINAL: Increasing at \( 20 \text{ in}^2/\text{min} \)
Misconception Watch
In Problem 3, students often assume that because one side is shrinking and the other is growing, they can just "average" the rates or that they cancel out. Remind them that the Area growth is a weighted sum based on the current dimensions. Even though the width is shrinking, the length growth is dominant at this specific moment.
Blueprint Strategy Slides The Master Blueprint
A 6-Step Strategy for Any Related Rate
The Protocol
01
Visualize & Label
Draw a diagram. Assign variables to changing parts.
02
Identify Givens
List rates (\(\frac{d?}{dt}\)) and snapshot values.
03
Write the Bridge
Find an equation relating the variables.
04
Differentiate (Implicitly)
Take \( \frac{d}{dt} \) of both sides of your equation.
05
Plug & Solve
Substitute known values and solve for the unknown rate.
06
Interpret & Units
Add units and explain if it's increasing/decreasing.
The Fatal Flaw
What is the biggest mistake students make in Related Rates?
Premature Substitution
Plugging in the "When" values BEFORE differentiating.
"If you plug in \( r=5 \) before you take the derivative, the derivative will be 0 (because the derivative of a constant is 0). You lose the rates!"
Detective Work
Find the Error in this Work:
1. Problem: Find \(\frac{dA}{dt}\) for circle when \(r=10\) and \(\frac{dr}{dt}=2\).
2. \( A = \pi (10)^2 \)
3. \( A = 100\pi \)
4. \( \frac{dA}{dt} = 0 \)
Wait! Where is the rate?
Correct: \(\frac{dA}{dt} = 2\pi r \frac{dr}{dt}\)

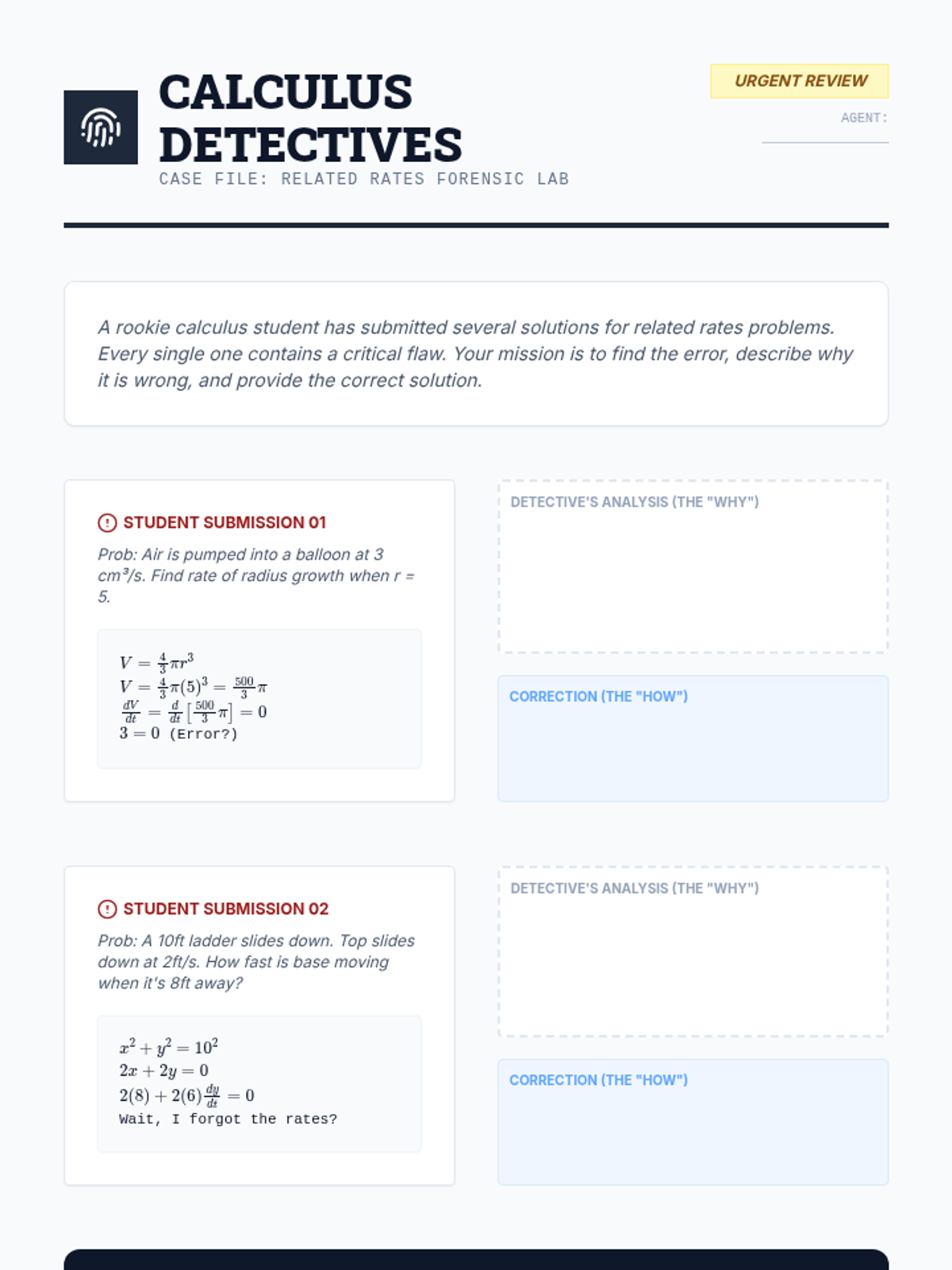

Calculus Detectives Lab Worksheet Calculus Detectives
Case File: Related Rates Forensic Lab
Urgent Review
AGENT: ________________
A rookie calculus student has submitted several solutions for related rates problems. Every single one contains a critical flaw. Your mission is to find the error, describe why it is wrong, and provide the correct solution.
Student Submission 01
Prob: Air is pumped into a balloon at 3 cm³/s. Find rate of radius growth when r = 5.
\( V = \frac{4}{3}\pi r^3 \)
Detective's Analysis (The "Why")
Correction (The "How")
Student Submission 02
Prob: A 10ft ladder slides down. Top slides down at 2ft/s. How fast is base moving when it's 8ft away?
\( x^2 + y^2 = 10^2 \)
Detective's Analysis (The "Why")
Correction (The "How")
Final Cold Case: Your Challenge
A cone-shaped paper cup is being filled with water at a rate of 2 cm³/s. The cup is 12 cm tall and has a top radius of 4 cm. How fast is the water level rising when the water is 6 cm deep?
Modeling & Derivation
Calculation & Units
End of Case Report // Synthesis Phase // Blueprint Series
Related Rates Mastery Assessment Worksheet Assessment
UNIT: RELATED RATES BLUEPRINT
NAME: ____________________
Section I: Conceptual Knowledge
1. When differentiating the formula for the volume of a sphere, \( V = \frac{4}{3}\pi r^3 \), with respect to time, which is the correct result?
A \( \frac{dV}{dt} = 4\pi r^2 \)
B \( \frac{dV}{dt} = 4\pi r^2 \frac{dr}{dt} \)
C \( \frac{dV}{dr} = 4\pi r^2 \frac{dr}{dt} \)
D \( \frac{dV}{dt} = \frac{4}{3}\pi \cdot 3r^2 \frac{dt}{dr} \)
2. A "negative" rate of change (\( \frac{dy}{dt} = -5 \)) for the height of a ladder indicates that:
A The ladder is getting longer.
B The ladder is moving away from the origin in a negative direction.
C The height of the ladder on the wall is decreasing over time.
D The acceleration of the ladder is constant.
Section II: Mastery Application
3. The Passing Ships
10 Points
Ship A is 10 miles west of a lighthouse and traveling east at 15 mph. Ship B is 20 miles north of the lighthouse and traveling north at 10 mph. Is the distance between the two ships increasing or decreasing? At what rate?
Draw, Differentiate, and Solve
4. Geometric Synthesis
10 Points
The area of a circle is increasing at a rate of \( 32\pi \text{ cm}^2/\text{s} \). How fast is the radius of the circle increasing at the instant the area is \( 64\pi \text{ cm}^2 \)?
Show All Steps
CALCULUS MASTERY // RELATED RATES COMPREHENSIVE // 05-FINAL
