Triangle Blueprints Slides Triangle Blueprints
Lesson 1: The Geometry of Radicals
Architectural Calculus Series
The Radical Problem
How do we integrate expressions that look like this?
\[ \int \frac{1}{\sqrt{a^2 - x^2}} \, dx \]
Normal U-substitution fails us here. We need a new blueprint.
The Secret
Every radical expression of the form \( \sqrt{a^2 \pm x^2} \) is just a hidden description of a **right triangle**.
The Pythagorean Connection
1
If \( a^2 + b^2 = c^2 \)...
2
Then \( c = \sqrt{a^2 + b^2} \)
3
And \( a = \sqrt{c^2 - b^2} \)
Base (b) Height (a) Hypotenuse (c)
Case 1: The Difference
Form: \(\sqrt{a^2 - x^2}\)
When we subtract from a constant squared (\(a^2\)), that constant MUST be the **hypotenuse**.
Hypotenuse = \(a\)
Opposite = \(x\)
Adjacent = \(\sqrt{a^2 - x^2}\)
\(\sqrt{a^2 - x^2}\) \(x\) \(a\) \(\theta\)
Blueprint Construction
If the expression is \( \sqrt{x^2 + 9} \), what does the triangle look like? Is the hypotenuse the variable or the constant? Or neither?
THINK: HYPOTENUSE = SUM OF SQUARES
Triangle Blueprint Worksheet Triangle Blueprint
Worksheet 01.A
Structural Analysis
Architect:
Date:
Construction Specifications
In calculus, complex radical expressions often hide simple right triangles. Your task is to decode these algebraic forms and translate them into geometric "blueprints." For each radical, identify which parts of the right triangle correspond to the variable (\(x\)) and the constant (\(a\)).
Task 1: Decoding Differentials
1
Analyze: \( \sqrt{16 - x^2} \)
Form: \( \sqrt{a^2 - x^2} \)
Reference Drawing
Hypotenuse
Opposite (\(\theta\))
Adjacent (\(\theta\))
2
Analyze: \( \sqrt{x^2 + 25} \)
Form: \( \sqrt{x^2 + a^2} \)
Reference Drawing
Hypotenuse
Opposite (\(\theta\))
Adjacent (\(\theta\))
Task 2: Structural Integrity
3
The expression \( \sqrt{x^2 - 49} \) represents a specific side of a right triangle. If the constant is 7 and the variable is \(x\), explain why \(x\) MUST be the hypotenuse in this case. Draw the triangle and label all sides.
Geometric Diagram
Written Explanation
Architect's Note
When substituting, we want to choose the side for \(x\) that makes our trig function as simple as possible. Why do we typically place \(x\) on the opposite side for the form \( \sqrt{a^2 - x^2} \) (resulting in \( \sin \theta = x/a \)) rather than the adjacent side?
Triangle Logic Guide Triangle Logic Guide
Teacher Implementation Resource
LESSON 01
Conceptual Objective
Students must transition from seeing \( \sqrt{a^2 \pm x^2} \) as an algebraic "mess" to seeing it as a geometric description. The goal is mastery of the **Reference Triangle** as a bridge between Algebra and Trigonometry.
The Hook: String & Rulers
Activity Specs:
Give students a string of fixed length (say 10cm). Tell them this is the **hypotenuse**.
Ask them to form a right triangle against a ruler. As the base (\(x\)) increases, what happens to the height?
Connect the height to the formula \( \sqrt{10^2 - x^2} \).
Common Missteps
Hypotenuse Confusion
Students often mistake \(x\) for the hypotenuse in the form \( \sqrt{a^2 - x^2} \). Emphasize that in subtraction, the first term is the largest.
Theta Placement
Consistent placement of \( \theta \) is key for predictable trig ratios. Suggest always placing it at the bottom-left vertex.
Structural Logic Map
Radical Form Geometric Identity Substitution Strategy \( \sqrt{a^2 - x^2} \) \(a\) is Hypotenuse; \(x\) is Opposite. \( x = a \sin \theta \) \( \sqrt{x^2 + a^2} \) \(x, a\) are Legs; Radical is Hypotenuse. \( x = a \tan \theta \) \( \sqrt{x^2 - a^2} \) \(x\) is Hypotenuse; \(a\) is Adjacent. \( x = a \sec \theta \)
Discussion Framework
Question:
"Why do we care about triangles if we are doing calculus?"
Ideal Student Response:
"Triangles allow us to use trigonometric identities (like \( \sin^2 + \cos^2 = 1 \)) to collapse subtraction into a single term, effectively removing the radical."
Question:
"What happens to the radical if we choose the 'wrong' side for x?"
Ideal Student Response:
"The math still works, but the trig functions become more difficult (e.g., cotangent or cosecant), making the resulting integral much harder to solve."
Translation Code Slides Translation Code
Lesson 2: Executing the Substitution
X-World to Theta-World
The Substitution Matrix
Choosing the right identity to "unlock" the radical.
Sine Code
For \( \sqrt{a^2 - x^2} \)
\( x = a \sin \theta \)
Uses: \( 1 - \sin^2 = \cos^2 \)
Tangent Code
For \( \sqrt{a^2 + x^2} \)
\( x = a \tan \theta \)
Uses: \( 1 + \tan^2 = \sec^2 \)
Secant Code
For \( \sqrt{x^2 - a^2} \)
\( x = a \sec \theta \)
Uses: \( \sec^2 - 1 = \tan^2 \)
The Fatal Error
If you substitute \( x \), you **MUST** also substitute \( dx \).
If \( x = a \tan \theta \)...
\( dx = a \sec^2 \theta \, d\theta \)
Forgetting the \( dx \) is the #1 reason for incorrect results.
The Workflow
01
Identify the form and choose the code.
02
Define \( x \), the radical, and find \( dx \).
03
Plug everything into the integral.
04
Simplify using trig identities.
Translation Log
Integral: \( \int \frac{1}{\sqrt{x^2 + 4}} \, dx \)
Sub: \( x = 2 \tan \theta \)
Diff: \( dx = 2 \sec^2 \theta \, d\theta \)
Result: \( \int \sec \theta \, d\theta \)

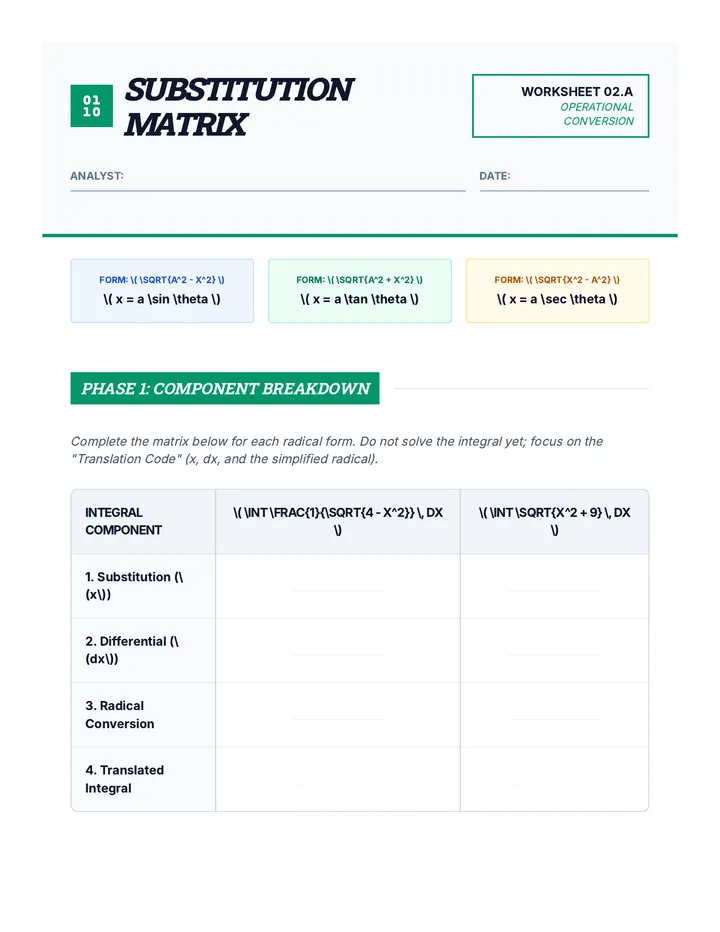

Substitution Matrix Worksheet Substitution Matrix
Worksheet 02.A
Operational Conversion
Analyst:
Date:
Form: \( \sqrt{a^2 - x^2} \)
\( x = a \sin \theta \)
Form: \( \sqrt{a^2 + x^2} \)
\( x = a \tan \theta \)
Form: \( \sqrt{x^2 - a^2} \)
\( x = a \sec \theta \)
Phase 1: Component Breakdown
Complete the matrix below for each radical form. Do not solve the integral yet; focus on the "Translation Code" (x, dx, and the simplified radical).
Integral Component \( \int \frac{1}{\sqrt{4 - x^2}} \, dx \) \( \int \sqrt{x^2 + 9} \, dx \) 1. Substitution (\(x\)) ________________ ________________ 2. Differential (\(dx\)) ________________ ________________ 3. Radical Conversion ________________ ________________ 4. Translated Integral ________________ ________________
Phase 2: Full Conversion Lab
1
Convert the following integral entirely to the \(\theta\)-world:
\[ \int \frac{x^2}{\sqrt{16 - x^2}} \, dx \]
Step A: Setup Variables
\( x = \) __________________
\( dx = \) _________________
Step B: Simplify Radical
\( \sqrt{16 - x^2} = \) ____________________
Step C: Re-write the Full Integral
Write the simplified trig integral below:

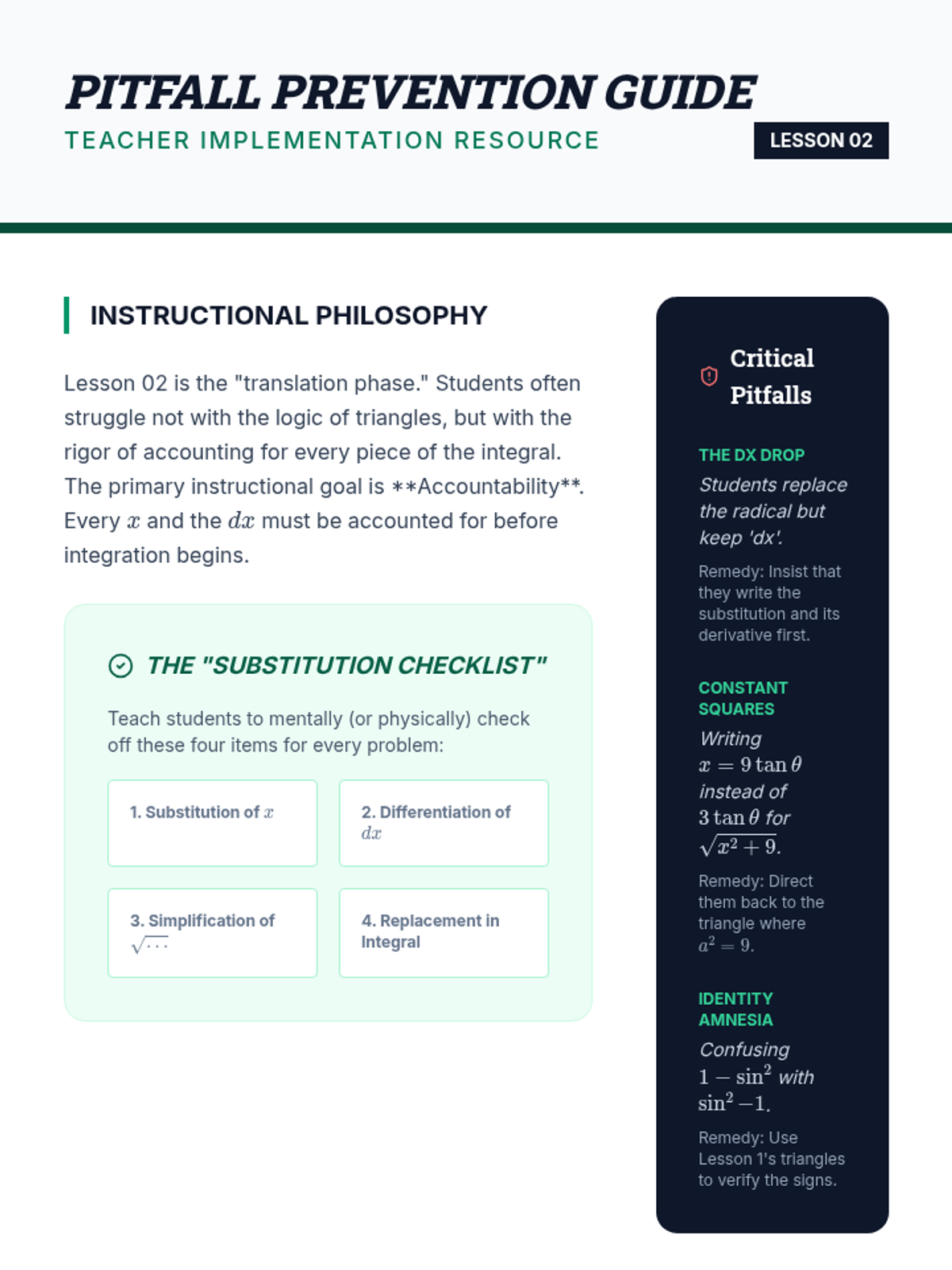

Pitfall Prevention Guide Pitfall Prevention Guide
Teacher Implementation Resource
Lesson 02
Instructional Philosophy
Lesson 02 is the "translation phase." Students often struggle not with the logic of triangles, but with the rigor of accounting for every piece of the integral. The primary instructional goal is **Accountability**. Every \(x\) and the \(dx\) must be accounted for before integration begins.
The "Substitution Checklist"
Teach students to mentally (or physically) check off these four items for every problem:
1. Substitution of \(x\)
2. Differentiation of \(dx\)
3. Simplification of \(\sqrt{\dots}\)
4. Replacement in Integral
Critical Pitfalls
The dx Drop
Students replace the radical but keep 'dx'.
Remedy: Insist that they write the substitution and its derivative first.
Constant Squares
Writing \( x = 9 \tan \theta \) instead of \( 3 \tan \theta \) for \( \sqrt{x^2 + 9} \).
Remedy: Direct them back to the triangle where \( a^2 = 9 \).
Identity Amnesia
Confusing \( 1 - \sin^2 \) with \( \sin^2 - 1 \).
Remedy: Use Lesson 1's triangles to verify the signs.
Detailed Substitution Map
Radical Sub Variable Derivative Trig identity Result \( \sqrt{16 - x^2} \) \( x = 4 \sin \theta \) \( dx = 4 \cos \theta \, d\theta \) \( 4 \cos \theta \) \( \sqrt{x^2 + 4} \) \( x = 2 \tan \theta \) \( dx = 2 \sec^2 \theta \, d\theta \) \( 2 \sec \theta \) \( \sqrt{x^2 - 1} \) \( x = 1 \sec \theta \) \( dx = 1 \sec \theta \tan \theta \, d\theta \) \( \tan \theta \)
The Lesson Hook: Matching Challenge
Before starting the lecture, give students 10 cards. 5 have radical expressions, and 5 have trigonometric identities. They must pair them up in under 2 minutes.
\( \sqrt{a^2 - x^2} \) \( a^2(1 - \sin^2 \theta) \)
\( \sqrt{a^2 + x^2} \) \( a^2(1 + \tan^2 \theta) \)
Power Tools Slides Power Tools
Lesson 3: Integrating Trig Powers
The Bridge Skills
The Traffic Jam
You successfully used the triangle. You correctly substituted the \(dx\). But now you're stuck here:
\[ \int \cos^2 \theta \, d\theta \]
The Problem
We can't integrate powers of trig functions directly using basic power rules. We need **Power Reduction Tools**.
The Double-Angle Hack
Sine Tool
\( \sin^2 \theta = \frac{1 - \cos(2\theta)}{2} \)
Cosine Tool
\( \cos^2 \theta = \frac{1 + \cos(2\theta)}{2} \)
"These turn a power into a double-angle, which is easy to integrate!"
The Pythagorean Pivot
When powers are odd...
Peel one off and use the Pythagorean Identity:
\( \tan^2 \theta = \sec^2 \theta - 1 \)
The "Must Knows":
\( \int \sec^2 \theta = \tan \theta + C \)
\( \int \sec \theta = \ln|\sec \theta + \tan \theta| + C \)
Reduction in Action
\( \int \tan^3 \theta \, d\theta \)
\( = \int \tan \theta (\sec^2 \theta - 1) \, d\theta \)
\( = \int \tan \theta \sec^2 \theta - \int \tan \theta \, d\theta \)
Use U-Sub on part 1!

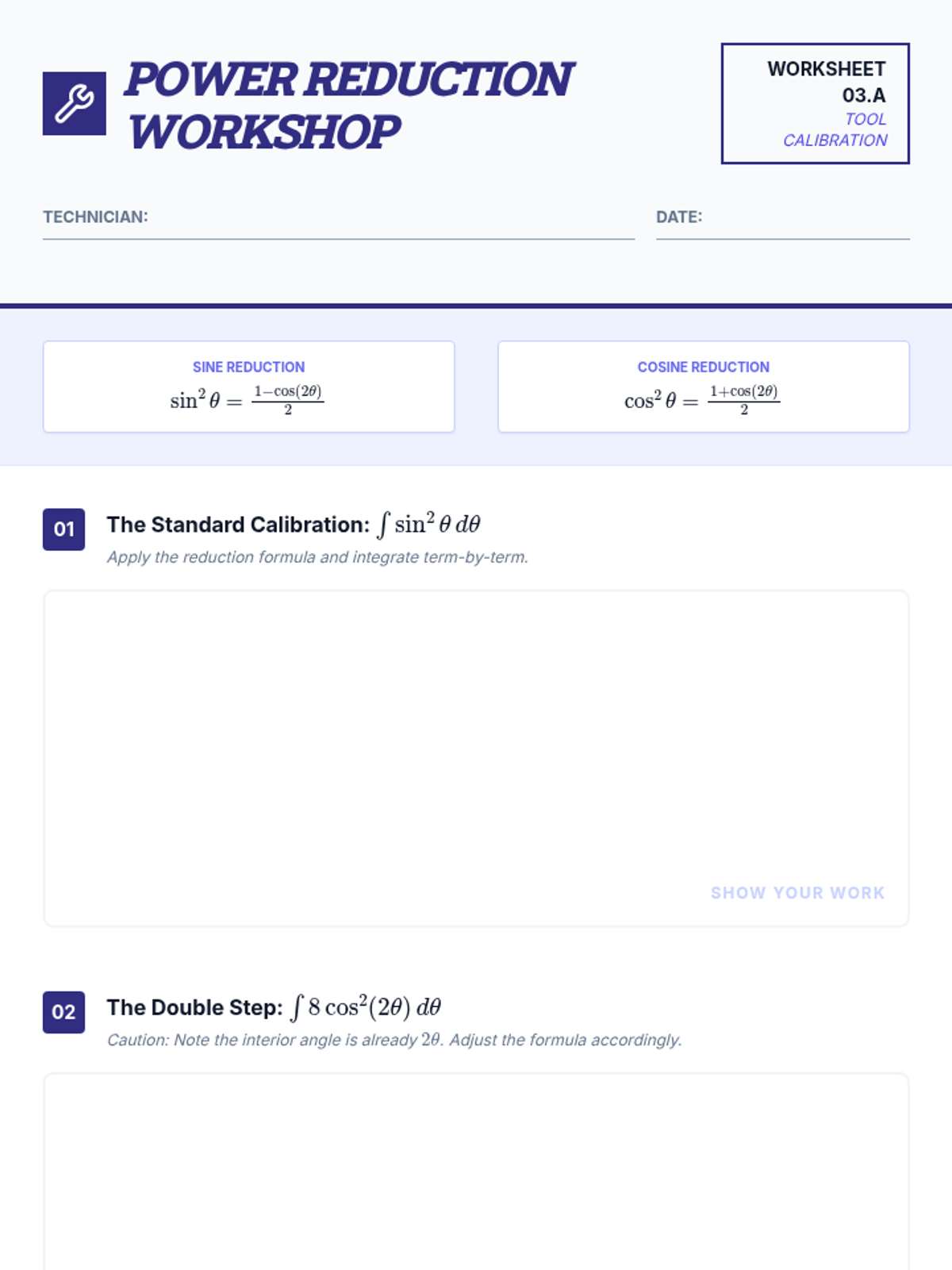

Power Reduction Workshop Power Reduction Workshop
Worksheet 03.A
Tool Calibration
Technician:
Date:
Sine Reduction
\( \sin^2 \theta = \frac{1 - \cos(2\theta)}{2} \)
Cosine Reduction
\( \cos^2 \theta = \frac{1 + \cos(2\theta)}{2} \)
01
The Standard Calibration: \( \int \sin^2 \theta \, d\theta \)
Apply the reduction formula and integrate term-by-term.
Show your work
02
The Double Step: \( \int 8 \cos^2 (2\theta) \, d\theta \)
Caution: Note the interior angle is already \(2\theta\). Adjust the formula accordingly.
Advanced Tooling: Secants and Tangents
03
The Identity Pivot: \( \int \tan^3 \theta \, d\theta \)
Split into \( \tan \theta \cdot \tan^2 \theta \) and substitute the Pythagorean identity.
The Engineer's Insight
When you integrate \( \int \sin^2 \theta \, d\theta \), you get a term with \( \sin(2\theta) \). In the next lesson, we will need to go back to \(x\). How can you re-write \( \sin(2\theta) \) using only single-angle trig functions (sine and cosine)?
\( \sin(2\theta) = \) _______________________

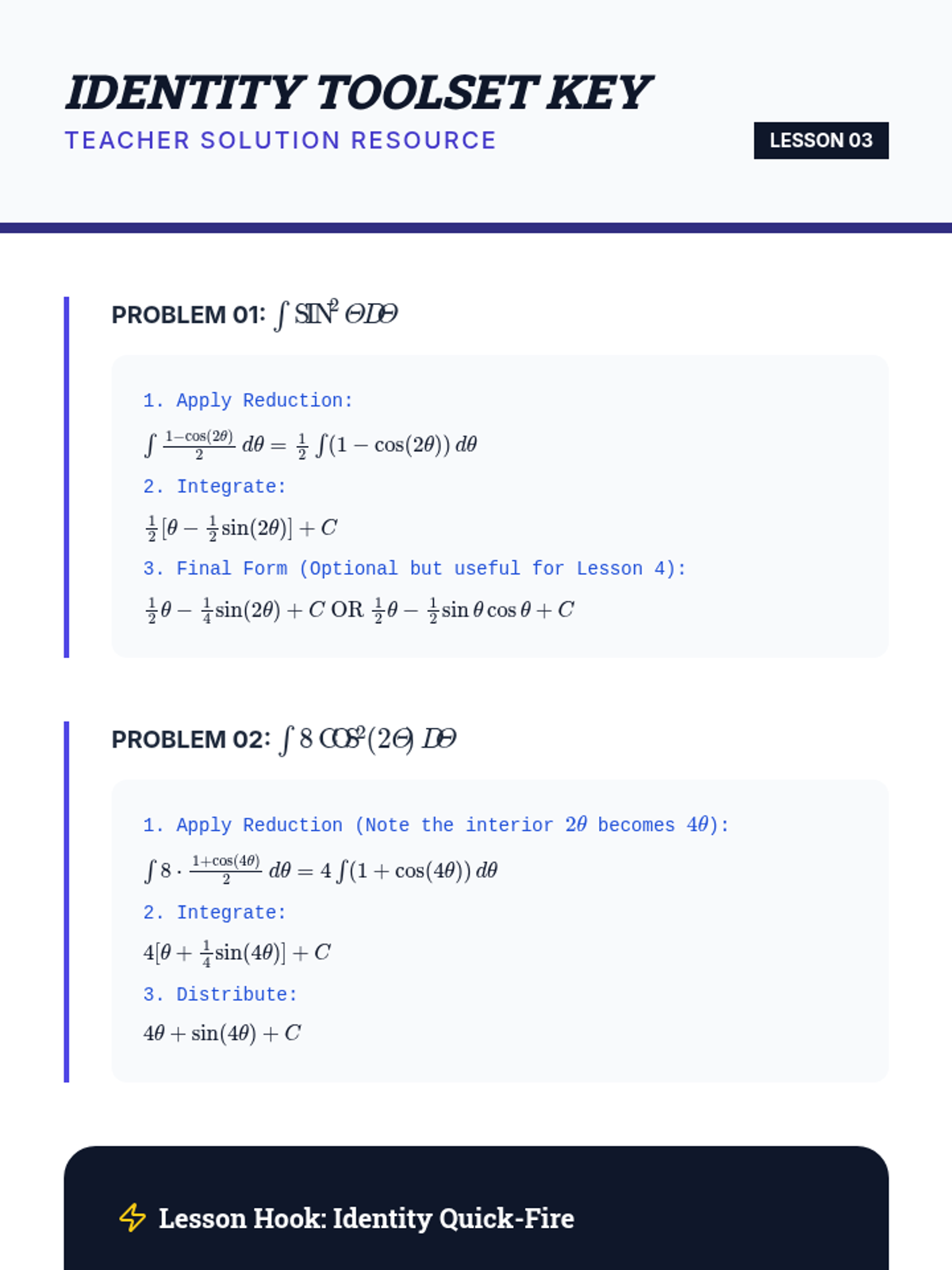

Identity Toolset Key Identity Toolset Key
Teacher Solution Resource
Lesson 03
Problem 01: \( \int \sin^2 \theta \, d\theta \)
1. Apply Reduction:
\( \int \frac{1 - \cos(2\theta)}{2} \, d\theta = \frac{1}{2} \int (1 - \cos(2\theta)) \, d\theta \)
2. Integrate:
\( \frac{1}{2} [\theta - \frac{1}{2} \sin(2\theta)] + C \)
3. Final Form (Optional but useful for Lesson 4):
\( \frac{1}{2} \theta - \frac{1}{4} \sin(2\theta) + C \text{ OR } \frac{1}{2} \theta - \frac{1}{2} \sin \theta \cos \theta + C \)
Problem 02: \( \int 8 \cos^2 (2\theta) \, d\theta \)
1. Apply Reduction (Note the interior \(2\theta\) becomes \(4\theta\)):
\( \int 8 \cdot \frac{1 + \cos(4\theta)}{2} \, d\theta = 4 \int (1 + \cos(4\theta)) \, d\theta \)
2. Integrate:
\( 4 [\theta + \frac{1}{4} \sin(4\theta)] + C \)
3. Distribute:
\( 4\theta + \sin(4\theta) + C \)
Lesson Hook: Identity Quick-Fire
Project these expressions one by one. Students must write the equivalent identity on small whiteboards/scraps. Speed is the goal.
Display:
\( \cos^2 \theta + \sin^2 \theta \)
Target Answer: \( 1 \)
Display:
\( 1 + \tan^2 \theta \)
Target Answer: \( \sec^2 \theta \)
Display:
\( \sin(2\theta) \)
Target Answer: \( 2 \sin \theta \cos \theta \)
Display:
\( \sec^2 \theta - 1 \)
Target Answer: \( \tan^2 \theta \)
Return Trip Slides The Return Trip
Lesson 4: Back-Substitution to X
X Marks the Spot
The Problem with \(\theta\)
Your client asked you to find the integral of a function of **\(x\)**.
Answer: \( \frac{1}{2} \ln|\sec \theta + \tan \theta| + C \)
The client doesn't know what \(\theta\) is.
The Goal
We must return to the "x-world" using the original blueprint: the Reference Triangle.
Reading the Blueprint
Use SOH CAH TOA on your original triangle.
\(\sin \theta = \frac{Opp}{Hyp}\)
\(\cos \theta = \frac{Adj}{Hyp}\)
\(\tan \theta = \frac{Opp}{Adj}\)
\(\sec \theta = \frac{Hyp}{Adj}\)
Adj (\( \sqrt{a^2-x^2} \)) Opp (\( x \)) Hyp (\( a \)) \(\theta\)
What about \(\theta\) alone?
Sometimes your answer has a lone \(\theta\) (like from integrating \(\int 1 \, d\theta\)).
The Solution: Inverse Trig
Go back to your initial substitution. If \( x = a \sin \theta \), then solve for \(\theta\):
\( \theta = \arcsin(\frac{x}{a}) \)
The Double Angle Trap
If you have \( \sin(2\theta) \), you CANNOT read that directly from a triangle for \(\theta\).
Rule: Always use the Identity \( \sin(2\theta) = 2 \sin \theta \cos \theta \) before substituting back!
Reconversion Challenge Worksheet The Reconversion Challenge
Worksheet 04.A
Final Translation
Translator:
Date:
"You have successfully integrated. Your results are in \(\theta\)-world. Use your reference triangle to bring these answers home to x-world. Your client accepts only algebraic expressions in terms of \(x\) and \(a\)."
1
The Sine Blueprint
Original Context
Radical: \( \sqrt{9 - x^2} \)
Substitution: \( x = 3 \sin \theta \)
Sketch Reference Triangle
Target Reconversion:
\( \frac{1}{3} \tan \theta + C \)
Final Algebraic Answer
2
The Tangent Blueprint
Original Context
Radical: \( \sqrt{x^2 + 16} \)
Substitution: \( x = 4 \tan \theta \)
Sketch Reference Triangle
Target Reconversion:
\( \frac{1}{2} \theta + \frac{1}{4} \sin(2\theta) + C \)
Hint: Expand sin(2\theta) first!
The Inverse Case
In Problem 2, you have a term \( \frac{1}{2} \theta \). Since there is no trig function attached to this \(\theta\), you must use an inverse function. Based on the initial substitution \( x = 4 \tan \theta \), write the expression for \(\theta\) in terms of \(x\).
\( \theta = \) _______________________

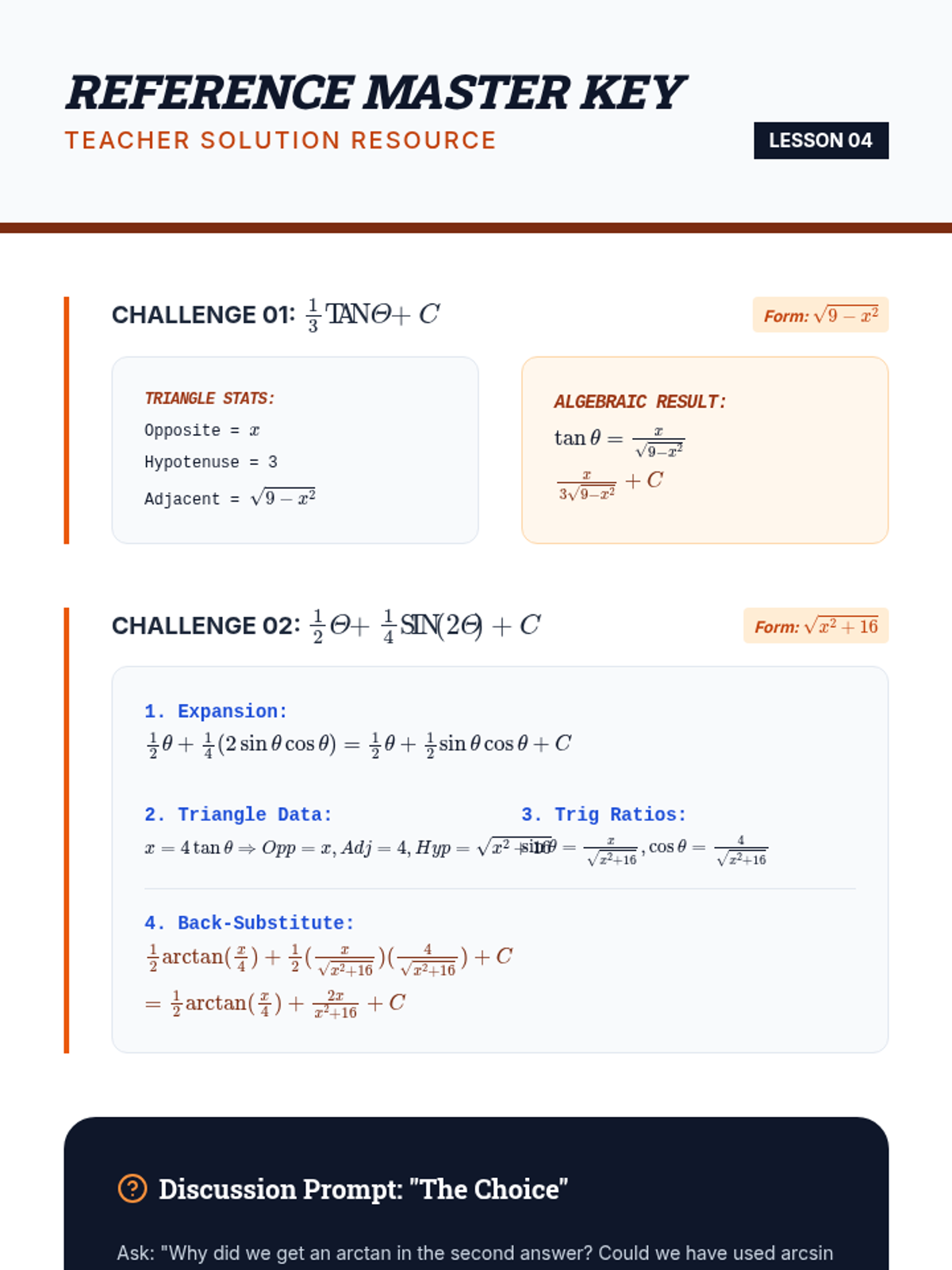

Reference Master Key Reference Master Key
Teacher Solution Resource
Lesson 04
Challenge 01: \( \frac{1}{3} \tan \theta + C \)
Form: \(\sqrt{9-x^2}\)
Triangle Stats:
Opposite = \(x\)
Hypotenuse = 3
Adjacent = \(\sqrt{9 - x^2}\)
Algebraic Result:
\( \tan \theta = \frac{x}{\sqrt{9 - x^2}} \)
\( \frac{x}{3\sqrt{9 - x^2}} + C \)
Challenge 02: \( \frac{1}{2} \theta + \frac{1}{4} \sin(2\theta) + C \)
Form: \(\sqrt{x^2+16}\)
1. Expansion:
\( \frac{1}{2} \theta + \frac{1}{4} (2 \sin \theta \cos \theta) = \frac{1}{2} \theta + \frac{1}{2} \sin \theta \cos \theta + C \)
2. Triangle Data:
\( x=4\tan\theta \Rightarrow Opp=x, Adj=4, Hyp=\sqrt{x^2+16} \)
3. Trig Ratios:
\( \sin\theta = \frac{x}{\sqrt{x^2+16}}, \cos\theta = \frac{4}{\sqrt{x^2+16}} \)
4. Back-Substitute:
\( \frac{1}{2} \arctan(\frac{x}{4}) + \frac{1}{2} (\frac{x}{\sqrt{x^2+16}}) (\frac{4}{\sqrt{x^2+16}}) + C \)
\( = \frac{1}{2} \arctan(\frac{x}{4}) + \frac{2x}{x^2+16} + C \)
Discussion Prompt: "The Choice"
Ask: "Why did we get an arctan in the second answer? Could we have used arcsin instead?"
Teacher Note:
"Technically, any inverse function works, but we stay consistent with the substitution chosen. If we picked \( x = 4 \tan \theta \), then \( \arctan(x/4) \) is the most direct route. Avoid introducing redundant complexity."
Renovation Tactics Slides Renovation Tactics
Lesson 5: Completing the Square for Substitution
Reshaping the Integral
The Structural Mess
What happens when the radical doesn't look like \( a^2 - x^2 \)?
\[ \int \frac{1}{\sqrt{4x - x^2}} \, dx \]
The Solution
We need to **Renovate**. By completing the square, we can turn any quadratic into a perfect square minus (or plus) a constant.
Result: \( 4 - (x-2)^2 \)
The Renovation Protocol
01
Group
Isolate the \(x\) terms and factor out any negatives.
02
Halve & Square
Take half of the \(b\) term and square it.
03
Balance
Add and subtract the value to keep the equation valid.
04
Collapse
Factor into \( (x \pm h)^2 \pm k \).
The Shifted Triangle
A New Variable
Instead of substituting \( x \), we substitute the whole binomial:
\( (x - 2) = 2 \sin \theta \)
Note: \( dx \) remains the same, because the derivative of \((x-2)\) is still \(1\).
Reference Diagram
Adj (\( \sqrt{4-(x-2)^2} \)) Opp (\( x - 2 \)) Hyp (\( 2 \))

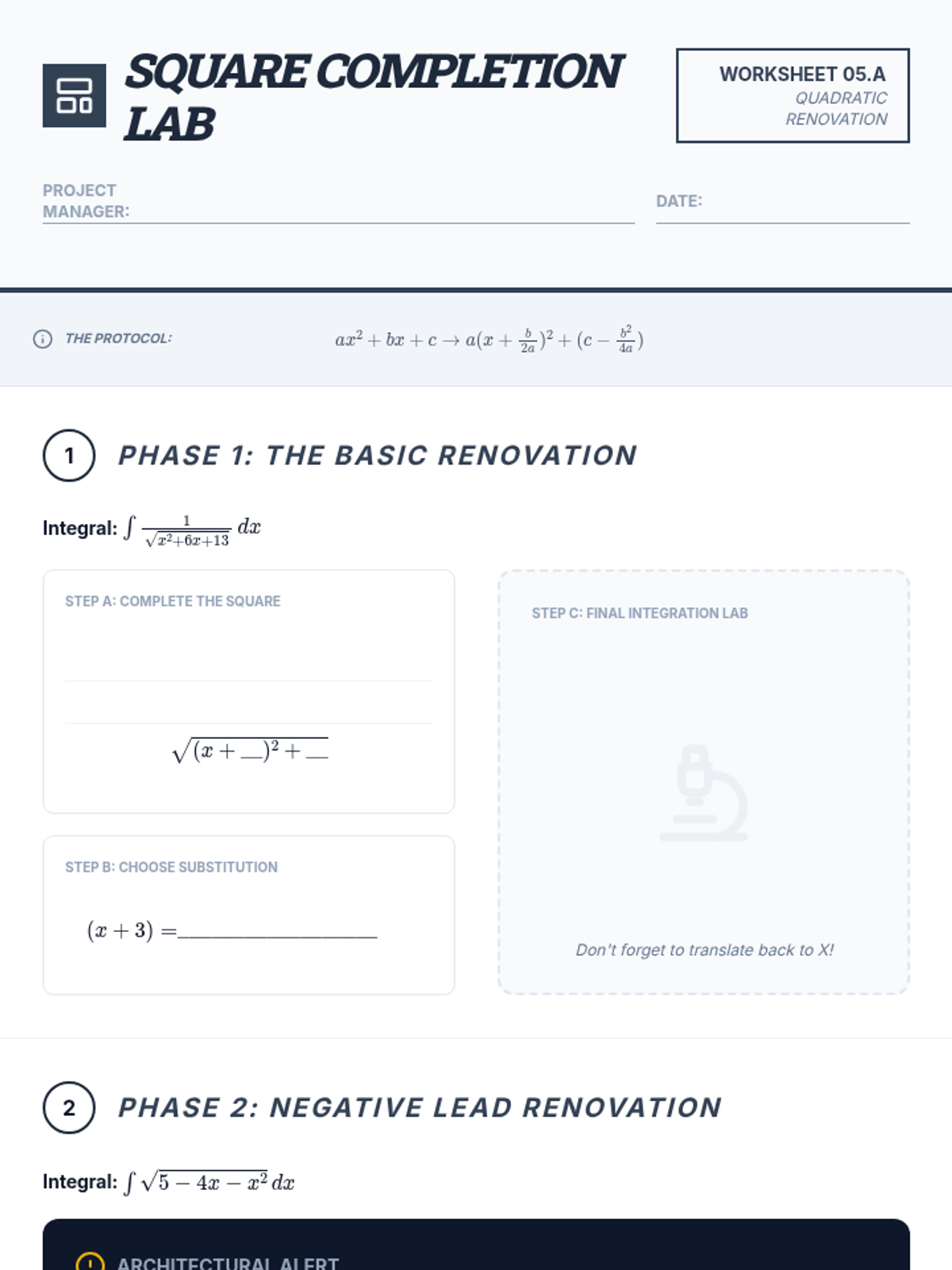

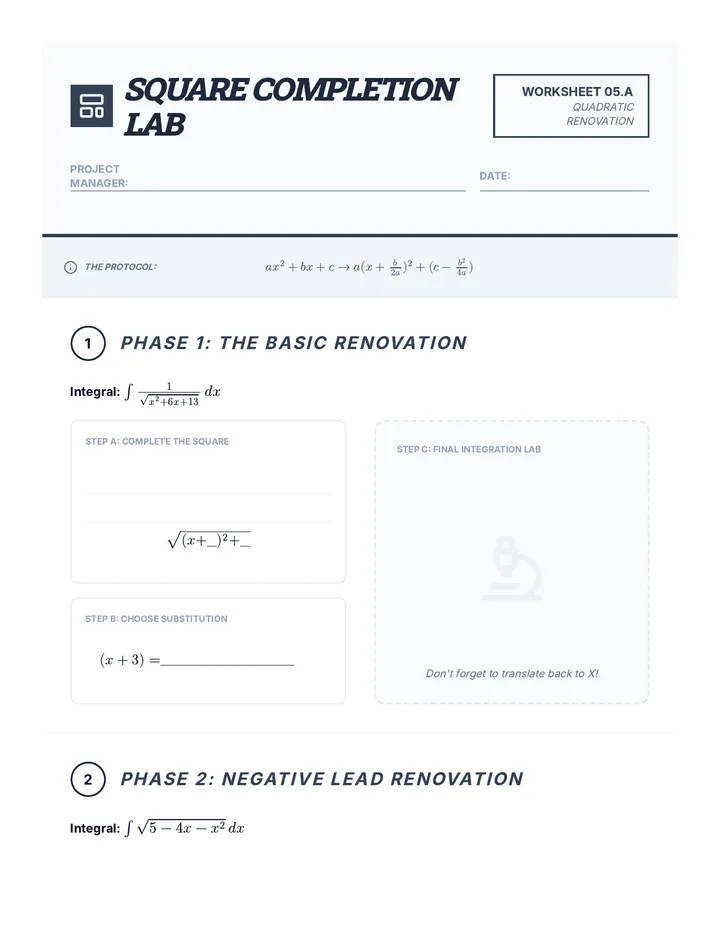

Square Completion Lab Worksheet Square Completion Lab
Worksheet 05.A
Quadratic Renovation
Project Manager:
Date:
The Protocol:
\( ax^2 + bx + c \rightarrow a(x + \frac{b}{2a})^2 + (c - \frac{b^2}{4a}) \)
1
Phase 1: The Basic Renovation
Integral: \( \int \frac{1}{\sqrt{x^2 + 6x + 13}} \, dx \)
Step A: Complete the Square
\( \sqrt{(x + \_\_)^2 + \_\_} \)
Step B: Choose Substitution
\( (x + 3) = \) __________________
Step C: Final Integration Lab
Don't forget to translate back to X!
2
Phase 2: Negative Lead Renovation
Integral: \( \int \sqrt{5 - 4x - x^2} \, dx \)
Architectural Alert
The \(x^2\) term is negative. You MUST factor out the negative within the grouping before completing the square.
\( 5 - (x^2 + 4x) \Rightarrow 5 - (x^2 + 4x + 4 - 4) \Rightarrow \dots \)
Calculations & Triangle Sketch
Final Answer Construction

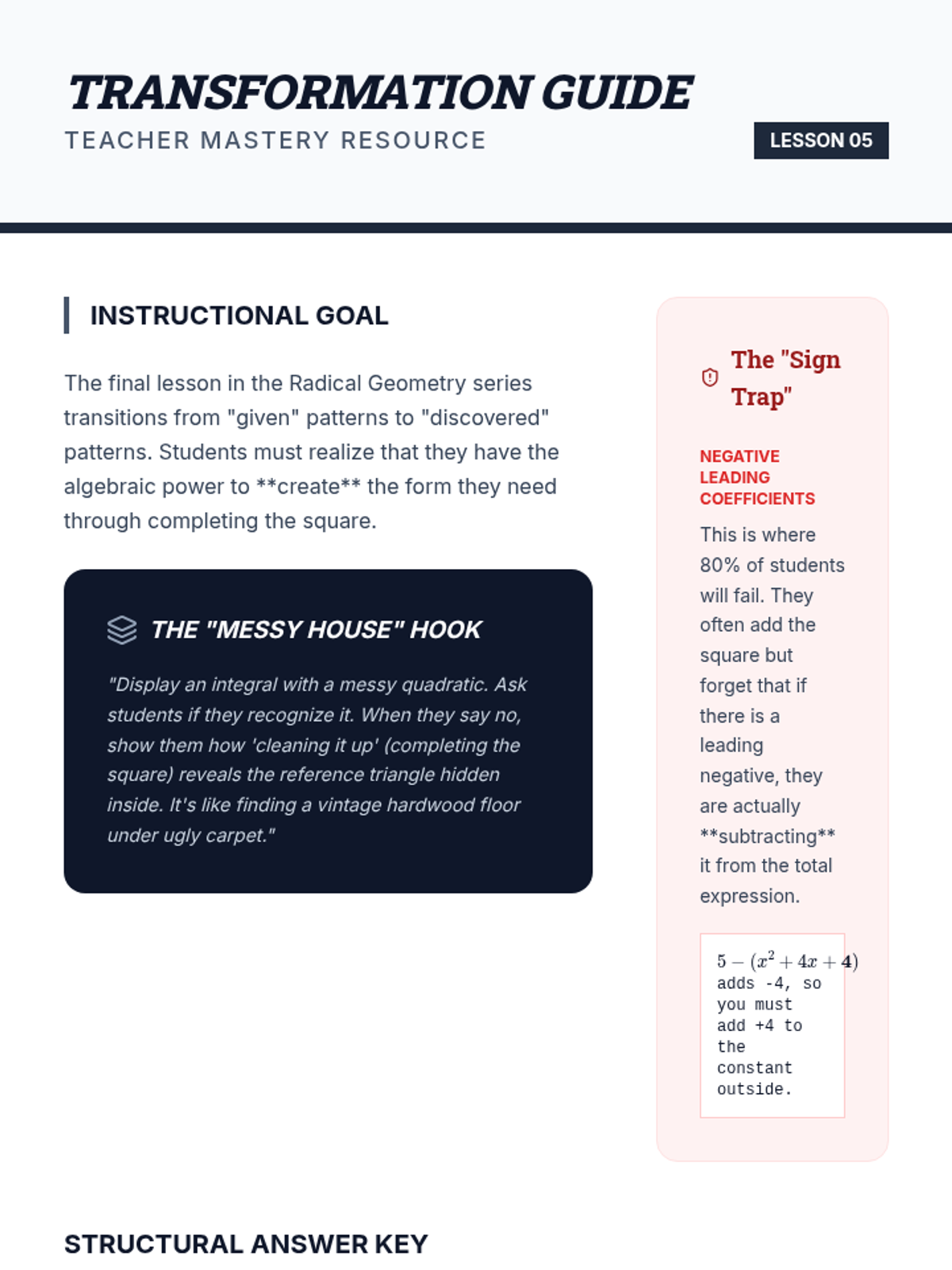

Transformation Guide Teacher Key Transformation Guide
Teacher Mastery Resource
Lesson 05
Instructional Goal
The final lesson in the Radical Geometry series transitions from "given" patterns to "discovered" patterns. Students must realize that they have the algebraic power to **create** the form they need through completing the square.
The "Messy House" Hook
"Display an integral with a messy quadratic. Ask students if they recognize it. When they say no, show them how 'cleaning it up' (completing the square) reveals the reference triangle hidden inside. It's like finding a vintage hardwood floor under ugly carpet."
The "Sign Trap"
Negative Leading Coefficients
This is where 80% of students will fail. They often add the square but forget that if there is a leading negative, they are actually **subtracting** it from the total expression.
\( 5 - (x^2 + 4x + \mathbf{4}) \) adds -4, so you must add +4 to the constant outside.
Structural Answer Key
Phase 1: Shifted Tan
\( \sqrt{x^2+6x+13} \rightarrow \sqrt{(x+3)^2 + 4} \)
Sub: \( (x+3) = 2 \tan \theta \)
Result: \( \ln|\frac{\sqrt{x^2+6x+13}}{2} + \frac{x+3}{2}| + C \)
Phase 2: Shifted Sin
\( \sqrt{5-4x-x^2} \rightarrow \sqrt{9 - (x+2)^2} \)
Sub: \( (x+2) = 3 \sin \theta \)
Result: \( \frac{9}{2} \arcsin(\frac{x+2}{3}) + \frac{(x+2)\sqrt{9-(x+2)^2}}{2} + C \)
Series Mastery Debrief
As you conclude this unit, lead a discussion on the **transferability** of these skills.
Conclusion Point:
"We didn't just learn how to solve an integral. We learned how to see geometric structures inside algebraic symbols. This visual intuition is the mark of a true mathematician."
