Parallelogram Patterns Slides Parallelogram Patterns
Proving Properties with Coordinate Geometry
Lesson 1: Algebraic Geometry
The Great Gamble
Four points are plotted on a grid:
Would you bet $50 that this is a "Perfect Parallelogram"?
What do you see?
How could you prove it for sure?
Is "looking right" enough?
Algebraic Toolbelt
Slope Formula
\[ m = \frac{y_2 - y_1}{x_2 - x_1} \]
Proves Parallelism:
If \( m_1 = m_2 \), the lines are parallel.
Distance Formula
\[ d = \sqrt{(x_2-x_1)^2 + (y_2-y_1)^2} \]
Proves Congruence:
If distances are equal, segments are congruent.
Algebraic Definition
1
Method: Slopes
Show that both pairs of opposite sides have the same slope.
2
Method: Distance
Show that both pairs of opposite sides have equal length.
3
Method: Midpoints
The "Secret" Method: Show the diagonals bisect each other (same midpoint).
Workshop Time
Grab your "Parallelogram Gamble" worksheet. We're going to calculate the truth behind the shapes. Remember: Algebra doesn't lie, but your eyes might!
Parallelogram Gamble Worksheet The Great Parallelogram Gamble
Coordinate Geometry Proofs
Name:
Date:
The Challenge
Four points have been spotted on a radar grid. They look like a parallelogram, but in high-stakes geometry, looks can be deceiving. Perform an algebraic survey to prove whether these coordinates form a perfect parallelogram.
A(2, 2) | B(8, 3) | C(10, 8) | D(4, 7)
Place Your Bet!
Based on a quick sketch, do you think this is a parallelogram?
Yes, it is!
No, it's a fake!
Part 1: The Slope Survey (Check for Parallelism)
Slope of AB:
m = ________
Slope of CD:
m = ________
Slope of BC:
m = ________
Slope of DA:
m = ________
Observation:
Are the opposite sides parallel? Explain based on your slopes.
Part 2: The Distance Survey (Check for Congruence)
Distance of AB:
d = ________
Distance of CD:
d = ________
Conclusion:
Final Verdict: Is Quadrilateral ABCD a parallelogram? Use your data from Parts 1 & 2 to justify your answer.
The Midpoint Secret
If ABCD is a parallelogram, its diagonals must bisect each other. Find the midpoint of diagonals AC and BD.
Midpoint of AC:
Midpoint of BD:
Parallelogram Teacher Guide Teacher Facilitation Guide
Lesson 1: Parallelogram Patterns
Timeframe 50-60 min
Learning Objective
Students will apply the slope and distance formulas to a set of coordinates to verify if a quadrilateral meets the definition of a parallelogram (opposite sides parallel and congruent).
Essential Standards
HSG-GPE.B.4 & HSG-GPE.B.5
Use coordinates to prove simple geometric theorems algebraically.
Materials Needed
Lesson Slides
Gamble Worksheet
Graph Paper
Calculators
Instructional Sequence
01
The Gamble Hook (10 min)
Show Slide 2. Have students sketch the points A(2,2), B(8,3), C(10,8), D(4,7) on a coordinate plane. Ask them to "bet" on whether it's a parallelogram. Facilitate a quick discussion on why visual checks aren't reliable (skewing, slight inaccuracies).
02
Formula Review (10 min)
Review Slide 3. Ensure students understand that slope = direction (parallelism) and distance = length (congruence). Ask: "If we show both pairs of opposite sides have the same slope, do we also need distance?" (Technically, two pairs of parallel sides is the definition, but using both confirms the property).
03
The Gamble Survey (25 min)
Students work individually or in pairs on the worksheet. Walk around to catch common errors: negative signs in the slope formula and correctly squaring negatives in the distance formula.
Worksheet Answer Key
Part 1: Slopes
Slope AB: 1/6
Slope CD: 1/6
Slope BC: 5/2
Slope DA: 5/2
Observation: Opposite sides have equal slopes, therefore opposite sides are parallel.
Part 2: Distances
Dist. AB: sqrt(37) ≈ 6.08
Dist. CD: sqrt(37) ≈ 6.08
Final Verdict: Yes, it is a parallelogram because both pairs of opposite sides are parallel and opposite sides are congruent.
Bonus: Midpoints
Midpoint AC: (6, 5)
Midpoint BD: (6, 5)
Since the midpoints are identical, the diagonals bisect each other, further proving it's a parallelogram.
Right Angle Reality Slides Right Angle Reality
Orthogonality and Rectangles in Coordinate Space
The Skewed Pitch
A groundskeeper marks a soccer field at:
"It looks like a perfect rectangle to me!"
Is the pitch actually skewed? If the corners aren't exactly 90°, the game isn't fair. How can we prove the "Right Angle Reality" with math?
P4
P3
P1
P2
The Power of Slopes
Opposite Reciprocals
Two lines are perpendicular if their slopes multiply to -1.
\[ m_1 \cdot m_2 = -1 \]
Example Check:
\( m = \frac{2}{3} \) \( m = -\frac{3}{2} \) YES!
\( m = 4 \) \( m = -0.25 \) YES!
The Diagonal Proof
In a Parallelogram:
If the diagonals are congruent, then the shape must be a rectangle.
This is an alternative to checking all four corner slopes!
Diagonal 1 Diagonal 2
Surveyor Deployment
Open your "Soccer Field Survey" packet. We need to analyze the pitch coordinates and report back to the league: is it a Rectangle or just a Parallelogram?

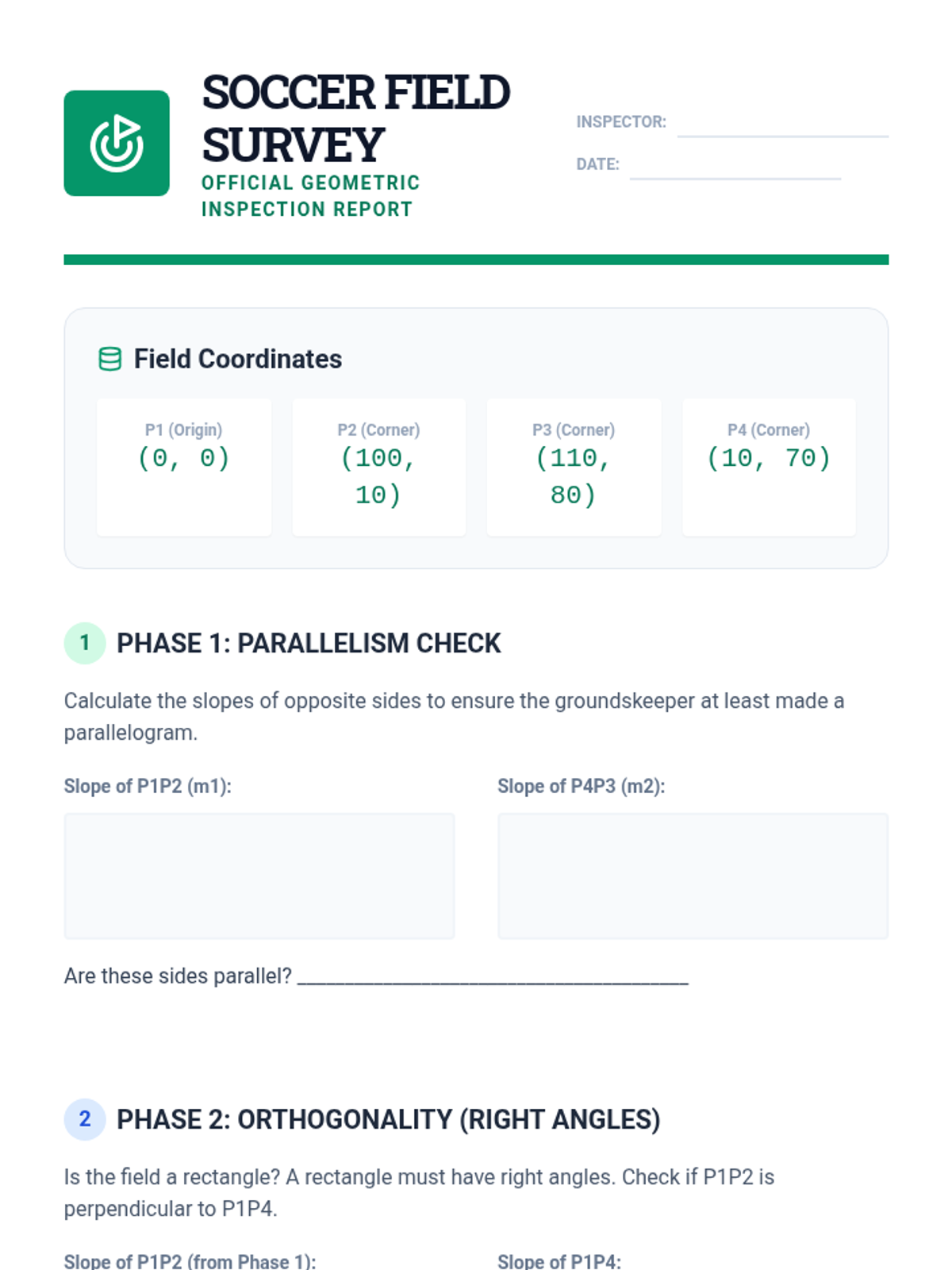

Soccer Field Survey Worksheet Soccer Field Survey
Official Geometric Inspection Report
Inspector:
Date:
Field Coordinates
P1 (Origin) (0, 0)
P2 (Corner) (100, 10)
P3 (Corner) (110, 80)
P4 (Corner) (10, 70)
1
Phase 1: Parallelism Check
Calculate the slopes of opposite sides to ensure the groundskeeper at least made a parallelogram.
Slope of P1P2 (m1):
Slope of P4P3 (m2):
Are these sides parallel? _________________________________________
2
Phase 2: Orthogonality (Right Angles)
Is the field a rectangle? A rectangle must have right angles. Check if P1P2 is perpendicular to P1P4.
Slope of P1P2 (from Phase 1):
Slope of P1P4:
Verification:
Multiply the slopes: (Slope P1P2) \(\times\) (Slope P1P4) = ________________________
Does this product equal -1? ____________________
3
Phase 3: The Diagonal Double-Check
If the field is a rectangle, the diagonals must be congruent. Calculate the lengths of diagonals P1P3 and P2P4.
Distance P1P3:
Distance P2P4:
Final Inspection Verdict
Based on your algebraic evidence, is the soccer field a true rectangle? Justify your claim using your findings from Phase 2 (orthogonality) or Phase 3 (congruent diagonals).

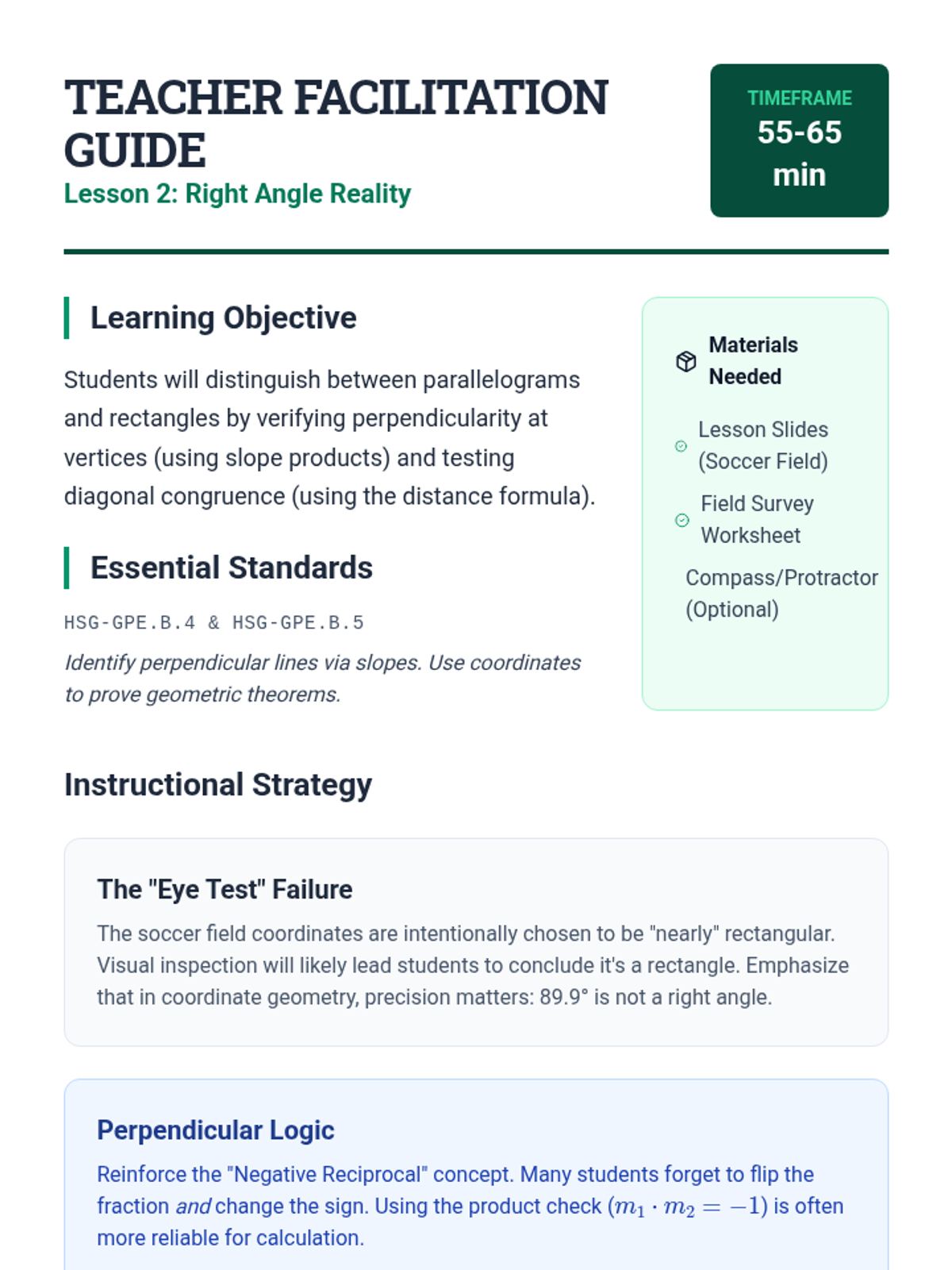

Right Angle Reality Teacher Guide Teacher Facilitation Guide
Lesson 2: Right Angle Reality
Timeframe 55-65 min
Learning Objective
Students will distinguish between parallelograms and rectangles by verifying perpendicularity at vertices (using slope products) and testing diagonal congruence (using the distance formula).
Essential Standards
HSG-GPE.B.4 & HSG-GPE.B.5
Identify perpendicular lines via slopes. Use coordinates to prove geometric theorems.
Materials Needed
Lesson Slides (Soccer Field)
Field Survey Worksheet
Compass/Protractor (Optional)
Instructional Strategy
The "Eye Test" Failure
The soccer field coordinates are intentionally chosen to be "nearly" rectangular. Visual inspection will likely lead students to conclude it's a rectangle. Emphasize that in coordinate geometry, precision matters: 89.9° is not a right angle.
Perpendicular Logic
Reinforce the "Negative Reciprocal" concept. Many students forget to flip the fraction and change the sign. Using the product check (\( m_1 \cdot m_2 = -1 \)) is often more reliable for calculation.
Field Survey Answer Key
Phase 1: Parallelism
Slope P1P2 = 10/100 = 1/10
Slope P4P3 = (80-70)/(110-10) = 10/100 = 1/10
Result: Opposite sides are parallel. It is a parallelogram.
Phase 2: Orthogonality
Slope P1P4 = (70-0)/(10-0) = 7
Product Check: (1/10) * 7 = 0.7
Result: Product is NOT -1. No right angles. Not a rectangle.
Phase 3: Diagonals
P1P3 = sqrt(110² + 80²) = sqrt(18,500) ≈ 136.01
P2P4 = sqrt((10-100)² + (70-10)²) = sqrt(11,700) ≈ 108.17
Result: Diagonals are NOT congruent. Final verification that it is not a rectangle.
Official Verdict
The soccer field is a Parallelogram but NOT a Rectangle. The corners are skewed by approximately 0.7 vs -1.0 slope product check.
Diagonal Detectives Slides Diagonal Detectives
Proving Rhombi and Squares in the Field
The Architect's Dilemma
A luxury tower must have a perfectly square foundation at:
"It has four equal sides!"
The contractor claims it's a square because all side lengths are \(\sqrt{50}\). But is it a Square or just a Rhombus tilted over?
Foundation Layout Rev. 04
The Rhombus Profile
1
Sides: All 4 sides must be congruent (Distance Formula).
2
Diagonals: Must be perpendicular (Slope Formula check).
Rhombus Diagonal Check
\( m_1 \cdot m_2 = -1 \)
If this is true, the diagonals form a 90° intersection.
The Perfect Square
All Sides Congruent
It's a Rhombus.
All Angles 90°
It's a Rectangle.
Diagonals Both
Congruent AND Perpendicular!
Shortcut to Success:
If a shape is a parallelogram and its diagonals are Congruent AND Perpendicular, it is a SQUARE .
Foundation Inspection
Grab the "Square Footprint Lab" and verify those coordinates. The tower's stability depends on your algebraic precision.
PROVE_IT_MODE: ACTIVATED

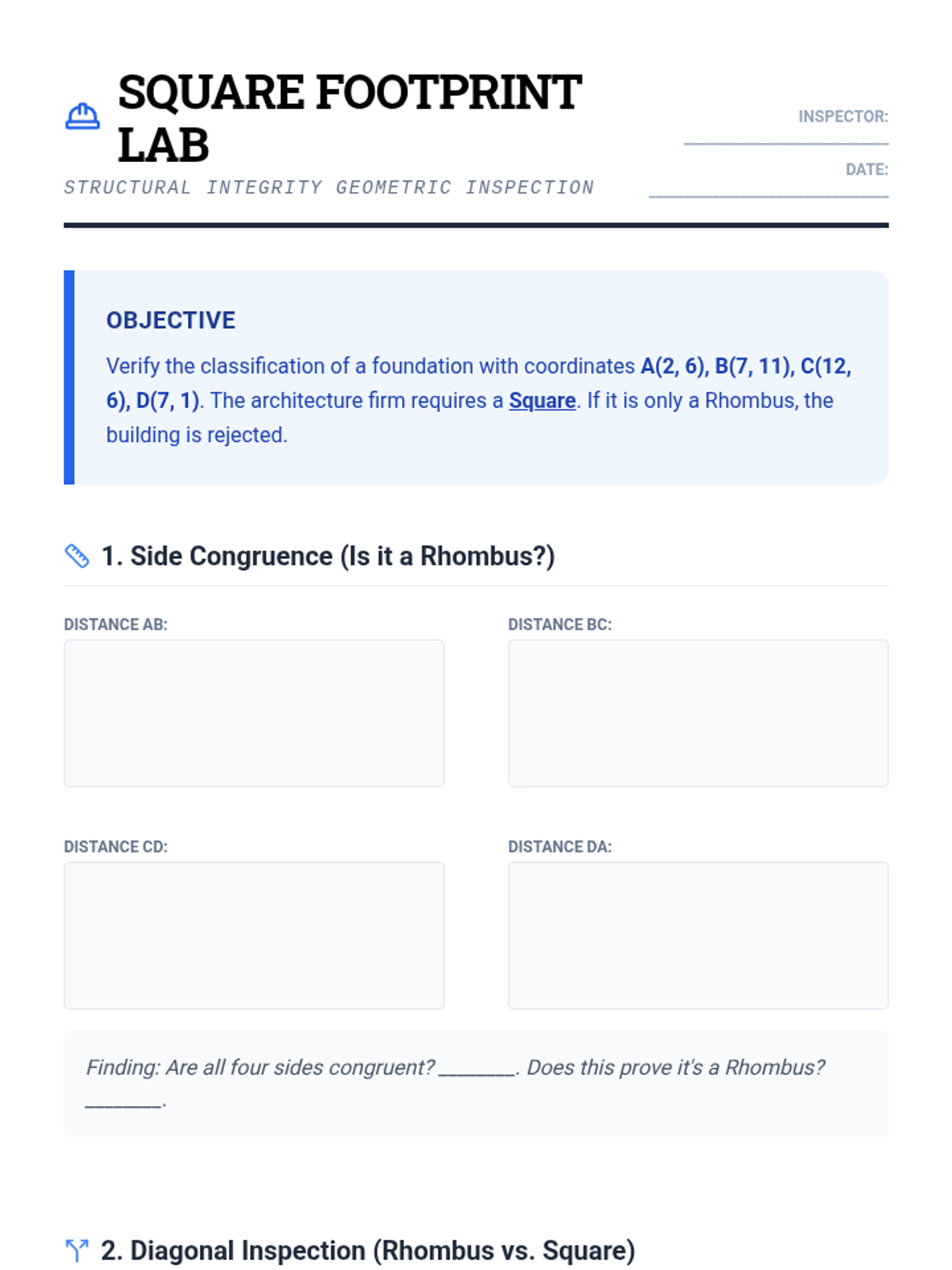

Square Footprint Lab Worksheet Square Footprint Lab
Structural Integrity Geometric Inspection
INSPECTOR: _____________________________
DATE: __________________________________
Objective
Verify the classification of a foundation with coordinates A(2, 6), B(7, 11), C(12, 6), D(7, 1) . The architecture firm requires a Square. If it is only a Rhombus, the building is rejected.
1. Side Congruence (Is it a Rhombus?)
Distance AB:
Distance BC:
Distance CD:
Distance DA:
Finding: Are all four sides congruent? ________. Does this prove it's a Rhombus? ________.
2. Diagonal Inspection (Rhombus vs. Square)
Diagonal Distance (Congruence)
Distance AC:
Distance BD:
Diagonal Slope (Orthogonality)
Slope of AC:
Slope of BD:
Final Classification Report
Summarize your findings. Is the building foundation a Rhombus, Rectangle, or Square? Use your evidence from the distance and slope checks above to provide the most specific classification possible.

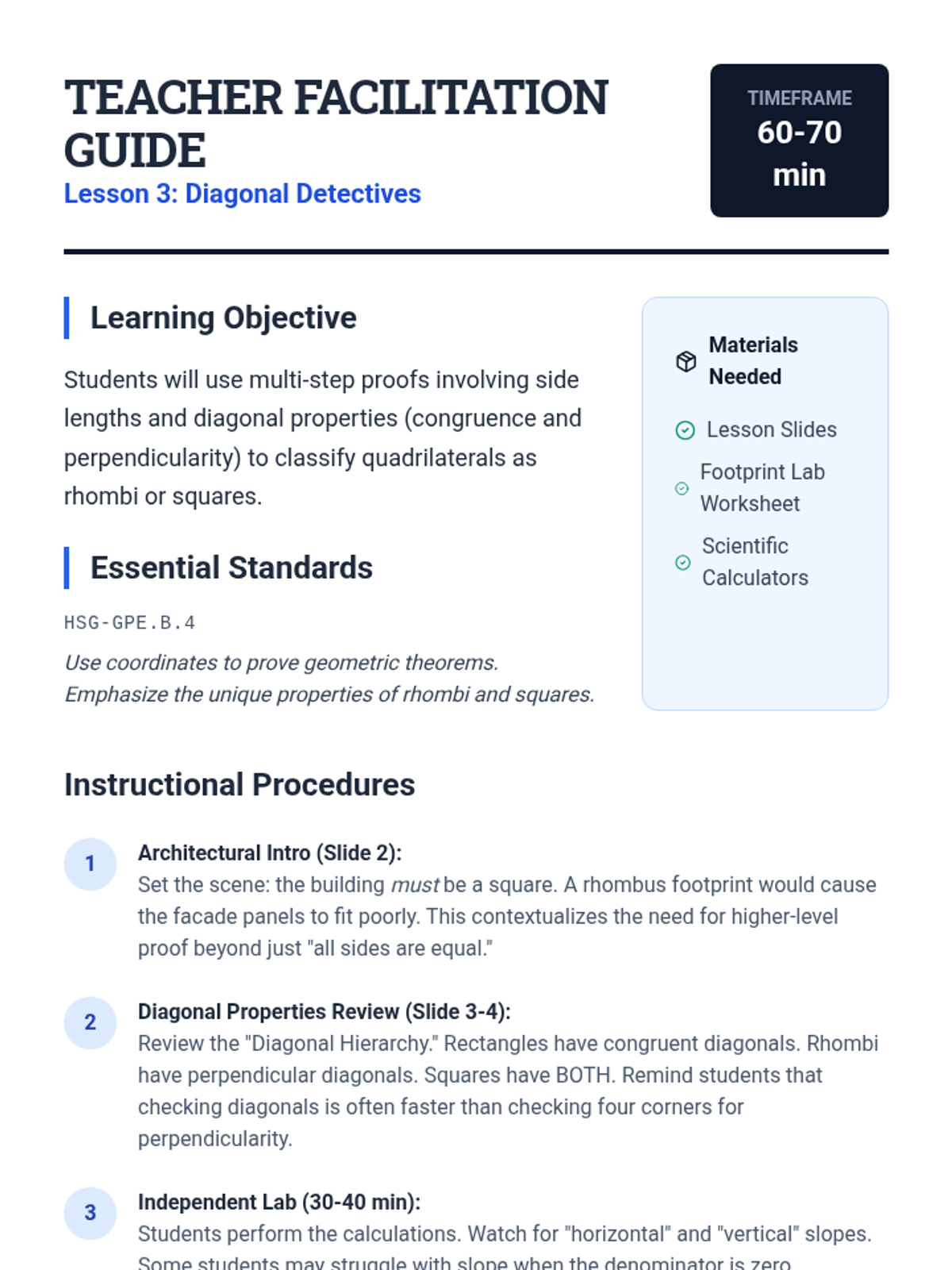

Diagonal Detectives Teacher Guide Teacher Facilitation Guide
Lesson 3: Diagonal Detectives
Timeframe 60-70 min
Learning Objective
Students will use multi-step proofs involving side lengths and diagonal properties (congruence and perpendicularity) to classify quadrilaterals as rhombi or squares.
Essential Standards
HSG-GPE.B.4
Use coordinates to prove geometric theorems. Emphasize the unique properties of rhombi and squares.
Materials Needed
Lesson Slides
Footprint Lab Worksheet
Scientific Calculators
Instructional Procedures
1
Architectural Intro (Slide 2):
Set the scene: the building must be a square. A rhombus footprint would cause the facade panels to fit poorly. This contextualizes the need for higher-level proof beyond just "all sides are equal."
2
Diagonal Properties Review (Slide 3-4):
Review the "Diagonal Hierarchy." Rectangles have congruent diagonals. Rhombi have perpendicular diagonals. Squares have BOTH. Remind students that checking diagonals is often faster than checking four corners for perpendicularity.
3
Independent Lab (30-40 min):
Students perform the calculations. Watch for "horizontal" and "vertical" slopes. Some students may struggle with slope when the denominator is zero (undefined). Use this as a teaching moment for vertical lines.
Footprint Lab Key
Coordinates
A(2,6), B(7,11), C(12,6), D(7,1)
Side Lengths
AB: sqrt(5² + 5²) = sqrt(50)
BC: sqrt(5² + (-5)²) = sqrt(50)
CD: sqrt((-5)² + (-5)²) = sqrt(50)
DA: sqrt((-5)² + 5²) = sqrt(50)
Conclusion: All sides congruent. It is a Rhombus.
Diagonal Analysis
Distances:
AC = 10 | BD = 10 (Congruent)
Slopes:
mAC = 0 (Horiz.) | mBD = Undef. (Vert.)
Result: Perpendicular
Final Verdict
The foundation is a SQUARE. It is equilateral (Rhombus) and its diagonals are congruent (Rectangle property) and perpendicular (Rhombus property). Since it is both a Rhombus and a Rectangle, it must be a Square.
Bridge Trusses Slides Bridge Trusses and Trapezoids
Structural Geometry in Coordinate Space
ENG-SPEC: TRUSS-4
The Structural Inspection
A suspension bridge uses supporting trusses. Engineers need a truss at:
Is it stable?
For maximum strength, the truss must be an Isosceles Trapezoid . Is exactly one pair of sides parallel? Are the non-parallel legs exactly the same length?
Truss Model Alpha-9
Algebraic Signature
Trapezoid
Slope: EXACTLY one pair of parallel sides.
The other pair MUST NOT be parallel (slopes must be different).
Isosceles Trap
Legs: Distance of non-parallel sides is equal.
Diagonals: (Optional Check) Diagonals are also congruent.
Why Does It Matter?
A parallelogram has two pairs of parallel sides.
A trapezoid is a distinct path on the family tree.
Wait! In some math books, a parallelogram is a special trapezoid (the "inclusive" definition). Today, we focus on exactly one pair for the "exclusive" structural truss definition!
Truss Tester Deployment

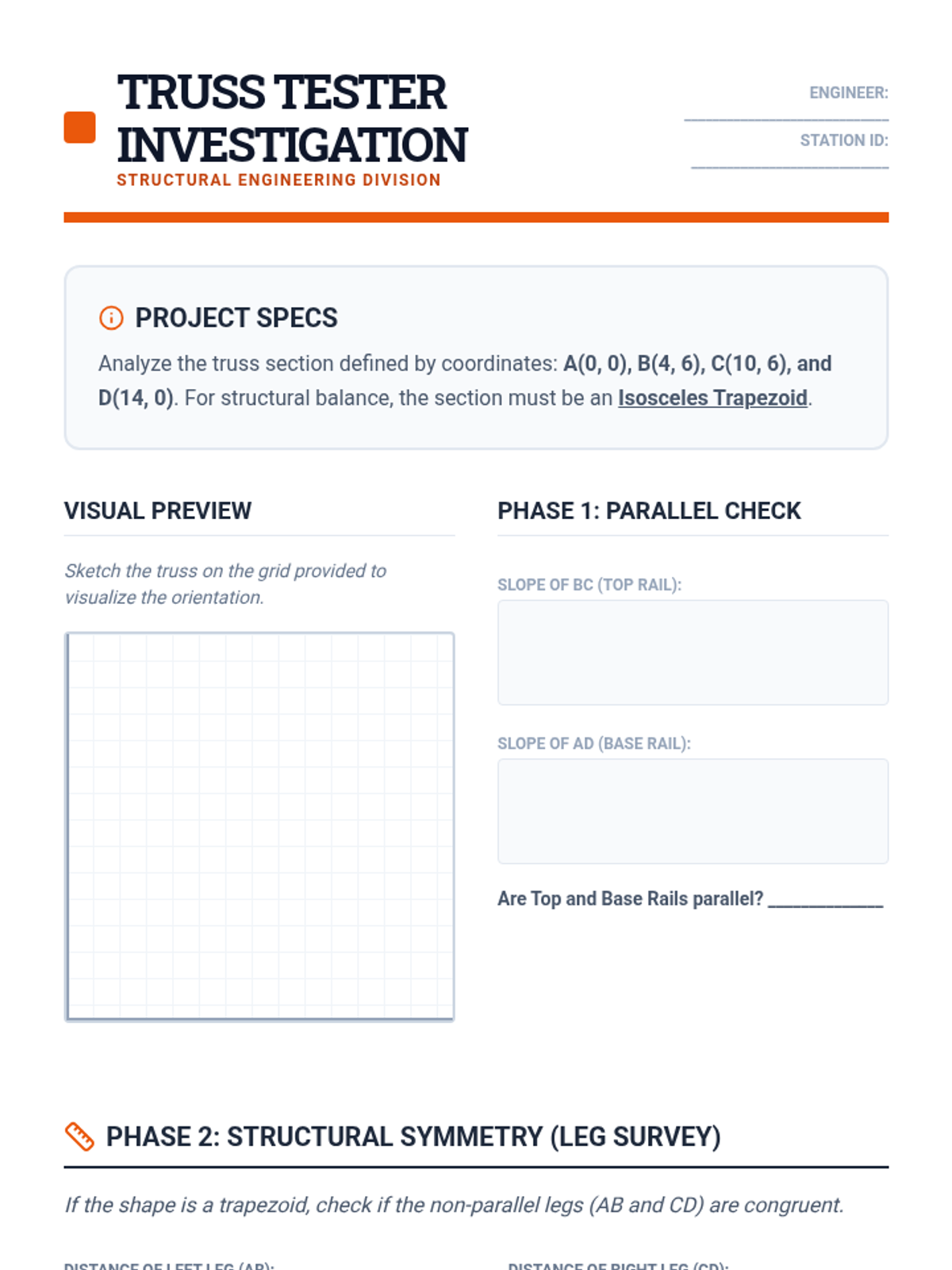

Engineers, open your "Truss Tester Investigation" logs. Calculate the slopes and distances to confirm the structural integrity of the bridge section.
Truss Tester Worksheet Truss Tester Investigation
Structural Engineering Division
ENGINEER: _____________________________
STATION ID: ____________________________
Project Specs
Analyze the truss section defined by coordinates: A(0, 0), B(4, 6), C(10, 6), and D(14, 0) . For structural balance, the section must be an Isosceles Trapezoid.
Visual Preview
Sketch the truss on the grid provided to visualize the orientation.
Phase 1: Parallel Check
Slope of BC (Top Rail):
Slope of AD (Base Rail):
Are Top and Base Rails parallel? ______________
Phase 2: Structural Symmetry (Leg Survey)
If the shape is a trapezoid, check if the non-parallel legs (AB and CD) are congruent.
Distance of Left Leg (AB):
d = __________________
Distance of Right Leg (CD):
d = __________________
Engineering Verdict
Based on your coordinate data, provide the official classification of this truss. Is it a General Trapezoid, a Parallelogram, or an Isosceles Trapezoid? Justify your answer with specific slope and distance evidence.

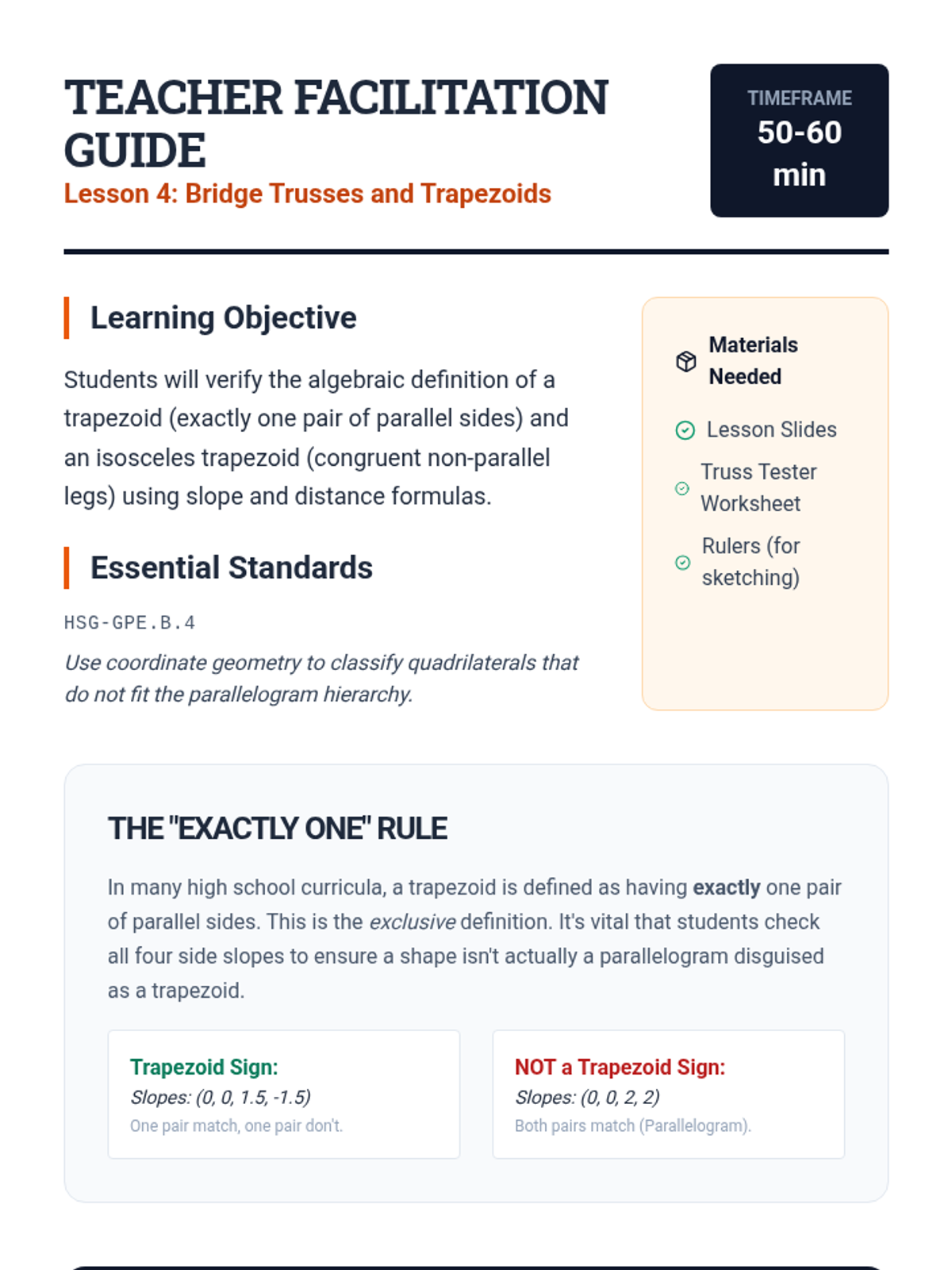

Trapezoids Teacher Guide Teacher Facilitation Guide
Lesson 4: Bridge Trusses and Trapezoids
Timeframe 50-60 min
Learning Objective
Students will verify the algebraic definition of a trapezoid (exactly one pair of parallel sides) and an isosceles trapezoid (congruent non-parallel legs) using slope and distance formulas.
Essential Standards
HSG-GPE.B.4
Use coordinate geometry to classify quadrilaterals that do not fit the parallelogram hierarchy.
Materials Needed
Lesson Slides
Truss Tester Worksheet
Rulers (for sketching)
The "Exactly One" Rule
In many high school curricula, a trapezoid is defined as having exactly one pair of parallel sides. This is the exclusive definition. It's vital that students check all four side slopes to ensure a shape isn't actually a parallelogram disguised as a trapezoid.
Trapezoid Sign:
Slopes: (0, 0, 1.5, -1.5)
One pair match, one pair don't.
NOT a Trapezoid Sign:
Slopes: (0, 0, 2, 2)
Both pairs match (Parallelogram).
Truss Investigation Key
Coordinates
A(0,0), B(4,6), C(10,6), D(14,0)
Part 1: Slopes
Slope Top Rail BC: (6-6)/(10-4) = 0
Slope Base Rail AD: (0-0)/(14-0) = 0
Slope Left Leg AB: 6/4 = 1.5
Slope Right Leg CD: -6/4 = -1.5
Conclusion: Exactly one pair parallel (BC || AD). It is a Trapezoid.
Part 2: Distances
Left Leg AB: sqrt(4² + 6²) = sqrt(52) ≈ 7.21
Right Leg CD: sqrt(4² + (-6)²) = sqrt(52) ≈ 7.21
Conclusion: Non-parallel legs are congruent. It is an Isosceles Trapezoid.
Official Verdict
The truss is an ISOSCELES TRAPEZOID. Structural stability confirmed.
Shape Shifter Showdown Slides 0101 QUADRILATERAL_DATA_STREAM 1010 PROVE_IT 1111 GEOMETRY_CORE 0001 SHAPE_SHIFT
1111 SLOPE_DETECTED 0101 DISTANCE_UNLOCKED 1010 COORD_GEOM 0001 SEARCHING
0101 QUADRILATERAL_DATA_STREAM 1010 PROVE_IT 1111 GEOMETRY_CORE 0001 SHAPE_SHIFT
1111 SLOPE_DETECTED 0101 DISTANCE_UNLOCKED 1010 COORD_GEOM 0001 SEARCHING
Shape Shifter Showdown
Mastering the Quadrilateral Hierarchy
SYST_FINAL_VERIFICATION: 100%
The Geometry Vault
The vault is locked. To open it, you must identify three Mystery Shapes using only their coordinate data.
# INCOMING_DATA_STREAM:
Shape Alpha: (0,0), (6,2), (8,8), (2,6)
Shape Beta: (1,1), (1,5), (7,5), (7,1)
Shape Gamma: (-2,0), (1,4), (5,4), (8,0)
Enter Classification to Proceed
The Shape Hierarchy
Quadrilateral
Parallelogram
Trapezoid
Rectangle
Rhombus
Isosceles Trap
SQUARE
"Always provide the most specific name possible!"
The Ultimate Protocol
Phase 1: Slopes
Check all 4 sides. 2 pairs parallel? 1 pair parallel? No pairs parallel?
Determines: Parallelogram vs Trapezoid vs Kite/None.
Phase 2: Diagonals
Are they congruent? (Rectangle/Isosceles Trap check). Are they perpendicular? (Rhombus check).
Determines: Rectangle vs Rhombus vs Square.
Shape Shifter Showdown
DEPLOYING PORTFOLIO DATA...

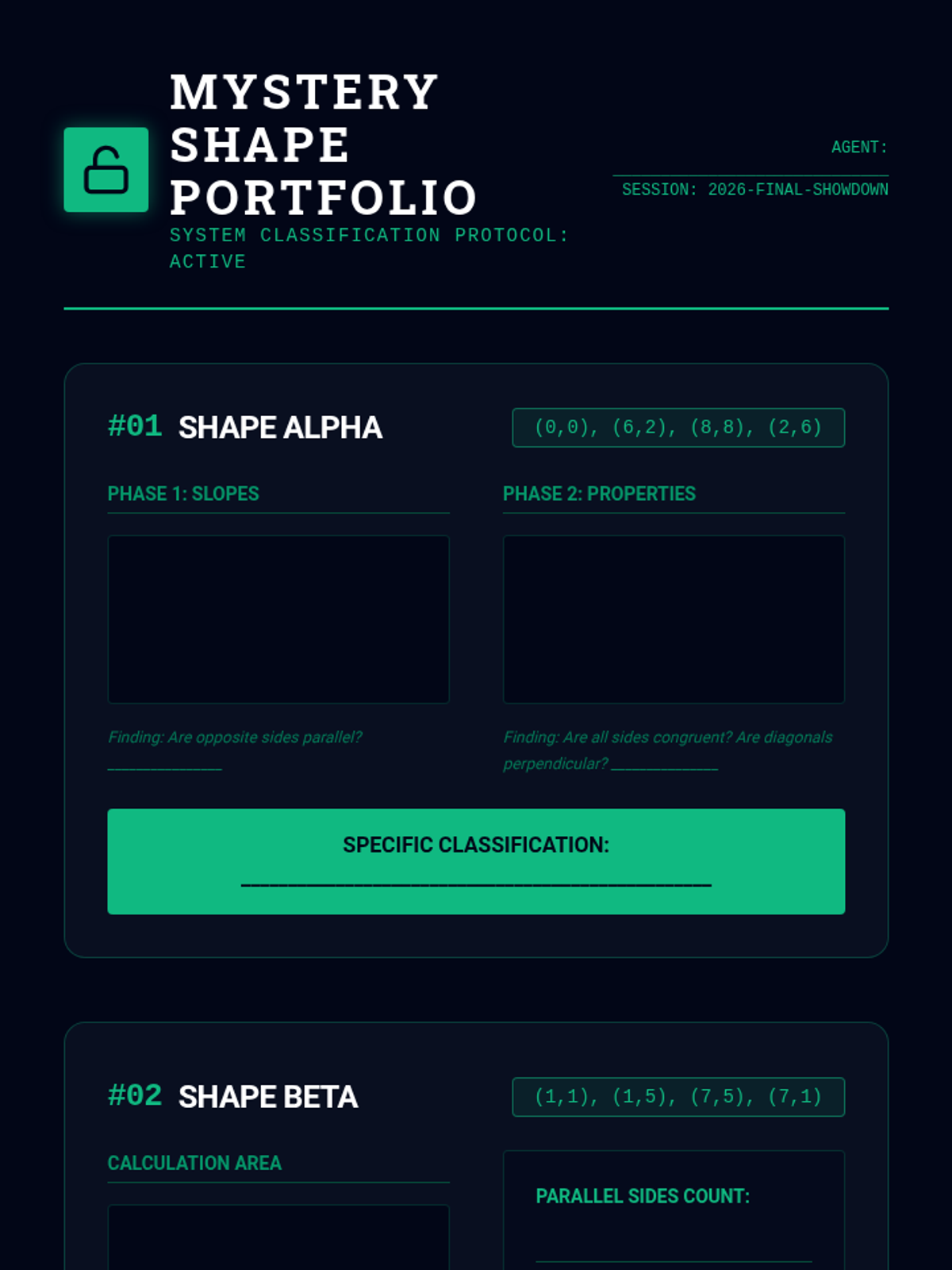

Mystery Shape Portfolio Worksheet Mystery Shape Portfolio
System Classification Protocol: ACTIVE
AGENT: _____________________________
SESSION: 2026-FINAL-SHOWDOWN
#01 Shape Alpha
(0,0), (6,2), (8,8), (2,6)
Phase 1: Slopes
Finding: Are opposite sides parallel? ________________
Phase 2: Properties
Finding: Are all sides congruent? Are diagonals perpendicular? _______________
Specific Classification: __________________________________________________
#02 Shape Beta
(1,1), (1,5), (7,5), (7,1)
Calculation Area
Parallel Sides Count:
Right Angles Detected:
All Sides Congruent:
Specific Classification: __________________________________________________
#03 Shape Gamma
(-2,0), (1,4), (5,4), (8,0)
Slope Inspection
Distance Inspection
Specific Classification: __________________________________________________

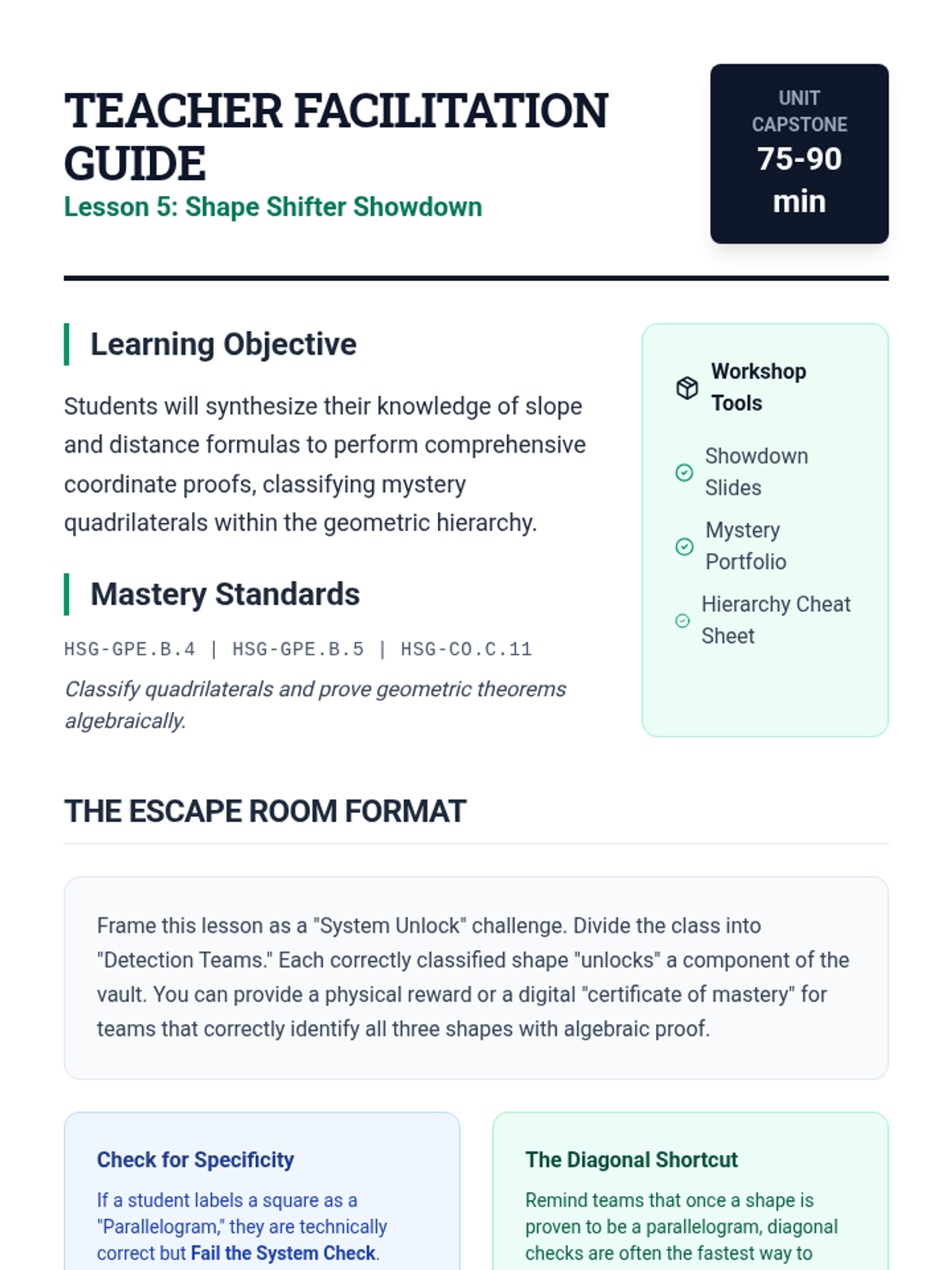

Shape Shifter Showdown Teacher Guide Teacher Facilitation Guide
Lesson 5: Shape Shifter Showdown
Unit Capstone 75-90 min
Learning Objective
Students will synthesize their knowledge of slope and distance formulas to perform comprehensive coordinate proofs, classifying mystery quadrilaterals within the geometric hierarchy.
Mastery Standards
HSG-GPE.B.4 | HSG-GPE.B.5 | HSG-CO.C.11
Classify quadrilaterals and prove geometric theorems algebraically.
Workshop Tools
Showdown Slides
Mystery Portfolio
Hierarchy Cheat Sheet
The Escape Room Format
Frame this lesson as a "System Unlock" challenge. Divide the class into "Detection Teams." Each correctly classified shape "unlocks" a component of the vault. You can provide a physical reward or a digital "certificate of mastery" for teams that correctly identify all three shapes with algebraic proof.
Check for Specificity
If a student labels a square as a "Parallelogram," they are technically correct but Fail the System Check . Insist on the most specific classification.
The Diagonal Shortcut
Remind teams that once a shape is proven to be a parallelogram, diagonal checks are often the fastest way to distinguish between Rectangle, Rhombus, and Square.
Master Unlock Keys
#01 Alpha
(0,0), (6,2), (8,8), (2,6)
Verdict: RHOMBUS
• Slopes (1/3, 3, 1/3, 3) indicate Parallel sides (Parallelogram).
• All 4 side lengths are sqrt(40).
• Diagonals are perpendicular (Slopes 1 and -1).
• NO right angles (1/3 * 3 = 1, not -1).
#02 Beta
(1,1), (1,5), (7,5), (7,1)
Verdict: RECTANGLE
• 2 pairs parallel (Horiz/Vert).
• Corner Slopes: 0 and Undefined (Perpendicular).
• Side lengths: 4 and 6 (Not equilateral).
#03 Gamma
(-2,0), (1,4), (5,4), (8,0)
Verdict: ISOSCELES TRAPEZOID
• Exactly one pair parallel (m=0).
• Leg Slopes: 4/3 and -4/3 (Not parallel).
• Leg Lengths: 5 and 5 (Congruent).
