Parallelogram Power Slides Parallelogram Power
QUAD QUEST: DAY 01
Architectural Geometry Series
The Blueprint Phase
Specifications
Essential Question
How can we use logic and geometric properties to verify that a structure is a parallelogram?
Identify Properties
Master the 5 core attributes of parallelograms.
Formalize Proofs
Construct airtight two-column logic flows.
The Five Commandments
01
Both pairs of opposite sides are parallel.
02
Both pairs of opposite sides are congruent.
03
Both pairs of opposite angles are congruent.
04
Consecutive angles are supplementary (\(180^\circ\)).
05
Diagonals bisect each other.
Visual: Quad \(ABCD\) with marked parallel arrows.
The Proof Structure
Logic Flow
Statements Reasons 1. \(\overline{AB} \parallel \overline{CD}\), \(\overline{AB} \cong \overline{CD}\) 1. Given 2. \(\angle BAC \cong \angle DCA\) 2. Alt. Interior \(\angle s\) Thm 3. \(\overline{AC} \cong \overline{AC}\) 3. Reflexive Prop. 4. \(\triangle ABC \cong \triangle CDA\) 4. SAS Congruence
How to Win the Argument
A quadrilateral is a parallelogram IF:
Option A: Show one pair of sides is both parallel and congruent.
Option B: Show both pairs of opposite sides are congruent.
Option C: Show both pairs of opposite angles are congruent.
Option D: Show diagonals bisect each other.
WARNING: You must prove ONE of these conditions to use the name "Parallelogram" in your conclusion!
Parallelogram Power Worksheet Parallelogram Power
Structural Integrity Worksheet
Name:
Date:
Blueprint Specifications: 5 Ways to Prove a Parallelogram
1. Both pairs of opposite sides are \(\parallel\).
2. Both pairs of opposite sides are \(\cong\).
3. Both pairs of opposite angles are \(\cong\).
4. One pair of opposite sides is both \(\parallel\) and \(\cong\).
5. Diagonals bisect each other.
1
Supply the missing reasons for the proof.
A B C D
Given:
\(\overline{AB} \parallel \overline{CD}\); \(\overline{AD} \cong \overline{BC}\); \(\angle DAB \cong \angle BCD\)
Prove:
\(ABCD\) is a parallelogram.
Statements Reasons 1. \(\overline{AB} \parallel \overline{CD}\) 1. Given 2. \(\angle DAB + \angle ADC = 180^\circ\) 2. __________________________________ 3. \(\angle ABC + \angle BCD = 180^\circ\) 3. Same-Side Interior \(\angle s\) Thm 4. \(\angle DAB \cong \angle BCD\) 4. Given 5. \(\angle ADC \cong \angle ABC\) 5. __________________________________ 6. \(ABCD\) is a parallelogram 6. __________________________________
2
Construct a Two-Column Proof.
W X Y Z E
Given: Diagonals \(\overline{WY}\) and \(\overline{XZ}\) intersect at \(E\); \(\triangle WEX \cong \triangle YEZ\)
Prove: \(WXYZ\) is a parallelogram.
Statements
Reasons
* Verify structural integrity before final certification. *
Parallelogram Power Teacher Guide Parallelogram Power
Architect Facilitation Guide
Lesson Objectives
Define a parallelogram based on its five core properties.
Identify the minimum conditions required to prove a quadrilateral is a parallelogram.
Construct formal two-column proofs using triangle congruence theorems as building blocks.
Pacing Goal
50-60 Minutes
Slides 1-3: 15m
Slide 4-5: 10m
Worksheet: 25m
Debrief: 10m
Structural Risks (Common Misconceptions)
The "Half-Proof" Fallacy: Students often think proving one pair of sides is congruent is enough. Emphasize that it must be both pairs, OR one pair that is both congruent and parallel.Assumption Errors: Students often assume a shape "looks" like a parallelogram and use property theorems before they have proven the shape actually is a parallelogram.
Worksheet Answer Key
Problem 1: Fill-in-the-Reason
Same-Side Interior \(\angle s\) Theorem
Congruent Supplements Theorem (or Substitution)
If both pairs of opp. angles are \(\cong\), it's a \(\square\).
Problem 2: Full Two-Column Proof (Sample)
<table class="w-full border-collapse border border-slate-300 text-xs"><tbody><tr class="bg-slate-100 font-bold"><td class="border border-slate-300 p-2">Statements</td><td class="border border-slate-300 p-2">Reasons</td></tr><tr><td class="border border-slate-300 p-2">1. \(\triangle WEX \cong \triangle YEZ\)</td><td class="border border-slate-300 p-2">1. Given</td></tr><tr><td class="border border-slate-300 p-2">2. \(\overline{WE} \cong \overline{YE}\) and \(\overline{XE} \cong \overline{ZE}\)</td><td class="border border-slate-300 p-2">2. CPCTC</td></tr><tr><td class="border border-slate-300 p-2">3. \(E\) is the midpoint of \(\overline{WY}\) and \(\overline{XZ}\)</td><td class="border border-slate-300 p-2">3. Def. of Midpoint</td></tr><tr><td class="border border-slate-300 p-2">4. Diagonals \(\overline{WY}\) and \(\overline{XZ}\) bisect each other</td><td class="border border-slate-300 p-2">4. Def. of Segment Bisector</td></tr><tr><td class="border border-slate-300 p-2">5. \(WXYZ\) is a parallelogram</td><td class="border border-slate-300 p-2">5. If diagonals bisect each other, then it's a \(\square\).</td></tr></tbody></table>
*Alternative: Students may use CPCTC to show alt. interior angles are congruent, then use parallel lines to prove the shape.
Exit Ticket / Discussion Question
"If you are designing a bridge support and you know that the opposite metal beams are the same length, but you don't know if they are parallel, can you guarantee the structure will remain a parallelogram under stress? Why or why not?"
Special Shape Squad Slides Special Shape Squad
QUAD QUEST: DAY 02
The Hierarchy of Design
Parallelograms
Opposite sides are parallel
Rhombus
4 \(\cong\) sides
Diagonals \(\perp\)
Rectangle
4 right \(\angle s\)
Diagonals \(\cong\)
Square
The Perfect Fusion
Rhombus Diagnostics
Diagnostic A
If a parallelogram has perpendicular diagonals, it is a Rhombus.
Diagnostic B
If a diagonal of a parallelogram bisects opposite angles, it is a Rhombus.
PRO TIP:
Show \(\triangle\) Congruence by SSS or SAS to prove side lengths!
Rectangle Diagnostics
Diagnostic A
If a parallelogram has congruent diagonals, it is a Rectangle.
Diagnostic B
If a parallelogram has one right angle, then all four angles are right angles, and it is a Rectangle.
The Square Test
"The ultimate structural perfection"
To prove a quadrilateral is a Square, you must show it meets the criteria for BOTH a Rhombus and a Rectangle.
Step 1
Prove it is a Parallelogram
Step 2
Prove 4 \(\cong\) sides (Rhombus)
Step 3
Prove 1 right \(\angle\) (Rectangle)

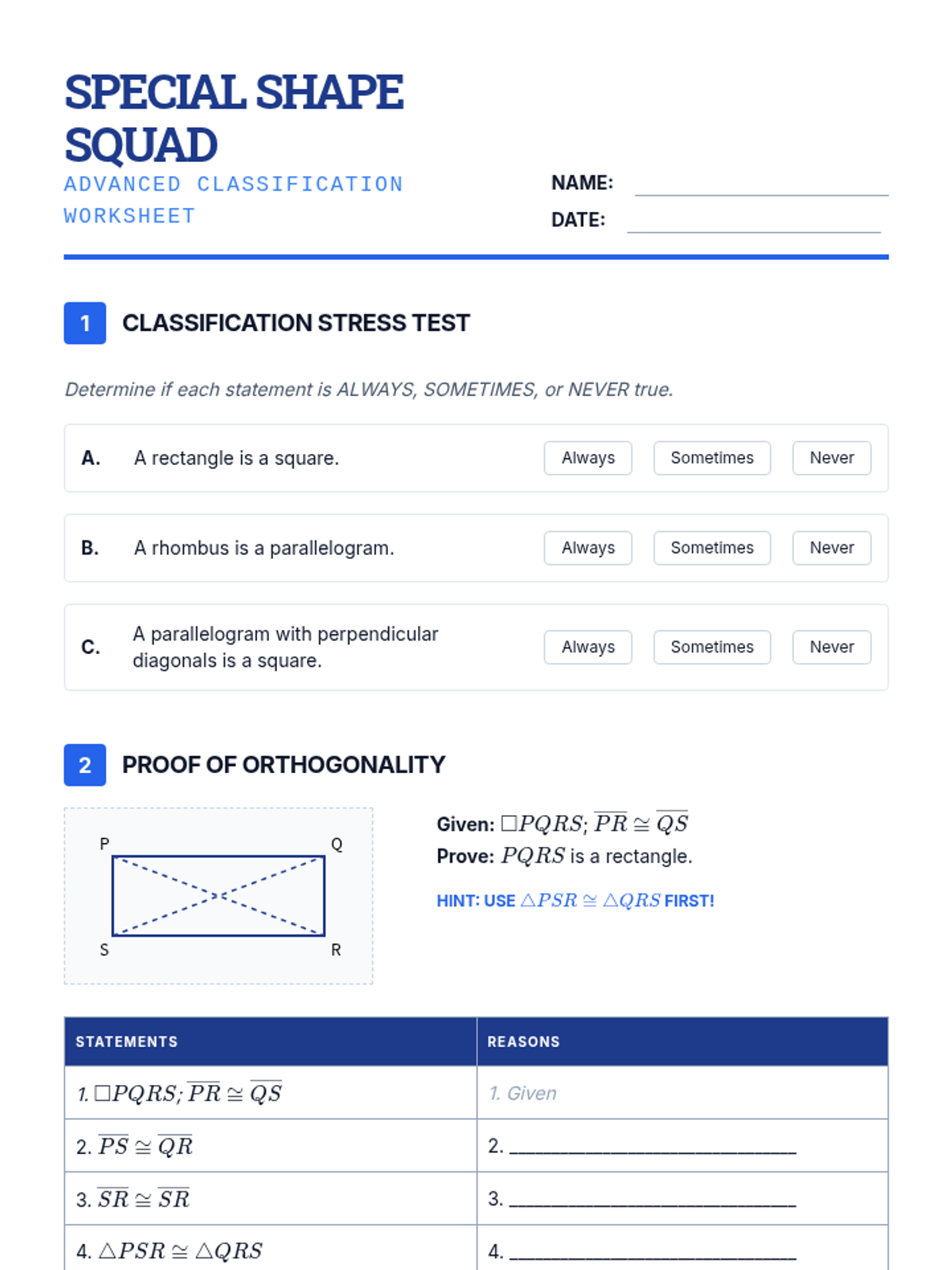

Special Shape Squad Worksheet Special Shape Squad
Advanced Classification Worksheet
Name:
Date:
1
Classification Stress Test
Determine if each statement is ALWAYS, SOMETIMES, or NEVER true.
A.
A rectangle is a square.
Always
Sometimes
Never
B.
A rhombus is a parallelogram.
Always
Sometimes
Never
C.
A parallelogram with perpendicular diagonals is a square.
Always
Sometimes
Never
2
Proof of Orthogonality
P Q R S
Given: \(\square PQRS\); \(\overline{PR} \cong \overline{QS}\)
Prove: \(PQRS\) is a rectangle.
Hint: Use \(\triangle PSR \cong \triangle QRS\) first!
Statements Reasons 1. \(\square PQRS\); \(\overline{PR} \cong \overline{QS}\) 1. Given 2. \(\overline{PS} \cong \overline{QR}\) 2. __________________________________ 3. \(\overline{SR} \cong \overline{SR}\) 3. __________________________________ 4. \(\triangle PSR \cong \triangle QRS\) 4. __________________________________ 5. \(\angle PSR \cong \angle QRS\) 5. __________________________________ 6. \(\angle PSR\) and \(\angle QRS\) are supplementary 6. Parallelogram Consecutive \(\angle s\) Thm 7. \(\angle PSR\) and \(\angle QRS\) are right \(\angle s\) 7. __________________________________ 8. \(PQRS\) is a rectangle 8. __________________________________
3
Final Design Specs
Draw a Rhombus that is NOT a square. Mark all properties that make it a rhombus.
Explain: Why is a square considered the most "stable" special parallelogram?
* All angles must meet tolerance levels of 90 degrees for rectangle certification. *

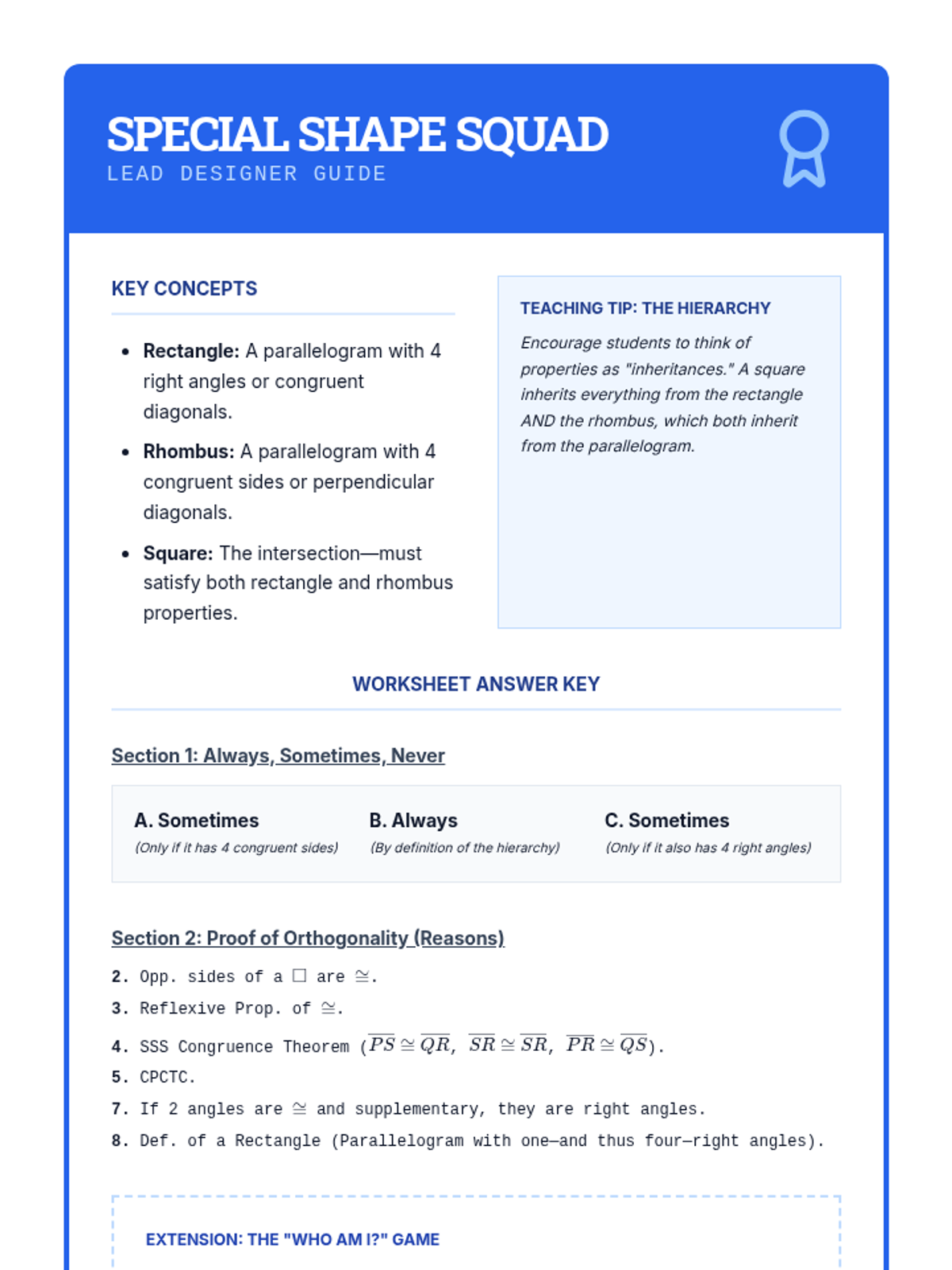

Special Shape Squad Teacher Guide Special Shape Squad
Lead Designer Guide
Key Concepts
Rectangle: A parallelogram with 4 right angles or congruent diagonals.Rhombus: A parallelogram with 4 congruent sides or perpendicular diagonals.Square: The intersection—must satisfy both rectangle and rhombus properties.
Teaching Tip: The Hierarchy
Encourage students to think of properties as "inheritances." A square inherits everything from the rectangle AND the rhombus, which both inherit from the parallelogram.
Worksheet Answer Key
Section 1: Always, Sometimes, Never
A. Sometimes (Only if it has 4 congruent sides)
B. Always (By definition of the hierarchy)
C. Sometimes (Only if it also has 4 right angles)
Section 2: Proof of Orthogonality (Reasons)
2. Opp. sides of a \(\square\) are \(\cong\).
3. Reflexive Prop. of \(\cong\).
4. SSS Congruence Theorem (\(\overline{PS}\cong\overline{QR}\), \(\overline{SR}\cong\overline{SR}\), \(\overline{PR}\cong\overline{QS}\)).
5. CPCTC.
7. If 2 angles are \(\cong\) and supplementary, they are right angles.
8. Def. of a Rectangle (Parallelogram with one—and thus four—right angles).
Extension: The "Who Am I?" Game
Give students cards with properties (e.g., "My diagonals are perpendicular"). Have them stand in the middle of the room. As you call out shapes (e.g., "Rectangle!"), students must move to a designated area if their property must apply to that shape.
Focus: Logical Transitions Focus: Diagonal Properties Focus: Classification Mastery
Trapezoid Kite Climb Slides Trapezoid Kite Climb
QUAD QUEST: DAY 03
Outside the Box
Trapezoids
Exactly one pair of parallel sides (called bases).
Kites
Two pairs of consecutive congruent sides. No opposite sides are parallel.
Visuals: Isosceles Trapezoid vs. Standard Kite
The Isosceles Upgrade
Property 1: The Legs
Non-parallel sides (legs) are congruent.
Property 2: Base Angles
Both pairs of base angles are congruent.
Property 3: Diagonals
Diagonals are congruent.
If Diagonals \(\cong\), then Trapezoid is Isosceles!
The Midsegment Blueprint
The Formula
\[M = \frac{b_1 + b_2}{2}\]
The midsegment is parallel to both bases and its length is the average of the two bases.
1
Connect midpoints of legs.
2
Must be parallel to bases.
Kite Flight Mechanics
Diagonals are Perpendicular (\(\perp\))
Exactly ONE pair of opposite \(\angle s \cong\)
The diagonal connecting vertex angles bisects the other diagonal
Internal Bracing: 90° Diagonals

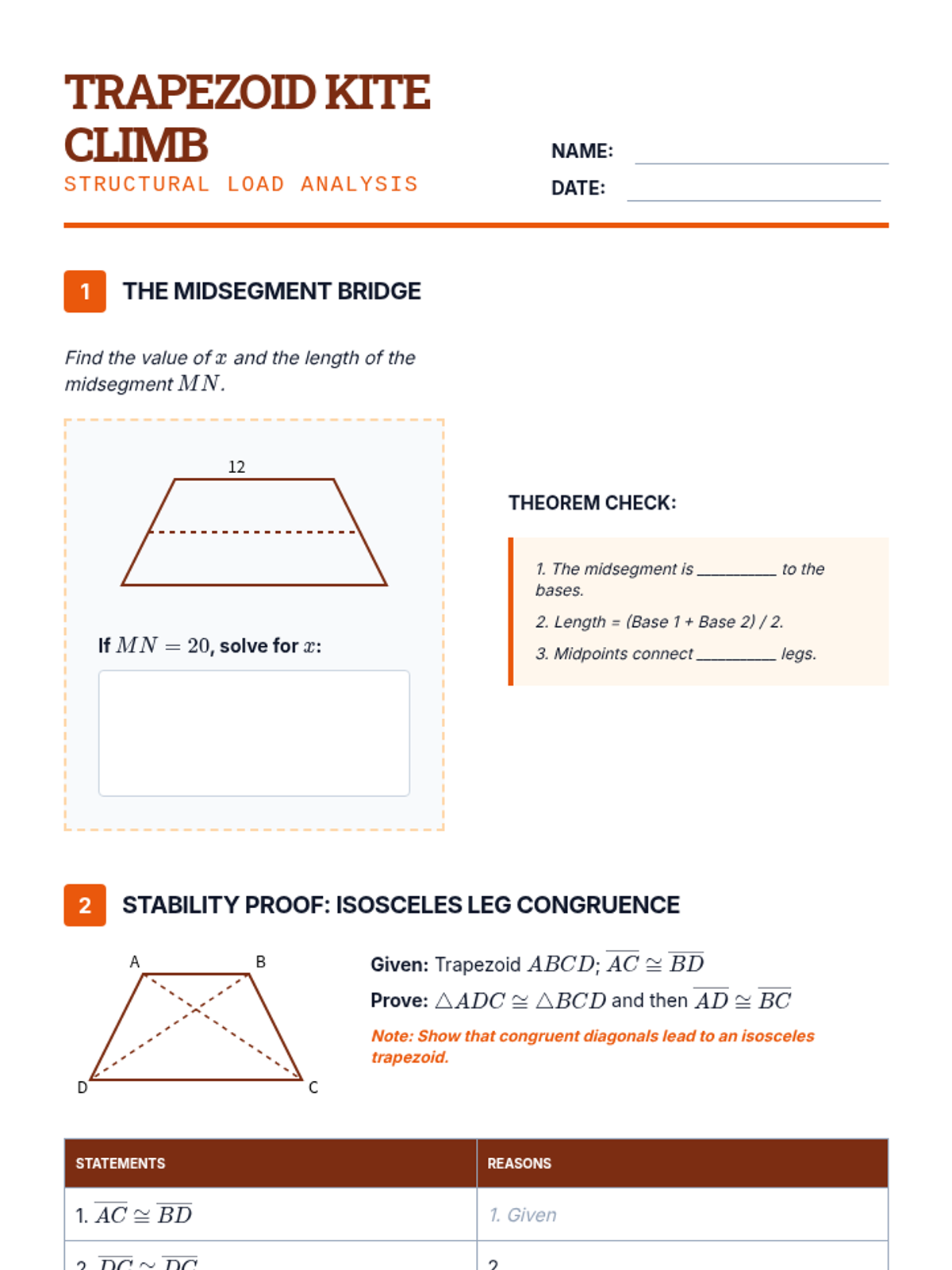

Trapezoid Kite Climb Worksheet Trapezoid Kite Climb
Structural Load Analysis
Name:
Date:
1
The Midsegment Bridge
Find the value of \(x\) and the length of the midsegment \(MN\).
12 \(MN\) \(3x + 4\)
If \(MN = 20\), solve for \(x\):
Theorem Check:
1. The midsegment is ___________ to the bases.
2. Length = (Base 1 + Base 2) / 2.
3. Midpoints connect ___________ legs.
2
Stability Proof: Isosceles Leg Congruence
A B C D
Given: Trapezoid \(ABCD\); \(\overline{AC} \cong \overline{BD}\)
Prove: \(\triangle ADC \cong \triangle BCD\) and then \(\overline{AD} \cong \overline{BC}\)
Note: Show that congruent diagonals lead to an isosceles trapezoid.
Statements Reasons 1. \(\overline{AC} \cong \overline{BD}\) 1. Given 2. \(\overline{DC} \cong \overline{DC}\) 2. __________________________________ 3. \(\angle ADC \cong \angle BCD\) 3. Base Angles of Isosc. Trap. are \(\cong\) 4. \(\triangle ADC \cong \triangle BCD\) 4. __________________________________ 5. \(\overline{AD} \cong \overline{BC}\) 5. __________________________________
3
Kite Cross-Section
J K L M
In kite \(JKLM\), \(m\angle J = 40^\circ\) and \(m\angle L = 60^\circ\).
Find \(m\angle K\):
Show work here...
Diagonal Property
Diagonals of a kite intersect at an angle of _______ degrees.
Angle Property
Exactly _______ pair(s) of opposite angles are congruent.
* Ensure tether lines are secure. One pair of parallel sides required for trapezoid lift. *

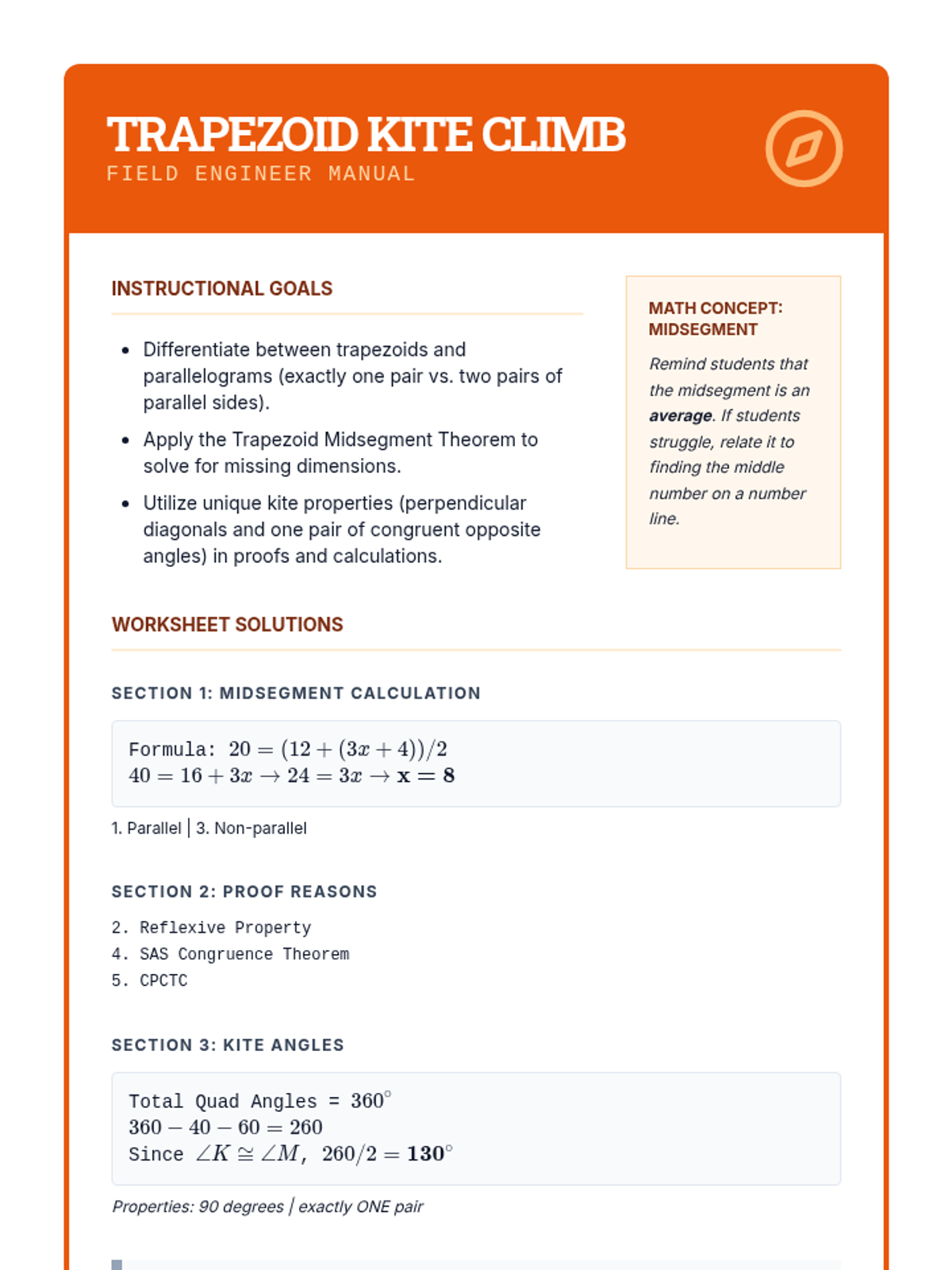

Trapezoid Kite Climb Teacher Guide Trapezoid Kite Climb
Field Engineer Manual
Instructional Goals
Differentiate between trapezoids and parallelograms (exactly one pair vs. two pairs of parallel sides).
Apply the Trapezoid Midsegment Theorem to solve for missing dimensions.
Utilize unique kite properties (perpendicular diagonals and one pair of congruent opposite angles) in proofs and calculations.
Math Concept: Midsegment
Remind students that the midsegment is an average. If students struggle, relate it to finding the middle number on a number line.
Worksheet Solutions
Section 1: Midsegment Calculation
Formula: \(20 = (12 + (3x + 4)) / 2\)
1. Parallel | 3. Non-parallel
Section 2: Proof Reasons
2. Reflexive Property
4. SAS Congruence Theorem
5. CPCTC
Section 3: Kite Angles
Total Quad Angles = \(360^\circ\)
Properties: 90 degrees | exactly ONE pair
Differentiation Support
Scaffolding: For Section 2, provide students with a list of potential reasons (word bank) to choose from if they are struggling with terminology.
Extension: Ask students to prove that if the midsegment of a trapezoid is equal to both bases, the shape must actually be a parallelogram (contradicting the "exactly one pair" rule).
Building Logical Foundations Since Euclid
Coordinate Blueprint Slides Coordinate Blueprints
QUAD QUEST: DAY 04
The Analytical Toolbox
Distance
\[d = \sqrt{(x_2-x_1)^2 + (y_2-y_1)^2}\]
USE TO PROVE:
Congruent sides or congruent diagonals.
Slope
\[m = \frac{y_2 - y_1}{x_2 - x_1}\]
USE TO PROVE:
Parallel sides (same \(m\)) or Perpendicular sides (neg. reciprocal).
Midpoint
\[M = \left(\frac{x_1+x_2}{2}, \frac{y_1+y_2}{2}\right)\]
USE TO PROVE:
Diagonals bisect each other (same midpoint).
Blueprint Strategy: Parallelogram
Method 1: Slopes
Show that opposite sides have the same slope.
\(m_{AB} = m_{CD}\) AND \(m_{BC} = m_{DA}\)
Method 2: Midpoints
Show that both diagonals have the exact same midpoint coordinate.
\(M_{AC} = M_{BD}\)
* Method 2 is usually faster! *
Advanced Diagnostics
R
Rectangle
Show parallelogram plus congruent diagonals (Distance Formula).
Rh
Rhombus
Show parallelogram plus perpendicular diagonals (Slope Formula - Neg. Reciprocals).
S
Square
Show all of the above!
Structural Warnings
1. Don't forget to calculate all pairs. Proving one pair of parallel sides only gives you a Trapezoid!
2. Keep your fractions exact. Decimals lead to rounding errors that can ruin your proof.
3. Always sketch the quad on the coordinate plane first to visualize your goal.

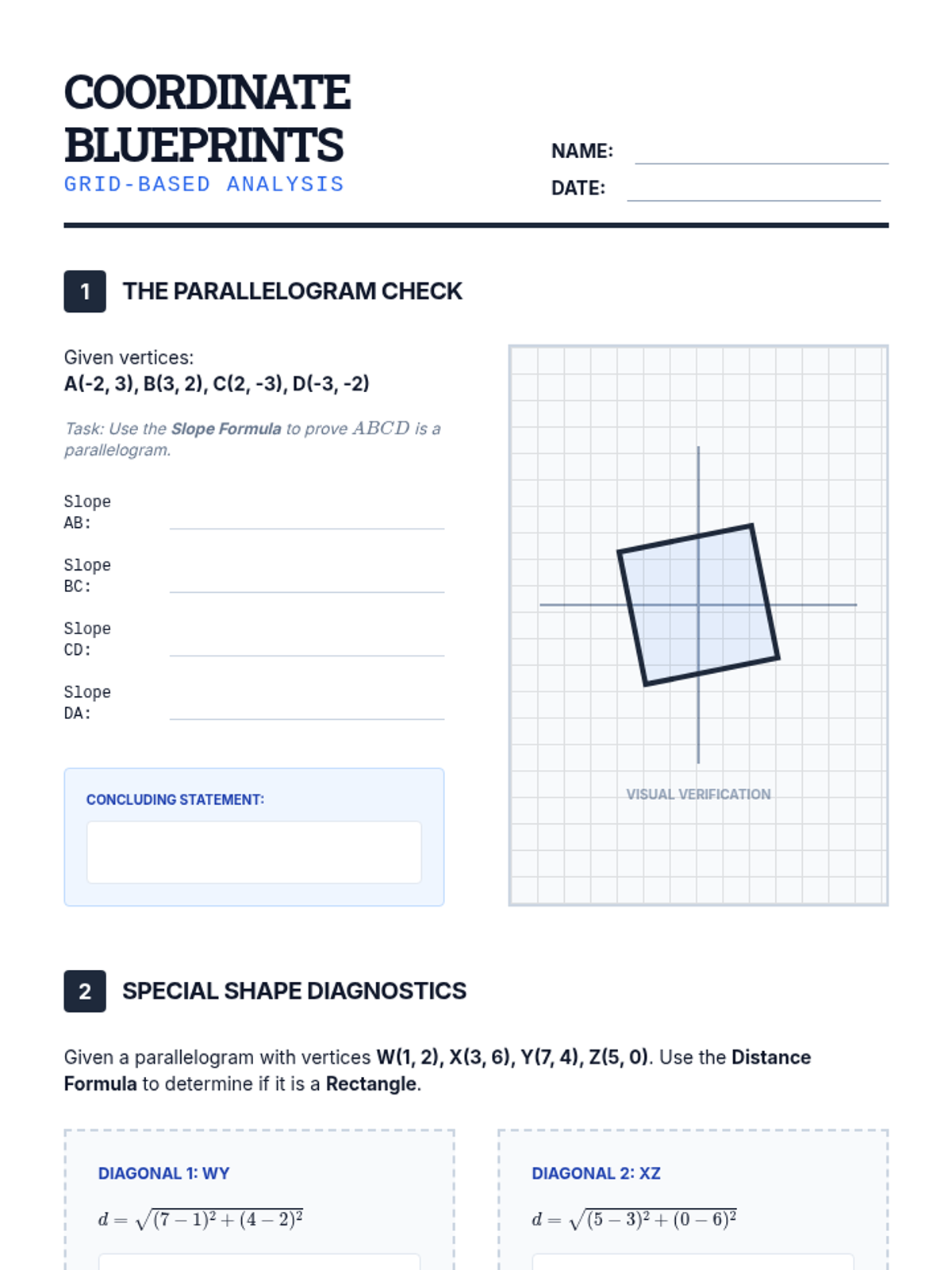

Coordinate Blueprint Worksheet Coordinate Blueprints
Grid-Based Analysis
Name:
Date:
1
The Parallelogram Check
Given vertices:A(-2, 3), B(3, 2), C(2, -3), D(-3, -2)
Task: Use the Slope Formula to prove \(ABCD\) is a parallelogram.
Slope AB:
Slope BC:
Slope CD:
Slope DA:
Concluding Statement:
Visual Verification
2
Special Shape Diagnostics
Given a parallelogram with vertices W(1, 2), X(3, 6), Y(7, 4), Z(5, 0) . Use the Distance Formula to determine if it is a Rectangle .
Diagonal 1: WY
\(d = \sqrt{(7-1)^2 + (4-2)^2}\)
Diagonal 2: XZ
\(d = \sqrt{(5-3)^2 + (0-6)^2}\)
Is it a rectangle? Why or why not?
3
The Square Challenge
If a quadrilateral has perpendicular diagonals AND congruent diagonals , what is the most specific name for this shape? Explain using coordinate geometry logic.
* Calibrate grid coordinates to within 0.01 tolerance for official blueprint approval. *

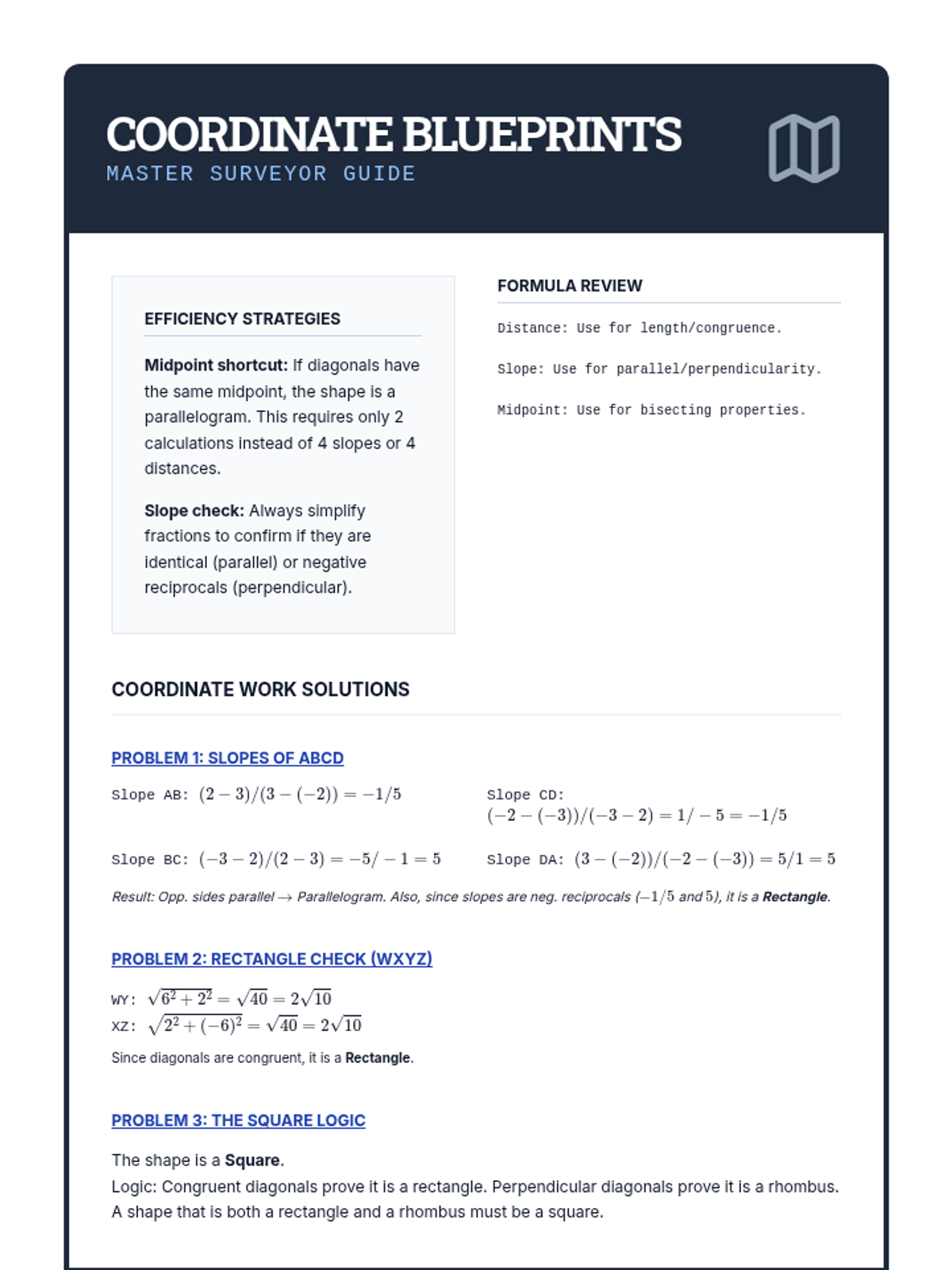

Coordinate Blueprint Teacher Guide Coordinate Blueprints
Master Surveyor Guide
Efficiency Strategies
Midpoint shortcut: If diagonals have the same midpoint, the shape is a parallelogram. This requires only 2 calculations instead of 4 slopes or 4 distances.Slope check: Always simplify fractions to confirm if they are identical (parallel) or negative reciprocals (perpendicular).
Formula Review
Distance: Use for length/congruence.
Slope: Use for parallel/perpendicularity.
Midpoint: Use for bisecting properties.
Coordinate Work Solutions
Problem 1: Slopes of ABCD
Slope AB: \((2-3)/(3-(-2)) = -1/5\)
Slope CD: \((-2-(-3))/(-3-2) = 1/-5 = -1/5\)
Slope BC: \((-3-2)/(2-3) = -5/-1 = 5\)
Slope DA: \((3-(-2))/(-2-(-3)) = 5/1 = 5\)
Result: Opp. sides parallel \(\rightarrow\) Parallelogram. Also, since slopes are neg. reciprocals (\(-1/5\) and \(5\)), it is a Rectangle.
Problem 2: Rectangle Check (WXYZ)
WY: \(\sqrt{6^2 + 2^2} = \sqrt{40} = 2\sqrt{10}\)
Since diagonals are congruent, it is a Rectangle.
Problem 3: The Square Logic
The shape is a Square .
Analytical Geometry Proprietary Architect Data Unit Mastery

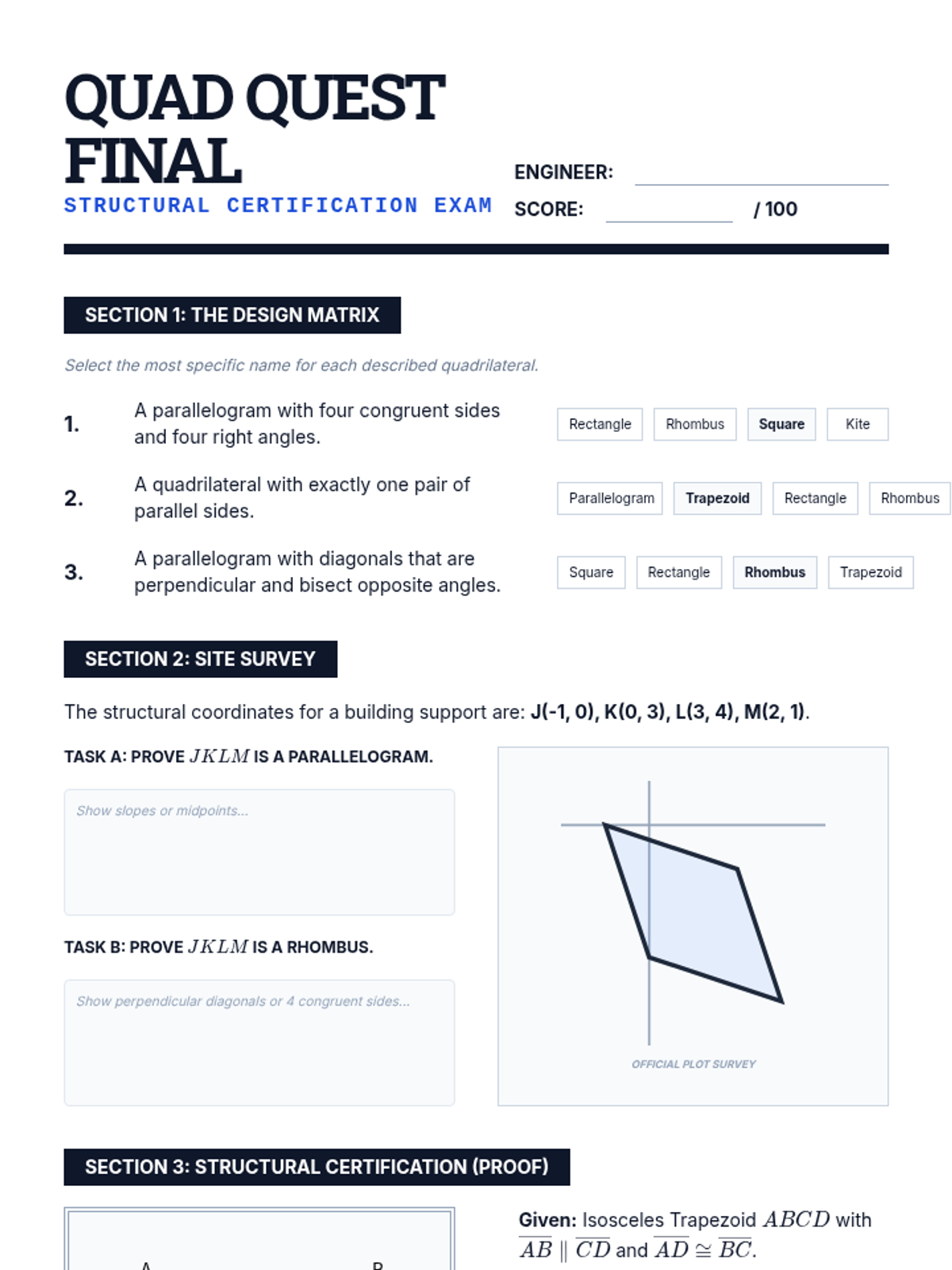

Proof Masterclass Test Quad Quest Final
Structural Certification Exam
Engineer:
Score:
/ 100
Section 1: The Design Matrix
Select the most specific name for each described quadrilateral.
A parallelogram with four congruent sides and four right angles.
Rectangle
Rhombus
Square
Kite
A quadrilateral with exactly one pair of parallel sides.
Parallelogram
Trapezoid
Rectangle
Rhombus
A parallelogram with diagonals that are perpendicular and bisect opposite angles.
Square
Rectangle
Rhombus
Trapezoid
Section 2: Site Survey
The structural coordinates for a building support are: J(-1, 0), K(0, 3), L(3, 4), M(2, 1) .
Task A: Prove \(JKLM\) is a Parallelogram.
Show slopes or midpoints...
Task B: Prove \(JKLM\) is a Rhombus.
Show perpendicular diagonals or 4 congruent sides...
Official Plot Survey
Section 3: Structural Certification (Proof)
A B C D
Given: Isosceles Trapezoid \(ABCD\) with \(\overline{AB} \parallel \overline{CD}\) and \(\overline{AD} \cong \overline{BC}\).
Prove: \(\triangle ACD \cong \triangle BDC\)
Requirement: Complete the full two-column proof below.
Certification Issued by the Council of Geometry Architects Document ID: Q-FINAL-05

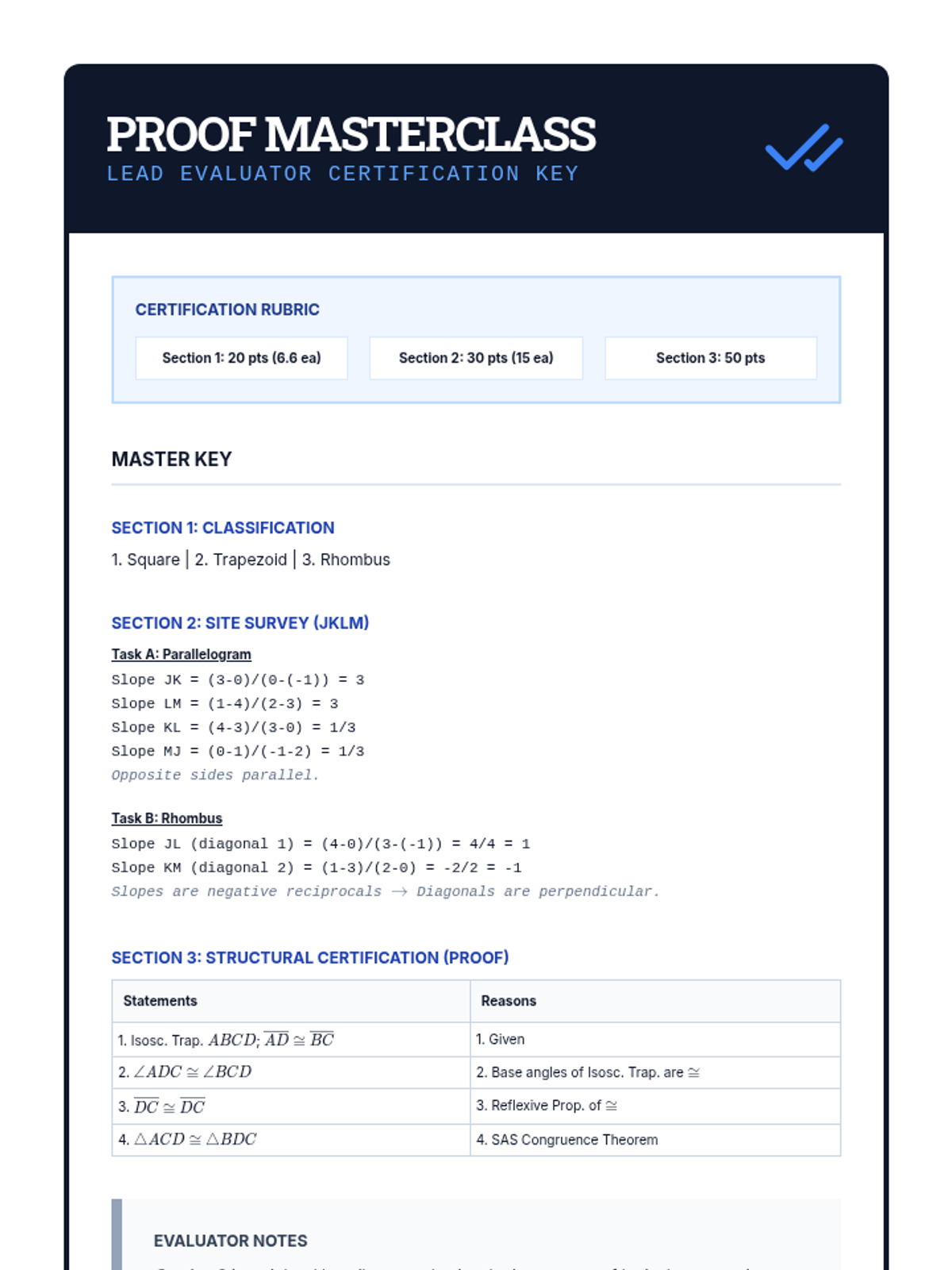

Proof Masterclass Teacher Guide Proof Masterclass
Lead Evaluator Certification Key
Certification Rubric
Section 1: 20 pts (6.6 ea)
Section 2: 30 pts (15 ea)
Section 3: 50 pts
Master Key
Section 1: Classification
1. Square | 2. Trapezoid | 3. Rhombus
Section 2: Site Survey (JKLM)
Task A: Parallelogram
Slope JK = (3-0)/(0-(-1)) = 3
Task B: Rhombus
Slope JL (diagonal 1) = (4-0)/(3-(-1)) = 4/4 = 1
Section 3: Structural Certification (Proof)
<table class="w-full border-collapse border border-slate-300 text-[10px]"><tbody><tr class="bg-slate-50 font-bold"><td class="border border-slate-300 p-2">Statements</td><td class="border border-slate-300 p-2">Reasons</td></tr><tr><td class="border border-slate-300 p-1">1. Isosc. Trap. \(ABCD\); \(\overline{AD} \cong \overline{BC}\)</td><td class="border border-slate-300 p-1">1. Given</td></tr><tr><td class="border border-slate-300 p-1">2. \(\angle ADC \cong \angle BCD\)</td><td class="border border-slate-300 p-1">2. Base angles of Isosc. Trap. are \(\cong\)</td></tr><tr><td class="border border-slate-300 p-1">3. \(\overline{DC} \cong \overline{DC}\)</td><td class="border border-slate-300 p-1">3. Reflexive Prop. of \(\cong\)</td></tr><tr><td class="border border-slate-300 p-1">4. \(\triangle ACD \cong \triangle BDC\)</td><td class="border border-slate-300 p-1">4. SAS Congruence Theorem</td></tr></tbody></table>
Evaluator Notes
Section 3 is weighted heavily to emphasize the importance of logical construction over simple calculation. Partial credit should be awarded for correct given/conclusions even if the internal logic is missing.
Certified for Educational Distribution 2026
